Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
1000G5 (2026)
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.167% | 92.022% |

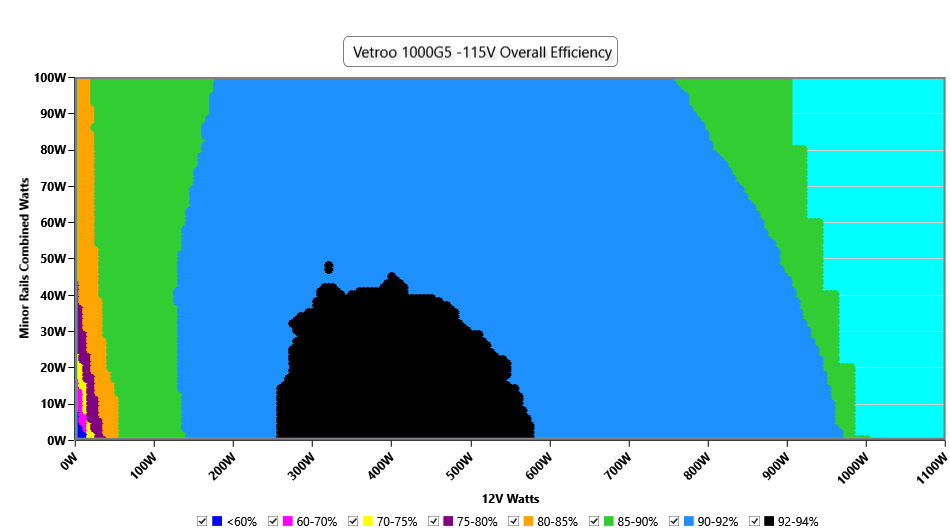

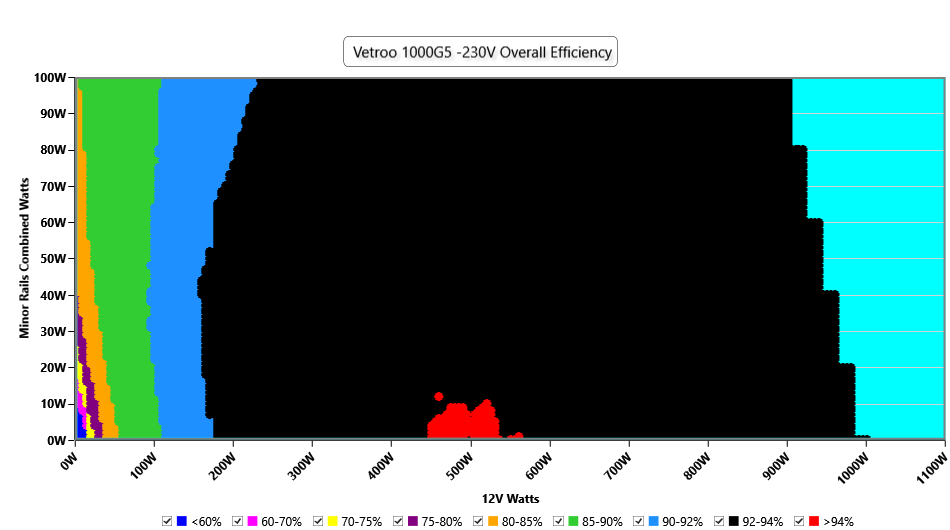

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.987 | 0.954 |
| 12V Step | 10.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0439W | 0.1013W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 78.578% | 77.903% |
| Conducted Emissions EN55032 & CISPR 32 (48W) | Passed | |

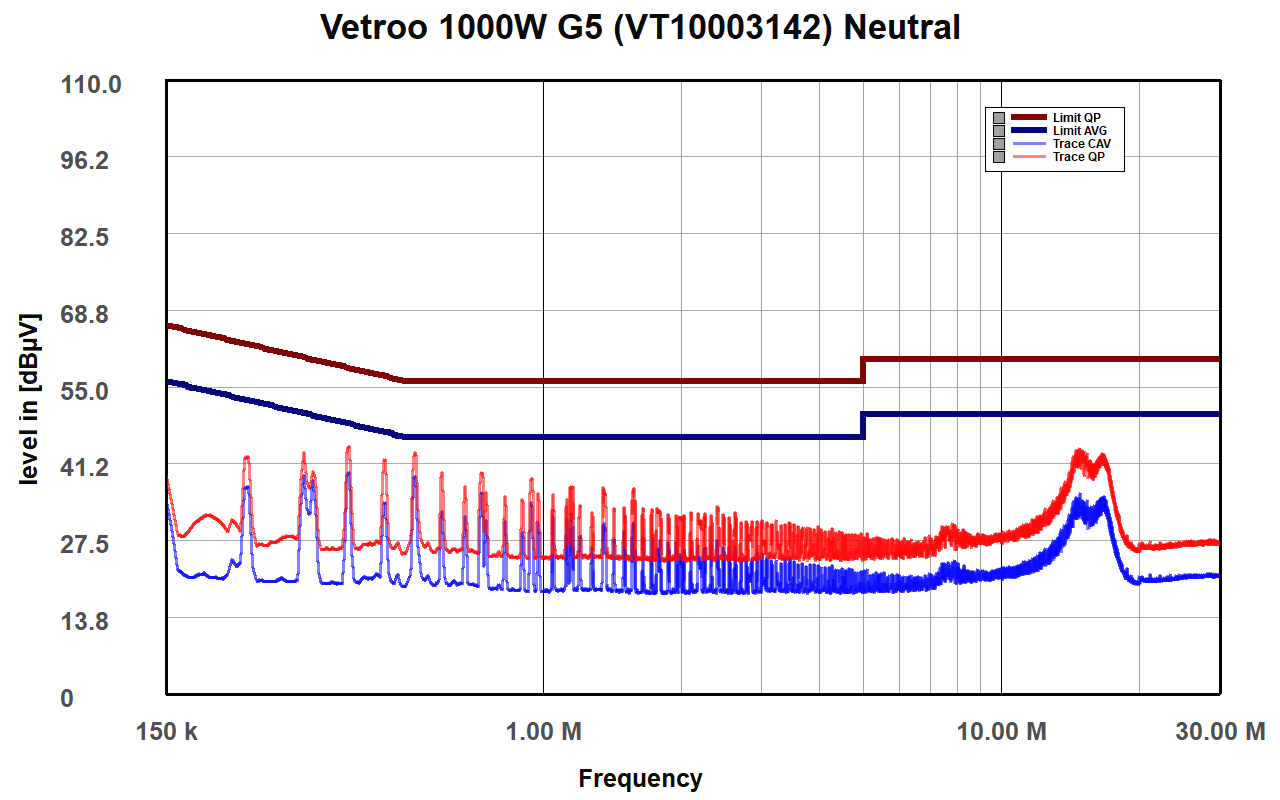

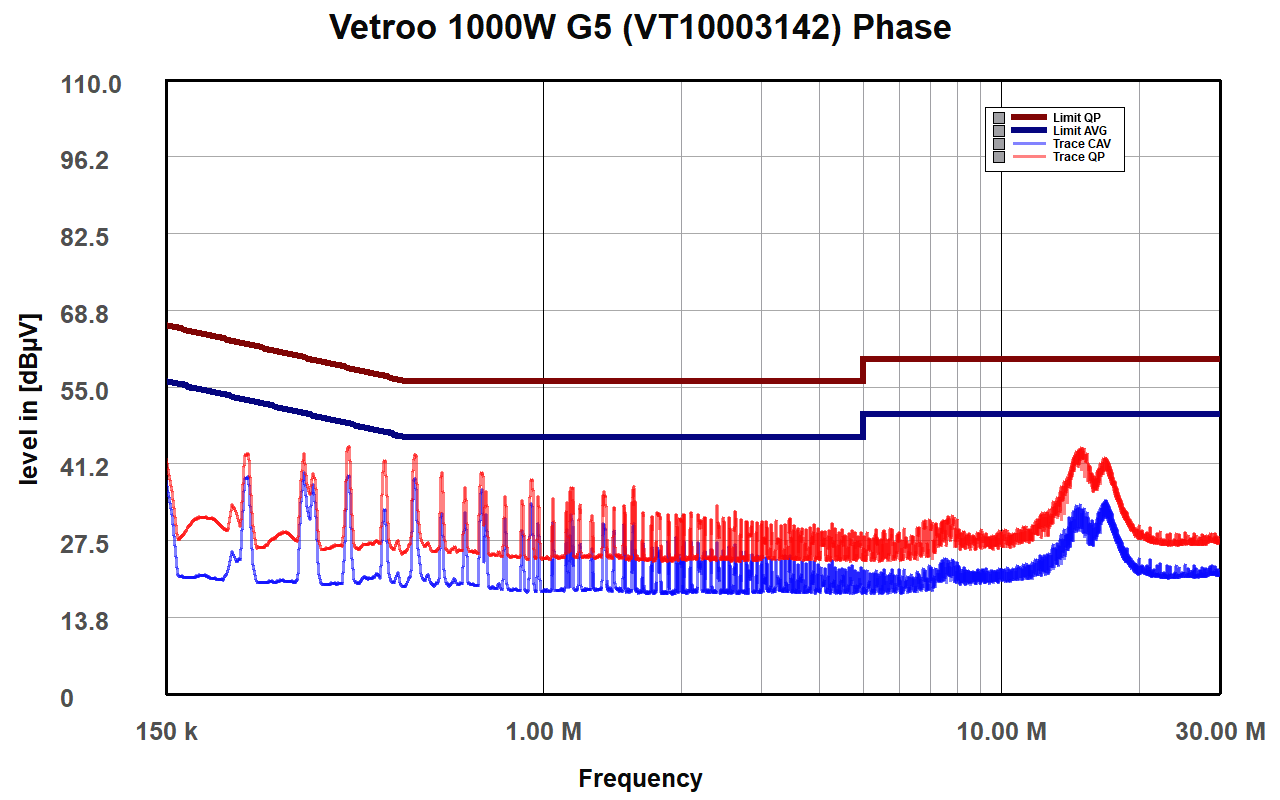

| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 25.17dBA | 23.78dBA |

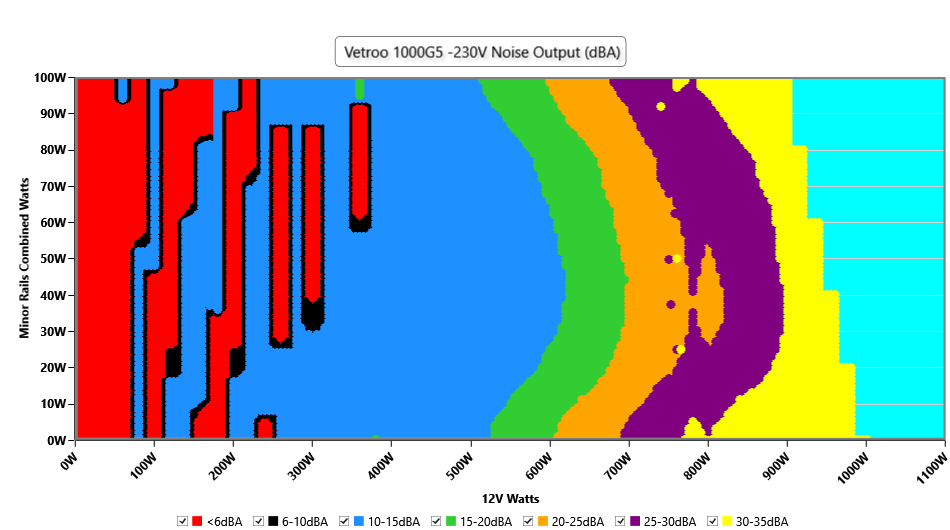

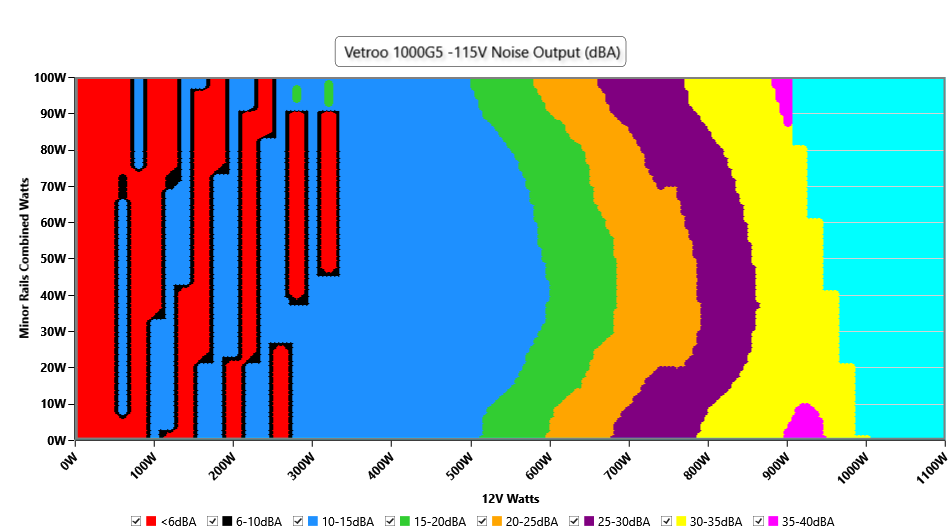

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 68.596% |
| Hold Up Time | 23.50ms |
| Power OK | 20.80ms |
| Power OK to DC Loss | 2.70ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.790 | 4.970 | 3.252 | 5.040 |
| 10ms | 11.552 | 4.943 | 3.225 | 5.010 |
| 1ms | 11.445 | 4.929 | 3.206 | 4.997 |
| 0.1ms | 11.338 | 4.918 | 3.188 | 4.982 |
| Product Identification Details | |
| Brand | Vetroo |
| Model | 1000G5 (2026) |
| OEM | Jiumeng |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-12 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.46kg (3.24 lb) |
| Cooling | 120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z) |
| Semi-Passive Operation | ✓ (selectable) |
| Cybenetics Testing Information | |
| Lab ID | VT10003142 |
| Date of receipt | Jan 16, 2026 |
| Testing Date | Feb 19, 2026 |
| Report Issued Date | Mar 2, 2026 |
| Engineer Name | Georgios Theodoros Sarimpalas |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (500mm+150mm) | 2 | 4 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (500mm) | 2 | 2 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-26AWG | Tinned Copper |
| SATA (450mm+145mm+145mm+145mm) | 2 | 8 | 18AWG | Tinned Copper |
| 4-pin Molex (450mm+150mm+150mm) | 2 | 6 | 18AWG | Tinned Copper |
| FDD Adapter (+125mm) | 1 | 1 | 18AWG | Tinned Copper |
| AC Power Cord (1370mm) - C13 coupler | 1 | 1 | 18AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | General Data |
| Manufacturer (OEM) | Jiumeng |
| PCB Type | Double-Sided |
| Primary Side | Primary Side |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72-5D15 (5 Ohm @ 20°C) & Relay |
| Bridge Rectifier(s) | 2x GBU2506 (600V, 25A @ 100°C) |
| APFC MOSFETs | 2x Wayon WMJ53N65F2 (650V, 26A @ 100°C, Rds(on): 0.062Ohm) |
| APFC Boost Diode | 1x Sanan Semiconductor SDS065J010C3 (650V, 10A @ 155°C) |
| Bulk Cap(s) | 2x Rubycon (420V, 470uF, 2000h @ 105°C, MXE) |
| Main Switchers | 2x Wayon WMJ53N65F2 (650V, 26A @ 100°C, Rds(on): 0.062Ohm) |
| APFC Controller | Champion CM6500UNX |
| Resonant Controller | Champion CM6901X |
| IC Driver | Novosense NSI6602 |
| Topology | Primary side: APFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | Secondary Side |
| +12V MOSFETs | 6x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 0.93mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Nexperia PSMN2R4-30YLD (30V, 100A @ 100°C, Rds(on): 2mOhm) PWM Controller(s): ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Grenergy GR8313 (OCP, OVP, UVP, SCP, PG) |
| Fan Controller | Anpec APW9010 |
| Fan Model | Hong Hua HA1225M12F-Z (120mm, DC12V, 0.45A) Fluid Dynamic Bearing Fan |
| 5VSB Circuit | 5VSB Circuit |
| Rectifier | 1x SB1045L (45V, 10A) |
| Standby PWM Controller | Chipown PN8141 |
| Photos |  |  |

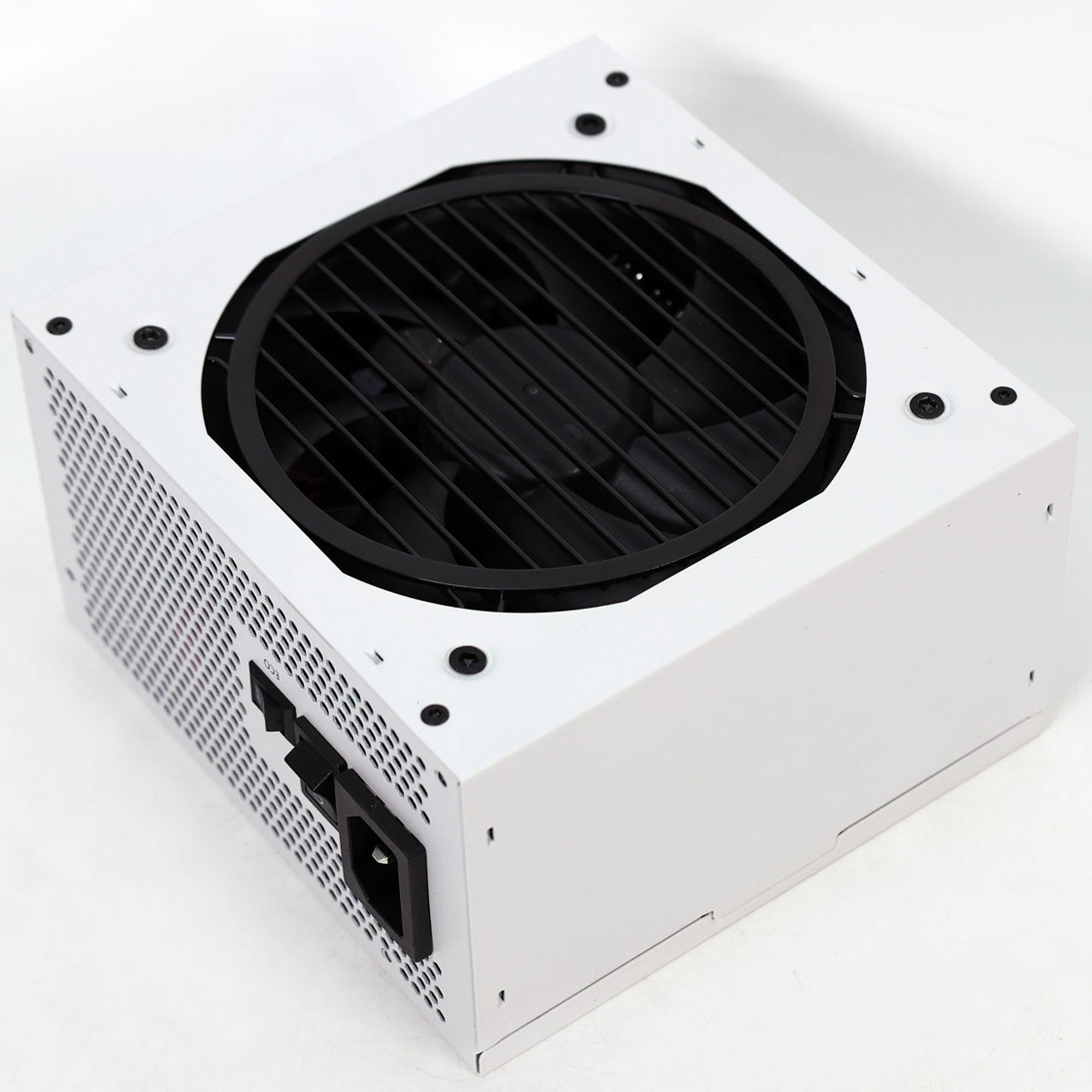

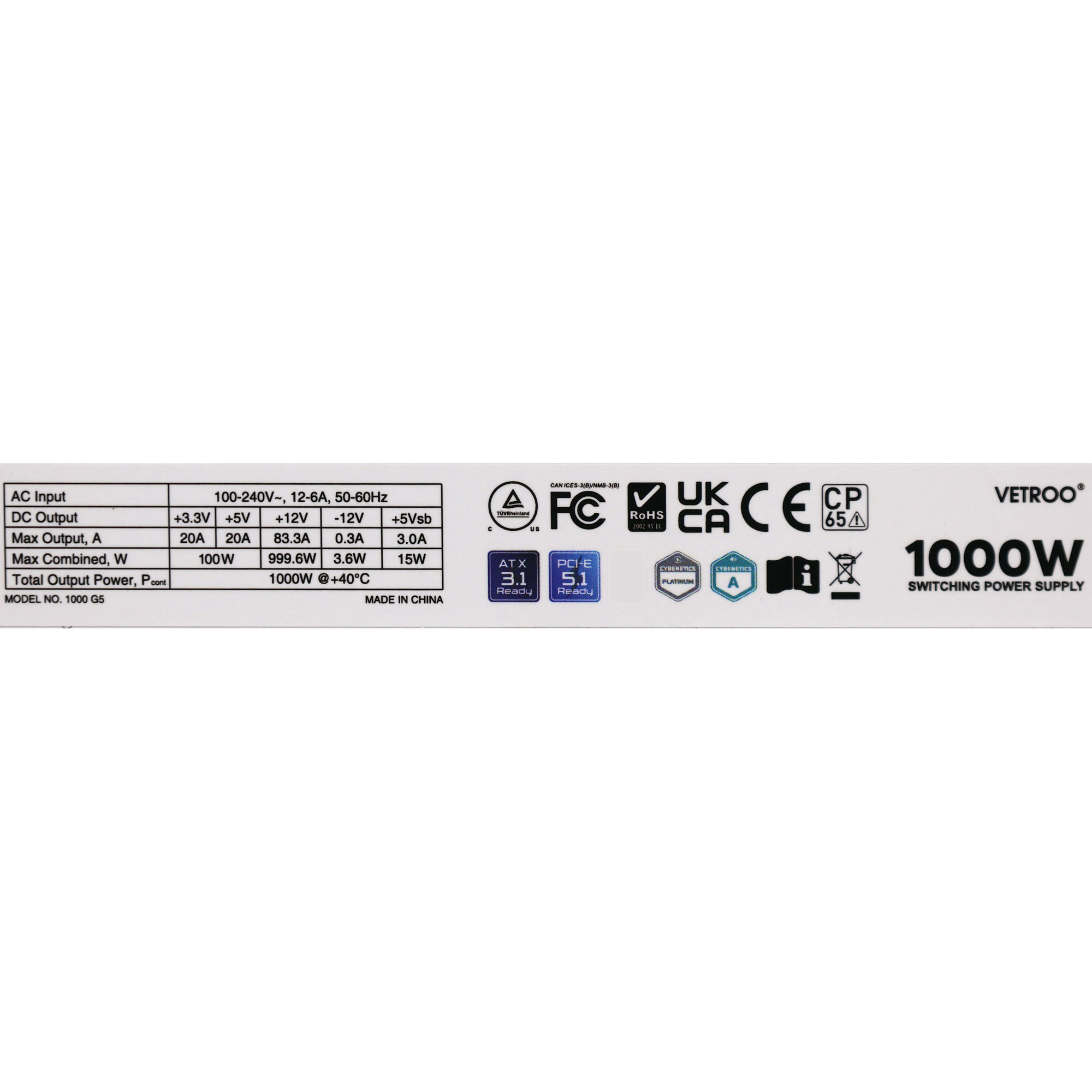

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
