GP-UD1600PM PG5
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.416% | 92.108% |

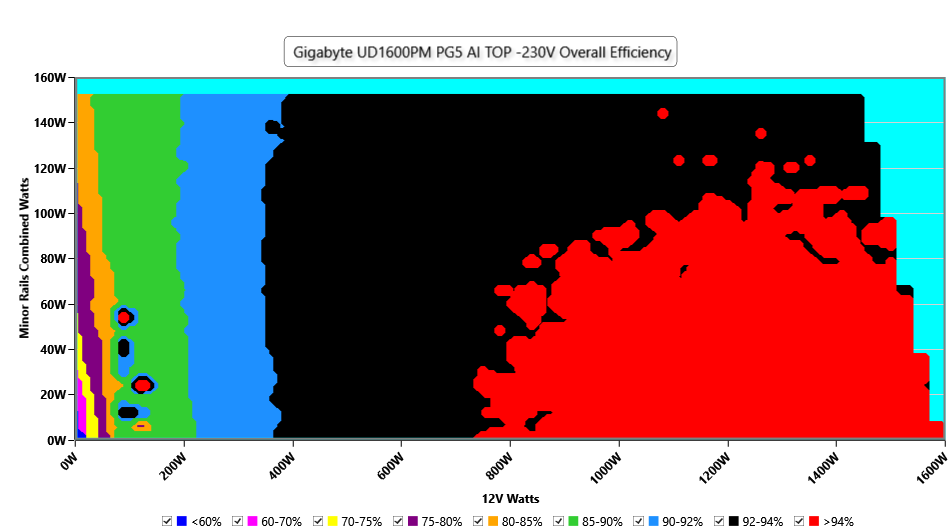

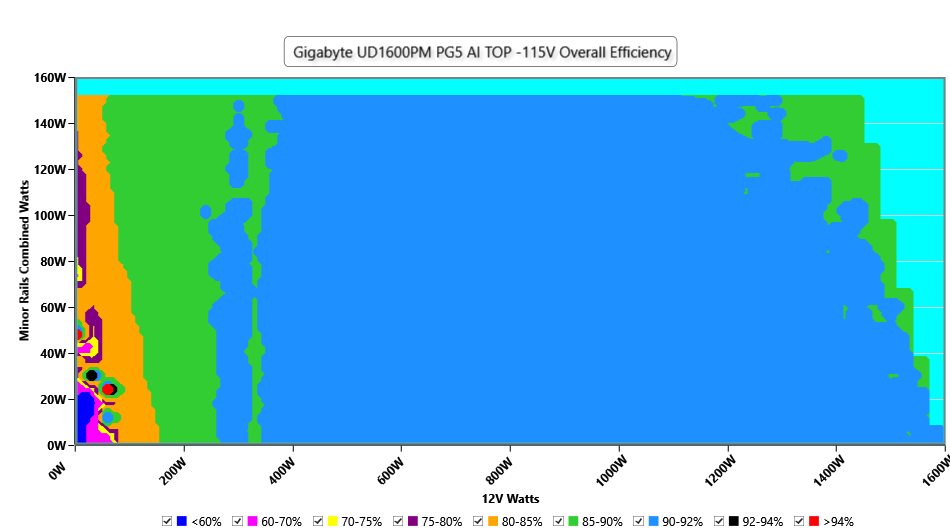

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.983 | 0.920 |
| 12V Step | 15.00W | |
| 5V/3.3V Step | 3.00W | |
| Standby Power Consumption | 0.0270W | 0.1363W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 79.967% | 79.083% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 38.54dBA | 38.32dBA |

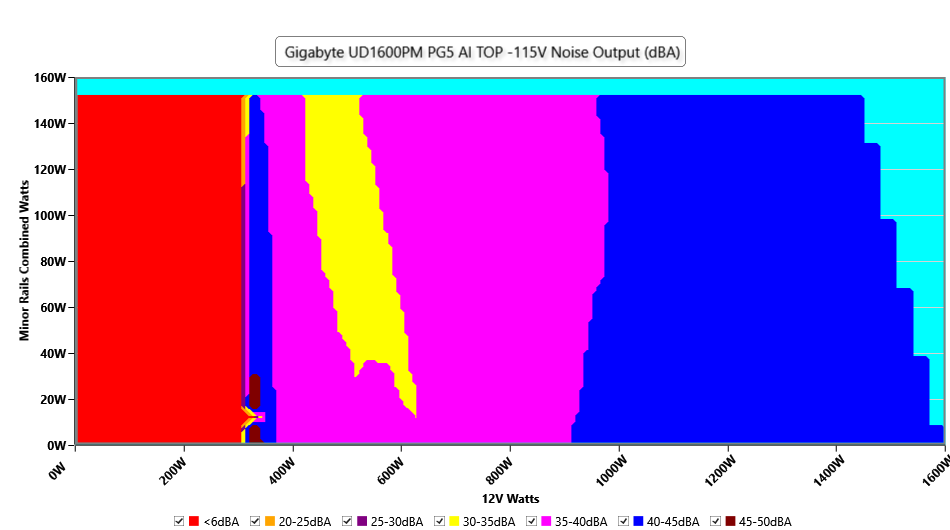

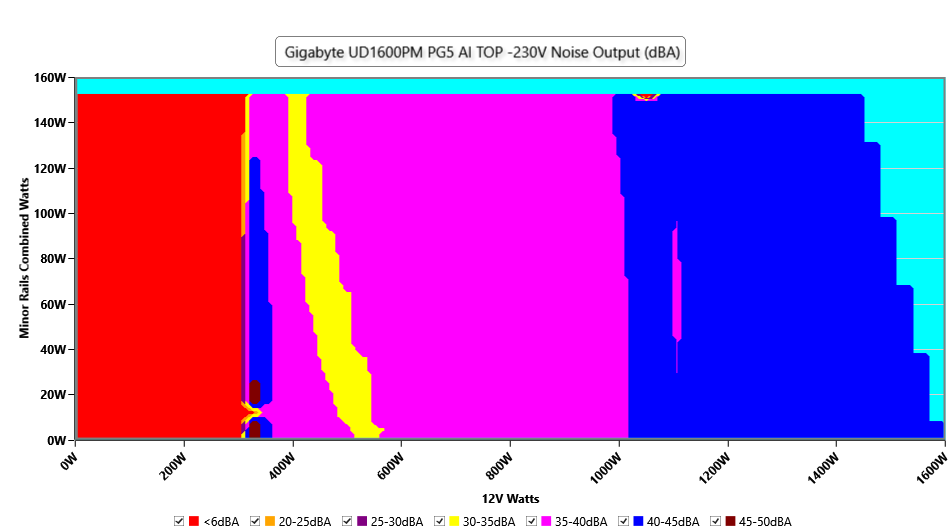

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 67.480% |
| Hold Up Time | 28.50ms |
| Power OK | 32.50ms |
| Power OK to DC Loss | -4.00ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.853 | 4.969 | 3.263 | 4.983 |
| 10ms | 11.559 | 4.934 | 3.214 | 4.964 |
| 1ms | 11.433 | 4.920 | 3.198 | 4.957 |
| 0.1ms | 11.379 | 4.914 | 3.193 | 4.953 |
| Product Identification Details | |
| Brand | Gigabyte |
| Model | GP-UD1600PM PG5 |
| OEM | Guangzhou Pansheng Electronic Technology Co., Ltd |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7.5-15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1600 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 190mm |
| Weight | 2.48 kg (5.47 lb) |
| Cooling | 140mm Dual Ball Bearing Fan (PLA14025B12H) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | GB16003305 |
| Date of receipt | May 6, 2026 |
| Testing Date | May 29, 2026 |
| Report Issued Date | Jun 16, 2026 |
| DUT Notes | The Power OK signal is inaccurate. |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 16-22AWG | Tinned Copper |
| 4+4 pin EPS12V (650mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (650mm+150mm) | 4 | 8 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (650mm) | 2 | 2 | 16AWG | Tinned Copper |
| 2x 8 pin PCIe (700mm) | 4 | 4 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (700mm) (600W) | 2 | 2 | 16-28AWG | Tinned Copper |
| SATA (650mm+150mm+150mm+150mm) | 2 | 8 | 18AWG | Tinned Copper |
| 4-pin Molex (600mm+150mm+150mm) / FDD (+150mm) | 2 | 6 / 2 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Guangzhou Pansheng Electronic Technology Co., Ltd |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 8x Y caps, 5x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72-15D25 (15 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Willas RS2505M (600V, 25A @ 100°C) |
| APFC MOSFETs | 2x CR Micro CRJQ80N65F (650V, 29A @ 100°C, Rds(on): 0.90Ohm) |
| APFC Boost Diode | 2x CR Micro CRXI12D065G2 (650V, 12A @ 163°C) |
| Bulk Cap(s) | 2x Nippon Chemi-con (420V, 880µF, 2000h @ 105°C, KHE ) 1x Nippon Chemi-con (450V, 390µF, 2000h @ 105°C, KMZ ) |
| Main Switchers | 4x Great Power GP47S60YERD (600V, 47A @ 100°C, Rds(on): 0.81Ohm) |
APFC Controller | Champion CU6510VC |
| Resonant Controller | Champion CU6901VACC |
| IC Driver | 2x Skyworks Si8233BD |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 16x |
| 5V & 3.3V | DC-DC Converters: 8x Alpha and Omega Semiconductor PWM Controller(s): 2x ON Semi NCP5230 |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Weltrend WT7502R |
| Fan Model | Power Logic PLA14025B12H (140mm, 12V, 0.50A, Dual Ball Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | 2x PANJIT SVM1045V2B (45V, 10A) |
| Standby PWM Controller | Chipown PN8160 |

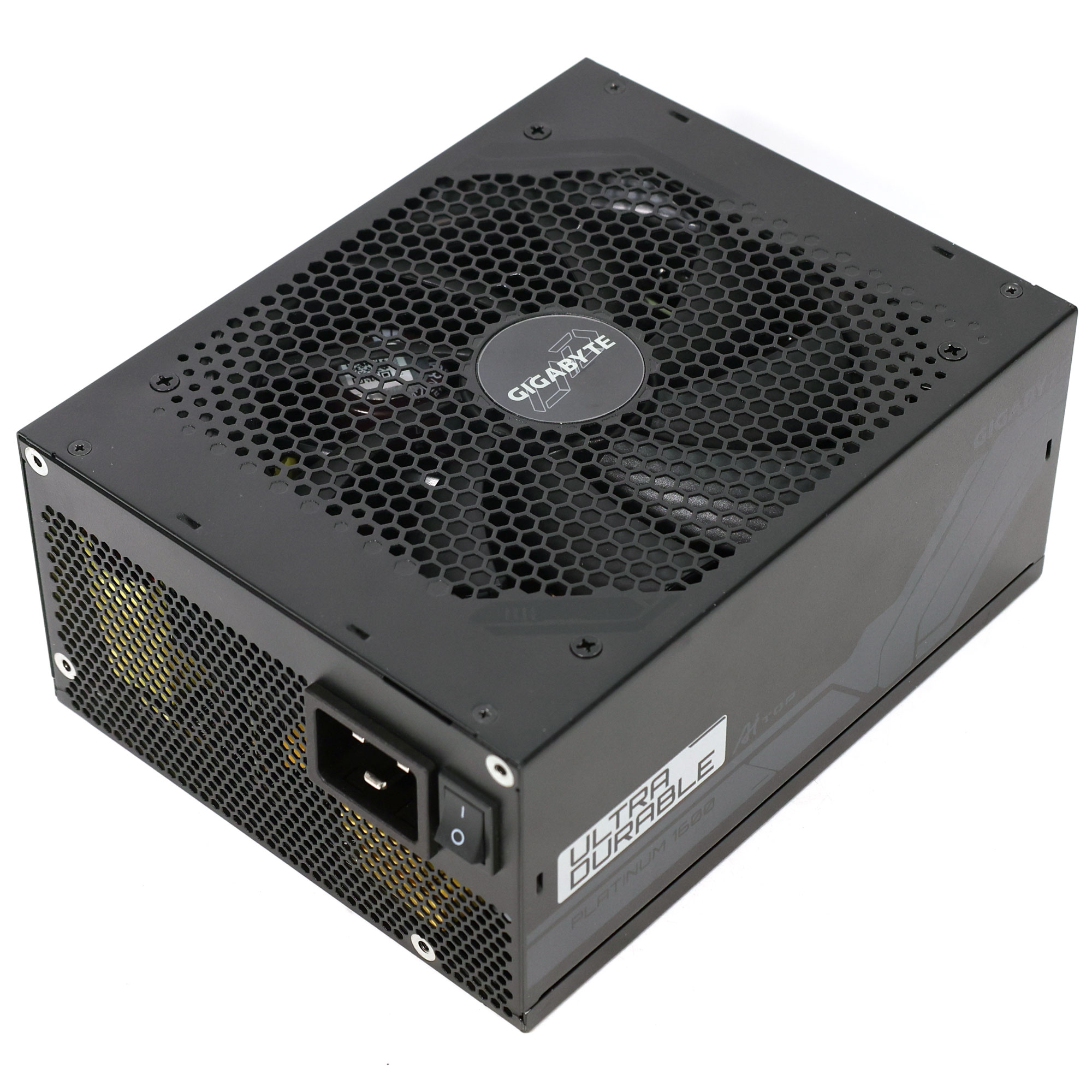

| Photos |  |  |

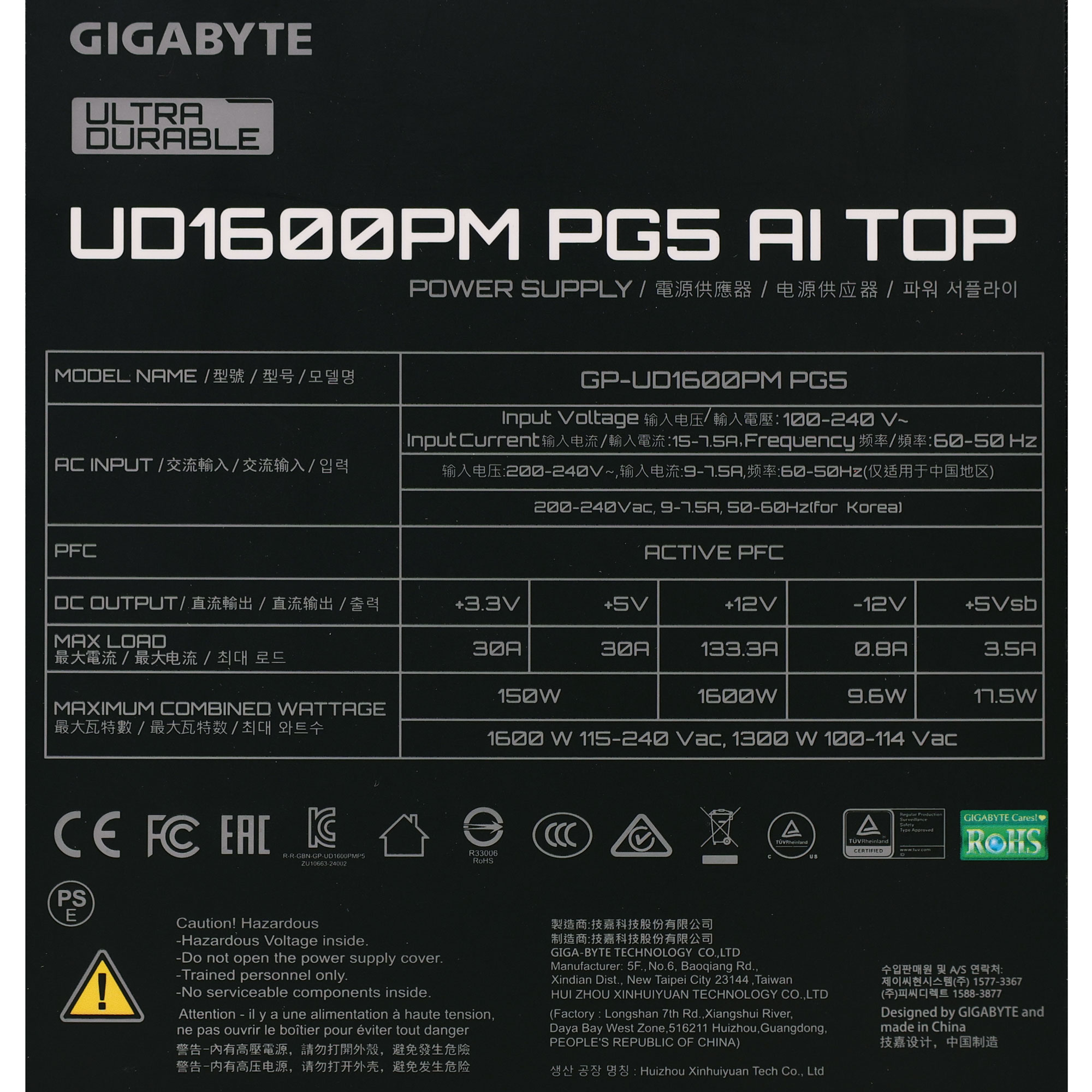

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
