Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
SUSTAIN650
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 87.944% | 89.855% |

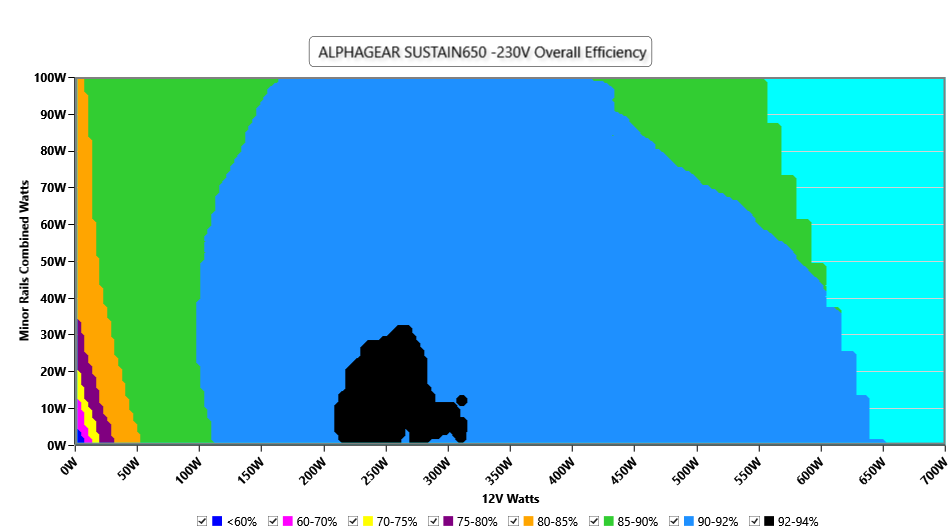

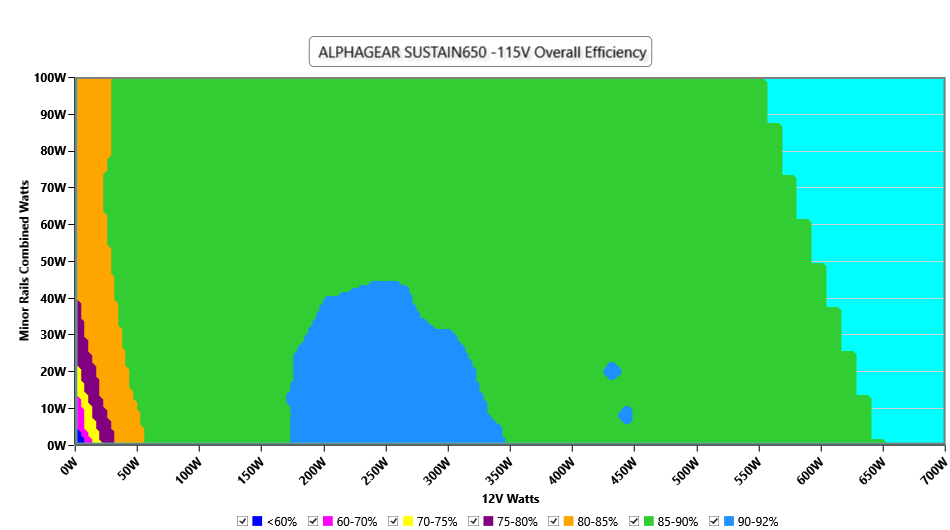

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.987 | 0.939 |
| 12V Step | 6.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0634W | 0.1401W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 78.503% | 76.692% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 42.03dBA | 42.11dBA |

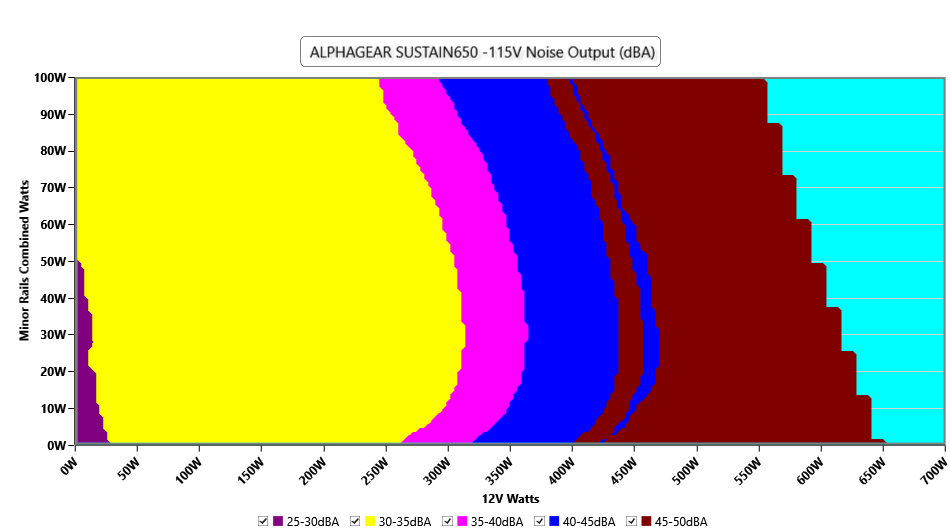

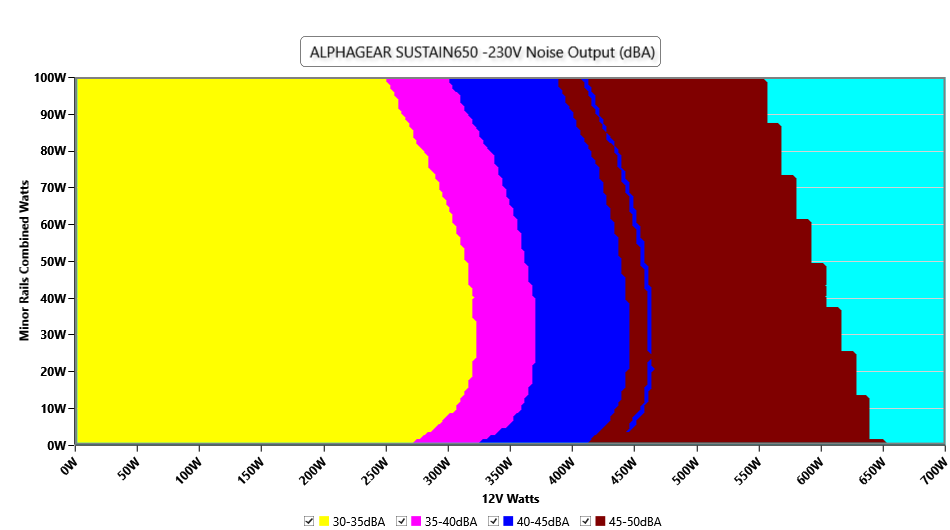

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 63.685% |
| Hold Up Time | 19.80ms |
| Power OK | 17.70ms |
| Power OK to DC Loss | 2.10ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 12.045 | 4.995 | 3.258 | 5.044 |
| 10ms | 11.864 | 4.988 | 3.242 | 5.033 |
| 1ms | 11.789 | 4.981 | 3.232 | 5.026 |
| 0.1ms | 11.338 | 4.970 | 3.181 | 5.027 |
| Product Identification Details | |
| Brand | ALPHAGEAR |
| Model | SUSTAIN650 |
| OEM | RSY |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 650 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fixed cables |
| Warranty | 5 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.71 kg (3.77 lb) |
| Cooling | 120mm Fluid Dynamic Bearing Fan (S1202512M) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | AH65003318 |
| Date of receipt | May 11, 2026 |
| Testing Date | Jun 24, 2026 |
| Report Issued Date | Jun 27, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Captive Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (570mm) | 1 | 1 | 18-20AWG | Tinned Copper |
| 4+4 pin EPS12V (600+150mmmm) | 2 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (550mm+150mm) | 3 | 3 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (450W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (560mm+105mm+105mm) / 4-pin Molex (+105mm) | 2 | 6 / 2 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | RSY |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps,2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor 2.5D-13 (2.5 Ohm @ 25°C) |
| Bridge Rectifier | HYGroup GBU1506 (600V, 15A @ 100°C) |
| APFC MOSFETs | 2x Convert CS25N50FF (500V, 25A @ 25°C, Rds(on): 0.24Ohm) |
| APFC Boost Diode | Diodes LTTH806RFW (600V, 8A @ 25°C) |
| Bulk Cap(s) | Teapo (420V,270uF, 2000h @ 105°C, DG ) |
| Main Switchers | 4x Shenzhen SI Semiconductors SIF13N50C (500V, 8A @ 100°C, Rds(on): 0.55Ohm) |
APFC Controller | Texas Instruments UCC28180DR |
| Resonant Controller | Texas Instruments UCC25600DR |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter |
| Secondary Side | |
| +12V MOSFETs | 4x Maplesemi SLP130N04T (40V, 84A @ 100°C, Rds(on): 3.0mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm) |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | INFSitronix IN1S313I-SAG (OVP, UVP,PG) |
| Fan Power Switch | S8550-Y2 Transistor |
| Fan Model | Globe Fan S1202512M (120mm, 12V, 0.3A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Diodes MBR1060CT (60V, 10A) |
| Standby PWM Controller | Safety-Chip SC2583 |

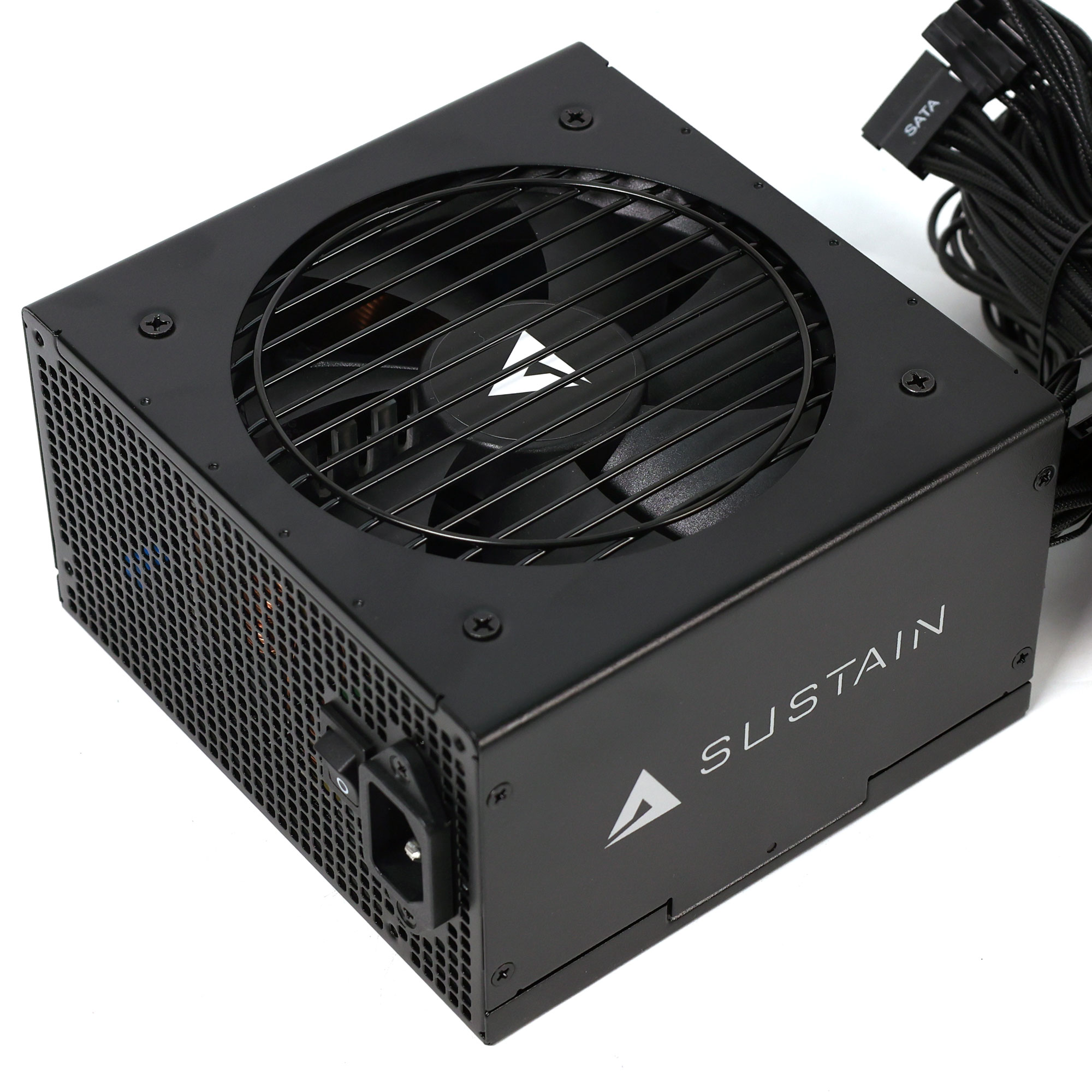

| Photos |  |  |

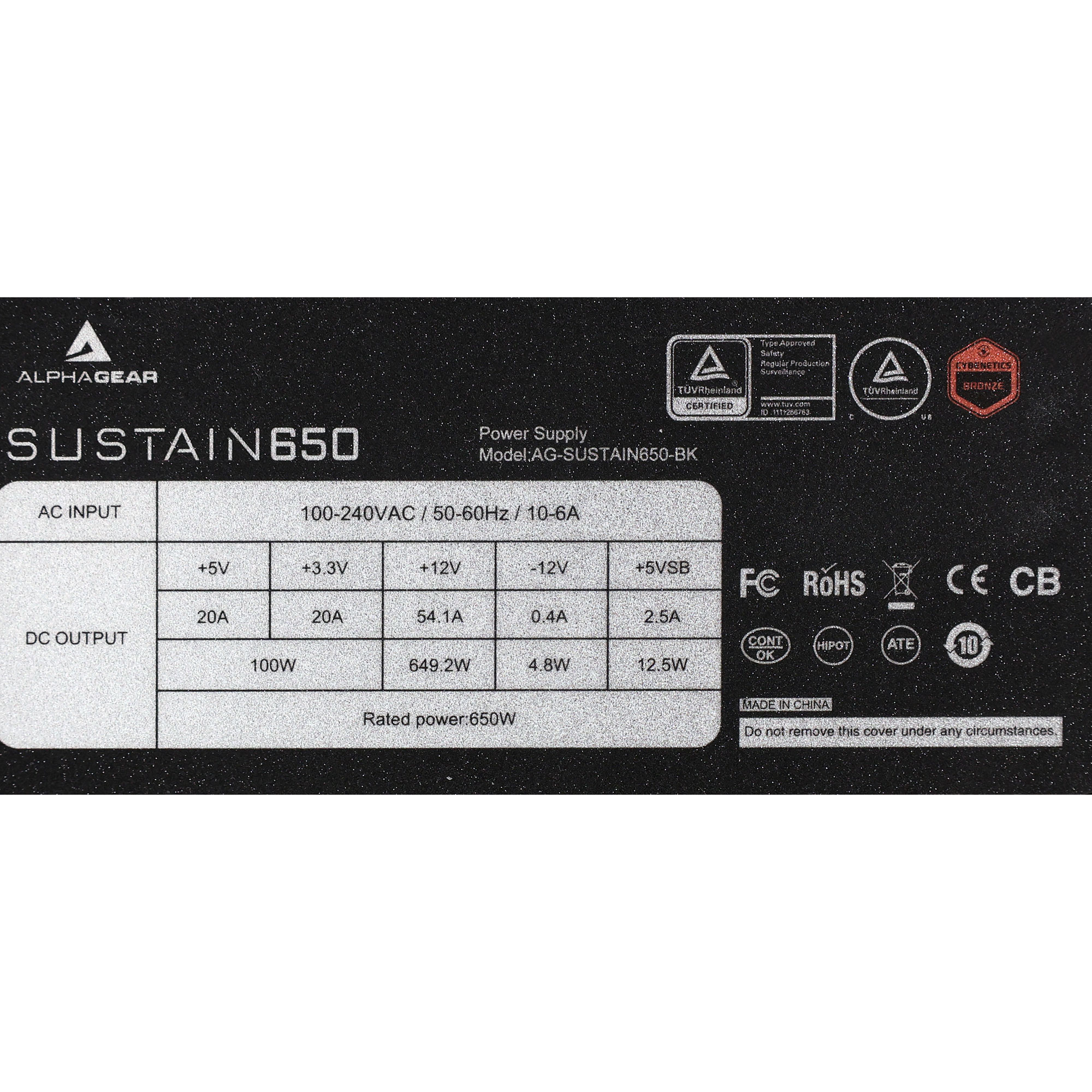

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
