PLPC1300T
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 92.304% | 94.136% |

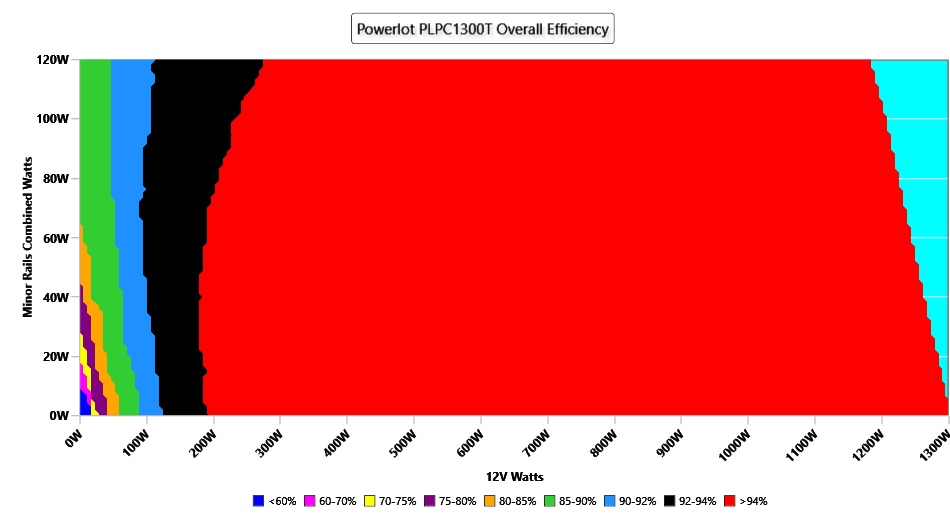

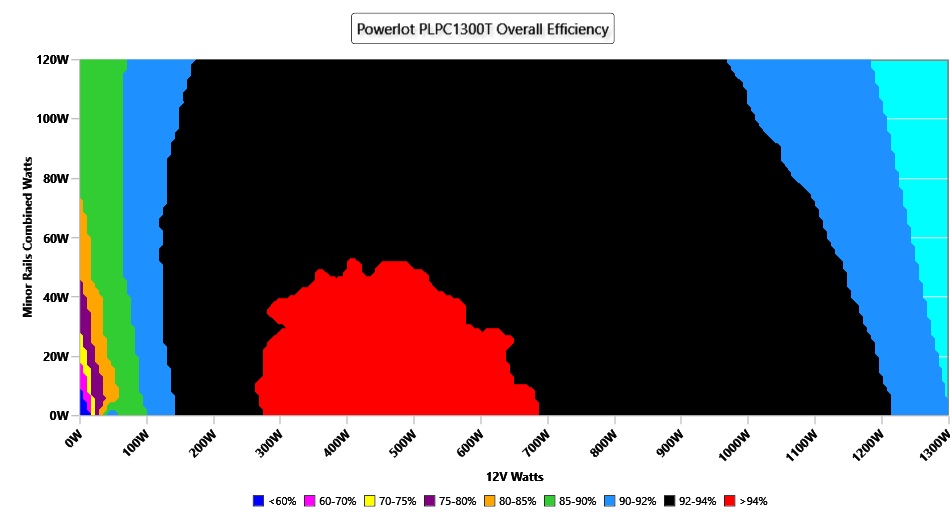

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.989 | 0.967 |
| 12V Step | 12.00W | |
| 5V/3.3V Step | 2.50W | |
| Standby Power Consumption | 0.0490W | 0.1190W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 82.741% | 79.777% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |

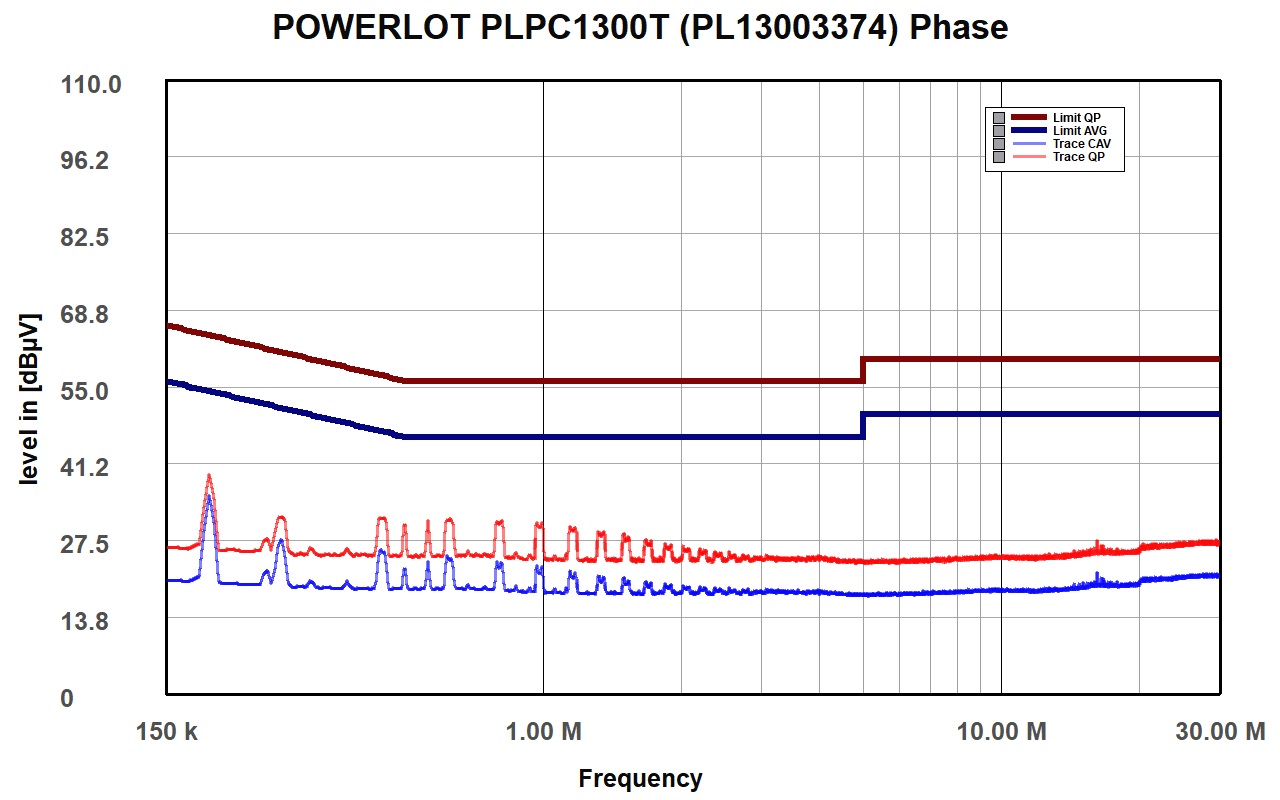

| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 22.11dBA | 22.47dBA |

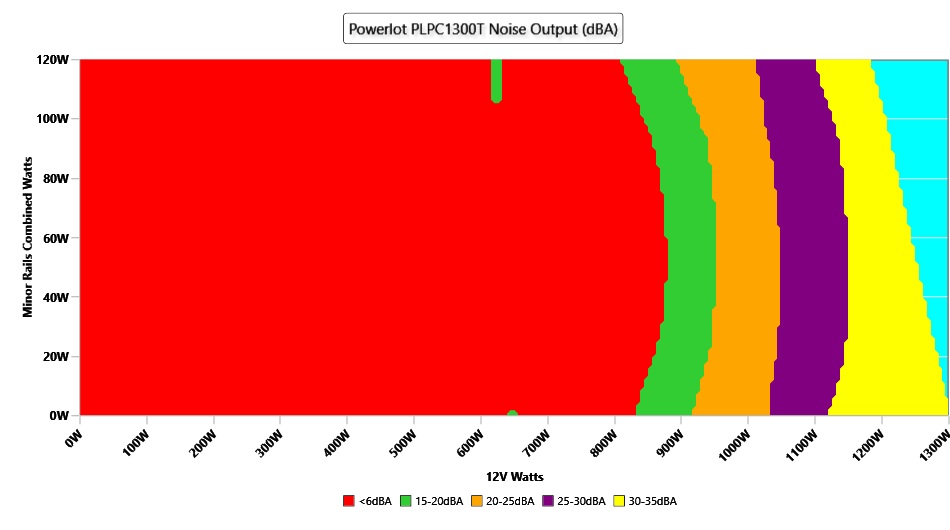

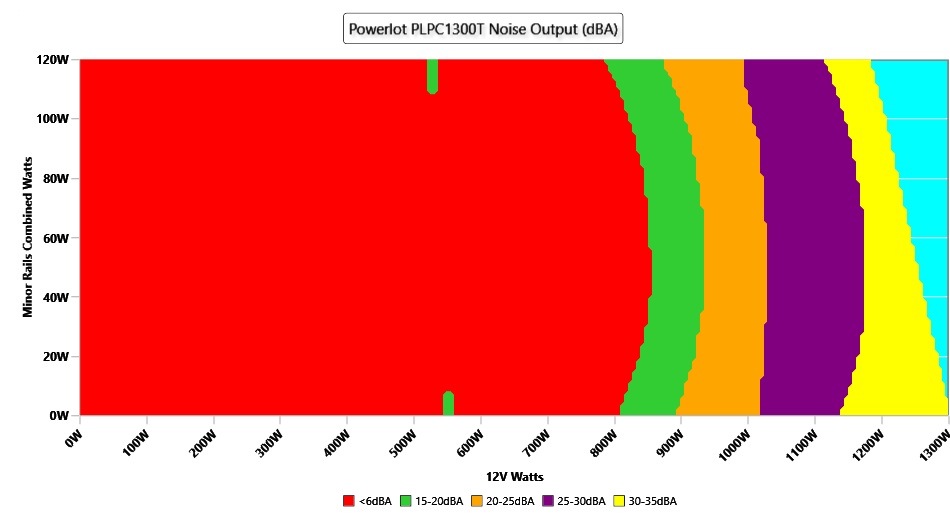

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 71.732% |
| Hold Up Time | 18.70ms |
| Power OK | 15.30ms |
| Power OK to DC Loss | 3.40ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 12.032 | 5.014 | 3.299 | 5.033 |
| 10ms | 11.713 | 4.990 | 3.253 | 5.005 |
| 1ms | 11.594 | 4.978 | 3.230 | 5.003 |
| 0.1ms | 11.515 | 4.974 | 3.223 | 4.996 |
| Product Identification Details | |
| Brand | POWERLOT |
| Model | PLPC1300T |
| OEM/ODM | CE-Link |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7.5-15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1300 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 12 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 86 x 165mm |
| Weight | 2.46 kg (5.42 lb) |
| Cooling | 140mm Fluid Dynamic Bearing Fan (HA1425M12F-Z) |
| Semi-Passive Operation | ✓ (selectable) |
| Cybenetics Testing Information | |
| Lab ID | PL13003374 |
| Date of receipt | Jul 10, 2026 |
| Testing Date | Jul 28, 2026 |
| Report Issued Date | Jul 30, 2026 |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 24 pin (600mm) | 1 | 1 | 16-22AWG | Tinned Copper |
| 4+4 pin EPS12V (750mm) | 1 | 1 | 16AWG | Tinned Copper |
| 8 pin EPS12V (750mm) | 1 | 1 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (600mm) | 6 | 6 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 2 | 2 | 16-28AWG | Tinned Copper |
| SATA (600mm+150mm+150mm+150mm) | 4 | 16 | 18AWG | Tinned Copper |
| 4-pin Molex (600mm+150mm+150mm+150mm) | 2 | 8 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | CE-Link |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 3x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72-5D15 (5 Ohm @ 25°C) & Relay |
| Rectifier (Standby Mode) | 8x Nexperia GS10M (1000V, 10A） |
| APFC MOSFETs | 4x C80R095X |
| APFC Boost Diode | 2x Global Power G4S06515AT (650V, 15A @ 143°C) |
| Bulk Cap(s) | 2x Nichicon (400V, 680uF , 2000h @ 105°C, GG) |
| Main Switchers | 4x Reactor Microelectronics RMC60R090FD (600V,40A @ 25°C, Rds(on): 0.090Ohm ) |
APFC Controller | Champion CM6500UNX & |
| Resonant Controller | Champion CU6901T6X |
| IC Driver | 2x Novosense NSi6602BD |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Infineon BSC014N04LS (40V, 100A @ 100°C, Rds(on): 1.4mOhm) |
| 5V & 3.3V | DC-DC Converters: 5x Vergiga VS3610GPMT (30V, 72A @ 100°C, Rds(on): 3.3mOhm) + 1x Vergiga VSP007N04MS -G (40V, 50A @ 100°C, Rds(on): 4.3mOhm) PWM Controller(s): 1x Anpec APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Grenergy GR8329E |
| Fan Model | Honghua HA1425M12F-Z(140mm, 12V, 0.36A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | On-Bright OB2013B |
| Standby PWM Controller | Sanken Electric STR-A6069HZ |
| Photos |  |  |

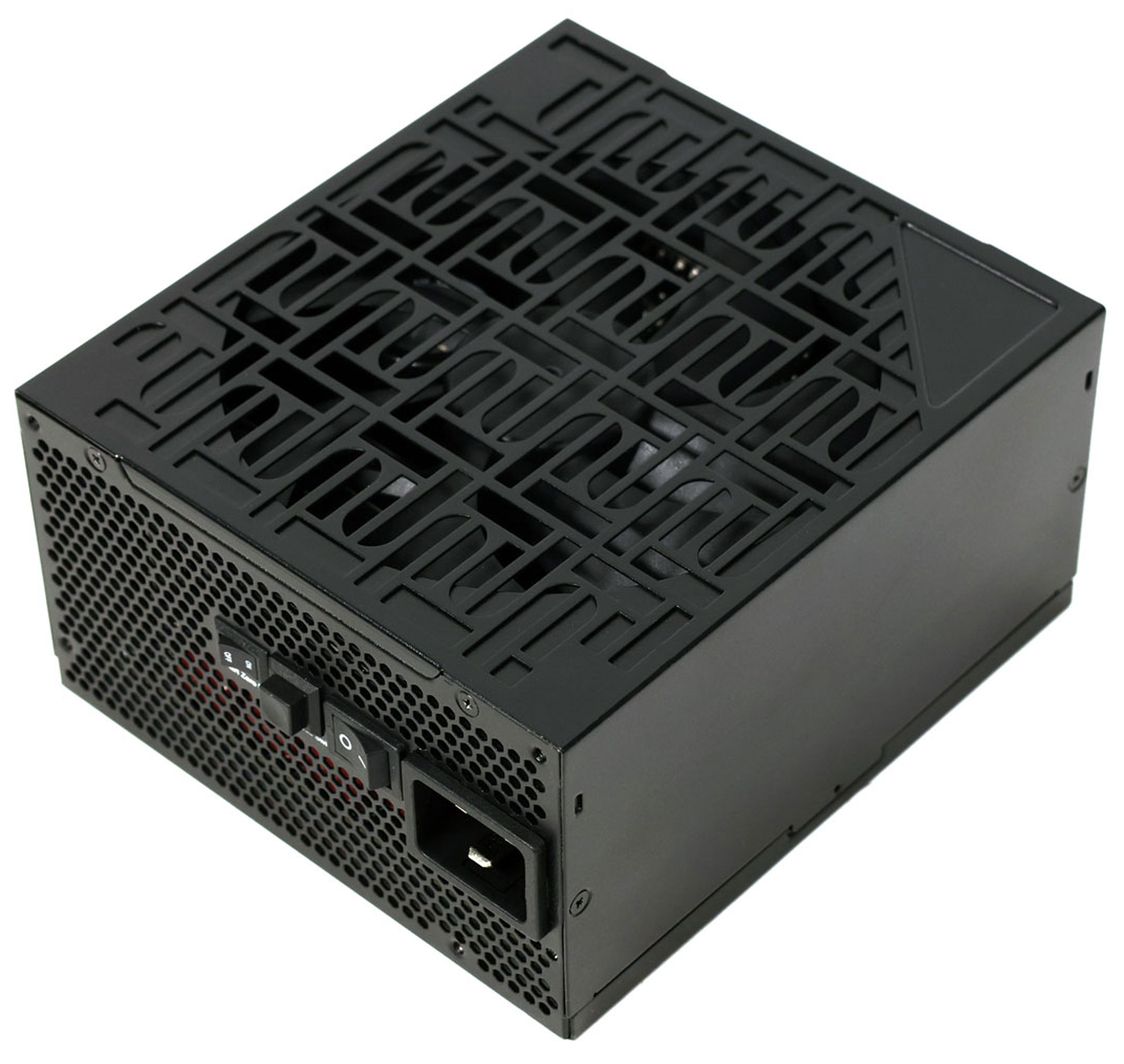

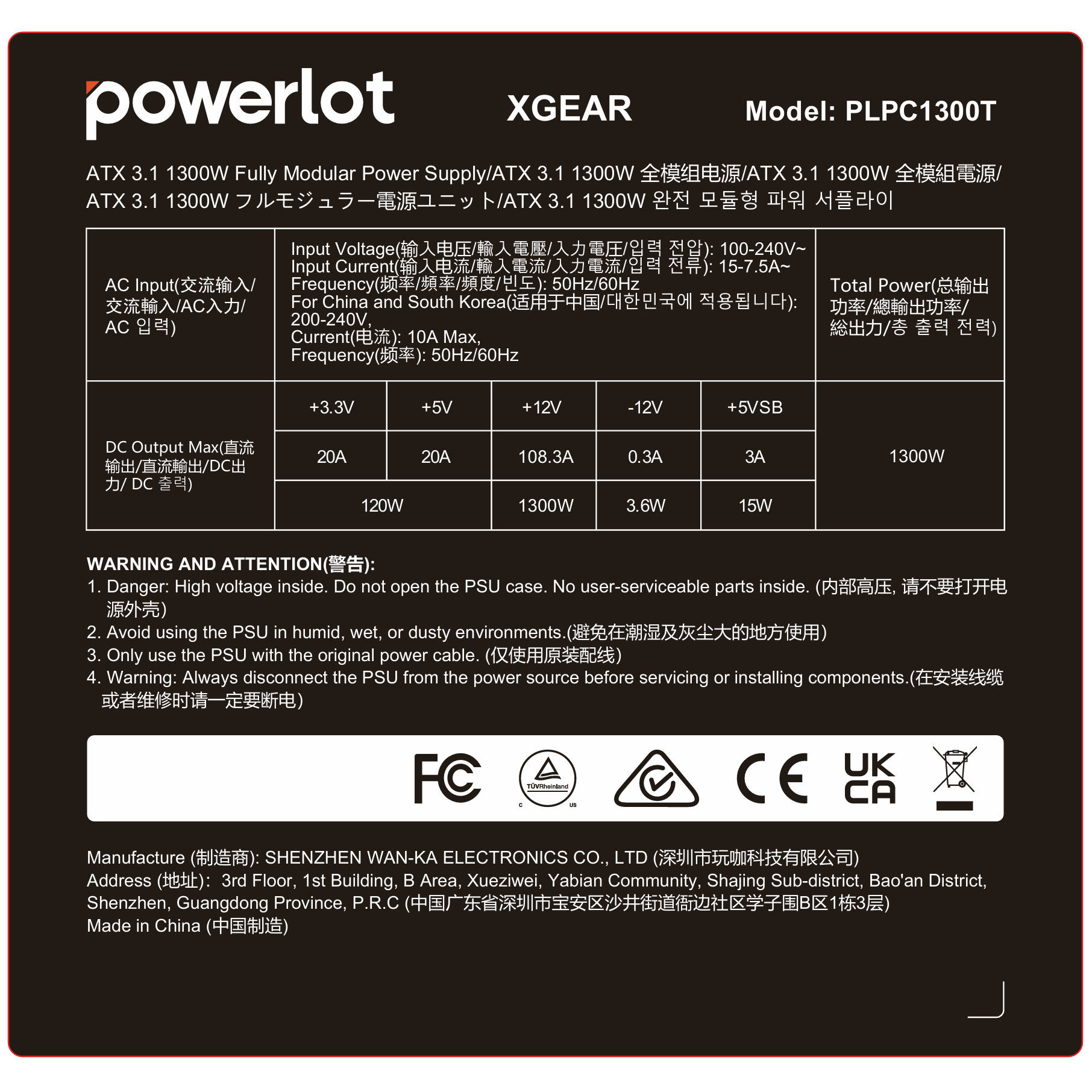

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
