Customer: OMEN

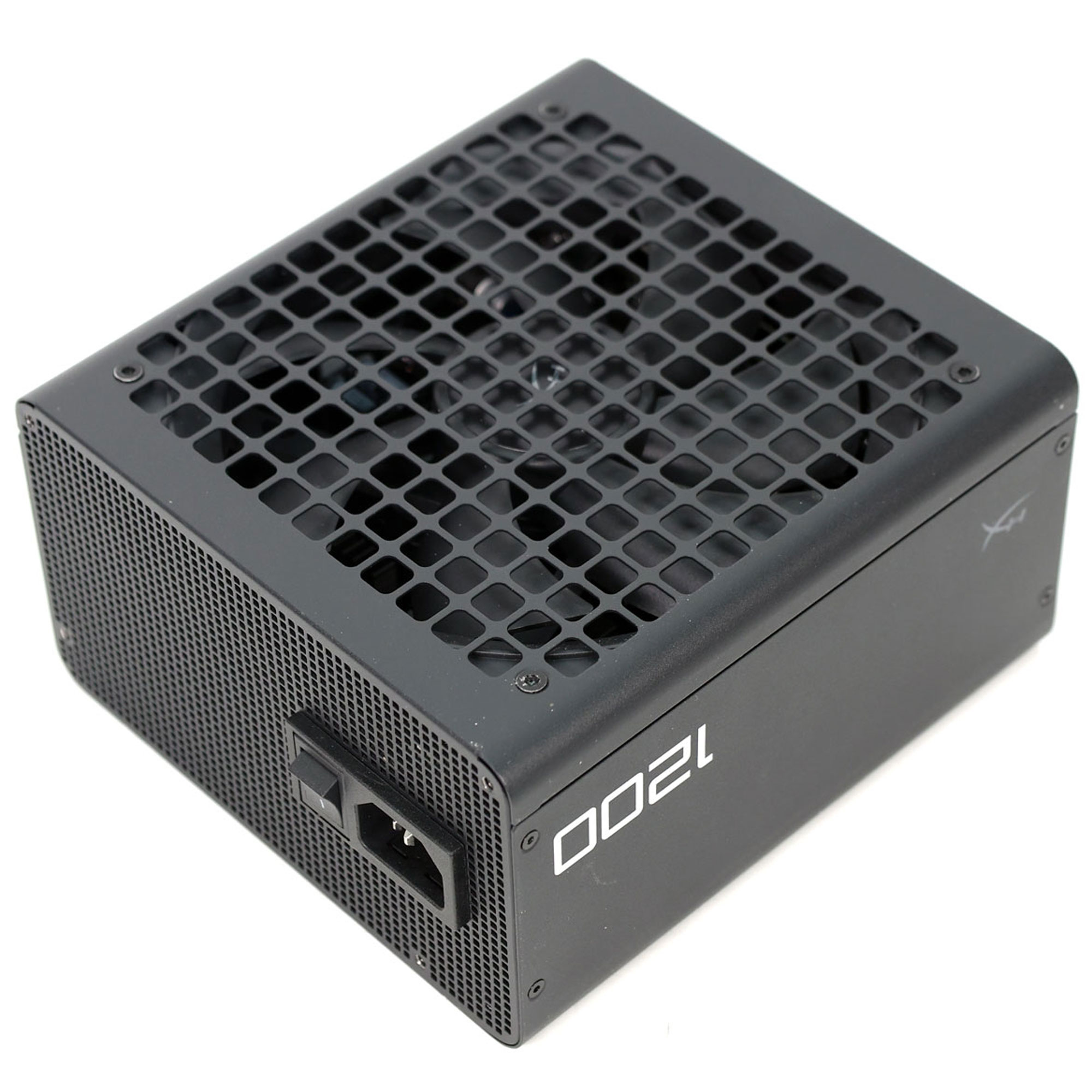

PS-4122-2 (1200W)
| Electronic Loads |
Chroma 63601-5 x2 |
|
| AC Sources | Chroma 6530, APM SP300VAC4000W-P | |
| Power Analyzers | RS HMC8015 | |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS | |
| Sound Analyzer | Bruel & Kjaer 2270 G4 | |
| Microphone | Bruel & Kjaer Type 4955-A | |
| Temperature Logger | Picoscope TC-08 | |
| Tachometer | UNI-T UT372 | |
| Multimeters | Keysight 34465A | |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA | |
| Isolation Transformer | 4kVA | Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.489% | 91.683% |

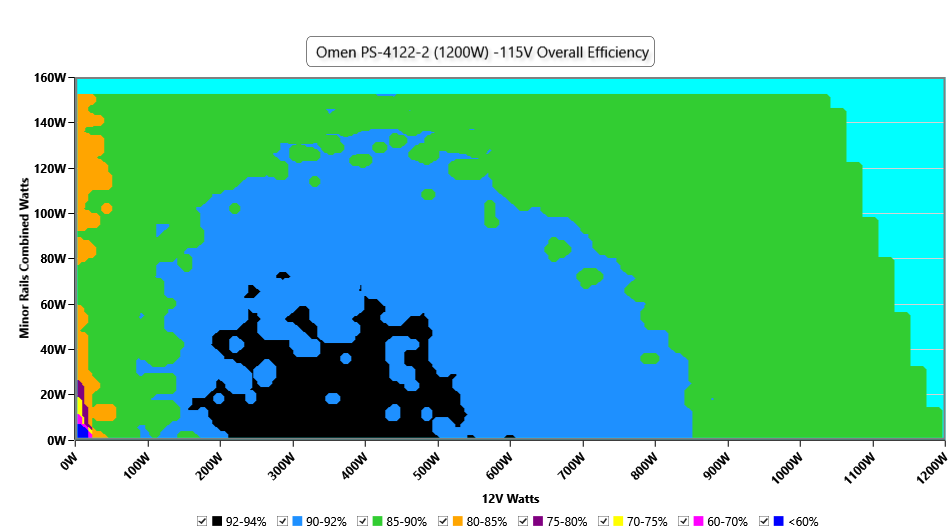

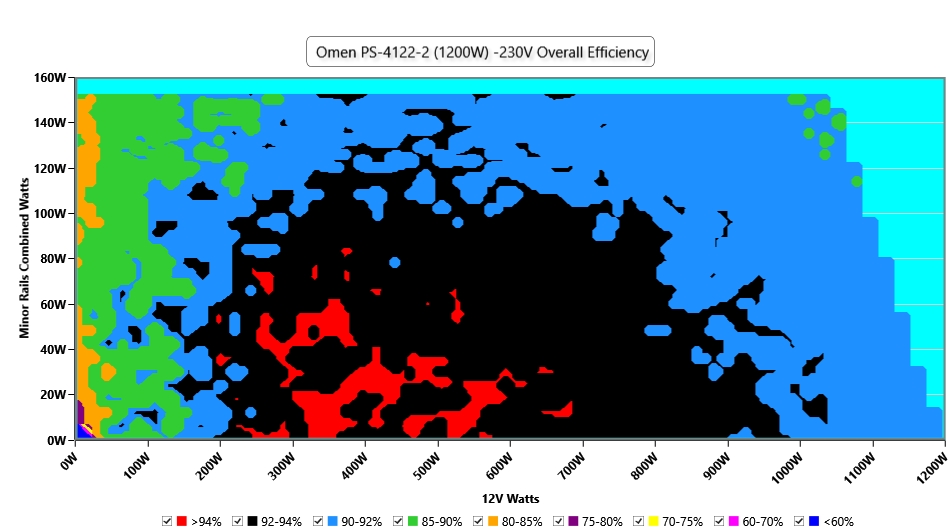

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.984 | 0.965 |
| Standby Power Consumption | 0.0504W | 0.1140W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 80.492% | 81.312% |
| Conducted Emissions EN55032 & CISPR 32 | Passed | |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 15.59dBA | 14.92dBA |

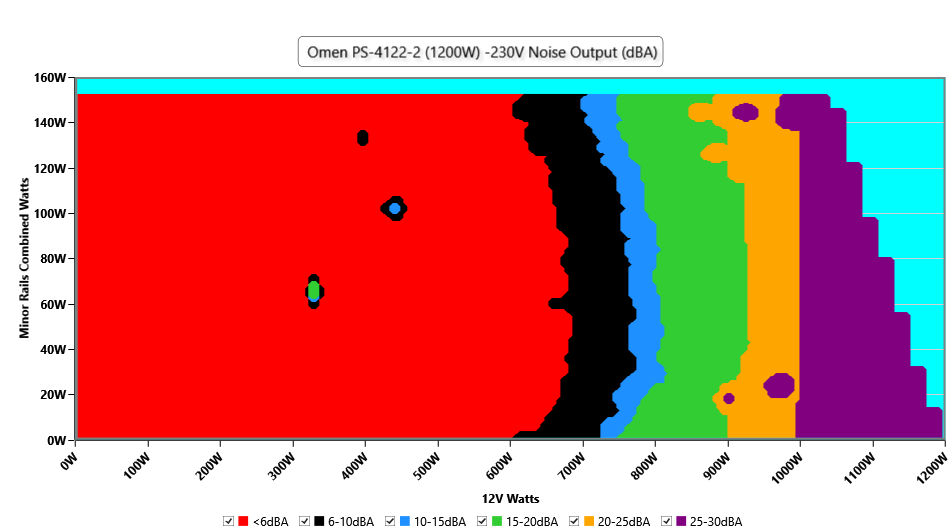

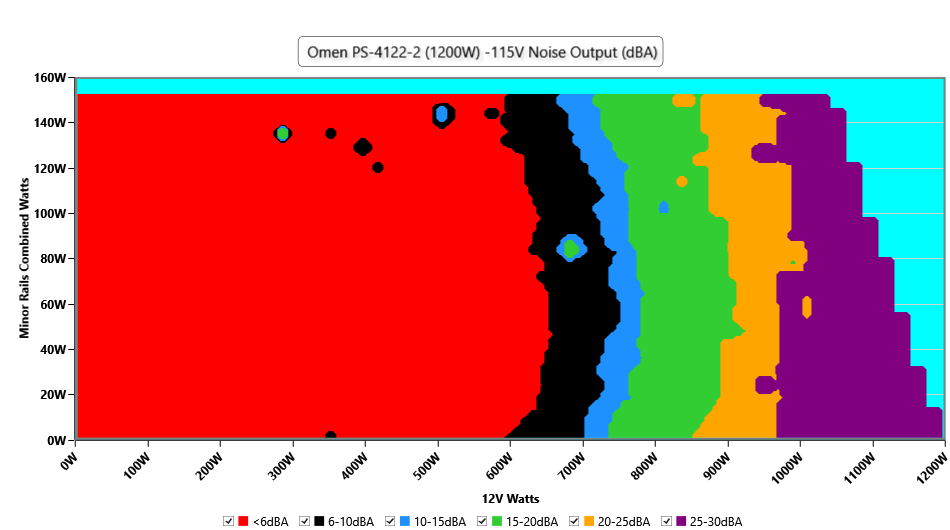

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 83.318 |
| Hold Up Time | 25.60 |
| Power OK | 21.90 |
| Power OK to DC Loss | 3.70 |
| Model Name | OMEN |
| Lab ID | OM12002880 |
| Serial Number | - |
| Date of receipt | Jun 23, 2025 |
| Testing Date | Jul 11, 2025 |
| Report Issued Date | Jul 14, 2025 |
| DUT Notes | 2880 |
| Engineer Name | 0 |
| Authorized By the Laboratory General Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
| ATX connector 24 pin (600mm) | 1 | 1 | 18-22AWG | No |
| 4+4 pin EPS12V (650mm) | 2 | 2 | 18AWG | No |
| 6+2 pin PCIe (650mm) | 2 | 2 | 18AWG | No |
| 12+4 pin PCIe (650mm) (600W) | 1 | 1 | 16-24AWG | No |
| SATA (455mm+115mm+115mm) | 2 | 6 | 18AWG | No |
| SATA (460mm+115mm+115mm+115mm) | 1 | 4 | 18AWG | No |
| 4-pin Molex (450mm+100mm+100mm+100mm) | 1 | 4 | 18AWG | No |
| Manufacturer | Lite-On |
| Model | PS-4122-2 (1200W) |
| Max DC Output | 1200W |
| Efficiency (115V) | 89.489% |
| Efficiency (230V) | 91.683% |
| Noise (115V) | 15.59 dB[A] |
| Noise (230V) | 14.92 dB[A] |
| Modular | Fully Modular |
| Operating Temperature (Continuous Full Load) | - |
| Over Power Protection | ✗ |
| Over Current (+12V) Protection | ✗ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| No Load Operation | ✗ |
| Cooling | 135mm Fluid Dynamic Bearing (HA13525H12SF-Z) |
| Semi-Passive Operation | ✓ |
| Dimensions (W x H x D) | - |
| Weight | - |
| Form Factor | ATX12V |
| ATX 3.1 & PCIe 5.1 ready | ✓ |
| Alternative Low Power Mode (ALPM) compatible | ✗ |
| Warranty | - |
| General Data | |
| Manufacturer (OEM) | Lite-On |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (X Capacitor Discharge IC) |
| Inrush Protection | 2x NTC Thermistor SCK 105 (10 Ohm @25°C) & Relay |
| Bridge Rectifier(s) | 2x GBJ25V08 (800V, 25A @ 25°C) |
| APFC MOSFETs | 2x Infineon IPW60R099P7 (650V, 20A @ 100°C, Rds(on): 0.099Ohm) |
| APFC Boost Diode | 2x WeEn WNSC5D06650X (650V, 6A @ 64°C) |
| Bulk Cap(s) | 2x Rubycon (450V, 560uF each or 1120uF combined, 3000h @ 105°C, MXH) |
| Main Switchers | 2x Infineon IPA60R099P7 (650V, 20A @ 100°C, Rds(on): 0.099Ohm) |
| PFC/LLC Controller | LTA2021/T |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Nexperia PSMN1R5-40YSD(40V, 240A @ 25°C, Rds(on): 1.5mOhm) |
| 5V & 3.3V | DC-DC Converters: 2x XEMI XP3NA3R4MT (30V, 46A @ 100°C, Rds(on): 3.4mOhm) 2x UBIQ QN3106M6N (30V, 57A @ 100°C, Rds(on): 3.8mOhm) PWM Controller(s): uPI Semi uP3861P |
| Filtering Capacitors | 2x Nippon Chemi-con (2-5,000h @ 105°C, KZE) |
| Supervisor IC | IN1T703I-SDG |
| Synchronous Rectifier | MPS MP6924B |
| Fan Controller / Micro Controller | Nuvoton M032LE3AE |
| Fan Model | Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan) |
| 5VSB | |
| Rectifier | 1x |
| Standby PWM Controller | Excellence MOS EM8569D |

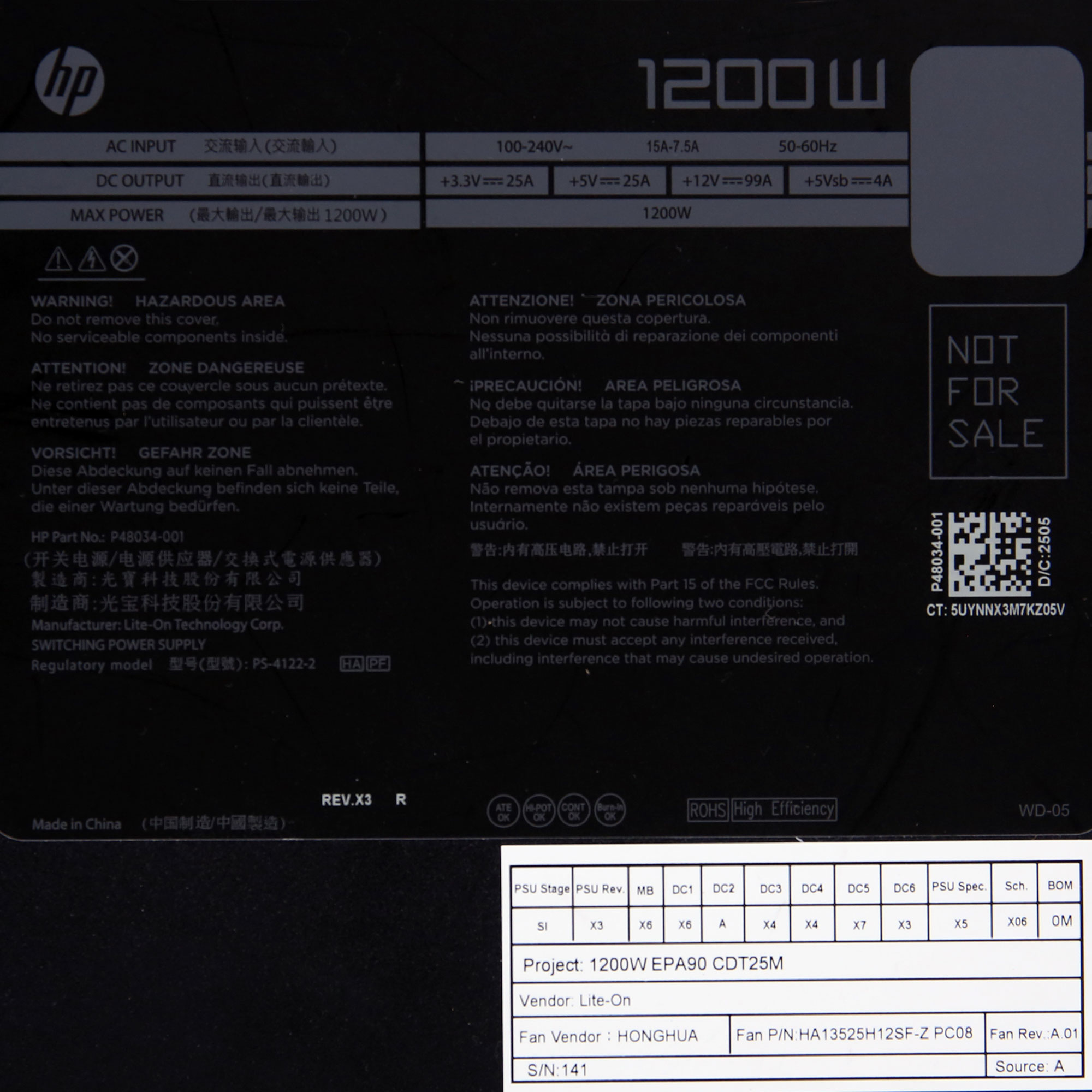

| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7.5-15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1200 |
| Type | ATX12V |
| Dimensions (W x H x D) | mm |
| Cooling | 135mm Fluid Dynamic Bearing (HA13525H12SF-Z) |
| Semi-Passive Operation | ✓ |
| Cable Design | Fully Modular |
The Efficiency Measurement’s Uncertainty is ±0.15%
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
Efficiency Measurement Uncertainty Budget
| Source of Uncertainty | Standard Uncertainty, u(xi) | Relative Standard Uncertainty, u(xi)/xi |
| Intralab Reproducibility | 0.0310 | 0.00031 |
| Electronic loads Calibration | 0.0500 | 0.00050 |
| Power Analyzer Calibration | 0.0250 | 0.00025 |
| Operator and Test Fixture | 0.0350 | 0.00035 |
| Relative Combined Standard Uncertainty (RSS): | 0.00073 | |
| % Expanded Uncertainty U (k=2, norm): | 0.15 | |
The Noise Measurement’s Uncertainty is ±1.23 dBA
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dBA) |
| Intralab Reproducibility | 0.031 |
| Mic Calibrator 4231 calibration | 0.200 |
| Microphone frequency response | 0.577 |
| Temperature | 0.12 |
| Position error | 0.058 |
| Relative Combined Standard Uncertainty (RSS): | 0.61 |
| Expanded Uncertainty U (k=2, norm): | 1.23 |
The Conducted EMI Emissions Measurement’s Uncertainty is ±1.75 dB
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dB) |
| Spectrum Analyzer total measurement uncertainty | 0.250 |
| Spectrum Analyzer calibration | 0.500 |
| Noise and Signal Quality | 0.577 |
| Bandwidth and Resolution Bandwidth (RBW) | 0.289 |
| Measurement time and Averaging | 0.115 |
| Environmental Factors | 0.115 |
| Relative Combined Standard Uncertainty (RSS): | 0.87 |
| Expanded Uncertainty U (k=2, norm): | 1.75 |
