WS3000
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 0.000% | 91.740% |

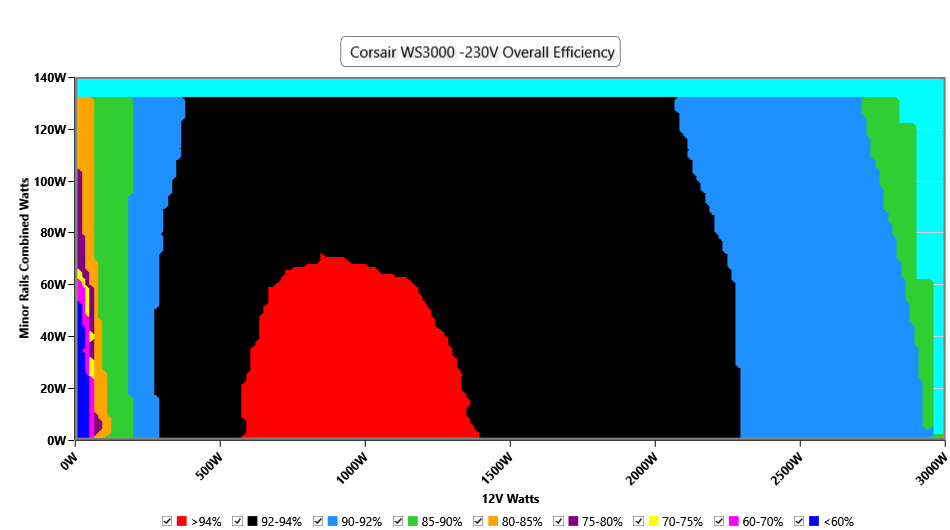

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.000 | 0.971 |
| 12V Step | - | |
| 5V/3.3V Step | - | |
| Standby Power Consumption | 0.0000W | 0.1212W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 0.000% | 84.162% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 0.00dBA | 48.04dBA |

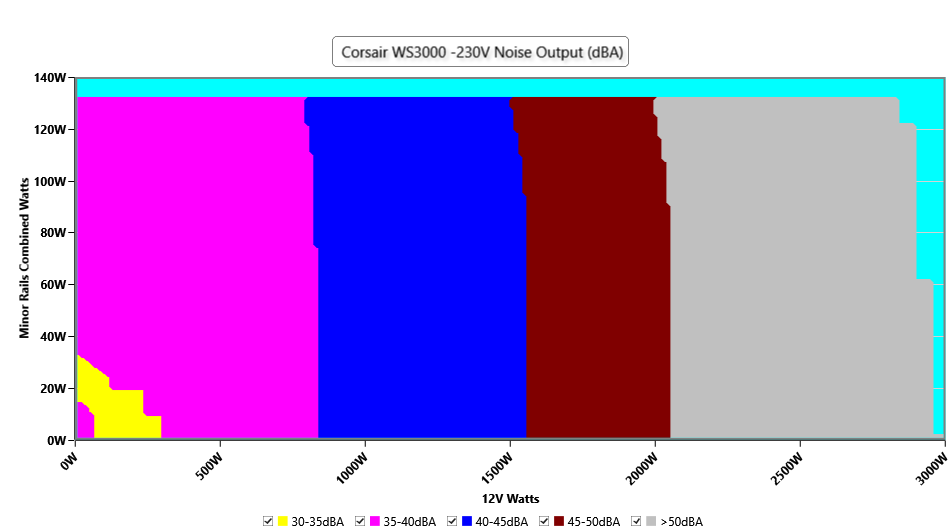

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 0.000% |
| Hold Up Time | 12.60ms |
| Power OK | 11.40ms |
| Power OK to DC Loss | 1.20ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.895 | 4.994 | 3.265 | 4.937 |
| 10ms | 11.740 | 4.977 | 3.235 | 4.889 |
| 1ms | 11.665 | 4.969 | 3.221 | 4.873 |
| 0.1ms | 11.563 | 4.964 | 3.210 | 4.893 |
| Product Identification Details | |
| Brand | Corsair |
| Model | WS3000 |
| OEM | Great Wall |
| Serial Number | AAWUD52110J26O |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 220-240 |
| Rated Current (Arms) | 16 |
| Rated Frequency (Hz) | 47-63 |
| Rated Power (W) | 3000 |
| Operating Temperature (Continuous Full Load) (°C) | |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | |
| Cybenetics | |
| Dimensions (W x H x D) | |
| Weight | |

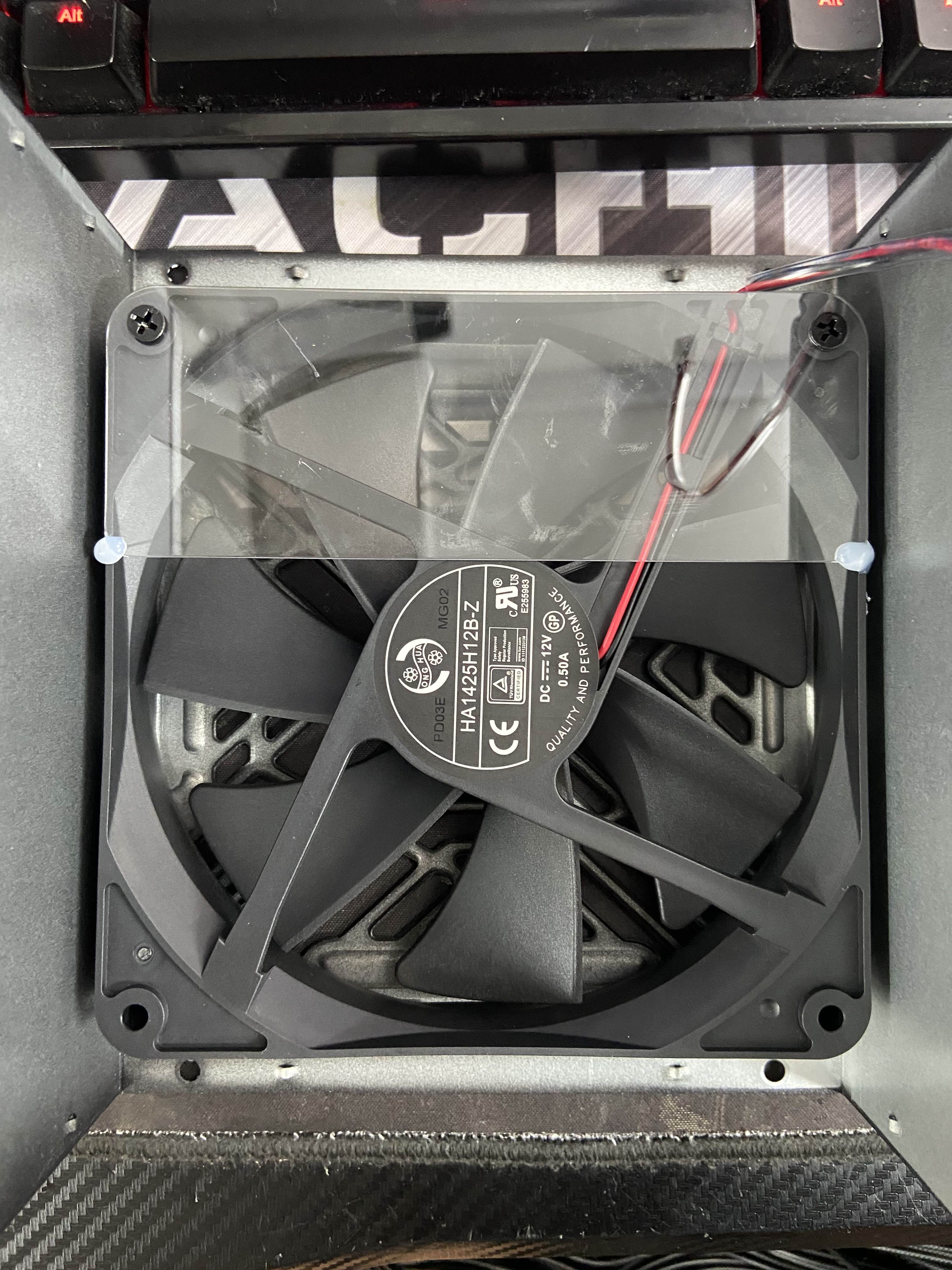

| Cooling | 140mm Fluid Dynamic Bearing Fan (HA1425H12B-Z) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | CR30002950 |
| Date of receipt | Aug 18, 2025 |
| Testing Date | Aug 21, 2025 |
| Report Issued Date | Aug 26, 2025 |
| Engineer Name | - |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (615mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin ATX12V (650mm) | 2 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (600mm+150mm) | 4 | 8 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (750mm) (600W) | 4 | 4 | 16-24AWG | Tinned Copper |
| SATA (500mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | Tinned Copper |
| SATA (500mm+100mm+100mm) | 3 | 9 | 18AWG | Tinned Copper |
| 4-pin Molex (500mm+150mm+150mm) | 1 | 3 | 18AWG | Tinned Copper |
| AC Power Cord (1390mm) - C19 coupler | 1 | 1 | 16AWG | - |
| Over Power Protection | - |
| Over Current (+12V) Protection | - |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Great Wall |
| PCB Type | Double-Sided |

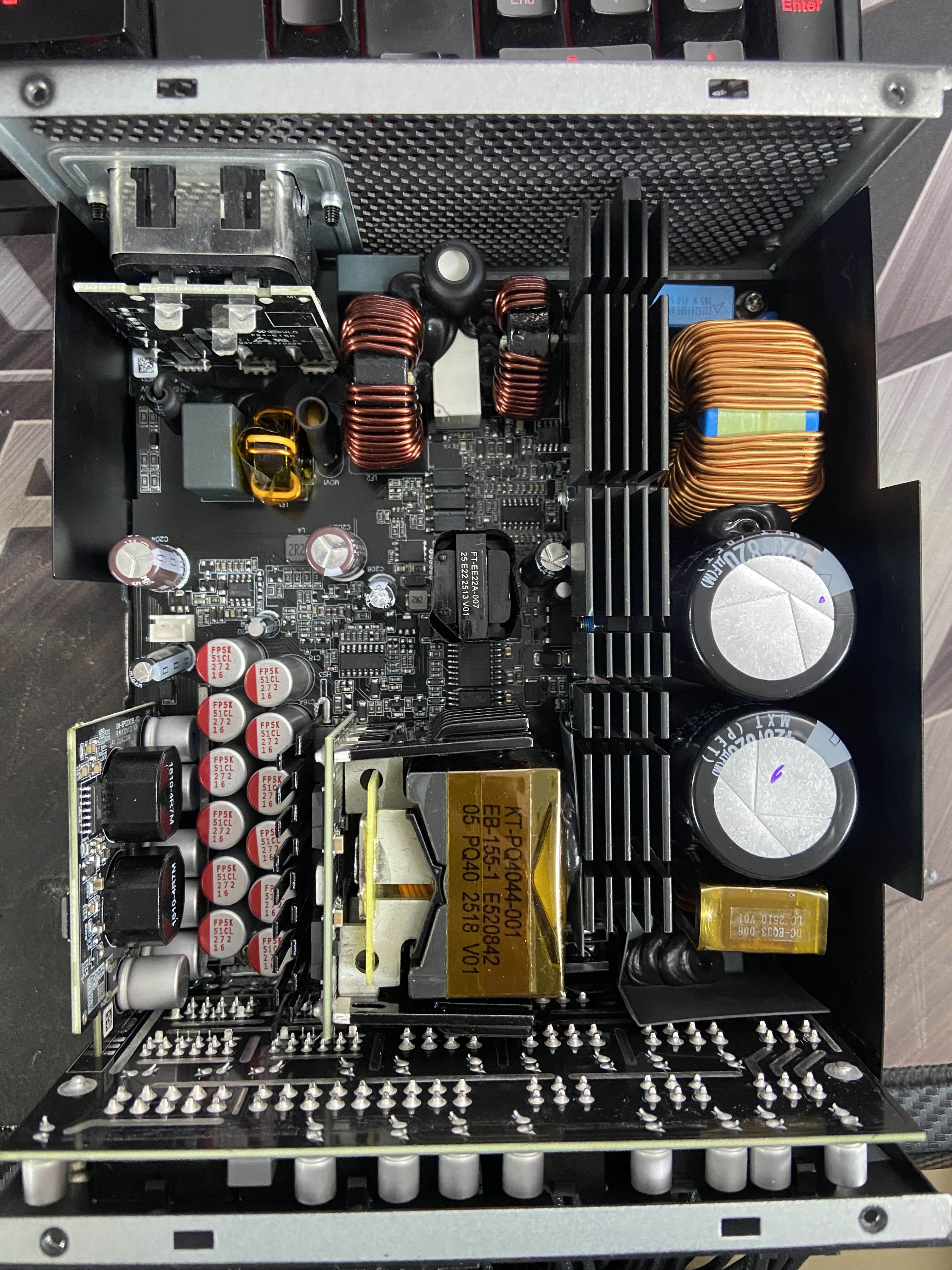

| Primary Side | |
| Transient Filter | 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor & Relay |
| Bridge Rectifier | 2x Shindengen LL25XB60 (600V, 25A @ 113°C) |
| APFC MOSFETs | 2x Infineon IPW60R060C7 (650V, 22A @ 100°C, Rds(on): 0.060Ohm) |
| APFC Boost Diode | STMicroelectonics STPSC20H065C (650V, 10A @ 135°C) |
| Bulk Cap(s) | 2x Rubycon (420V, 820uF each or 1640uF combined, 3000h @ 105°C, MXT) |
| Main Switchers | 4x Infineon IPW60R070CFD7 (650V, 20A @ 100°C, Rds(on): 0.07Ohm) |
APFC Controller | Champion CM6500UHHX & |
| Resonant Controller | Champion CM6901X |
| IC Driver | 2x Novosense NSI66002BD |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x ON Semiconductor FDBL0110N60 (60V, 300A @ 25°C, Rds(on): 1.1mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x XSEMI XP4024GEMT (30V, 20.9A @ 70°C, Rds(on): 4.5mOhm) PWM Controller(s): ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | IN1S429I-SCG |
| MCU / Fan Controller | STMicroelectronics STM8S103F2 |
| Fan Model | Hong Hua HA1225H12F-Z (140mm, 12V, 0.50, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier (High Side) | Onsemi NTMFS5C670NL (60V, 50A @ 100°C, Rds(on): 6.1mOhm) |
| Standby PWM Controller | Power Integrations TNY278PN |
| Photos |  |  |

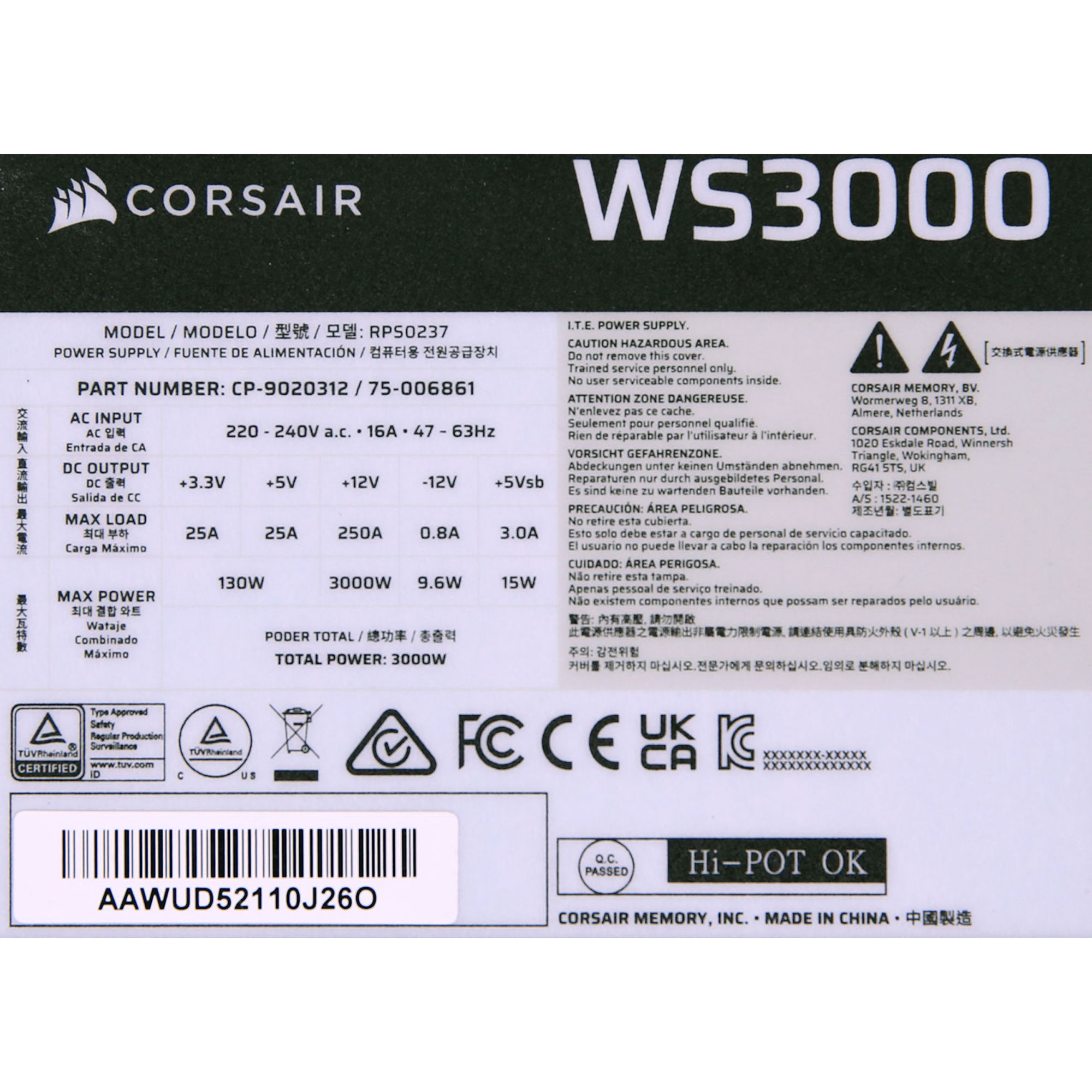

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
