Toughpower PT 1200W

Report Number: 25PS2994A
Customer ID: 56
Lab ID: TT12002994

Test Report Results

Section A: Testing Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015, Rohde & Schwarz NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger

Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Section B: ETA

Voltage115V230V
Efficiency (>1450 Load Combinations)90.345%92.072%

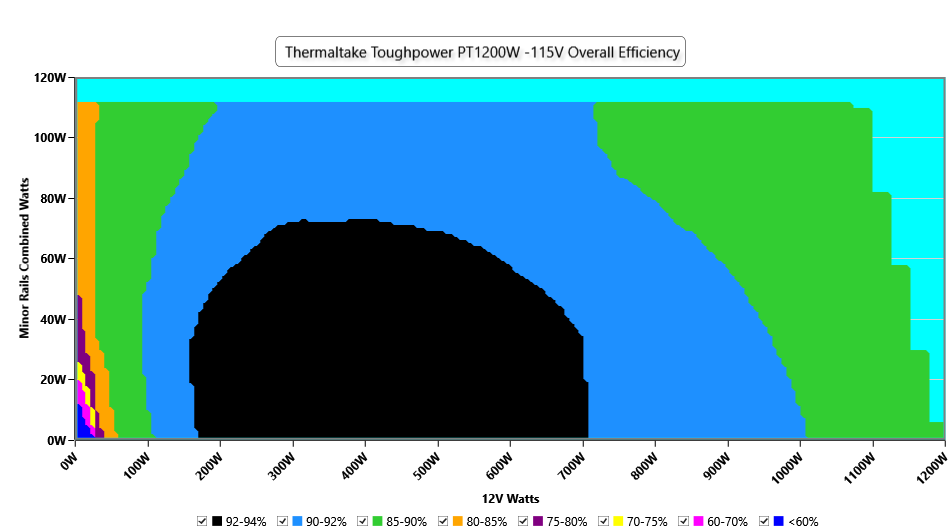

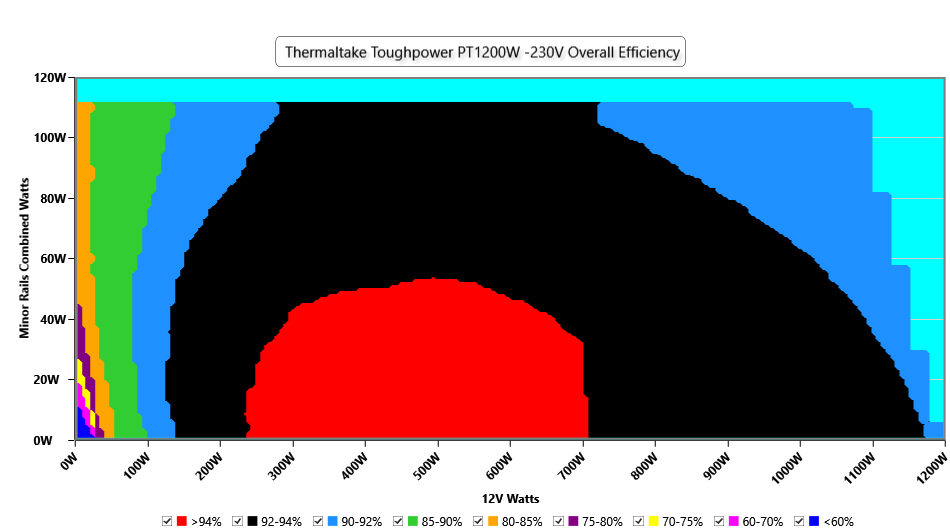

Efficiency Graphs
Average PF (>1450 Load Combinations)0.9910.968
Standby Power Consumption0.0308W0.0633W
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
Average Efficiency VSB81.009%80.691%
Conducted Emissions EN55032 & CISPR 32Passed

Section C: LAMBDA

Voltage115V230V

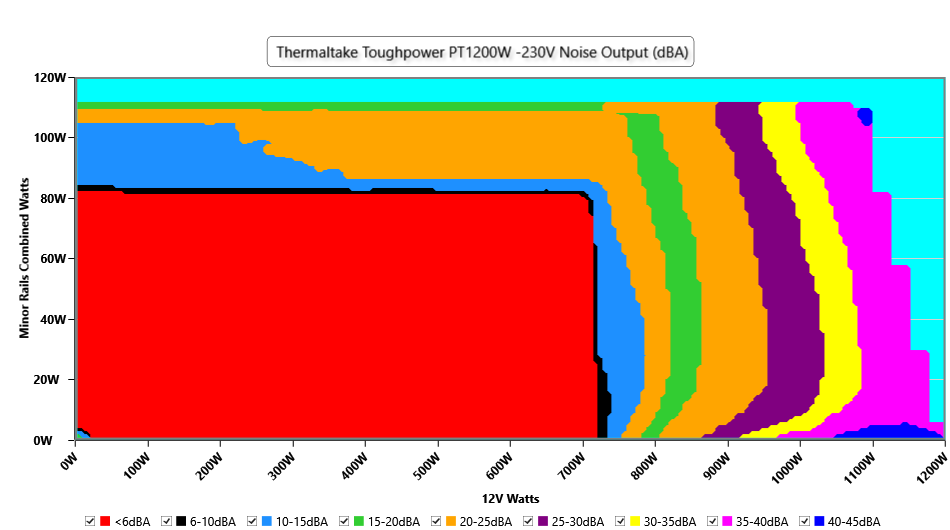

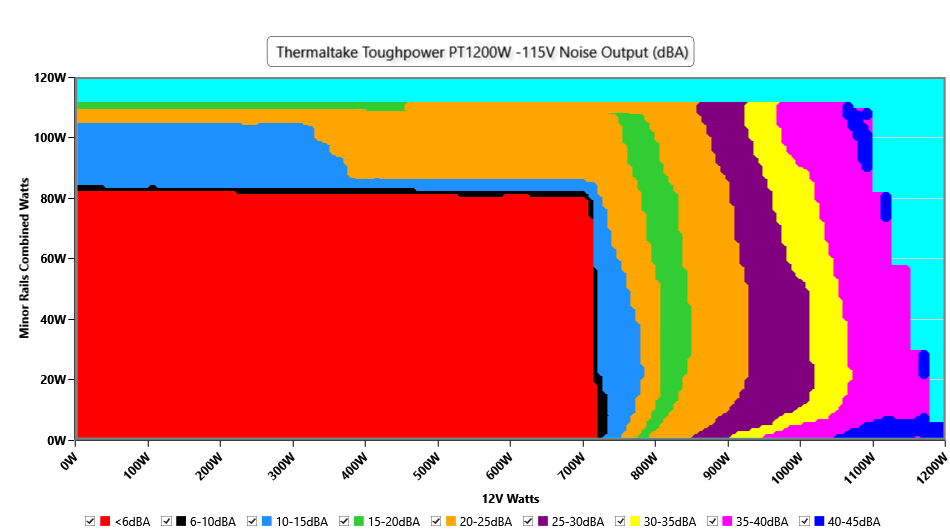

Noise Rating (>1450 Load Combinations)23.82dBA22.97dBA
Noise Graphs

Section D: ATX

Efficiency With 10W (≤500W) or 2% (>500W) Load74.101
Hold Up Time17.70
Power OK16.50
Power OK to DC Loss1.20

Section E: Information about DUT

Model NameThermaltake
Lab IDTT12002994
Serial NumberPSTPP1200FNFAPU1BLCW00109
Date of receiptSep 23, 2025
Testing DateOct 7, 2025
Report Issued DateOct 22, 2025
DUT Notes2994
Engineer NameOkeke Ugochukwu Onyedikachukwu
Authorized By the Laboratory General ManagerAristeidis Bitziopoulos
Signature

Cables And Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 24 pin (550mm) 1 1 16-20AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 2 4 16-18AWG Tinned Copper
6+2 pin PCIe (600mm) 1 1 16AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 2 2 16-24AWG Tinned Copper
SATA (450mm+150mm+150mm) 2 6 18AWG Tinned Copper
4-pin Molex (450mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
AC Power Cord (1410mm) - C13 coupler 1 1 14AWG -

Technical Specifications

Manufacturer (OEM)

CWT

Max. DC Output

1200W
Efficiency (115V) Cybenetics Platinum (90.345%)
Efficiency (230V) Cybenetics Platinum (92.072%)

Noise (115V)

Cybenetics A (23.82 dB[A])

Noise (230V)

Cybenetics A (22.97 dB[A])

Modular

✓ (Fully)

Intel C6/C7 Power State Support

✓

Operating Temperature (Continuous Full Load)

0 - 40°C

Over Voltage Protection

✓

Under Voltage Protection

✓

Over Power Protection

✓

Over Current (+12V) Protection

✓

Over Temperature Protection

✓

Short Circuit Protection

✓

Surge Protection

✓

Inrush Current Protection

✓

Fan Failure Protection

✗

No Load Operation

✓

Cooling

135mm Fluid Dynamic Bearing Fan (CWT13525H12F-9)

Semi-Passive Operation

✗

Dimensions (W x H x D)

150 x 85 x 140mm

Weight

1.72 kg (3.79 lb)

Form Factor

ATX12V v3.1, EPS 2.92
ATX 3.1 & PCIe 5.1 ready ✓
Alternative Low Power Mode (ALPM) compatible ✓

Warranty

10 Years

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (X Capacitor Discharge IC)
Inrush Protection NTC Thermistor SCK-207R0 (7 Ohm @ 25°C) & Relay
Bridge Rectifier
2x Yangzhou GBUU2508 (800V, 25A @ 110°C)
APFC MOSFETs
3x Way-On WML53N60C4 (600V, 26A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode
2x CRMicro CRXI06D065G2 (650V, 6A @ 167°C)
Bulk Cap(s)
2x Nippon Chemi-Con (400V, 470uF each or 940uF combined, 2000h @ 105°C, KMW)
Main Switchers
4x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x PingWei PWC013N04ES (40V, 155A @ 100°C, Rds(on): 1.3mOhm)
5V & 3.3V DC-DC Converters:  4x UBIQ Semi QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
4x Nippon Chemi-Con (@ 105°C, W)
2x Rubycon (6-10,000 @ 105°C, ZLH)
2x Rubycon (4-10,000 @ 105°C, YXF)
Nichicon (4-10,000 @ 105°C, HE(M))
Nichicon (5-6,000 @ 105°C, HV(M))
Polymer:
24x Toshin Kogyo, 1x Nippon Chemi-Con
Fan Model TT-13525 CWT13525H12F-9 (135mm, 12V, 0.4A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier (High Side)
Dongke DK5V45R10V (45V, 10mOhm)
Standby PWM Controller

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)47-63
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling135mm Fluid Dynamic Bearing Fan (CWT13525H12F-9)
Semi-Passive Operation✗
Cable DesignFully Modular

Section F: Deviation Additions, deviations, and exceptions to the method table

Efficiency Uncertainty Estimation

The Efficiency Measurement’s Uncertainty is ±0.15%

The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.

Efficiency Measurement Uncertainty Budget

Source of Uncertainty Standard Uncertainty, u(xi) Relative Standard Uncertainty, u(xi)/xi
Intralab Reproducibility 0.0310 0.00031
Electronic loads Calibration 0.0500 0.00050
Power Analyzer Calibration 0.0250 0.00025
Operator and Test Fixture 0.0350 0.00035
Relative Combined Standard Uncertainty (RSS): 0.00073
% Expanded Uncertainty U (k=2, norm): 0.15
Noise Output  Uncertainty Estimation

The Noise Measurement’s Uncertainty is ±1.23 dBA

The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.

Noise Output Measurement Uncertainty Budget
Source of Uncertainty

Standard Uncertainty, u(xi)/xi

(dBA)
Intralab Reproducibility 0.031
Mic Calibrator 4231 calibration 0.200
Microphone frequency response 0.577
Temperature 0.12
 Position error  0.058
Relative Combined Standard Uncertainty (RSS): 0.61
Expanded Uncertainty U (k=2, norm): 1.23
Conducted Electromagnetic Interference (EMI) Emissions Uncertainty Estimation

The Conducted EMI Emissions Measurement’s Uncertainty is ±1.75 dB

The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.

Conducted EMI Measurement Uncertainty Budget
Source of Uncertainty

Standard Uncertainty, u(xi)/xi

(dB)
Spectrum Analyzer total measurement uncertainty 0.250
Spectrum Analyzer calibration 0.500
Noise and Signal Quality 0.577
Bandwidth and Resolution Bandwidth (RBW) 0.289
Measurement time and Averaging  0.115
Environmental Factors 0.115
Relative Combined Standard Uncertainty (RSS): 0.87
Expanded Uncertainty U (k=2, norm): 1.75
