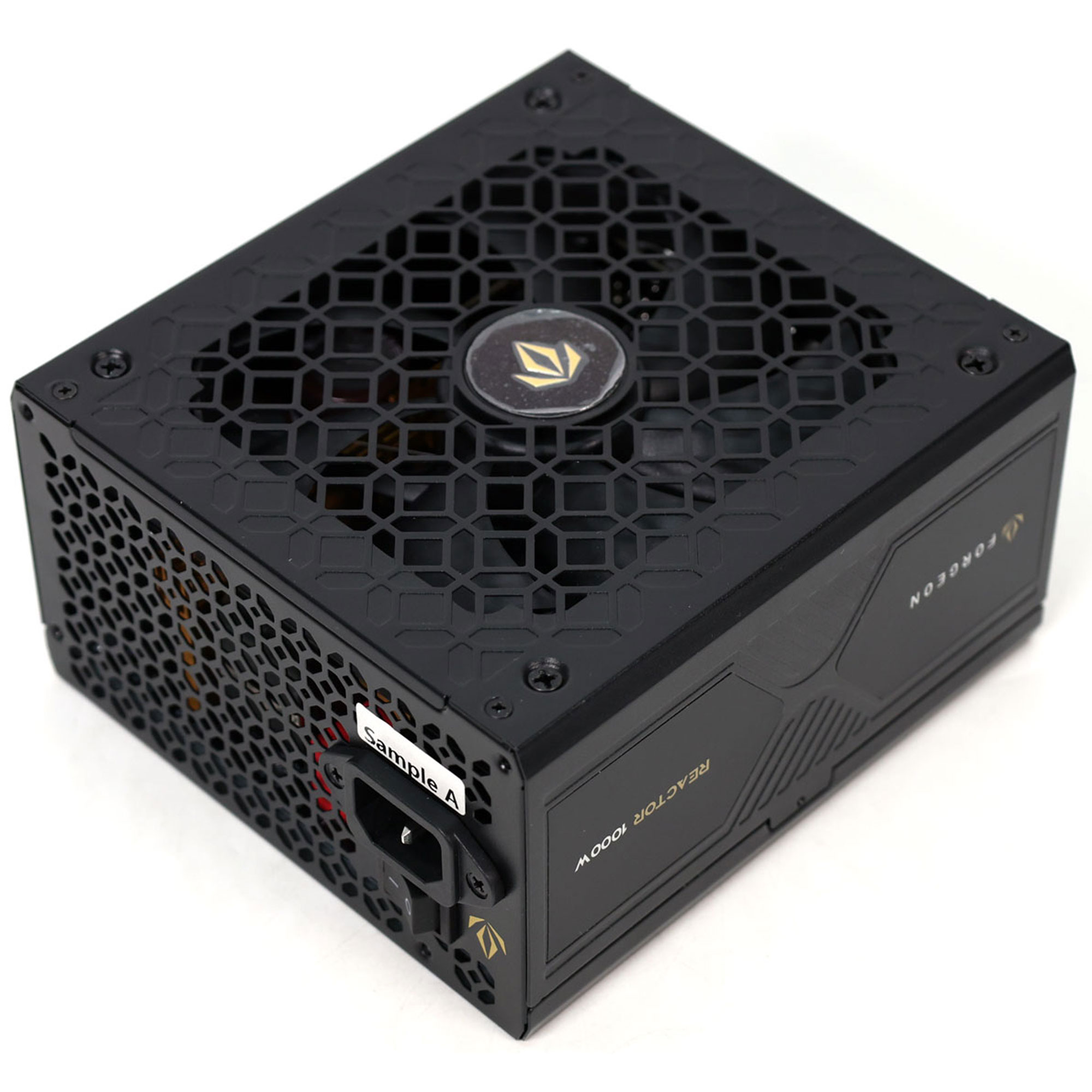

Reactor 1000W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.538% | 91.570% |

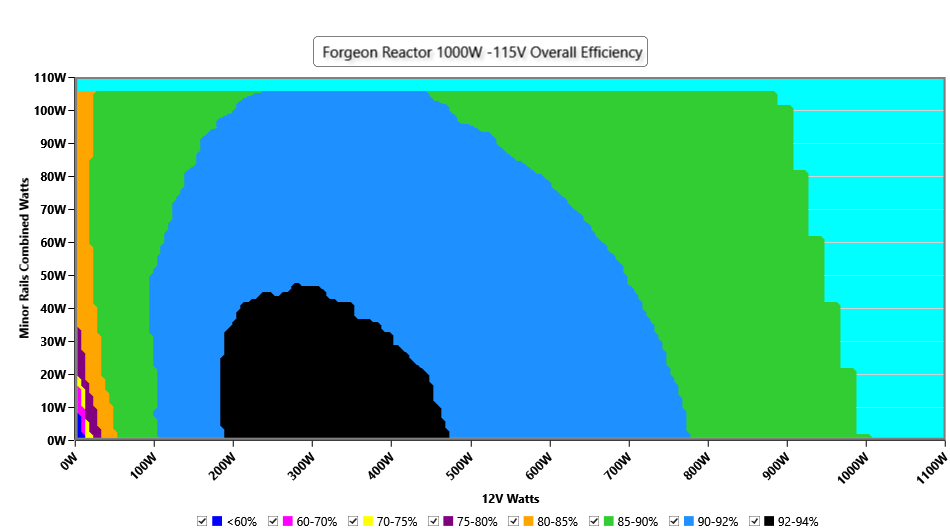

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.989 | 0.958 |
| 12V Step | - | |
| 5V/3.3V Step | - | |
| Standby Power Consumption | 0.0375W | 0.0897W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 81.959% | 81.094% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 29.40dBA | 29.55dBA |

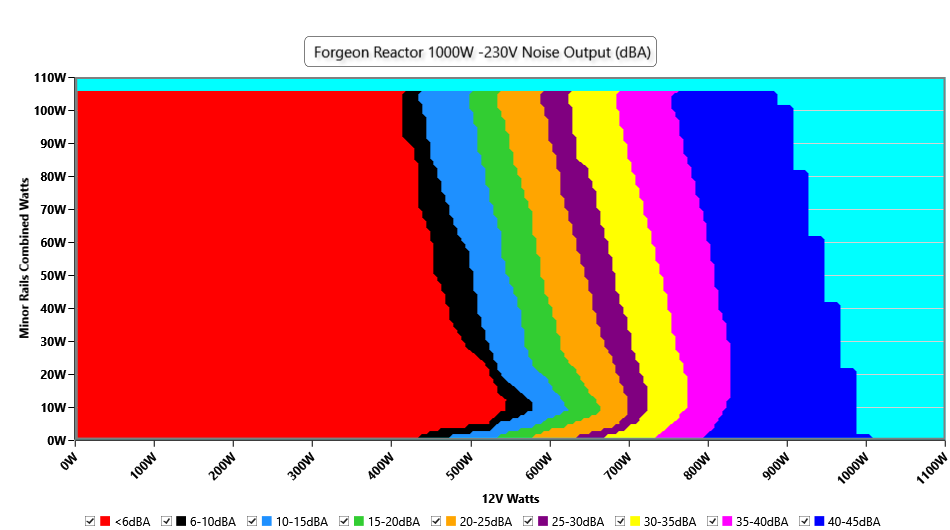

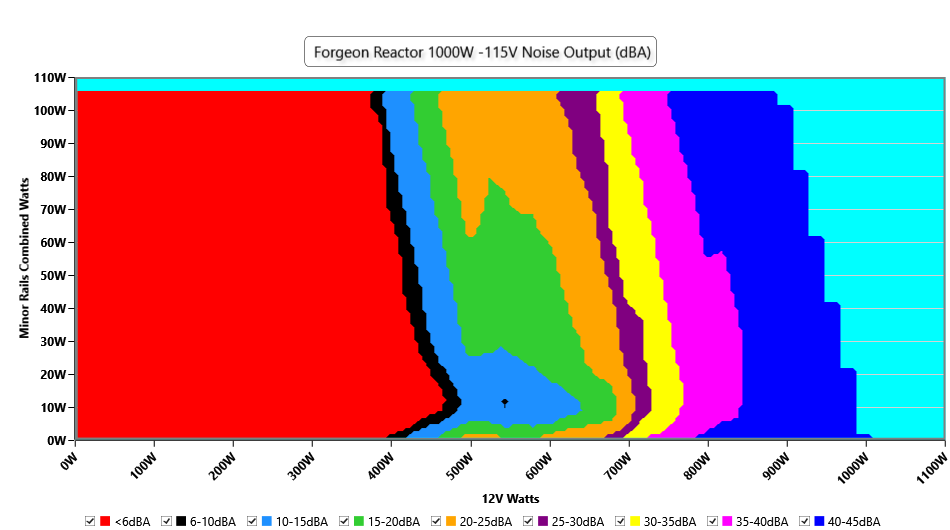

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 69.424% |
| Hold Up Time | 16.00ms |
| Power OK | 13.50ms |
| Power OK to DC Loss | 2.50ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 12.034 | 5.081 | 3.303 | 5.043 |
| 10ms | 11.837 | 5.057 | 3.281 | 5.019 |
| 1ms | 11.733 | 5.045 | 3.270 | 5.005 |
| 0.1ms | 11.588 | 5.021 | 3.254 | 5.004 |
| Product Identification Details | |
| Brand | Forgeon |
| Model | Reactor 1000W |
| OEM/ODM | Kinpower |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 16 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 7 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 160 mm |
| Weight | 1.46 kg (3.22 lb) |
| Cooling | 140mm Hydraulic Bearing Fan (HA1425L12F-Z) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | FR10003080 |
| Date of receipt | Dec 4, 2025 |
| Testing Date | Dec 24, 2025 |
| Report Issued Date | Jan 8, 2026 |
| Engineer Name | Okeke Ugochukwu Onyedikachukwu |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (600mm+150mm) | 2 | 4 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (450mm+150mm+150mm) | 3 | 9 | 18AWG | Copper |
| 4-pin Molex (450mm+150mm+150mm) | 1 | 3 | 18AWG | Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Kinpower |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72 20D-15 (20 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x |
| APFC MOSFETs | 2x Sanrise Tech SRC60R095BS (600V, 16A @ 125°C, Rds(on): 95mOhm) |
| APFC Boost Diode | Global Power G3S06510A (650V, 10A @ 155°C) |
| Bulk Cap(s) | 2x Nippon Chemi-con (400V, 470uF each or 940uF combined, 2,000h @ 105°C, KMW) |
| Main Switchers | 2x Fuxin Semiconductor FXN30S65GT |
| APFC Controller | Champion CM6500UNX |
| Resonant Controller | Champion CM6901T6X |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Alkaidsemi AKG40N013G (40V, 110A @ 100°C, Rds(on): 1.3mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm) PWM Controller(s): 2x Aplustek AT8853ZSPC |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | IN1S4291-SCG |

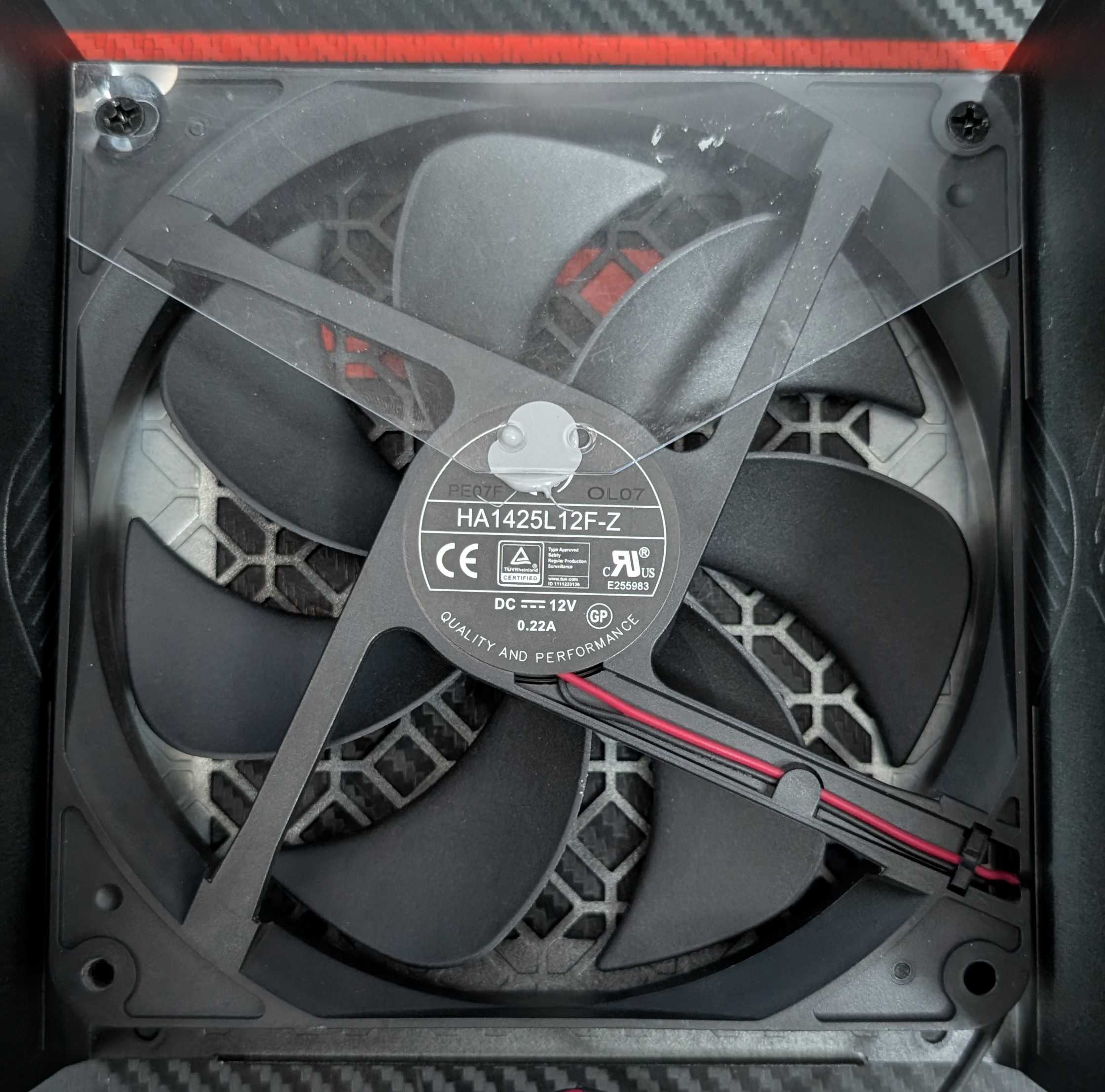

| Fan Model | Hong Hua HA1425L12F-Z (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK5V45R10V (45V, 10mOhm) |
| Standby PWM Controller | FuXin Semiconductor FXI8252S |

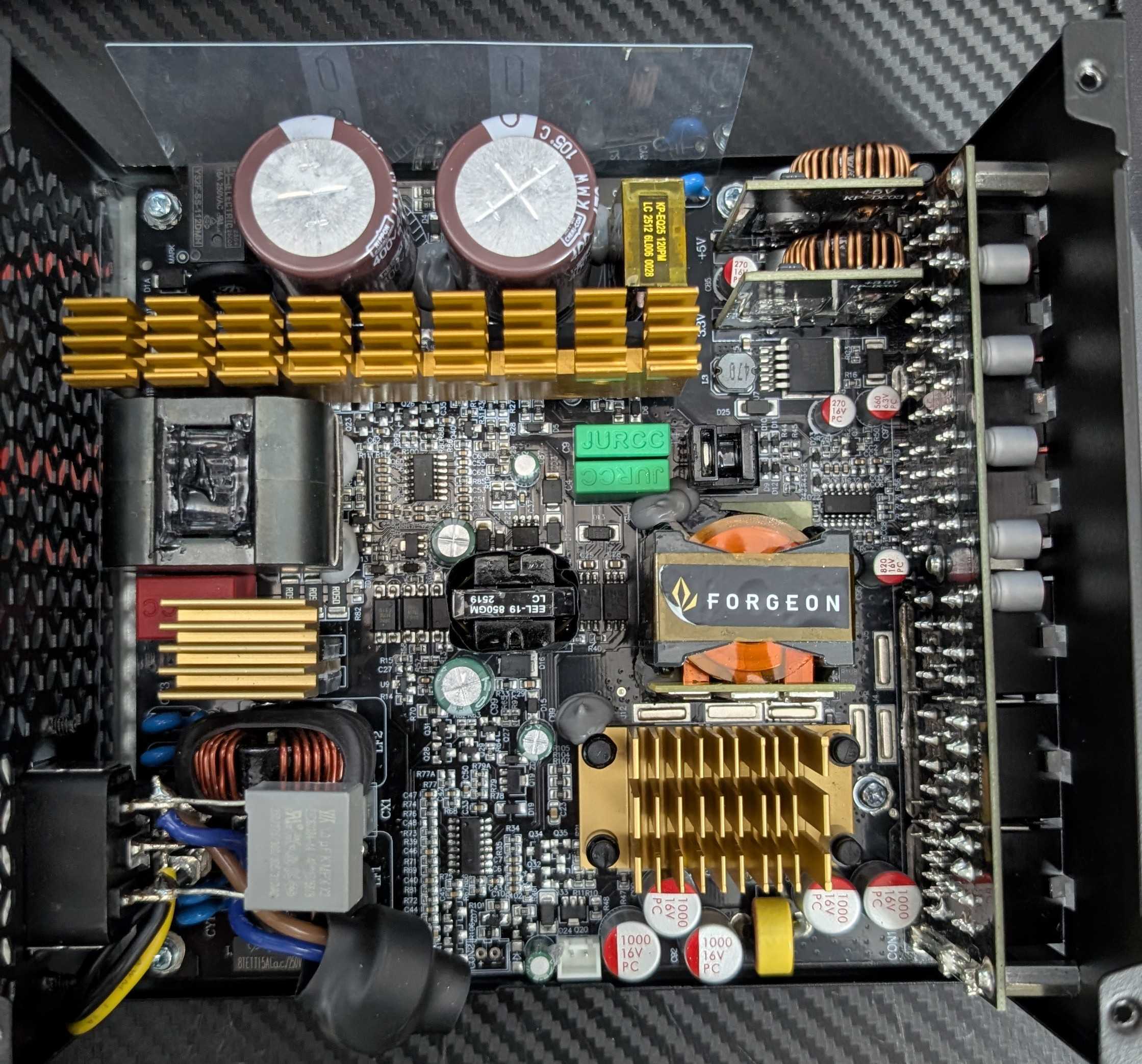

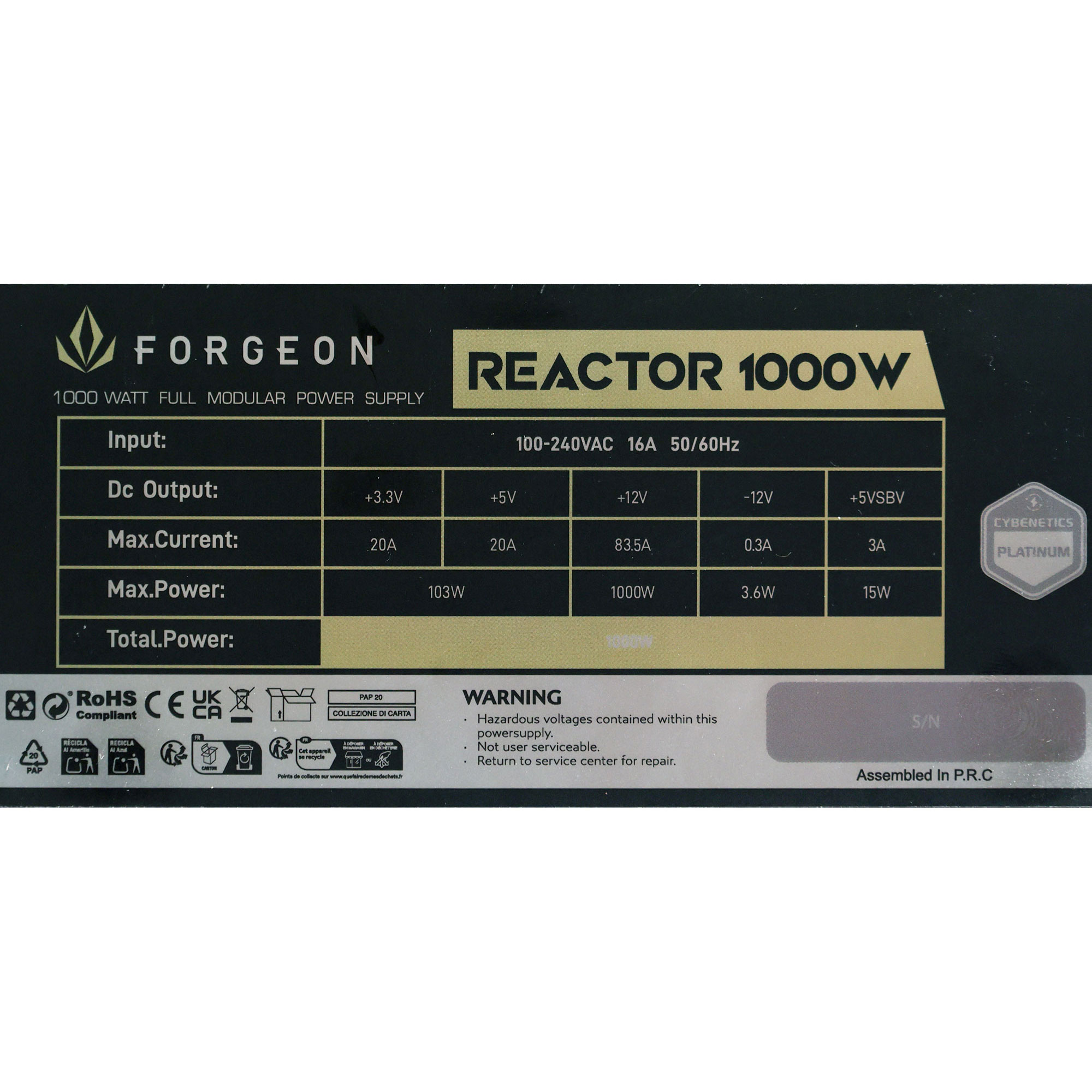

| Photos |  |  |
| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
