Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus

NeoECO NE1200

Report Number: 25PS3096A
Customer ID: 19
Lab ID: AN12003096

Test Report Results

Section A: Testing Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Section B: ETA

Voltage115V230V
Efficiency (>1450 Load Combinations)89.797%91.942%

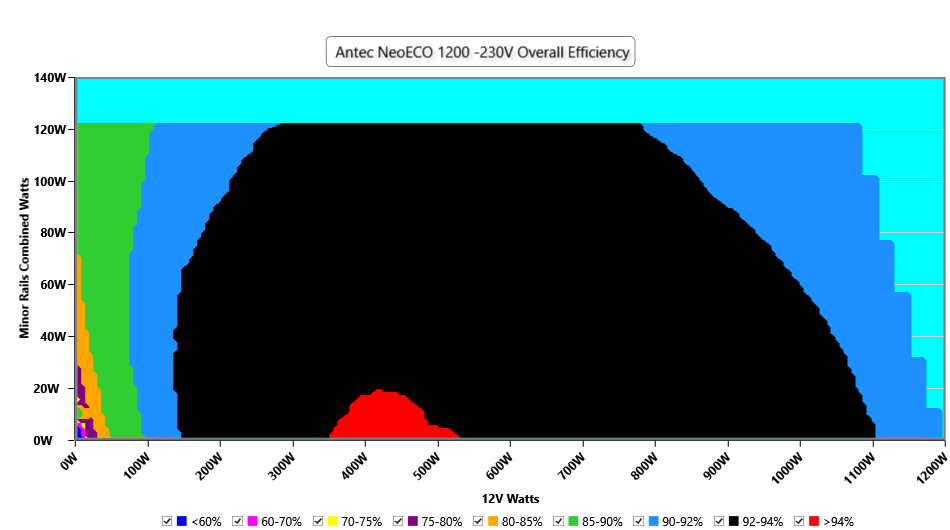

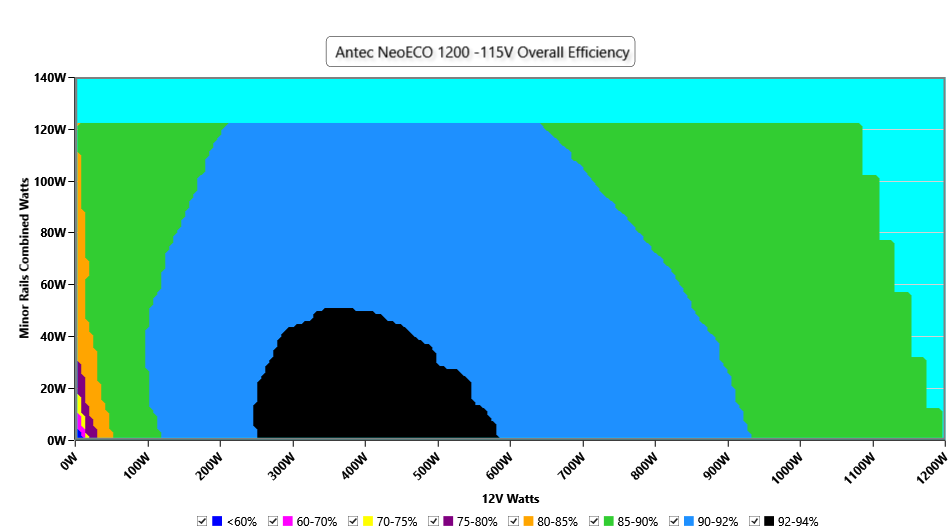

Efficiency Graphs
Average PF (>1450 Load Combinations)0.9930.975
12V Step-
5V/3.3V Step-
Standby Power Consumption0.0550W0.0841W
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
Average Efficiency VSB80.986%80.975%

Section C: LAMBDA

Voltage115V230V
Noise Rating (>1450 Load Combinations)28.26dBA27.48dBA

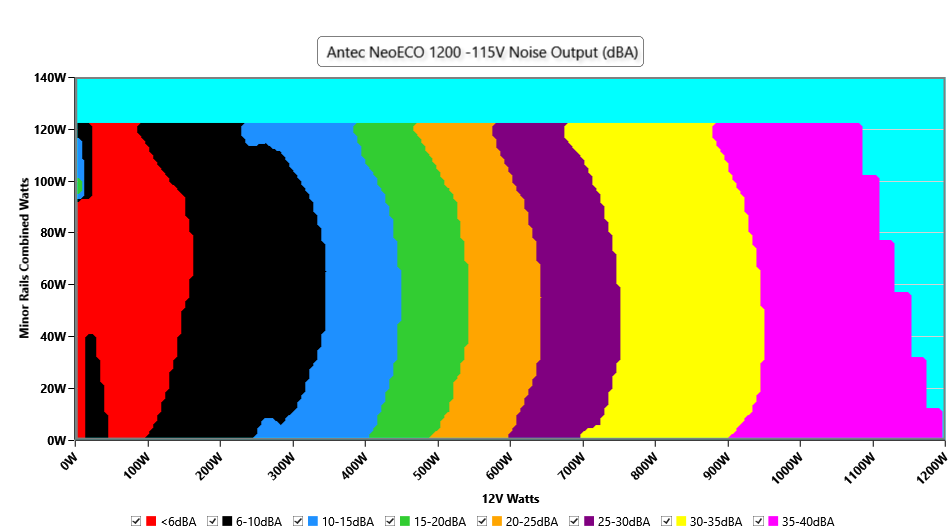

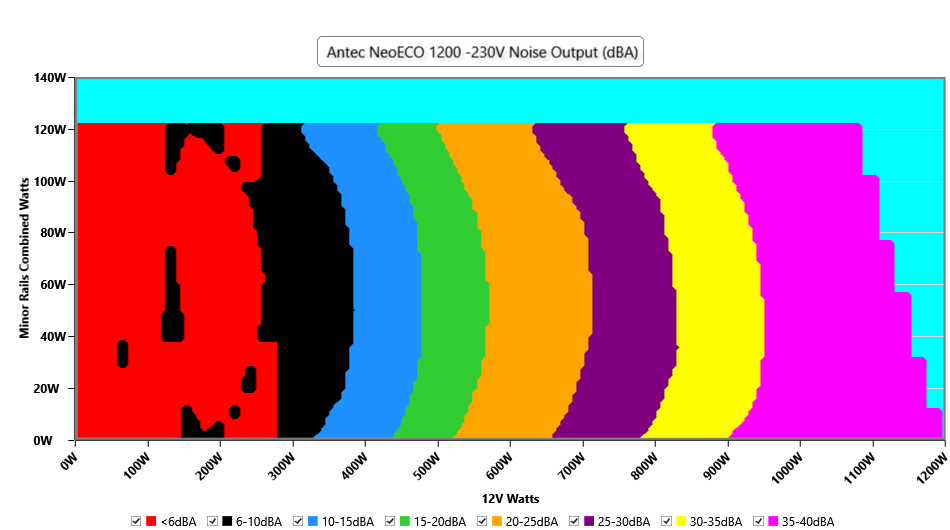

Noise Graphs

Section D: ATX(Non-validated)

Efficiency With 10W (≤500W) or 2% (>500W) Load73.660%
Hold Up Time18.60ms
Power OK15.70ms
Power OK to DC Loss2.90ms
Test\Rail+12V5V3.3V5VSB
100ms11.9005.0403.2684.966
10ms11.5975.0013.2344.931
1ms11.4544.9803.2154.915
0.1ms11.2724.9433.1894.923

Section E: Information about DUT

Product Identification Details
BrandAntec
ModelNeoECO NE1200
OEMHelly
Serial Number-
Product Specifications
Manufacturer
Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5-15
Rated Frequency (Hz)50-60
Rated Power (W)1200
Operating Temperature (Continuous Full Load) (°C)0 - 50
TypeATX12V
Cable DesignFully Modular
WarrantyNo Info
Cybenetics
Dimensions (W x H x D)150 x 85 x 140mm
Weight1.59 kg (3.51 lb)
Cooling120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation✓
Cybenetics Testing Information
Lab IDAN12003096
Date of receiptDec 5, 2025
Testing DateJan 7, 2026
Report Issued DateJan 14, 2026
Engineer NameIoannis Kalyviotis
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables And Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin EPS12V (675mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (460mm+120mm+120mm) / 4-pin Molex (+120mm) 3 9 / 3 18AWG Copper

Protection Features(Non-accredited measurements)

Over Power Protection✓
Over Current (+12V) Protection✓
Over Temperature Protection✓
Short Circuit Protection✓
Surge Protection✓
Inrush Current Protection✓
Fan Failure Protection✗

Parts Description

General Data
Manufacturer (OEM) Antec Inc.
PCB Type Double-Sided
Primary Side
Transient Filter 3x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF73T-2 (20 Ohm @ 25°C) & Relay
Bridge Rectifier
GBU15J-U1 (600V 15A @ 150℃)
APFC MOSFETs
2x ORIENTAL SEMICONDUCTOR OSG60R070HF-F (600V,30A @ 100℃, Rds(on): 0.07Ohm)
APFC Boost Diode
Silicon Carbide Power Schottky Barrier Diode SDS065J010C3 (650V, 10A @ 155°C)
Bulk Cap(s)
1x Nippon Chemi-Con (420V, 1000uF 2000h @ 105°C, KMR)
Main Switchers
2x ORIENTAL SEMICONDUCTOR OSG60R070HF-F (600V,30A @ 100℃, Rds(on): 0.07Ohm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
IC Driver N/A
Topology

Primary side: Bridgeless PFC, Full-Bridge & LLC Resonant converter

Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x HUAYI Microelectronics HYG009N04 (40V, 200A @ 175°C, Rds(on): 0.96mOhm)
5V & 3.3V

DC-DC Converters:2x FETek Technology Corp. KS3214T, (30V, 9A @ 150°C, Rds(on): 12mOhm)

2x KS3212T
PWM Controller(s): Anpec Electronics Corop ANPEC APW7073KE-TRG
Filtering Capacitors

Electrolytic:
4x Nippon Chemi-Con (2200 µF, 16 V @ 105°C, W)

2x Nippon Chemi-Con (3300 µF, 16 V @ 105°C, W)

1x Rubycon (220 µF, 35 V, 4-10,000 Hrs @ 105°C, YXF)

1x Rubycon (47 µF, 50 V, 4-10,000 Hrs @ 105°C, YXF)

1x Rubycon (100 µF, 25 V, 4-10,000 Hrs @ 105°C, YXJ)

Polymer:
4x Nippon Chemi-con (2200 µF, 16 V, 8000 µohm, 20000 hours @ 105°C),

19x ChengX(2000h @ 105℃, PC)
Supervisor IC Weltrend WT7527RA (OVP, UVP, OCP, VX, PGO, FPOB, PSONB)
Fan Controller / Micro Controller Power Transistor 882
Fan Model Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, 2050 RPM, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier
Dongke Semiconductor DK5V60R20S (60V, 50A @ 100°C, Rds(on): 20mOhm)
Standby PWM Controller
Excelliance MOS Corp. EM8569C

Photos
Top sidePower specifications label

Section F: Uncertainty

Efficiency Uncertainty Estimation

F.1 General Statement

Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.

The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.

The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.

Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.

F.2 Expanded Measurement Uncertainty by Measurement Type

Measurement Expanded Uncertainty U (k=2, norm)
Efficiency ±0.18%
Timings ±0.48ms
Power Excursions (Transient Response) ±0.1V
Conducted EMI Emissions (150 kHz – 30 MHz) ±2.35 dBμV
Noise Output ±1.23 dB
