Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus

MPG Ai1600TS PCIE5

Report Number: 26PS3107A
Customer ID: 77
Lab ID: MS16003107

Test Results Report

Section A: Testing Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Section B: ETA

Voltage115V230V
Efficiency (>1450 Load Combinations)91.071%92.665%
Efficiency Graphs
Average PF (>1450 Load Combinations)0.9920.942
12V Step15.00W
5V/3.3V Step2.50W
Standby Power Consumption0.0213W0.0939W
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
Average Efficiency VSB82.311%80.943%

Efficiency and power factor by load rangeSupplementary calculated results – outside the scope of accreditation

878889909192939495Average efficiency (%)88.5293.2192.9291.0489.2489.3393.4094.0593.4692.490-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 87115V230V
878889909192939495Average efficiency (%)0-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 87115V230V
0.800.820.840.860.880.900.920.940.960.981.00Average power factor0.9740.9930.9960.9970.9960.8380.9440.9650.9720.9750-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 0.80115V230V
0.800.820.840.860.880.900.920.940.960.981.00Average power factor0-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 0.80115V230V
Load rangePointsEfficiency
115V
Efficiency
230V
PF
115V
PF
230V
0-<20 %263 / 26388.52%89.33%0.9740.838
20-<40 %320 / 32093.21%93.40%0.9930.944
40-<60 %320 / 32092.92%94.05%0.9960.965
60-<80 %320 / 32091.04%93.46%0.9970.972
80-100 %325 / 32589.24%92.49%0.9960.975
70-100 % (High-Load)485 / 48589.64%92.72%0.9960.974
All (published average)1548 / 154891.07%92.66%0.9920.943
Info

The average efficiency and power factor in five ranges of load. Calculated from the 1548 (115V) and 1548 (230V) load combinations of the certification sweep, the same data that ETA and LAMBDA use (test 0 excluded). Load is the total DC output as a share of the rated 1600 W. These are plain averages of the valid readings, as for the ETA rating, so the ranges combined give back the published averages. 1 at 230V load combination has no valid power factor reading (zero, or above the possible maximum) and is left out of that average.

Informational. Not part of the ETA or LAMBDA rating.

Section C: LAMBDA

Voltage115V230V
Noise Rating (>1450 Load Combinations)19.50dBA19.63dBA
Noise Graphs

Noise by load rangeSupplementary calculated results – outside the scope of accreditation

High-Load Index (70-100 % load)
Noise 24.5 dB(A) at 115V and 24.6 dB(A) at 230V · loudest point 32.4 dB(A)
Efficiency 89.64% / 92.72% · power factor 0.996 / 0.974 (115V / 230V)
05101520253035Average noise (dB(A))<6.0<6.00-<20 %fan off 100%/100%<6.0<6.020-<40 %fan off 30%/36%<6.0<6.040-<60 %fan off 0%/0%13.413.360-<80 %fan off 0%/0%26.026.280-100 %fan off 0%/0%115V230V
0102030Average noise (dB(A))<6.0<6.00-<20 %off 100%/100%<6.0<6.020-<40 %off 30%/36%<6.0<6.040-<60 %off 0%/0%13.413.360-<80 %off 0%/0%26.026.280-100 %off 0%/0%115V230V
Load rangeNoise 115V
avg (loudest)
Noise 230V
avg (loudest)
Fan off
115V / 230V
0-<20 %<6.0 (<6.0)<6.0 (<6.0)100% / 100%
20-<40 %<6.0 (<6.0)<6.0 (<6.0)30% / 36%
40-<60 %<6.0 (<6.0)<6.0 (<6.0)0% / 0%
60-<80 %13.4 (19.7)13.3 (19.7)0% / 0%
80-100 %26.0 (31.0)26.2 (32.4)0% / 0%
70-100 % (High-Load)24.5 (31.0)24.6 (32.4)0% / 0%
All (published average)19.6 (31.0)19.7 (32.4)23% / 24%
Info

The average noise in five ranges of load, the share of points with the fan stopped (semi-passive operation), and the High-Load Index: the same figures for all points at 70 % of the rated output and above. Calculated from the 1548 (115V) and 1548 (230V) load combinations of the certification sweep, the same data that ETA and LAMBDA use (test 0 excluded). Load is the total DC output as a share of the rated 1600 W. Noise is averaged on the energy scale, as for LAMBDA, so the ranges combined give back the published average noise. Each load combination is held for about five seconds; the stabilized readings at fixed loads are under "Noise under high ambient temperature". Below 6 dB(A), the floor of our sound meter, the table and the chart show <6.0. In the averages a stopped fan counts as 5 dB(A), as in the published average.

Informational. Not part of the ETA or LAMBDA rating.

Noise under high ambient temperature (indicative)Supplementary calculated results – outside the scope of accreditation

115V
LoadNormal ambient
fan · noise · intake
High ambient
fan · noise · intake
Noise change
10%0 RPM · <6.0 dB(A) · 31.4 °C0 RPM · <6.0 dB(A) · 45.4 °Cfan off in both
20%0 RPM · <6.0 dB(A) · 32.4 °C0 RPM · <6.0 dB(A) · 45.5 °Cfan off in both
50%441 RPM · 8.7 dB(A) · 30.8 °C458 RPM · <6.0 dB(A) · 42.1 °C-
100%1195 RPM · 30.9 dB(A) · 30.6 °C1486 RPM · 37.3 dB(A) · 45.3 °C+6.4 dB(A)
230V
LoadNormal ambient
fan · noise · intake
High ambient
fan · noise · intake
Noise change
10%0 RPM · <6.0 dB(A) · 36.6 °C0 RPM · <6.0 dB(A) · 42.2 °Cfan off in both
20%0 RPM · <6.0 dB(A) · 36.2 °C0 RPM · <6.0 dB(A) · 43.3 °Cfan off in both
50%439 RPM · 9.1 dB(A) · 30.8 °C462 RPM · <6.0 dB(A) · 42.4 °C-
100%1199 RPM · 30.9 dB(A) · 30.4 °C1490 RPM · 37.4 dB(A) · 47.0 °C+6.5 dB(A)
Info

Fan speed, noise and the measured intake temperature at 10, 20, 50 and 100 % load, from the two load regulation tests: at normal ambient (about 30-32 °C) and at high ambient (about 40-47 °C). These are stabilized readings at fixed loads, not averages over the certification sweep, so they are indicative of how the fan behaves when it is hot. "<6.0" is the floor of our sound meter: the fan is stopped or too quiet to measure (the fan speed column says which); with the fan stopped, the intake sensor can read higher than the chamber air.

Informational. Not part of the ETA or LAMBDA rating.

Section D: ATX

Efficiency With 10W (≤500W) or 2% (>500W) Load74.644%
Hold Up Time19.60ms
Power OK17.00ms
Power OK to DC Loss2.60ms
Test\Rail+12V5V3.3V5VSB
100ms11.8604.9893.3004.936
10ms11.6044.9473.2474.910
1ms11.5004.9303.2274.893
0.1ms11.4474.9223.2174.885

Section E: Information about DUT

Product Identification Details
BrandMSI
ModelMPG Ai1600TS PCIE5
OEM/ODMCWT
Serial Number-
Product Specifications
Manufacturer
Rated Voltage (Vrms)100-240
Rated Current (Arms)10-15
Rated Frequency (Hz)50-60
Rated Power (W)1600
Operating Temperature (Continuous Full Load) (°C)0 - 40
TypeATX12V
Cable DesignFully Modular
Warranty12 years
Cybenetics
Dimensions (W x H x D)150 x 85 x 190mm
Weight2.32 kg (5.11 lb)
Cooling135mm Hydro Dynamic Bearing Fan (PLA13525S12H)
Semi-Passive Operation✓ (selectable)
Cybenetics Testing Information
Lab IDMS16003107
Date of receiptJan 7, 2026
Testing DateFeb 12, 2026
Report Issued DateFeb 17, 2026
Engineer NameGeorgios Theodoros Sarimpalas
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables And Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin EPS12V (650mm) 1 1 18AWG Tinned Copper
8 pin EPS12V (650mm) 1 1 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 1 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 5 5 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 2 2 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
USB 2.0 9-pin Header(610mm) 1 1 24-28AWG -
AC Power Cord (1390mm) - C19 coupler 1 1 14AWG -

Protection Features(Non-accredited measurements)

Under Voltage Protection✓
Over Power Protection✓
Over Current (+12V) Protection✓
Over Temperature Protection✓
Short Circuit Protection✓
Surge Protection✓
Inrush Current Protection✓
Fan Failure Protection✓

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side
Transient Filter 5x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-25150 (15 Ohm @ 25°C) & Relay
Bridge Rectifier 2x WeEn WNB2560M (600V, 25A @ 127°C)
APFC MOSFETs 2x Toshiba TK040N60Z1 (650V, 52A @ 25°C, Rds(on): 0.040 Ohm)
2x Toshiba TW015N65C (650V, 100A @ 25°C, Rds(on): 0.016 Ohm)
1x Sync Power SPN5003 (reducing no load consumption)
APFC Boost Diode 2x Vishay VS-3C10ET07T-M3 (650V, 10A @ 147°C)
Bulk Cap(s) 2x Rubycon (420V, 680uF, 2000h @ 105°C, MXE )
1x Rubycon (420V, 470uF, 2000h @ 105°C, MXE )
Main Switchers 4x Alpha & Omega AOTF29S50 (600V, 18A @ 100°C, Rds(on): 0.15 Ohm)
Digital Controller 2x Texas Instruments  UCD3138A
IC Driver 2x Novosense  NSi6602B-DSWR
Topology Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC Resonant converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 16x Infineon ISC010N06NM5 (60V, 233A @ 100°C, Rds(on): 1.05mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
5x Nippon Chemi-Con (@ 105°C, W)
3x Rubycon (4-10,000h @ 105°C, YXJ )
3x Rubycon (6-10,000h @ 105°C,  ZLH )
Polymer:
36x Nippon Chemi-con, 13x Nichicon FPCAP

Supervisor IC IN1S3151-SAG
Fan Controller / Micro Controller Nuvoton  M252SD2AE
Fan Model Power Logic PLA13525S12H (135mm, 12V, 0.56A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x Leadtrend  LD8926AA1  Synchronous Rectification IC
Standby PWM Controller On-Bright OB2365T

Photos

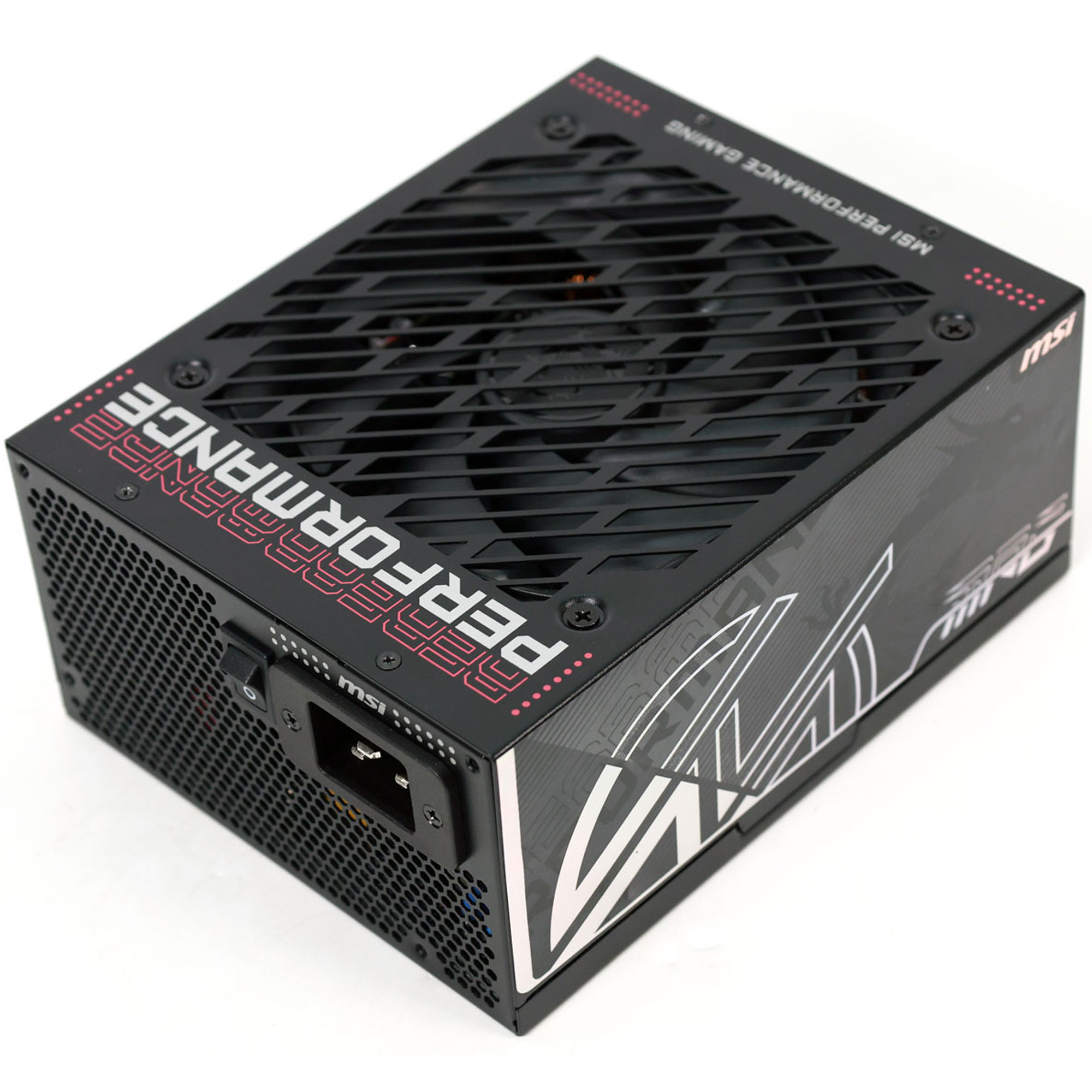

Top side
Top side

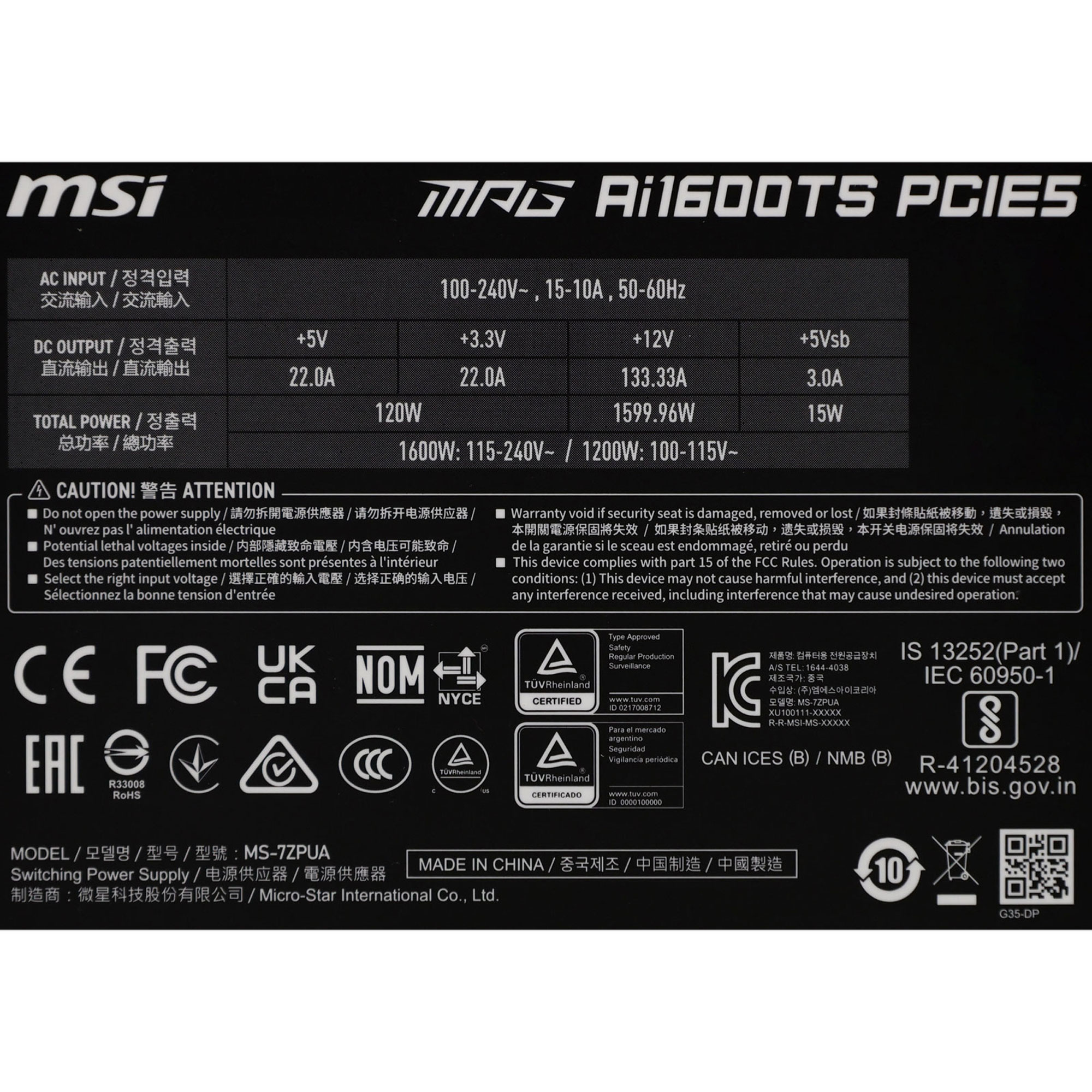

Power specifications label
Power specifications label

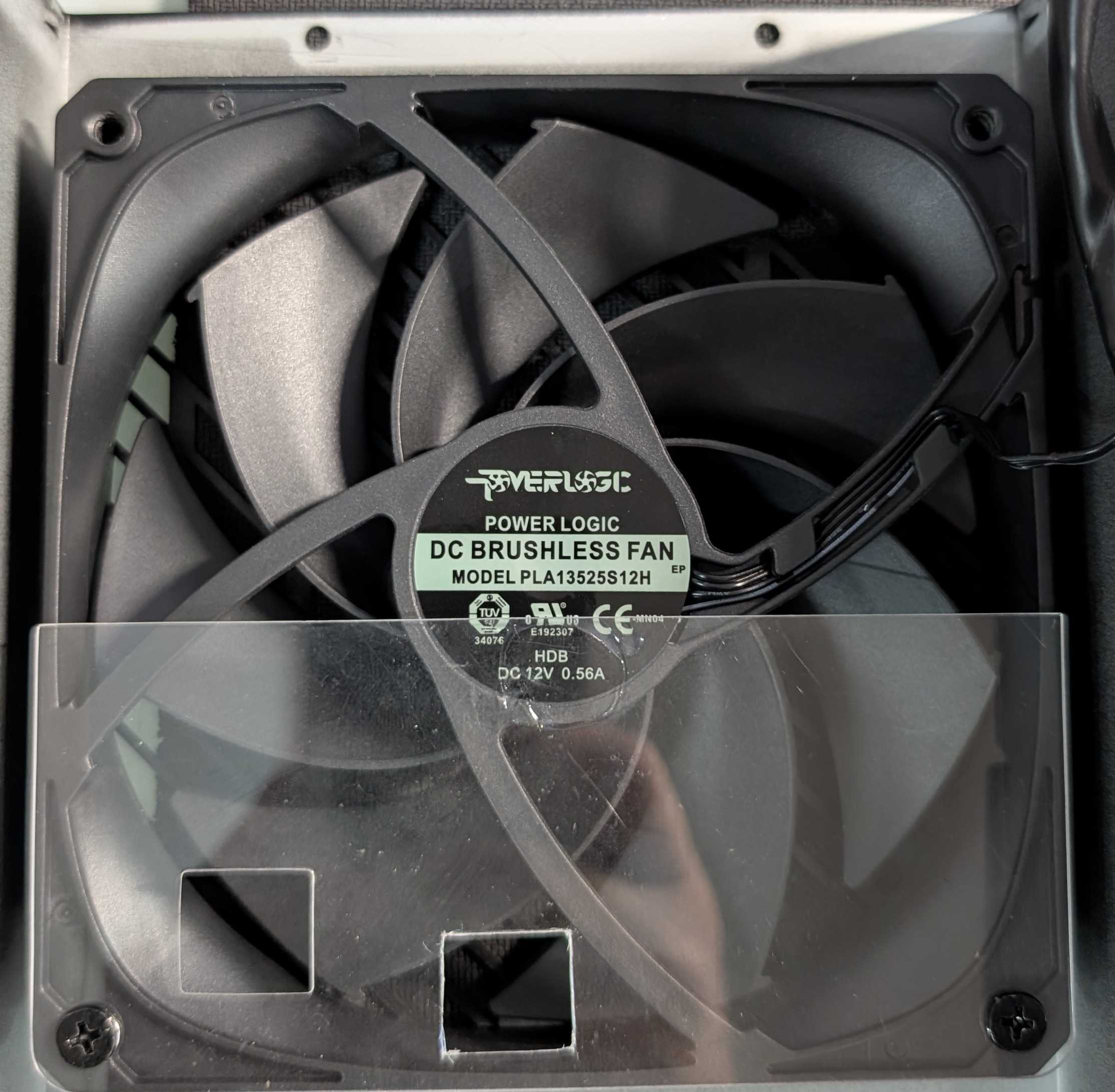

Fan
Fan

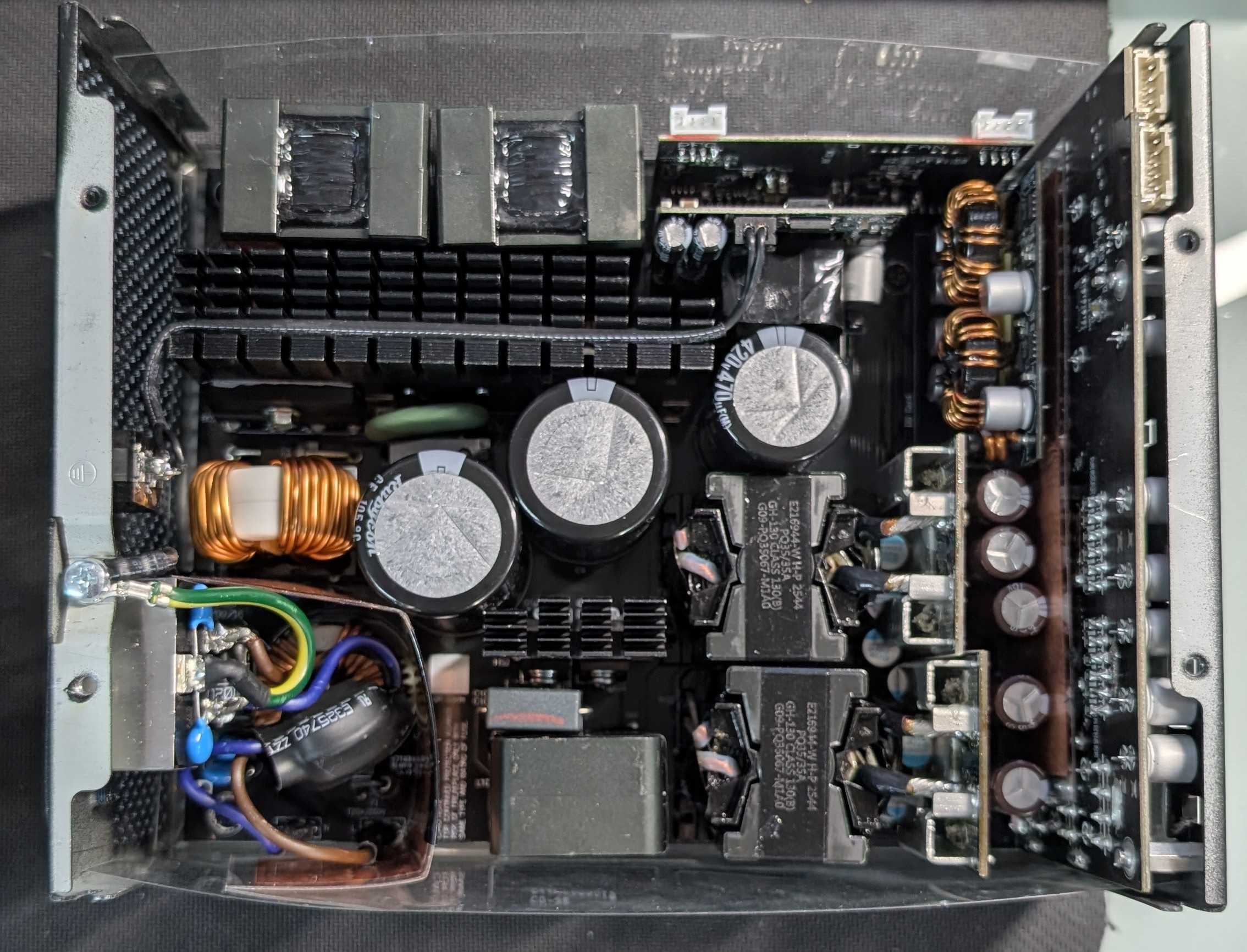

PSU Internals
PSU Internals

Section F: Uncertainty

Efficiency Uncertainty Estimation

F.1 General Statement

Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.

The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.

The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.

Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.

F.2 Expanded Measurement Uncertainty by Measurement Type

Measurement Expanded Uncertainty U (k=2, norm)
Efficiency ±0.43%
Timings ±2.64ms
Power Excursions (Transient Response) ±0.18V
Conducted EMI Emissions (150 kHz – 30 MHz) ±2.35 dB
Noise Output ±1.23 dB
