Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
SF-1600F14SP
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | - | 92.428% |

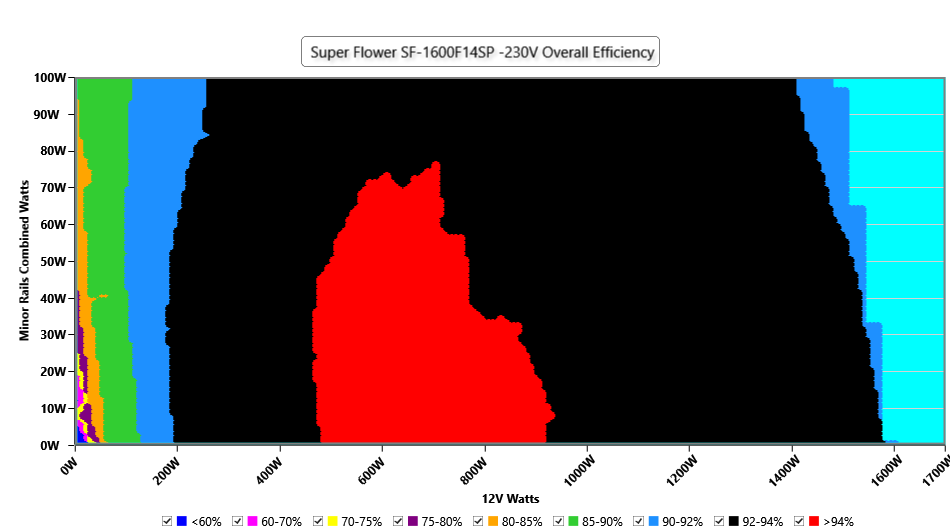

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | - | 0.962 |
| 12V Step | 16.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | - | 0.0998W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | - | 77.850% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | - | 42.61dBA |

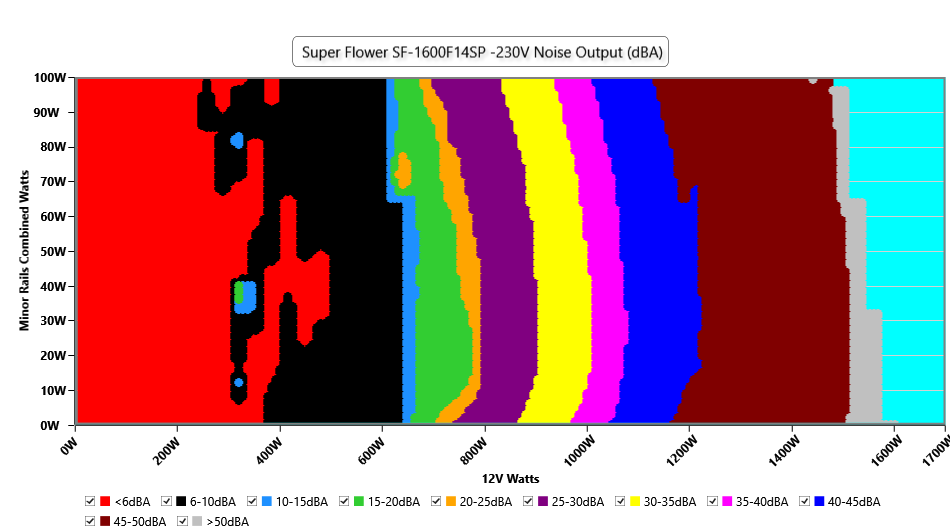

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | - |
| Hold Up Time | 22.70ms |
| Power OK | 19.10ms |
| Power OK to DC Loss | 3.60ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.860 | 4.972 | 3.208 | 5.045 |
| 10ms | 11.422 | 4.927 | 3.122 | 5.026 |
| 1ms | 11.277 | 4.910 | 3.089 | 5.017 |
| 0.1ms | 11.208 | 4.905 | 3.076 | 5.009 |

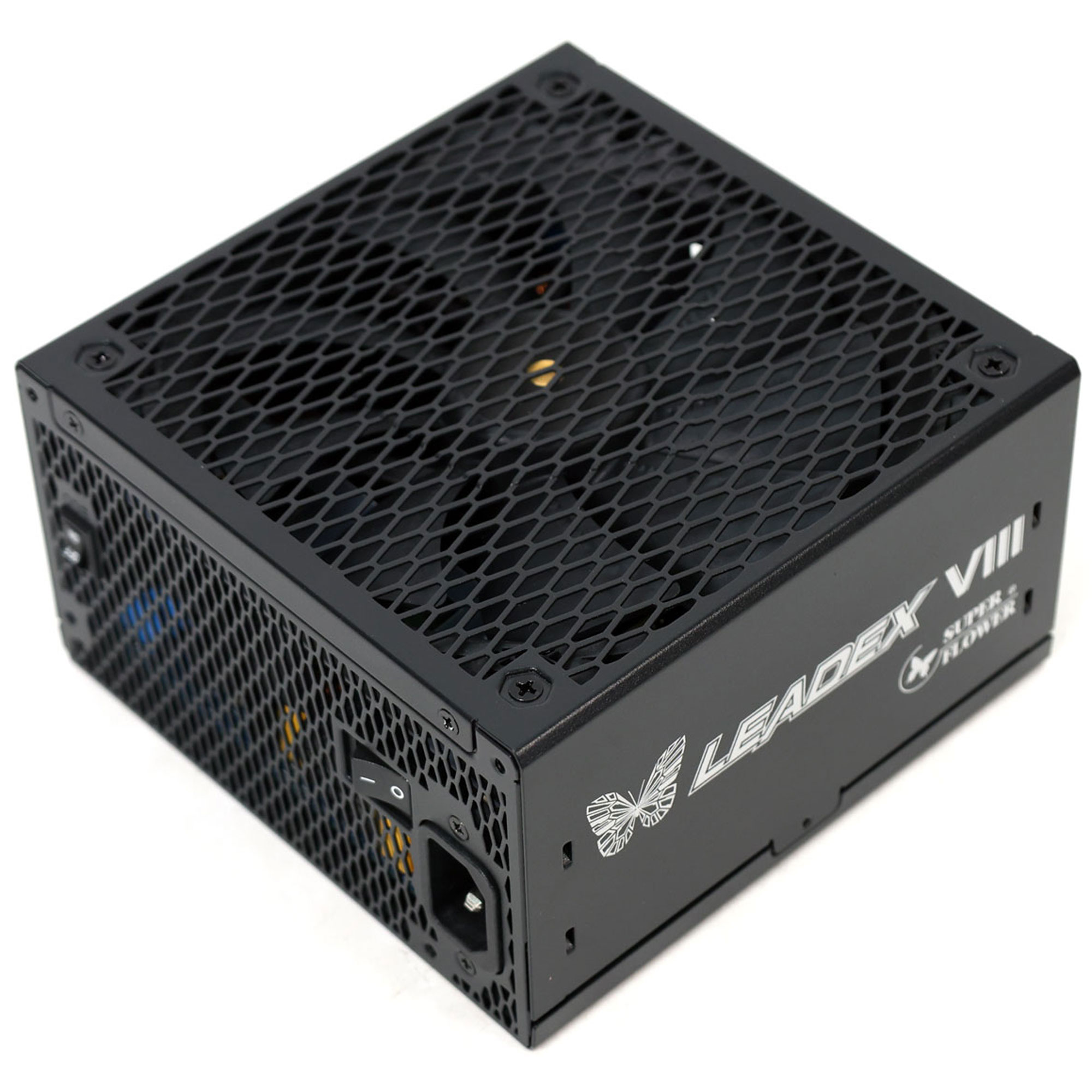

| Product Identification Details | |
| Brand | Super Flower |
| Model | SF-1600F14SP |
| OEM/ODM | Super Flower |
| Serial Number | S2512199008 |

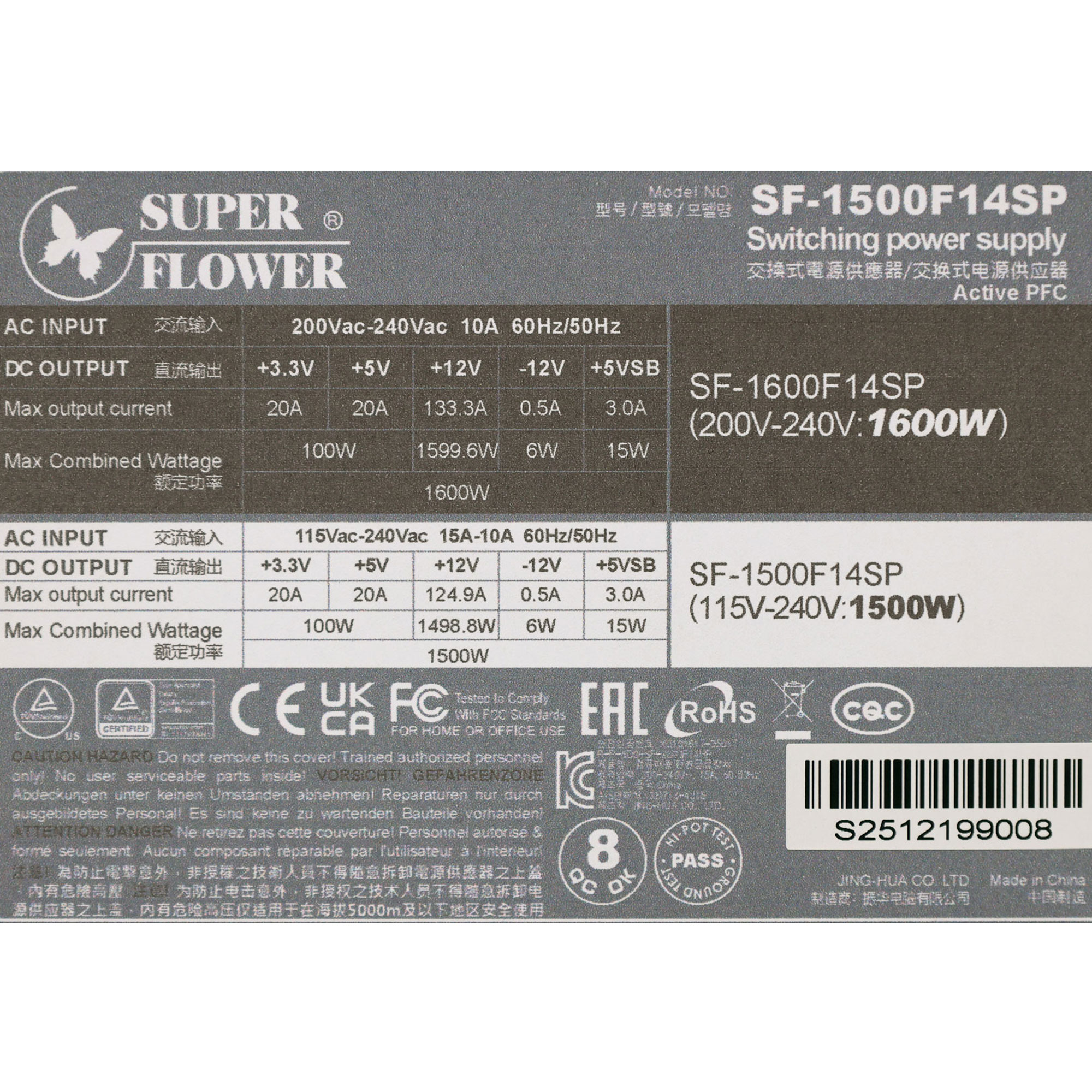

| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 200-240 |
| Rated Current (Arms) | 10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1600 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 150mm |
| Weight | 1.75 kg (3.86 lb) |
| Cooling | 140mm Double Ball Bearing Fan (ZFB142512D) |
| Semi-Passive Operation | ✓ (selectable) |
| Cybenetics Testing Information | |
| Lab ID | SF16003132 |
| Date of receipt | Jan 2, 2026 |
| Testing Date | Feb 11, 2026 |
| Report Issued Date | Feb 24, 2026 |
| DUT Notes | The specified cable is for 200-240VAC only, because this PSU uses a C13/C14 combo instead of C19/C20. It doesn't get an ATX v3.x compliance badge because the 3.3V rail voltage drops too low during the transient tests (with additional capacitance). |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 16-20AWG | Tinned Copper |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 16-18AWG | Tinned Copper |
| 6+2 pin PCIe (700mm) | 4 | 4 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (700mm) (600W) | 2 | 2 | 16-26AWG | Tinned Copper |
| SATA (500mm+130mm+130mm+130mm) | 3 | 12 | 18AWG | Tinned Copper |
| 4-pin Molex (500mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | Tinned Copper |
| AC Power Cord (1385mm) - C13 coupler | 1 | 1 | 18AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Super Flower |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 7x Y caps, 3x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor SCK254R7 (4.7 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x GBU2506 (600V, 25A @ 100°C) |
| APFC MOSFETs | 4x Infineon IPW60R120P7 (650V, 16A @ 100°C, Rds(on): 0.120Ohm) |
| APFC Boost Diode | 2x CREE C3D10060 (600V, 10A @ 150°C) |
| Bulk Cap(s) | 2x Rubycon (420V, 580uF, 2000h @ 105°C, MXZ) |
| Main Switchers | 4x Infineon IPW60R070CFD7 (650V, 20A @ 100°C, Rds(on): 0.13Ohm) |
| APFC Controller | ON Semiconductor NCP1654 & |
| Resonant Controller | N/A |
| IC Driver | N/A |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Infineon ISC019N04NM5 (40V, 120A @ 100°C, Rds(on): 1.9mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Infineon BSC0902NS (30V, 67A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): Anpec APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Weltrend WT7518 (OVP, UVP, OCP, PG) |
| Fan Controller / Micro Controller | ON Semiconductor LM324ADG |
| Fan Model | ZIC ZFB142512D (140mm, 12V, 0.65A, Double Ball Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | PFC Device Corp. PFR20L60CT (60V, 10mOhm) |
| Standby PWM Controller | Chipown PN8733 |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
