Creator 850W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|

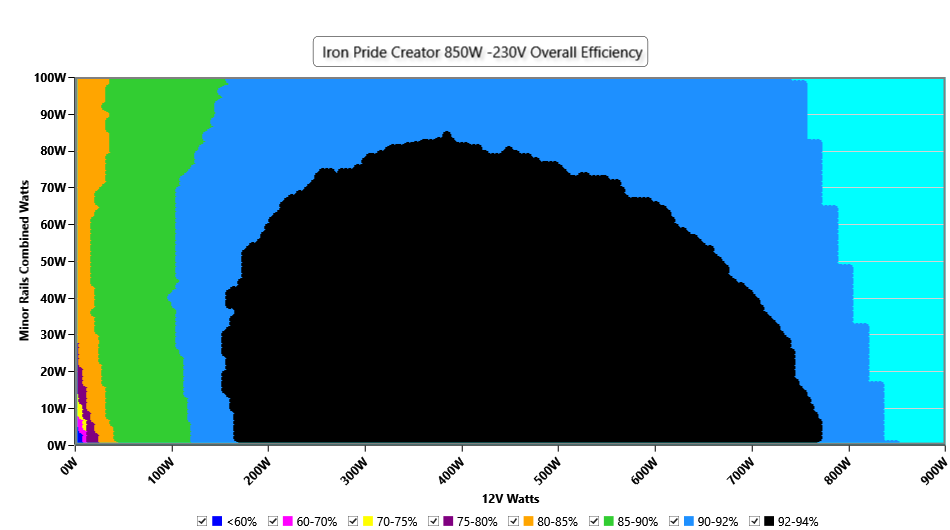

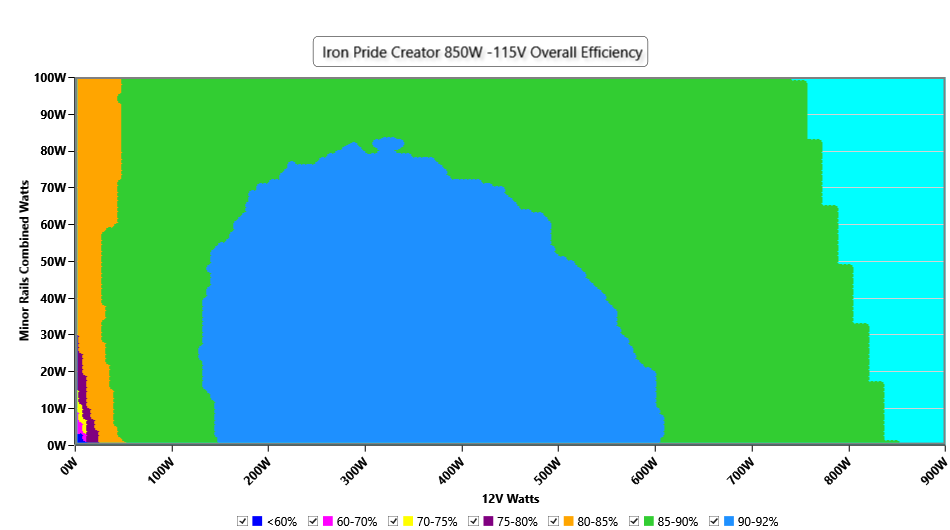

| Efficiency (>1450 Load Combinations) | 88.806% | 91.103% |
| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.987 | 0.949 |
| 12V Step | 8.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0517W | 0.1708W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 82.703% | 80.883% |
| Voltage | 115V | 230V |
|---|---|---|

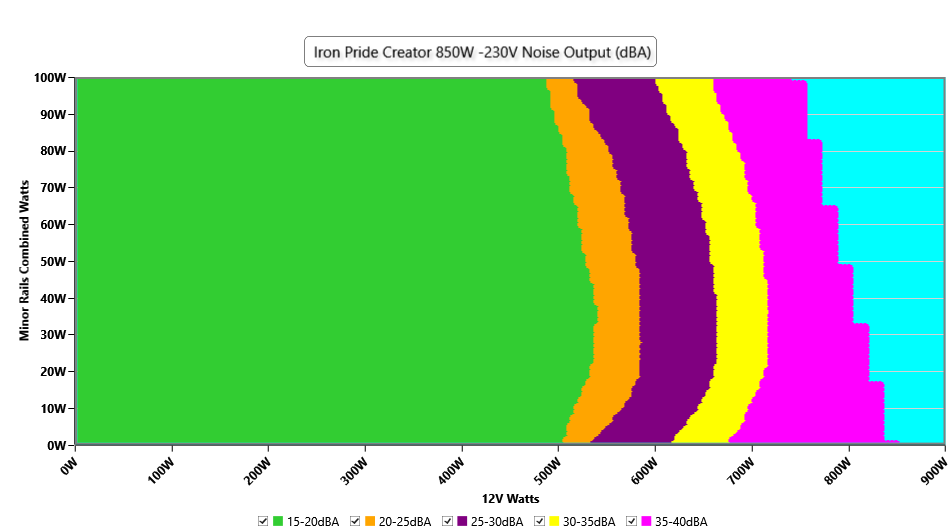

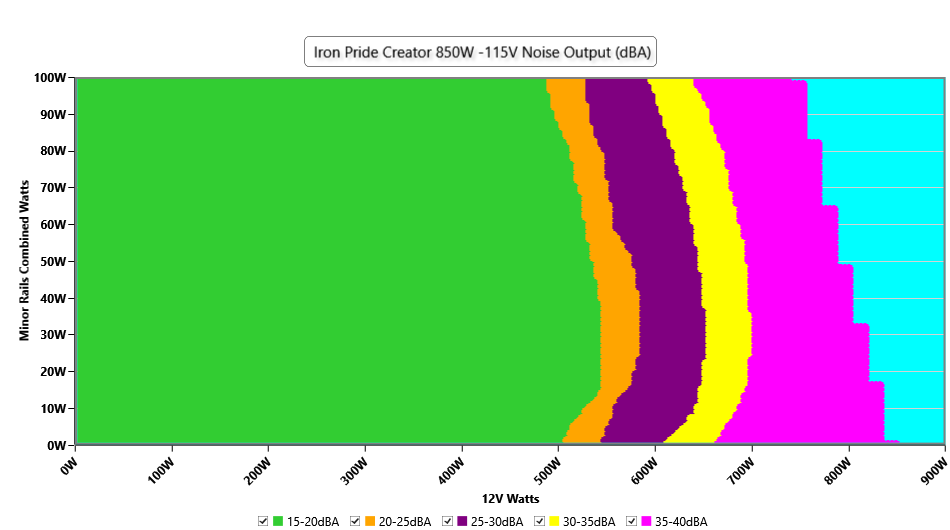

| Noise Rating (>1450 Load Combinations) | 29.82dBA | 29.59dBA |
| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 73.566% |
| Hold Up Time | 19.90ms |
| Power OK | 16.00ms |
| Power OK to DC Loss | 3.90ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.906 | 4.948 | 3.199 | 4.932 |
| 10ms | 11.667 | 4.910 | 3.161 | 4.897 |
| 1ms | 10.721 | 4.892 | 3.144 | 4.884 |
| 0.1ms | 11.513 | 4.885 | 3.139 | 4.907 |
| Product Identification Details | |
| Brand | Iron Pride |
| Model | Creator 850W |
| OEM/ODM | Lemon ET |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7.5-15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.22 kg (2.69 lb) |
| Cooling | 120mm Fan 2000RPM (No other information) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | IP85003145 |
| Date of receipt | Jan 16, 2026 |
| Testing Date | Feb 17, 2026 |
| Report Issued Date | Feb 25, 2026 |
| DUT Notes | Some protection features need adjustment. |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 16AWG | Tinned Copper |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (600mm+150mm) | 3 | 6 | 16-18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (500mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | Tinned Copper |
| 4-pin Molex(500mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Delta Electronics |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | 2x NTC Thermistor NTC 8D-15 (8 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x GBU1008 (800V, 10A @ 25°C) |
| APFC MOSFETs | 2x Wuhan Xinyuan Semiconductor CWS55R140AF (550V, 15.5A @ 100°C, Rds(on): 140mOhm) |
| APFC Boost Diode | Reasunos Semiconductor Technology RSS08065A (650V, 8A @ 120°C) |
| Bulk Cap(s) | 2x Nippon Chemi-Con (400V, 390uF, 2000h @ 105°C, KMR ) |
| Main Switchers | 2x Wuhan Xinyuan Semiconductor CWS55R099BF (550V, 25A @ 100°C, Rds(on): 140mOhm) |
APFC Controller | Safety-Chip Micro SC3654 |
| Topology | Primary Side: APFC, Half-Bridge Secondary Side: [12V] Synchronous Rectification & [Minor Rails] DC-DC Converters |
| Secondary Side | |
| +12V MOSFETs | 6x Suzhou Convert Semiconductor CSN04N1P8 (40V, 160A @ 100°C Rds(on): 1.5mOhm) |
| 5V & 3.3V | DC-DC Converters: 2x Excelliance MOS EMB09N03HR (30V, 35A @ 100°C, Rds(on): 9.5mOhm) 2x Excelliance MOS EMB06N03HR (30V, 60A @ 100°C, Rds(on): 6mOhm) PWM Controller(s): 2x Excelliance MOS EM5301 |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | NDP5201KC |
| Fan Controller / Micro Controller | Texas Instruments LM393 |
| Fan Model | HongKong Prime Box Industries Limited 12025 (120mm, 12V, 0.30A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke Semiconductor DK5V45R20 (45V, 20mOhm) |
| Standby PWM Controller | SP3622S SOP-7 |

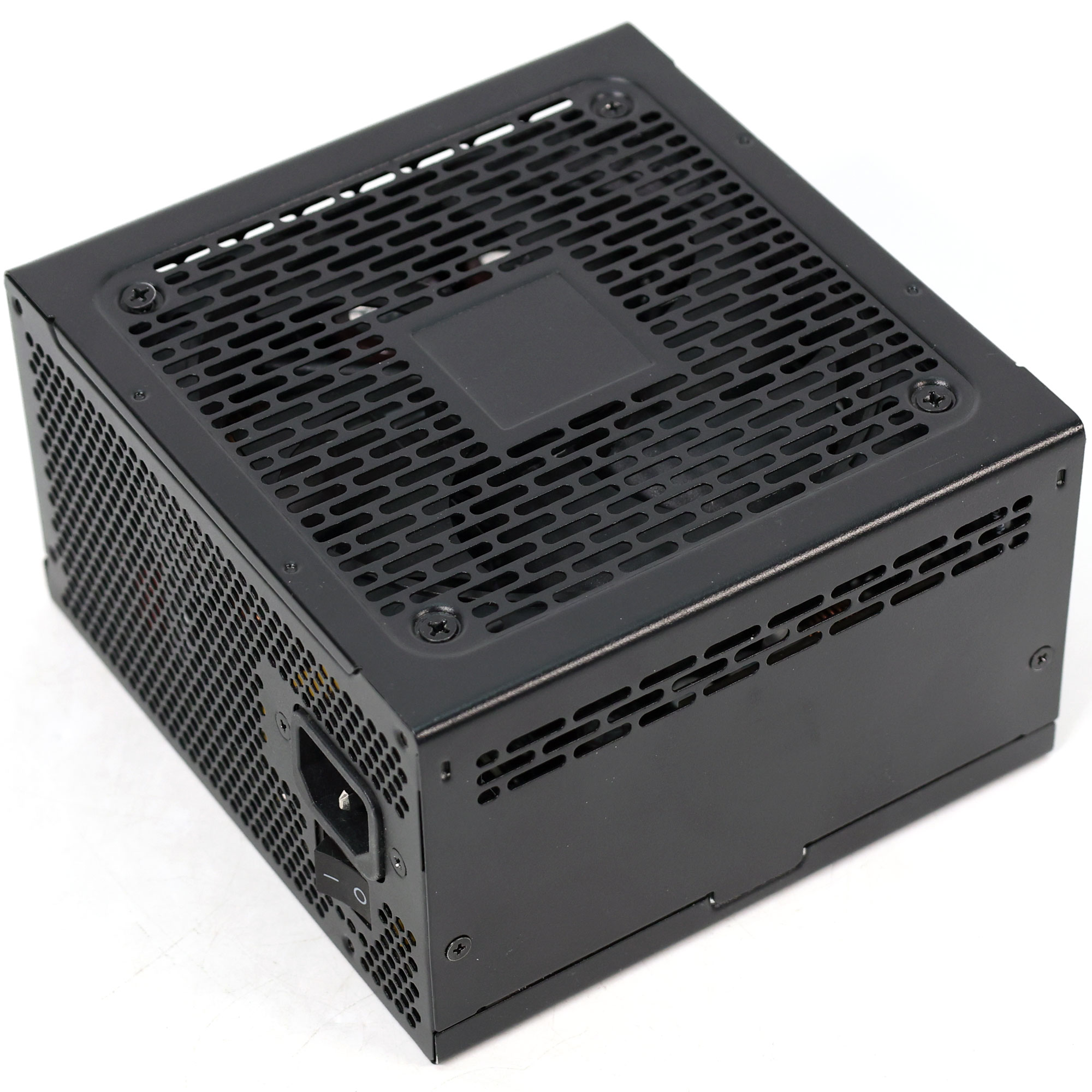

| Photos |  |  |

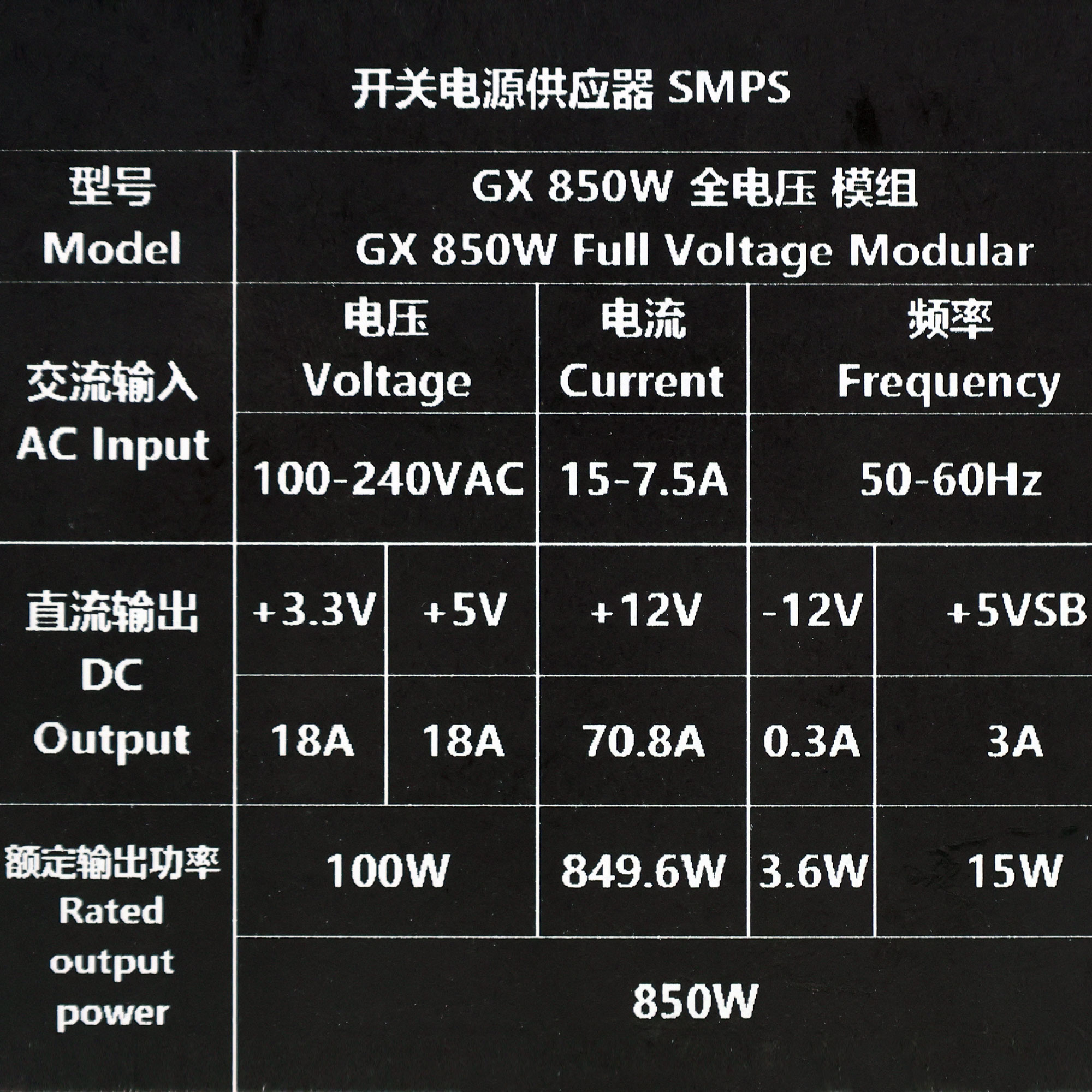

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
