Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus

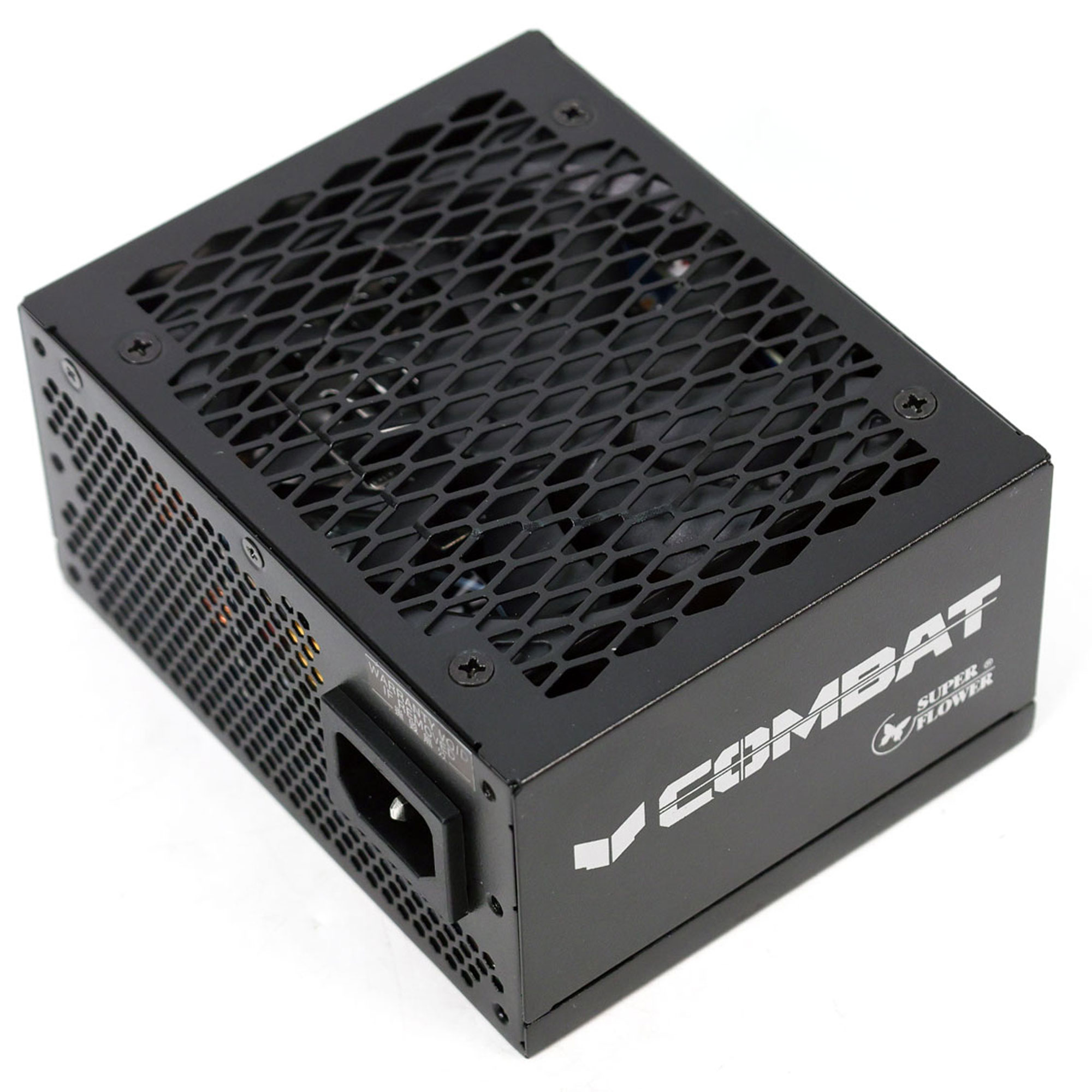

Combat SFP ATX3.1 1000W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.212% | 92.050% |
| Efficiency Graphs | ||
| Average PF (>1450 Load Combinations) | 0.986 | 0.952 |
| 12V Step | 10.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0532W | 0.0996W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 83.857% | 83.279% |

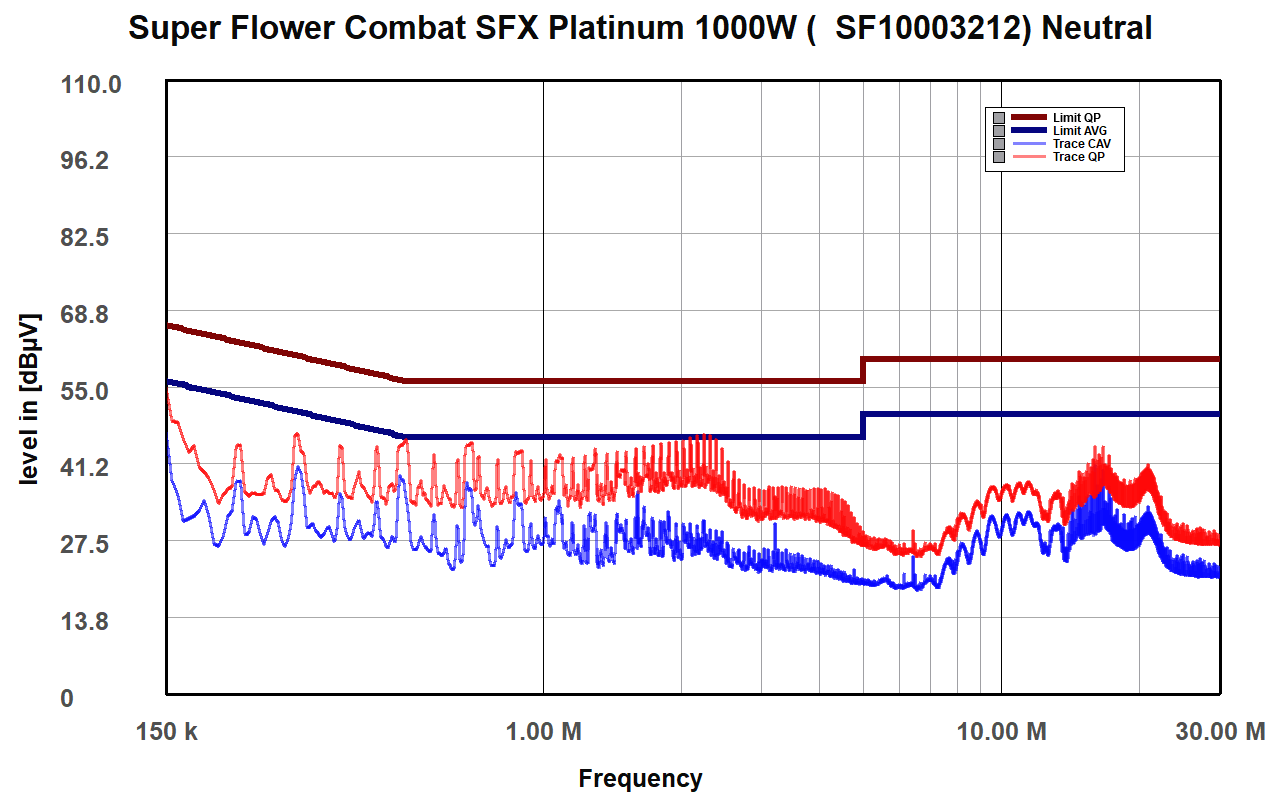

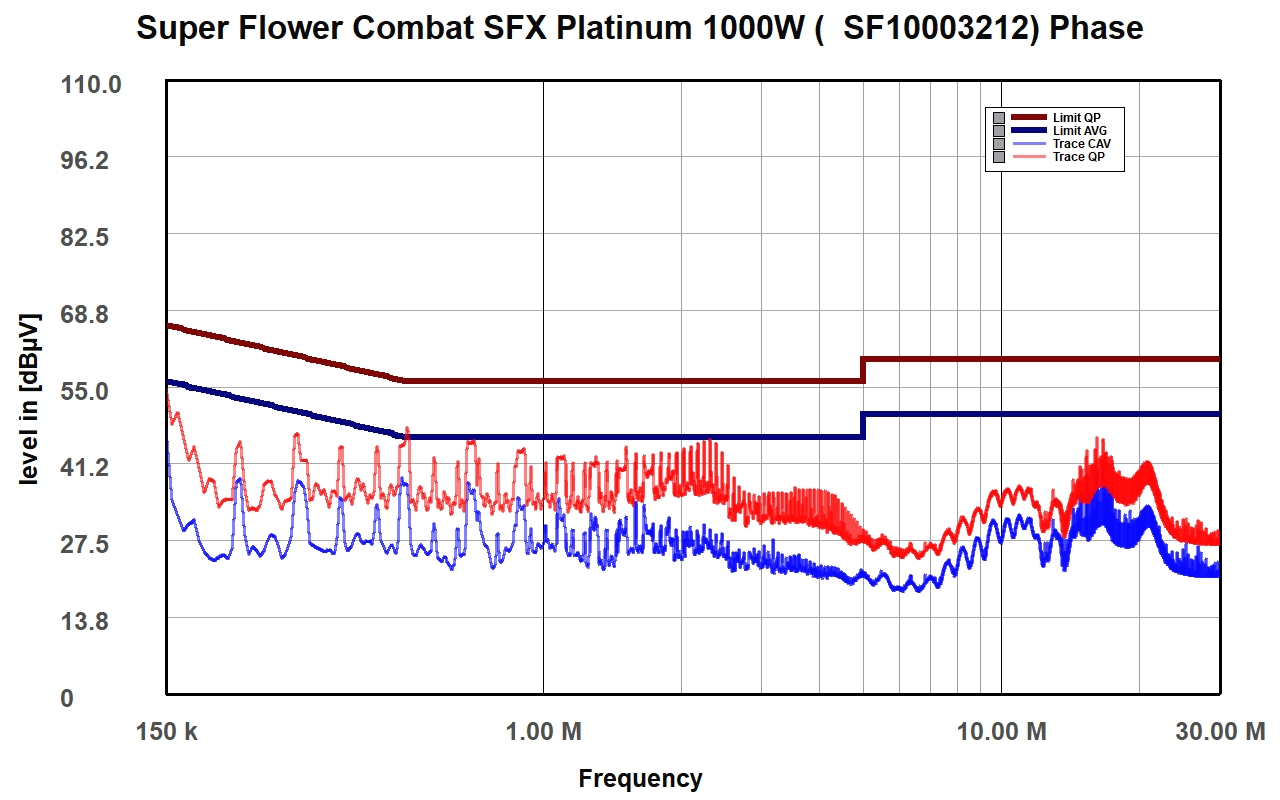

| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |
Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 38.02dBA | 37.81dBA |
| Noise Graphs | ||
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 64.314% |
| Hold Up Time | 13.40ms |
| Power OK | 11.60ms |
| Power OK to DC Loss | 1.80ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.939 | 4.962 | 3.243 | 4.963 |
| 10ms | 11.692 | 4.931 | 3.219 | 4.939 |
| 1ms | 11.585 | 4.918 | 3.208 | 4.928 |
| 0.1ms | 11.479 | 4.905 | 3.194 | 4.916 |
| Product Identification Details | |
| Brand | Super Flower |
| Model | Combat SFP ATX3.1 1000W |
| OEM/ODM | CWT |
| Serial Number | N2512CW001177 |

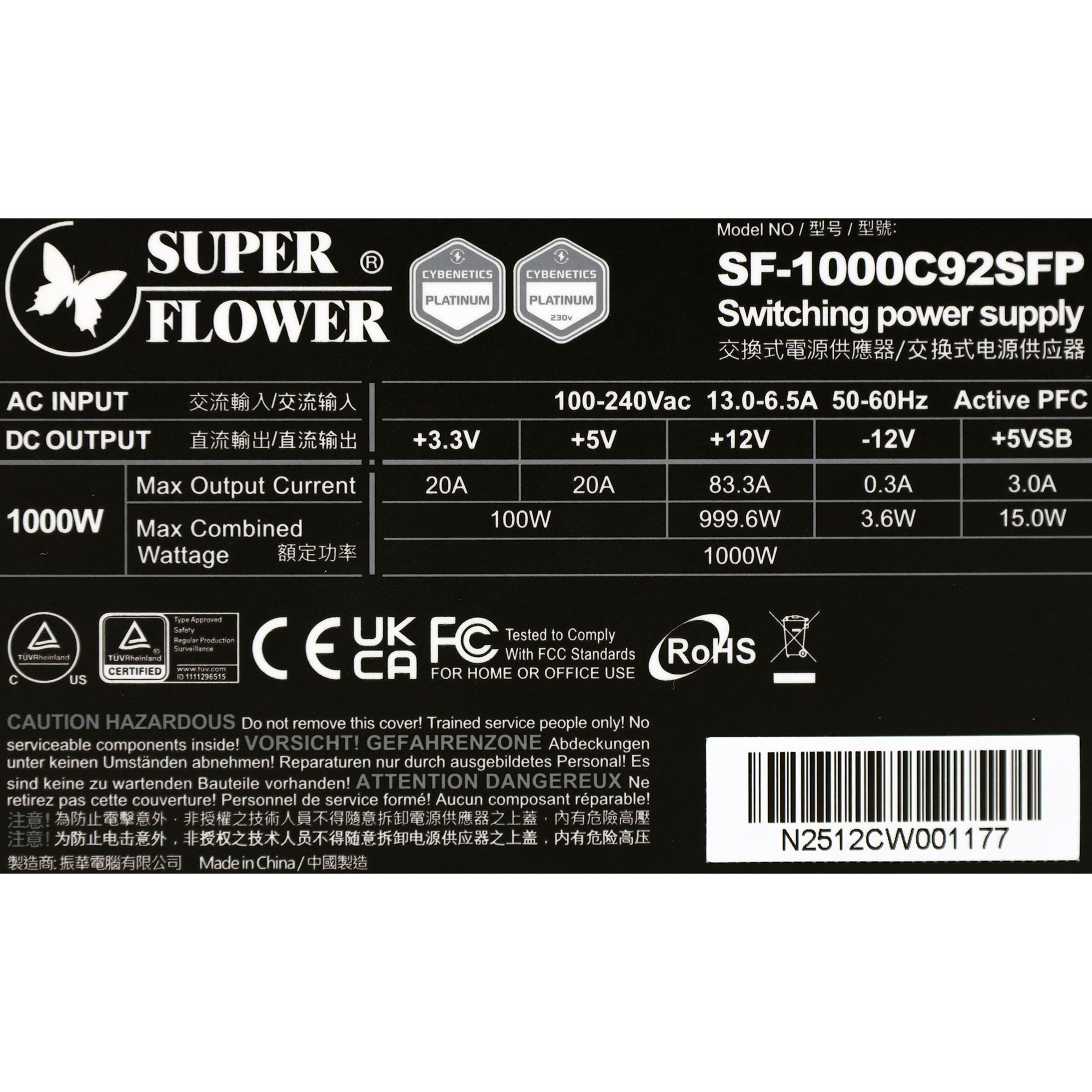

| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6.5-13 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | SFX |
| Cable Design | Fully Modular |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 125 x 63.5 x 100mm |
| Weight | 960g (2.12 lb) |
| Cooling | 92mm Fluid Dynamic Bearing Fan (HA9215SH12FD-F00) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | SF10003212 |
| Date of receipt | Feb 11, 2026 |
| Testing Date | Mar 12, 2026 |
| Report Issued Date | Mar 26, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (350mm) | 1 | 1 | 16-20AWG | Tinned Copper |
| 4+4 pin ATX12V (450mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (400mm+150mm) | 2 | 4 | 16-18AWG | Tinned Copper |
| 12+4 pin PCIe (400mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (300mm+150mm+150mm+150mm) | 2 | 8 | 18AWG | Tinned Copper |
| 4-pin Molex (300mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | Tinned Copper |
| AC Power Cord (1400mm) - C13 coupler | 1 | 1 | 14AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |

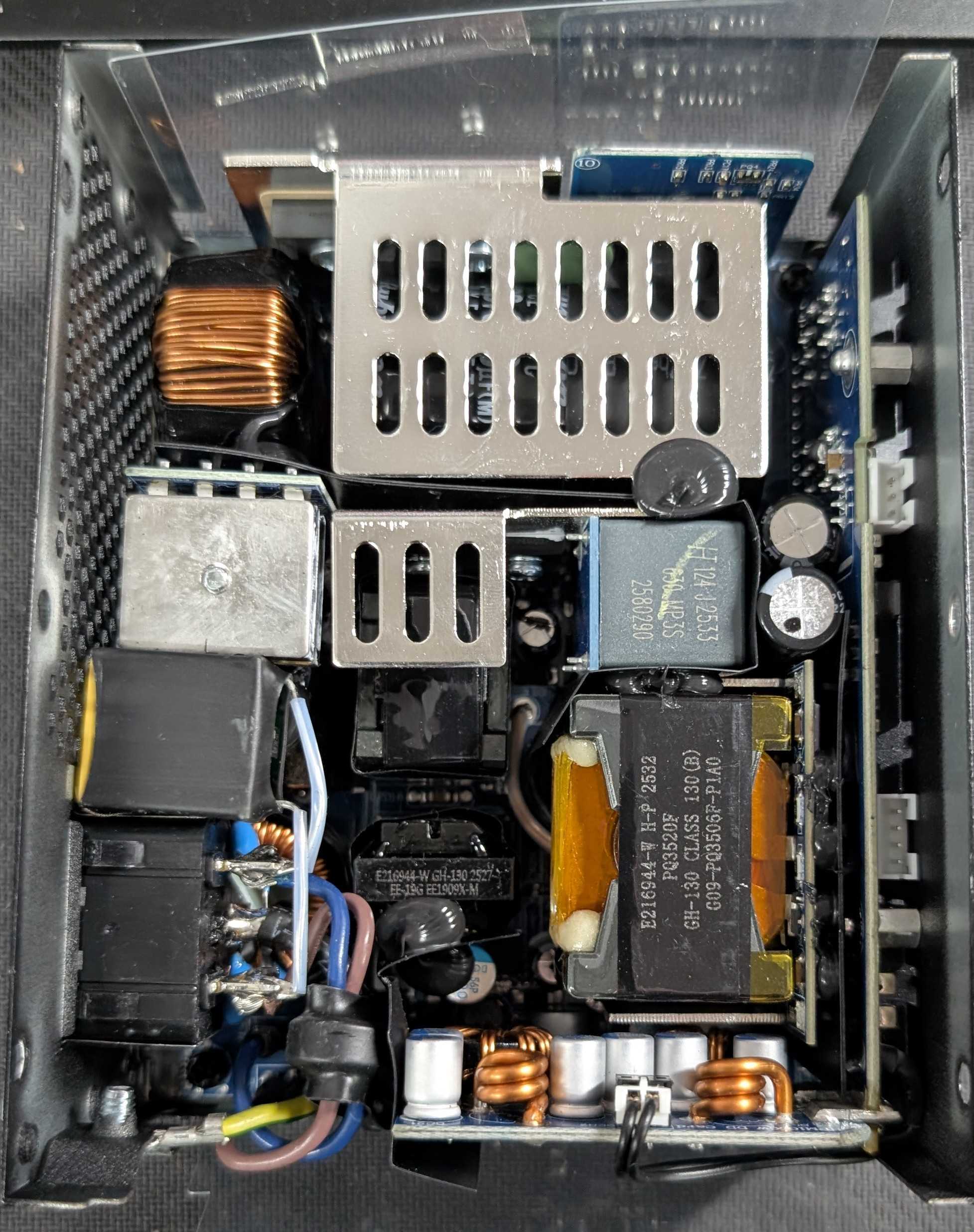

| General Data | |
| Manufacturer (OEM) | CWT |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 2x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Sync Power SP687 (X2 Capacitor Discharge IC) |
| Inrush Protection | 1x NTC Thermistor SCK-056 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Vishay GBUE2560 (600V, 25A @ 100°C) |
| APFC MOSFETs | 2x Infineon IPW60R060P7 (650V, 30A @ 100°C, Rds(on): 0.06Ohm) |
| APFC Boost Diode | Infineon IDH16G65C6 (650V, 16A @ 135°C) |
| Bulk Cap(s) | 1x Rubycon (420V, 820uF, 2000h @ 105°C, MXE ) |
| Main Switchers | 2x Infineon IPA60R099P6 (650V, 24A @ 100°C, Rds(on): 0.099Ohm) |
APFC Controller | Champion CM6500UNX & |
| Resonant Controller | Champion CM6901T2X |
| IC Driver | 2x Silicon Labs Si8233BD |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Infineon BSC010N04LS (40V, 178A @ 100°C, Rds(on): 1.0mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Excelliance MOS EMB04N03 (30V, 45A @ 100°C, Rds(on): 4.0mOhm) PWM Controller(s): Anpec APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Weltrend WT7518 (OVP, UVP, OCP, PG) |

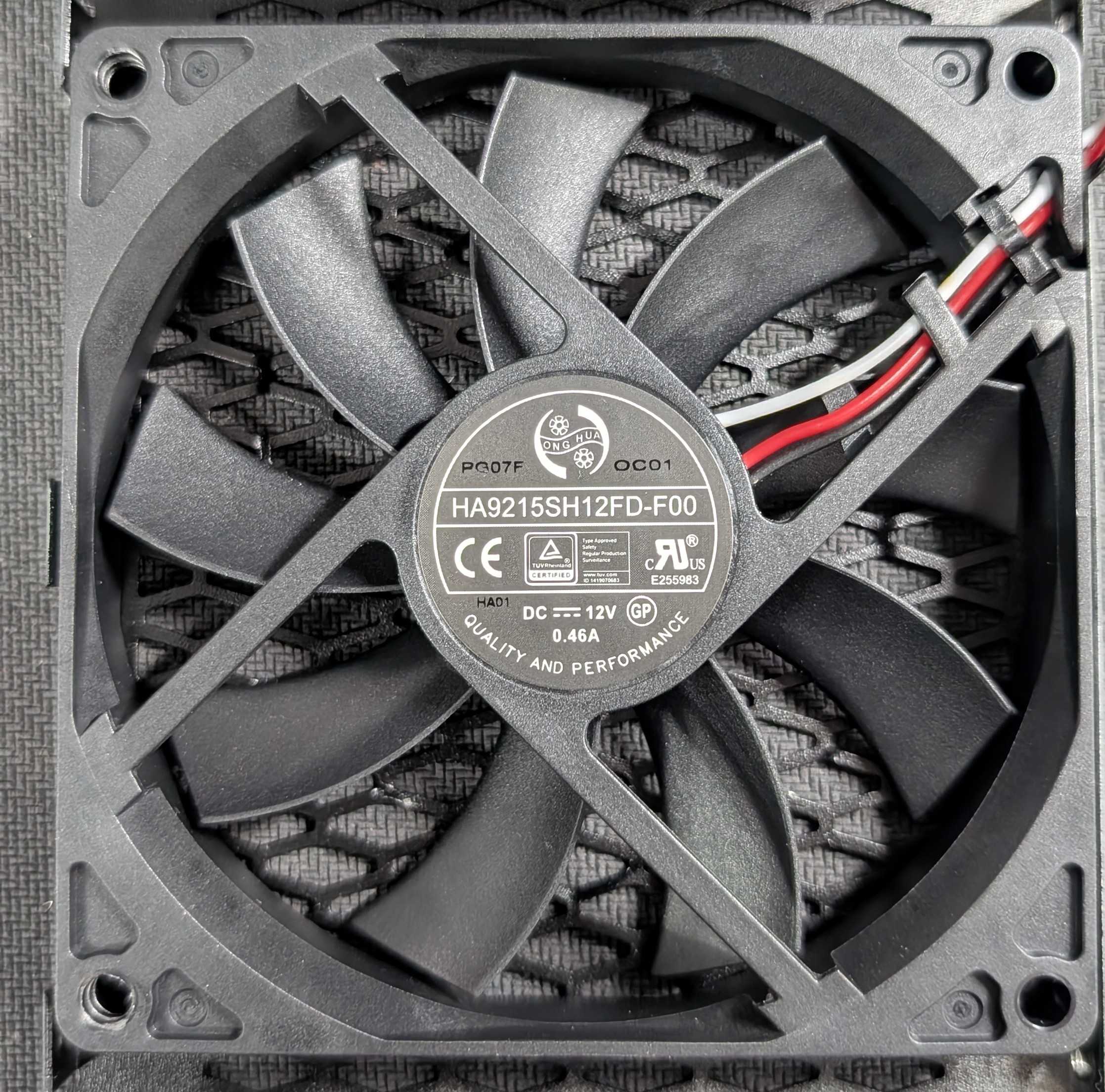

| Fan Model | Hong Hua HA9215SH12FD-F00 (92mm, 12V, 0.46A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Infineon ISC0702NLS (60V, 95A @ 100°C, Rds(on): 2.8mOhm) |
| Standby PWM Controller | Power Integrations INN3164C |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
