No. of Accred.: L152
TESTING
Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
CRPS2000C3
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | - | 93.337% |

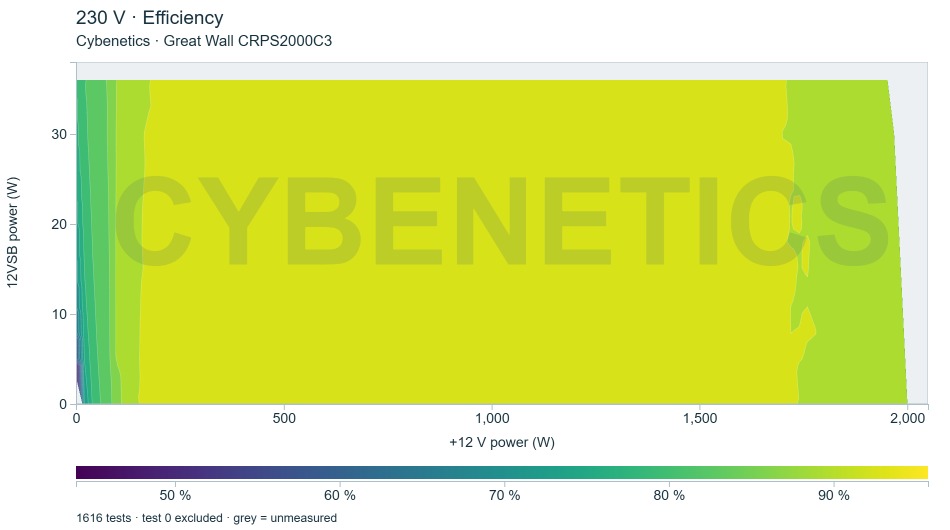

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | - | 0.987 |
| 12V Step | 8.00W | |
| 5V/3.3V Step | 3.00W | |
| Standby Power Consumption | - | 3.5033W |
| Average Efficiency VSB | - | 68.799% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |

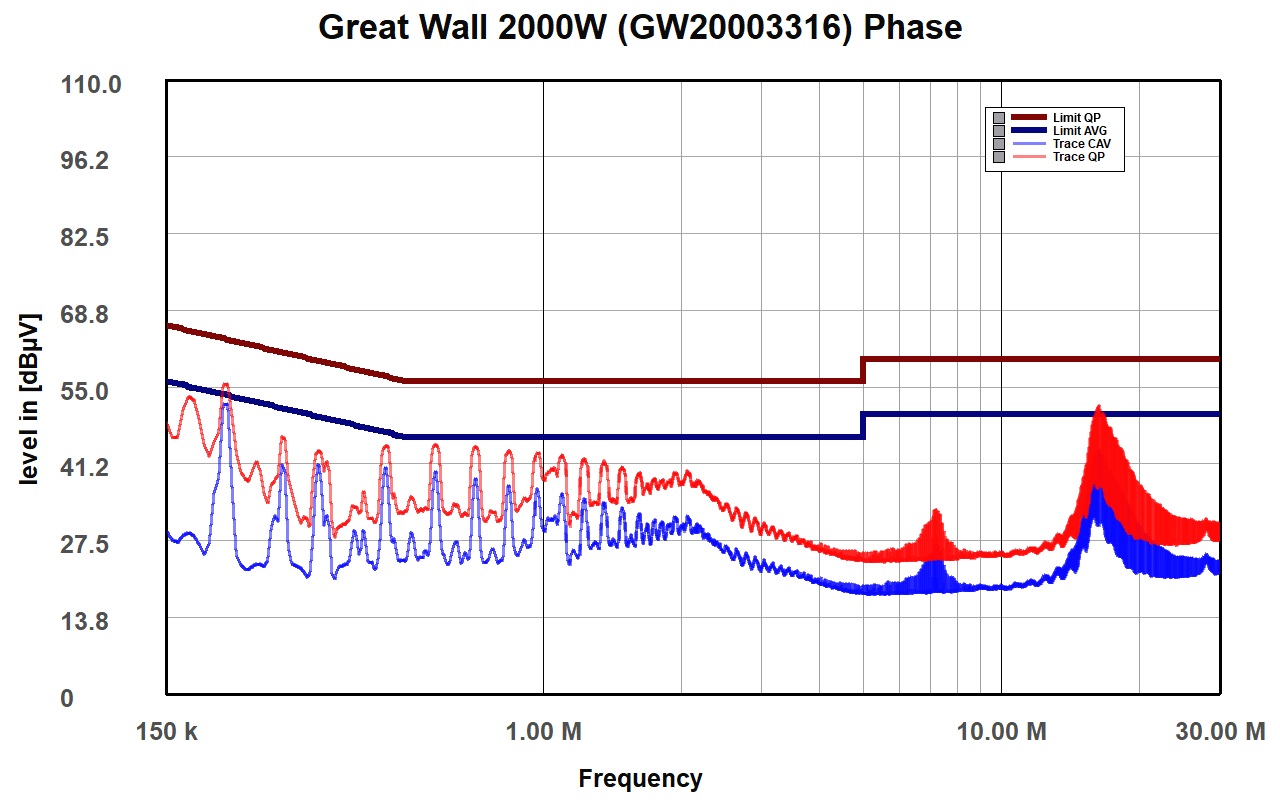

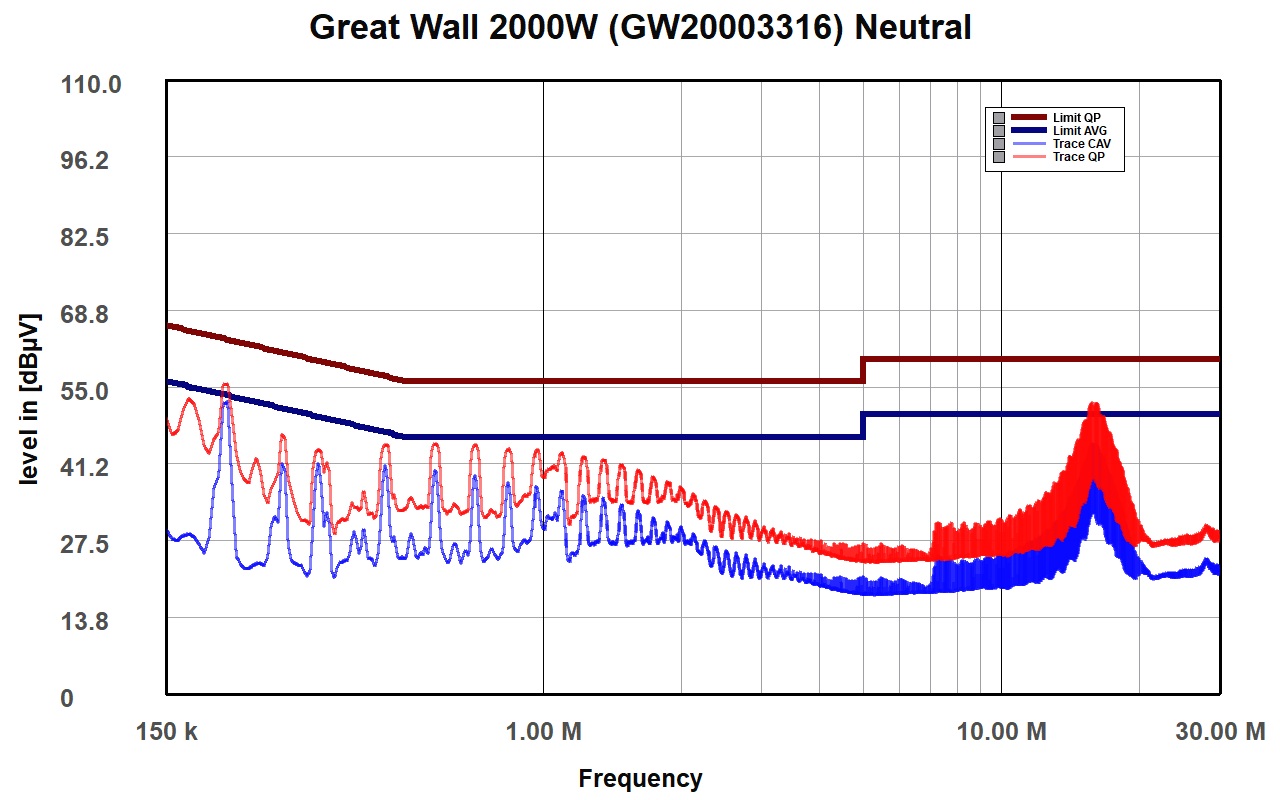

Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | - | - |
| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | - |
| Hold Up Time | 15.70ms |
| Power OK | 14.30ms |
| Power OK to DC Loss | 1.40ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 0.000 | |||
| 10ms | 0.000 | |||
| 1ms | 0.000 | |||
| 0.1ms | 0.000 |
| Product Identification Details | |
| Brand | Great Wall |
| Model | CRPS2000C3 |
| OEM/ODM | Great Wall |
| Serial Number | 2Q030042096 |

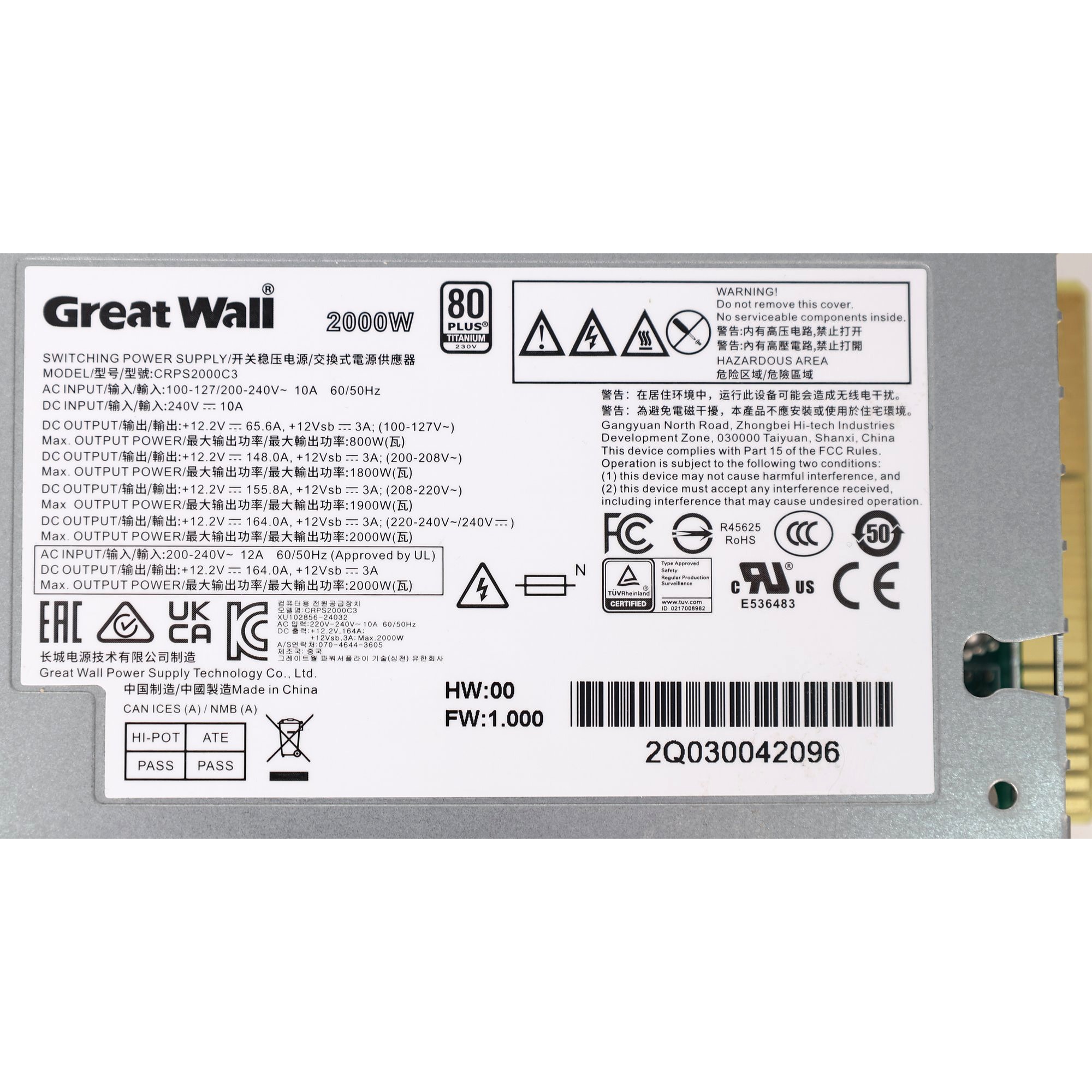

| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-127 / 200-240 |
| Rated Current (Arms) | 10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 2000 |
| Operating Temperature (Continuous Full Load) (°C) | 0 ~ 55 |
| Type | 1U |
| Cable Design | Card edge connector (no cables) |
| Warranty | No info |
| Cybenetics | |
| Dimensions (W x H x D) | 73.5 x 40 x 185 mm |
| Weight | 0.95 kg (2.09 lb) |
| Cooling | 40 mm fan |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | GW20003316 |
| Date of receipt | May 12, 2026 |
| Testing Date | Oct 22, 2026 |
| Report Issued Date | Oct 30, 2026 |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Cables And Connectors | |

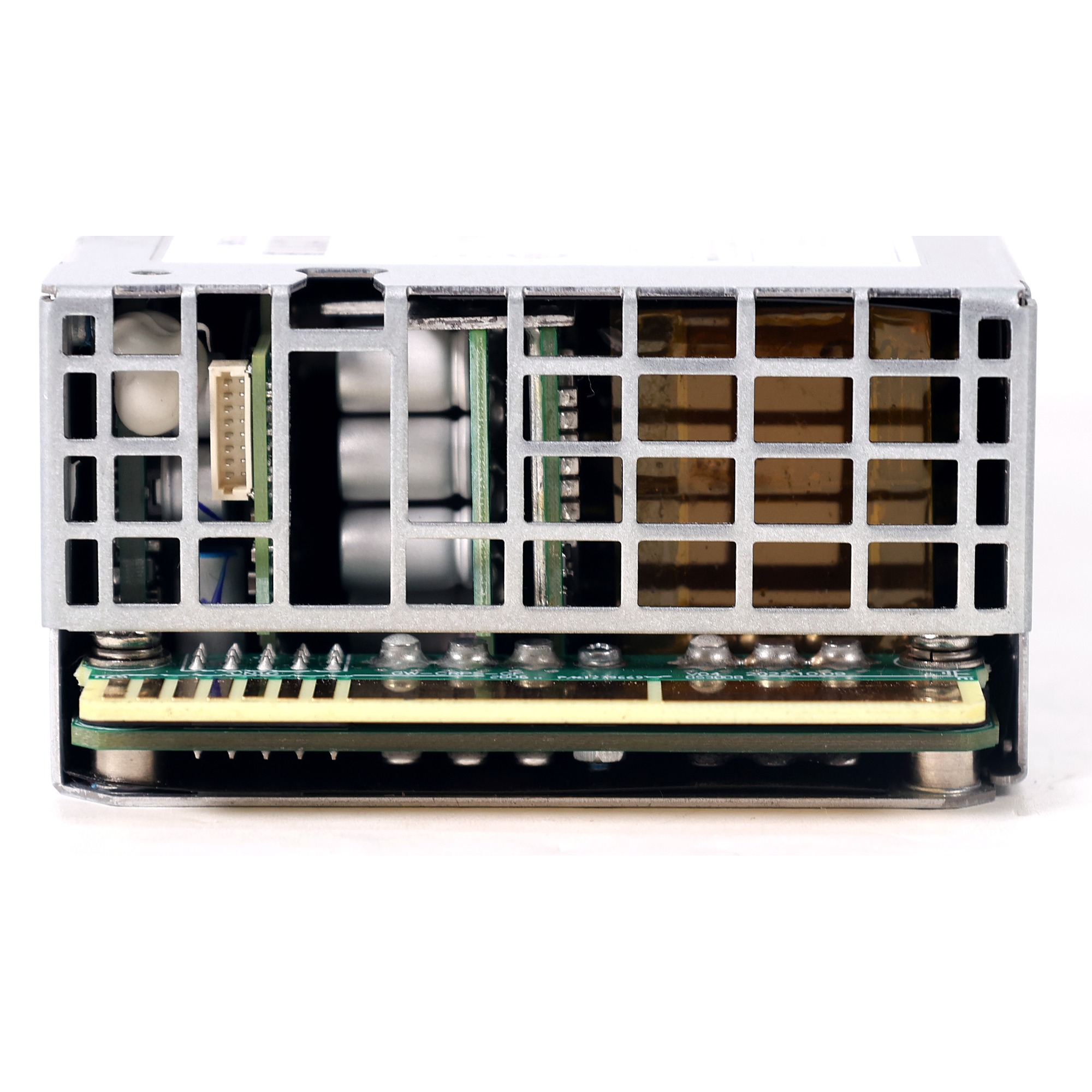

| Connector | Card Edge Connector (golden finger) |
| Captive Cables | None |
| Modular Cables | None |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
