Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
PW650
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 0.000% | 87.886% |

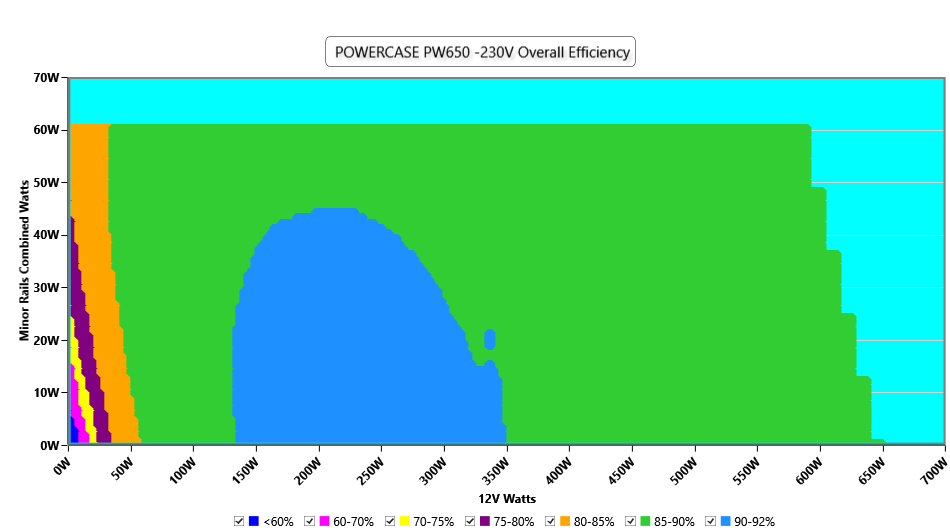

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.000 | 0.971 |
| 12V Step | 6.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0000W | 0.1055W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 0.000% | 78.651% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 0.00dBA | 39.36dBA |

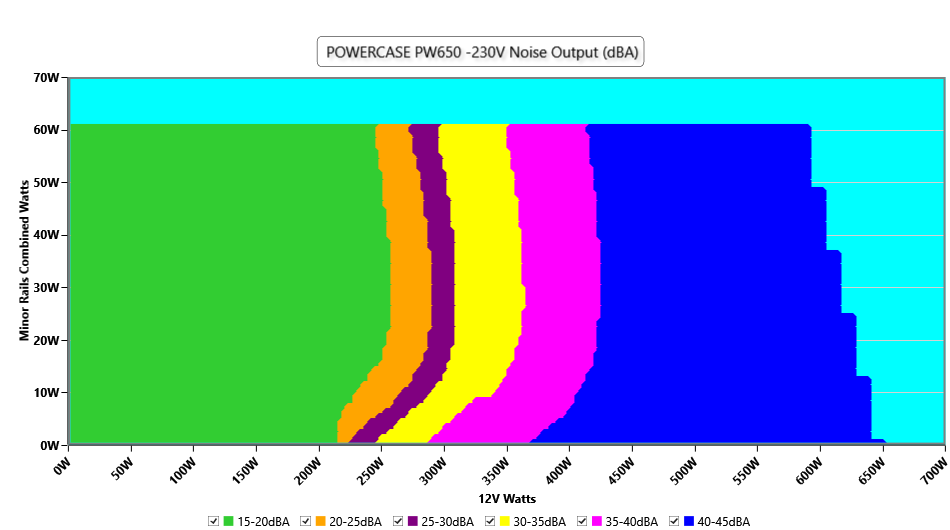

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 0.000% |
| Hold Up Time | 15.80ms |
| Power OK | 13.70ms |
| Power OK to DC Loss | 2.10ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 0.000 | |||
| 10ms | 0.000 | |||
| 1ms | 0.000 | |||
| 0.1ms | 0.000 |
| Product Identification Details | |
| Brand | POWERCASE |
| Model | PW650 |
| OEM | GUANGHAI |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 200-240 |
| Rated Current (Arms) | 10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 650 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fixed cables |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 160mm |
| Weight | 1.59 kg (3.51 lb) |
| Cooling | 140mm Hydraulic Bearing Fan (BDM14025S) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | PW65003342 |
| Date of receipt | Jun 4, 2026 |
| Testing Date | Jul 6, 2026 |
| Report Issued Date | Jul 9, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Captive Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (565mm+150mm) | 1 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (570mm+150mm) | 1 | 2 | 18AWG | Tinned Copper |
| 4-pin Molex (500mm) / SATA +150mm+150mm) | 2 | 2 / 4 | 18AWG | Tinned Copper |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| No Load Operation | ✓ |
| Cooling | 140mm Hydraulic Bearing Fan (BDM14025S) |
| General Data | |
| Manufacturer (OEM) | GUANGHAI |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 2x Y caps, 1x X caps, 1x CM chokes, 1x MOV, |
| Inrush Protection | 1x NTC Thermistor M72 1.5D15 (1.5 Ohm @ 25°C) |
| Bridge Rectifier(s) | 2x GBU808 (800V, 8A @ 100°C) |
| APFC MOSFETs | 1x AOSMD AOTF18N65 (750V, 12A @ 100°C, Rds(on): 0.39Ohm) |
| APFC Boost Diode | 1x Kanghongr UF08A60 (600V, 6A @ 25°C) |
| Bulk Cap(s) | 1x Teapo (420V, 330uF, 2000~3000h @ 105°C, DG) |
| Main Switchers | 2x Shenzhen SI Semiconductors SIF18N50F (500V, 11A @ 100°C, Rds(on): 0.38Ohm) |
| APFC Controller | YW 8300B & Sync Power SPN5003 (reducing no load consumption) |
| Topology | Primary side: APFC, Double Forward Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 4x Oriental Semiconductor SFS06R06PF (60V, 210A @ 25°C, Rds(on): 10 mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Maplesemi SLM100N03T (30V, 65A @ 100°C, Rds(on): 6.5 mOhm) PWM Controller(s): 1x |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | UTC8313F |
| Fan Model | BOK BDM14025S (140mm, 12V, 0.30A, Sleeve Bearing Fan) |
| 5VSB | |
| Rectifier | Chongqing Pingwei Enterprise PS1060L (60V, 10A) |
| Standby PWM Controller | XY6115 |
| Photos |  |  |

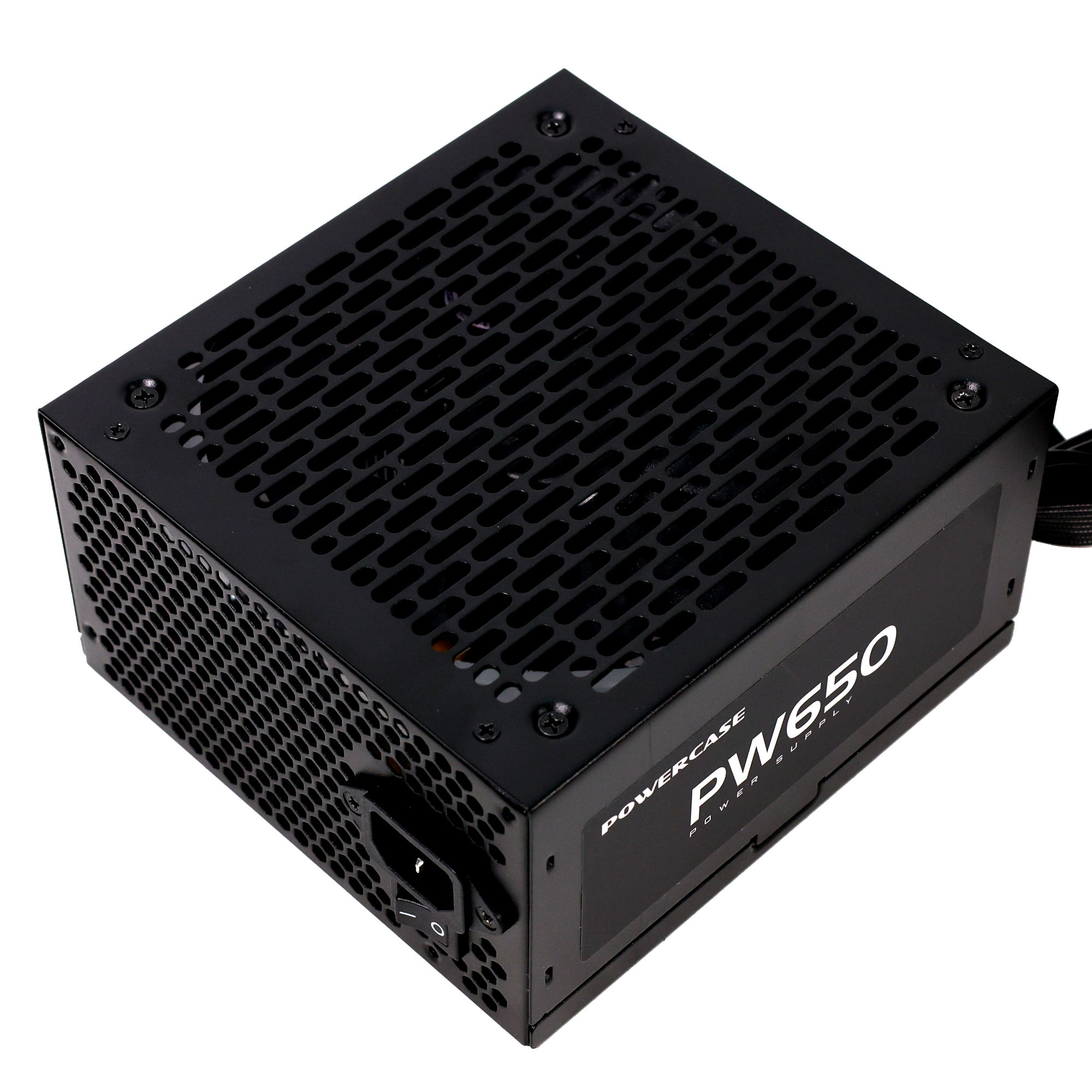

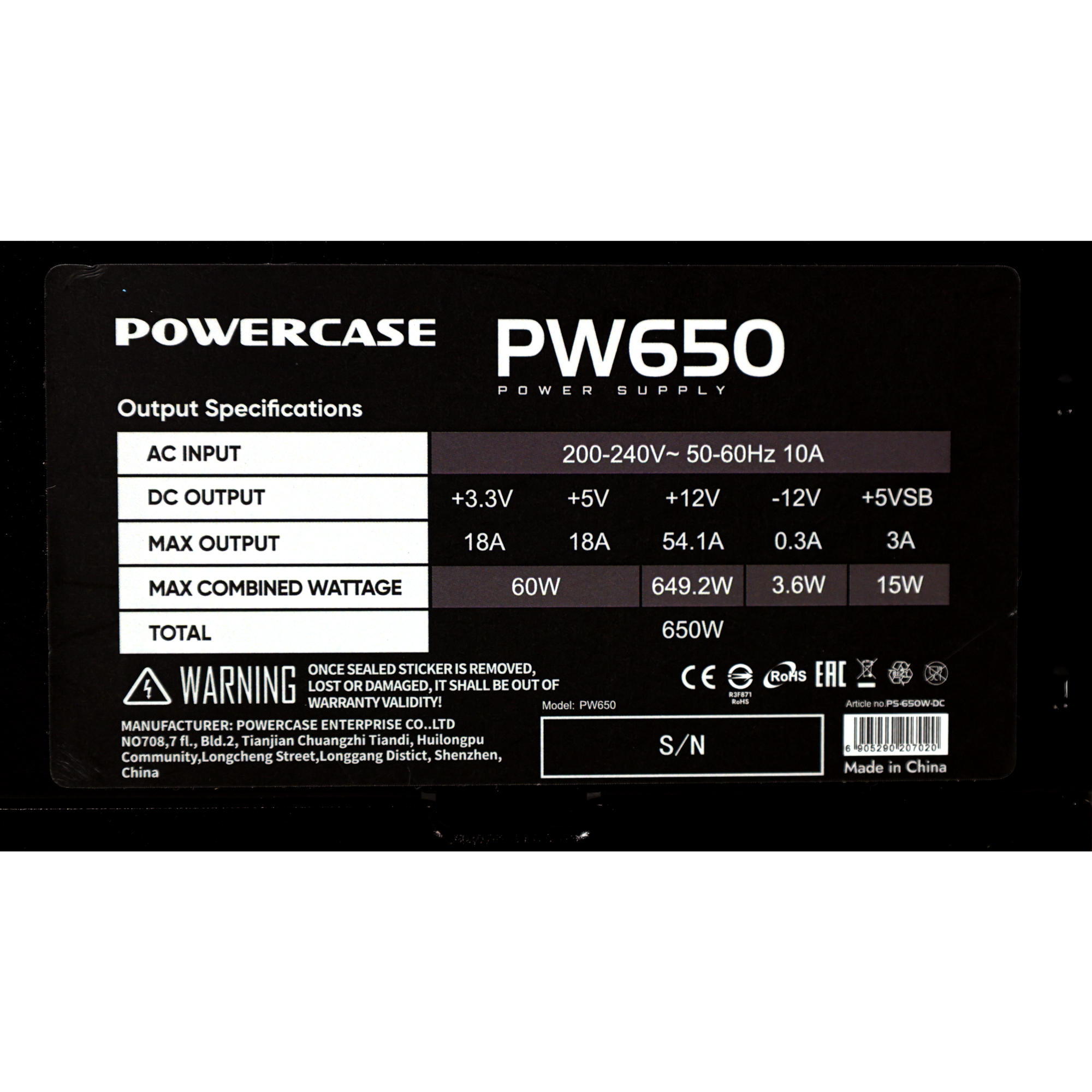

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
