Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
RM1200e (ATX v3.1) (2026)
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.423% | 91.606% |
| Efficiency Graphs | ||
| Average PF (>1450 Load Combinations) | 0.993 | 0.972 |
| 12V Step | 11.00W | |
| 5V/3.3V Step | 3.00W | |
| Standby Power Consumption | 0.0430W | 0.1010W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 82.673% | 81.628% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |
Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 21.78dBA | 21.99dBA |
| Noise Graphs | ||
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 79.877% |
| Hold Up Time | 18.10ms |
| Power OK | 15.80ms |
| Power OK to DC Loss | 2.30ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.959 | 5.023 | 3.365 | 5.014 |
| 10ms | 11.404 | 4.951 | 3.292 | 4.952 |
| 1ms | 11.241 | 4.929 | 3.265 | 4.931 |
| 0.1ms | 11.092 | 4.905 | 3.247 | 4.913 |
| Product Identification Details | |
| Brand | Corsair |
| Model | RM1200e (ATX v3.1) (2026) |
| OEM/ODM | CWT |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7.5-15 |
| Rated Frequency (Hz) | 47-63 |
| Rated Power (W) | 1200 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 150mm |
| Weight | 1.72 kg |
| Cooling | 140mm Rifle Bearing Fan (HA1425H12SF-Z) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | CR12003373 |
| Date of receipt | Jul 10, 2026 |
| Testing Date | Jul 27, 2026 |
| Report Issued Date | Jul 30, 2026 |
| DUT Notes | RM1200e 2nd Gen (2026) |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 24 pin (610mm) | 1 | 1 | 16-20AWG | Tinned Copper |
| 4+4 pin EPS12V (750mm) | 2 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (650mm) | 3 | 3 | 18AWG | Tinned Copper |
| 2x 6+2 pin PCIe (650mm) | 2 | 2 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-28AWG | Tinned Copper |
| SATA (450mm+100mm+100mm+100mm) | 2 | 8 | 18AWG | Tinned Copper |
| SATA (450mm+100mm) / 4-pin Molex (+100mm+100mm) | 1 | 2 / 2 | 18AWG | Tinned Copper |
| AC Power Cord (1380mm) - C13 Coupler | 1 | 1 | 14AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |

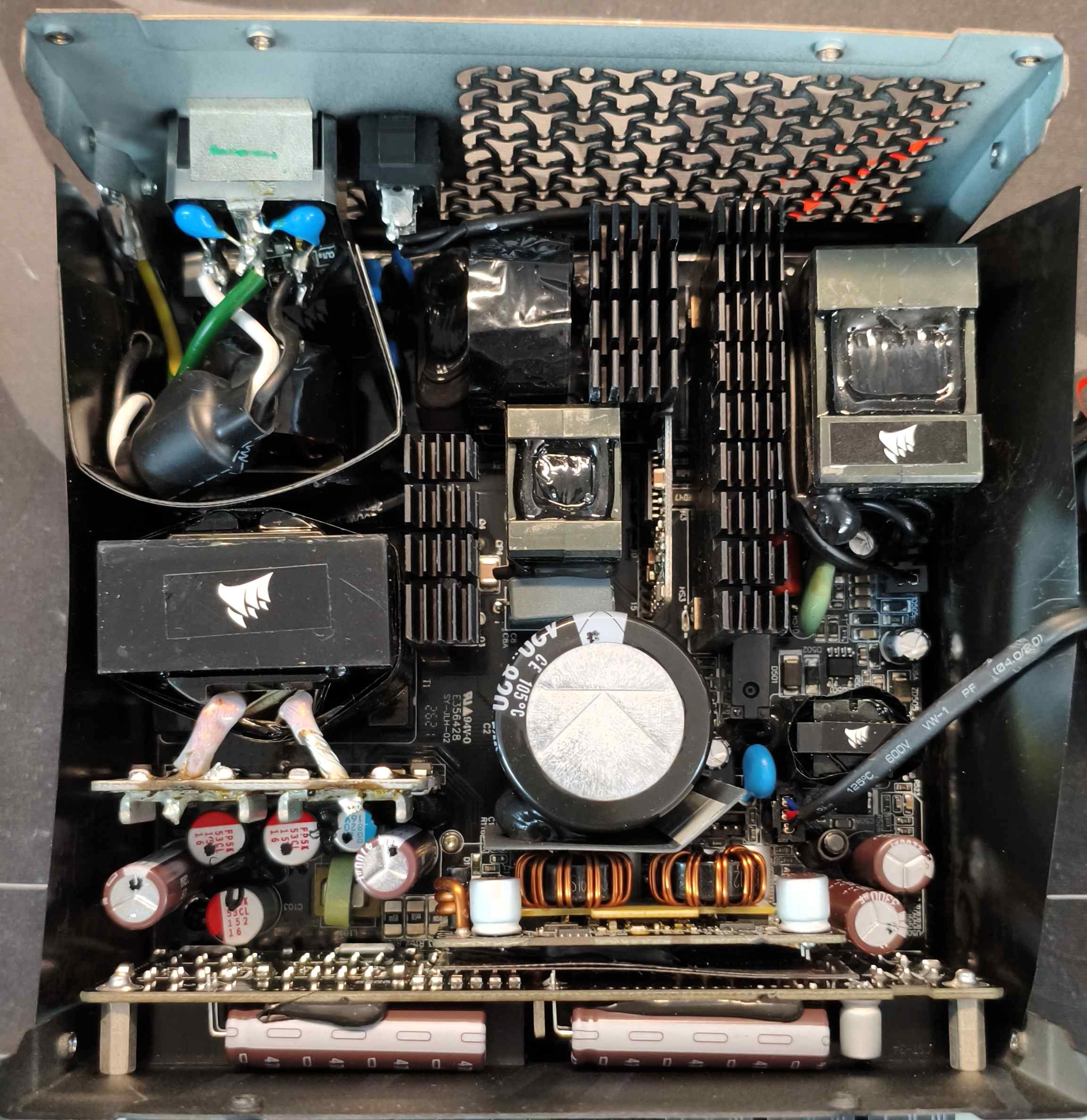

| General Data | |
| Manufacturer (OEM) | CWT |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor SCK207R0 (7 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Yangzhou Yangjie Electronic GBJL2506 (600V, 25A @ 104°C) |
| APFC MOSFETs | 2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm) |
| APFC Boost Diode | Infineon IDH16G65C6 (650V, 16A @ 135°C) |
| Bulk Cap(s) | 1x Rubycon (420V, 820uF, 2000h @ 105°C, MXT ) |
| Main Switchers | 2x Toshiba K31A60W (600V, 30.8A @ 25°C, Rds(on): 0.088) |
APFC Controller | MPS HR1280GY |
| Resonant Controller | MPS HR1280GY |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Toshiba TPHR8504PL (40V, 150A @ 25°C, Rds(on): 0.7mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x UBIQ Semi QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm) PWM Controller(s): UPI-Semi uP3861PSAF |
| Filtering Capacitors | Electrolytic: |
| Fan Controller / Micro Controller | Nuvoton MS51FB9AE |

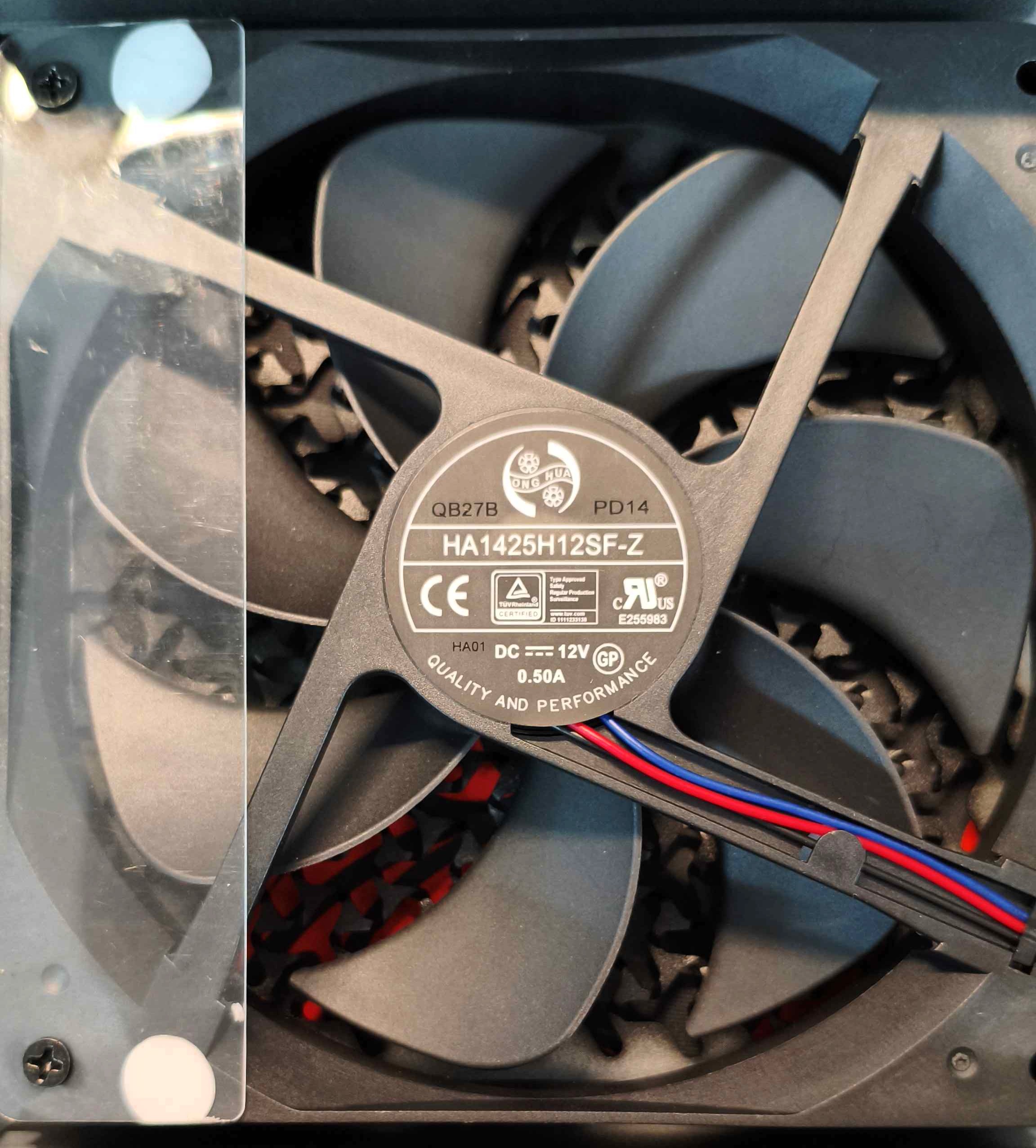

| Fan Model | Hong Hua, HA1425H12SF-Z (140mm, 12V, 0.5A, Rifle Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK5V45R10V (45V, 60A) |
| Standby PWM Controller | On-Bright OB2365T |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
