WiZMAX G-EVO 850W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|

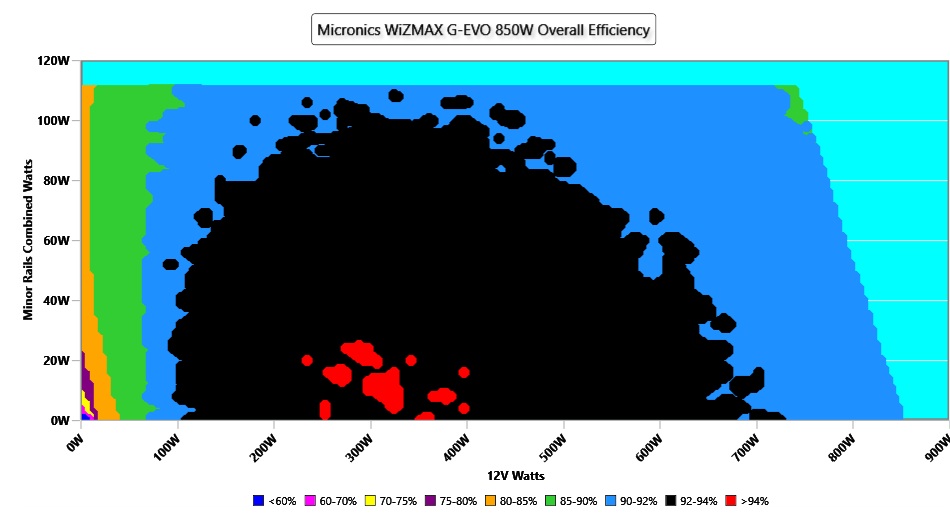

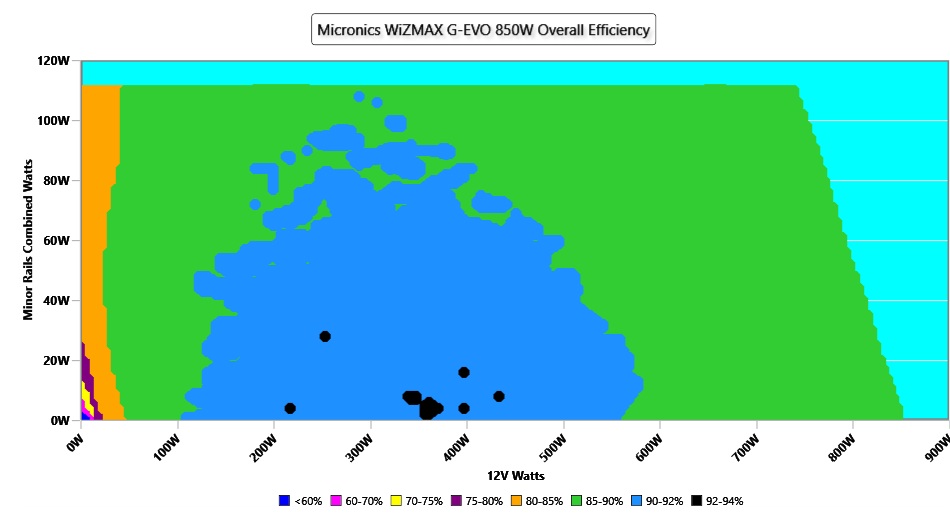

| Efficiency (>1450 Load Combinations) | 88.690% | 91.368% |
| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.982 | 0.974 |
| 12V Step | 9.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0516W | 0.1388W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 79.938% | 78.972% |

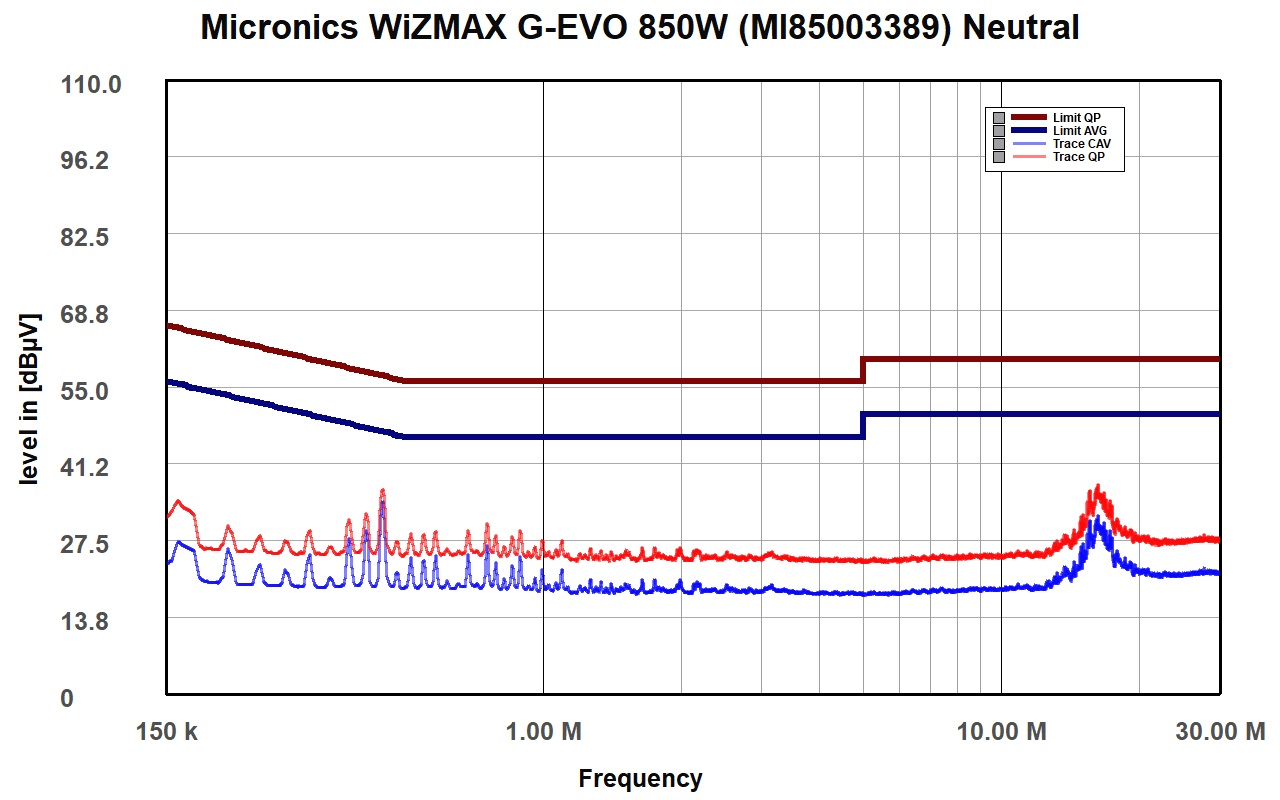

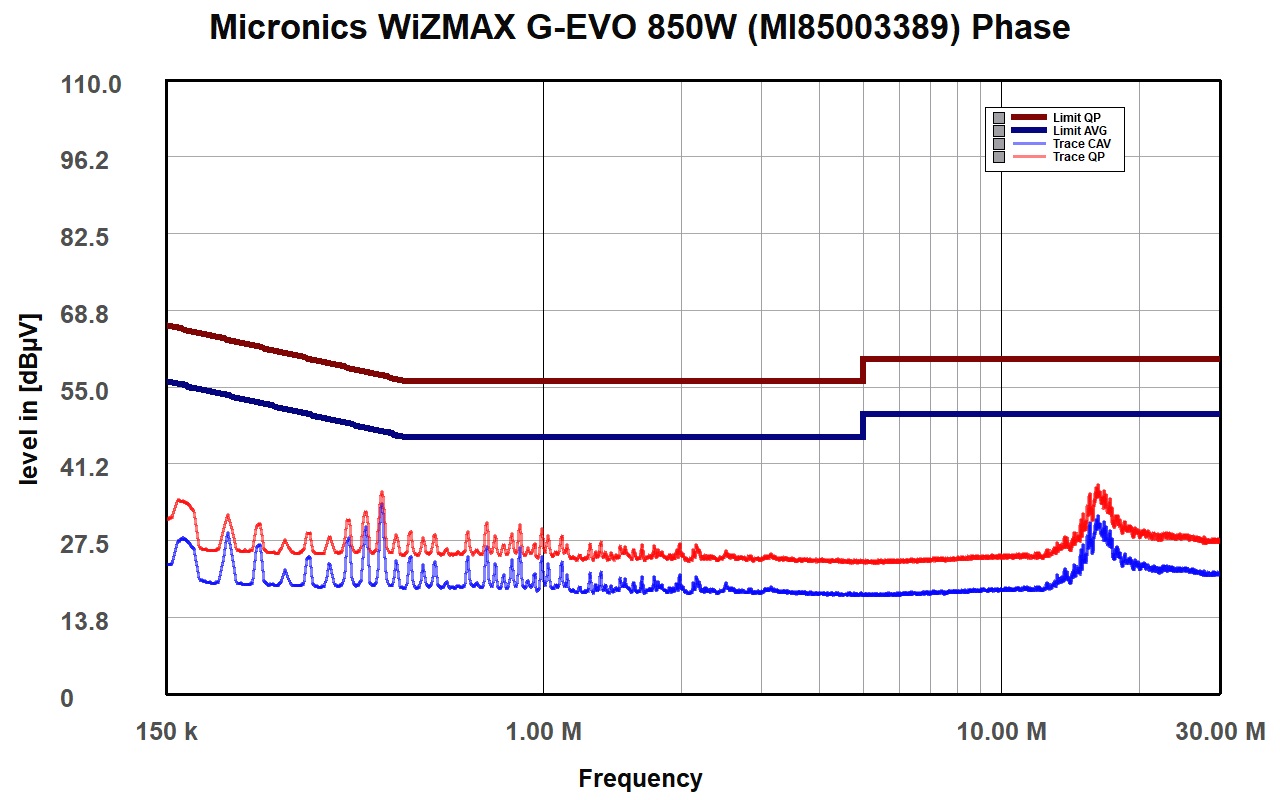

| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |
| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|

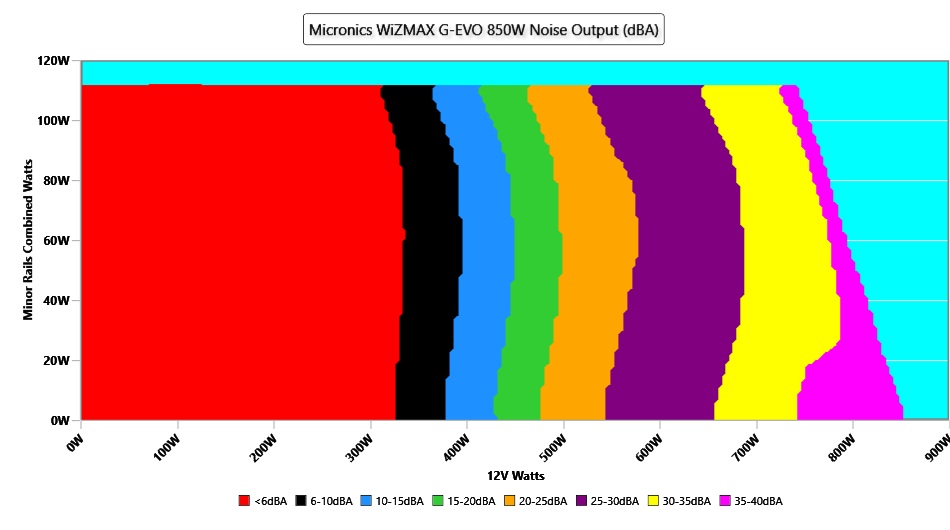

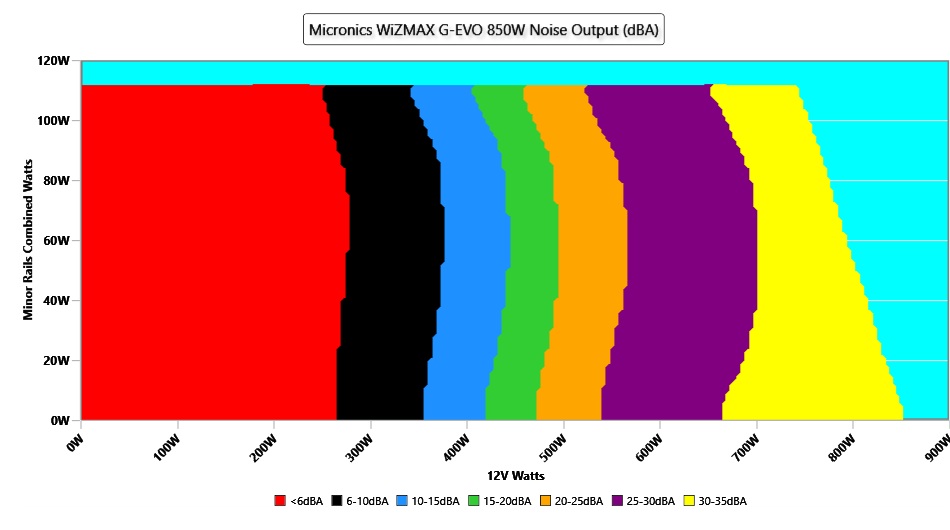

| Noise Rating (>1450 Load Combinations) | 25.80dBA | 26.55dBA |
| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 75.782% |
| Hold Up Time | 18.60ms |
| Power OK | 16.40ms |
| Power OK to DC Loss | 2.20ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.881 | 4.988 | 3.227 | 5.063 |
| 10ms | 11.511 | 4.941 | 3.185 | 5.025 |
| 1ms | 11.383 | 4.922 | 3.164 | 5.013 |
| 0.1ms | 11.248 | 4.925 | 3.164 | 5.032 |
| Product Identification Details | |
| Brand | Micronics |
| Model | WiZMAX G-EVO 850W |
| OEM/ODM | Great Wall |
| Serial Number | 2Q044087939 |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.31 kg (2.88 lb) |
| Cooling | 135mm Dual Ball Bearing Fan (HA13525M12B-Z) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | MI85003389 |
| Date of receipt | Jul 29, 2026 |
| Testing Date | Aug 8, 2026 |
| Report Issued Date | Aug 17, 2026 |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (650mm+100mm) | 1 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (500mm) | 1 | 1 | 16AWG | Tinned Copper |
| 2x 6+2 pin PCIe (500mm) | 2 | 2 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (500mm) (450W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (400mm+110mm) / 4-pin Molex (+110mm) | 2 | 4 / 2 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | ||
| Manufacturer (OEM) | Great Wall | |
| PCB Type | Double-Sided | |
| Primary Side | ||
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV | |
| Inrush Protection | NTC Thermistor SCK 056 ( 5Ohm @ 25°C) & Relay | |
| Bridge Rectifier | 1x LRC GBU25M (1000V, 25A @ 100°C) | |
| APFC MOSFETs | 1x Infineon IPW60R060C7 (650V, 22A @ 100°C, Rds(on): 0.06Ohm) | |
| APFC Boost Diode | 1x Wolfspeed C6D10065A (650V, 10A @ 155°C) | |
| Bulk Cap(s) | 1x Elite (450V, 560uF, 2000h @ 105°C, PL ) | |
| Main Switchers | 2x CRMicro CRJT99N65G2BF (650V, 20A @ 100°C, Rds(on): 0.230Ohm) | |
APFC Controller | 1x MPS HR1280 | |
Resonant Controller | 1x MPS HR1280 | |
Driver IC | 1x MPS HR1280 | |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: Synchronous Rectification & DC-DC converters | |
| Secondary Side | ||
| +12V MOSFETs |
| |
| 5V & 3.3V | DC-DC Converters: 4x AP4024GEMT-HF (30V, 20.9A @ 25°C, Rds(on): 4.5mOhm) PWM Controller(s): ANPEC APW7159C | |
| Filtering Capacitors | Electrolytic: | |
| Supervisor IC | NDP NDP5201KC | |
| Fan Model | Hong Hua HA13525M12B-Z (135mm, 12V, 0.36A, Dual Ball Bearing Fan) | |
| 5VSB Circuit | ||
| Rectifier | DIODES SDT8A60VP5 | |
| Standby PWM Controller | Lendtrend LD5537E1 | |
| Photos |  |  |

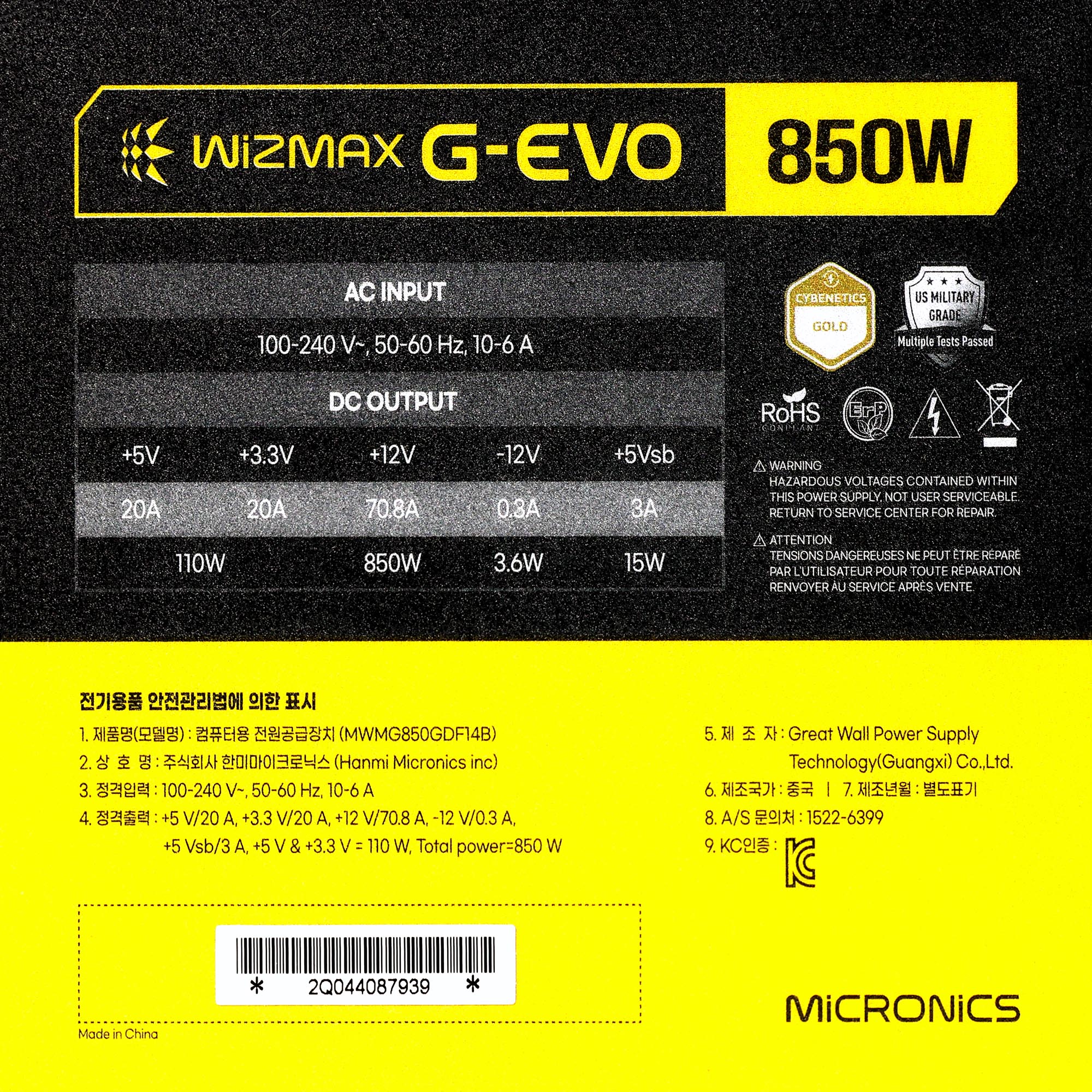

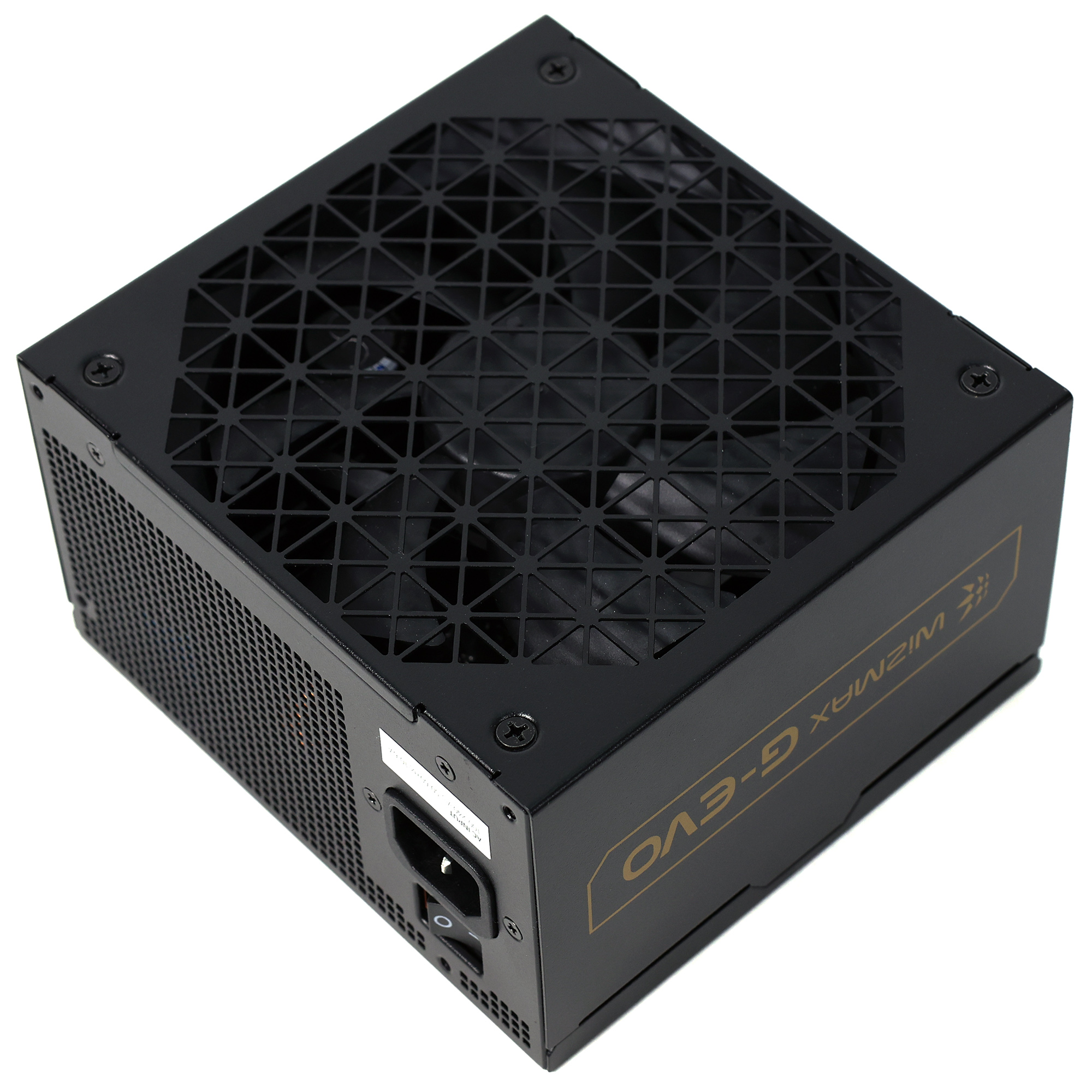

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
