Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
Toughpower GF A3 SNOW 1050W (US) (CE-Link)
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.208% | 91.122% |

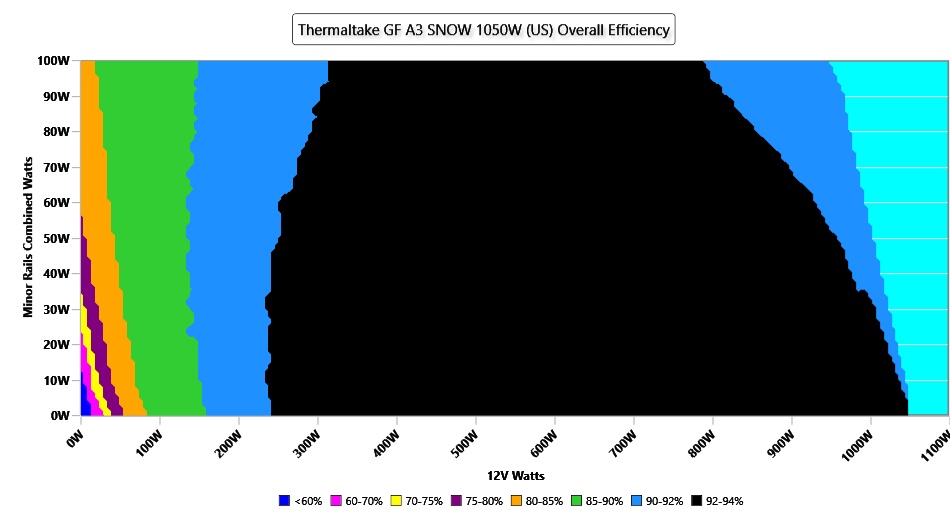

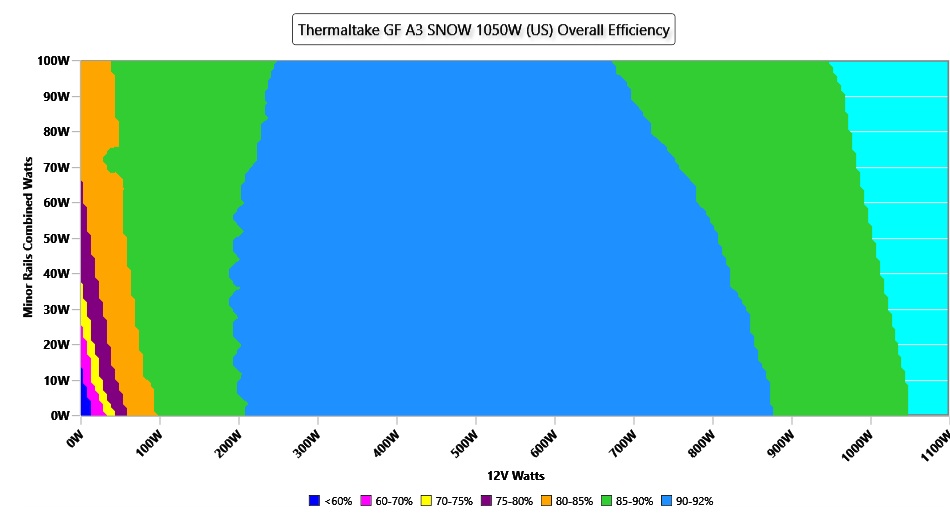

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.969 | 0.930 |
| 12V Step | 10.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0380W | 0.0724W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 81.623% | 81.623% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |

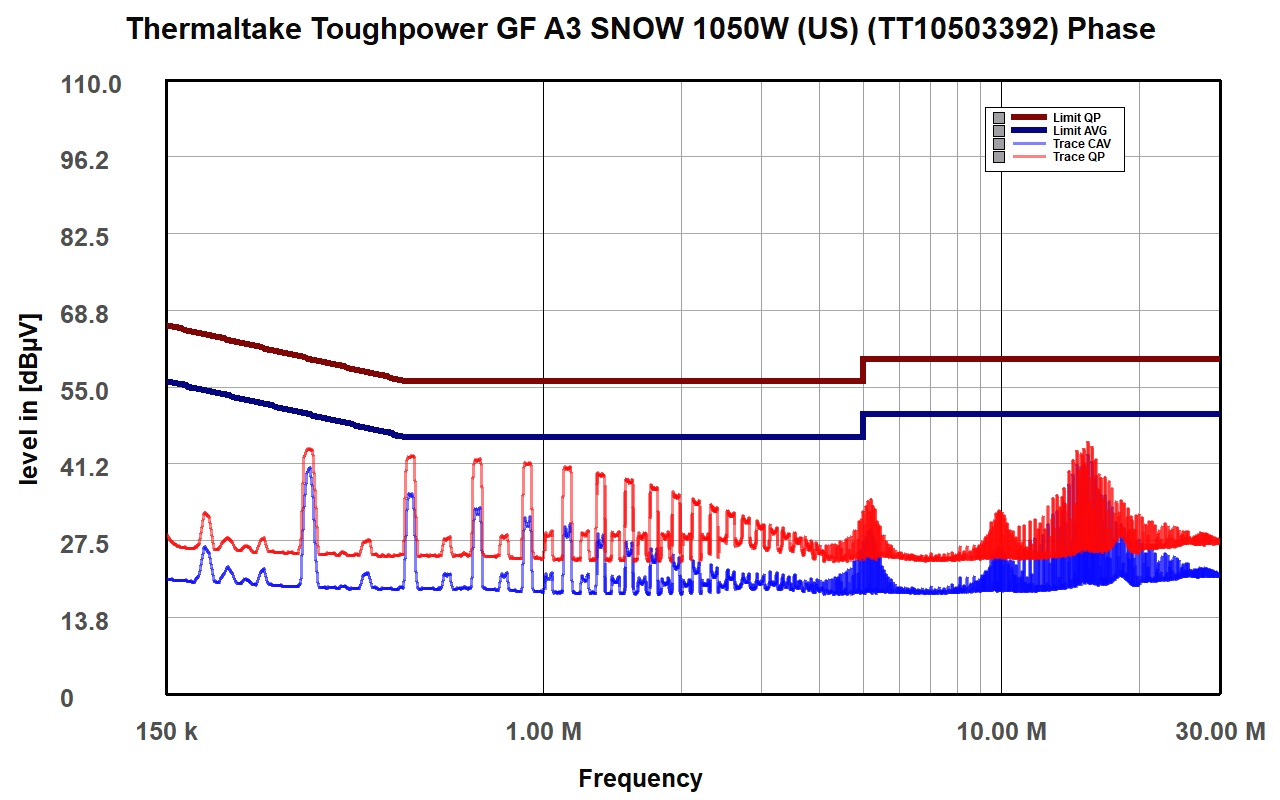

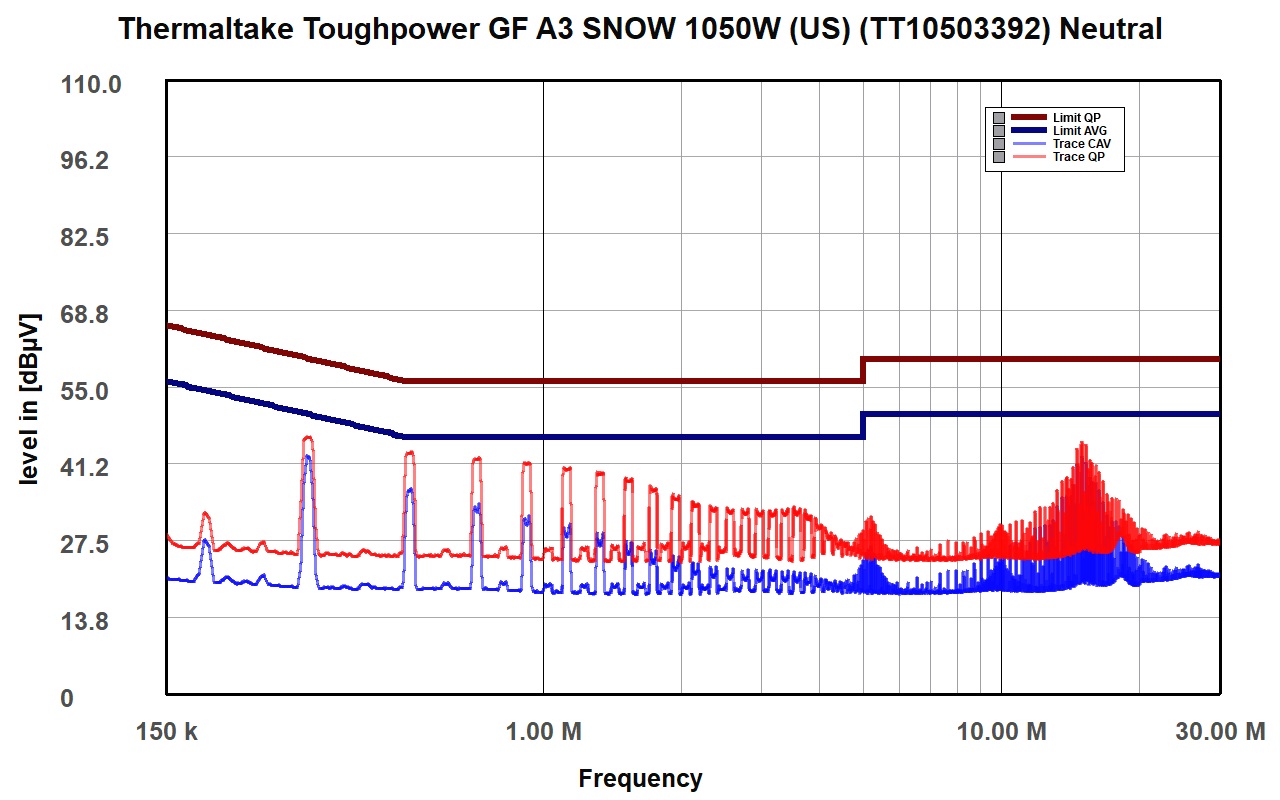

| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 40.73dBA | 41.00dBA |

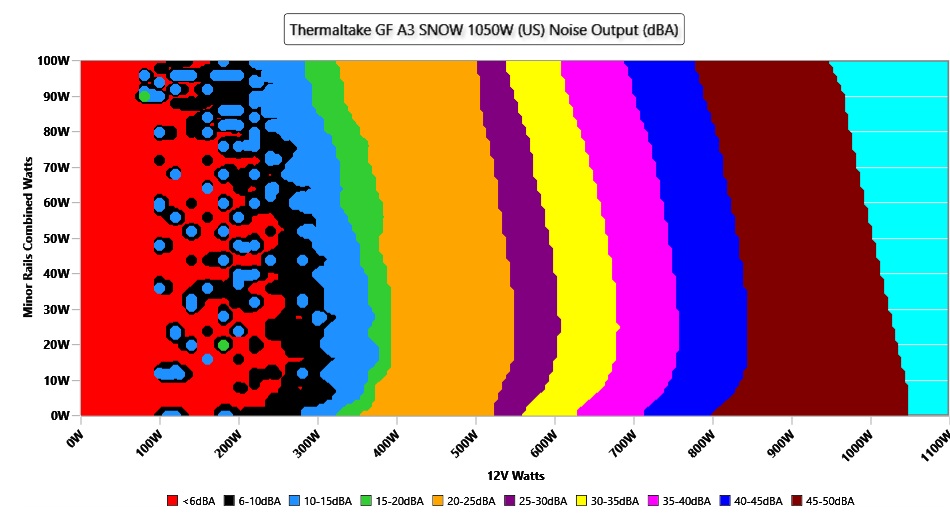

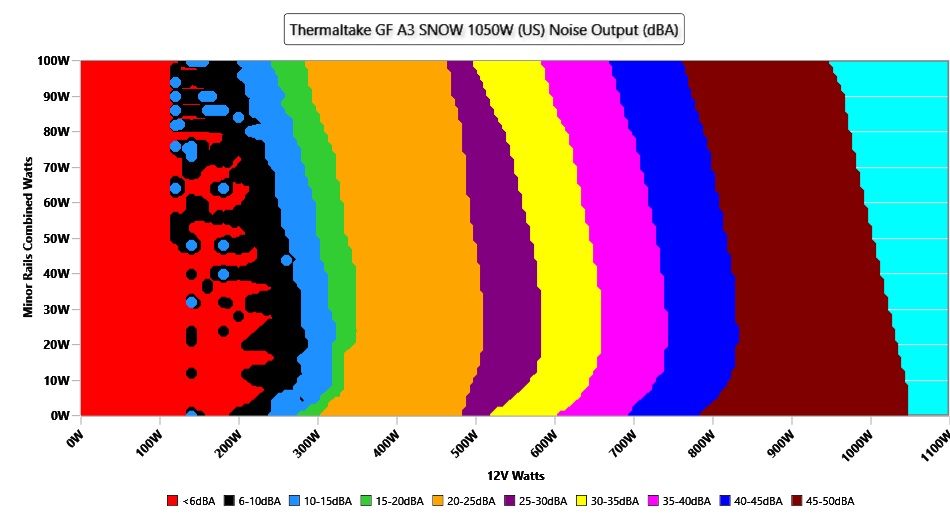

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 60.252% |
| Hold Up Time | 20.00ms |
| Power OK | 17.40ms |
| Power OK to DC Loss | 2.60ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.998 | 4.982 | 3.273 | 4.972 |
| 10ms | 11.648 | 4.960 | 3.239 | 4.900 |
| 1ms | 11.512 | 4.950 | 3.220 | 4.867 |
| 0.1ms | 11.398 | 4.947 | 3.212 | 4.845 |
| Product Identification Details | |
| Brand | Thermaltake |
| Model | Toughpower GF A3 SNOW 1050W (US) (CE-Link) |
| OEM/ODM | CE-Link |
| Serial Number | PSTPD1050FNFAGUNYECH00284 |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 8-16 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1050 |
| Operating Temperature (Continuous Full Load) (°C) | 5 - 45 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140 mm |
| Weight | 1.60 kg (3.52 lb) |
| Cooling | 120mm Fluid Dynamic Bearing Fan (TT-1225 GQR1225D12H) |
| Semi-Passive Operation | ✓ (selectable) |
| Cybenetics Testing Information | |
| Lab ID | TT10503392 |
| Date of receipt | Jul 29, 2026 |
| Testing Date | Aug 14, 2026 |
| Report Issued Date | Aug 27, 2026 |
| DUT Notes | Sample #1 transient test didn't pass on 3.3V. Sample #2 passed transient test. |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 24 pin (600mm) | 1 | 1 | 18-22AWG | Tinned Copper |
| 4+4 pin EPS12V (650mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (500mm+150mm) | 2 | 4 | 16-18AWG | Tinned Copper |
| 6+2 pin PCIe (500mm) | 1 | 1 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-26AWG | Tinned Copper |
| SATA (505mm+150mm+150mm+150mm) | 2 | 8 | 18AWG | Tinned Copper |
| 4-pin Molex (500mm+150mm+150mm+150mm) / FFD (+155mm) | 2/1 | 8/ 1 | 18-22AWG | Tinned Copper |
| AC Power Cord (1400mm) - C13 coupler | 1 | 1 | 16AWG | |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | CE-Link |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | Ntc Thinking MF72-5D15 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Yangzhou Yangjie GBU2506 (600V, 25A @ 98°C) |
| APFC MOSFETs | 2x Lonten LSD55R140GT (550V, 15A @ 100°C, Rds(on): 0.14Ohm) |
| APFC Boost Diode | 1x CWBG NF3D10065A (650V, 10A @ 150°C) |
| Bulk Cap(s) | 1x Nichicon (400V, 820uF 2000h @ 105°C, GL) |
| Main Switchers | 4x Reactor Microelectronics RMC65R150FD (650V, 22A @ 25°C, Rds(on): 0.15Ohm) |
APFC Controller | Champion CM6500UNX & 1x Champion CM03X (For no load consumption) |
| Resonant Controller | Champion CU6901T6X |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x LONTEN LSGN04R013WE (40V, 192A @ 25°C, Rds(on): 1.35mOhm) |
| 5V & 3.3V | DC-DC Converters: 6x RMD035N03TD (30V, @ 100°C, Rds(on): 3mOhm) PWM Controller(s): ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Grenergy GR8329N |
| Fan Model | TT-1225 GQR1225D12H (120mm, 12V, 0.35A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | 1x |
| Standby PWM Controller | Sanken STR-A6069H |

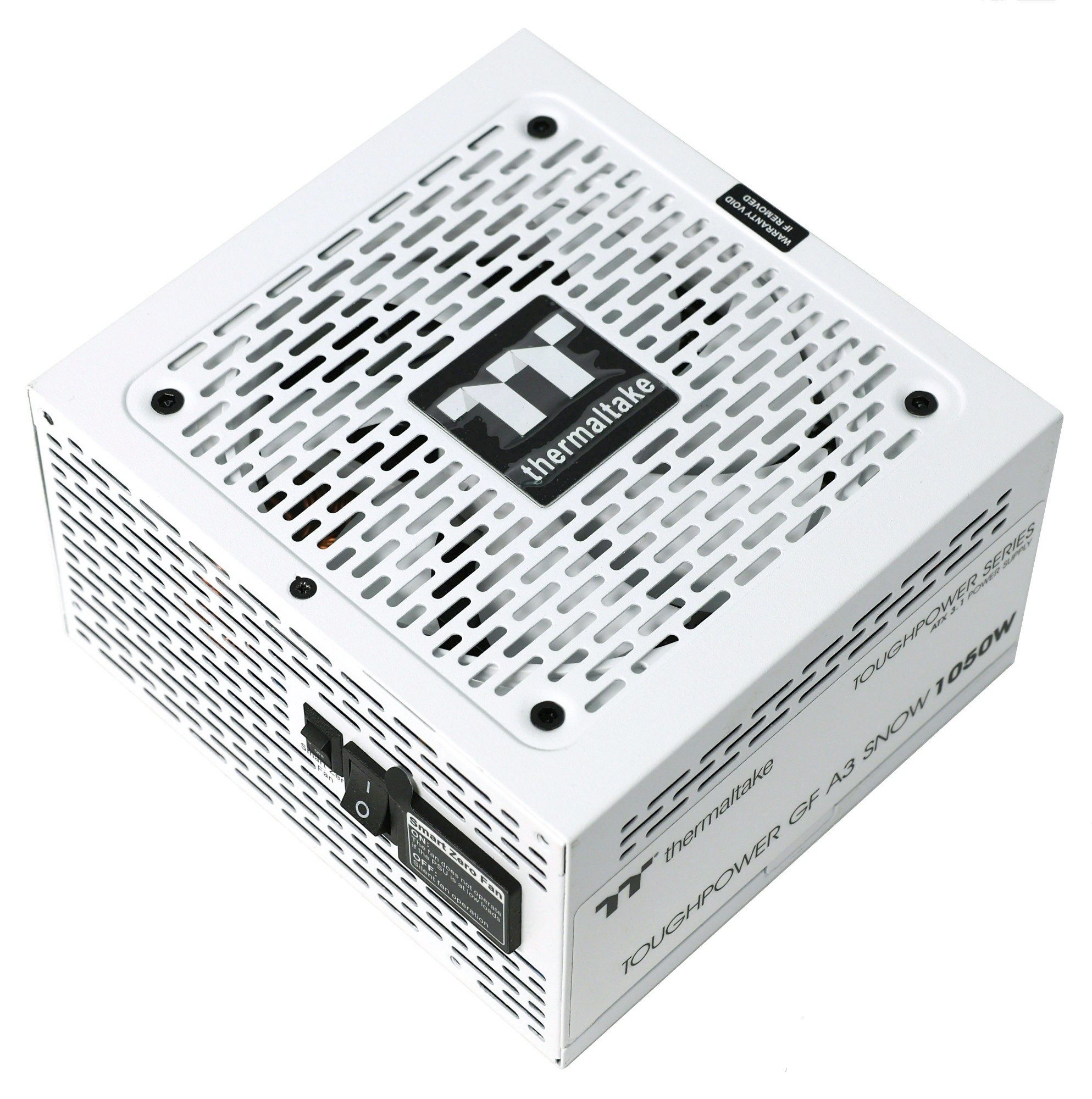

| Photos |  |  |

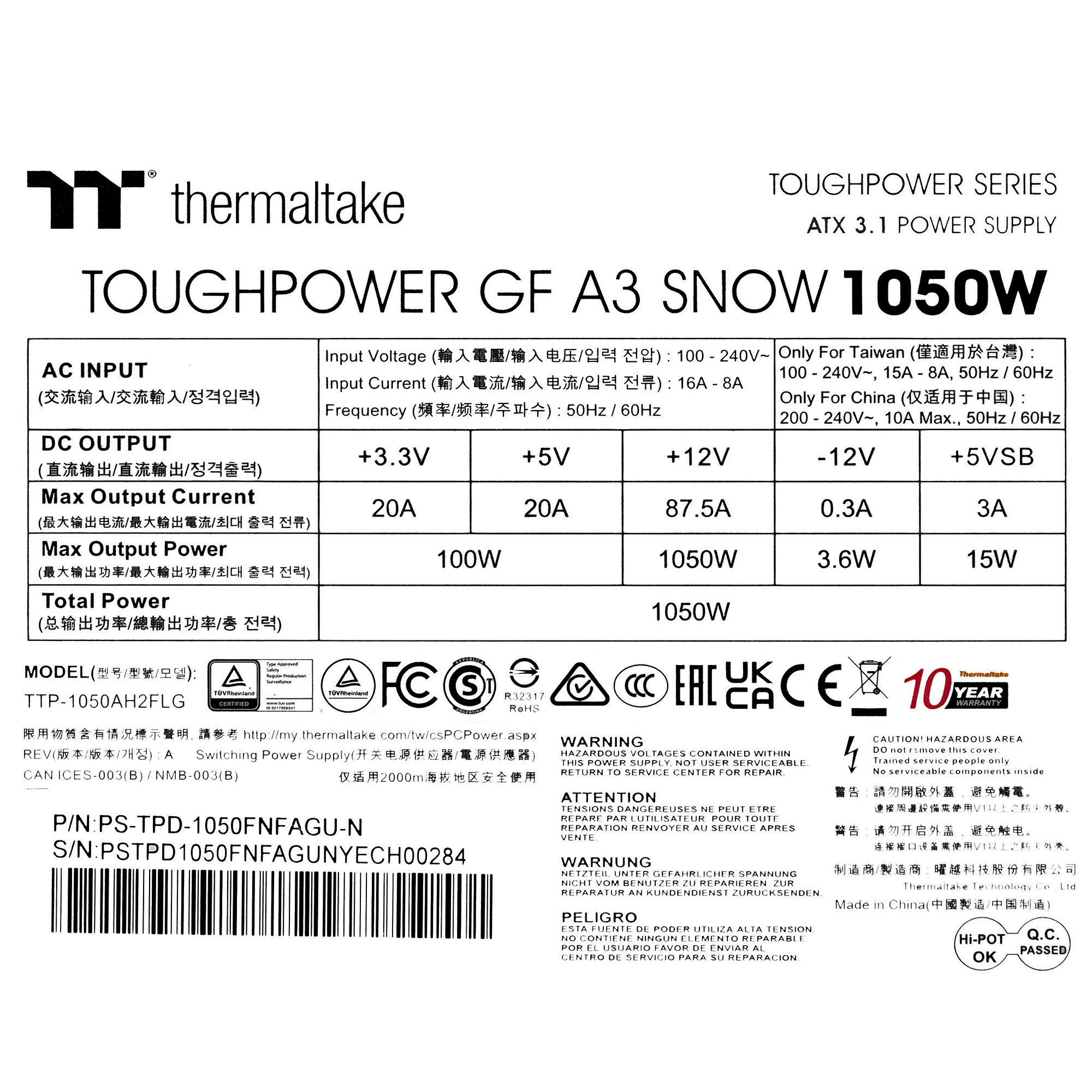

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
