Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
Elite Platinum 1300
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.597% | 91.774% |
| Efficiency Graphs | ||
| Average PF (>1450 Load Combinations) | 0.986 | 0.961 |
| 12V Step | 13.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0349W | 0.0930W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 81.178% | 80.260% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |
Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 26.21dBA | 25.72dBA |
| Noise Graphs | ||
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 71.641% |
| Hold Up Time | 18.70ms |
| Power OK | 15.50ms |
| Power OK to DC Loss | 3.20ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.987 | 4.986 | 3.264 | 5.045 |
| 10ms | 11.752 | 4.969 | 3.246 | 5.012 |
| 1ms | 11.306 | 4.931 | 3.197 | 4.939 |
| 0.1ms | 11.146 | 4.916 | 3.179 | 4.909 |

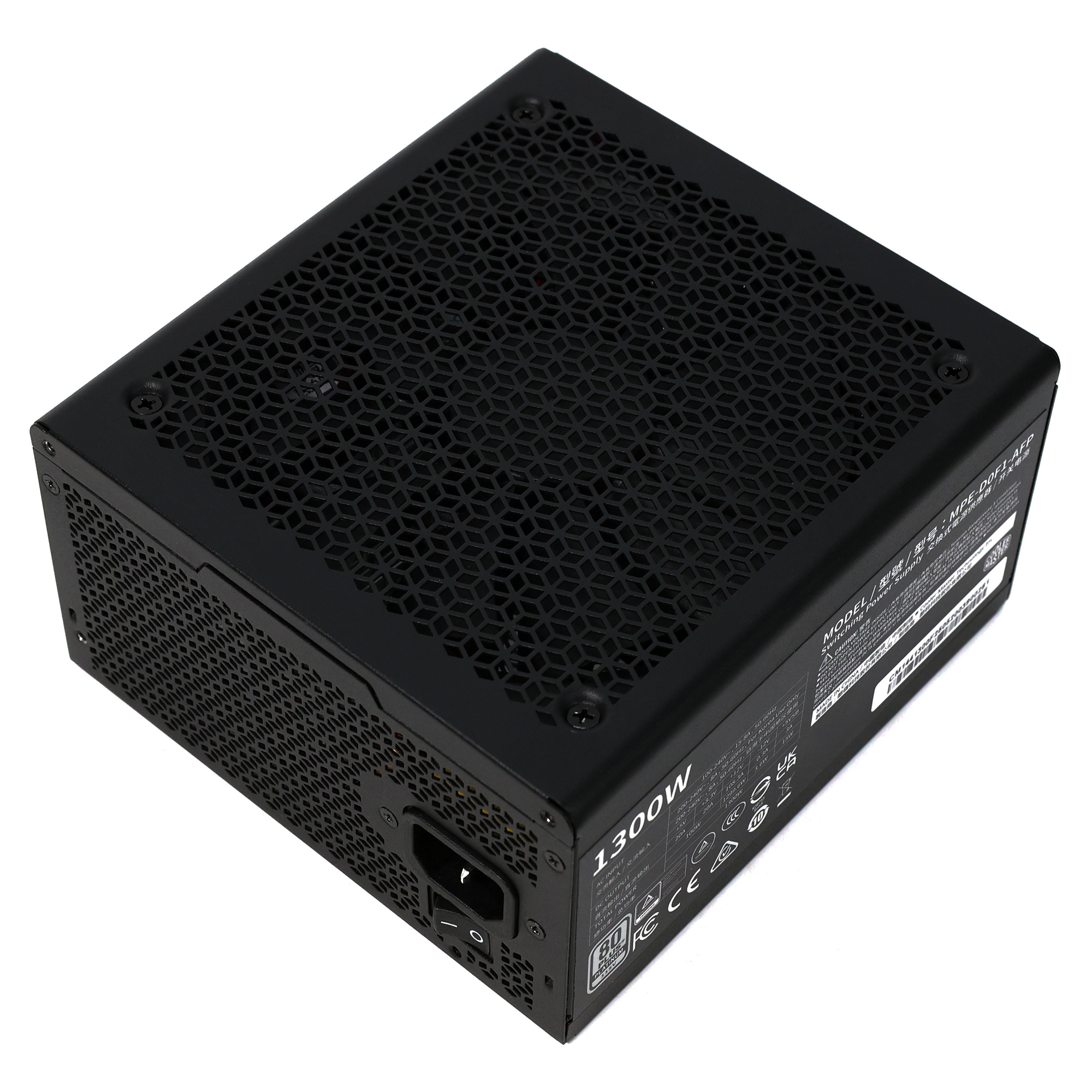

| Product Identification Details | |
| Brand | Cooler Master |
| Model | Elite Platinum 1300 |
| OEM/ODM | XHY |
| Serial Number | CM1441300F25052003900281 |

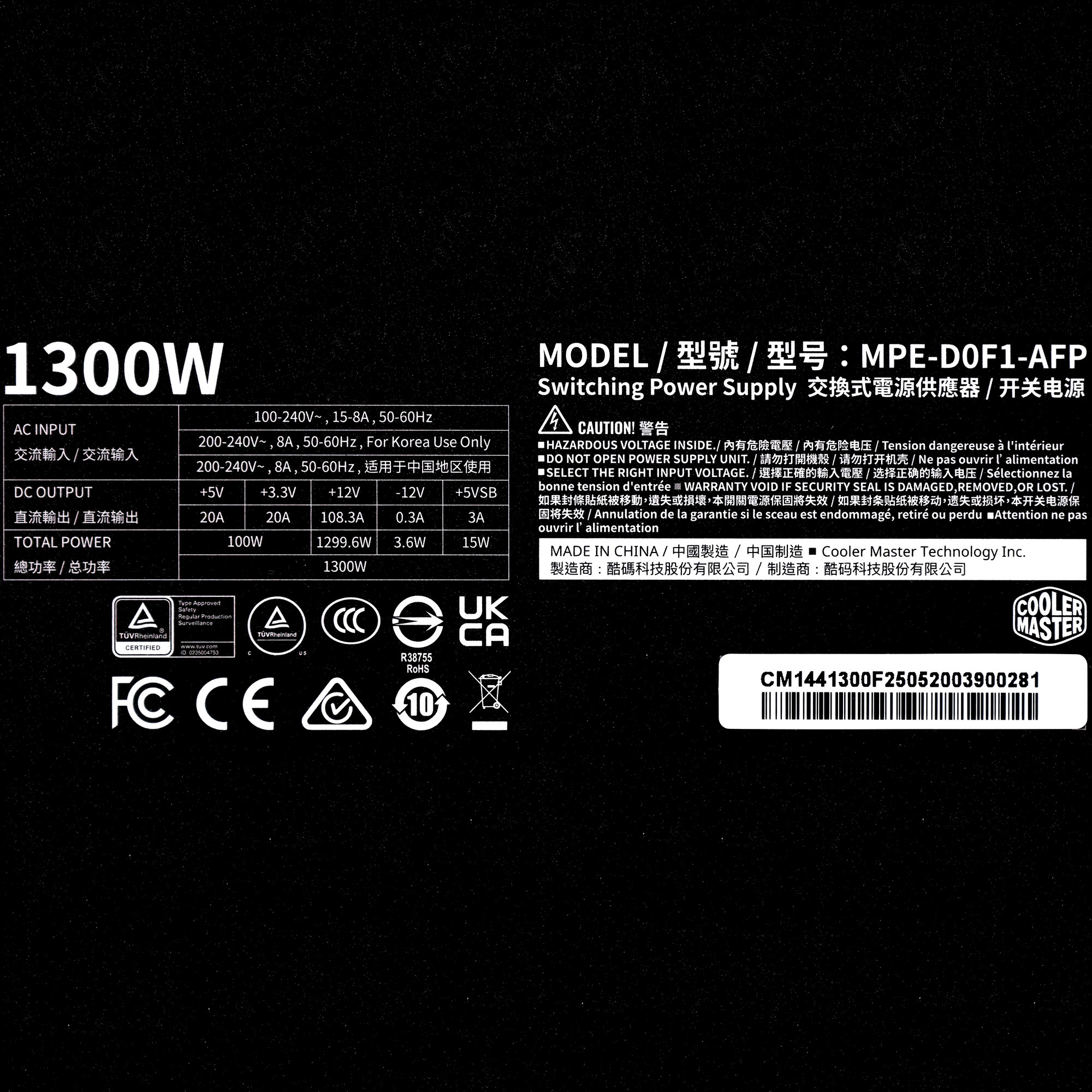

| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 15-8 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1300 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 12 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 160 mm |
| Weight | 1.82 kg (4.01 lb) |
| Cooling | 140mm Fluid Dynamic Bearing Fan (EFF-14E12D) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | CM13003405 |
| Date of receipt | Aug 10, 2026 |
| Testing Date | Aug 21, 2026 |
| Report Issued Date | Sep 9, 2026 |
| DUT Notes | Ripple on the 5V and 3.3V rails exceeds the ATX 3.x specification limits at full load at 115V. This is why we cannot provide ATX v3.1 compliance. |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 24 pin (600mm) | 1 | 1 | 16-20AWG | Tinned Copper |
| 4+4 pin EPS12V (700mm) | 1 | 1 | 16AWG | Tinned Copper |
| 8 pin EPS12V (700mm) | 1 | 1 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (600mm) | 3 | 3 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 2 | 2 | 16-24AWG | Tinned Copper |
| SATA (400mm+125mm+125mm+125mm) | 2 | 8 | 18AWG | Tinned Copper |
| 4-pin Molex (400mm+125mm+125mm+125mm) | 1 | 4 | 18AWG | Tinned Copper |
| AC Power Cord (1400mm) - C13 coupler | 1 | 1 | 14AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |

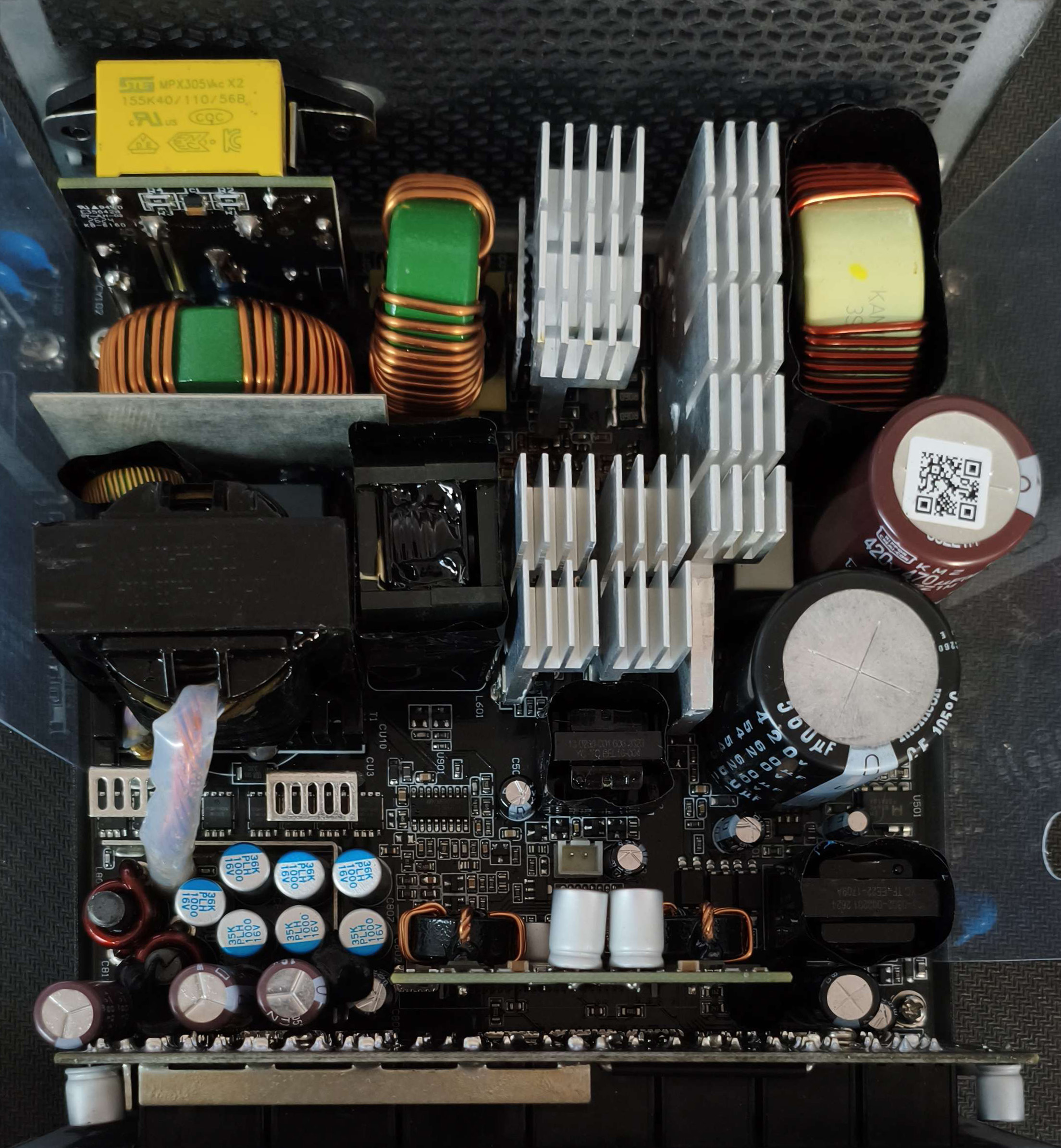

| General Data | |
| Manufacturer (OEM) | Xin Hui Yuan Technology |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | 1x NTC Thermistor MF72 5D-15 (5.0 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Yangzhou Yangjie GBUL2506 (600V, 25A @ 125°C) |
| APFC MOSFETs | 2x CR Micro CRJQ65N65G4FZ (650V, 28A @ 100°C, Rds(on): 0.65Ohm) |
| APFC Boost Diode | Zhixin Microelectronics SDC08065NAS (650V, 8A @ 135°C) |
| Bulk Cap(s) | 1x Nichicon (420V, 560uF, 2000h @ 105°C, GL ) |
| Main Switchers | 4x Ncepower NCE65TF150 (650V, @ 100°C, Rds(on): 1.5Ohm) |
APFC Controller | Champion CM6500UNX |
| Resonant Controller | Champion CM6901T6X |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter |
| Secondary Side | |
| +12V MOSFETs | 8x Champion CMR011N065NS (60V, 289A @ 100°C, Rds(on): 1.1mOhm) |
| 5V & 3.3V | DC-DC Converters: 6x Champion CMR030N03LS (30V, 109A @ 100°C, Rds(on): 3.1mOhm) |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | IN1T7031-SDG |
| Fan Power Switch | B772 PNP Transistor |

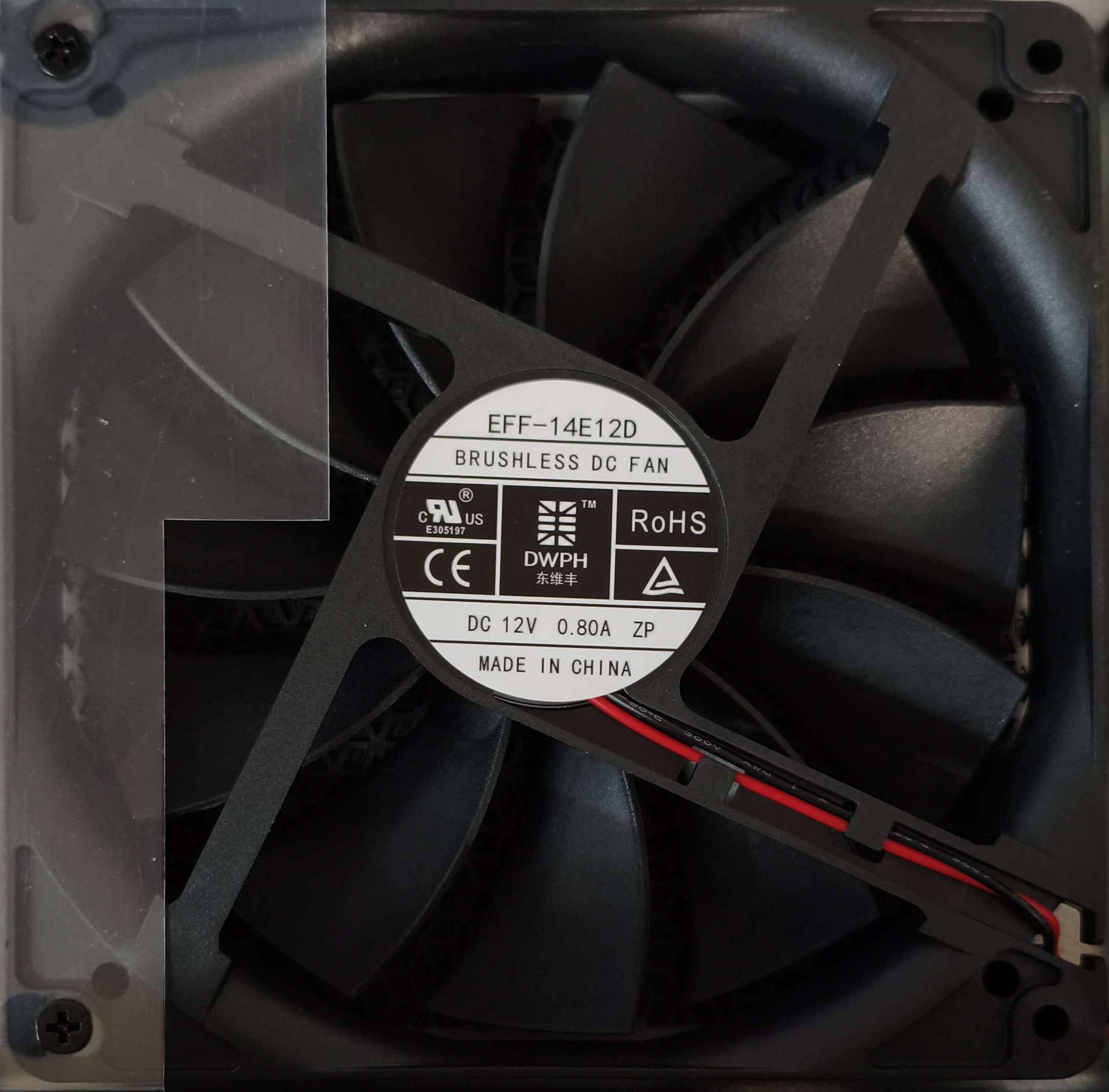

| Fan Model | DWPH EFF-14E12D (120mm, 12V, 0.80A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK5V60R10S (60V, 10mΩ) |
| Standby PWM Controller | ExcellianceMOS EM8569C |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
