AX 3200W

Report Number: 26PS3410A
Customer ID: 56
Lab ID: TT32003410

Test Results Report

Section A: Testing Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Section B: ETA

Voltage230V
Efficiency (>1450 Load Combinations)92.186%
Efficiency Graphs
Average PF (>1450 Load Combinations)0.981
12V Step30.00W
5V/3.3V Step2.50W
Standby Power Consumption0.0993W
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
Average Efficiency VSB81.863%
Conducted Emissions EN 55032 & CISPR 32 (48W)Passed

Efficiency and power factor by load rangeSupplementary calculated results – outside the scope of accreditation

878889909192939495Average efficiency (%)88.3494.0593.8692.8691.550-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 87230V
878889909192939495Average efficiency (%)0-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 87230V
0.900.920.940.960.981.00Average power factor0.9340.9850.9920.9950.9970-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 0.90230V
0.900.920.940.960.981.00Average power factor0-<20 %20-<40 %40-<60 %60-<80 %80-100 %axis starts at 0.90230V
Load rangePointsEfficiency
230V
PF
230V
0-<20 %29788.34%0.934
20-<40 %32294.05%0.985
40-<60 %32093.86%0.992
60-<80 %31892.86%0.995
80-100 %32491.55%0.997
70-100 % (High-Load)48291.89%0.996
All (published average)158192.19%0.981
Info

The average efficiency and power factor in five ranges of load. Calculated from the 1581 (230V) load combinations of the certification sweep, the same data that ETA and LAMBDA use (test 0 excluded). Load is the total DC output as a share of the rated 3200 W. These are plain averages of the valid readings, as for the ETA rating, so the ranges combined give back the published averages.

Informational. Not part of the ETA or LAMBDA rating.

Section C: LAMBDA

Voltage230V
Noise Rating (>1450 Load Combinations)48.47dBA
Noise Graphs

Noise by load rangeSupplementary calculated results – outside the scope of accreditation

High-Load Index (70-100 % load)
Noise 53.4 dB(A) at 230V · loudest point 56.5 dB(A)
Efficiency 91.89% · power factor 0.996 (230V)
051015202530354045505560Average noise (dB(A))26.00-<20 %fan off 0%27.320-<40 %fan off 0%32.140-<60 %fan off 0%47.460-<80 %fan off 0%54.680-100 %fan off 0%230V
0102030405060Average noise (dB(A))26.00-<20 %off 0%27.320-<40 %off 0%32.140-<60 %off 0%47.460-<80 %off 0%54.680-100 %off 0%230V
Load rangeNoise 230V
avg (loudest)
Fan off
230V
0-<20 %26.0 (31.2)0%
20-<40 %27.3 (31.2)0%
40-<60 %32.1 (41.9)0%
60-<80 %47.4 (50.8)0%
80-100 %54.6 (56.5)0%
70-100 % (High-Load)53.4 (56.5)0%
All (published average)48.5 (56.5)0%
Info

The average noise in five ranges of load, the share of points with the fan stopped (semi-passive operation), and the High-Load Index: the same figures for all points at 70 % of the rated output and above. Calculated from the 1581 (230V) load combinations of the certification sweep, the same data that ETA and LAMBDA use (test 0 excluded). Load is the total DC output as a share of the rated 3200 W. Noise is averaged on the energy scale, as for LAMBDA, so the ranges combined give back the published average noise. Each load combination is held for about five seconds; the stabilized readings at fixed loads are under "Noise under high ambient temperature".

Informational. Not part of the ETA or LAMBDA rating.

Noise under high ambient temperature (indicative)Supplementary calculated results – outside the scope of accreditation

230V
LoadNormal ambient
fan · noise · intake
High ambient
fan · noise · intake
Noise change
10%426 RPM · 9.7 dB(A) · 30.5 °C447 RPM · 11.8 dB(A) · 40.5 °C+2.1 dB(A)
20%429 RPM · 11.1 dB(A) · 30.2 °C478 RPM · 11.1 dB(A) · 40.6 °C+0.0 dB(A)
50%846 RPM · 24.2 dB(A) · 30.2 °C1385 RPM · 38.4 dB(A) · 42.2 °C+14.2 dB(A)
100%2793 RPM · 56.5 dB(A) · 31.0 °C2917 RPM · 57.1 dB(A) · 47.0 °C+0.6 dB(A)
Info

Fan speed, noise and the measured intake temperature at 10, 20, 50 and 100 % load, from the two load regulation tests: at normal ambient (about 30-32 °C) and at high ambient (about 40-47 °C). These are stabilized readings at fixed loads, not averages over the certification sweep, so they are indicative of how the fan behaves when it is hot. "<6.0" is the floor of our sound meter: the fan is stopped or too quiet to measure (the fan speed column says which); with the fan stopped, the intake sensor can read higher than the chamber air.

Informational. Not part of the ETA or LAMBDA rating.

Section D: ATX

Efficiency With 10W (≤500W) or 2% (>500W) Load-
Hold Up Time16.90ms
Power OK14.30ms
Power OK to DC Loss2.60ms
Test\Rail+12V5V3.3V5VSB
100ms11.7995.0203.2434.968
10ms11.5585.0053.2214.937
1ms11.2844.9903.2064.916
0.1ms11.3634.9843.2004.938

Section E: Information about DUT

Product Identification Details
BrandThermaltake
ModelAX 3200W
OEM/ODMCWT
Serial NumberPSTPA3200FNSAPE1YGCW00074
Product Specifications
Manufacturer
Rated Voltage (Vrms)230-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)3200
Operating Temperature (Continuous Full Load) (°C)0 - 45
TypeATX12V
Cable DesignFully Modular
Warranty10 years
Cybenetics
Dimensions (W x H x D)150 x 86 x 200mm
Weight2.60 kg (5.73 lb)
Cooling140mm Double Ball Bearing Fan (TT-1425 ZFB142512E ABP3)
Semi-Passive Operation✗
Cybenetics Testing Information
Lab IDTT32003410
Date of receiptAug 24, 2026
Testing DateSep 11, 2026
Report Issued DateSep 16, 2026
DUT NotesWe did not perform OCP and OPP protection testing at full rated capacity. All other ATX v3.x requirements were fully tested and met. We issued the ATX v3.x compliance badge on this basis; OCP/OPP thresholds at maximum rated load remain unverified due to equipment constraints, not a unit deficiency. The bundled AC power cord is a 1100mm 3G 1.0mm² type. IEC 60320-1 allows 1.0mm² conductors on a 16A cord set of up to 2m, so this cord meets the standard. With the unit drawing about 15.3A at full load through its 16A C20 inlet, however, it sits at the minimum the standard permits, and every sample we checked carries the same cord. A 1.5mm² cord set runs cooler at sustained full load, and any replacement longer than 2m must be 1.5mm². -New 16AWG AC power cord received on 13/10/2026.
Engineer NameIoannis Kalyviotis
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables And Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 24 pin (600mm) 1 1 16AWG Tinned Copper
4+4 pin EPS12V (750mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 16AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 3 6 16-18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 4 4 16-24AWG Tinned Copper
SATA (600mm+150mm+150mm+150mm) 4 16 18AWG Tinned Copper
4-pin Molex (600mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
AC Power Cord (1100mm) - C19 coupler 1 1 16AWG

Protection Features(Non-accredited measurements)

Over Power Protection✓
Over Current (+12V) Protection✓
Over Temperature Protection✓
Short Circuit Protection✓
Surge Protection✓
Inrush Current Protection✓
Fan Failure Protection✗

Parts Description

General Data
Manufacturer (OEM)

CWT

PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection Thinking SCH255R0 (5 Ohm @ 25°C) & Relay
Bridge Rectifier 3x WeEn WNB2560M (600V, 25A @ 127°C)
APFC MOSFETs 2x Infineon IPZA60R060P7 (650V, 30A @ 100°C, Rds(on): 0.060Ohm)
APFC Boost Diode 2x Vishay  VS-3C10ET07T-M3  (650V, 10A @ 147°C)
Bulk Cap(s) 3x Nippon Chemi-Con (420V, 820uF 2000h @ 105°C, KHE)
Main Switchers 4x Infineon IPT60R055CFD7 (650V, 27A @ 100°C, Rds(on): 0.055Ohm)
IC Driver 2x Silicon Labs Si8233BD

APFC Controller

Texas Instruments UCC28070 &
Champion CM03X (reducing no-load consumption)

Resonant Controller Champion CM6901X
Topology Primary side: Interleaved APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 24x Infineon BSC007N04LS6 (40V, 269A @ 100°C, Rds(on): 0.7mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ Semi  QN3107M6N  (30V, 74A @ 100°C, Rds(on): 4.8mOhm)
PWM Controller(s): 1x uPI semi uP3861P
Filtering Capacitors

Electrolytic:
1x Rubycon (6~10,000h @ 105°C, YXJ )
1x Rubycon (5~10,000h @ 105°C, YXS )
1x Rubycon (4000h @ 105°C, HV )
5x Rubycon (10000h @ 105°C, YXF )
3x Nippon Chemi-Con (@ 105°C, W)
Polymer:
24x Nippon Chemi-Con
36x FPcap

Fan Controller / Micro Controller Nuvoton MS51FB9AE
Fan Model

TT-1425 ZFB142512E ABP3 (140mm, 12V, 0.95A, Double Ball Bearing Fan)

5VSB Circuit
Rectifier Dongke DK5V45R10V
Standby PWM Controller On-Bright  OB2365T

Photos

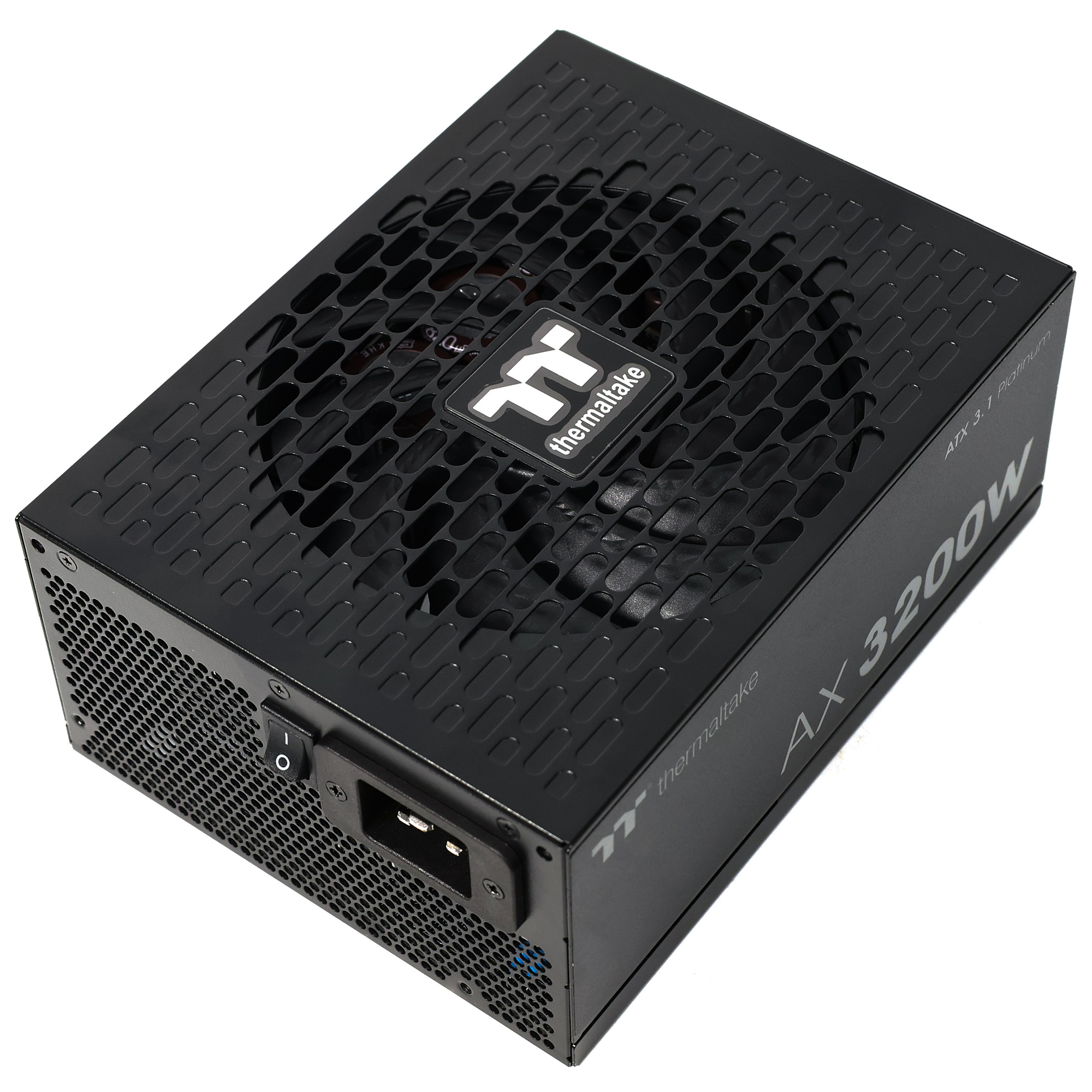

Top side
Top side

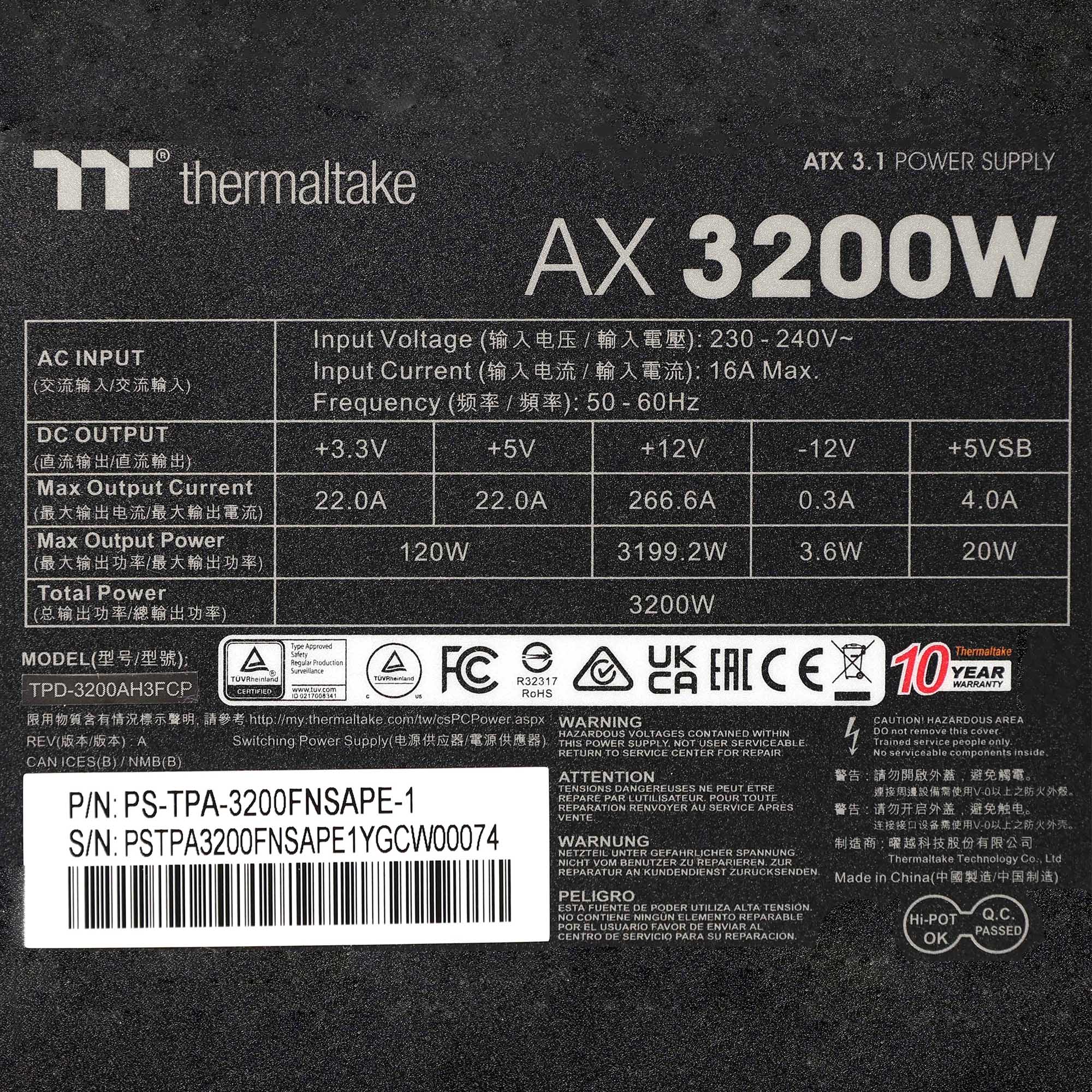

Power specifications label
Power specifications label

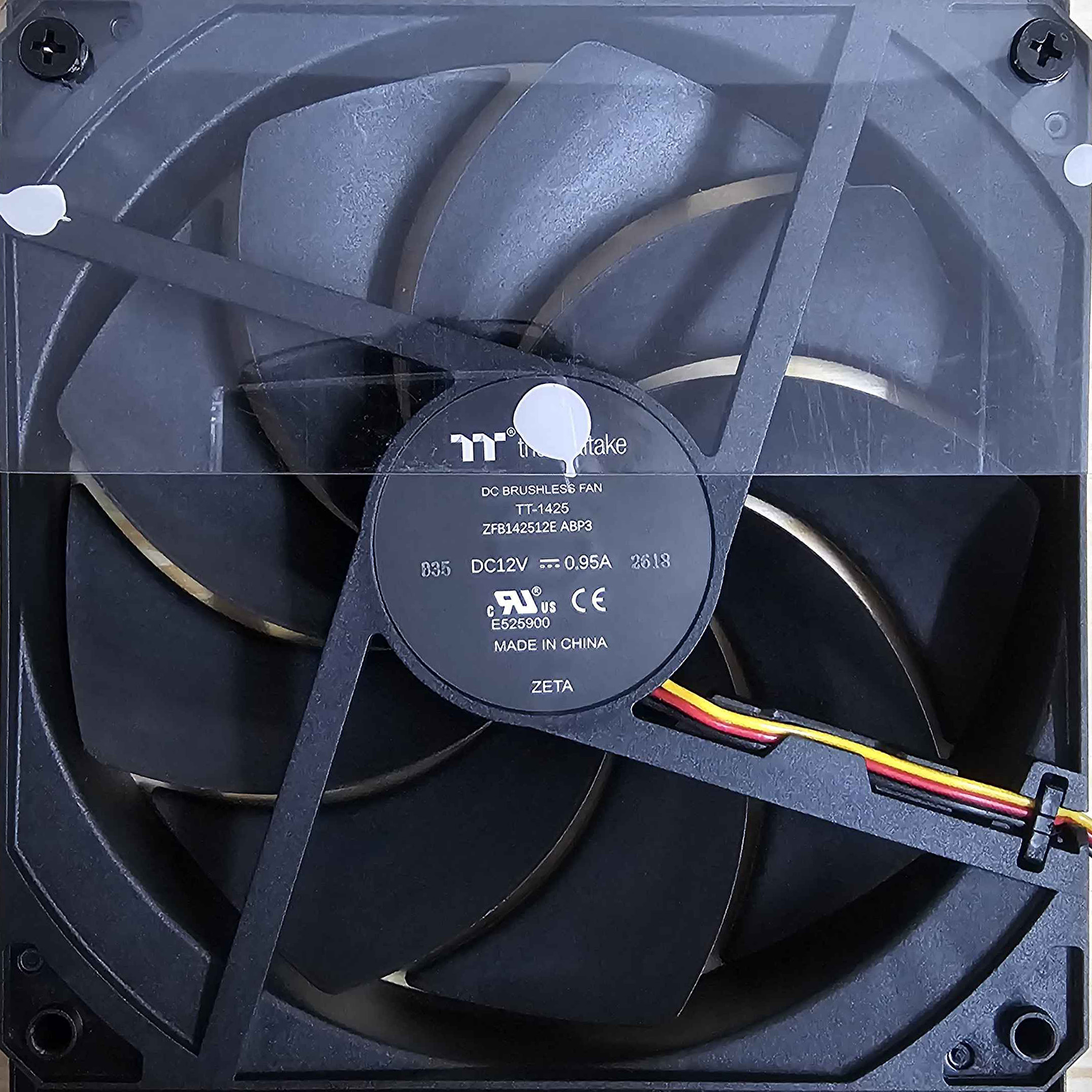

Fan
Fan

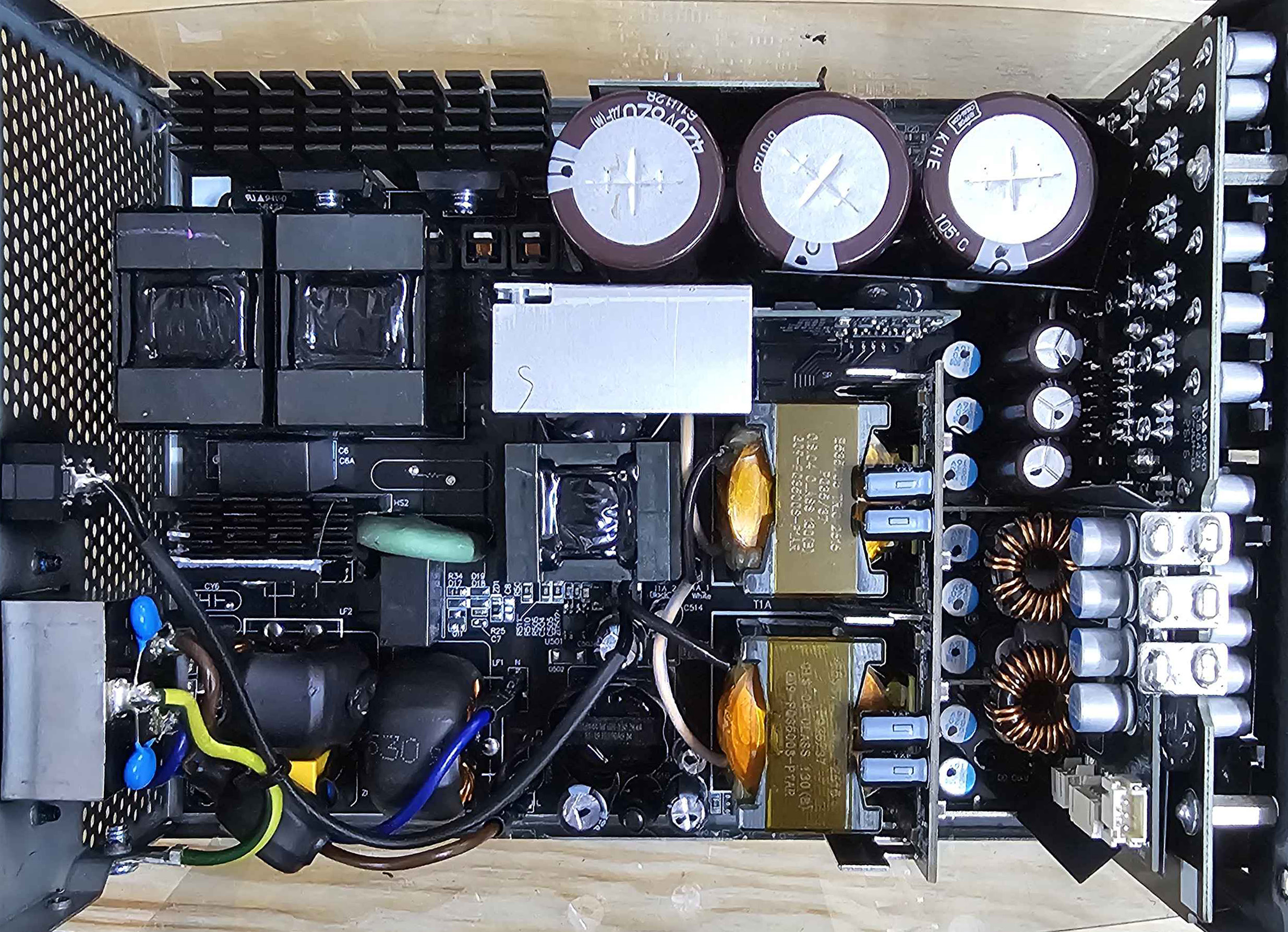

PSU Internals
PSU Internals

Section F: Uncertainty

Efficiency Uncertainty Estimation

F.1 General Statement

Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.

The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.

The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.

Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.

F.2 Expanded Measurement Uncertainty by Measurement Type

Measurement Expanded Uncertainty U (k=2, norm)
Efficiency ±0.43%
Timings ±2.64ms
Power Excursions (Transient Response) ±0.18V
Conducted EMI Emissions (150 kHz – 30 MHz) ±2.35 dB
Noise Output ±1.23 dB
