No. of Accred.: L152
TESTING
Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
SFX850
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.205% | 92.165% |
| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.985 | 0.953 |
| 12V Step | 8.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0291W | 0.0846W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 81.160% | 80.332% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |
| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 29.44dBA | 26.74dBA |
| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 68.799% |
| Hold Up Time | 20.30ms |
| Power OK | 16.70ms |
| Power OK to DC Loss | 3.60ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.880 | 5.017 | 3.322 | 4.993 |
| 10ms | 11.668 | 4.980 | 3.297 | 4.968 |
| 1ms | 11.572 | 4.969 | 3.282 | 4.953 |
| 0.1ms | 11.444 | 4.944 | 3.263 | 4.935 |
| Product Identification Details | |
| Brand | NCASE |
| Model | SFX850 |
| OEM/ODM | SANR |
| Serial Number | |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 45 |
| Type | SFX |
| Cable Design | Fully Modular |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 125 x 65 x 100 mm |
| Weight | 0.96 kg (2.11 lb) |
| Cooling | 92mm Ball Bearing Fan (D92PH-12B) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | NC85003411 |
| Date of receipt | Aug 30, 2026 |
| Testing Date | Sep 8, 2026 |
| Report Issued Date | Sep 10, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (300mm) | 1 | 1 | 16-20AWG | Tinned Copper |
| 4+4 pin EPS12V (400mm) | 1 | 1 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (400mm) | 2 | 4 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (400mm) (600W) | 1 | 1 | 16-26AWG | Tinned Copper |
| SATA 120mm+120mm+120mm) | 2 | 6 | 18AWG | Tinned Copper |
| 4-pin Molex (120mm+120mm+120mm) | 1 | 3 | 18AWG | Tinned Copper |
| AC Power Cord (1100mm) - C13 coupler | 1 | 1 | 18AWG | |
| Cybenetics ETA Rating (230V) | PLATINUM |
| Cybenetics LAMBDA Rating (230V) | A- |
| Modular | Fully Modular |
| Operating Temperature (Continuous Full Load) | 0 - 45℃ |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |

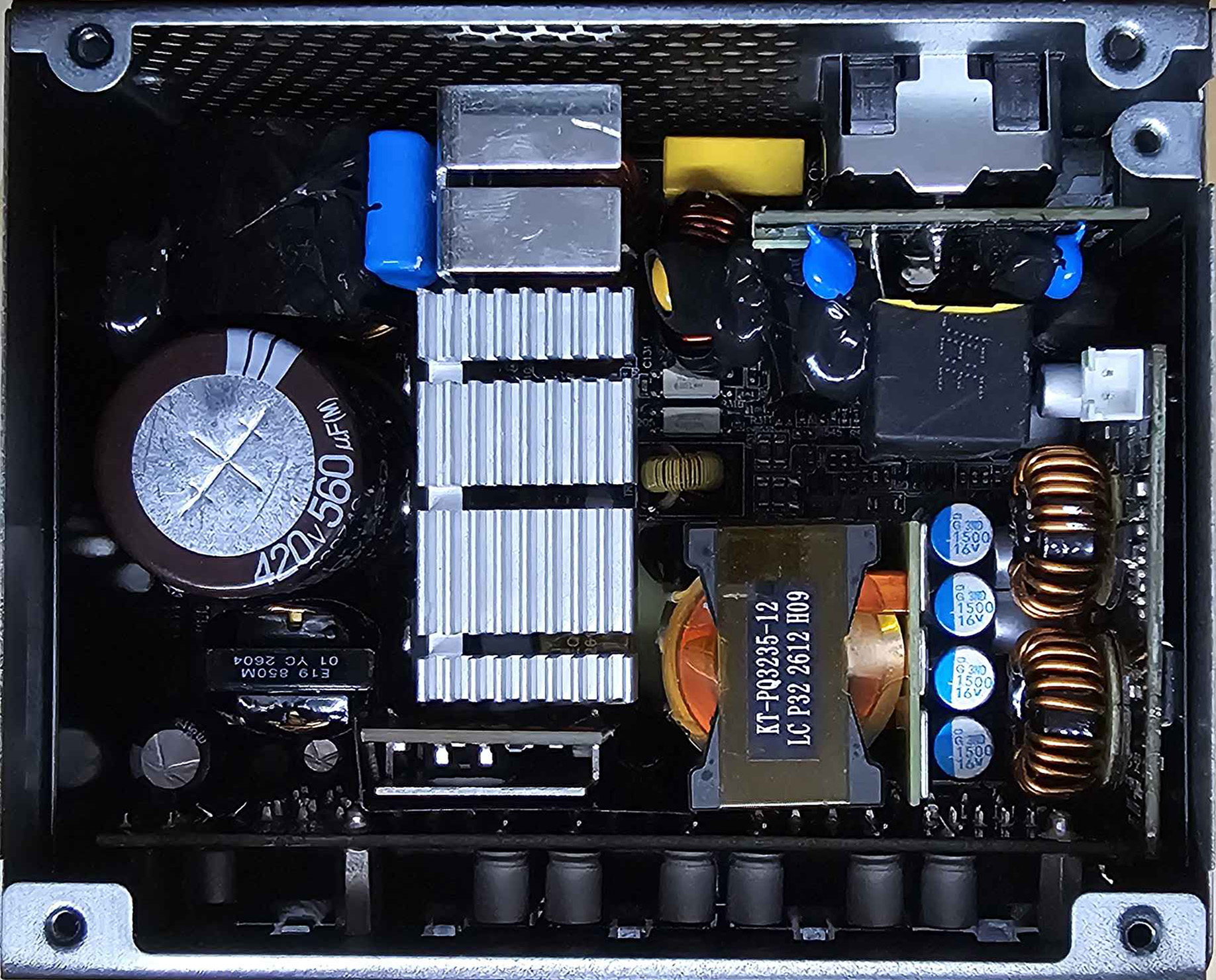

| General Data | |
| Manufacturer (OEM) | SANR |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72-5D13 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x GBU2506 (600V, 25A @ 100°C) |
| APFC MOSFETs | 2x Lonten LSD65R099GF (650V, 26A @ 100°C, Rds(on): 0.099Ohm) |
| APFC Boost Diode | CR Micro CRXF10D065G2 (650V, 10A @ 130°C) |
| Bulk Cap(s) | 1x Nippon Chemi-Con (420V, 560uF, 2000h @ 105°C, KHE ) |
| Main Switchers | 2x Shenzhen Sanrise SRC60R068BS (600V, 21.5A @ 125°C, Rds(on): 0.068Ohm) |
APFC Controller | Champion CM6500UNX & |
| Resonant Controller | Champion CU6901V |
| IC Driver | Sillumin SLMi8233 |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 6x Hymexa HYG009N04LS1C2 (40V, 141A @ 100°C, Rds(on): 0.96mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x PTJ030N03LA (30V) PWM Controller(s): ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | GRENERGY GR8329E |
| Fan Power Switch | ANPEC APW9010 |

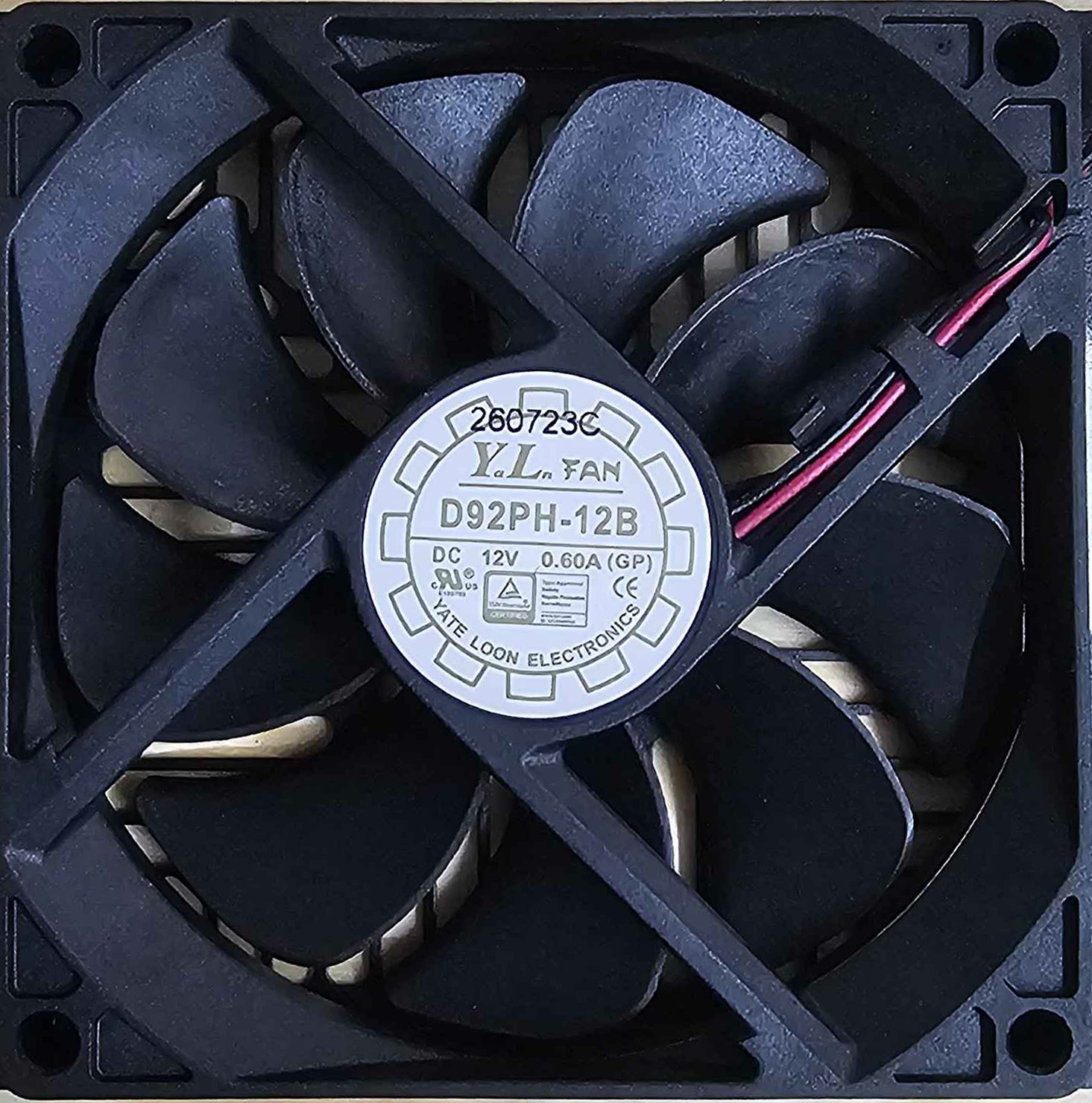

| Fan Model | Yate Loon D92PH-12B (92mm, 12V, 0.6A, Ball Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | PingWei PS1060L |
| Standby PWM Controller | Depuw DP2358 |
| Photos |  |  |

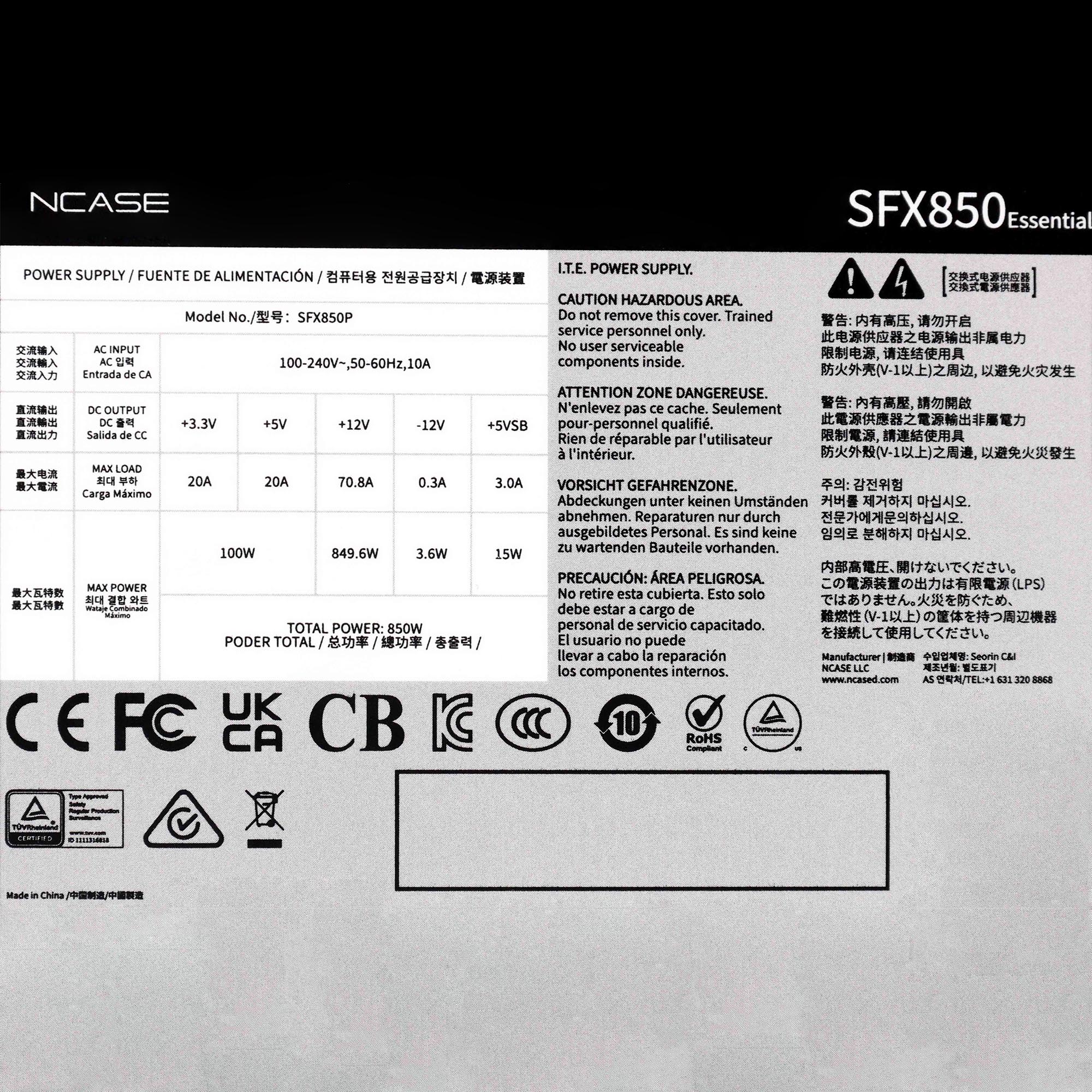

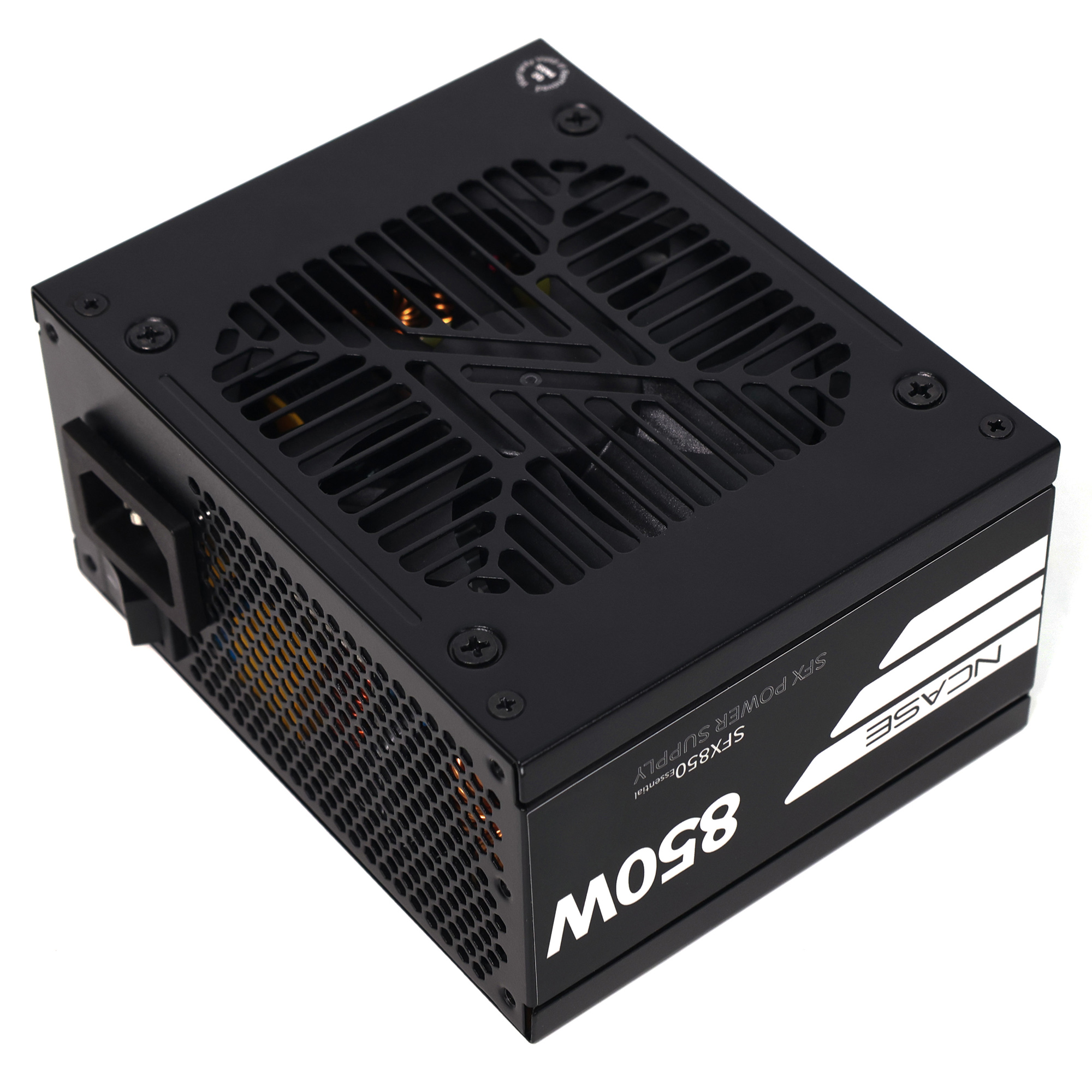

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
