No. of Accred.: L152
TESTING
Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
Wizmax P-1200W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.280% | 91.792% |

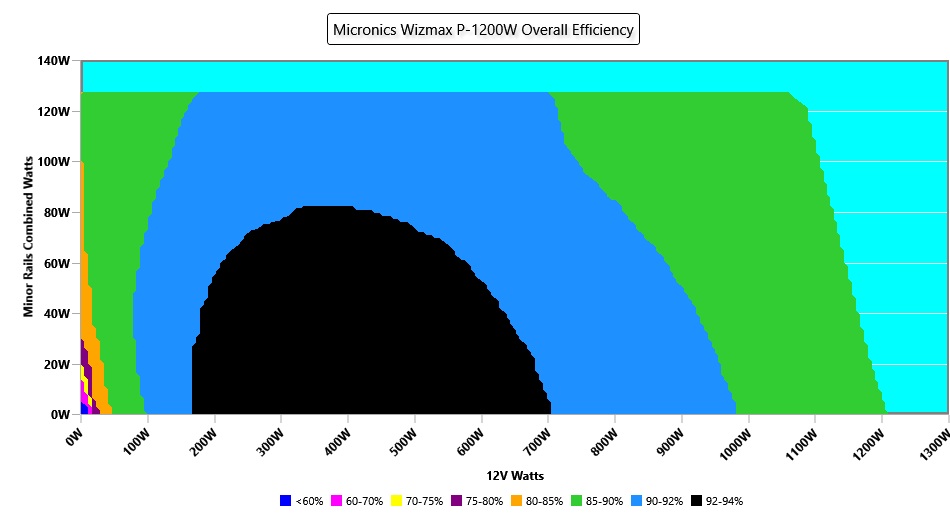

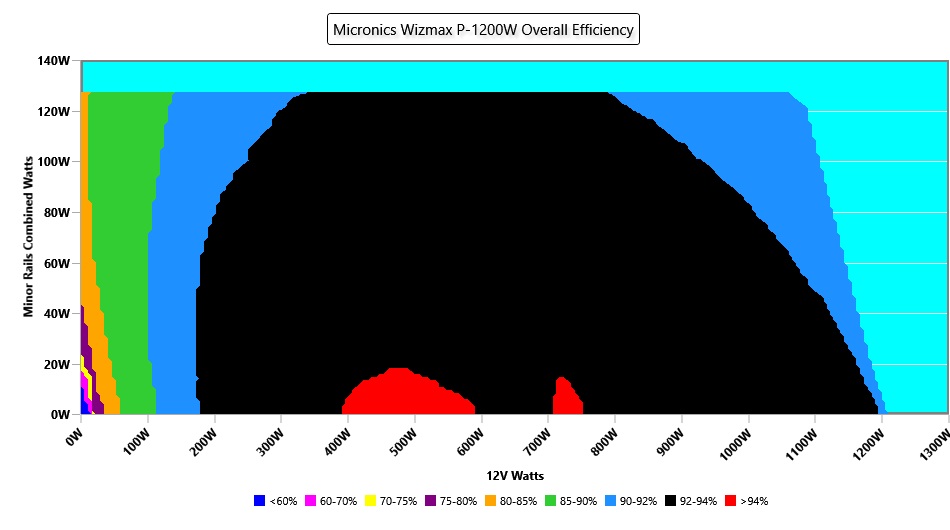

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.987 | 0.960 |
| 12V Step | 12.00W | |
| 5V/3.3V Step | 2.50W | |
| Standby Power Consumption | 0.0475W | 0.1337W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 86.201% | 85.471% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |

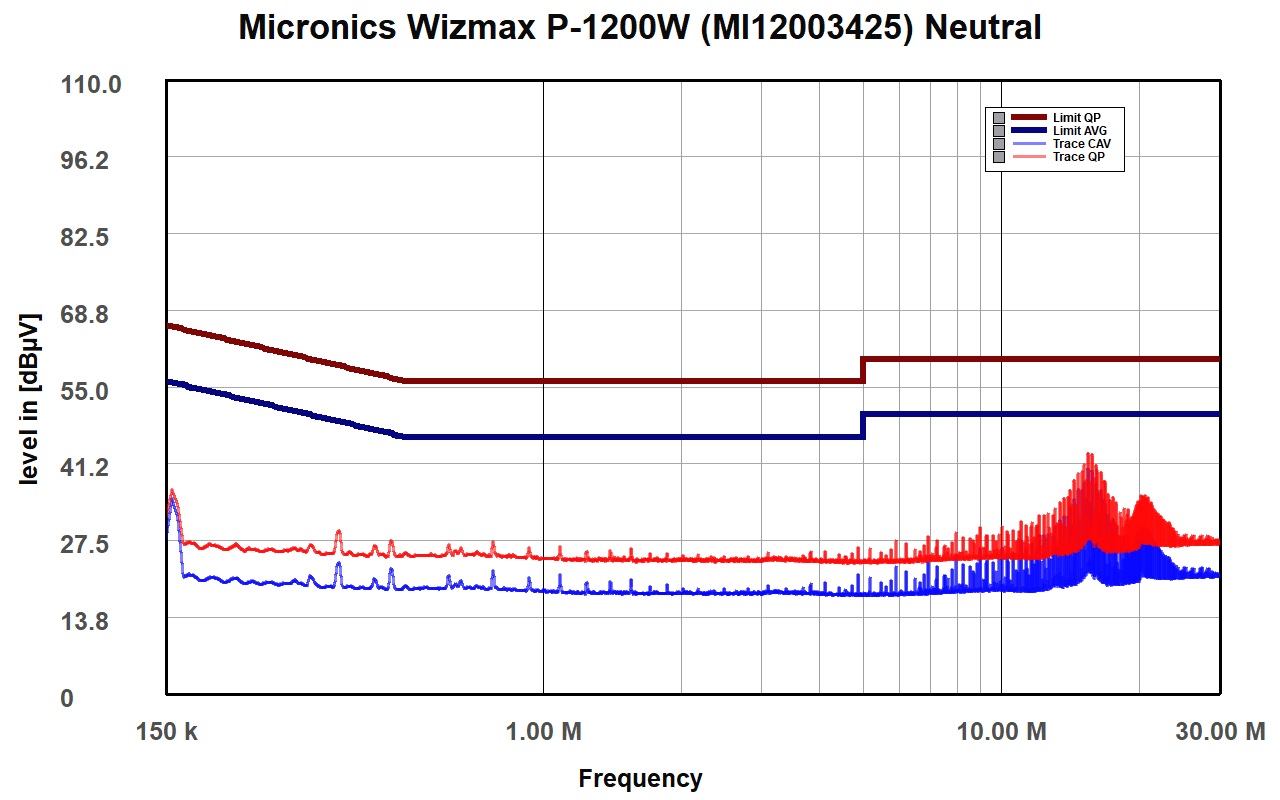

Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 25.97dBA | 26.09dBA |

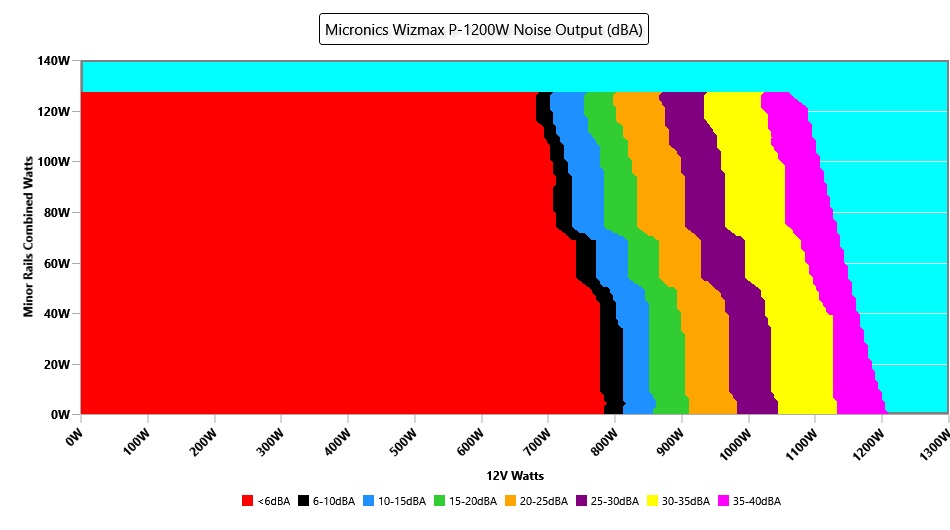

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 74.912% |
| Hold Up Time | 15.80ms |
| Power OK | 13.20ms |
| Power OK to DC Loss | 2.60ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.960 | 5.058 | 3.303 | 5.086 |
| 10ms | 11.543 | 5.001 | 3.264 | 5.032 |
| 1ms | 11.375 | 4.974 | 3.248 | 5.006 |
| 0.1ms | 11.159 | 4.932 | 3.225 | 4.981 |
| Product Identification Details | |
| Brand | Micronics |
| Model | Wizmax P-1200W |
| OEM/ODM | Great Wall |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |

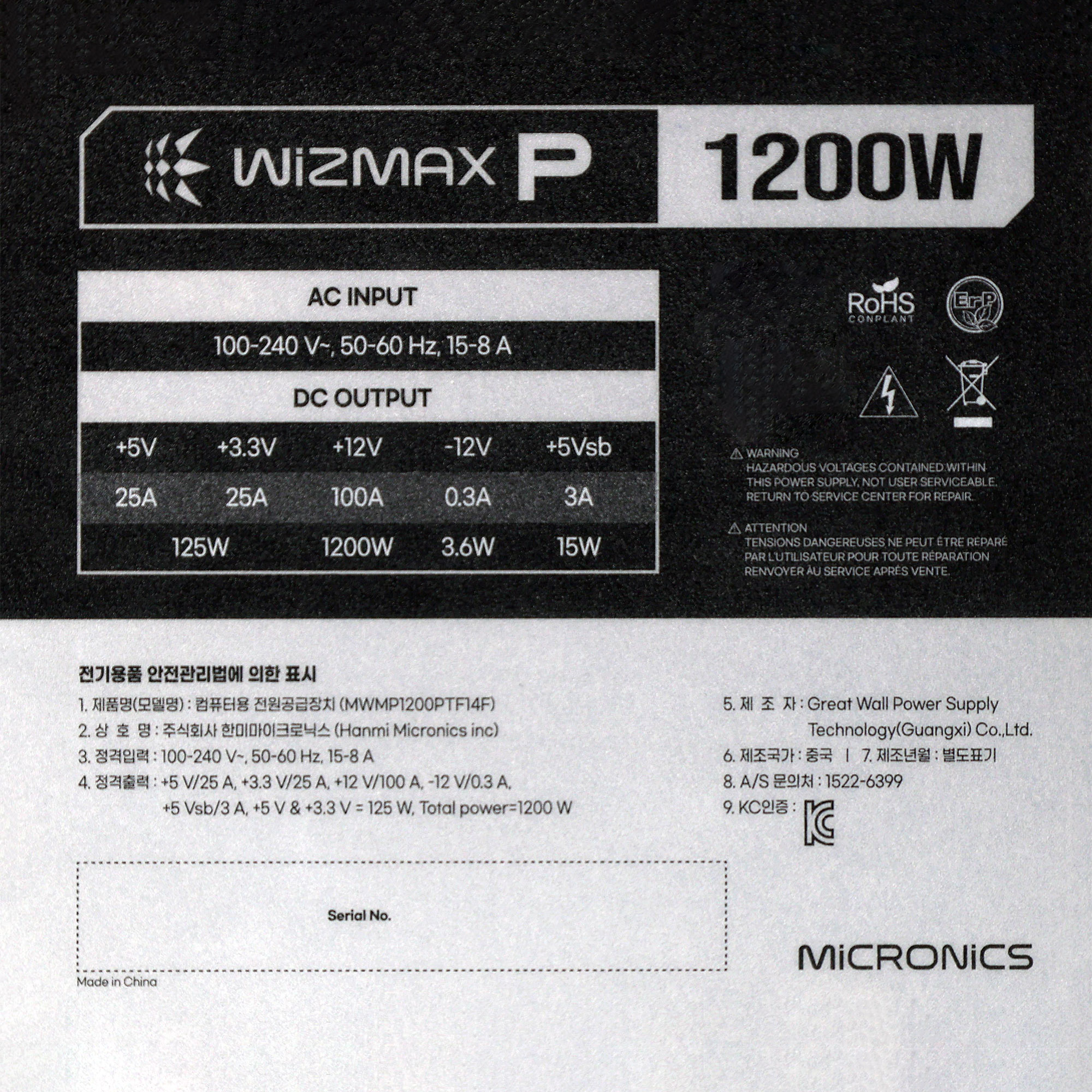

| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 8-15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1200 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |

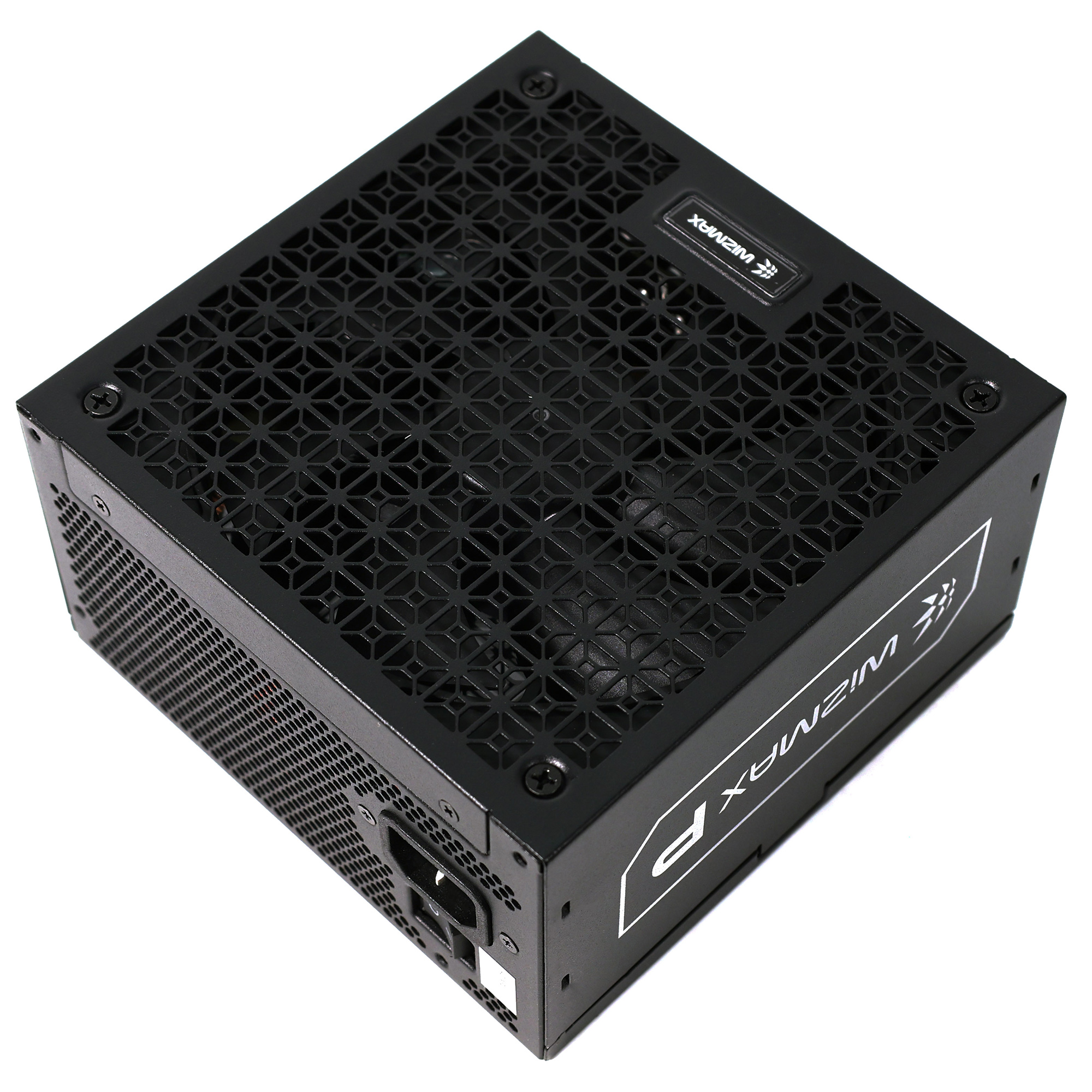

| Dimensions (W x H x D) | 150 x 85 x 150mm |
| Weight | 1.56 kg (3.43 lb) |

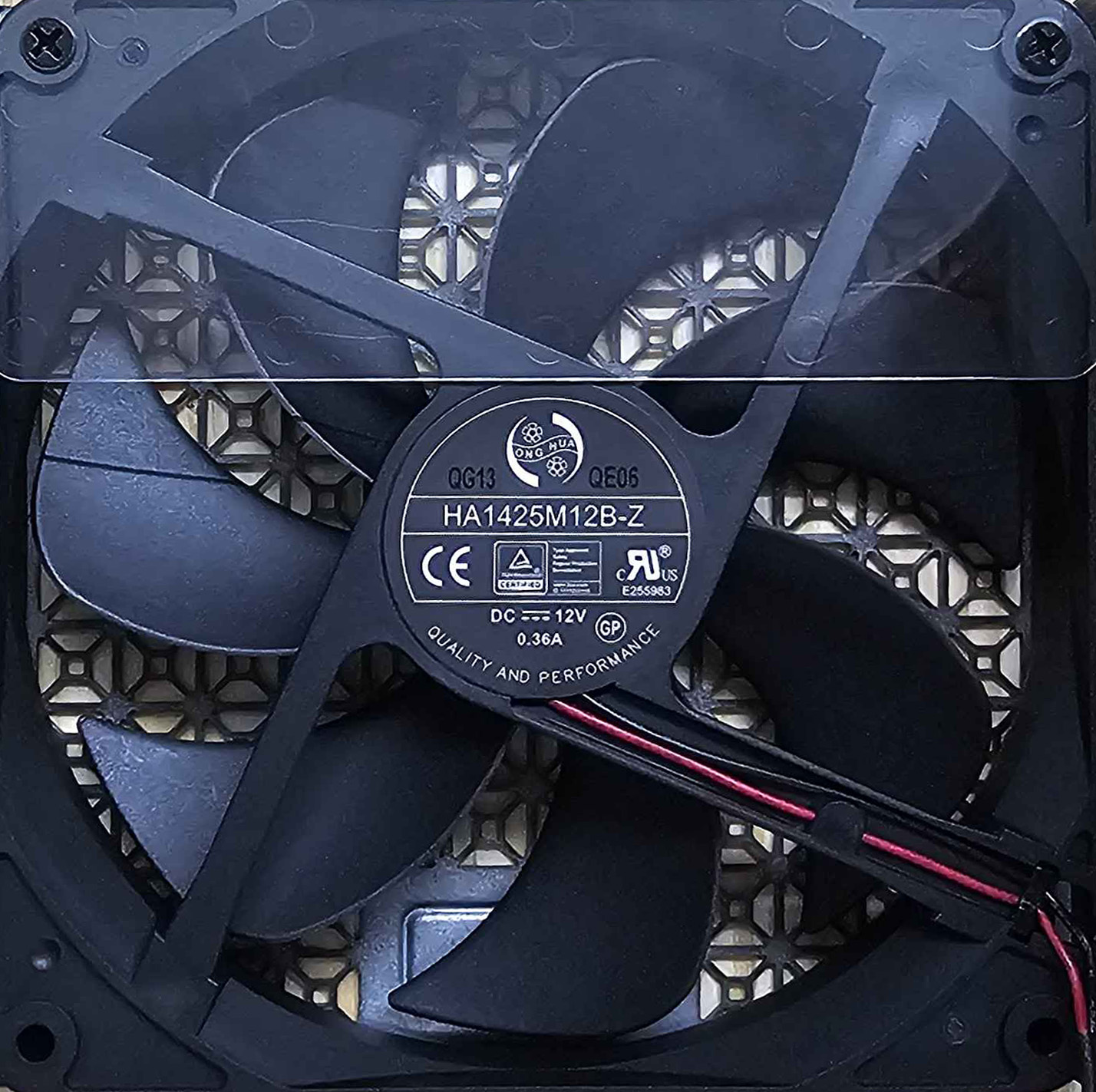

| Cooling | 140mm Dual Ball Bearing Fan (HA1425M12B-Z) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | MI12003425 |
| Date of receipt | Sep 8, 2026 |
| Testing Date | Sep 21, 2026 |
| Report Issued Date | Sep 24, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
| ATX connector 20+4 pin (610mm) | 1 | 1 | 16-18AWG | No |
| 4+4 pin EPS12V (750mm) | 2 | 2 | 18AWG | No |
| 6+2 pin PCIe (675mm) | 3 | 3 | 18AWG | No |
| 12+4 pin PCIe (675mm) (600W) | 1 | 1 | 16-24AWG | No |
| SATA (400mm+150mm+150mm) | 2 | 6 | 18AWG | No |
| 4-pin Molex (400mm+150mm+150mm) | 1 | 3 | 18AWG | No |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Great Wall |
| PCB Type | Double-Sided |

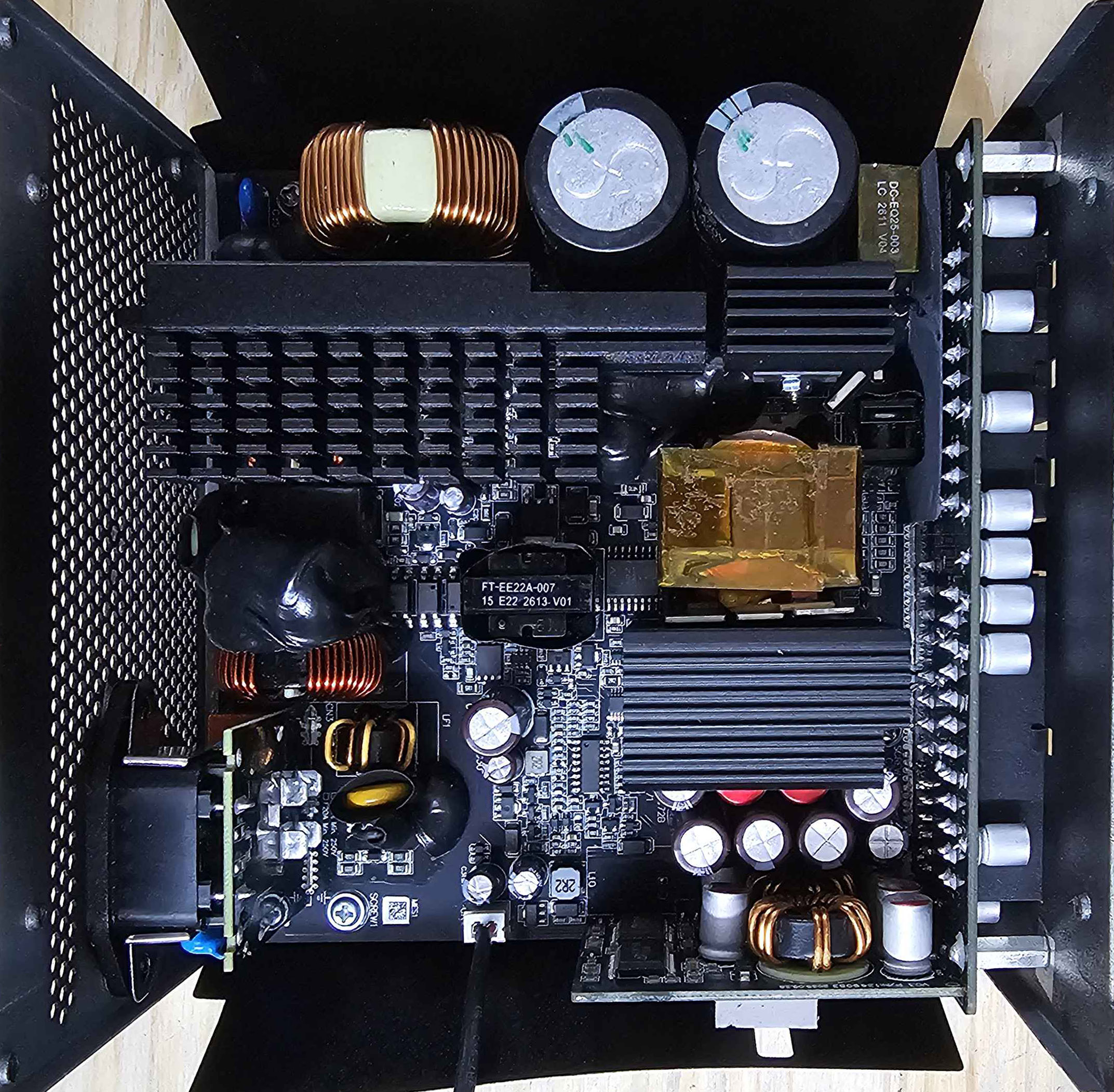

| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor SCK-205R0 (5Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Vishay GBUE2560 (600V, 25A @ 140°C) |
| APFC Transphorm | 1x Renesas TP65H035G4YS (650V, 29.5A @ 100°C, Rds(on): 0.041Ohm) |
| APFC Boost Diode | 1x Wolfspeed C3D16065D (650V, 16A @ 150°C) |
| Bulk Cap(s) | 2x Elite (420V, 470uF each or 940uF combined, 2000h @ 105°C, PL ) |
| Main Switchers | 2x Infineon IPW60R070CFD7 (600V, 20A @ 100°C, Rds(on): 0.07Ohm) |
| APFC Controller | Champion CM6502UHHX |
| Resonant Controller | Champion CM6901X |
| No-Load Consumption IC | Sync Power SPN5003A (reducing no-load consumption) |
| IC Driver | 1x Novosense NSi6602 |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 6x Infineon BSC007N04LS6 (40V, 269A @ 100°C, Rds(on): 0.007mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x AP4024GEMT-HF (30V, 20.9A @ 25°C, Rds(on): 4.5mOhm) PWM Controller(s): ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: 7x Elite (3000~5000h @ 105°C, EJ), 3x Rubycon (4000~10000h @ 105°C, YXJ), 3x Elite (5000h @ 105°C, EY) Polymer: 13x FPCap, 16x Elite |
| Supervisor IC | Weltrend WT7681P |
| Fan Model | Hong Hua HA1425M12B-Z (140mm, 12V, 0.36A, Dual Ball Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | DIODES DMT6005LSS |
| Standby PWM Controller | No Info |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
