No. of Accred.: L152
TESTING
Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
MEGA PM 1000W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.874% | 92.860% |
| Efficiency Graphs | ||
| Average PF (>1450 Load Combinations) | 0.992 | 0.962 |
| 12V Step | 9.00W | |
| 5V/3.3V Step | 2.50W | |
| Standby Power Consumption | 0.0668W | 0.1141W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 80.005% | 79.243% |

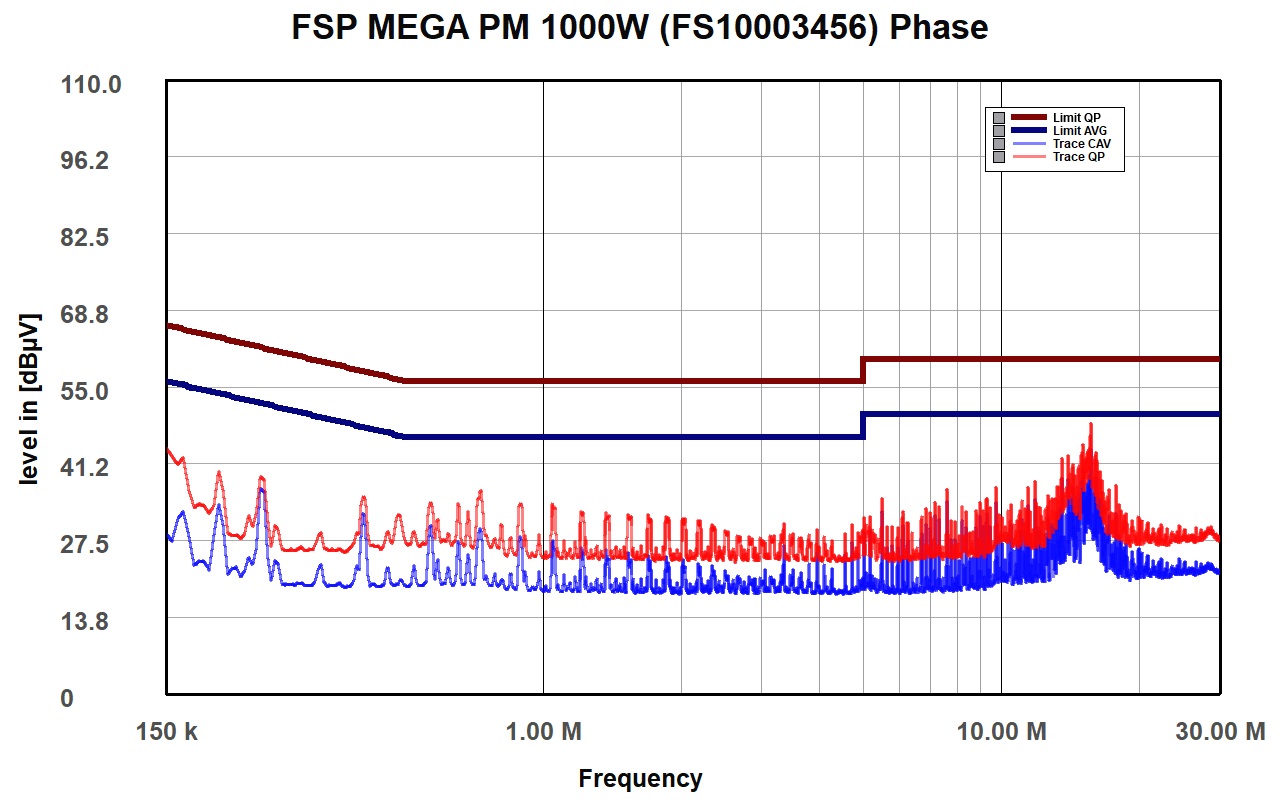

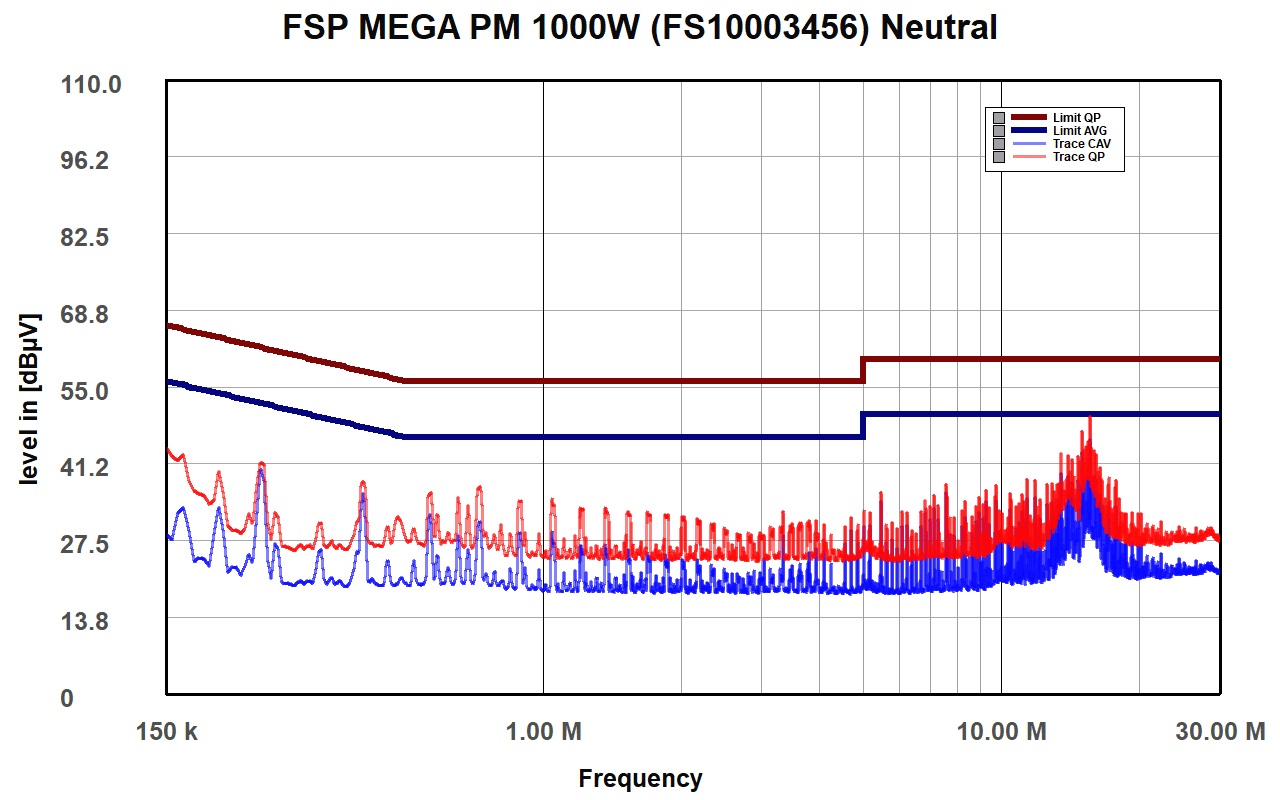

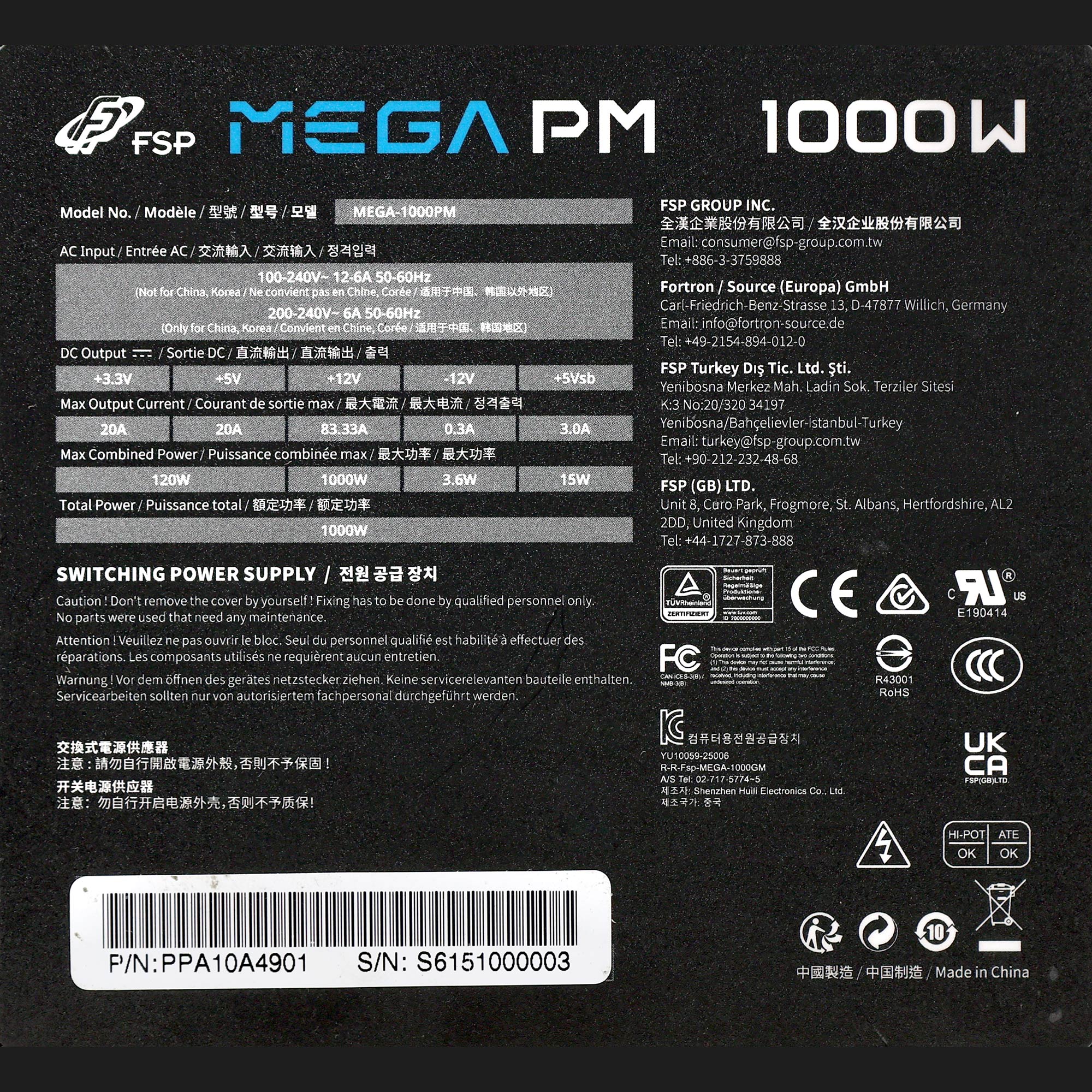

| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |
Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 13.49dBA | 12.22dBA |
| Noise Graphs | ||
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 72.928% |
| Hold Up Time | 17.90ms |
| Power OK | 14.70ms |
| Power OK to DC Loss | 3.20ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 12.010 | 5.055 | 3.313 | 5.043 |
| 10ms | 11.815 | 5.043 | 3.272 | 5.044 |
| 1ms | 11.477 | 5.009 | 3.216 | 5.018 |
| 0.1ms | 11.266 | 4.981 | 3.181 | 5.007 |
| Product Identification Details | |
| Brand | FSP Technology |
| Model | MEGA PM 1000W |
| OEM/ODM | FSP |
| Serial Number | S6151000003 |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-12 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 150mm |
| Weight | 1.70 kg (3.75 lb) |

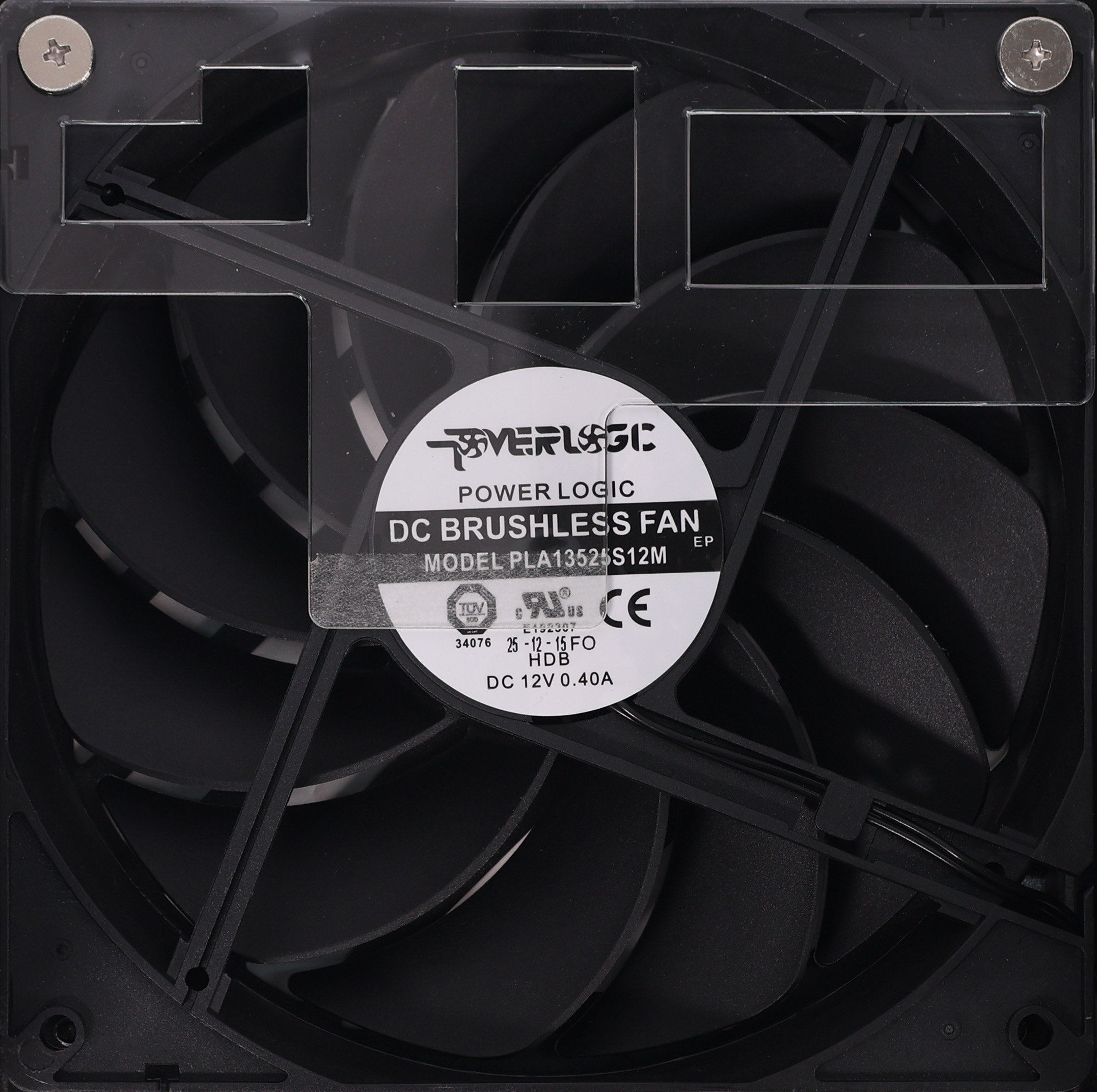

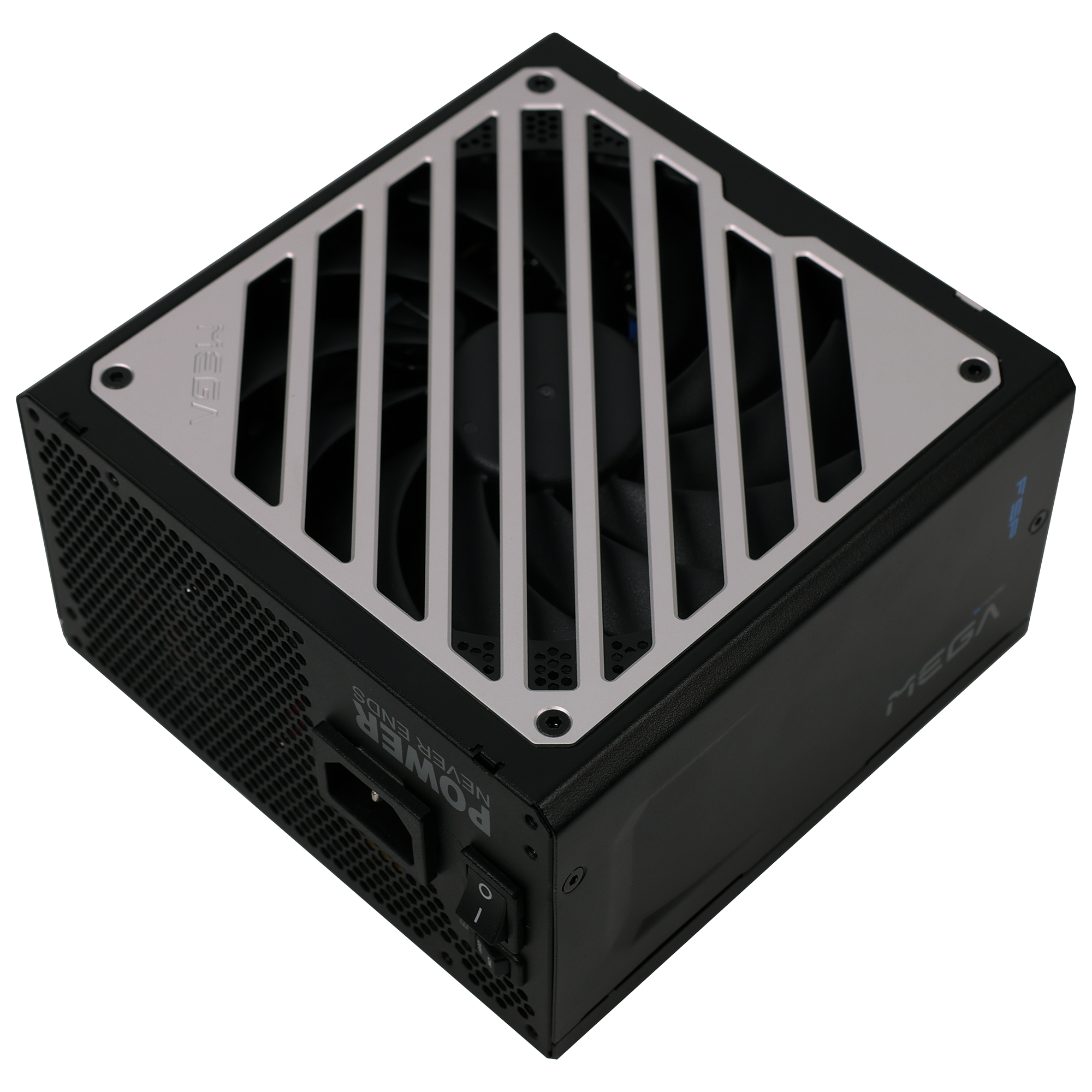

| Cooling | 135mm Hydro Dynamic Bearing Fan (PLA13525S12M) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | FS10003456 |
| Date of receipt | Sep 29, 2026 |
| Testing Date | Oct 20, 2026 |
| Report Issued Date | Oct 22, 2026 |
| DUT Notes | In the 115V normal-load transient response test without the capacitors required by the ATX specification, the unit shut down in the 0.1ms and 200ms cases at both the 20% and 50% start loads. The second sample behaved the same way. With the capacitors fitted, every case was completed. |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18-22AWG | Tinned Copper |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (650mm) | 3 | 3 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (700mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (500mm+155mm+155mm+155mm) | 2 | 8 | 18AWG | Tinned Copper |
| SATA / 4-pin Molex (500mm+155mm) / (+155mm+155mm) | 1 | 2/2 | 18AWG | Tinned Copper |
| 4-pin Molex (500mm+155mm+155mm+155mm) | 1 | 4 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | FSP |
| PCB Type | Double-Sided |

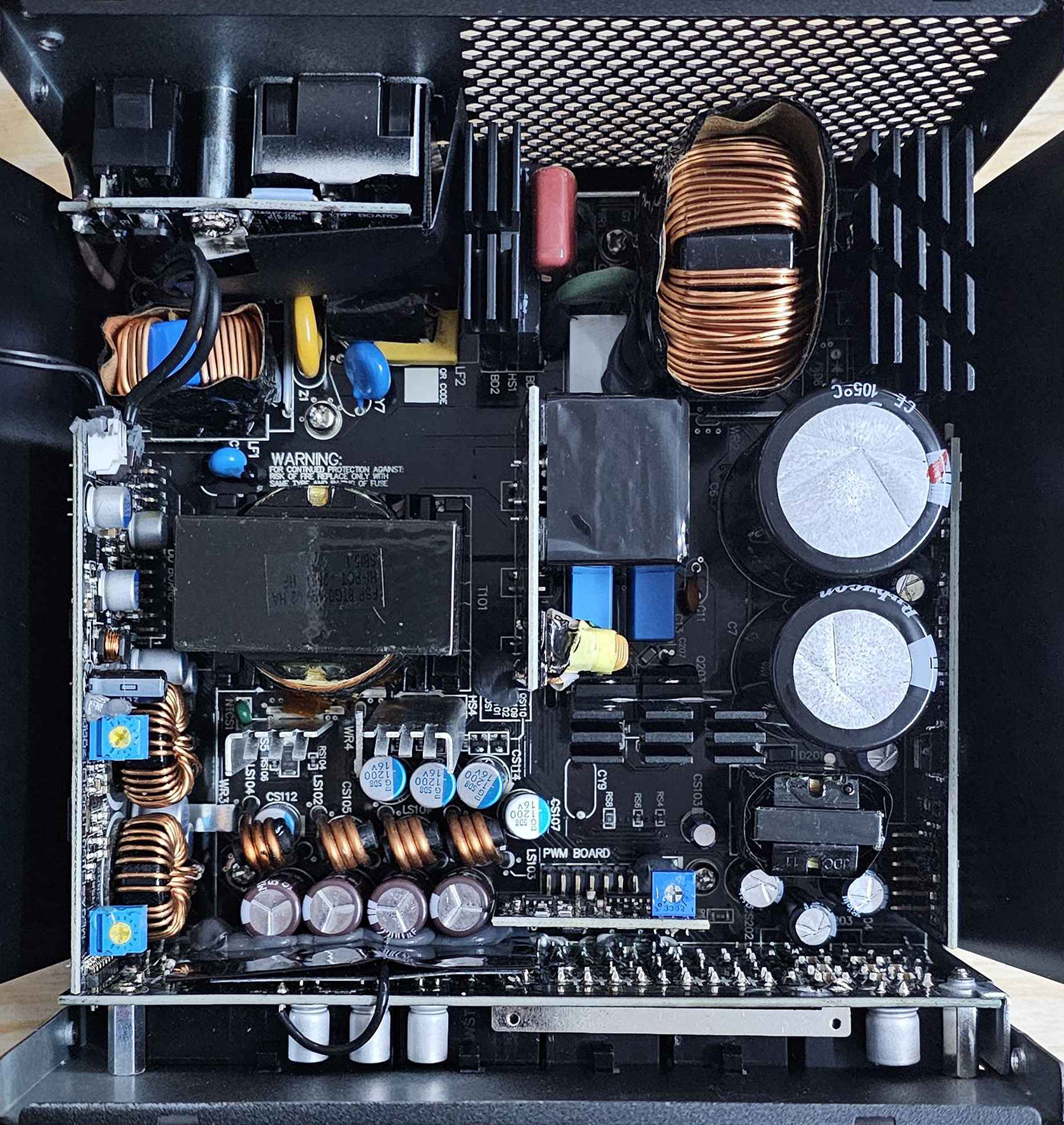

| Primary Side | |
| Transient Filter | 4x Y caps,3x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | 1x NTC Thermistor SCK-056 (5Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Diodes GBJ2506 (600V, 25A @ 150°C) |
| APFC MOSFETs | 2x Infineon IPA60R099P7 (650V, 20A @ 100°C, 0.099Ohm) |
| APFC Boost Diode | 2x STMicro STPSC8H065 (650V, 8A @ 140°C) |
| Bulk Cap(s) | 1x Rubycon (450V, 470uF, 2000h @ 105°C, MXH) 1x Rubycon (450V, 330uF, 2000h @ 105°C, MXK) |
| Main Switchers | 2x GP47S60YERD |
APFC Controller | Infineon ICE2PCS02G |
| Resonant Controller | Champion CM6901T2X |
| IC Driver | 1x Novosense NSI6602 |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 6x Infineon ISC007N04NM6 (40V, 269A @ 100°C, Rds(on): 0.7mOhm) |
| 5V & 3.3V | DC-DC Converters: 6x Advanced Power AP3R303GMT (30V, 67A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Weltrend WT7527RA |
| Fan Controller | Anpec APW9010 |
| Fan Model | Power Logic PLA13525S12M (135mm, 12V, 0.4A, Hydro Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | PFC Device P15L50SP |
| Standby PWM Controller | Grenergy GR8837CCG |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
