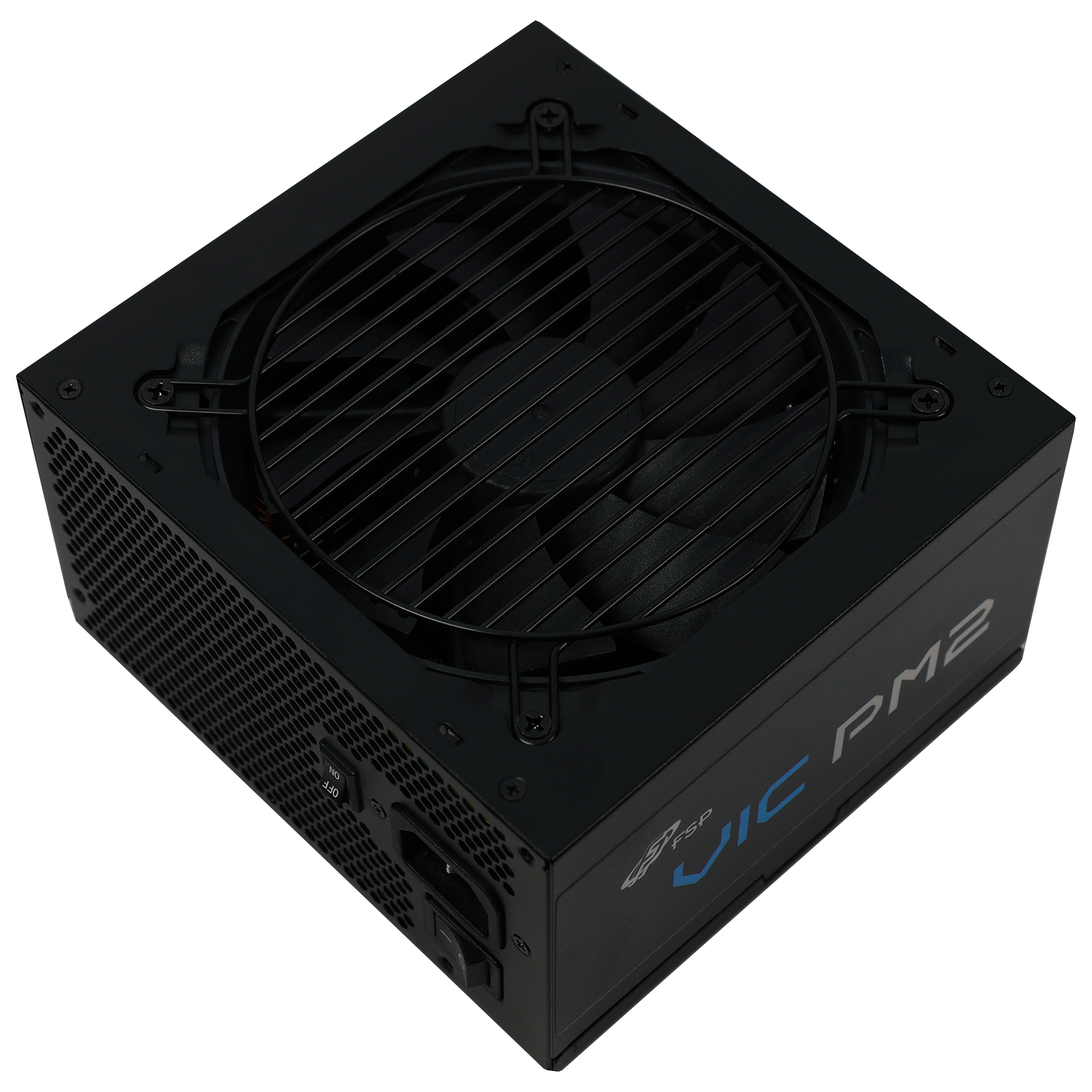

VIC PM2 1000W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.946% | 91.690% |
| Efficiency Graphs | ||
| Average PF (>1450 Load Combinations) | 0.992 | 0.959 |
| 12V Step | 10.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0480W | 0.1088W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 81.036% | 79.625% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |

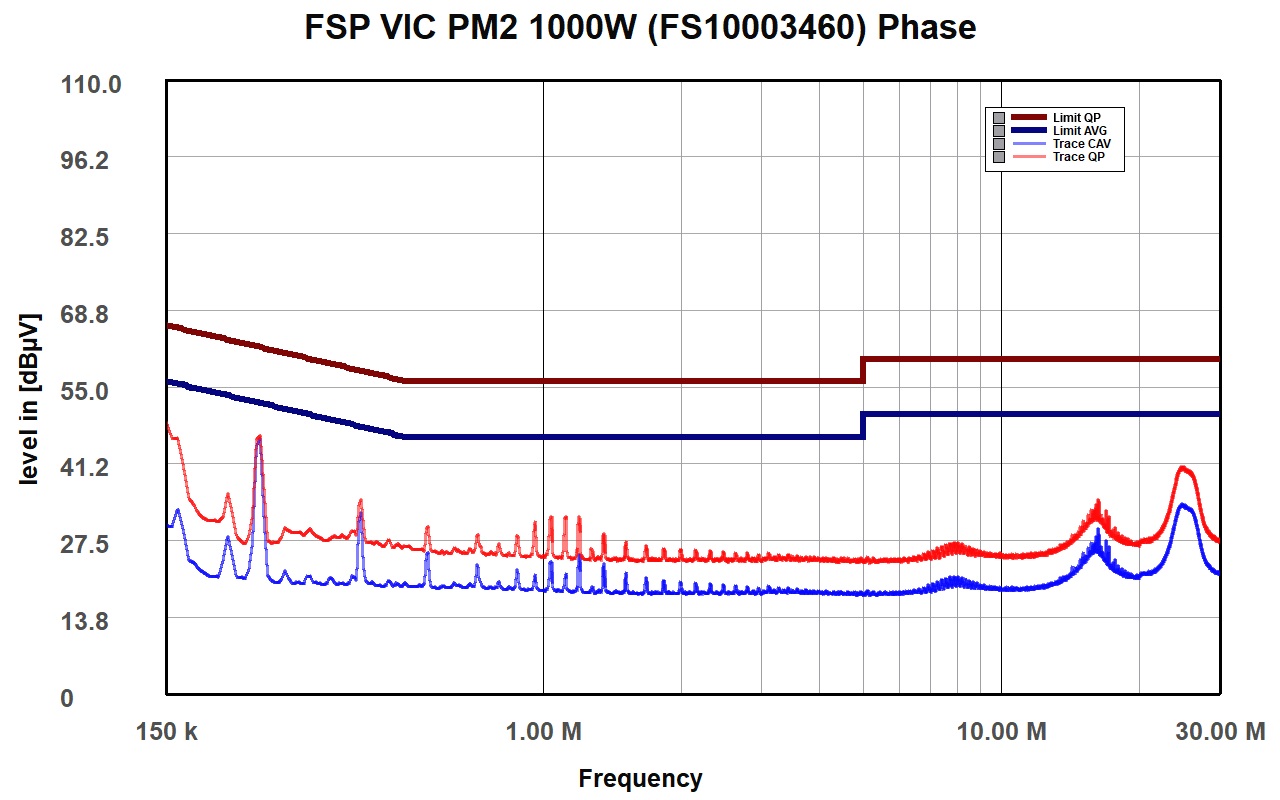

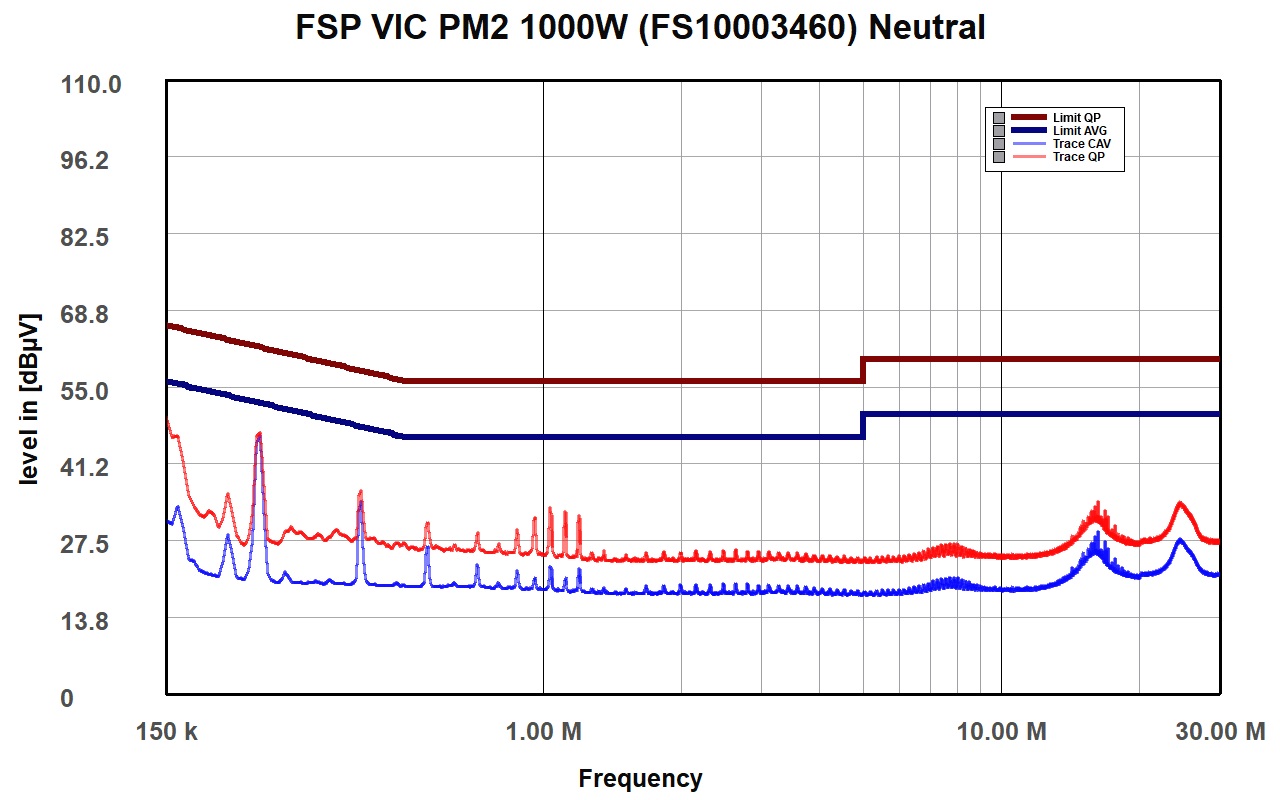

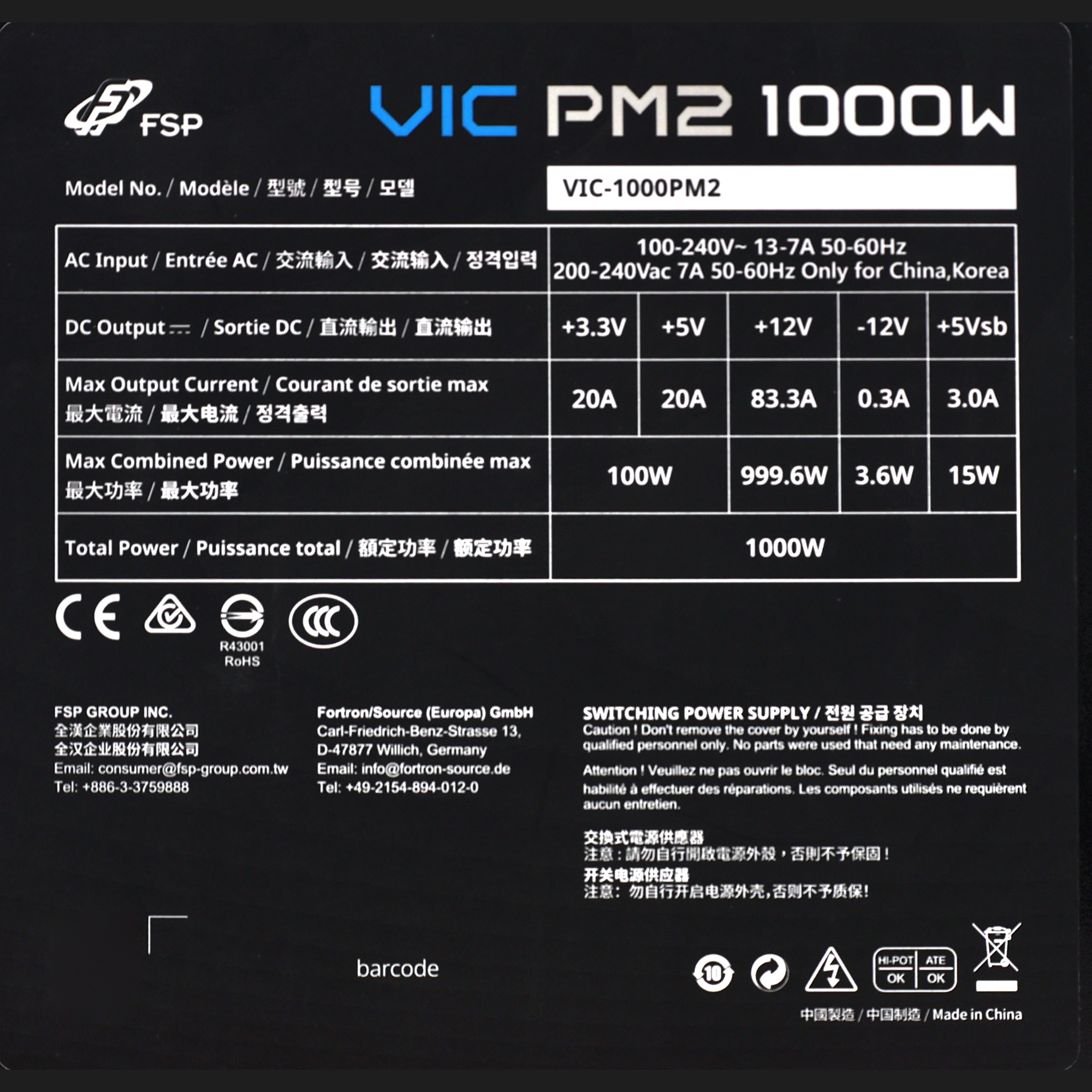

Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 20.51dBA | 20.64dBA |
| Noise Graphs | ||
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 71.971% |
| Hold Up Time | 19.30ms |
| Power OK | 17.50ms |
| Power OK to DC Loss | 1.80ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.990 | 4.976 | 3.272 | 5.011 |
| 10ms | 11.524 | 4.954 | 3.231 | 4.982 |
| 1ms | 11.652 | 4.962 | 3.247 | 4.995 |
| 0.1ms | 11.208 | 4.928 | 3.178 | 4.965 |
| Product Identification Details | |
| Brand | FSP Technology |
| Model | VIC PM2 1000W |
| OEM/ODM | Zhong Yuan |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7-13 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Operating Temperature (Continuous Full Load) (°C) | 10 - 42 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 5 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.38 kg (3.04 lb) |

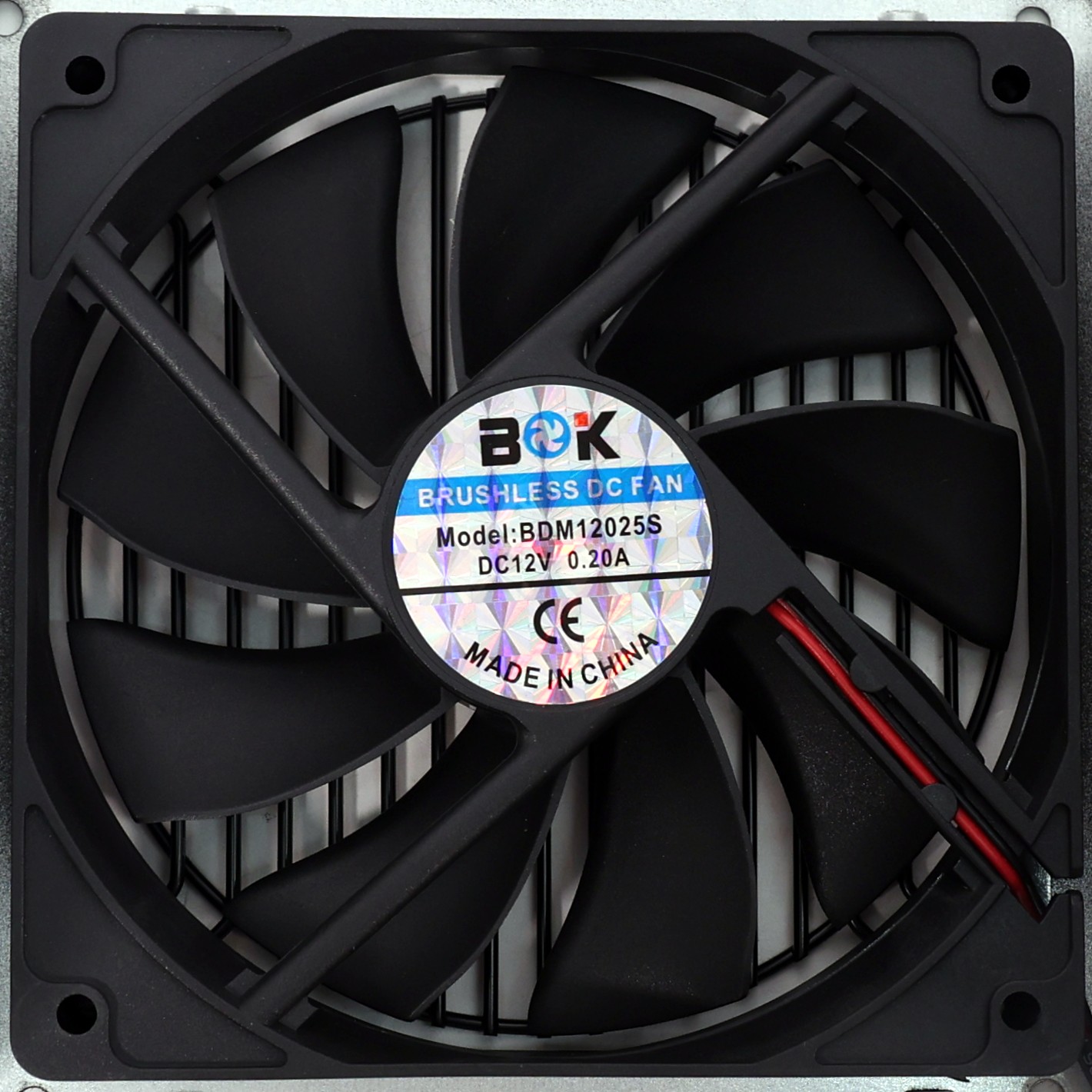

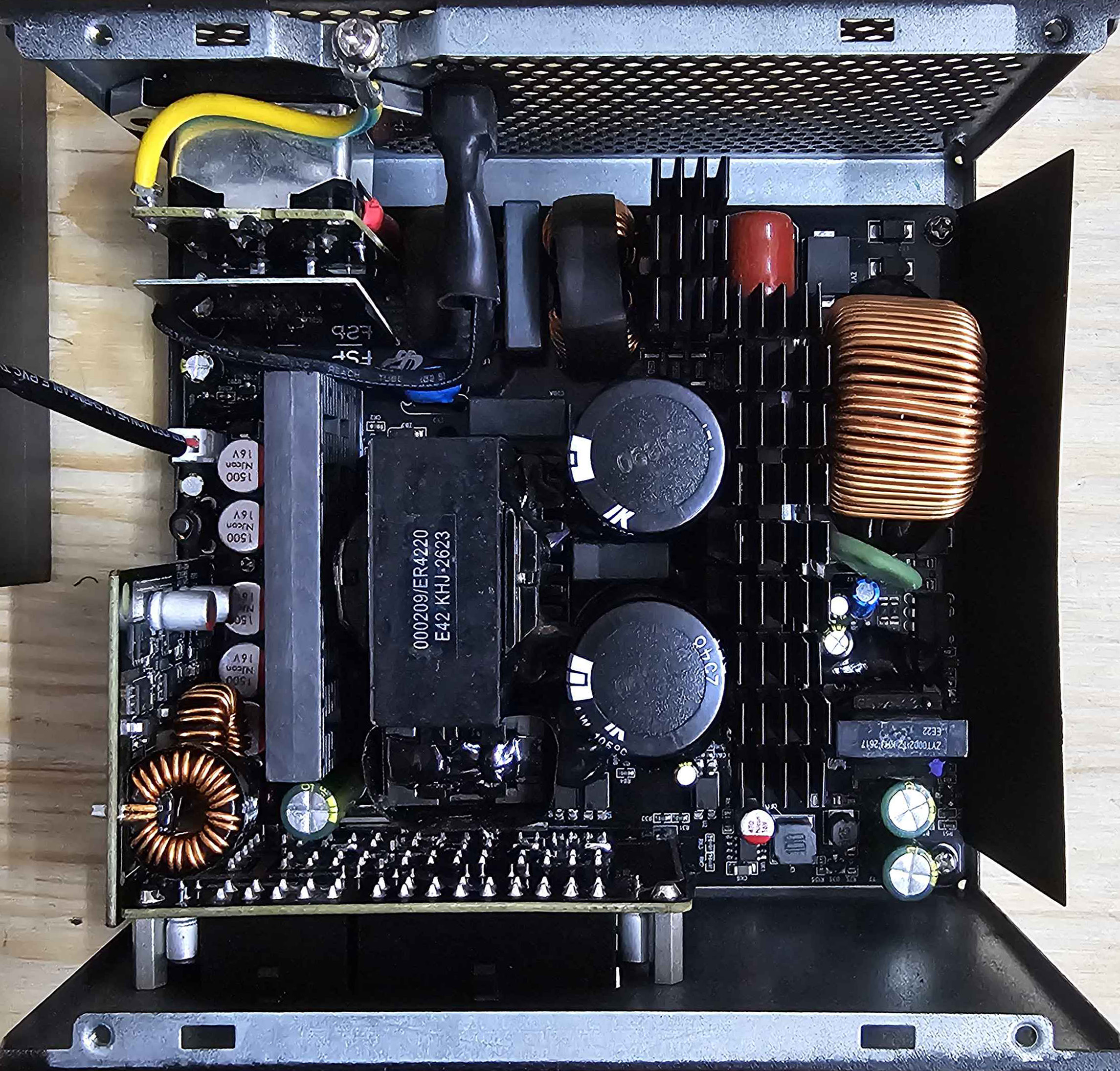

| Cooling | 120mm Rifle Bearing Fan (BDM12025S) |
| Semi-Passive Operation | ✓ (selectable) |
| Cybenetics Testing Information | |
| Lab ID | FS10003460 |
| Date of receipt | Sep 29, 2026 |
| Testing Date | Oct 19, 2026 |
| Report Issued Date | Oct 23, 2026 |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (500mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (650mm) | 1 | 1 | 16AWG | Tinned Copper |
| 8 pin EPS12V (650mm+155mm) | 1 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (500mm) | 3 | 3 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (450mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | Tinned Copper |
| SATA (450mm) / 4-pin Molex (+150mm+150mm+150mm) | 1 | 1 / 3 | 18AWG | Tinned Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Zhong Yuan |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 1x Y-CAPs, 3x X-CAPs, 2x CM chokes |
| Inrush Protection | NTC Thermistor HNP 5D20 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Yangzhou yangjie GBU2506 (600V, 25A @ 100°C) |
| APFC MOSFETs | 2x Shenzhen Sanrise SRC60R090BS (600V, 18.7A @ 125°C, Rds(on): 0.090Ohm) |
| APFC Boost Diode | 1x Global Power Technology G4S06510H |
| Bulk Cap(s) | 2x Toshin Kogyo (420V, 390uF , 2000h @ 105°C, LW) |
| Main Switchers | 2x Shenzhen Sanrise SRC60R108B (600V, 14A @ 125°C, Rds(on): 0.108Ohm) |
APFC | Infineon ICE2PCS01 |
Resonant Controller | MPS HR1213 |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter |
| Secondary Side | |
| +12V MOSFETs | 6x Shenzhen Sanrise SRT045N012H (40V, 144A @ 100°C, Rds(on): 1.2mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x All Power AP180N03G PWM Controller(s): 1x ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: |
| Fan Model | BOK BDM12025S (120mm, 12V, 0.20A, Rifle Bearing) |
| 5VSB Circuit | |
| Rectifier | Kanghong Semiconductor 10L60S |
| Standby PWM Controller | SH-Xuanyan XY6115 |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
