SF750 Platinum
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.210% | 92.083% |
| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.981 | 0.950 |
| 12V Step | - | |
| 5V/3.3V Step | - | |
| Standby Power Consumption | 0.0477W | 0.0747W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 83.081% | 81.962% |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 26.20dBA | 25.45dBA |
| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 54.190% |
| Hold Up Time | 11.60ms |
| Power OK | 8.80ms |
| Power OK to DC Loss | 2.80ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 0.000 | |||
| 10ms | 0.000 | |||
| 1ms | 0.000 | |||
| 0.1ms | 0.000 |
| Product Identification Details | |
| Brand | Corsair |
| Model | SF750 Platinum |
| OEM | Great Wall |
| Serial Number | 18414866000067140032 |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 10-5 |
| Rated Frequency (Hz) | 47-63 |
| Rated Power (W) | 750 |
| Operating Temperature (Continuous Full Load) (°C) | |
| Type | SFX |
| Cable Design | Fully Modular |
| Warranty | - |
| Cybenetics | |
| Dimensions (W x H x D) | |
| Weight | |
| Cooling | 92mm Rifle Bearing Fan (NR092L) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | 550 |
| Date of receipt | Nov 19, 2018 |
| Testing Date | Nov 25, 2018 |
| Report Issued Date | Nov 27, 2018 |
| Engineer Name | - |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
| ATX connector 20+4 pin (300mm) | 1 | 1 | 16-18AWG | No |
| 4+4 pin EPS12V (400mm) | 2 | 2 | 16AWG | No |
| 6+2 pin PCIe (400mm+100mm) | 2 | 4 | 16AWG | No |
| SATA (100mm+120mm+120mm120mm) | 2 | 8 | 18AWG | No |
| 4 pin Molex (100mm+120mm+120mm) | 1 | 3 | 18AWG | No |
| AC Power Cord (1380mm) - C13 coupler | 1 | 1 | 16AWG | - |
| General Data | |
| Manufacturer (OEM) | Great Wall |
| Model Number | RPS0115 |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV, 1x CMD02X |
| Inrush Protection | NTC Thermistor & Diode |
| Bridge Rectifier(s) | 1x |
| APFC MOSFET | Infineon IPZ60R060C7 (650V, 22A @ 100°C, 0.06Ohm) |
| APFC Boost Diode | ROHM SCS306AP (650V, 6A @ 135°C) |
| Hold-up Cap | Nippon Chemi-Con (420V, 470uF, 2000h @ 105°C, KMZ) |
| Main Switchers | 2x 60F2094 (600V, 15.8A @ 150°C, 0.19Ohm) Driver IC: Silicon Labs Si8230BD |
| Quasi-Resonant Contoller | Infineon 5QR1680AG |
| APFC Controller | Champion CM6502UHHX & CM03AX Green PFC controller |
| Resonant & PWM Controller | Champion CM6901X |
| Quasi-Resonant Contoller | Infineon 5QR1680AG |
| Topology | Primary side: Half-Bridge & LLC Resonant Controller Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | |
| +12V MOSFETS | 6x APower 4N1R8C-A ( 45V, 32A @ 70C, 1.8mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Infineon PSMN2R0-30YLE (30V, 100A @ 100°C, 2.8mOhm @ 100°C) PWM Controller: APW7159C |
| Filtering Capacitors | Electrolytics: 1x Nippon Chemi-Con (4-10,000 @ 105°C, KY), 2x Rubycon (3-6,000 @ 105°C, YXG) Polymers: Nippon Chemi-Con (G61B, G8, G84R, G84G, G85F), 6x Nichicon (LG) |
| Supervisor IC | Infinno IN1S429i-SCG |
| Fan Controller | PIC16F1824 |
| Fan Model | Corsair NR092L (92mm, 12V, 0.22A, 3950 RPM, Rifle Bearing) |
| 5VSB Circuit | |
| Rectifier | 1x CSD18534 (60V, 13A @ 25°C, 9.8mOhm) |
| Step-Down Converter | Texas Instruments TPS54231 (3.5V-28V Input, 2A) |
| Photos |  |  |

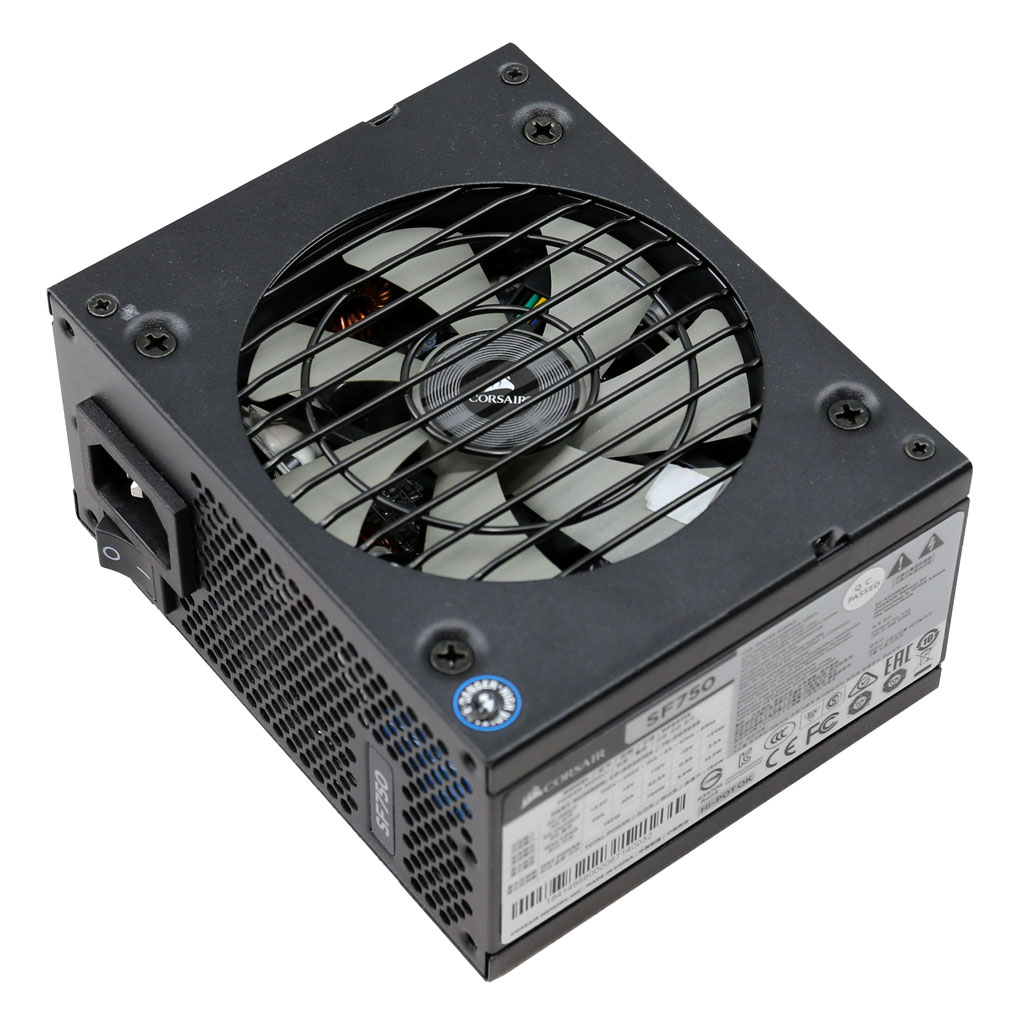

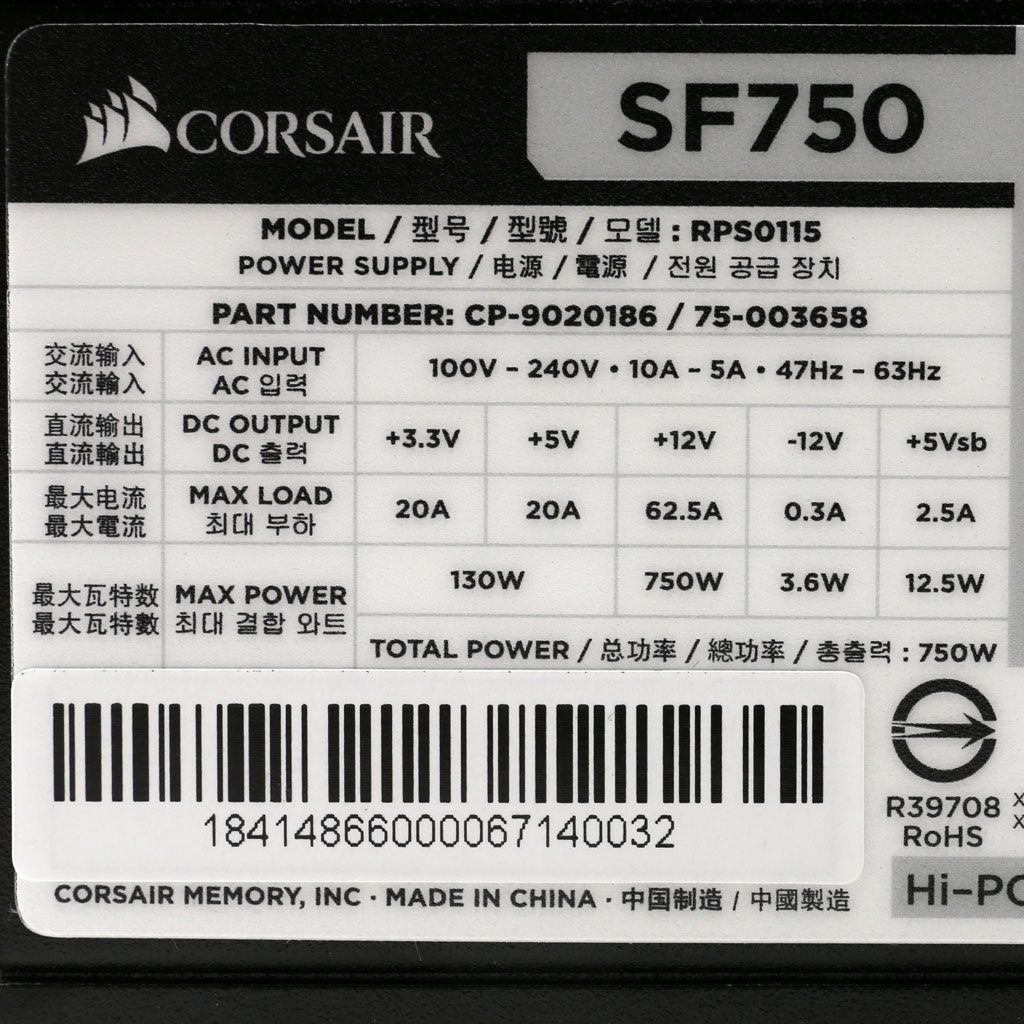

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
