Cybenetics Test - Sharkoon Elite Shark CA300H

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

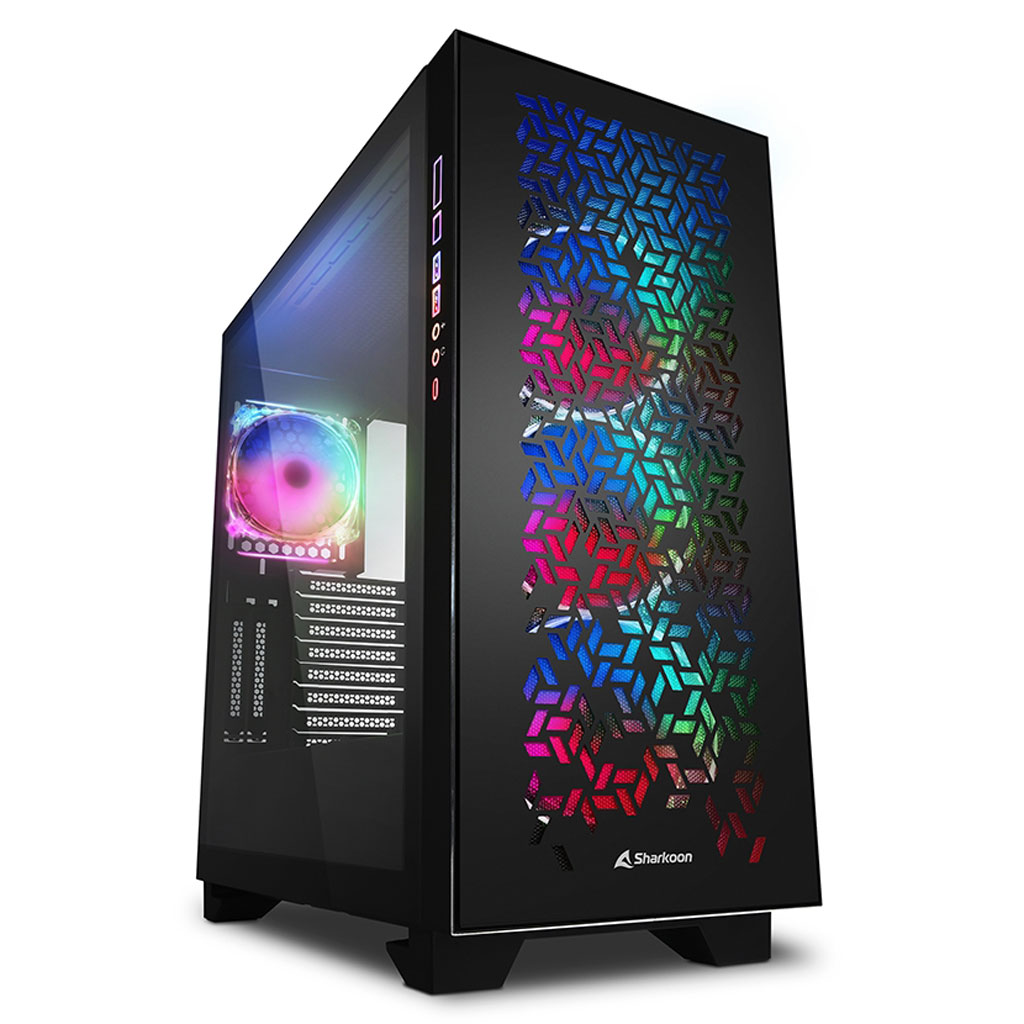

Sharkoon Elite Shark CA300H

Lab IDCAS00106

Certification ID

噪音評比

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Sharkoon
Product Name	Elite Shark CA300H
Type	Midi Tower
Dimensions (LxWxH)	505 x 235 x 520 mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX
Removable Motherboard Tray	No
Front Cover	Yes
Materials Body	Steel, Tempered Glass
Materials Side Panel	Left: Tempered Glass Right:Tempered Glass
Expansion Slots	8x (+2x vertical)
Drive Bays	5.25": - 3.5 " : 4x Internal 2.5" : 7x Internal
I/O Panel	1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Audio Jack, 1x Mic Jack, 1x Power Button, 1x ARGB Button
Pre-installed Fan(s)	Front: 3x 120mm Addressable RGB Fans Rear: 1x 120mm Addressable RGB Fan Top:-
Fan Support	Front: 3x 120 mm / 3x 140 mm Top: 3x 120 mm / 2x 140 mm Rear: 1x 120 mm
Fan Bearing Type	Fluid Dynamic
Fan Power Connector	3-Pin
LED Controller	Yes
Radiator Support	Front: 120 / 140 / 240 / 280 / 360 / 420 mm Top: 120 / 140 / 240 / 280 / 360 mm Rear: 120 mm
CPU Cooler Height (Max)	165 mm
VGA Length (Max)	400 mm
PSU Length (Max)	240 mm
Behind MB Tray Clearance/Cable Management Support	19-23 mm
Dust Filters	Top, Front, Bottom
PSU Support	Bottom Mount, ATX
Weight	14.7 kg
Warranty	no info
