Cybenetics Test - Super Flower M705

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

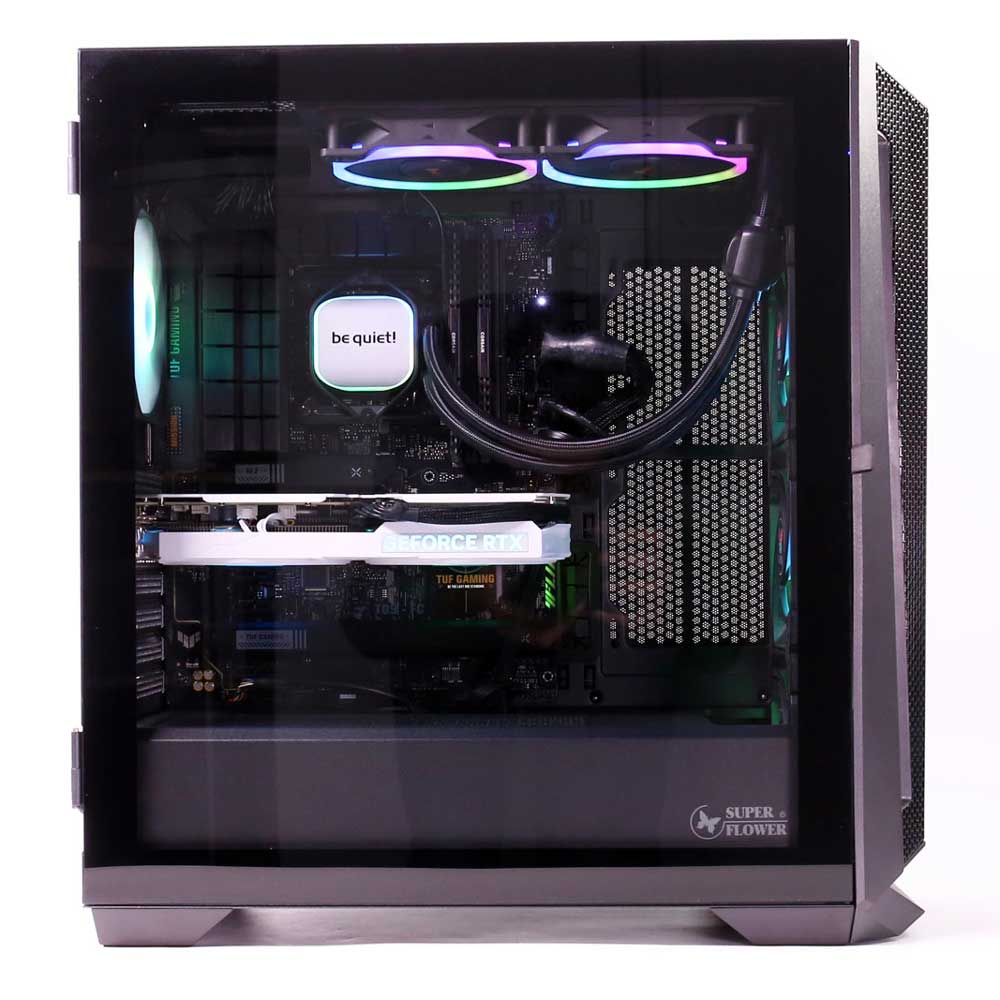

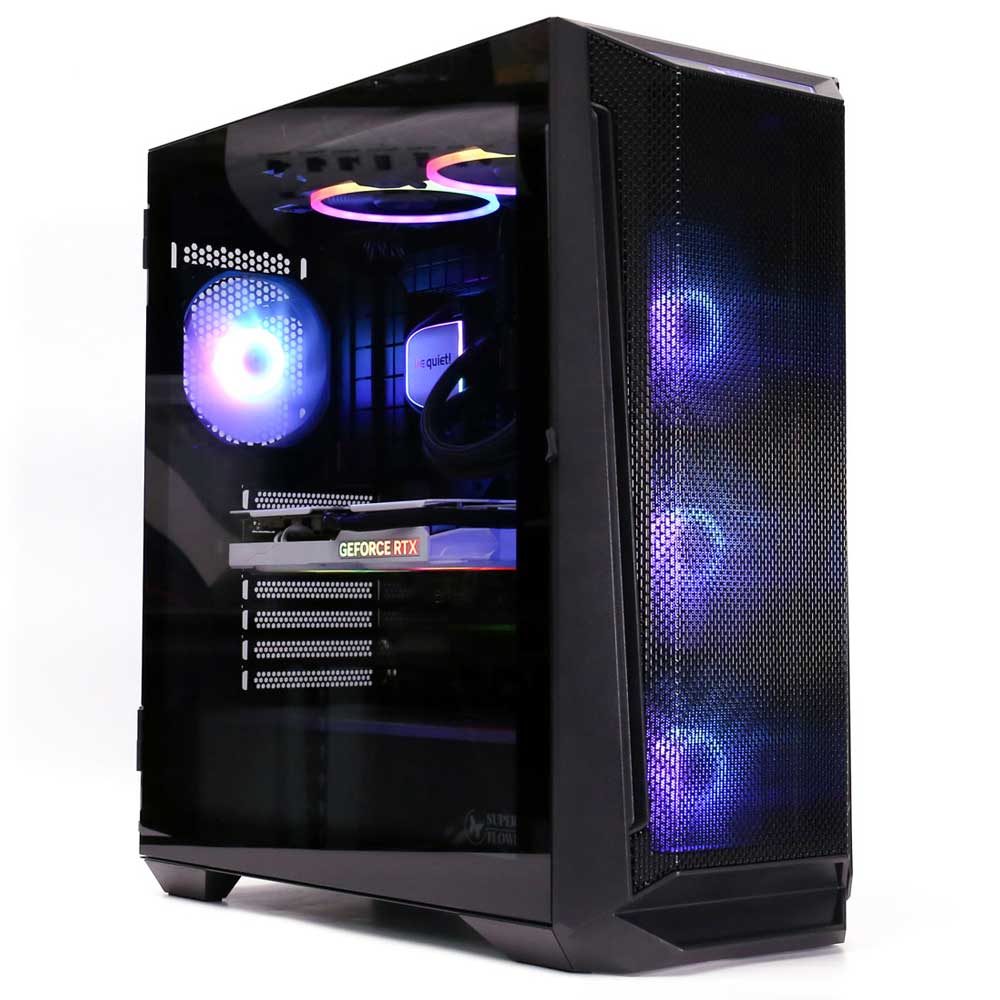

Super Flower M705

Lab IDSFCAS00131

Certification ID

噪音等级

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Super Flower
Product Name	Zillion M705
Type	ATX Mid Tower
Dimensions (LxWxH)	470 x 215 x 493mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX
Front Door/Cover	Mesh
Materials	Steel, Plastic, Tempered Glass
Materials Side Panel	Left: Tempered Glass, Right: Steel
Expansion Slots	7x
Drive Bays	3.5 " : 2x Internal (can be used for 2.5") 2.5" : 2x Internal
I/O Panel	2x USB 3.0, 1x USB 3.2 Type-C, 1x Headphone, 1x Microphone

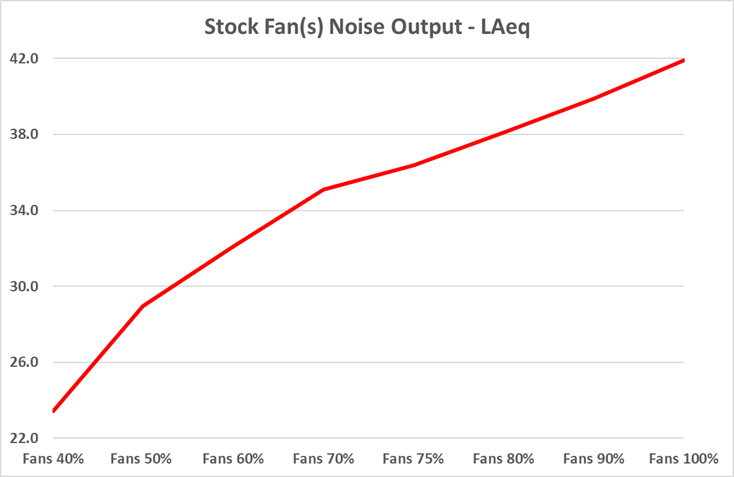

Pre-installed Fan(s)	Front: 3x 120mm (S.F. ARGB) Rear: 1x 120mm (S.F. ARGB)
Fan Support	Top: 3x 120mm / 2x 140mm, Side: 2x 120mm, Front: 3x 120 / 3x 140mm, Rear: 1x 120mm
Fan/LED Controller	6x 4-pin, 6x ARGB
Radiator Support	Front: 120 / 140 / 240 / 280 / 360mm, Top: 120 / 140 / 180 / 240 / 280 / 360mm, Rear: 120mm
CPU Cooler Height (Max)	165mm
VGA Length (Max)	400mm
PSU Length (Max)	220mm
Dust Filters	Front, Top ,Bottom, Side
PSU Support	Bottom mount, ATX
Weight	6.8 kg
