Cybenetics Test - Corsair 2500D Airflow

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

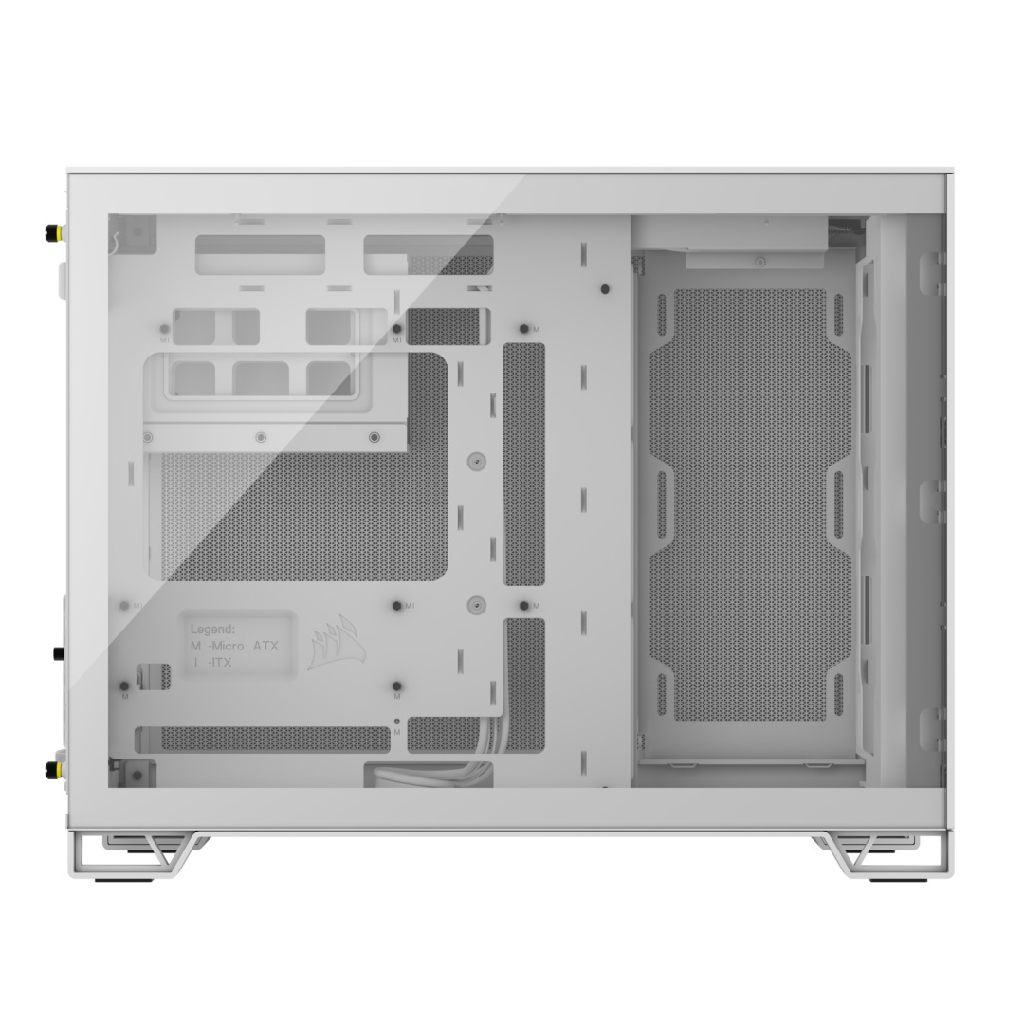

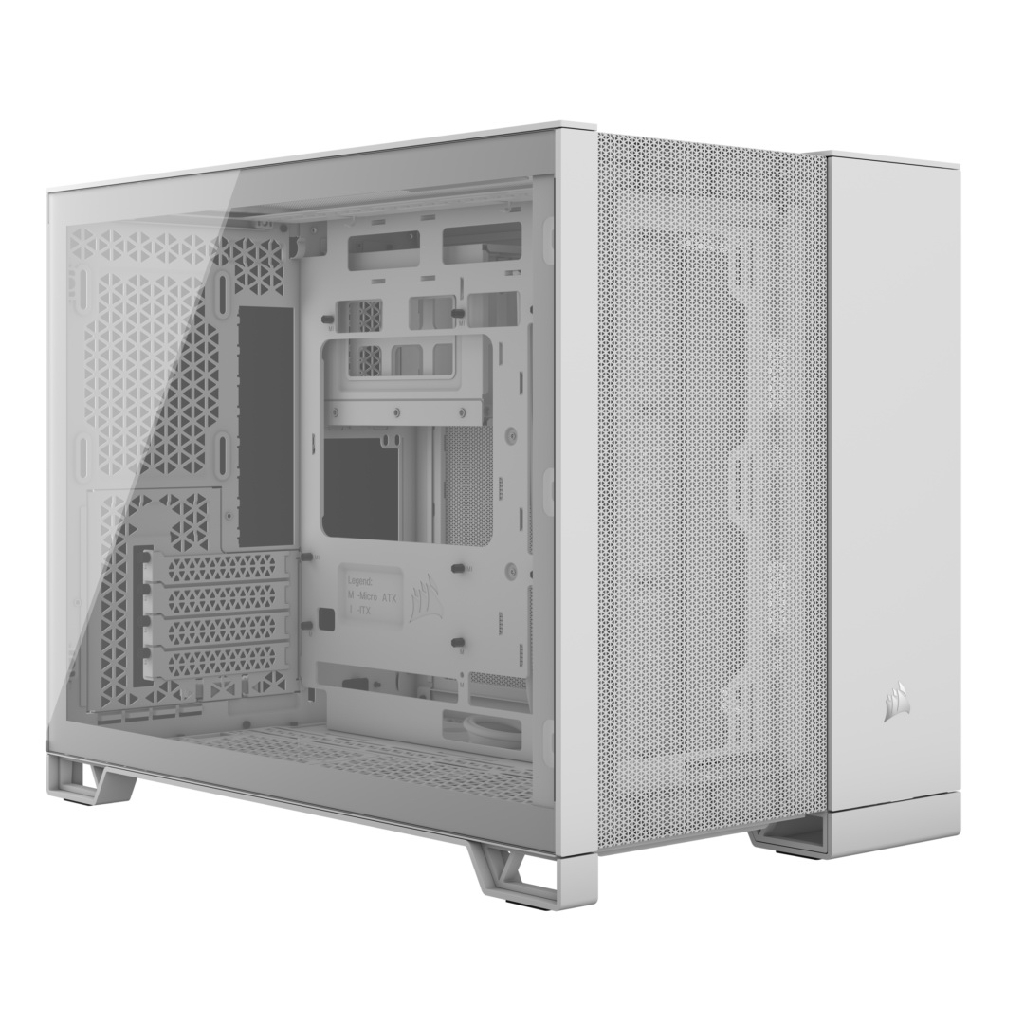

Corsair 2500D Airflow

Lab IDCRCAS00133

Certification ID

噪音等级

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Corsair
Product Name	2500D Airflow
Type	Mid Tower / Dual Chamber
Dimensions (LxWxH)	469 x 304 x 376mm
Motherboard Support	Mini-ITX, Micro-ATX
Removable Motherboard Tray	否
Front Door/Cover	否
Materials	Steel, Plastic, Tempered Glass
Expansion Slots	8x
Drive Bays	[3.5 "] 2x Internal [2.5"] 4x Internal
I/O Panel	1x Power Button, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out

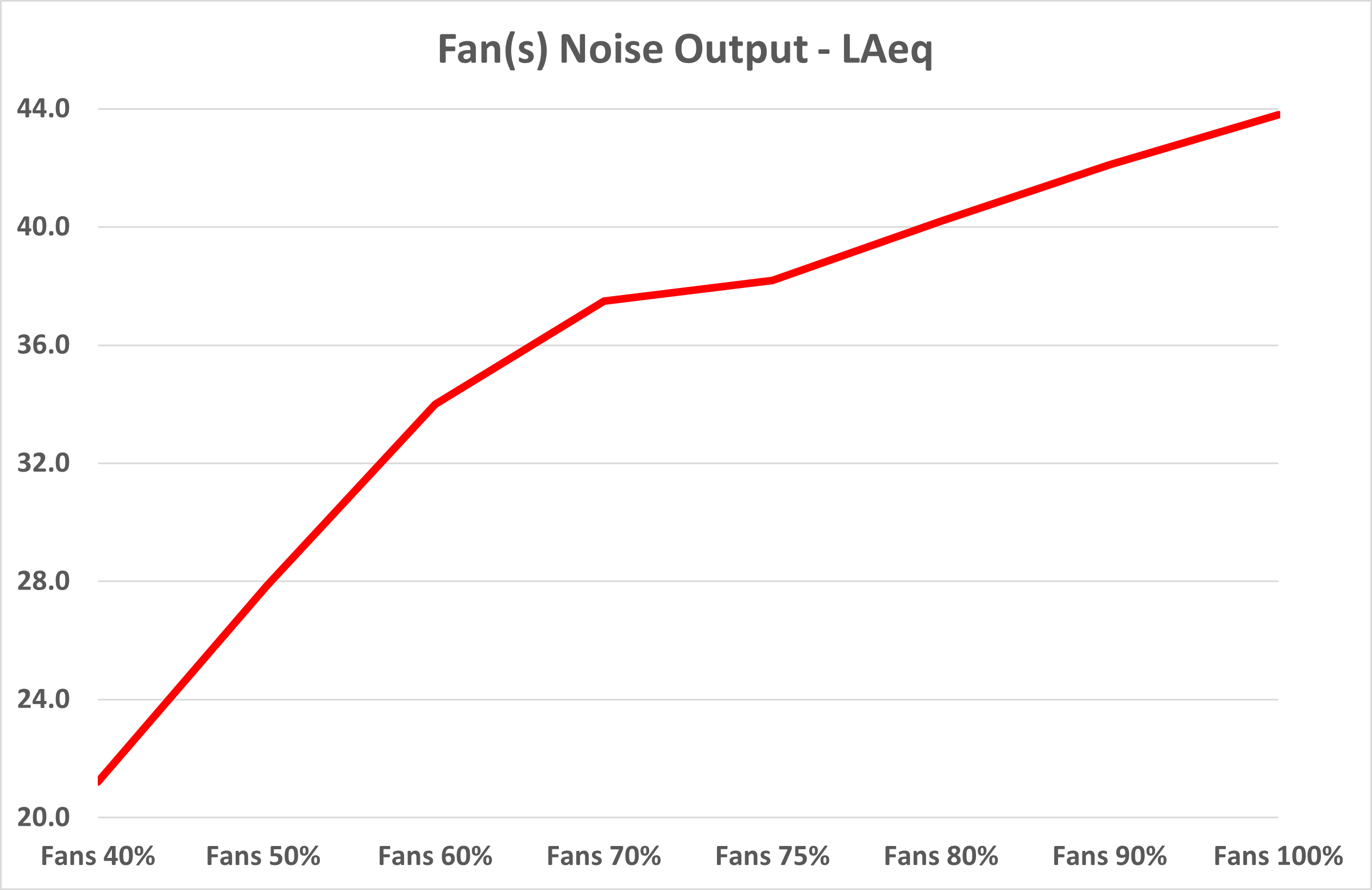

Pre-installed Fan(s)	否ne (We used 4x Corsair RX 120mm fans for fan noise measurements)
Fan Support	[Top] 3x 120mm / 2x 140mm [Bottom] 3x 120mm / 2x 140mm [Front] 2x 120/ 140mm [Rear] 1x 120mm
Fan/LED Controller	否ne
Radiator Support	[Front] 120 / 140 / 240 / 280mm [Top] 120 / 140 / 180 / 240 / 280 / 360mm [Bottom] 120 / 140 / 180 / 240 / 280 / 360mm [Rear] 120mm
CPU Cooler Height (Max)	180mm
VGA Length (Max)	400mm
PSU Length (Max)	280mm (secondary chamber)
Dust Filters	4x (Front, Top, Bottom, Side)
PSU Support	Bottom mount, ATX
Weight	11.84 kg
Warranty	2-years
