Cybenetics Test - XPG Starker Air BTF

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

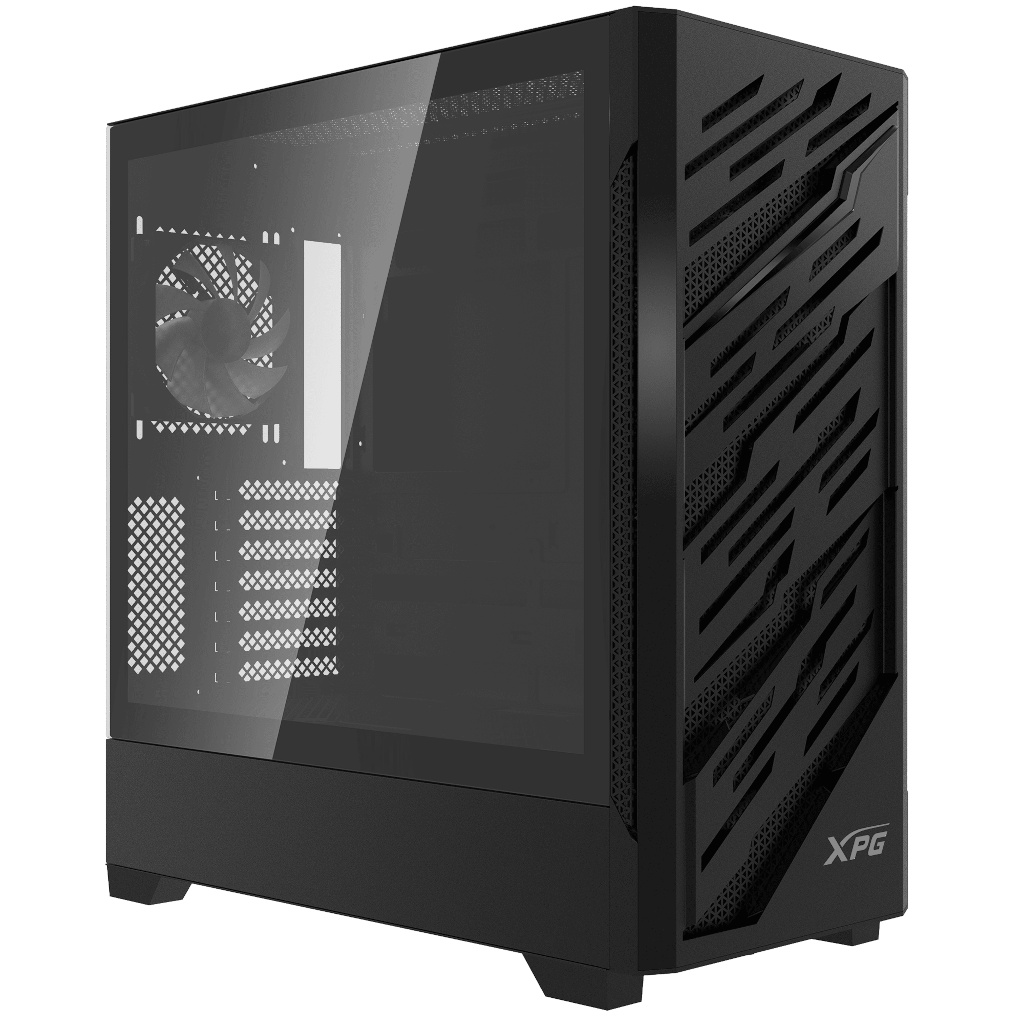

XPG Starker Air BTF

Lab IDADCAS00151

Certification ID

Lautstärkeklasse

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	XPG
Product Name	Starker Air BTF
Type	Midi Tower
Dimensions (LxWxH)	464 x 242 x 496mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX (and back-connect variants)
Removable Motherboard Tray	No
Front Cover	Yes
Materials Body	Steel, Plastic, Tempered Glass
Materials Side Panel	Left: Tempered Glass Right: Steel
Expansion Slots	7x (4x vertical)
Drive Bays	3.5 " : 2+1 Internal 2.5" : 2+2 Internal
I/O Panel	1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Type-A, 1x combo Audio Jack, 1x Power Button, 1x Reset Button, 1x LED Button
Pre-installed Fan(s)	Front: 3x 120mm Rear: 1x 120mm
Fan Support	Front: 3x 120mm / 3x 140mm Side: 2x 120mm PSU Shroud: 3x 120mm Top: 3x 120mm / 2x 140mm Rear: 1x 120mm / 1x 140mm
Fan Bearing Type	Rifle
Fan Power Connector	3-Pin
LED Controller	Yes (integrated)
Radiator Support	Front: 120 / 140 / 240 / 280 / 360mm Side: - PSU Shroud: - Top: 120 / 140 / 240 / 280 / 360mm Rear: 120mm / 140mm
CPU Cooler Height (Max)	180mm
VGA Length (Max)	390mm
PSU Length (Max)	200mm (220mm depending on position of the HDD cage)
Behind MB Tray Clearance/Cable Management Support	24mm
Dust Filters	Top, Front, Bottom, Side
PSU Support	Bottom Mount, ATX
Weight	8.75 kg
Warranty	2-years
