Cybenetics Test - Ocypus Iota C70

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

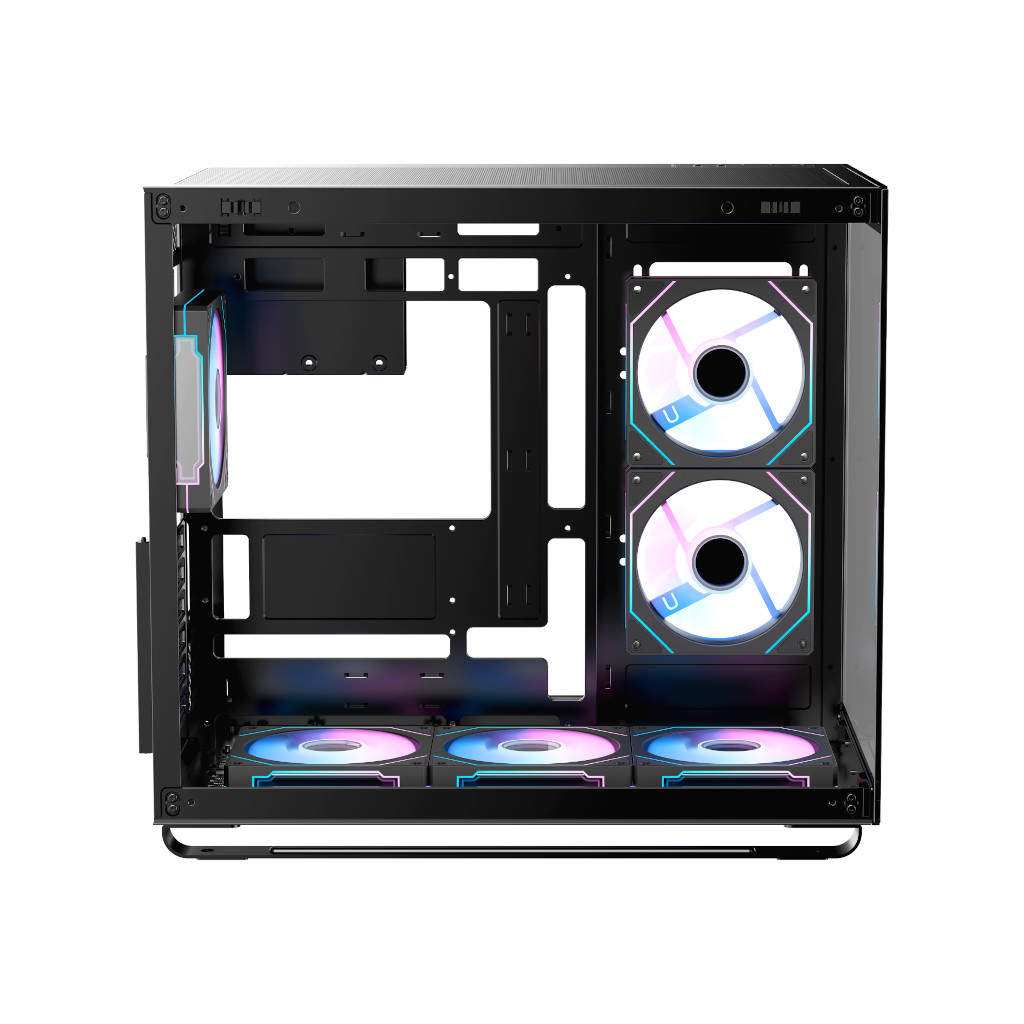

Ocypus Iota C70

Lab IDCYCAS00152

Certification ID

Lautstärkeklasse

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Ocypus
Product Name	Iota C70
Type	Midi Tower - Dual Chamber
Dimensions (LxWxH)	425 x 295 x 388mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX*
Removable Motherboard Tray	No
Front Cover	Yes
Materials Body	Steel, Plastic, Tempered Glass
Materials Side Panel	Left: Tempered Glass Right: Steel
Expansion Slots	6x
Drive Bays	5.25": - 3.5 " : 2x Internal 2.5" : 2x Internal
I/O Panel	1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo Audio Jack, 1x Power Button, 1x ARGB Button
Pre-installed Fan(s)	Side: 2x 120mm Bottom: 3x 120mm Rear: 1x 120mm
Fan Support	Side: 2x 120mm Top: 2x 120mm / 2x 140mm Bottom: 2x 120mm / 2x 140mm Rear: 1x 120mm / 1x 140mm
Fan Bearing Type	Hydraulic Bearing Fan
Fan Power Connector	3-Pin
LED Controller	Yes
Radiator Support	Side: 120 / 240mm Top:120 / 140 / 240 / 280 / 360mm Bottom:120 / 140 / 240 / 280 / 360mm Rear: 120mm / 140mm
CPU Cooler Height (Max)	175mm
VGA Length (Max)	400mm
PSU Length (Max)	205mm
Dust Filters	Top, Bottom, Side (2x)
PSU Support	ATX
Weight	7.5 kg
Warranty	3-years
