CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Corsair WARTHOG RS
Lab IDCRCAS00178
  • Report ID: 3461
  • Report Date: Oct 12, 2026
  • Sample Received: Jul 24, 2026
  • Test Start: Oct 10, 2026
  • Test End: Oct 10, 2026
  • Noise Measurement Date: Oct 10, 2026
  • Entry Report Date: Oct 22, 2026
  • Analyst: Efstathios Papadopoulos
Scheme: DELTA
Noise Rating
DELTA is a Cybenetics rating. It is not part of our ISO/IEC 17065 certification schemes and is outside our accreditation.
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

Brand Corsair
Product Name WARTHOG RS
Type Midi Tower
Dimensions (LxWxH) 546 x 284 x 534 mm
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (305 x 277 mm), reverse-connector motherboards (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth)
Removable Motherboard Tray Yes
Front Door/Cover 3D-Y pattern airflow front panel
Materials Steel, Tempered Glass
Materials Side Panel Left: Tempered Glass
Right: Steel
Expansion Slots 7x Horizontal or 3x Vertical
Drive Bays 5.25": -
3.5": 1x Internal
2.5": 2x Internal
I/O Panel 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Combo Audio Jack, 1x Power Button, 1x Reset Button, 1x Rear I/O Light Switch
Pre-installed Fan(s) Front: 2x RS200 (200mm)
Rear: 1x RS120 (120mm)
Fan Support Front: 3x 120mm / 2x 140mm / 2x 200mm
Top: 3x 120mm / 2x 140mm
Rear: 1x 120mm / 1x 140mm
Bottom: 1x 120mm
Side: 3x 120mm / 2x 140mm
PSU Shroud: 2x 120mm
Fan Bearing Type Magnetic Dome Bearing
Fan Power Connector 4-pin PWM (daisy-chainable)
Fan/LED Controller No
Radiator Support Front: 240mm / 280mm / 360mm
Top: 240mm / 280mm / 360mm
Rear: 120mm / 140mm
Bottom: -
Side: 240mm / 280mm / 360mm
CPU Cooler Height (Max) 190 mm
VGA Length (Max) 400 mm (with front fans installed), 430 mm (without front fans)
PSU Length (Max) 200 mm
Dust Filters Front, Bottom, Side
PSU Support Bottom Mount, ATX
Weight 15 kg
Warranty 2 Years

Noise Measurements Test Set Up

Noise Damping Performance (DELTA)

DELTA (pink noise reference, 100Hz-10kHz)2.4 dB
DELTA levelStandard
Pink noise LAeq, open air / inside the chassis56.21 / 56.44 dB(A)
Broadband difference (LAeq)-0.23 dB
Resonance flag (insertion loss -3 dB or lower)800Hz at -3.6 dB

Measured Chassis Graphs

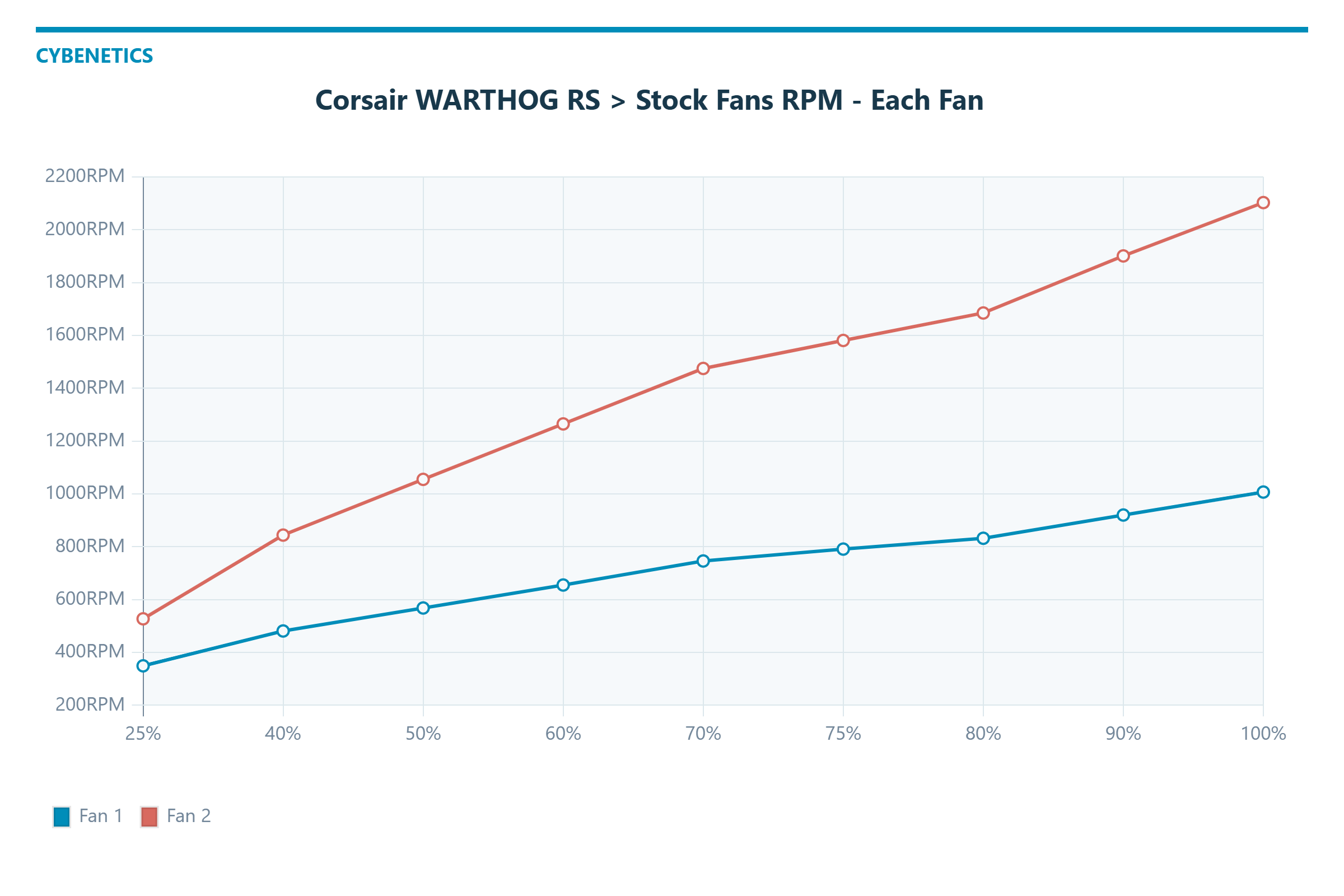

Corsair WARTHOG RS > Stock Fans RPM - Each Fan

Corsair WARTHOG RS > Stock Fans RPM - Each Fan

Fan 1 · Fan 2

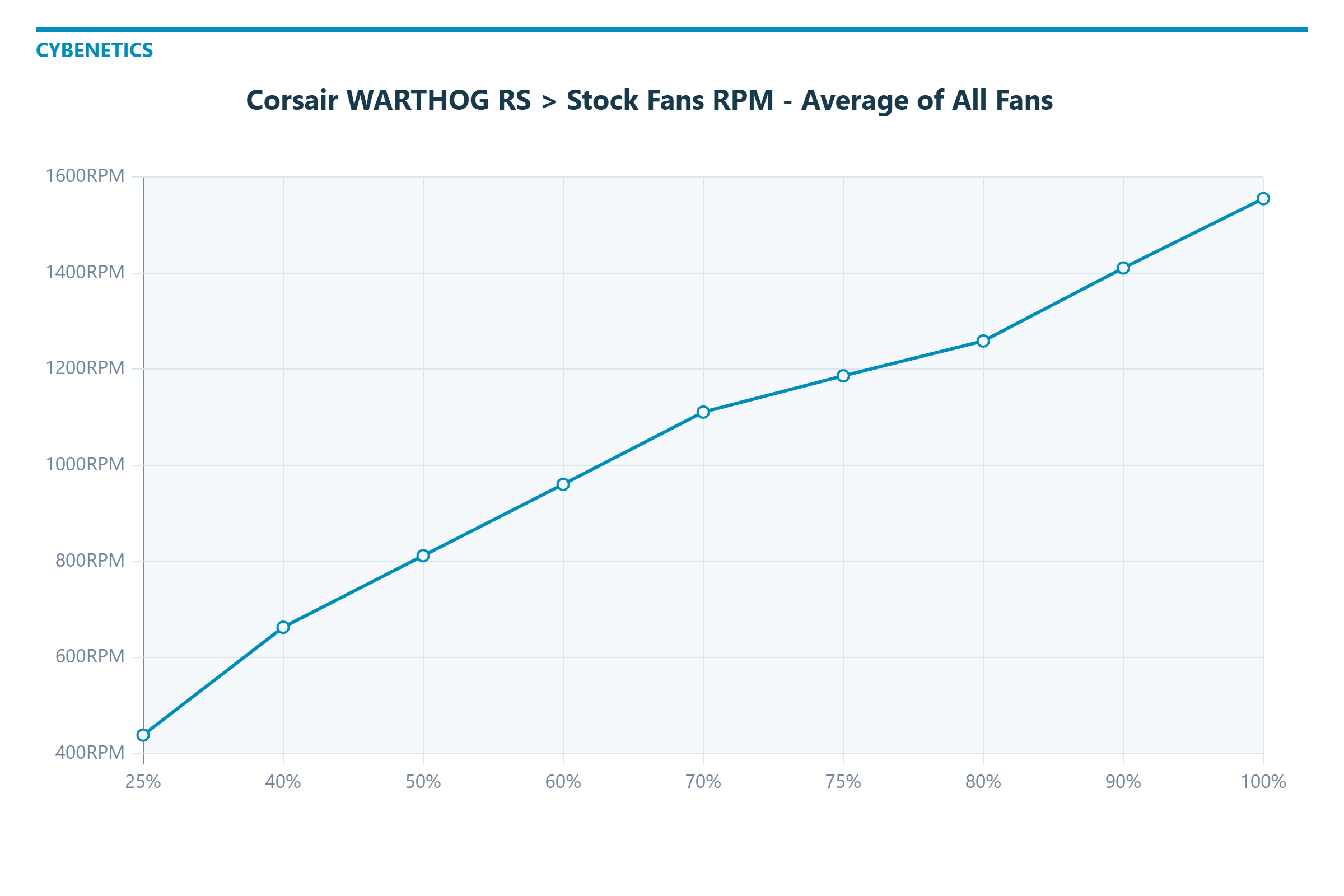

Corsair WARTHOG RS > Stock Fans RPM - Average of All Fans

Corsair WARTHOG RS > Stock Fans RPM - Average of All Fans

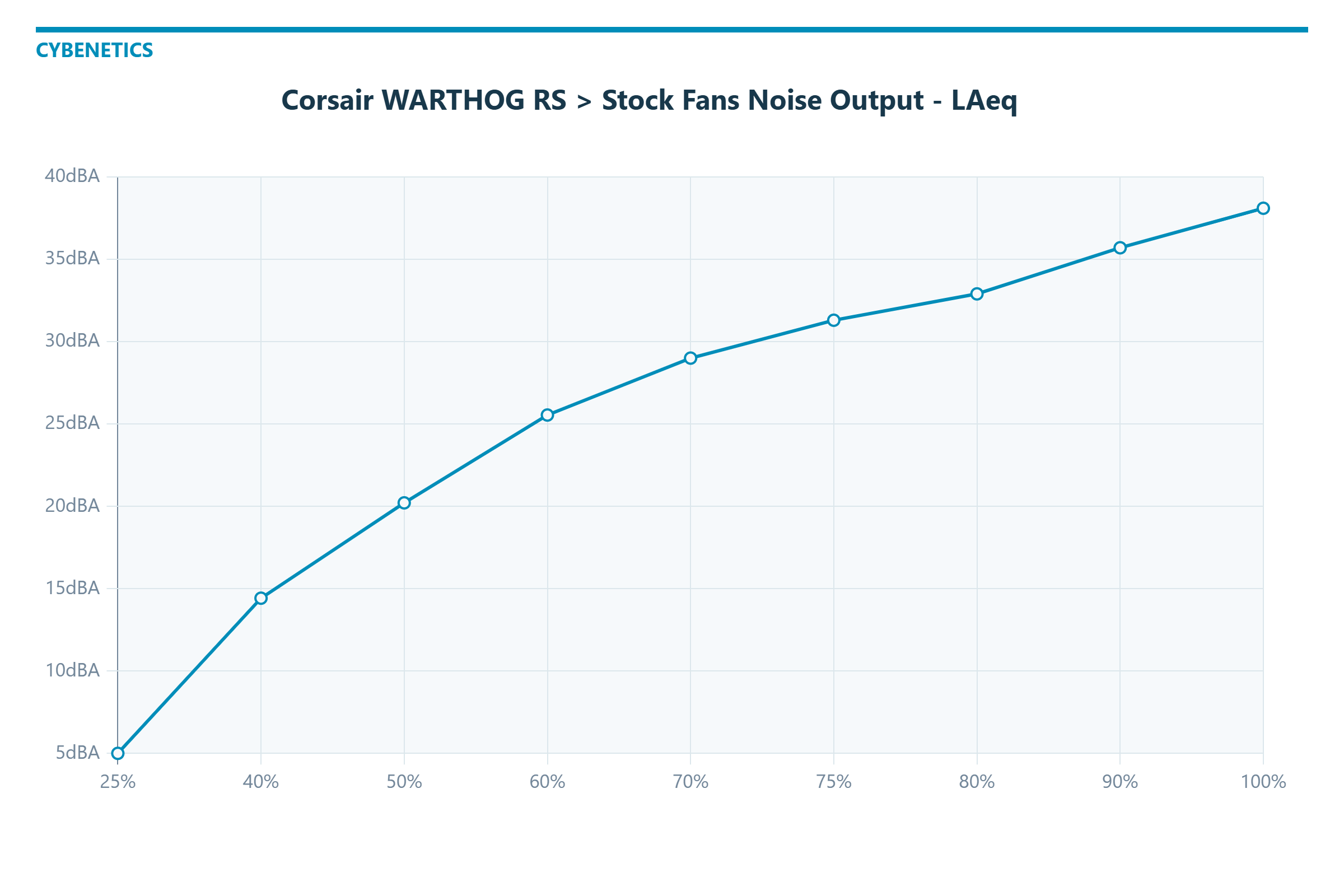

Corsair WARTHOG RS > Stock Fans Noise Output - LAeq

Corsair WARTHOG RS > Stock Fans Noise Output - LAeq

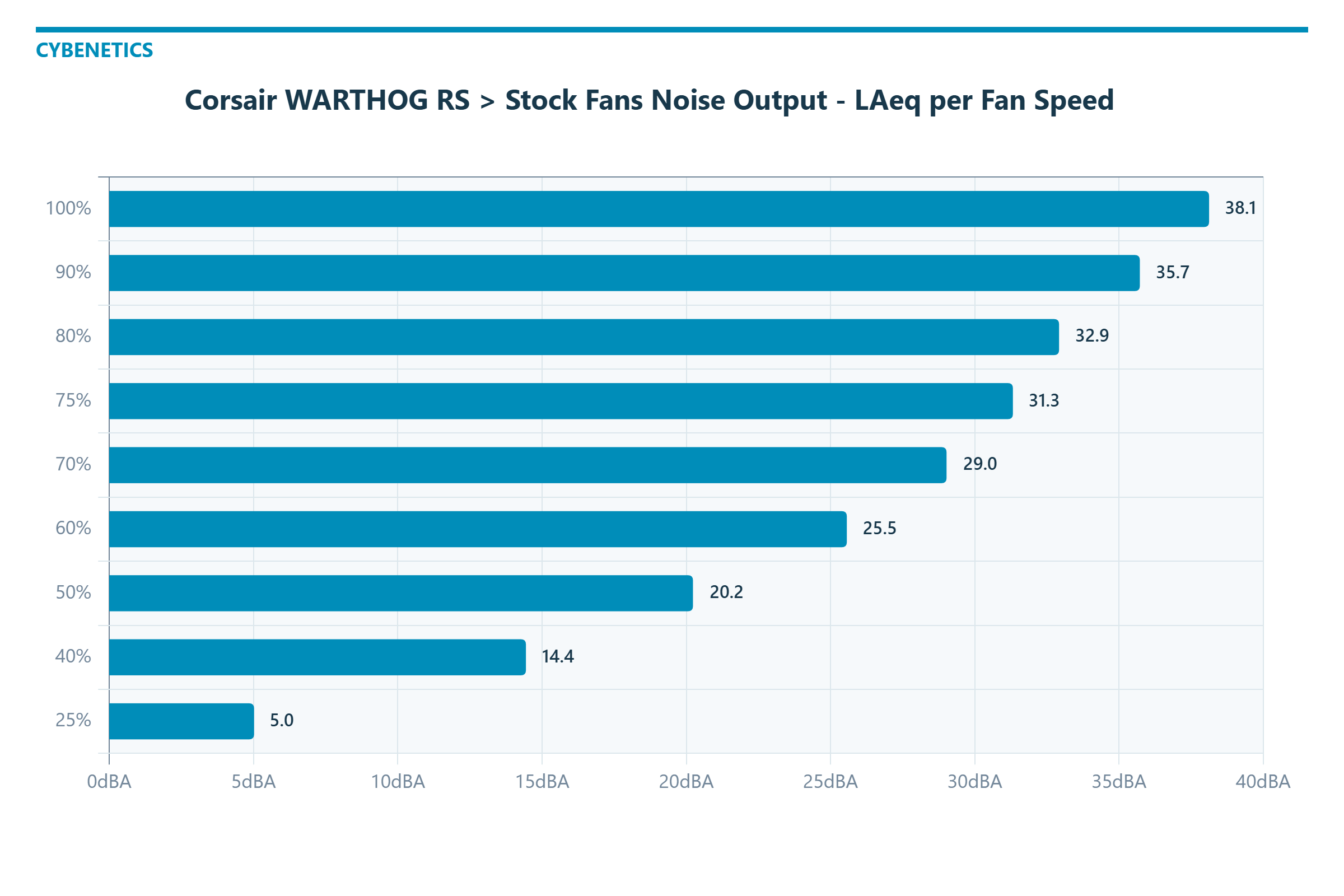

Corsair WARTHOG RS > Stock Fans Noise Output - LAeq per Fan Speed

Corsair WARTHOG RS > Stock Fans Noise Output - LAeq per Fan Speed

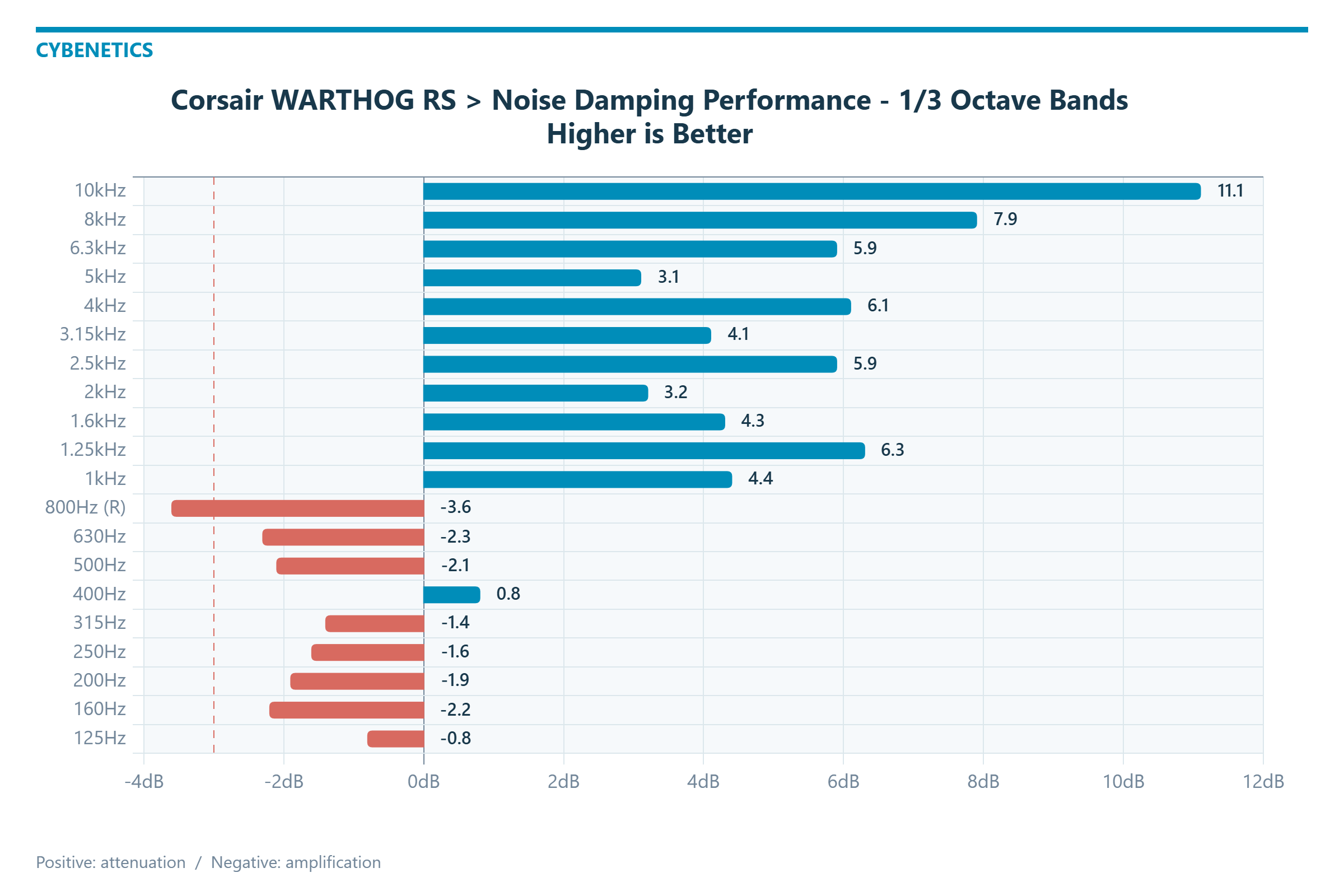

Corsair WARTHOG RS > Noise Damping Performance - 1/3 Octave Bands

Higher is Better

Corsair WARTHOG RS > Noise Damping Performance - 1/3 Octave Bands
Insertion loss: the open-air level minus the level with the speaker inside the chassis, per 1/3-octave band (LAeq). Positive values mean the chassis reduces the noise; negative values mean it amplifies it. (R) marks the resonance flag (-3 dB or lower); (≥) marks a lower bound.

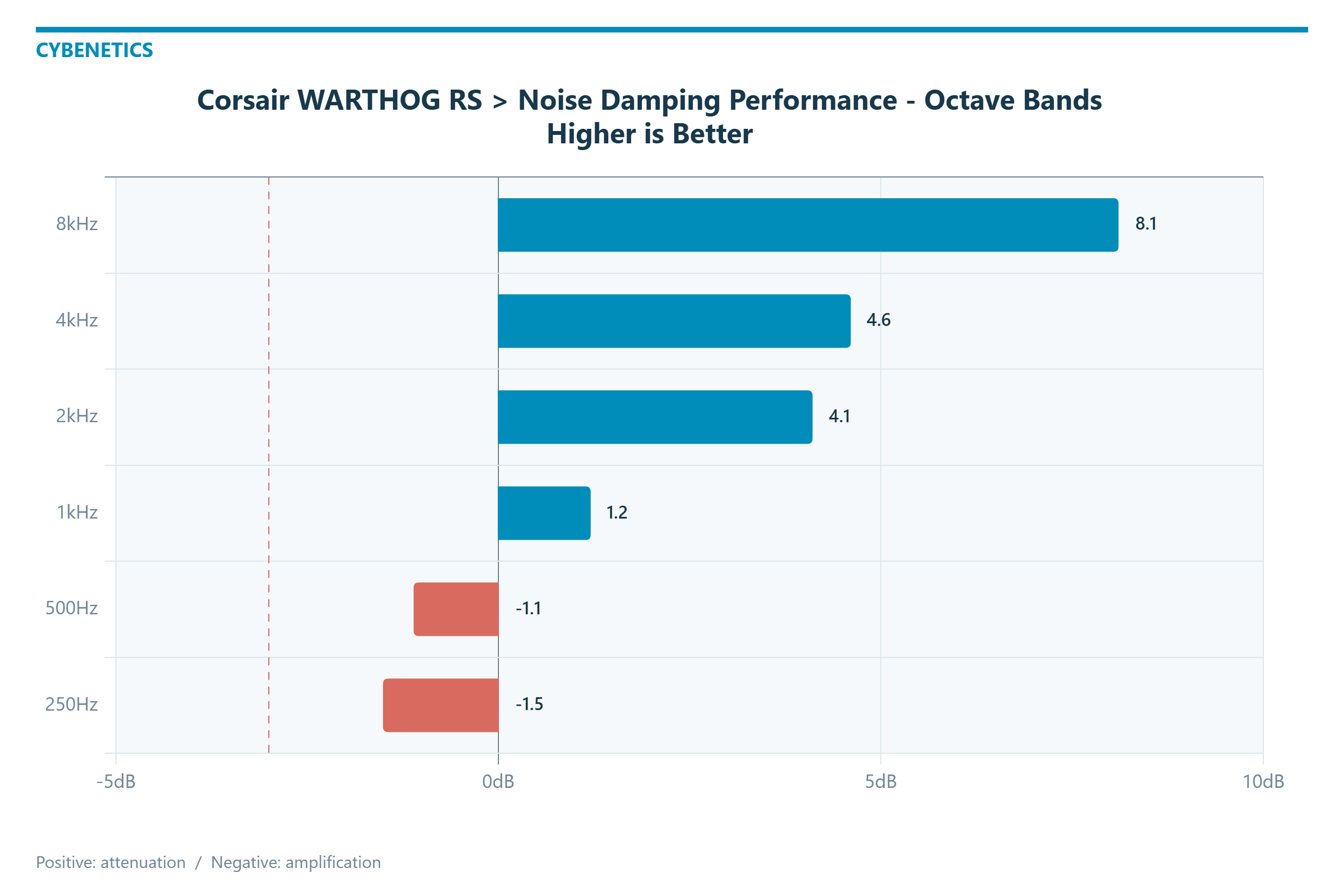

Corsair WARTHOG RS > Noise Damping Performance - Octave Bands

Higher is Better

Corsair WARTHOG RS > Noise Damping Performance - Octave Bands
Insertion loss: the open-air level minus the level with the speaker inside the chassis, per octave band (LAeq). Positive values mean the chassis reduces the noise; negative values mean it amplifies it.

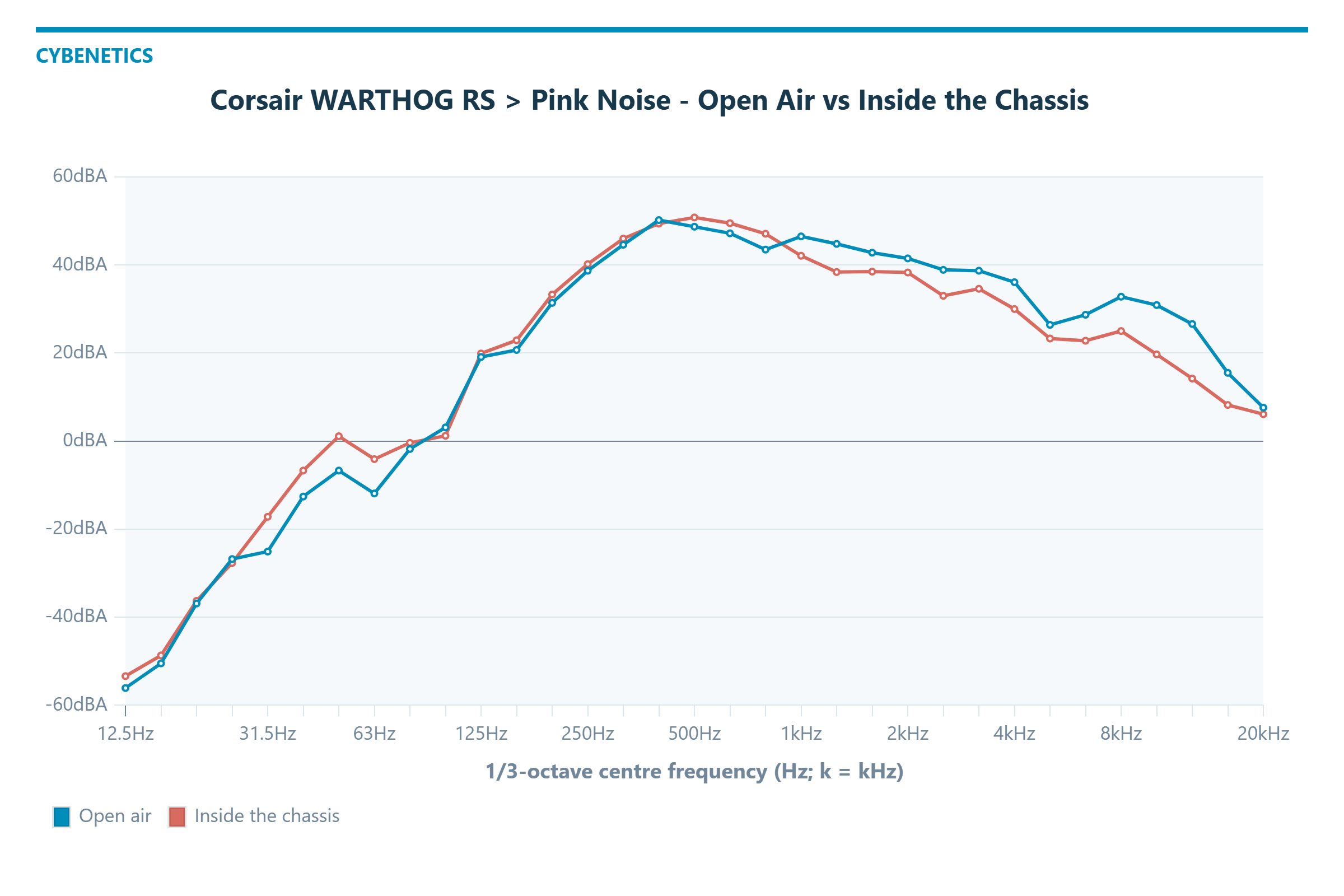

Corsair WARTHOG RS > Pink Noise - Open Air vs Inside the Chassis

Corsair WARTHOG RS > Pink Noise - Open Air vs Inside the Chassis
The pink noise source measured in open air and inside the chassis (LAeq per 1/3-octave band).

Open air · Inside the chassis

Corsair WARTHOG RS

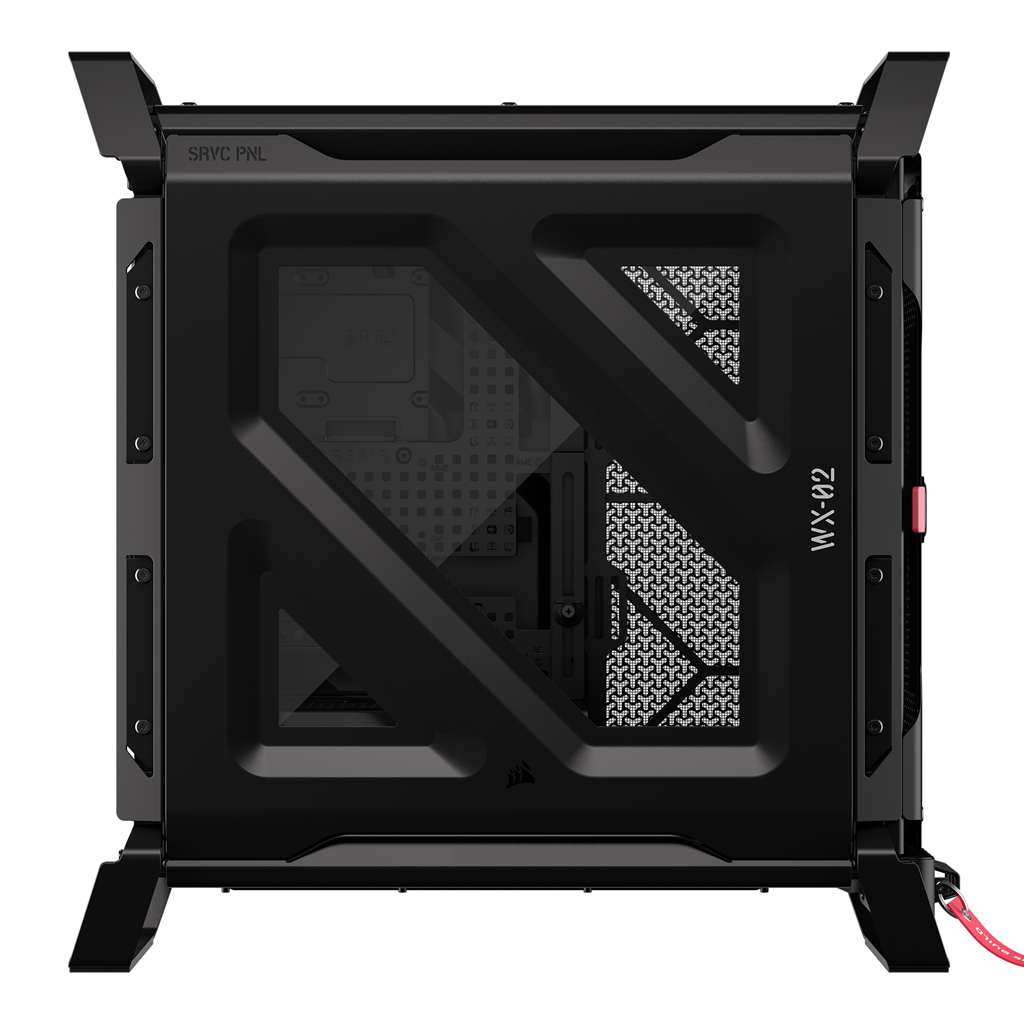

Case Photo
Case Photo #2
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure. THETA rates cooler performance on AMD AM5 and Intel LGA1851 outside ISO 17065 and accreditation scope
