Cybenetics Test - Cooler Master Silencio S600 (Steel)

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

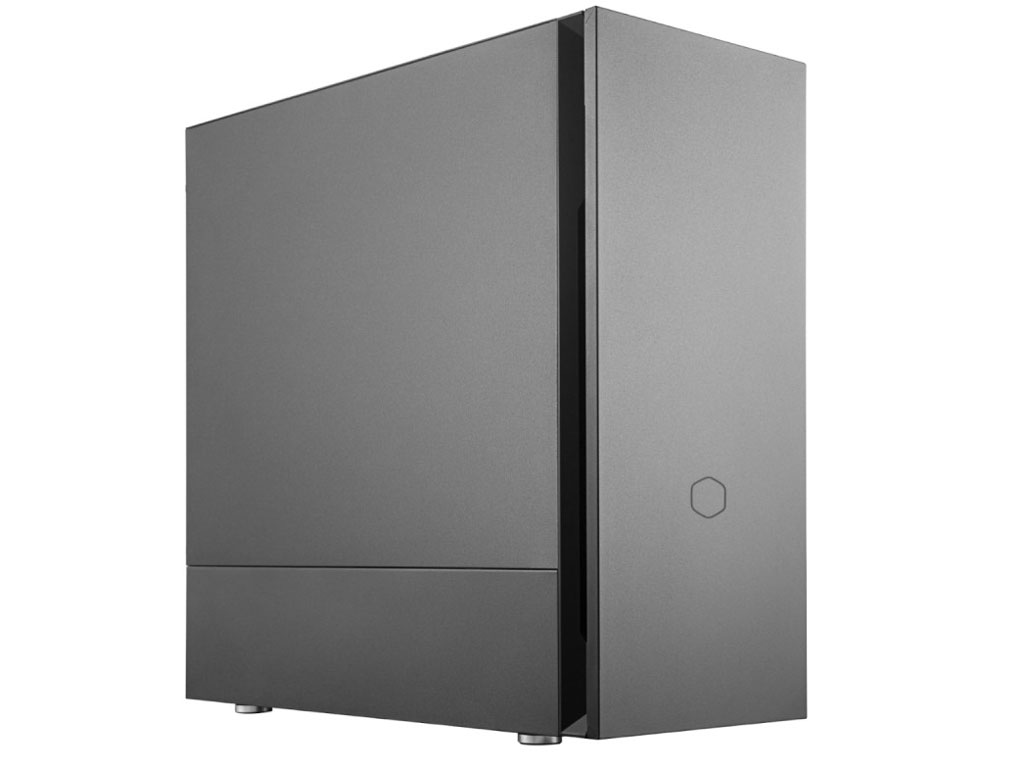

Cooler Master Silencio S600 (Steel)

Lab IDCMCAS00021

Certification ID

Lautstärkeklasse

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Cooler Master
Product Name	MCS-S600-KN5N-S00 (Steel), MCS-S600-KG5N-S00 (TG)
Type	Midi Tower
Dimensions (LxWxH)	478 x 209 x 470.5mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX
Removable Motherboard Tray	No
Front Door/Cover	Yes
Materials Body	Steel, Plastic, Tempered Glass, Sound Dampening Material
Materials Side Panel	Left: Steel (MCS-S600-KN5N-S00), Tempered Glass (MCS-S600-KG5N-S00) Right: Sound-Dampened Steel
Expansion Slots	7x
Drive Bays	5.25": 1x External 3.5 " : 4x Internal 2.5" : 5x Internal
I/O Panel	2x USB 3.2 Gen 1, 1x 3.5mm Headset Jack (Audio+Mic), 1x SD card reader
Pre-installed Fan(s)	Front: 1x 120mm ( 800-1400 RPM) Rear: 1x 120mm (800-1400 RPM)
Fan Support	Front: 2x 120mm / 2x 140mm Top: 2x 120mm / 2x 140mm Rear: 1x 120mm
Fan Bearing Type	Loop Dynamic Bearing (LDB)
Fan Power Connector	4-Pin (PWM)
Fan/LED Controller	No
Radiator Support	Front: 120/140/240/280mm Top: 120/240mm (wth ODD removed) Rear: 120mm
CPU Cooler Height (Max)	TG: 166mm, Steel: 167mm
VGA Length (Max)	398mm
PSU Length (Max)	160mm
Behind MB Tray Clearance	18-26mm
Dust Filters	Top, Front, Bottom
PSU Support	Bottom mount, ATX
Warranty	2
