Cybenetics Test - Corsair Crystal Series 680X

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

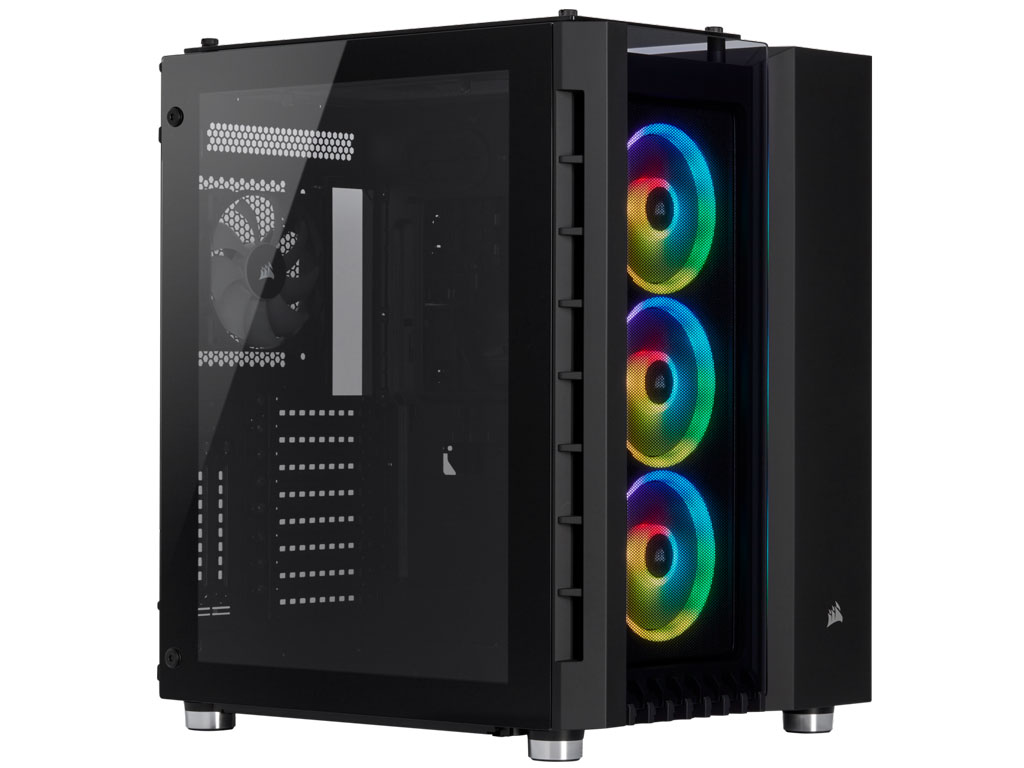

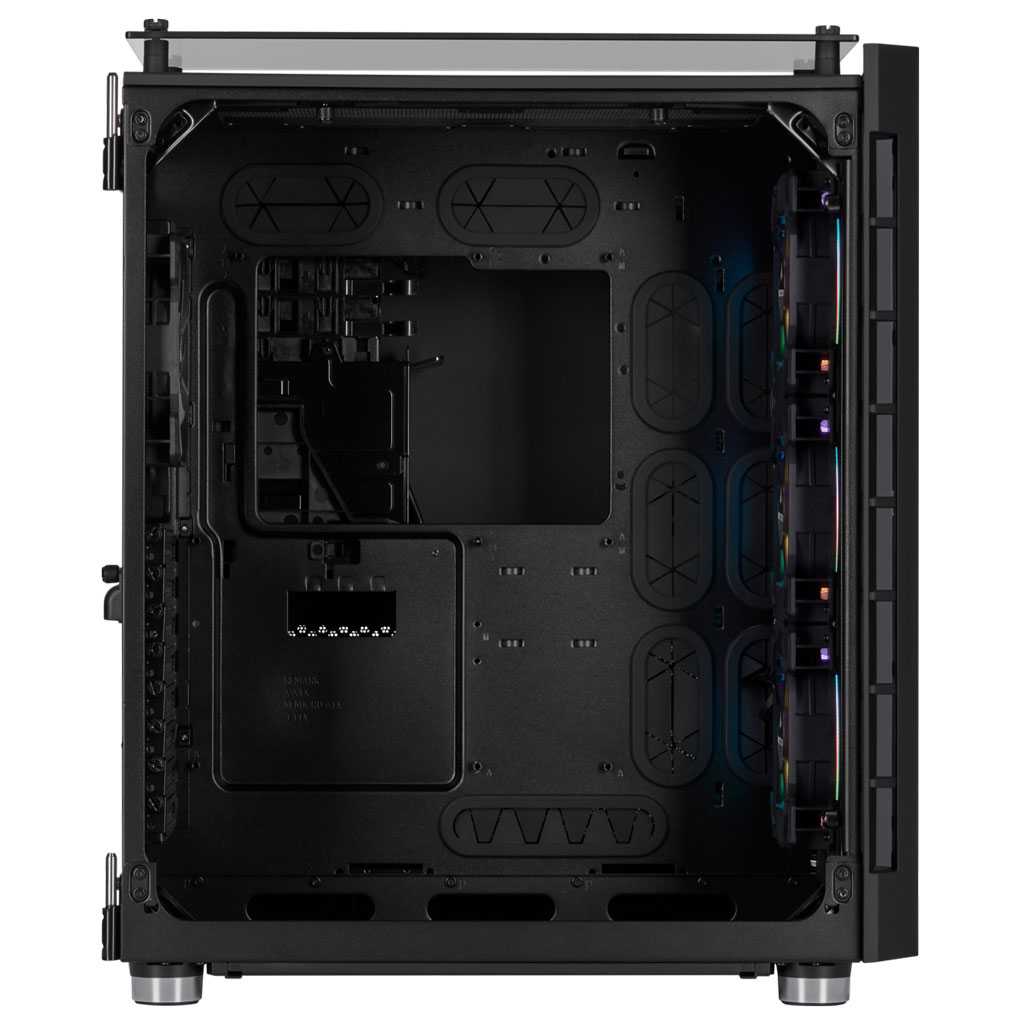

Corsair Crystal Series 680X

Lab IDCRCAS00037

Certification ID

噪音等级

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Manufacturer (OEM)	Corsair
Product Name	Crystal Series 680X
Exterior Color	Black or White
Materials Body	Steel, Plastic, Tempered Glass
Materials Side Panel	Left: Tempered Glass, Right: Steel
Dimensions (LxWxH)	423 x 344 x 505mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX
Expansion Slots	8 + 2 Vertical
Drive Bays	3.5 " HDD: 4 2.5" SSD: 3
I/O Panel	1x USB 3.1 Gen2 Type C, 2x USB 3.0, 1x Headphone, 1x Microphone, Power Button, Reset Button
Pre-installed Fan(s)	Front: 3x 120mm (LL120 RGB) Rear: 1x 120mm (否n RGB)
Fan Support	Front: 3x 120mm / 2x 140mm Max Top: 2x 120mm / 2x 140mm Max Bottom: 2x 120mm / 2x 140mm Max Rear: 1x 120mm / 1x 140mm Max
Fan 模式l	LL Series (RGB)
Fan/LED Controller	Corsair Lighting 否de Pro
Fan Dimensions	120 x 120 x 25mm
风扇转速	600-1500 RPM (PWM)
Fan Air Flow	43.25CFM
Fan Bearing Type	Hydraulic
Power Connector	4-Pin (PWM)
Radiator Support	120/140/240/280/360mm
Clearances	CPU cooler: 180mm Power Supply: 225mm Graphics Card: 330mm
Cable Management Support	是
Dust Filters	Top, Front, Bottom
PSU Support	Side Mount, ATX
Weight	11.58 kg
Warranty	2-year
