Cybenetics Test - Corsair Obsidian 500D

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

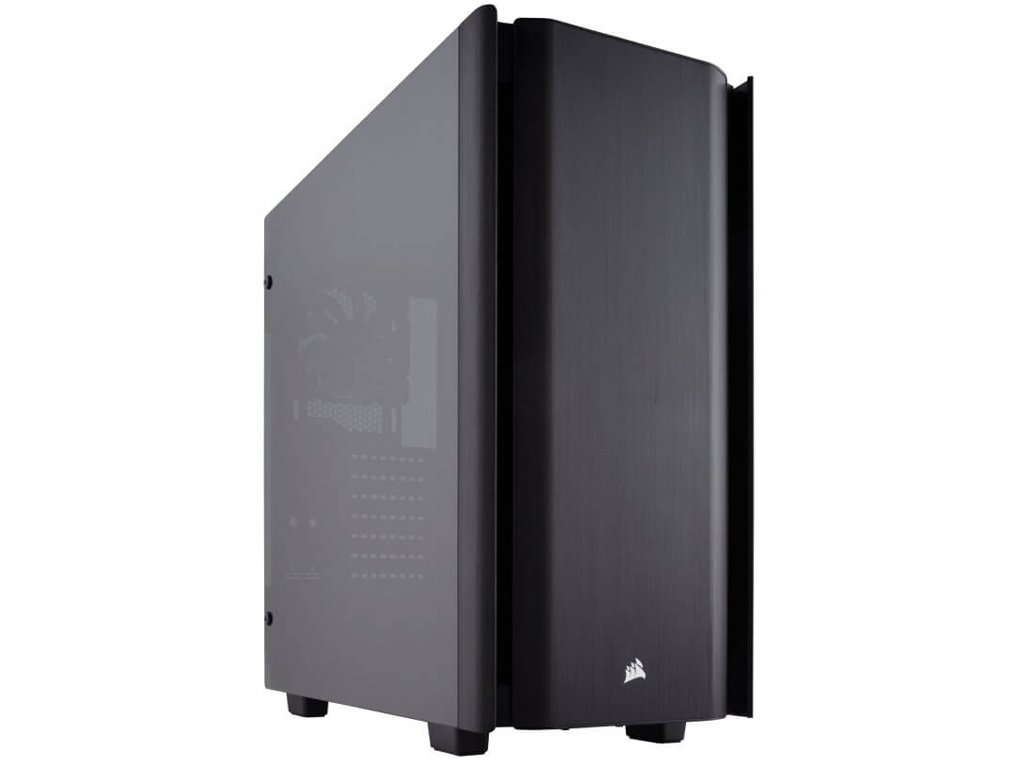

Corsair Obsidian 500D

Lab IDCRCAS00039

Certification ID

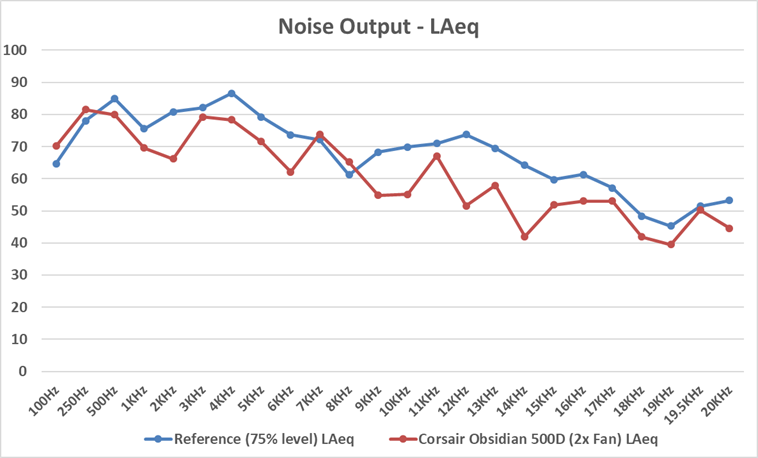

噪音等级

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Corsair
Product Name	Obsidian 500D
Type	Midi Tower
Dimensions (LxWxH)	502 x 233 x 508mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX
Removable Motherboard Tray	否
Front Door/Cover	否
Materials Body	Steel, Plastic, Sound Dampening Material
Materials Side Panel	Left: Tempered Glass Right: Sound-Dampened Steel
Expansion Slots	7x
Drive Bays	3.5 " : 2x Internal 2.5" : 3x Internal
I/O Panel	2x USB 3.0, 1x USB 3.1 Type-C, 1x Headphone, 1x Microphone
Pre-installed Fan(s)	Front: 1x 120mm (Corsair RWF0016) Rear: 1x 120mm (Corsair RWF0016)
Fan Support	Front: 3x 120/140mm Top: 2x 120/140mm Rear: 1x 120mm
Fan Bearing Type	否 Info
Fan Power Connector	3-Pin
Fan/LED Controller	否
Radiator Support	Front: 120/140/240/280/360/420mm Top: 120/140/240/280mm Rear: 120mm
CPU Cooler Height (Max)	170mm
VGA Length (Max)	370mm
PSU Length (Max)	225mm
Cable Management Support	是
Dust Filters	Top, Front, Bottom
PSU Support	Bottom Mount, ATX
Weight	10.5 kg
Warranty	2-year
