Cybenetics Test - Cooler Master MasterCase H500M (Glass Panel)

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

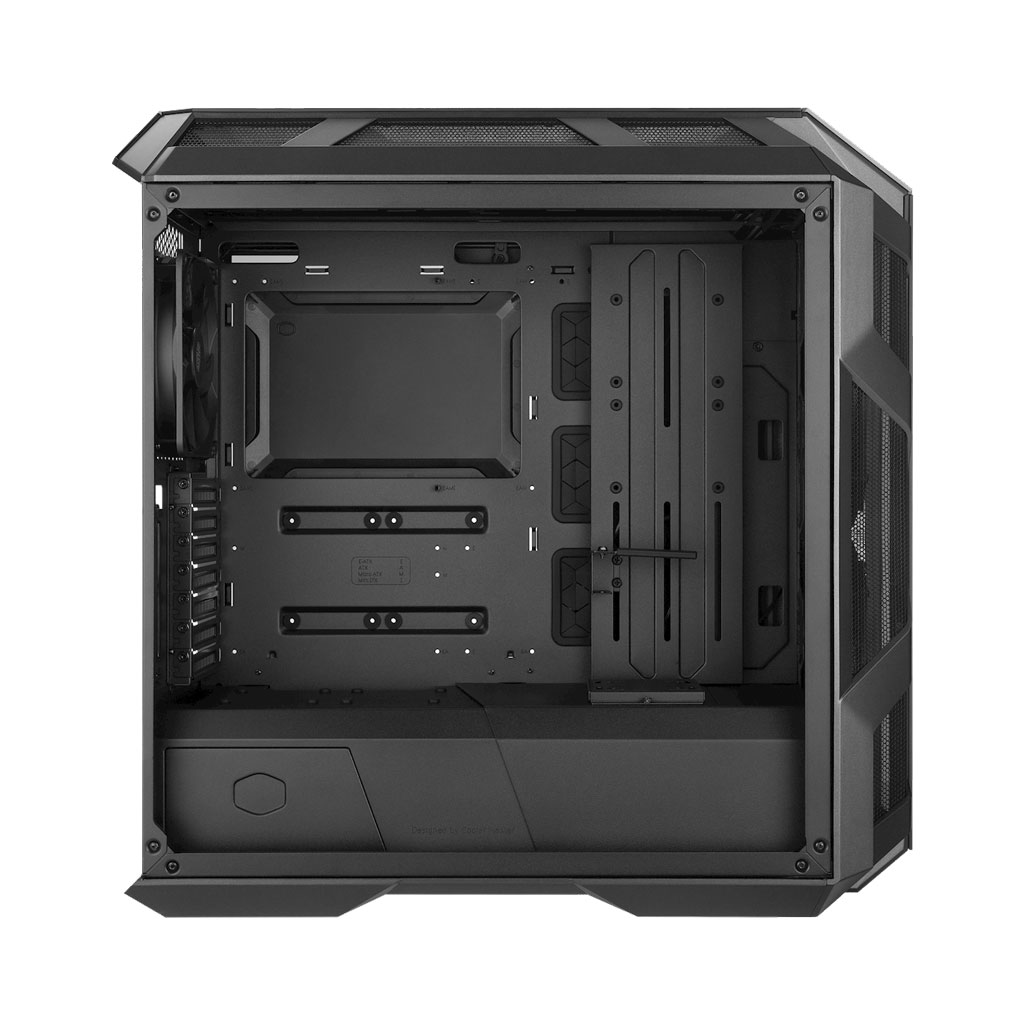

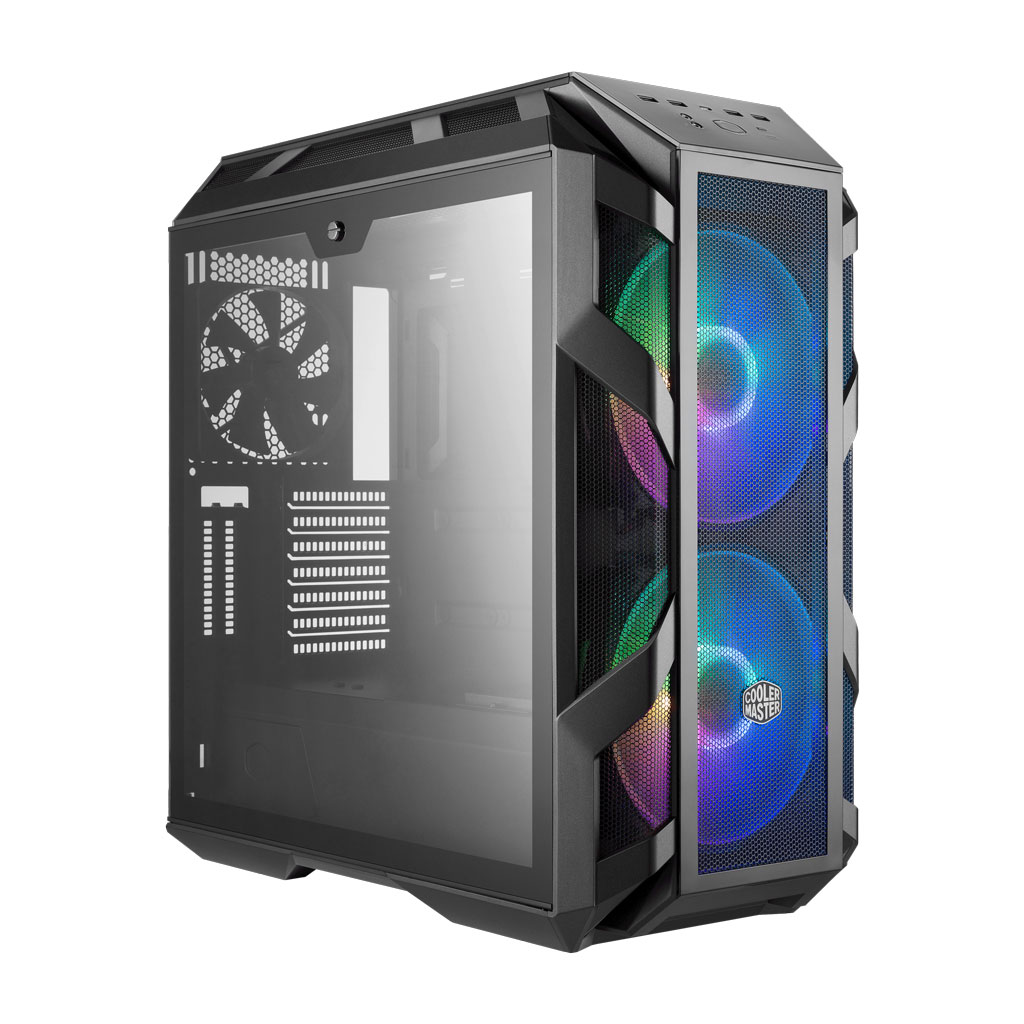

Cooler Master MasterCase H500M (Glass Panel)

Lab IDCMCAS00065

Certification ID

Lautstärkeklasse

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Cooler Master
Product Name	Mastercase H500M
Type	Midi Tower
Dimensions (LxWxH)	478 x 209 x 540mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX
Removable Motherboard Tray	No
Front Door/Cover	Yes
Materials Body	Steel, Plastic, Glass
Materials Side Panel	Left: Tempered Glass Right:Tempered Glass
Expansion Slots	7x (plus two vertical)
Drive Bays	5.25": - 3.5 " : 2x Internal 2.5" : 6x Internal
I/O Panel	1x USB 3.1 Gen 2 Type-C, 4x USB 3.0, 1x audio jack, 1x mic jack
Pre-installed Fan(s)	Front: 2x 200mm Rear: 1x 140mm Top: -
Fan Support	Front: 3x 120mm / 3x 140mm / 2x 200mm Top: 3x 120mm / 2x 140mm / 2x 200mm Rear: 1x120mm / 1x 140mm
Fan Bearing Type	Front: Rifle Rear: Double Ball
Fan Power Connector	3-Pin
Fan/LED Controller	Yes
Radiator Support	Front: 120mm / 140mm / 240mm / 280mm / 360 mm Top:120mm / 140mm / 240mm / 280mm / 360 mm Rear: 120mm / 140mm
CPU Cooler Height (Max)	195mm
VGA Length (Max)	415mm
PSU Length (Max)	200mm
Behind MB Tray Clearance/Cable Management Support	20-30mm
Dust Filters	Top, Front, Bottom
PSU Support	Bottom ATX
Weight	13.5 kg (13.7Kg with front glass)
Warranty	2-years
