Cybenetics Test - Cooler Master Silencio S400 (Mesh Top Panel)

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

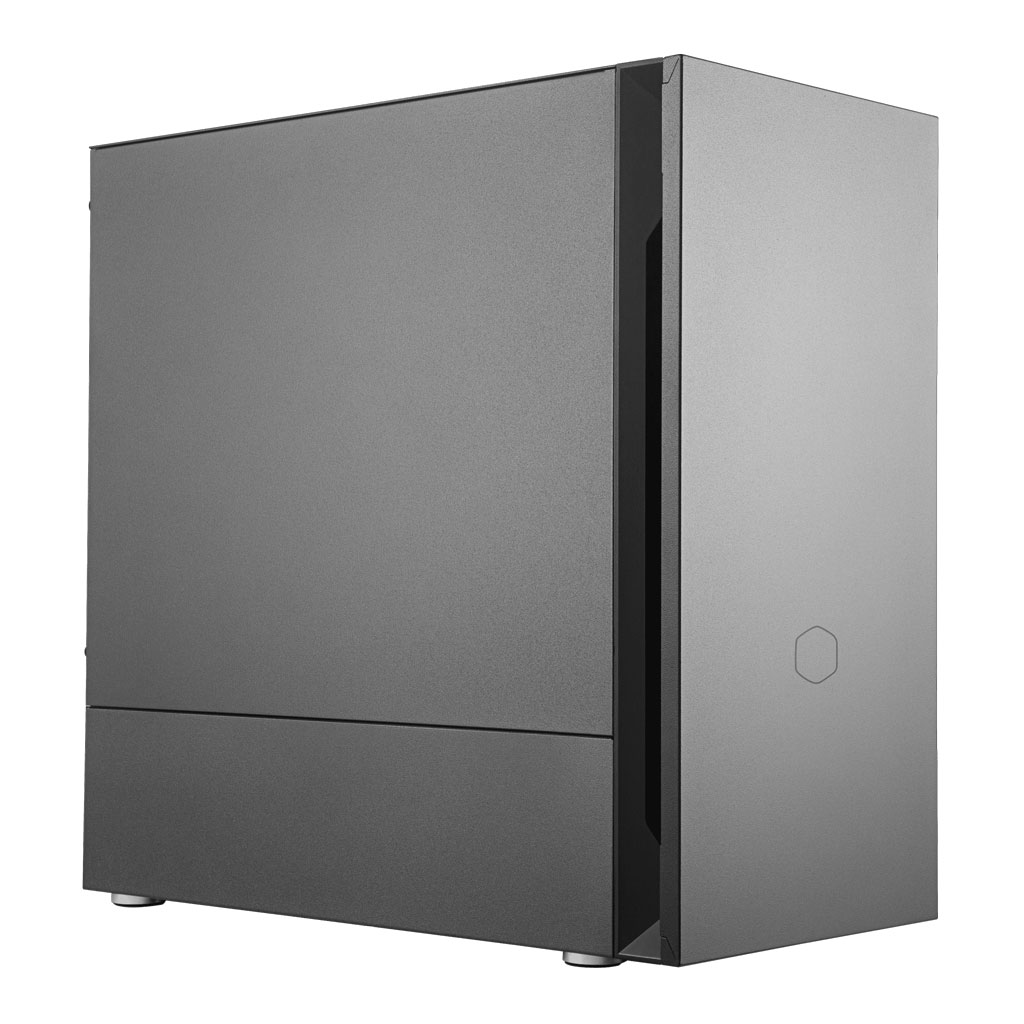

Cooler Master Silencio S400 (Mesh Top Panel)

Lab IDCMCAS00071

Certification ID

噪音評比

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

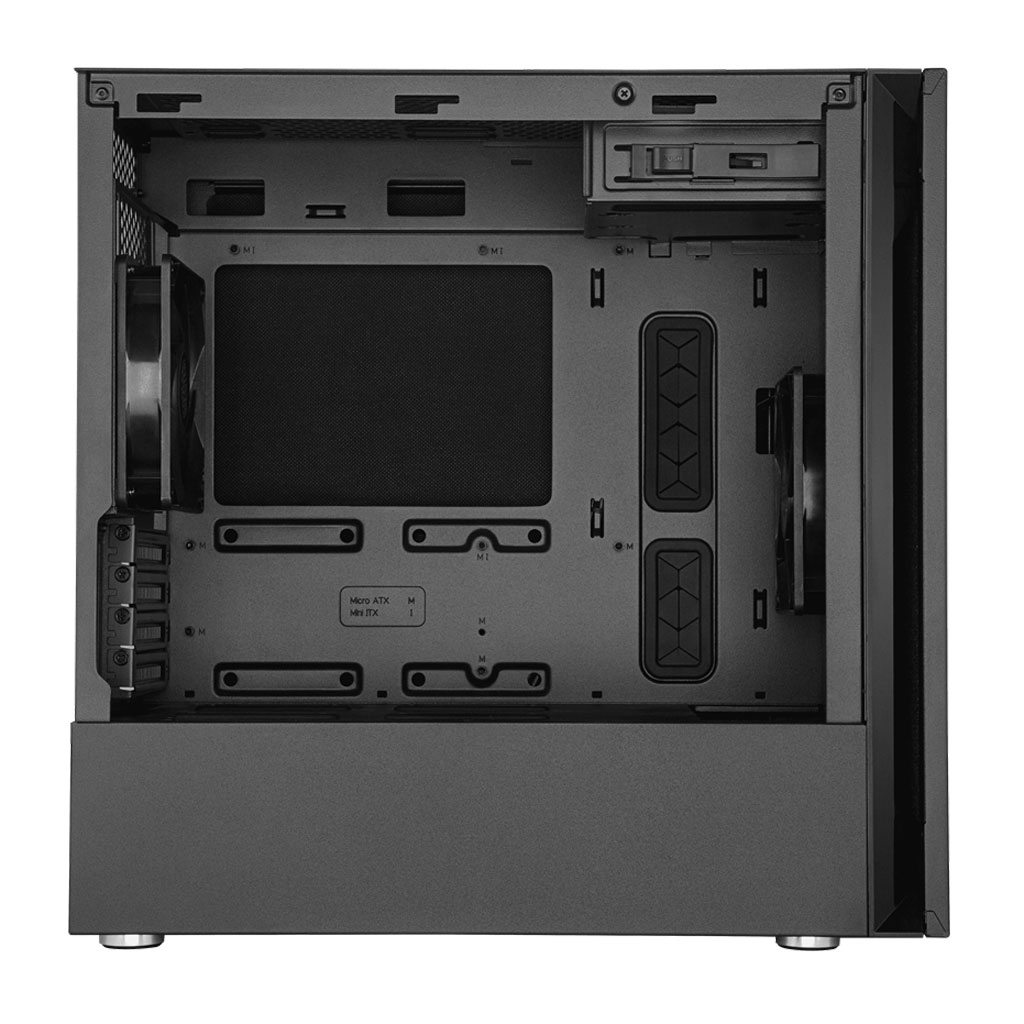

Brand	Cooler Master
Product Name	Silencio S400
Type	Mini Tower
Dimensions (LxWxH)	403.5 x 210 x 404mm
Motherboard Support	Mini-ITX, Micro-ATX
Removable Motherboard Tray	No
Front Door/Cover	Yes
Materials Body	Steel, Plastic, Sound Dampening Material
Materials Side Panel	Left:Sound-Dampened Steel Right: Sound-Dampened Steel
Expansion Slots	4x
Drive Bays	5.25": 1x External 3.5 " : 4x Internal 2.5" :4x Internal
I/O Panel	2x USB 3.2, 1x audio/mic combo jack, 1x SD Card Reader, 1x Power Button, 1x Reset Button

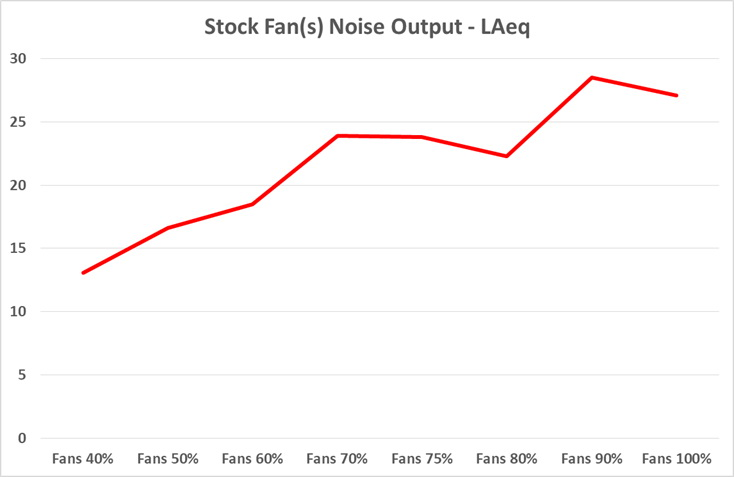

Pre-installed Fan(s)	Front: 1x 120mm ( 800-1400 RPM) Rear: 1x 120mm (800-1400 RPM) Top: -
Fan Support	Front: 2x 120mm / 2x 140mm Top: 1x 120mm / 1x 140mm or 2x 120mm / 2x 140mm (remove ODD cage) Rear: 1x 120mm
Fan Bearing Type	Rifle
Fan Power Connector	4-Pin (PWM)
Fan/LED Controller	No
Radiator Support	Front: 120/140/240/280mm (remove ODD cage) Top: 120/240mm (with ODD removed) Rear: 120mm
CPU Cooler Height (Max)	167mm
VGA Length (Max)	319mm
PSU Length (Max)	140mm / 325mm (w/o front radiator & HDD cage)
Behind MB Tray Clearance/Cable Management Support	20mm
Dust Filters	Top, Front, Bottom
PSU Support	Bottom Mount, ATX
Weight	6.6 kg / 6.8 kg (with sound-dampened upper panel)
Warranty	2-years
