THETA Cooler Performance
THETA is a Cybenetics performance rating. It is not part of our ISO/IEC 17065 certification schemes and is outside our accreditation.
Overall Performance (OP) = W × F / T, where W is the average CPU power at the EPS connectors (W), F the average CPU frequency (MHz) and T the average CPU temperature (°C). A cooler is rated on its measured OP at 30 dB(A) normalized noise output; a cooler that cannot reach 30 dB(A) is rated on its own measured 25 dB(A) point. Air and AIO coolers have separate ladders on each test platform.
Evaluated before Revision 2.0 of the Cooling Solutions Test Protocol: the THETA level was assigned from the published results measured under Revision 1.8 (20 minutes per noise level, 10-minute cool-down). The cooler was not measured again, and the earlier procedure is not identical to the procedure of Revision 2.0.
Airtight compressor + evaporator fins + air-cooling condenser
Power Source
3Φ AC 380V ±5%, 50Hz±1% 10KW
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
AMD Test System
Mainboard
Asus TUF GAMING X670E-PLUS
CPU
AMD Ryzen 9 7900x
GPU
Embedded
NVMe
XPG GAMMIX S50 Lite 1TB
RAM
XPG Lancer DDR5 (2 x 16GB) 6000MHz
Power Supply
Seasonic Vertex 1200W
(Cybenetics Platinum)
CPU Cooler
Device Under Test
Case
Cooler Master Test Bench
Technical Specifications
Manufacturer (OEM)
Cooler Master
Model
V8 ACE 3DHP BLACK (AMD)
Number of Fans
2
Type
Air
Heatpipes
8
Heatpipe Diameter
8mm
Length
139mm
Width
137mm
Height
168mm
Block Material
Copper
Weight
1169g
AMD Processors Support
AM5, AM4
Intel Processors Support
LGA1851,1700,1200,115x
Warranty
6 years
Noise Output and Fan Speed
Table
Fan Setting
Noise (dB(A))
Fan 1 (RPM)
Fan 2 (RPM)
40%
10.5
794
980
50%
16.8
1018
1239
60%
22.7
1230
1488
70%
27.0
1440
1721
80%
31.1
1634
1935
90%
34.3
1829
2142
100%
37.9
2101
2439
Graphs
Fan Speed at Fixed Noise Levels
Noise Level
Fan 1 (RPM)
Fan 2 (RPM)
15 dB(A)
1050
1050
20 dB(A)
1285
1285
25 dB(A)
1485
1485
30 dB(A)
1760
1760
35 dB(A)
2050
2050
AMD System Test Results
Table
Condition
CPU Temperature (°C)
CPU Frequency (MHz)
CPU Power (W)
Overall Performance
20 dB(A)
95.4
5163
185.7
10050
25 dB(A)
94.8
5172
188.2
10262
30 dB(A)
94.3
5178
189.3
10395
35 dB(A)
94.3
5189
191.3
10524
Full fan speed
92.6
5200
192.9
10833
Graphs

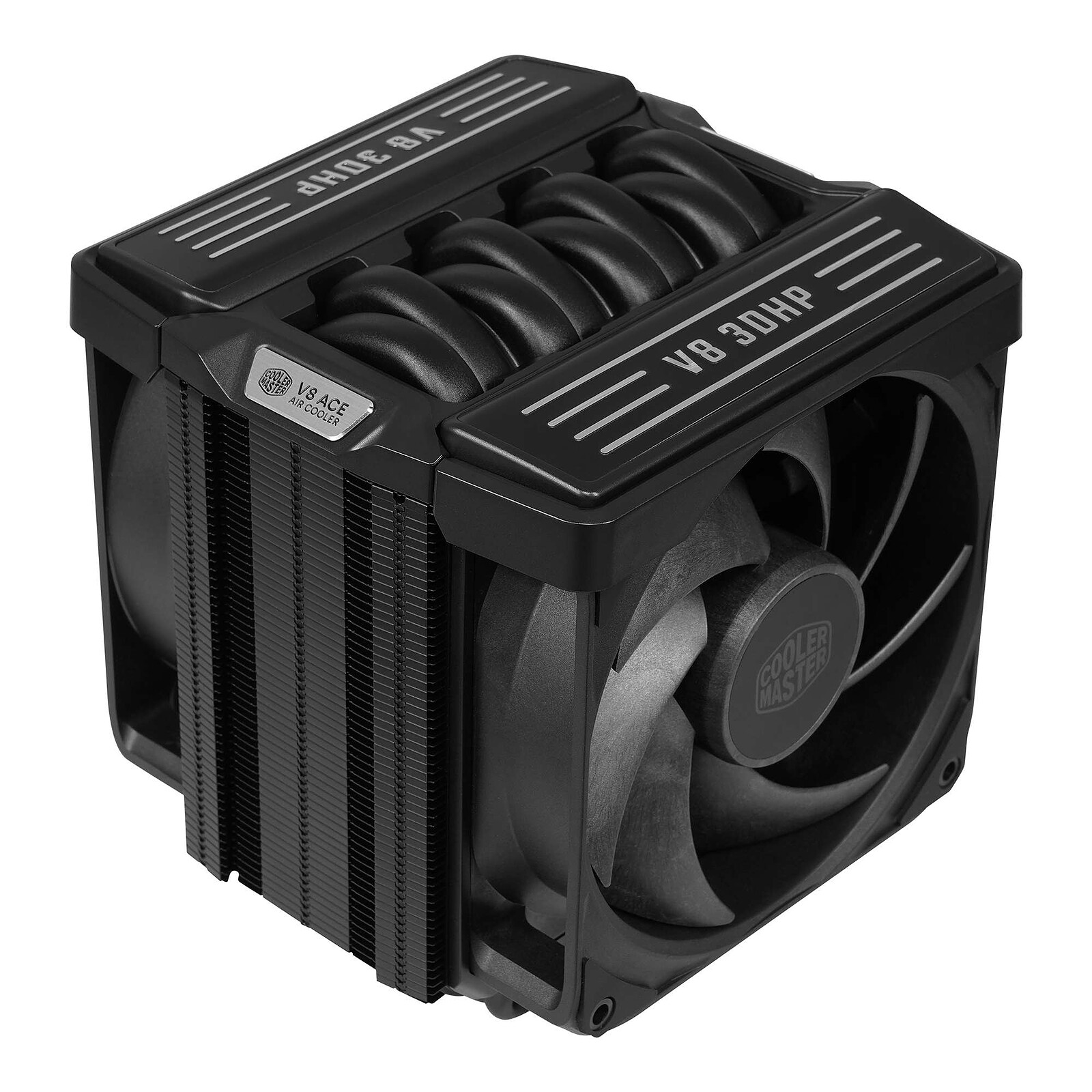

Cooler Master V8 ACE 3DHP BLACK (AMD)
