Cooler Master V8 ACE 3DHP BLACK (Intel)
Serial NumberMAMT6HP225PKRB1262712806
Lab IDCMCLR00126
TypeAir
  • Testing Date: Jul 18, 2026
Scheme: THETA
AMD AM5No THETA level
THETA Platinum · Air · Intel LGA1851Intel LGA1851
Aristeidis Bitziopoulos, Certification Body General Manager

THETA Cooler Performance

THETA is a Cybenetics performance rating. It is not part of our ISO/IEC 17065 certification schemes and is outside our accreditation.

Overall Performance (OP) = W × F / T, where W is the average CPU power at the EPS connectors (W), F the average CPU frequency (MHz) and T the average CPU temperature (°C). A cooler is rated on its measured OP at 30 dB(A) normalized noise output; a cooler that cannot reach 30 dB(A) is rated on its own measured 25 dB(A) point. Air and AIO coolers have separate ladders on each test platform.

Evaluated before Revision 2.0 of the Cooling Solutions Test Protocol: the THETA level was assigned from the published results measured under Revision 1.8 (20 minutes per noise level, 10-minute cool-down). The cooler was not measured again, and the earlier procedure is not identical to the procedure of Revision 2.0.

PlatformTHETA levelTest CPUMountRated atOverall Performance (OP)
AMD AM5No THETA levelAMD Ryzen 9 7900X (AM5)Default--
Intel LGA1851THETA Platinum · Air · Intel LGA1851Intel Core Ultra 9 285K (LGA1851)Default30 dB(A)13,956

General Information

Test Equipment

Noise Test Environment Hemi Anechoic Chamber with 6dB(A) noise floor
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Climate Chamber Giant Force GTH-800-20-CP-AR
Testing Methodology Cybenetics Cooling Solutions Test Protocol

DUT Information

BrandCooler Master
ModelV8 ACE 3DHP BLACK (Intel)
Serial NumberMAMT6HP225PKRB1262712806
Lab IDCMCLR00126
Testing DateJul 18, 2026
EngineerAris Bitziopoulos

Climate Chamber

Noise Test EnvironmentHemi Anechoic Chamber with 6dB(A) noise floor
ManufacturerGiant Force
Model NumberGTH-800-20-CP-AR
Temperature Range-20℃ ~ +100℃
Humidity Range20% ~ 98% RH
Temperature/Humidity Constancy±0.2℃; ±2.5%RH
Temperature/Humidity Uniformity at center±0.5℃; ±4%RH
Internal Dimensions (WHD)100 x 100 x 80 cm
External Dimensions (WHD)145 x 190 x 135 cm
Net Weight (approximately)450 Kg
Heat-up Time (No load, no linear)(from 20°C to +100°C) 30min
Pull-down Time (No load, no linear)(from 20°C to -20°C) 50min
Cooling SystemAirtight compressor + evaporator fins + air-cooling condenser
Power Source3Φ AC 380V ±5%, 50Hz±1% 10KW
Based on StandardsISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Intel Test System

Mainboard ASRock Z890 Taichi [BIOS: 2.09.AS01 - Nov 4, 2024]
CPU Intel Core Ultra 9 285K
GPU Embedded
NVMe XPG GAMMIX S50 Lite 1TB
RAM Gskill Ripjaws S5 DDR5 (2 x 16GB) 6000MHz
Power Supply Seasonic Vertex 1200W
(Cybenetics Platinum)
CPU Cooler Device Under Test
Case DimasTech Bench

Technical Specifications

Manufacturer (OEM)Cooler Master
ModelV8 ACE 3DHP BLACK (Intel)
Number of Fans2
TypeAir
Heatpipes8
Heatpipe Diameter8mm
Length139mm
Width137mm
Height168mm
Block MaterialCopper
Weight1169g
AMD Processors SupportAM5, AM4
Intel Processors SupportLGA1851,1700,1200,115x
Warranty6 years

Noise Output and Fan Speed

Table

Fan SettingNoise (dB(A))Fan 1 (RPM)Fan 2 (RPM)
40%10.5980794
50%16.812391018
60%22.714881230
70%27.017211440
80%31.119351634
90%34.321421829
100%37.924392101

Graphs

Noise Output vs Fan SettingdB(A) [lower is better]Noise Output vs Fan SettingdB(A) [lower is better]1015202530354040%50%60%70%80%90%100%10.516.822.72731.134.337.9
Fan Speed vs Fan SettingRPMFan Speed vs Fan SettingRPM500100015002000250040%50%60%70%80%90%100%980123914881721193521422439Fan 1794101812301440163418292101Fan 2

Fan Speed at Fixed Noise Levels

Noise LevelFan 1 (RPM)Fan 2 (RPM)
15 dB(A)10501050
20 dB(A)12851285
25 dB(A)14851485
30 dB(A)17601760
35 dB(A)20502050

Intel System Test Results

Table

ConditionCPU Temperature (°C)CPU Frequency (MHz)CPU Power (W)Overall Performance
20 dB(A)91.44053301.813377
25 dB(A)90.54059299.913451
30 dB(A)88.44071302.913956
35 dB(A)88.54196300.814262
Full fan speed86.94146301.314374

Graphs

CPU Temperature - Intel SystemDegrees Celsius [lower is better]CPU Temperature - Intel SystemDegrees Celsius [lower is better]8687888990919220 dB(A)25 dB(A)30 dB(A)35 dB(A)Full fan speed91.490.588.488.586.9
CPU Frequency - Intel SystemMHz [higher is better]CPU Frequency - Intel SystemMHz [higher is better]405041004150420020 dB(A)25 dB(A)30 dB(A)35 dB(A)Full fan speed4053.44058.84071.44195.64145.6
CPU Power - Intel SystemWattsCPU Power - Intel SystemWatts299.5300300.5301301.5302302.530320 dB(A)25 dB(A)30 dB(A)35 dB(A)Full fan speed301.8299.9302.9300.8301.3
Overall Performance - Intel SystemScore [higher is better]Overall Performance - Intel SystemScore [higher is better]1320013400136001380014000142001440020 dB(A)25 dB(A)30 dB(A)35 dB(A)Full fan speed13377.11345113956.214261.614374.1

Frequency Plots

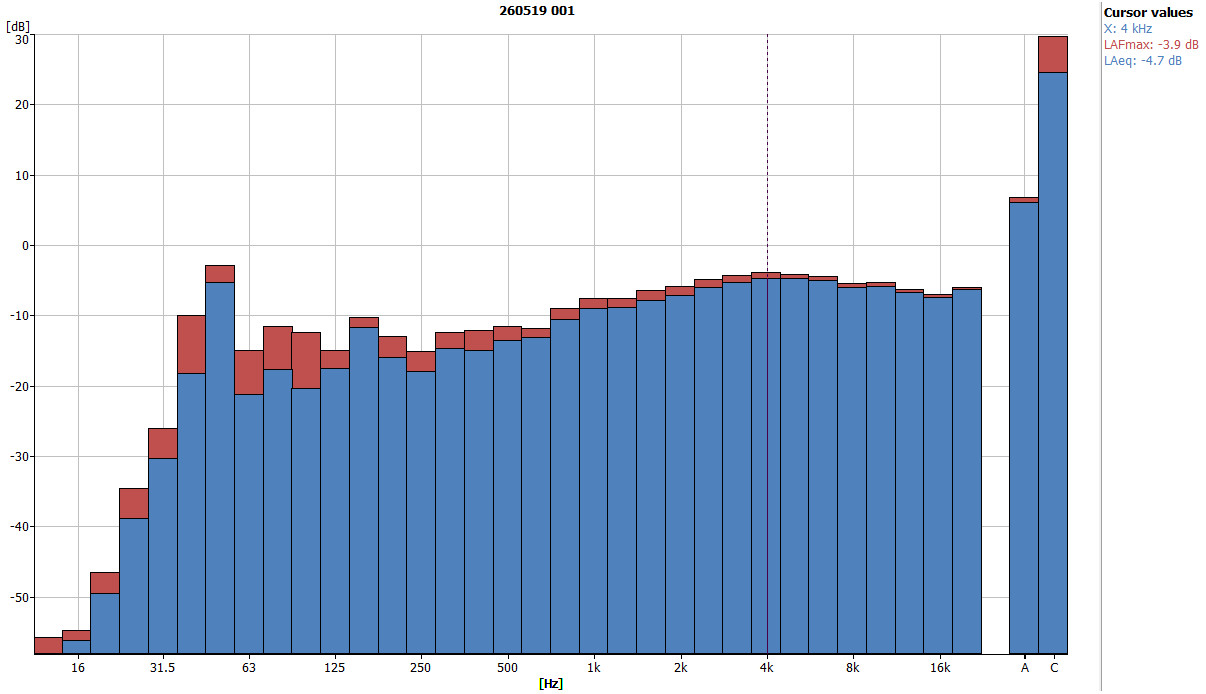

PWM 20%

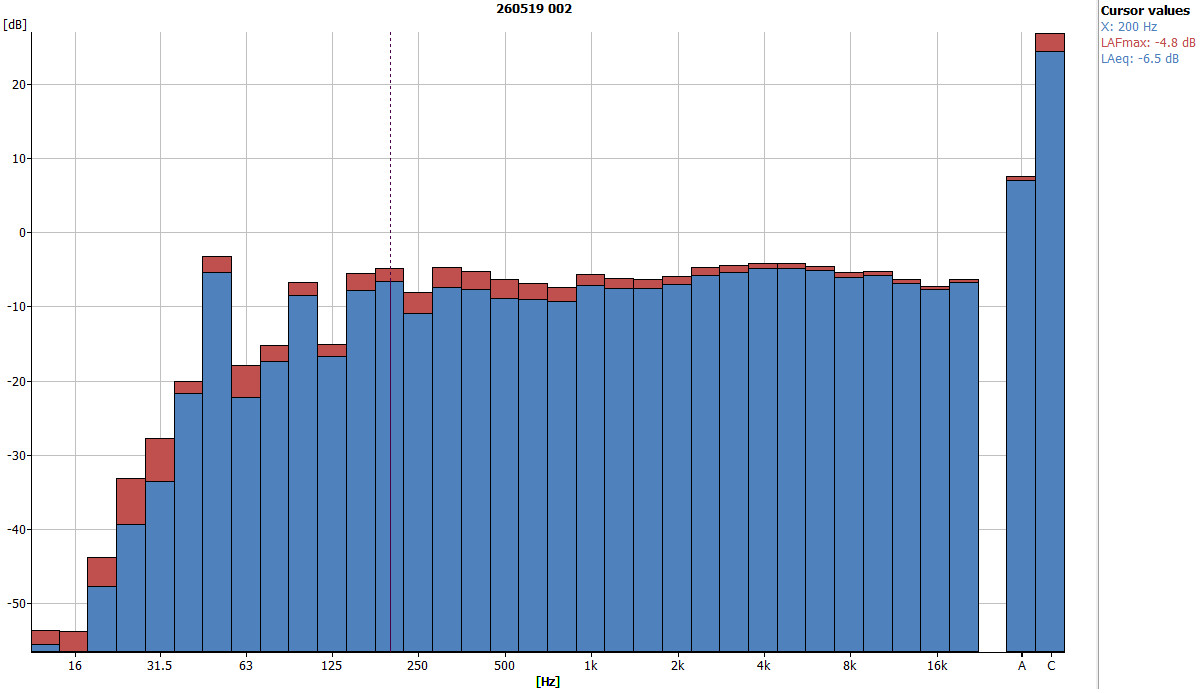

PWM 30%

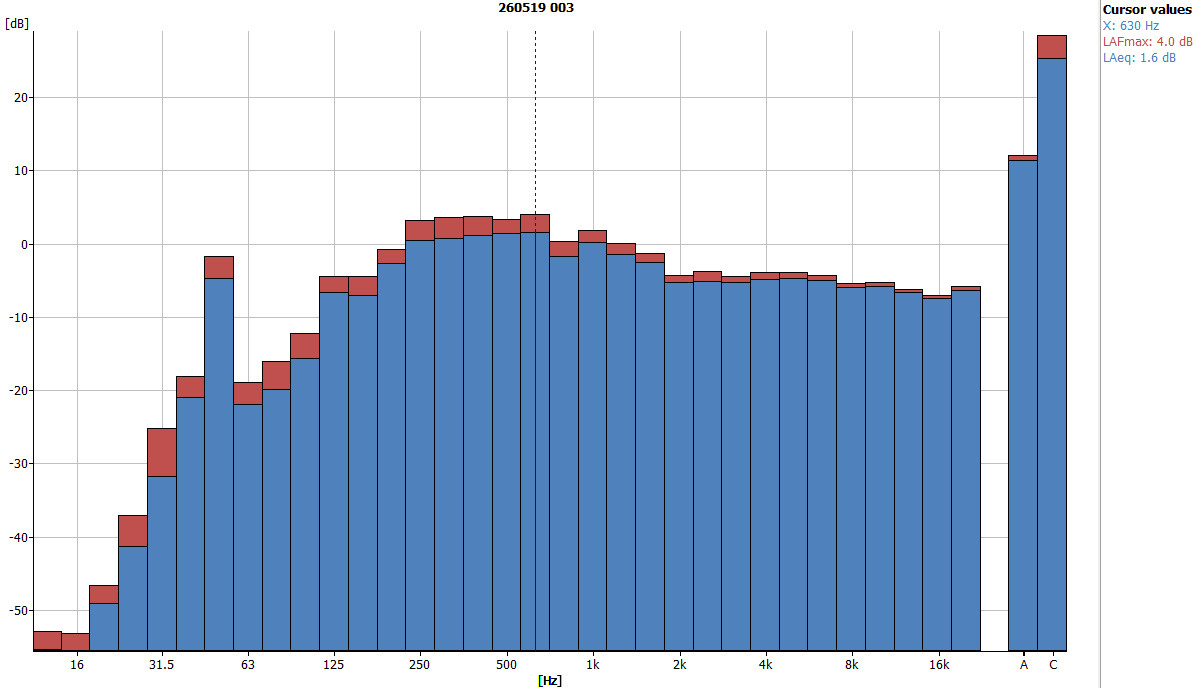

PWM 40%

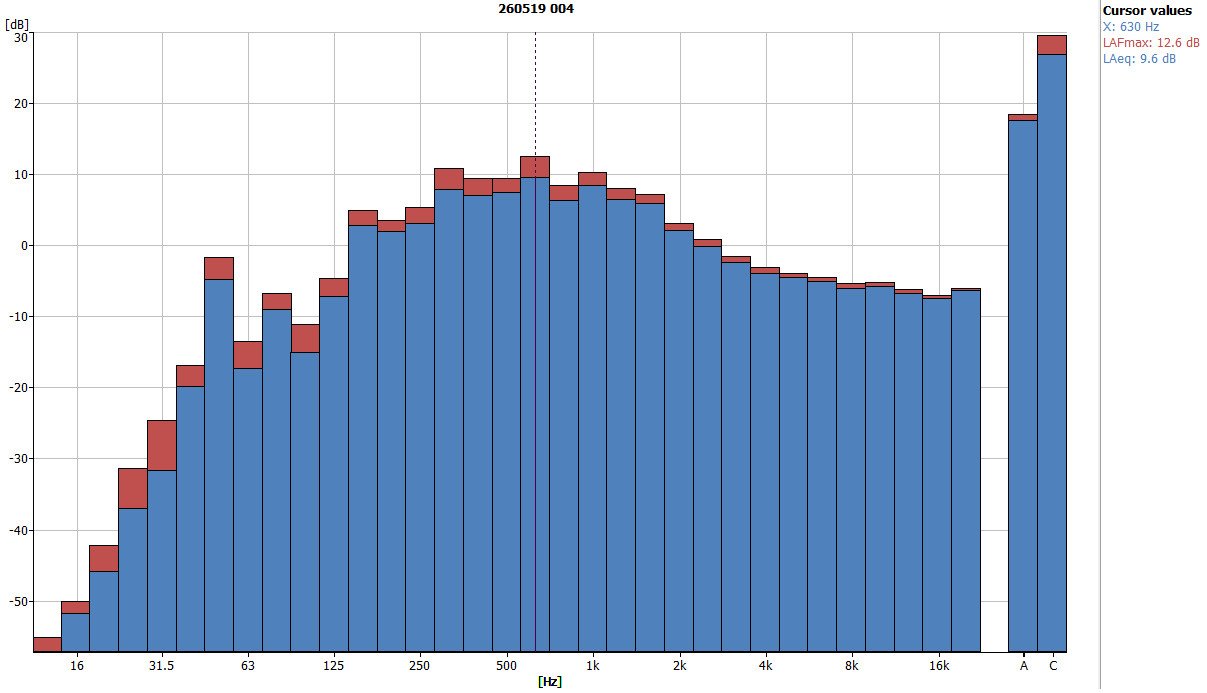

PWM 50%

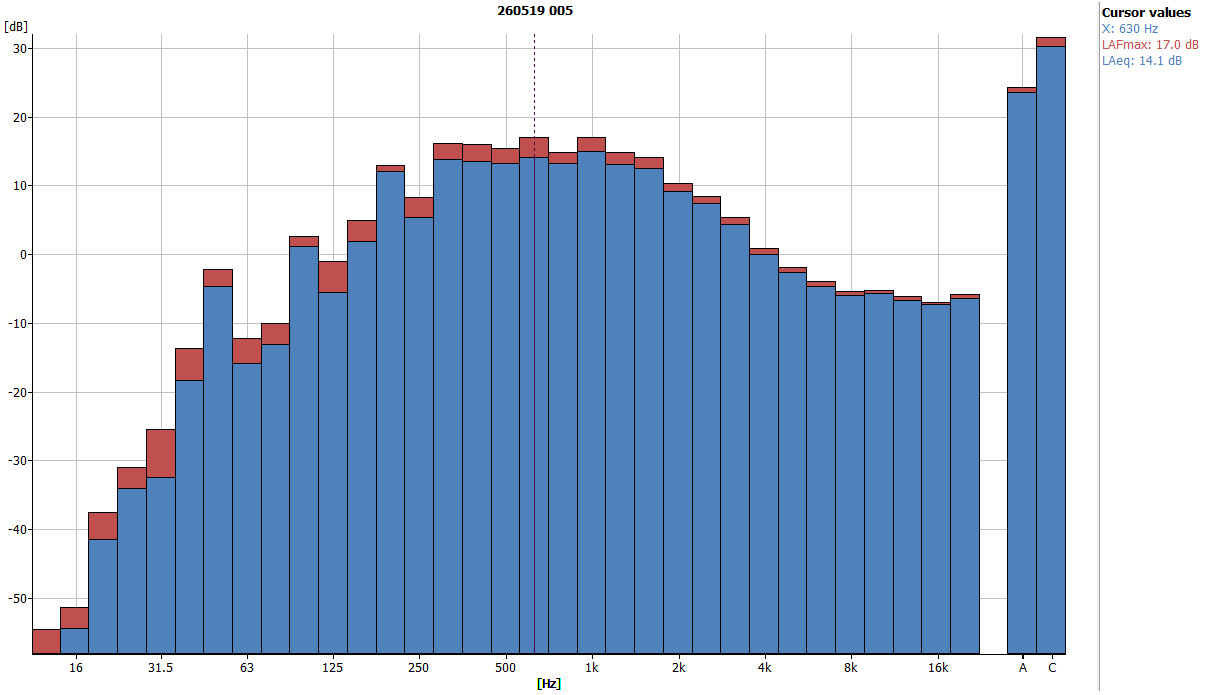

PWM 60%

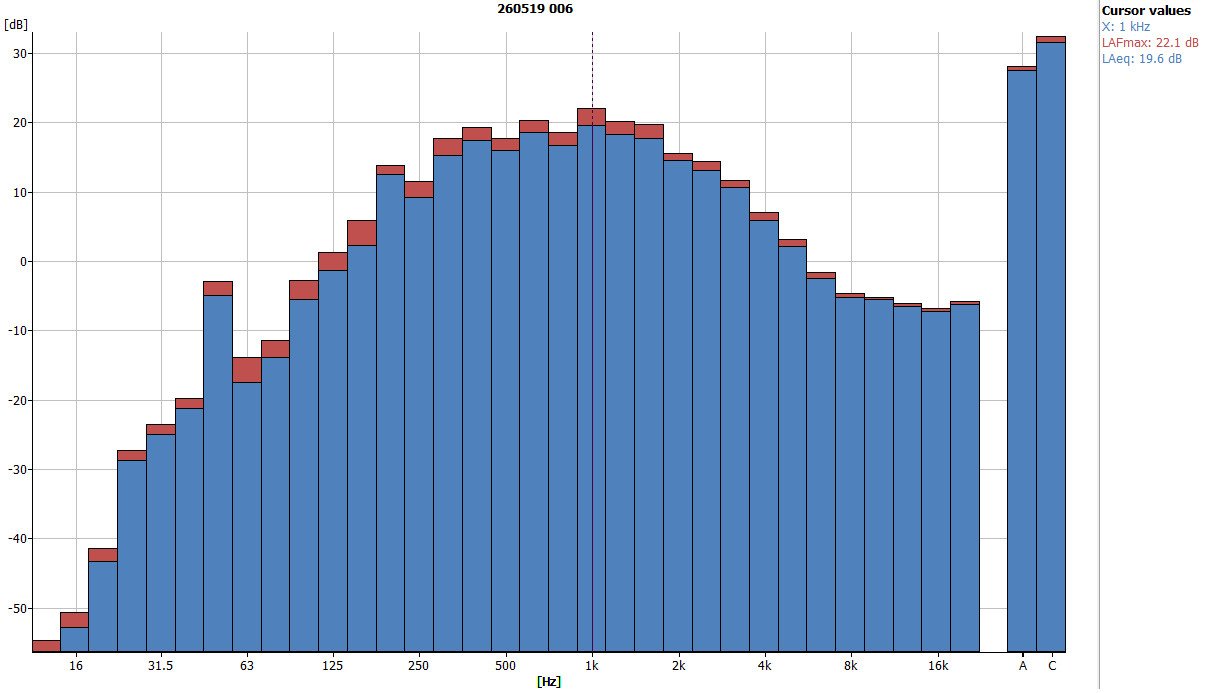

PWM 70%

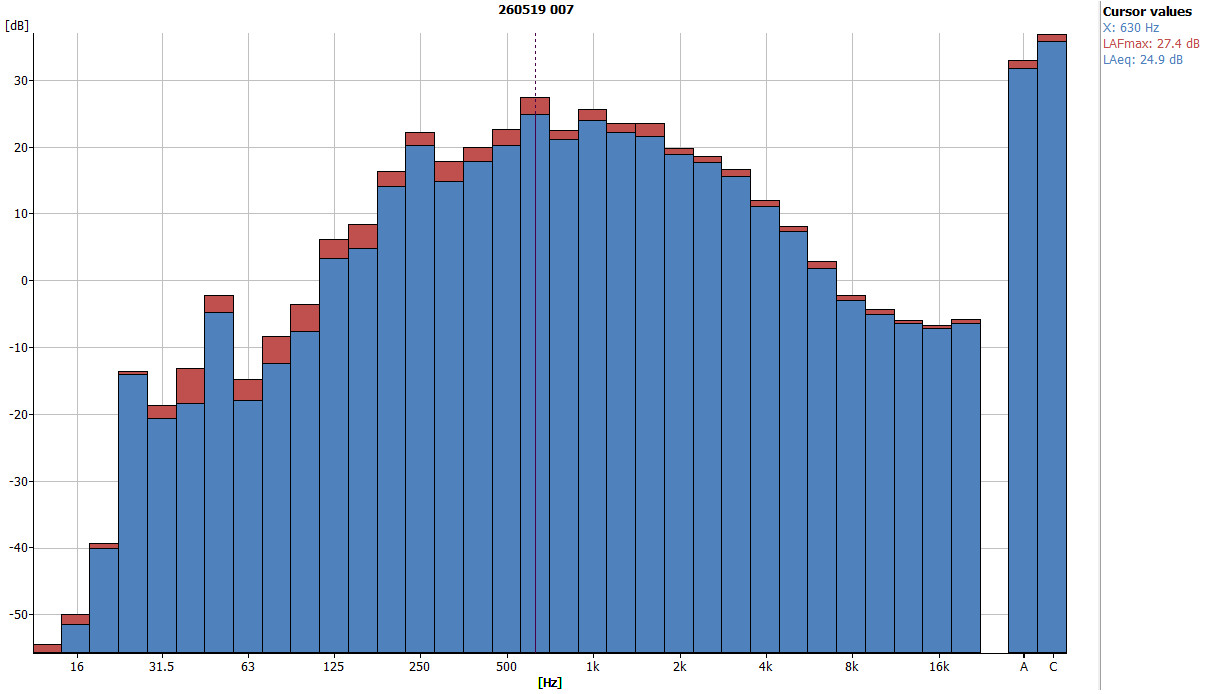

PWM 80%

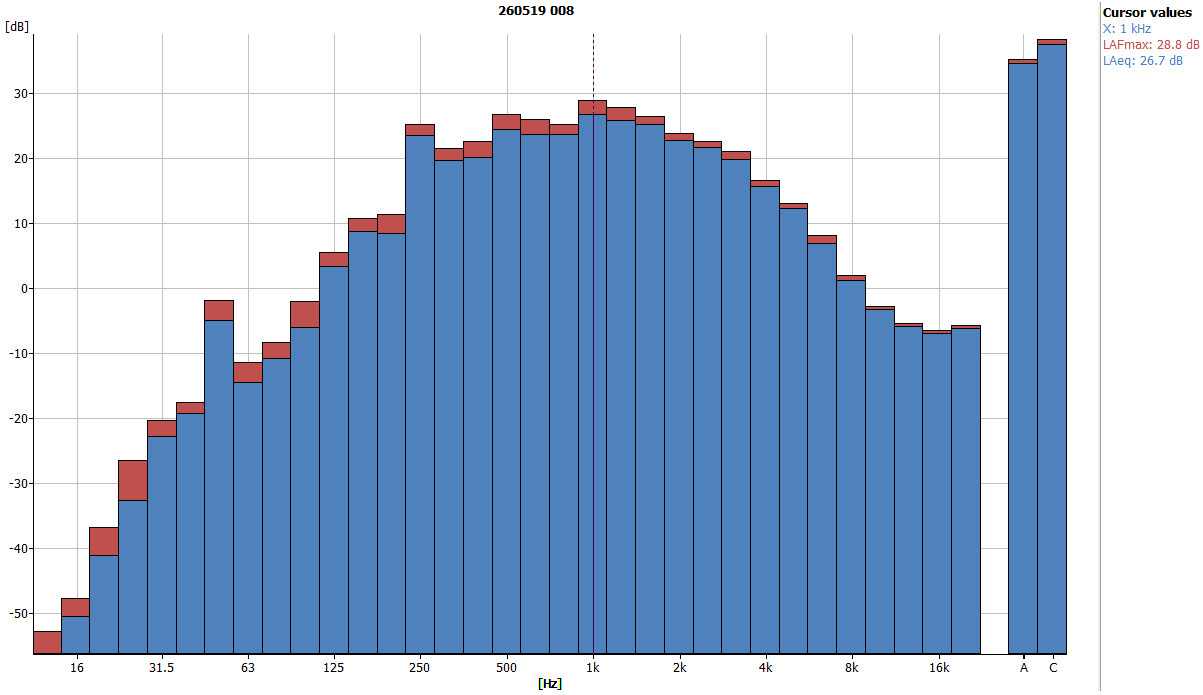

PWM 90%

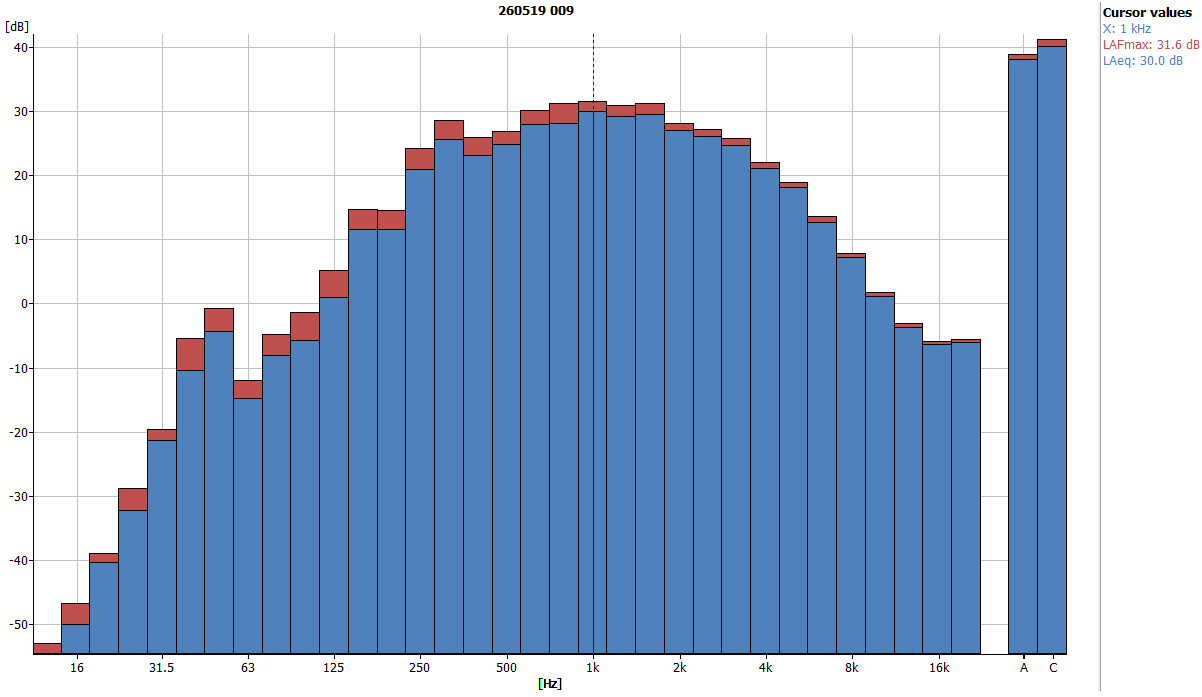

PWM 100%

Cooler Master V8 ACE 3DHP BLACK (Intel)

Cooler Master V8 ACE 3DHP BLACK (Intel)
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
