General Information
Fan Testing Instrument Technical Specifications
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
Test Equipment
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
Brand
Noctua
Model
NF-A14x25r G2 (PPB)
Max Speed (RPM)
1538
Max Airflow (CFM)
94.83
Max Static Pressure (mmAq)
2.54
Max Fan Noise Level (dBA)
31.40
Fan Bearing Type
SSO2
Fan Connector
PWM
Fan Max Current (A)
0.28
Fan Weight (gr)
171
Dimensions (W x H x D)
140x140x25
Fan daisy-chain connector
✗
Cable length (mm)
205
Pressure and Airflow

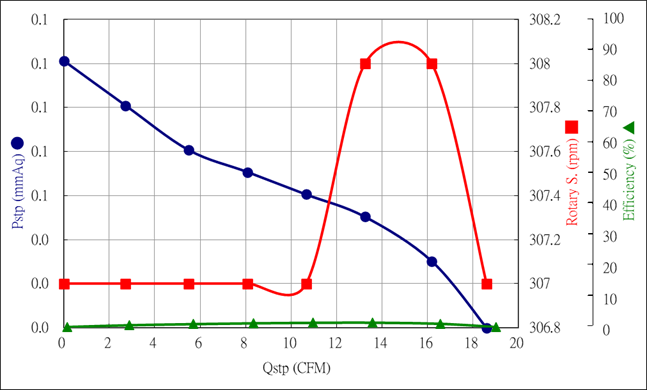

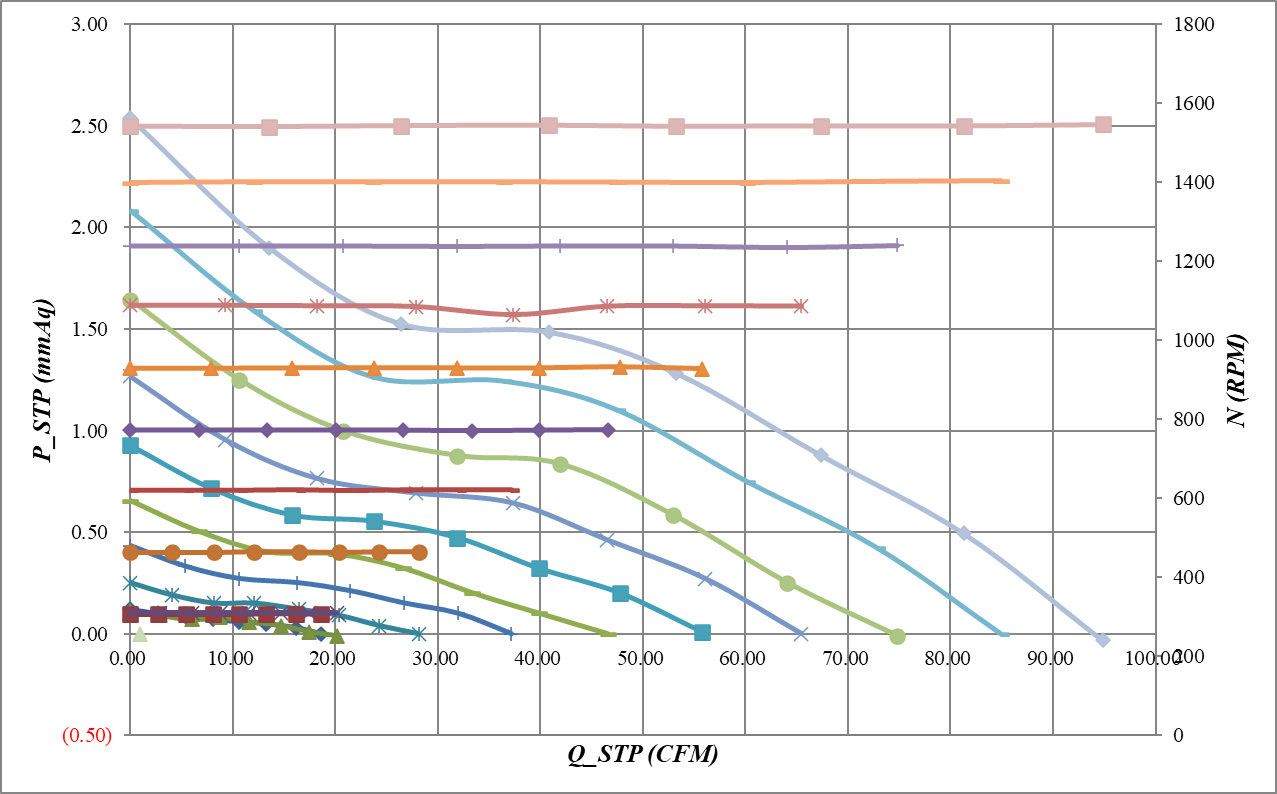

PQ Chart All Speed

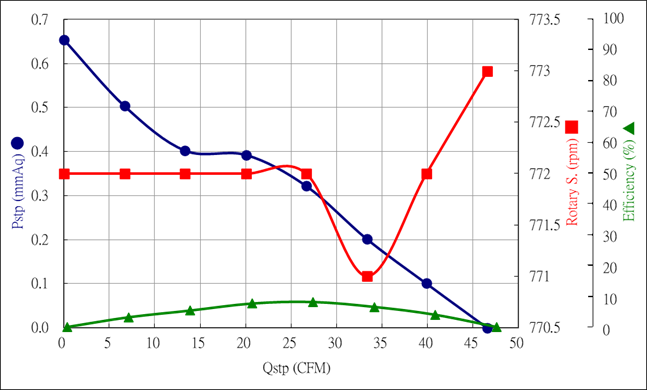

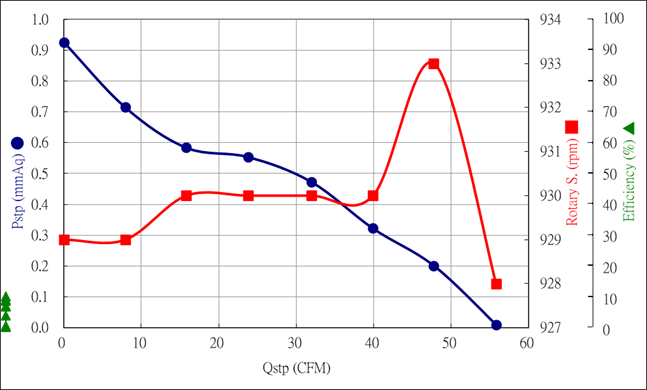

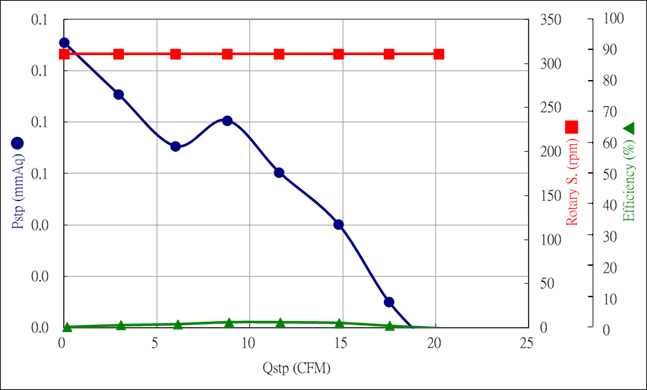

PQ Chart 10% Speed

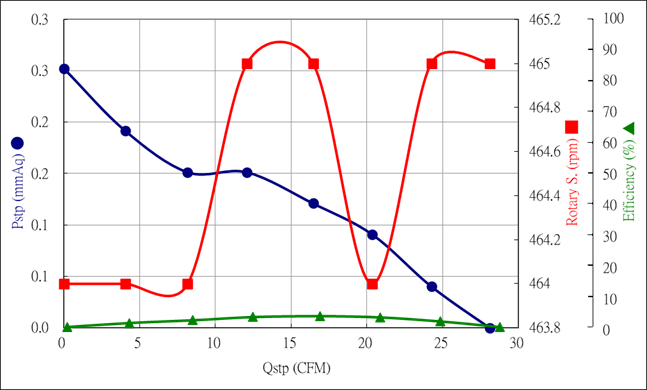

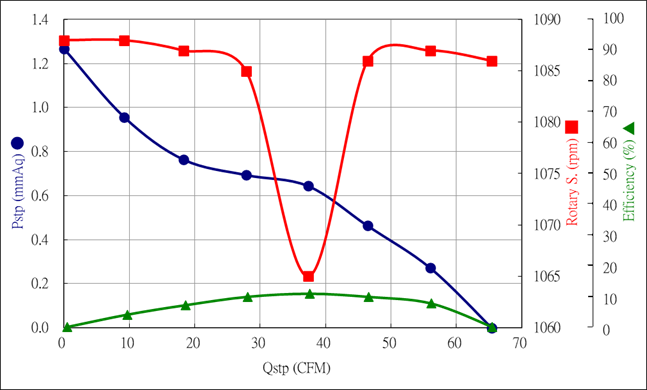

PQ Chart 30% Speed

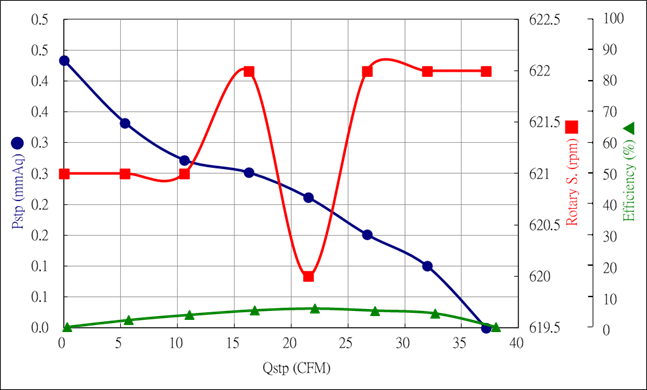

PQ Chart 40% Speed
PQ Chart 50% Speed
PQ Chart 60% Speed

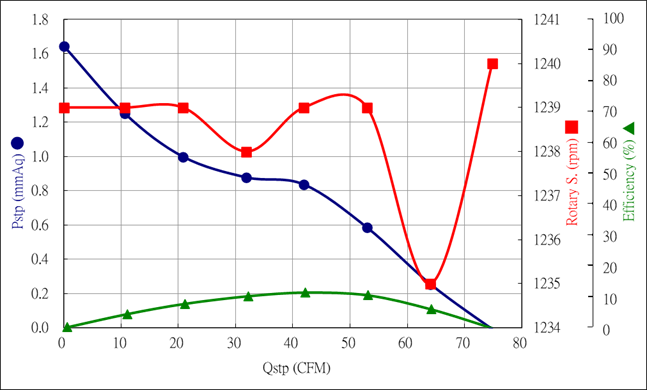

PQ Chart 70% Speed

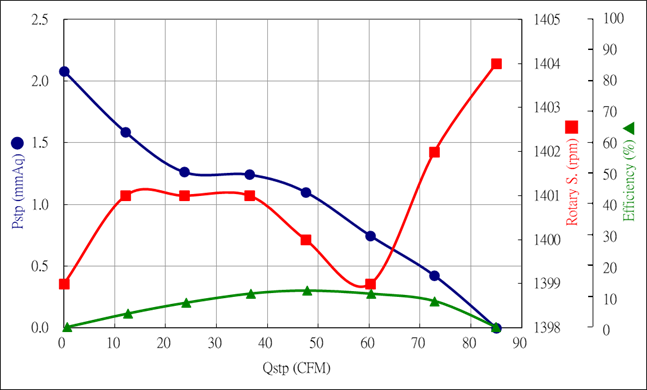

PQ Chart 90% Speed

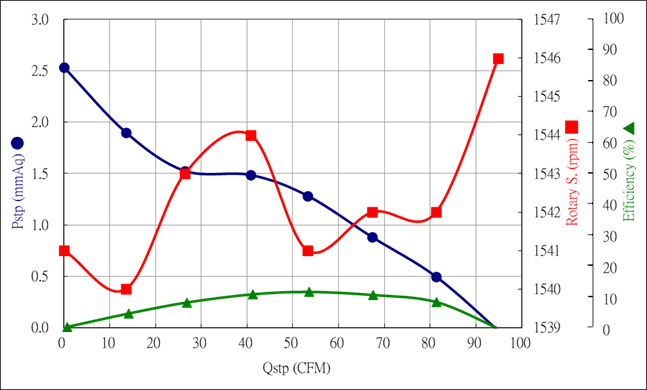

PQ Chart 100% Speed
General Performance

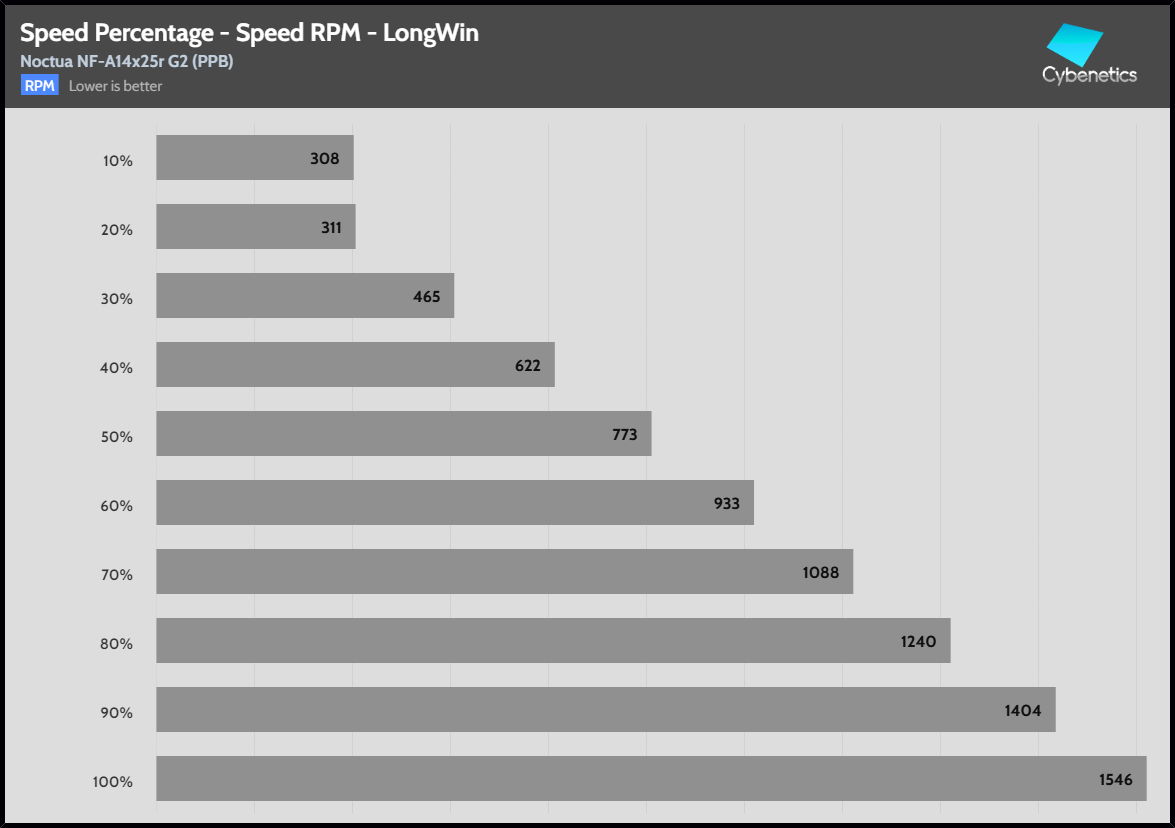

Fan Percentage RPM LongWin

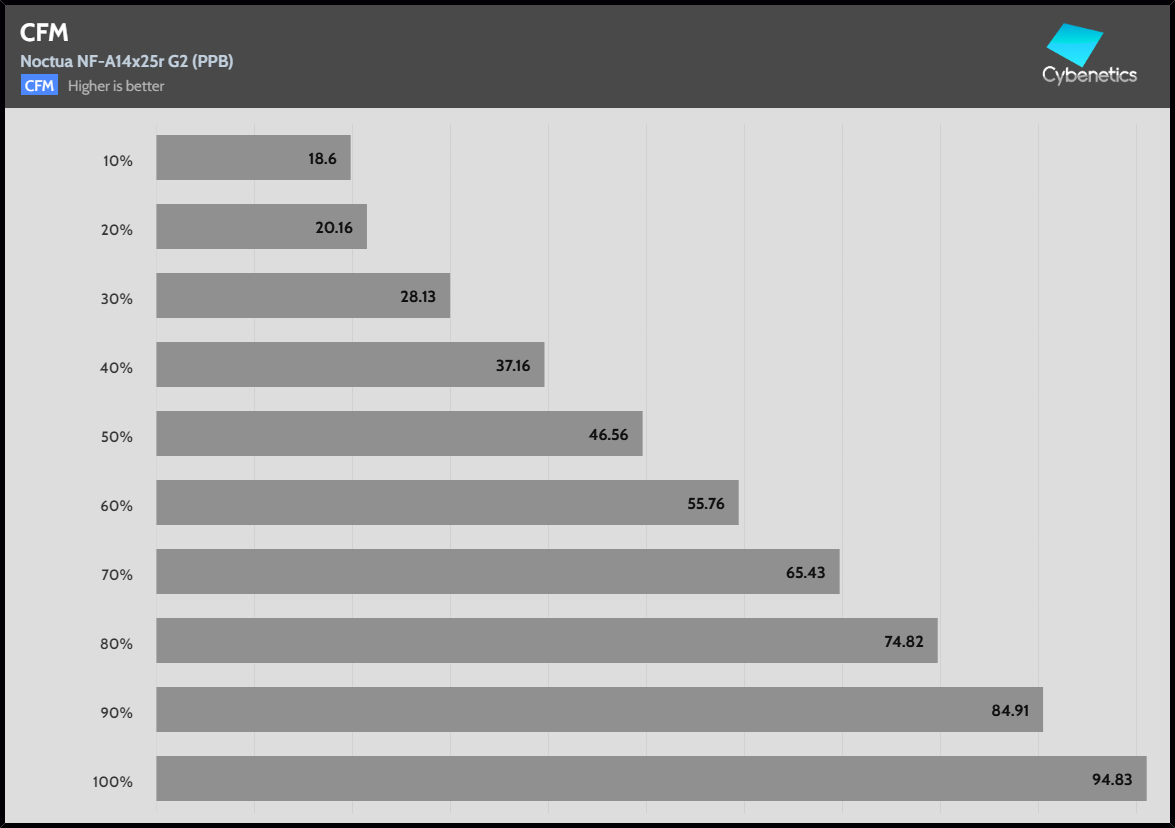

Fan Percentage CFM

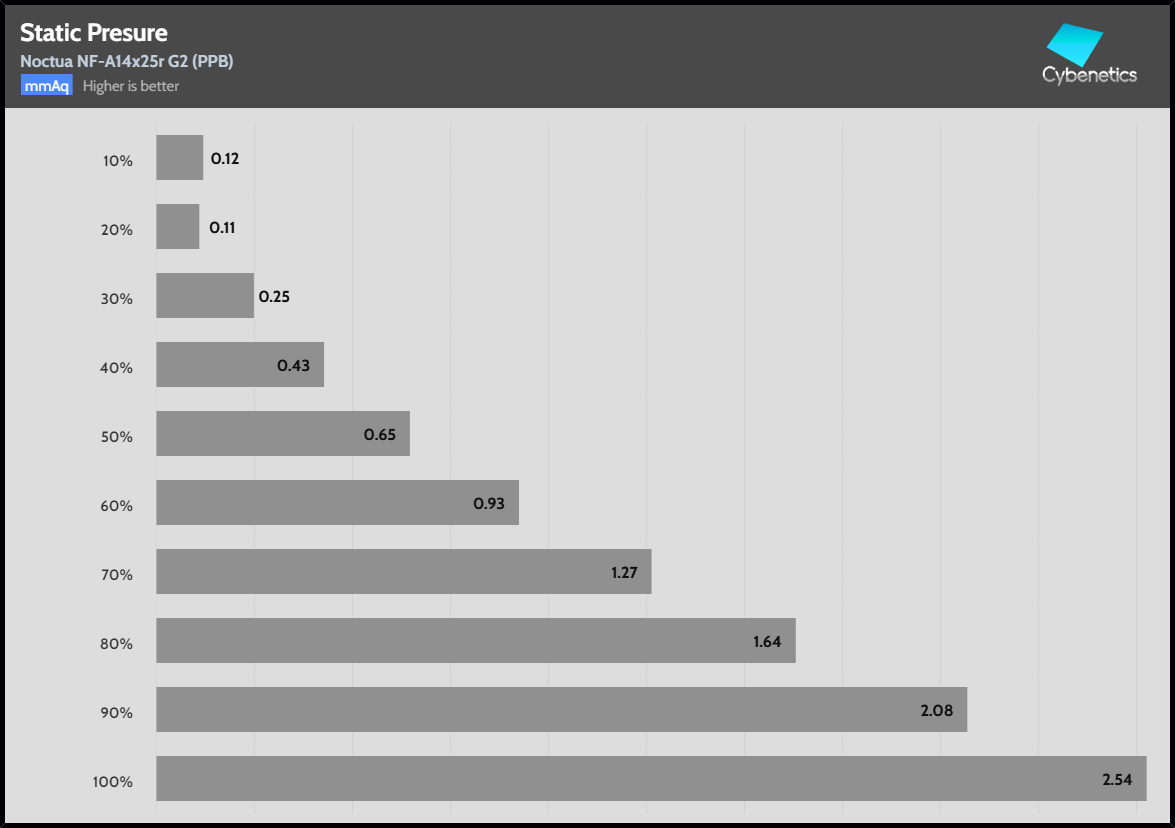

Fan Percentage Pressure

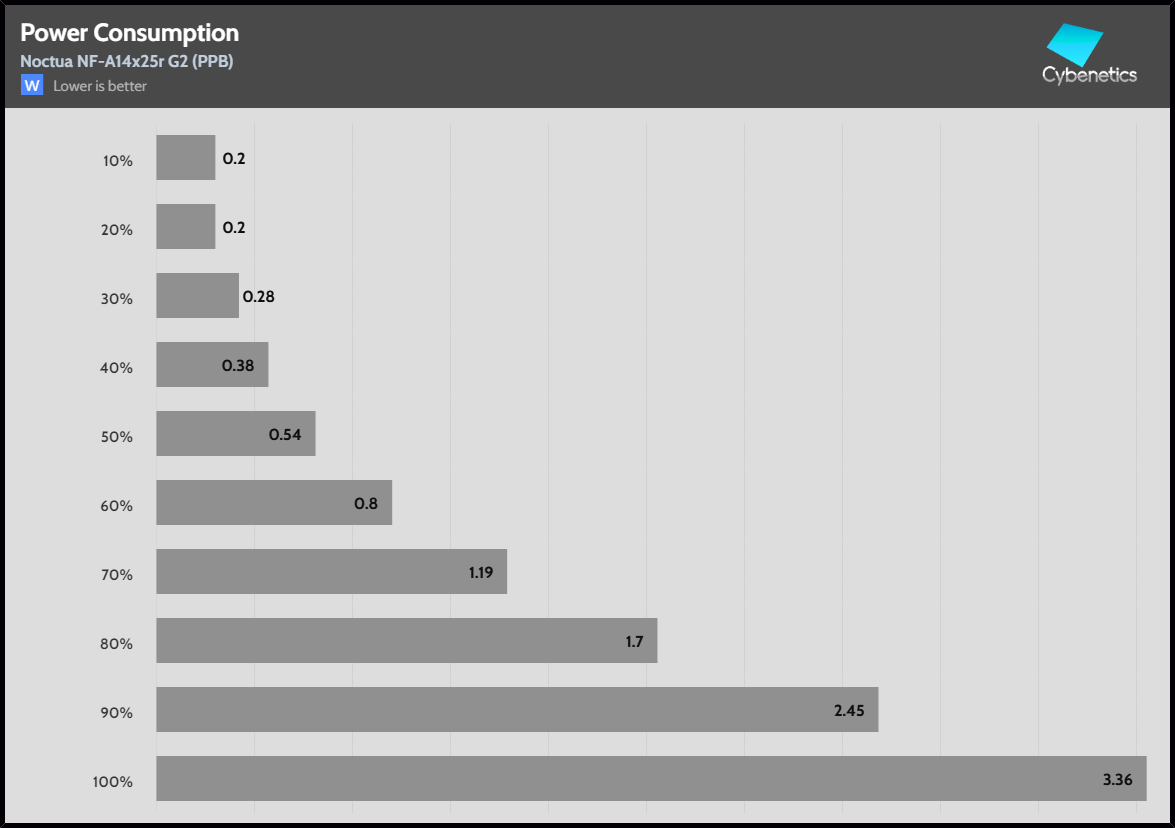

Fan Percentage Power

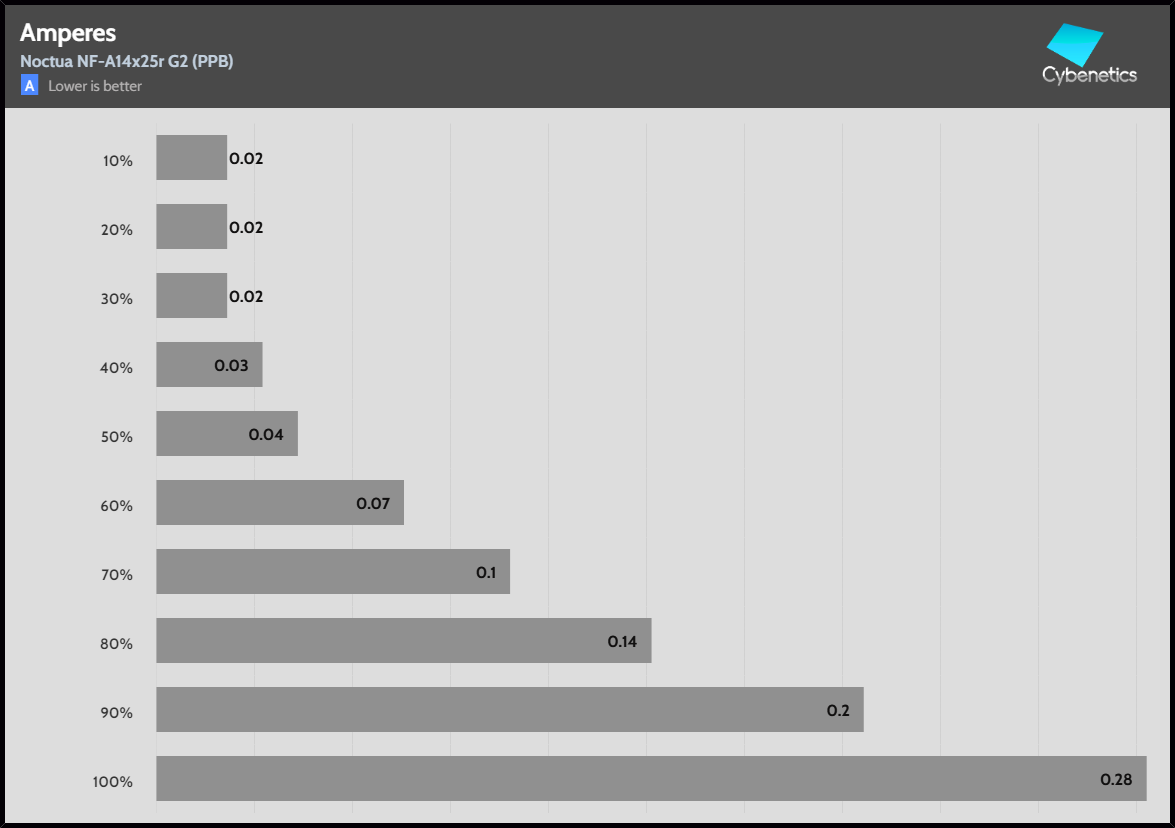

Fan Percentage Amps

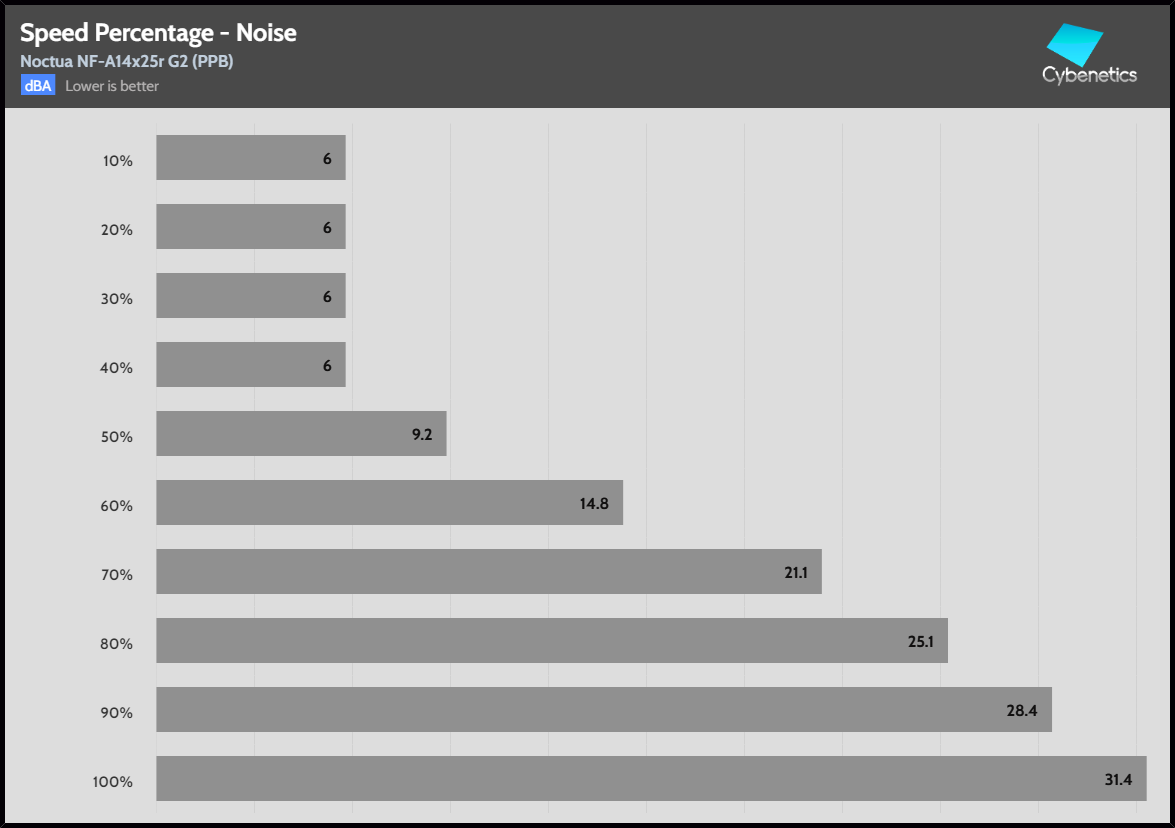

Fan Percentage Noise

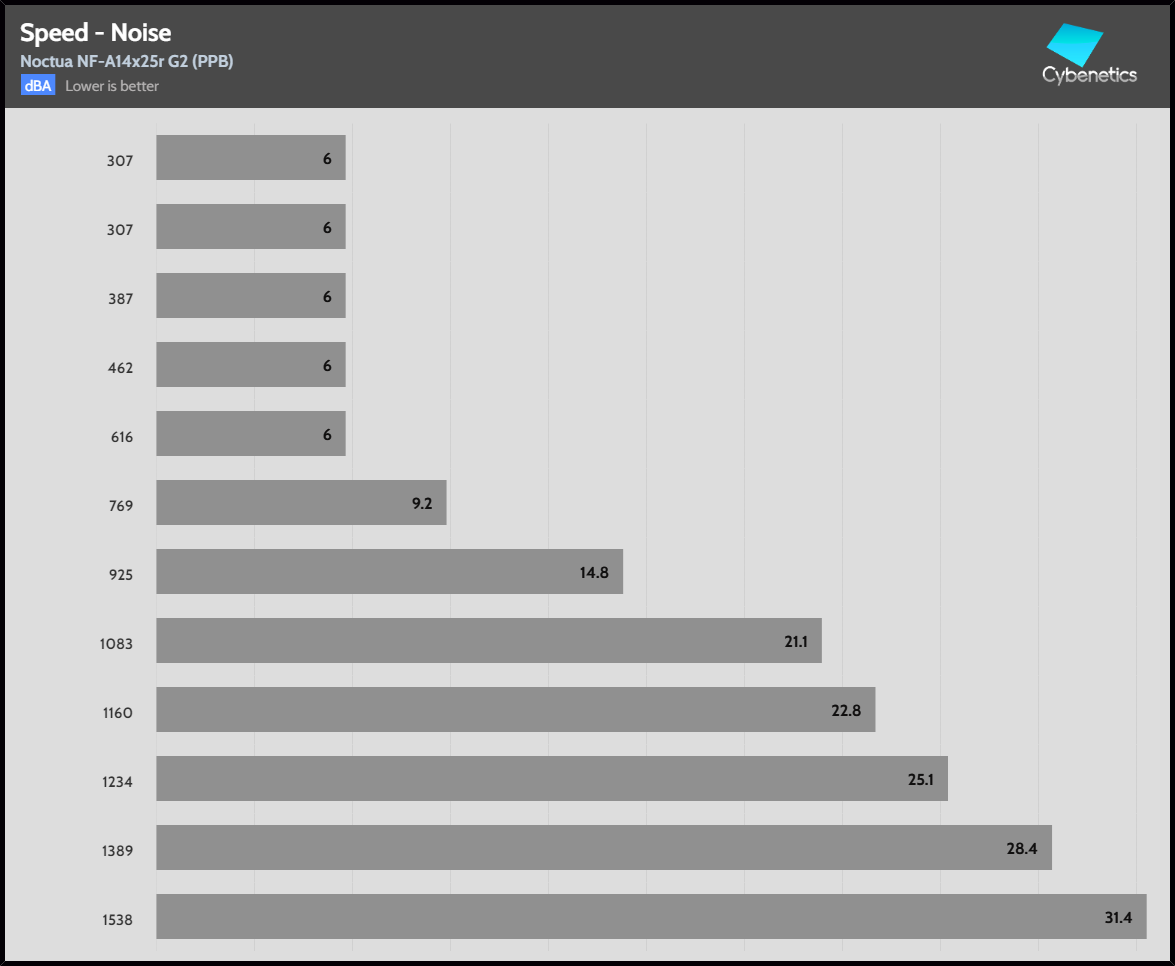

Fan Speed Noise

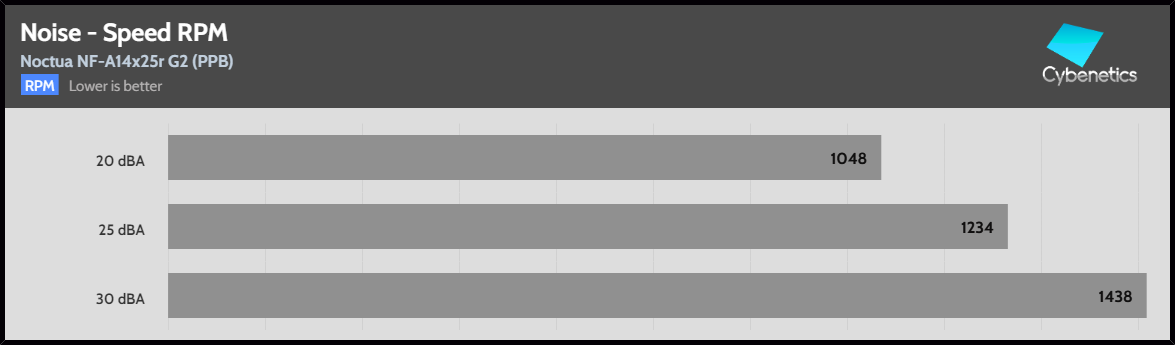

Fan Noise Speed
Noctua NF-A14x25r G2 (PPB)
Front
Rear
