SECTION B: Fan Testing Instrument Technical Specifications
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
SECTION C: PHI Performance Levels
Pressure at 25dBA
P (mmAq)
0.98
Airflow at 25dBA
Q (CFM)
53.78
SECTION D: Information about DUT
Product Identification Details
Brand
Thermalright
Model
TL-C12B V2
Serial Number
-
Product Specifications
Manufacturer
Bearing
Fluid Dynamic
Connector
PWM
Cable length (mm)
205
Daisy-chain
None
RGB Connector
None
RGB Daisy-chain
None
Cybenetics
Max Speed (RPM)
1548
Max Airflow (CFM)
66.49
Max Static Pressure (mmAq)
1.38
Max Fan Noise Level (dBA)
30.00
Fan Max Current (A)
0.12
Fan Weight (gr)
147
Dimensions (W x H x D)
120mm x 120mm x 25mm
Cybenetics Testing Information
Lab ID
TR12000127
Date of receipt
Aug 11, 2024
Testing Date
Aug 28, 2024
Report Issued Date
Aug 28, 2024
Engineer Name
Georgios Theodoros Sarimpalas
SECTION E: Long Win LW-9266 - Pressure and Airflow

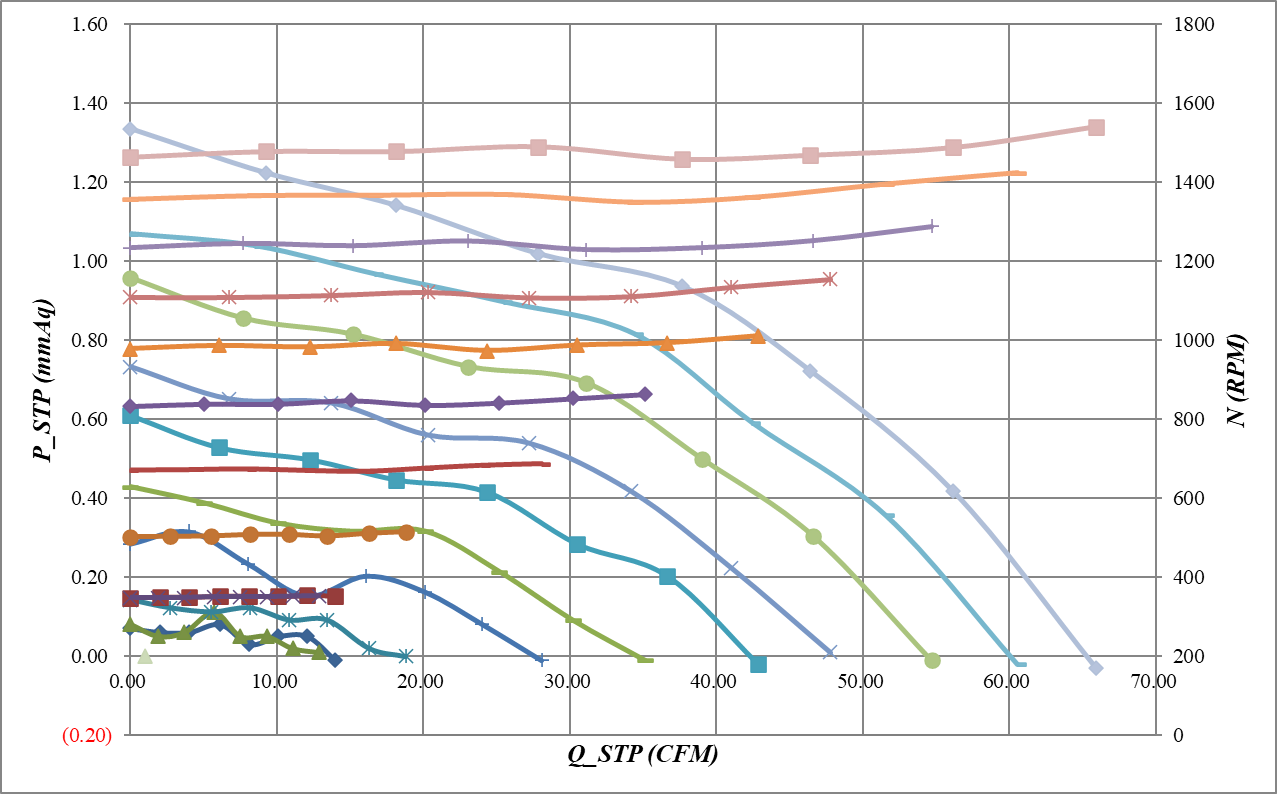

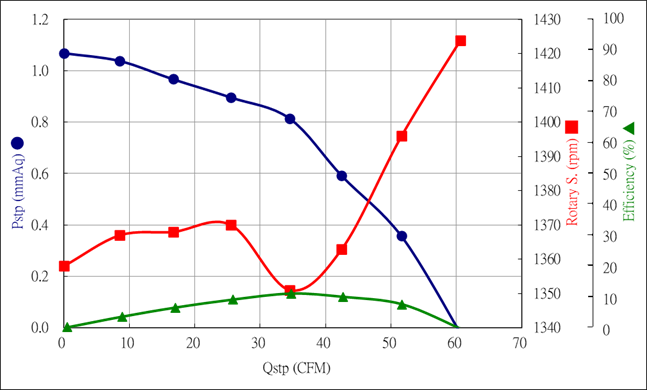

PQ Chart All Speed

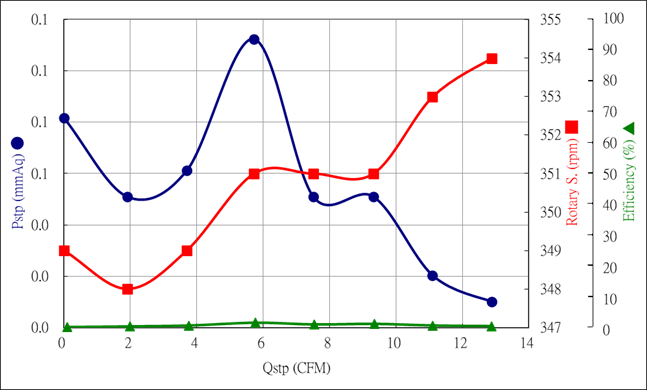

PQ Chart 20% Speed

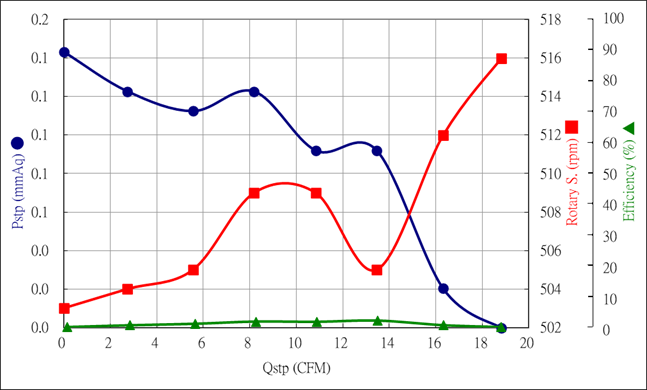

PQ Chart 30% Speed

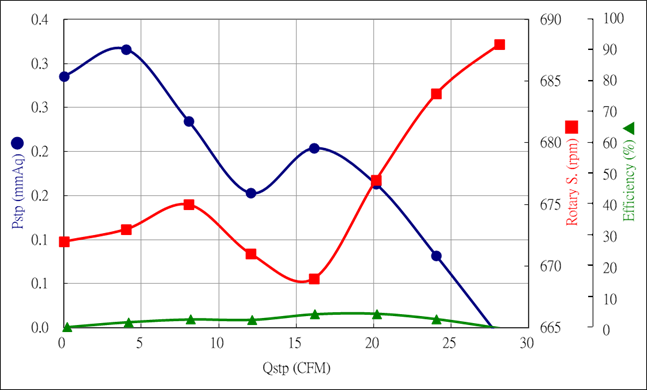

PQ Chart 40% Speed

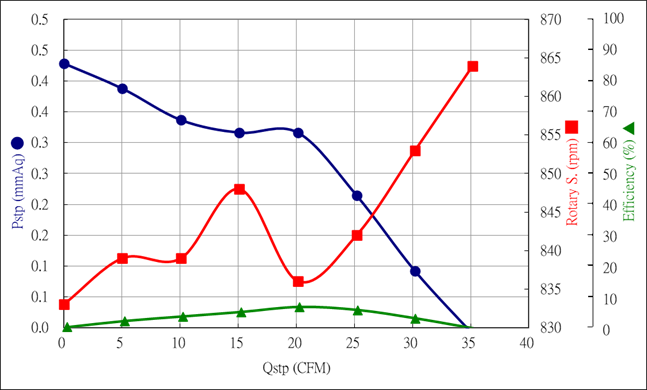

PQ Chart 50% Speed
PQ Chart 60% Speed

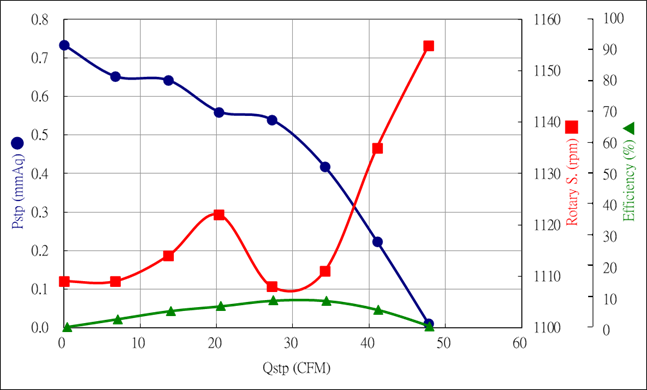

PQ Chart 70% Speed

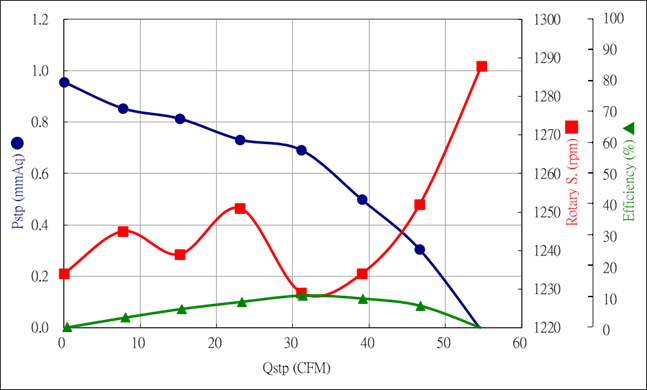

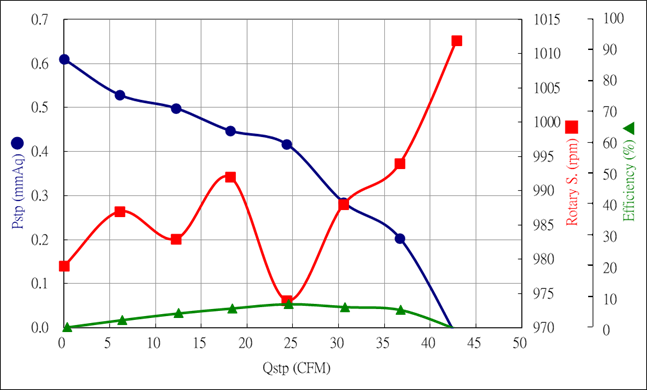

PQ Chart 80% Speed
PQ Chart 90% Speed

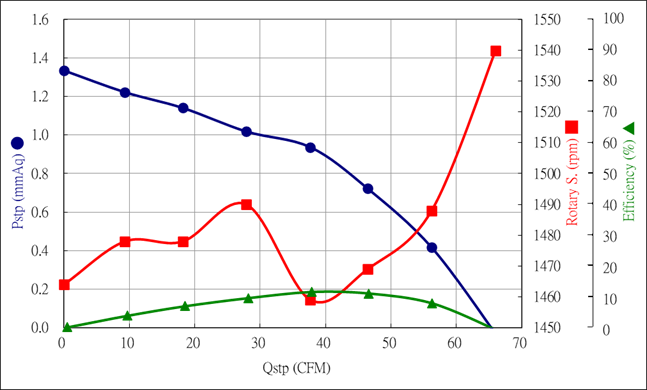

PQ Chart 100% Speed
SECTION F: General Performance

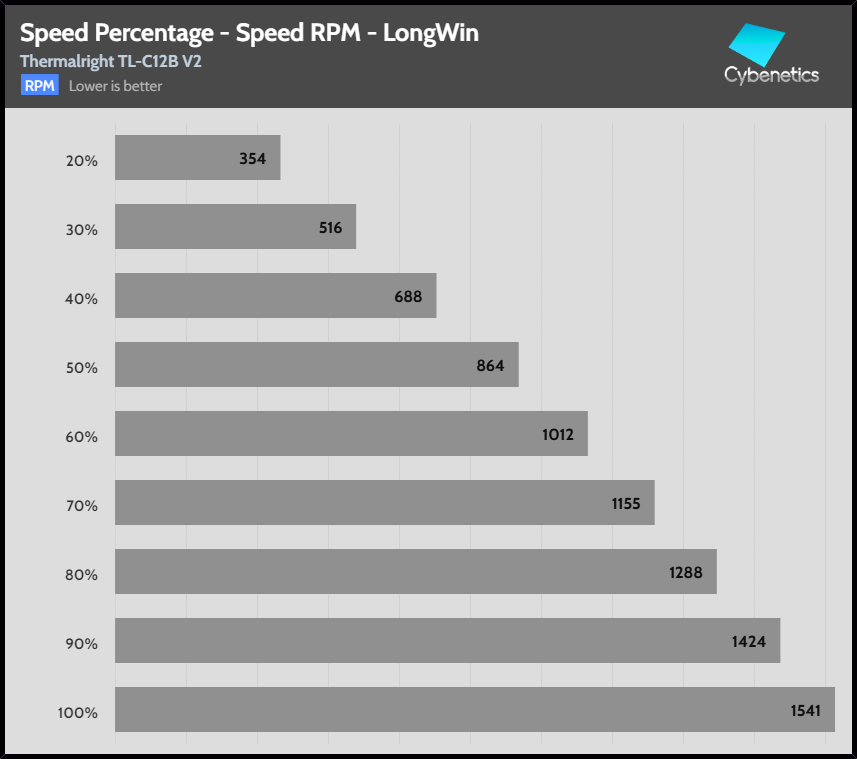

Fan Percentage RPM LongWin

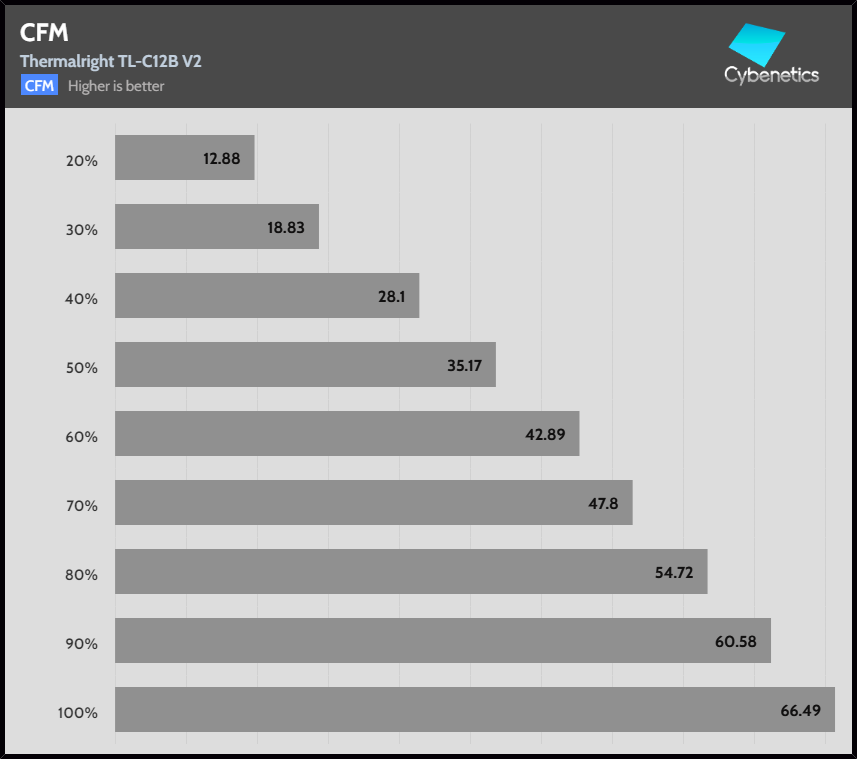

Fan Percentage CFM

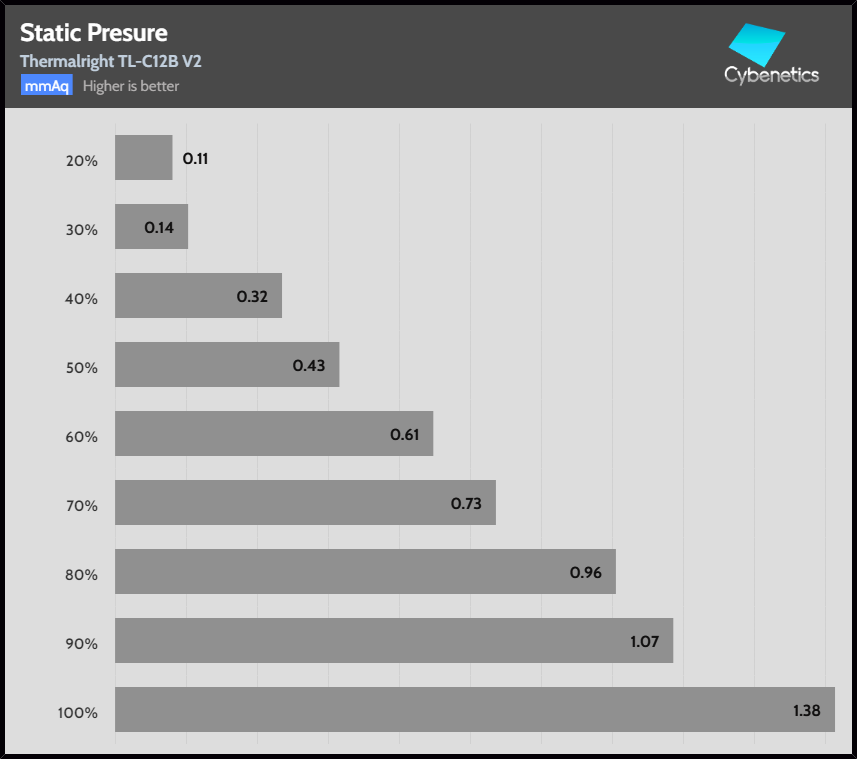

Fan Percentage Pressure

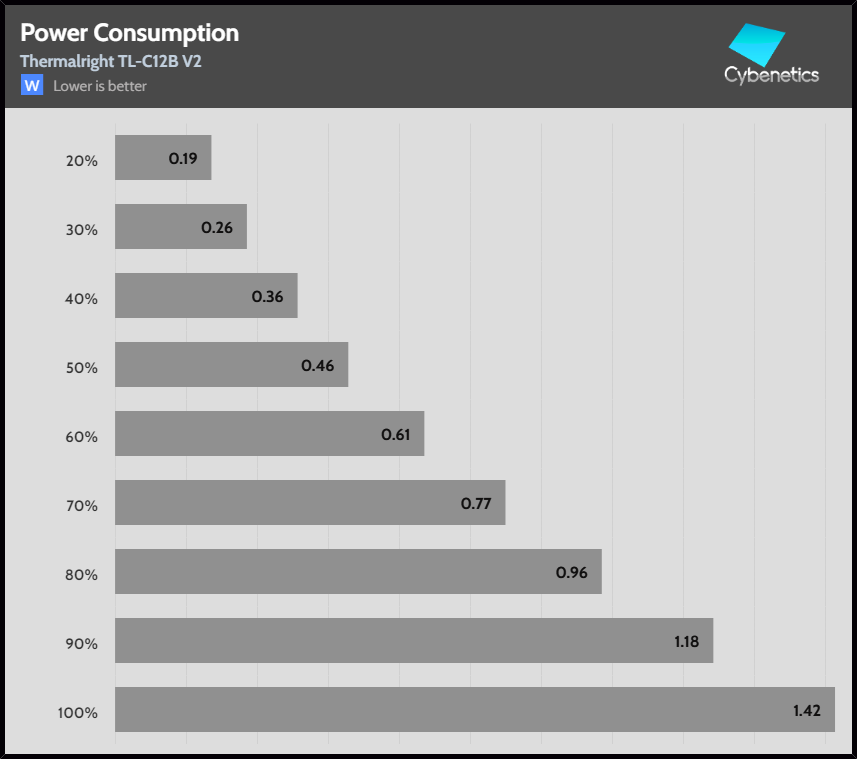

Fan Percentage Power

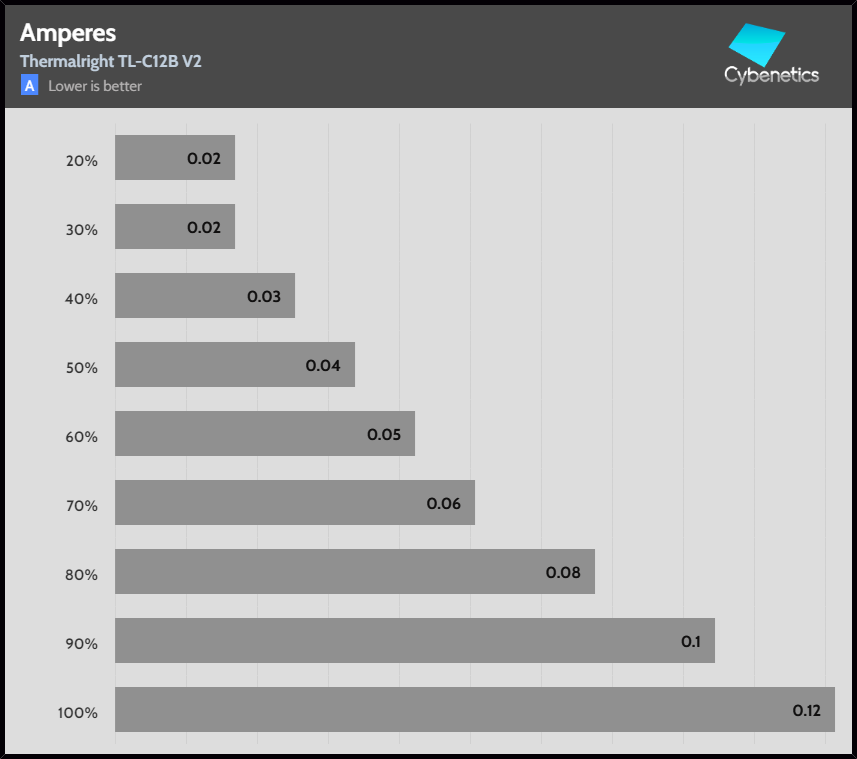

Fan Percentage Amps

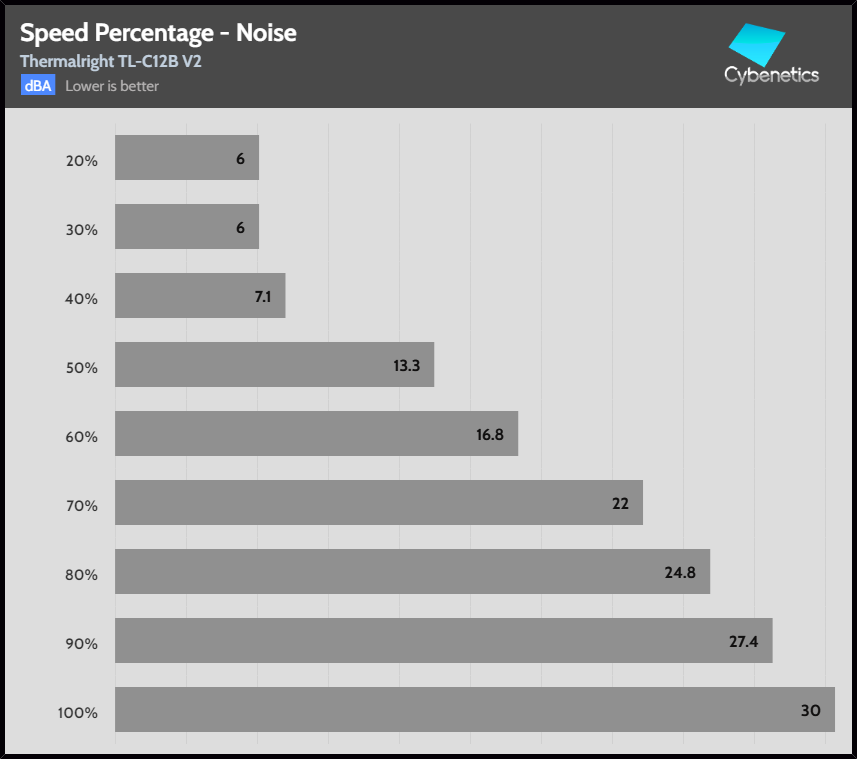

Fan Percentage Noise

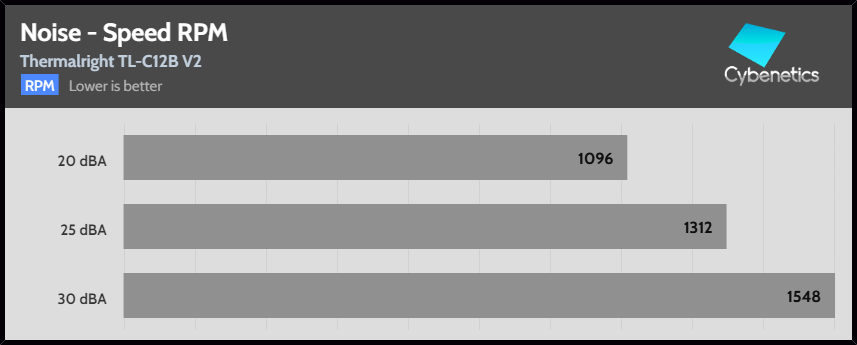

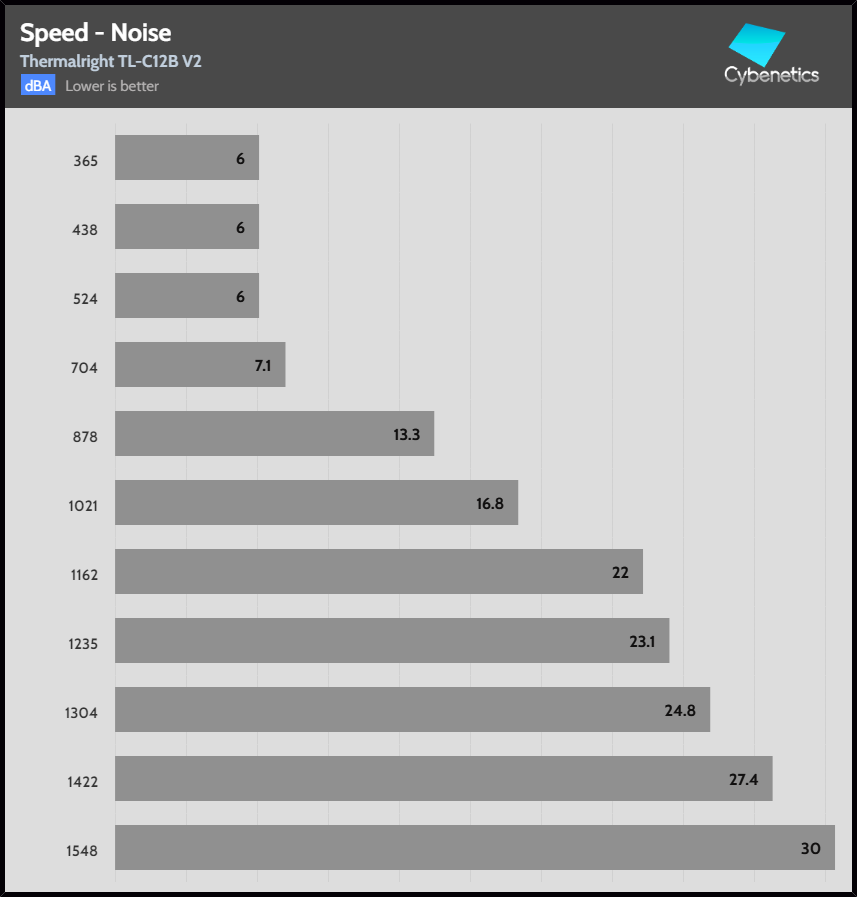

Fan Speed Noise
Fan Noise Speed
SECTION G: Uncertainty
Fan Performance - Static Pressure
The Fan Static Pressure Measurement’s Uncertainty is ±0.68 Pa
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
Static Pressure Uncertainty Budget
Source of Uncertainty
Standard Uncertainty, u(xi) (Pa)
LW-9266 Instrument Accuracy
0.260
Repeatability
0.075
Calibration
0.012
Temperature influence
0.208
Relative Combined Standard Uncertainty (RSS):
0.34
% Expanded Uncertainty U (k=2, norm):
0.68
Fan Performance - Airflow
The Fan Airflow Measurement’s Uncertainty is ±3.94 CFM
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
Fan Airflow Uncertainty Budget
Source of Uncertainty
Standard Uncertainty, u(xi) (CFM)
Repeatability
1.750
LW-9266 calibration
0.600
Environmental variation
0.500
Position error
0.482
Relative Combined Standard Uncertainty (RSS):
1.97
% Expanded Uncertainty U (k=2, norm):
3.94

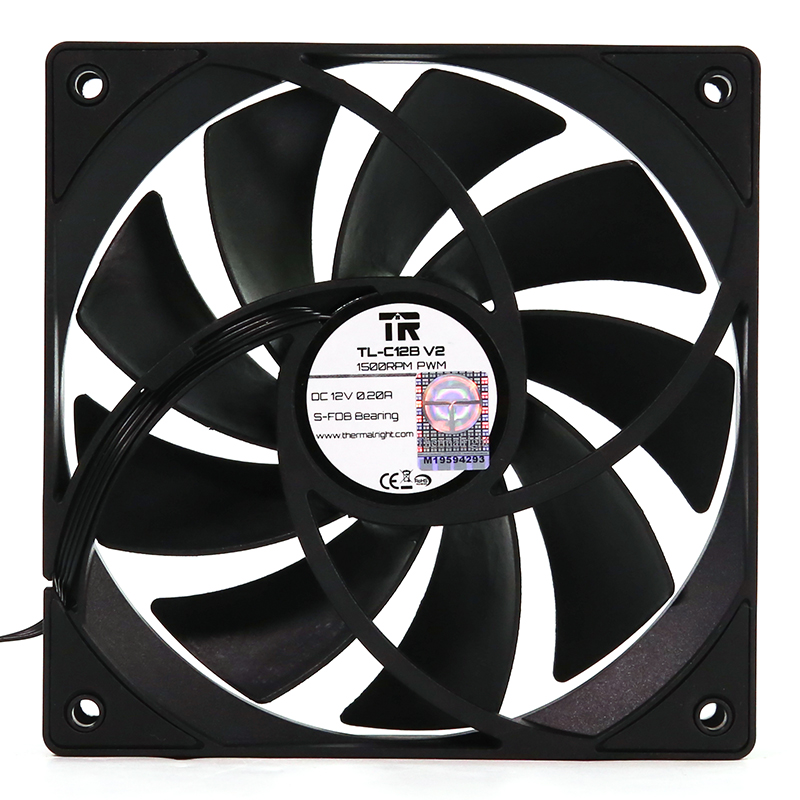

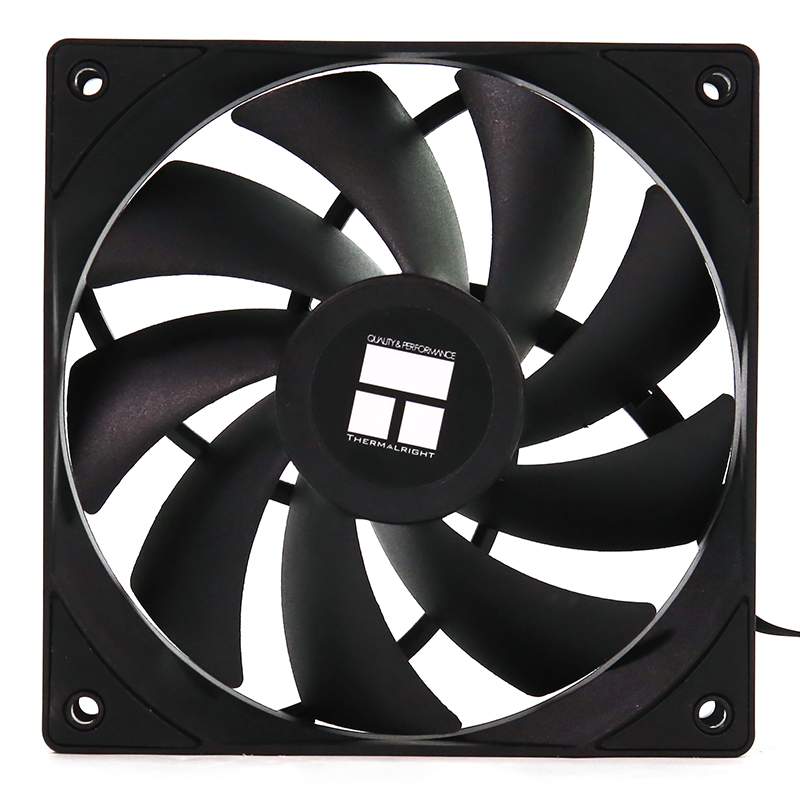

Thermalright TL-C12B V2
Front
Rear
