HYTE Flow FE12
English
Deutsch
繁體中文
简体中文
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
HYTE Flow FE12
Serial Number
Lab ID
HY12000163
Certification ID
FN25163
Test Result Report ID: 25FN163A
Certificate Issue Date:
Mar 10, 2025
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Certification Body General Manager
General Information
Fan Testing Instrument Technical Specifications
tech-specs
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
Test Equipment
test-equip
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
tech-specs2
Brand
HYTE
Modell
Flow FE12
Max Speed (RPM)
1421
Max Airflow (CFM)
52.28
Max Static Pressure (mmAq)
0.98
Max Fan Noise Level (dBA)
28.40
Fan Bearing Type
Fluid Dynamic
Fan Connector
3-Pin
Fan Max Current (A)
0.21
Fan Weight (gr)
155
Dimensions (W x H x D)
120x120x25
Fan daisy-chain connector
✗
Cable length (mm)
615
Pressure and Airflow
PWM

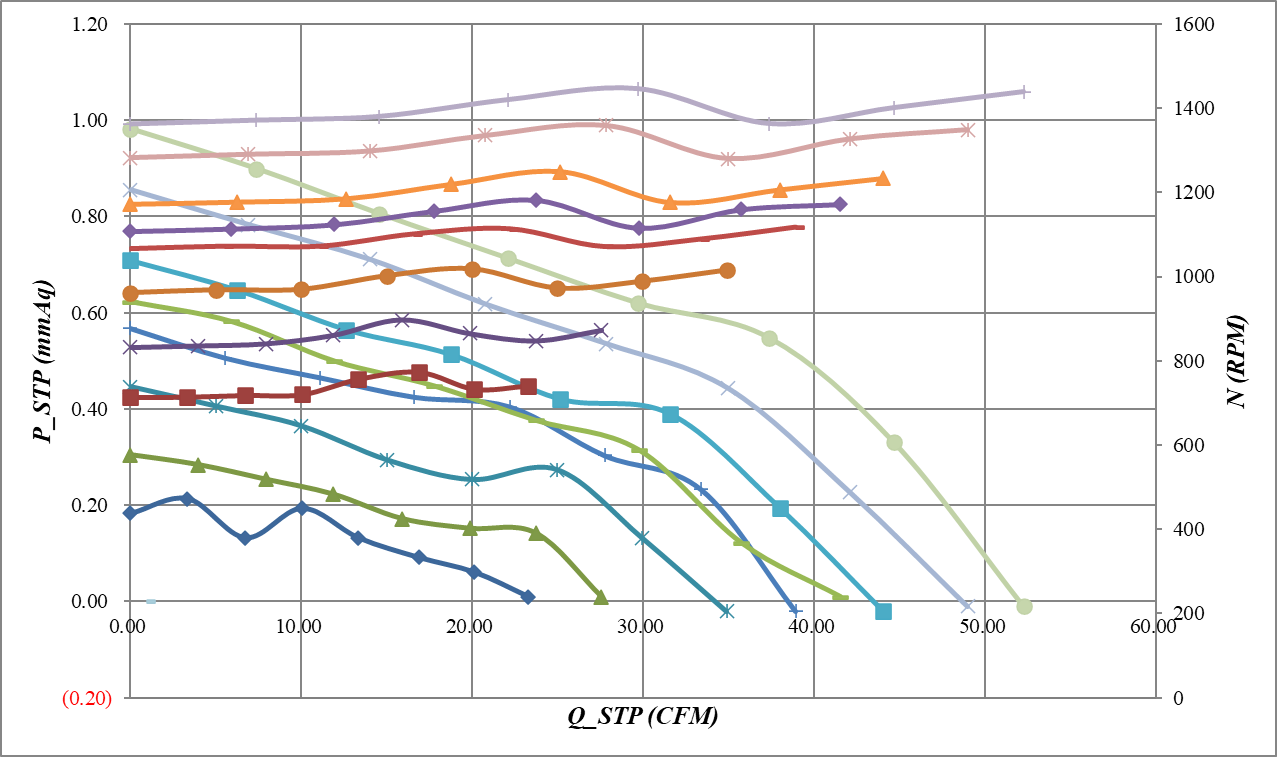

PQ Chart All Speed

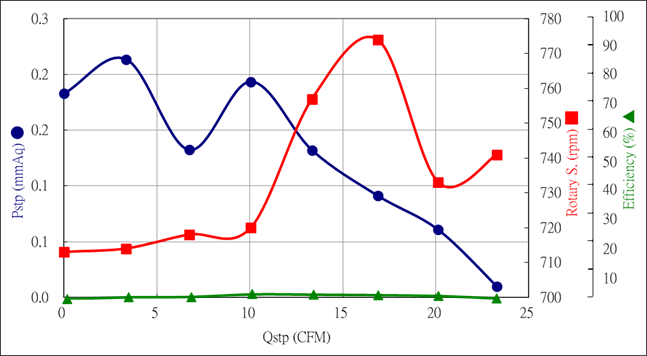

PQ Chart 40% Speed

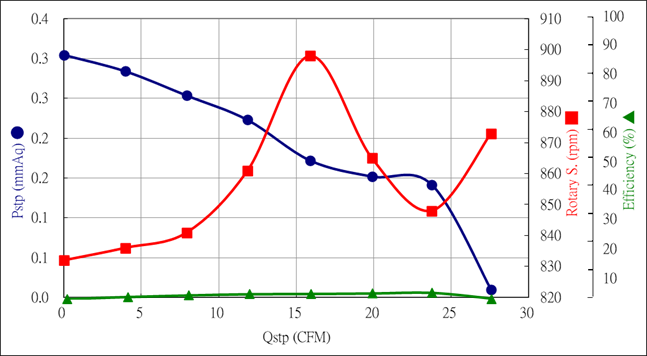

PQ Chart 50% Speed

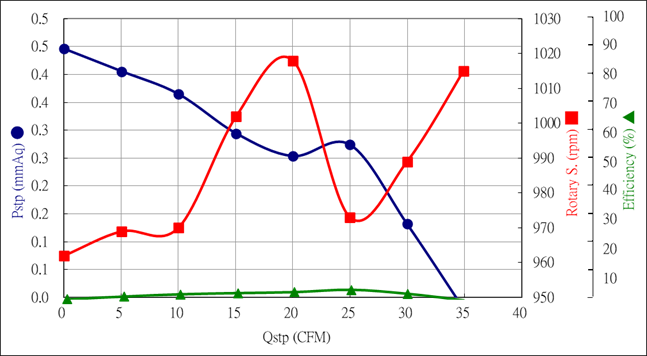

PQ Chart 60% Speed

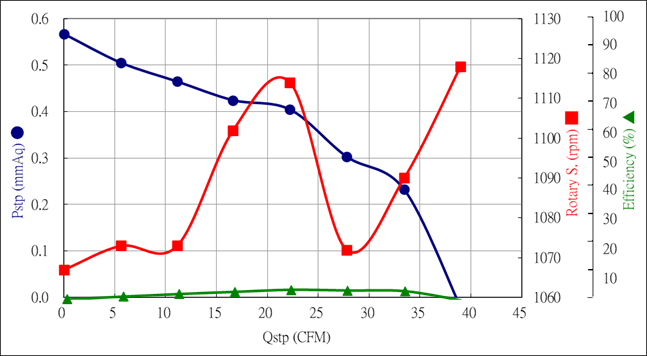

PQ Chart 70% Speed

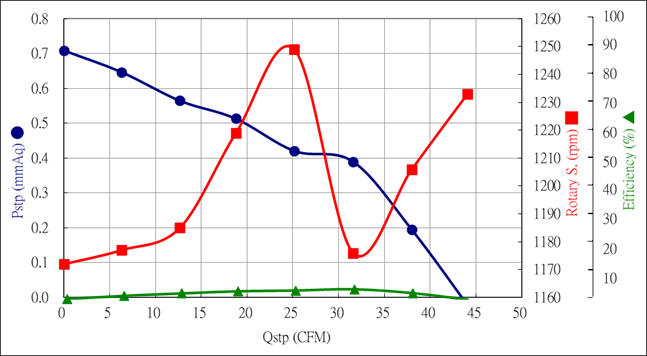

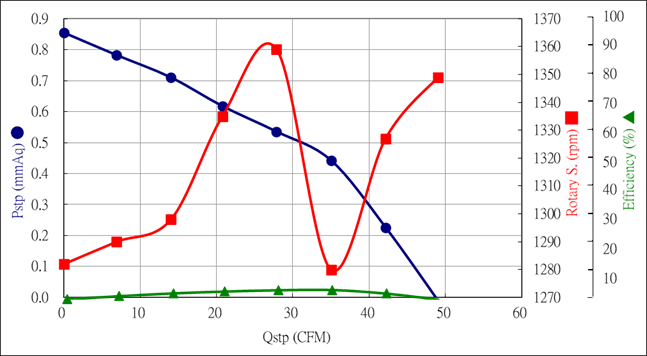

PQ Chart 90% Speed
PQ Chart 100% Speed
General Performance
WTF

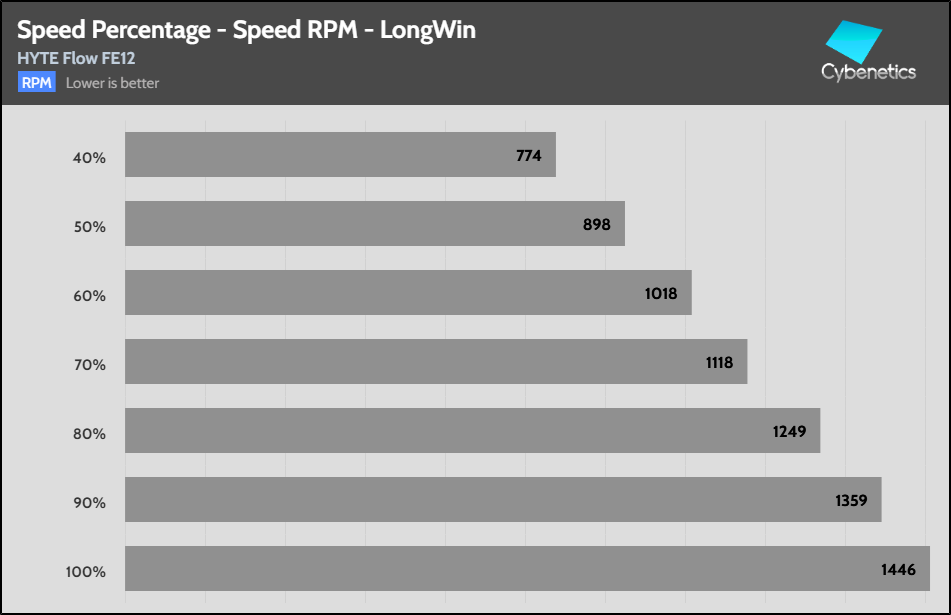

Fan Percentage RPM LongWin

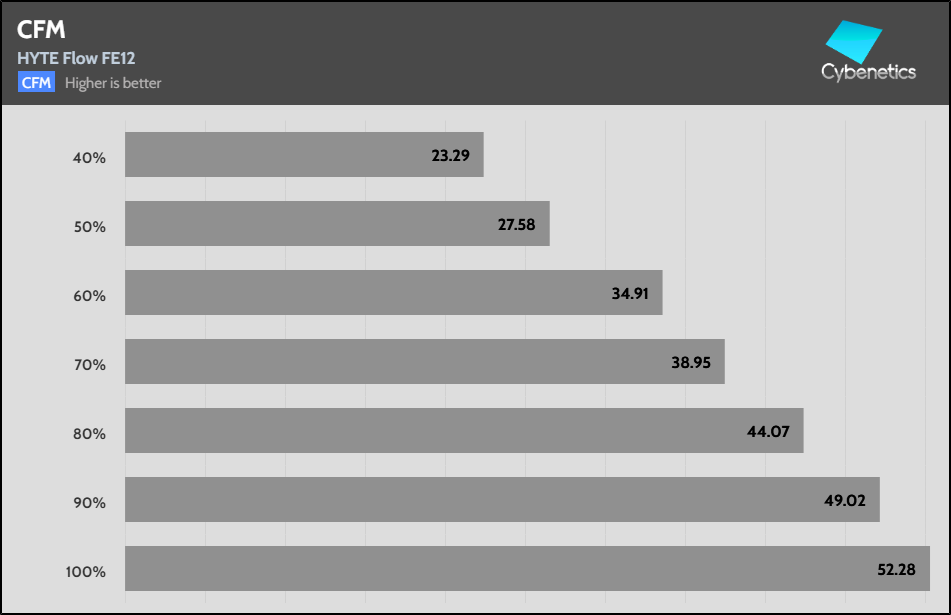

Fan Percentage CFM

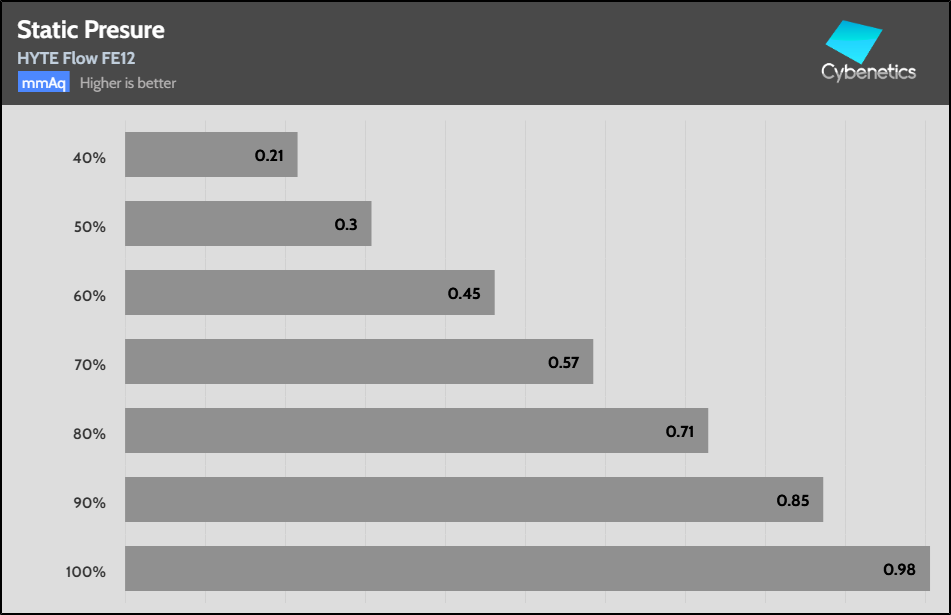

Fan Percentage Pressure

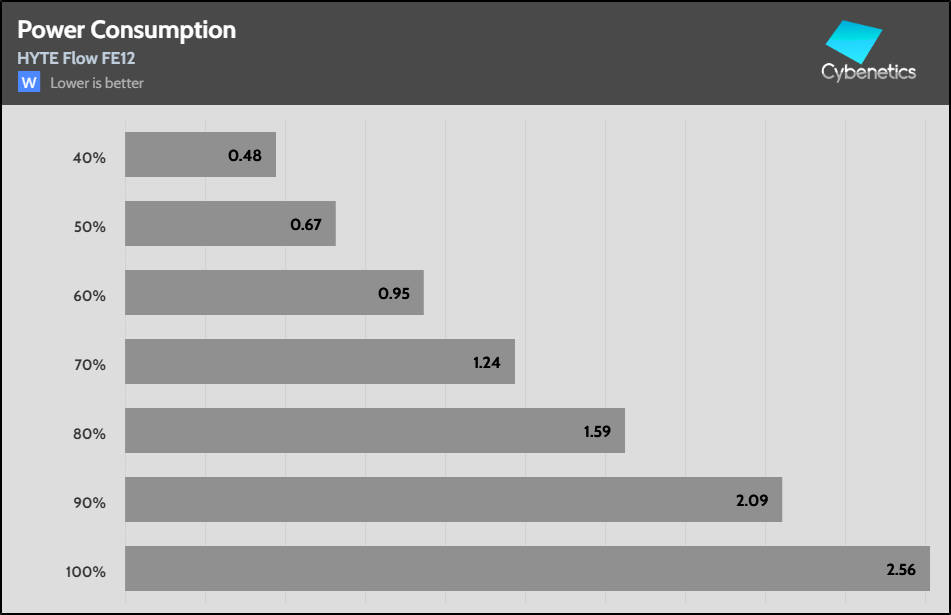

Fan Percentage Power

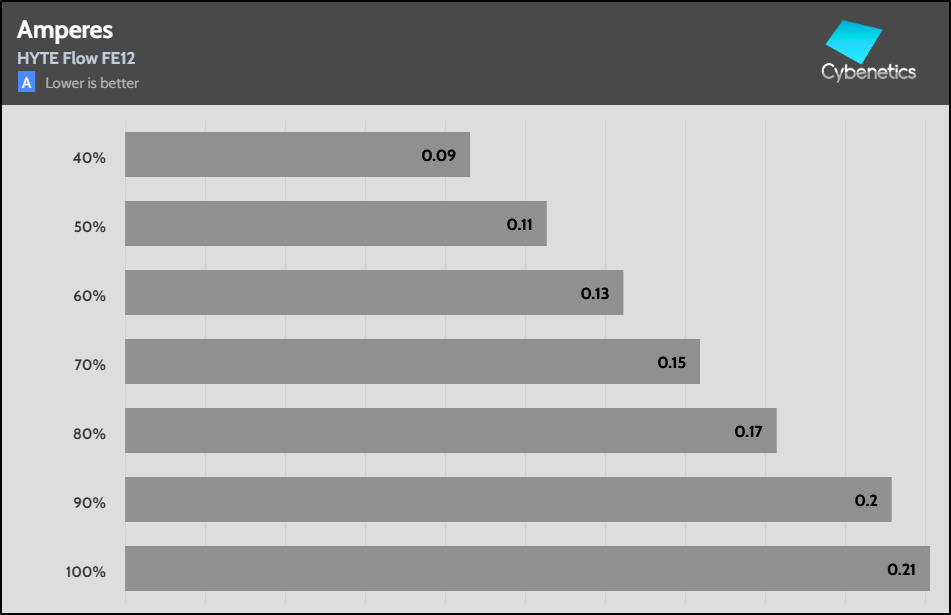

Fan Percentage Amps

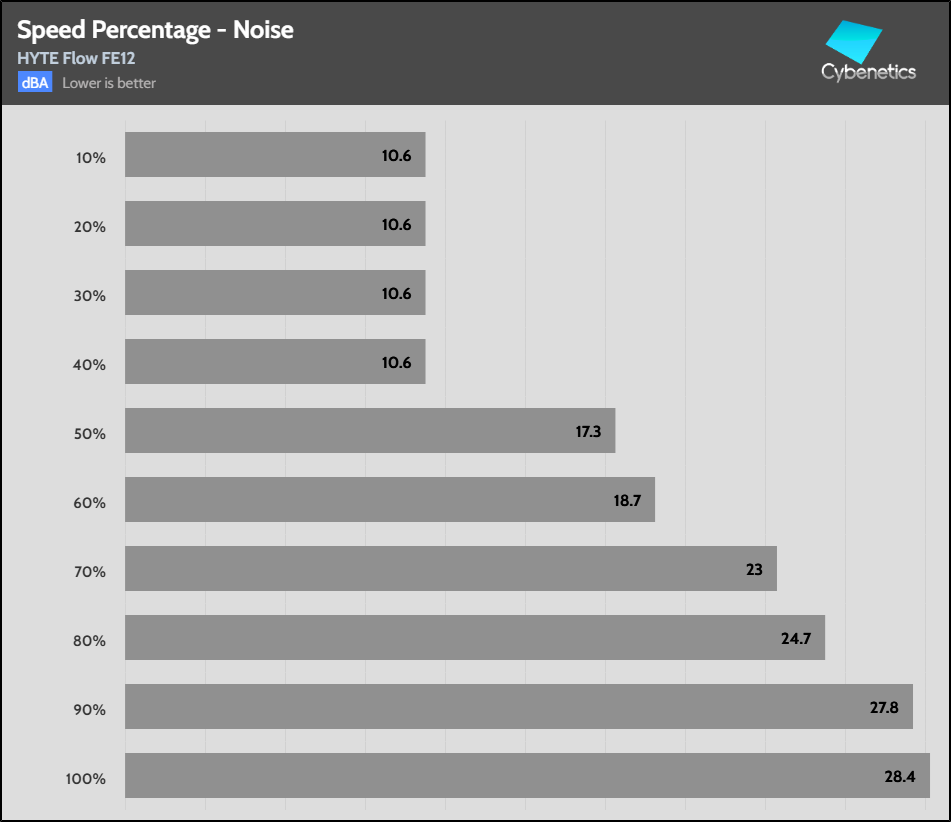

Fan Percentage Noise

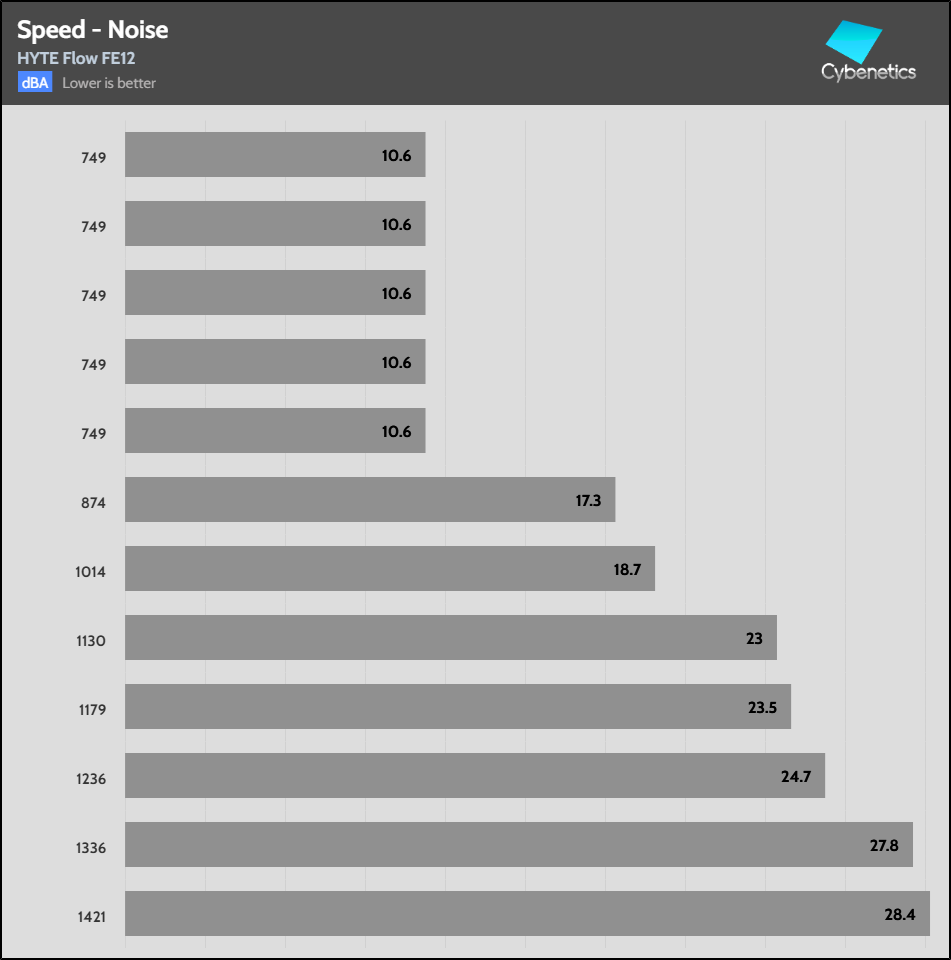

Fan Speed Noise

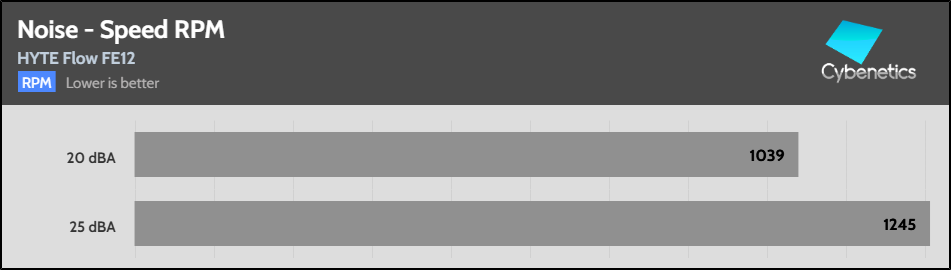

Fan Noise Speed
HYTE Flow FE12
Front

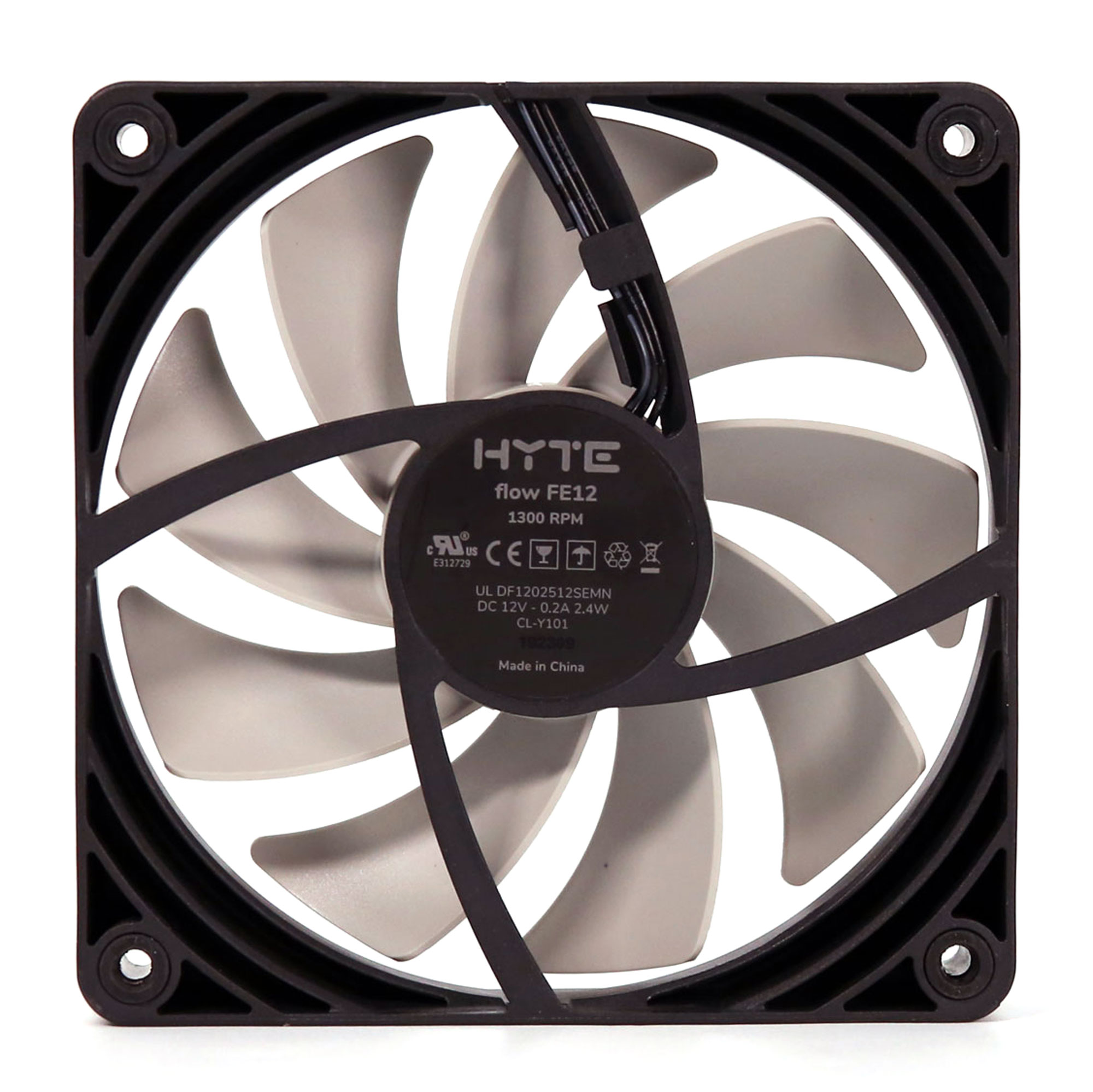

Rear
