Ocypus DF1202512CM (0.15A)
Serial Number
Lab IDCY12000166
Certification IDFN25166
  • Test Result Report ID: 25FN166A
  • Certificate Issue Date: Mar 11, 2025
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

BrandOcypus
型號DF1202512CM (0.15A)
Max Speed (RPM)1092
Max Airflow (CFM)26.34
Max Static Pressure (mmAq)0.52
Max Fan Noise Level (dBA)18.90
Fan Bearing TypeFluid Dynamic
Fan ConnectorPWM
Fan Max Current (A)0.05
Fan Weight (gr)162
Dimensions (W x H x D)120x120x25
Fan daisy-chain connector✗
Cable length (mm)675

Pressure and Airflow

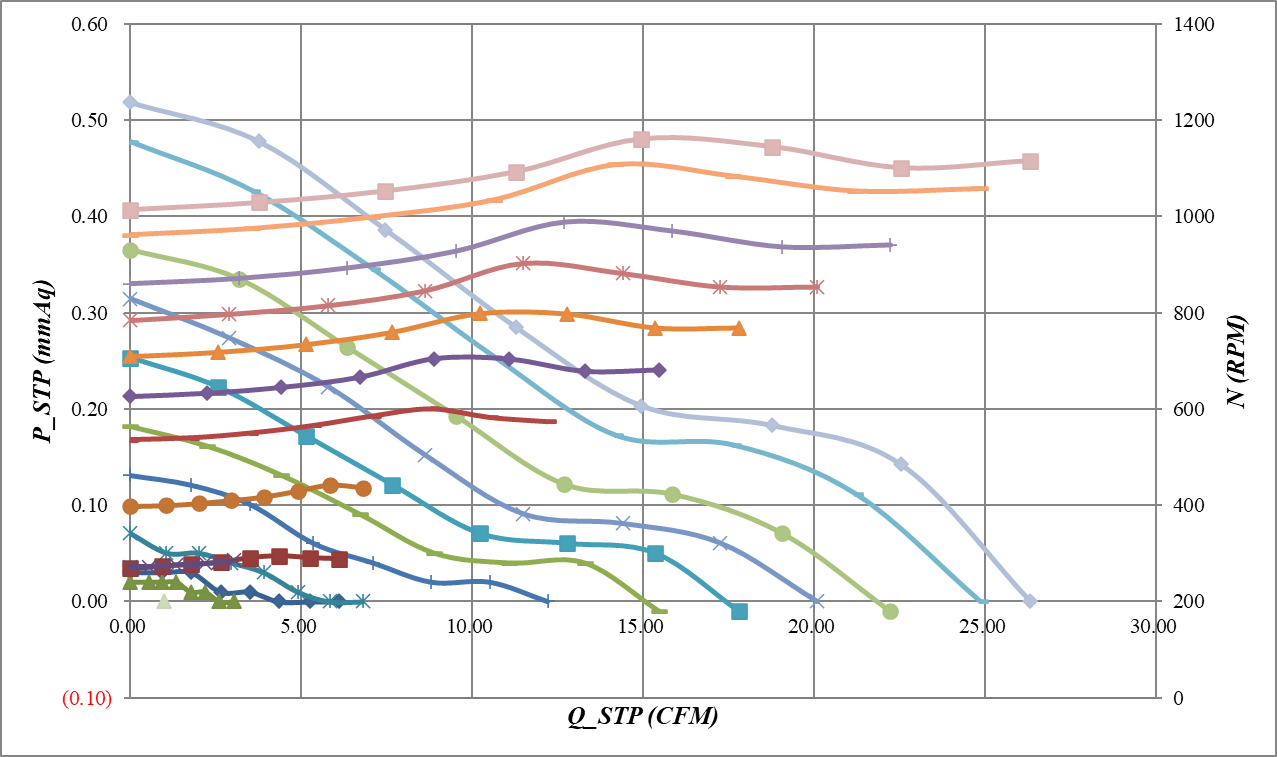

PQ Chart All Speed

PQ Chart 10% Speed

PQ Chart 30% Speed

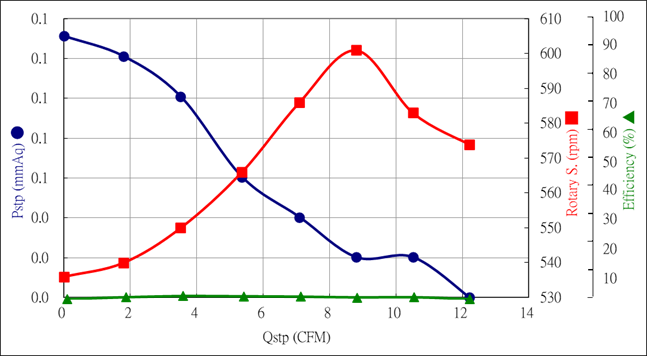

PQ Chart 40% Speed

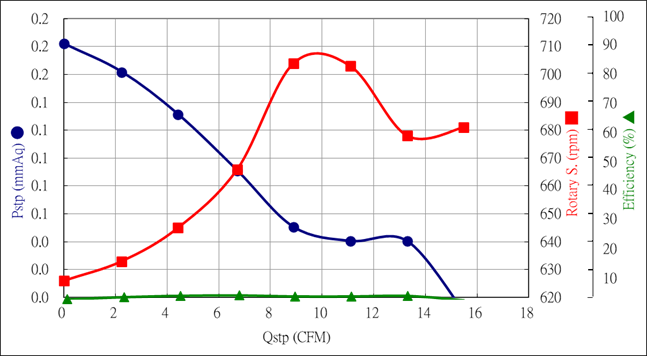

PQ Chart 50% Speed

PQ Chart 70% Speed

PQ Chart 90% Speed

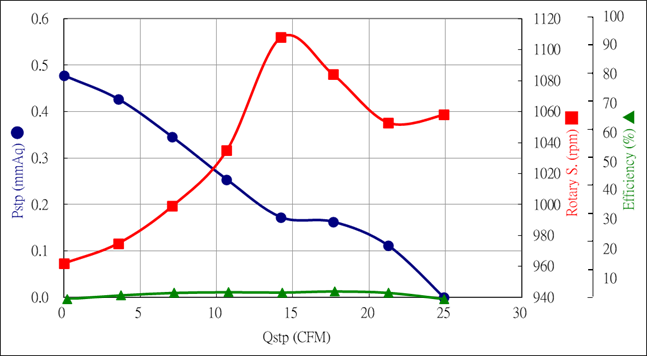

PQ Chart 100% Speed

General Performance

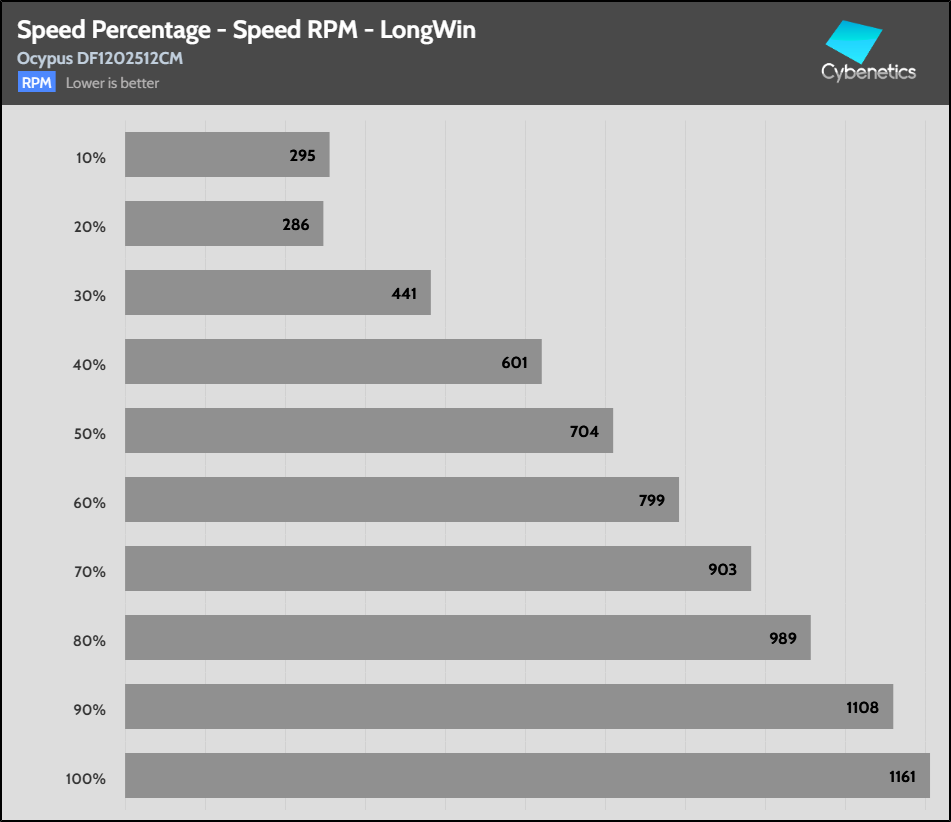

Fan Percentage RPM LongWin

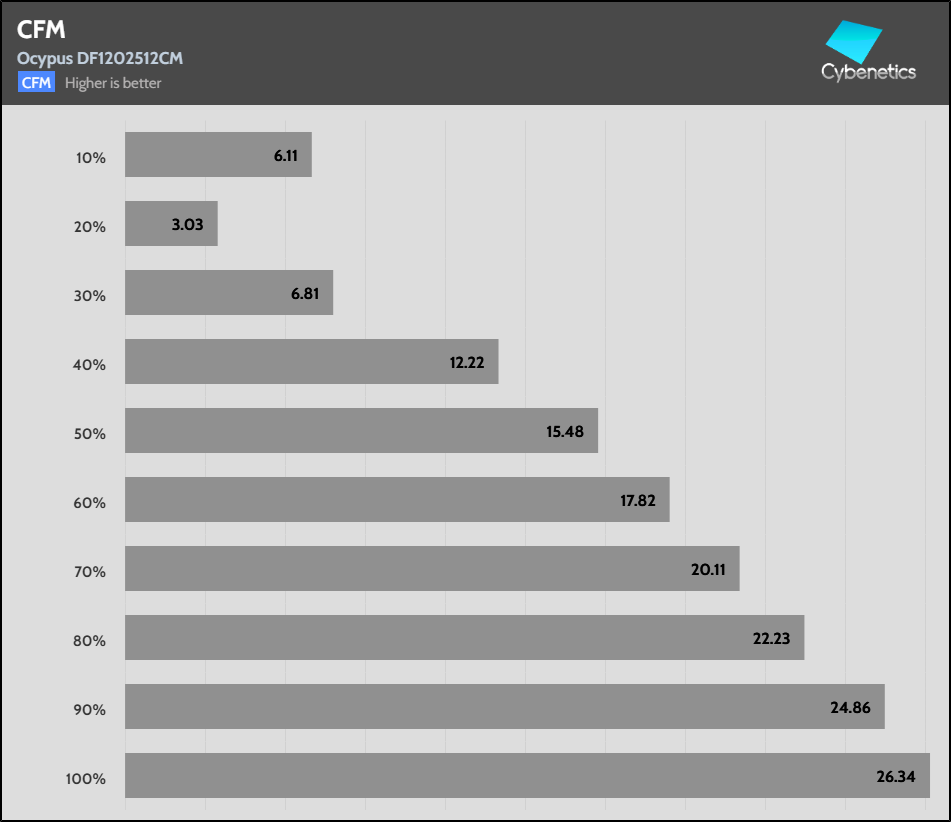

Fan Percentage CFM

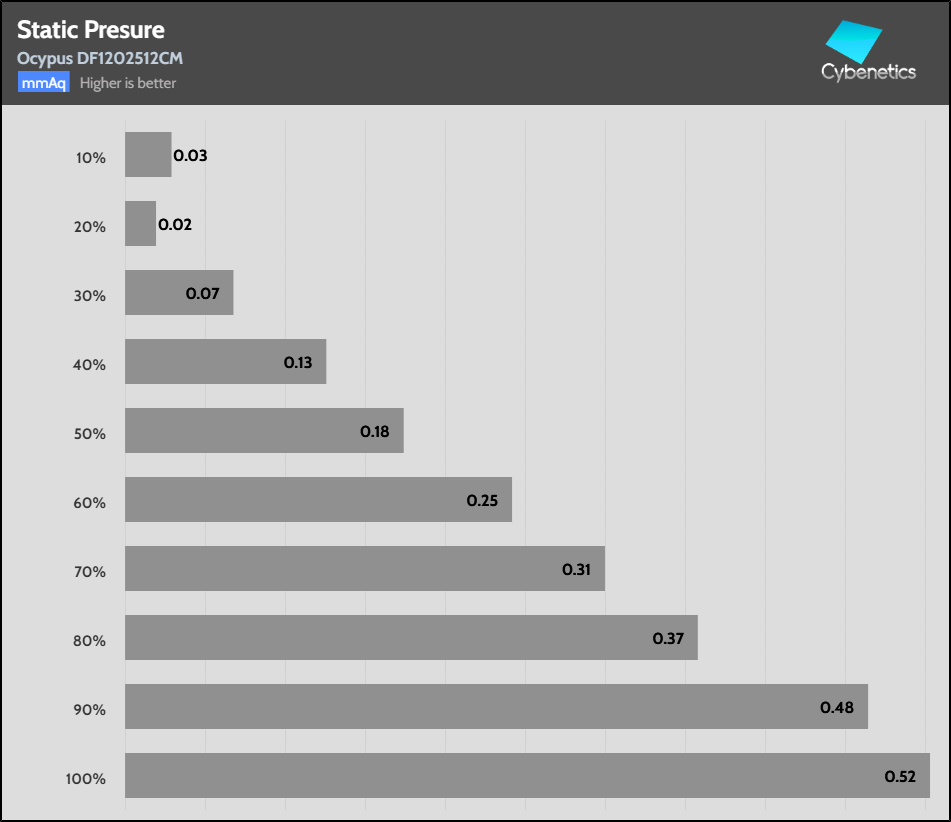

Fan Percentage Pressure

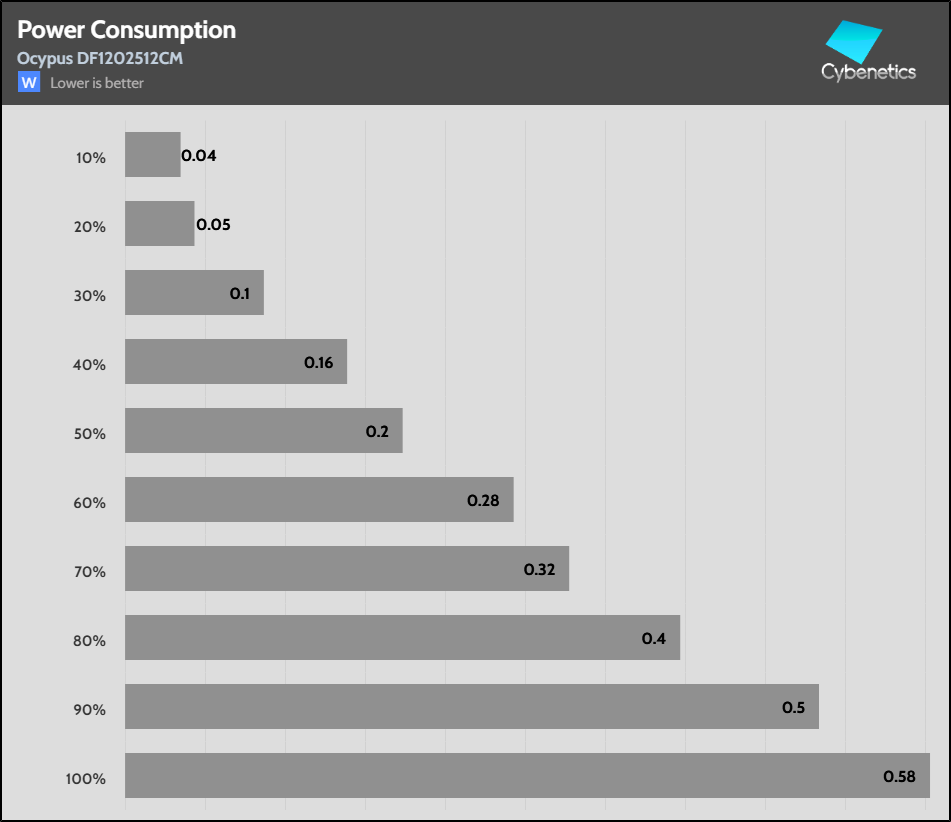

Fan Percentage Power

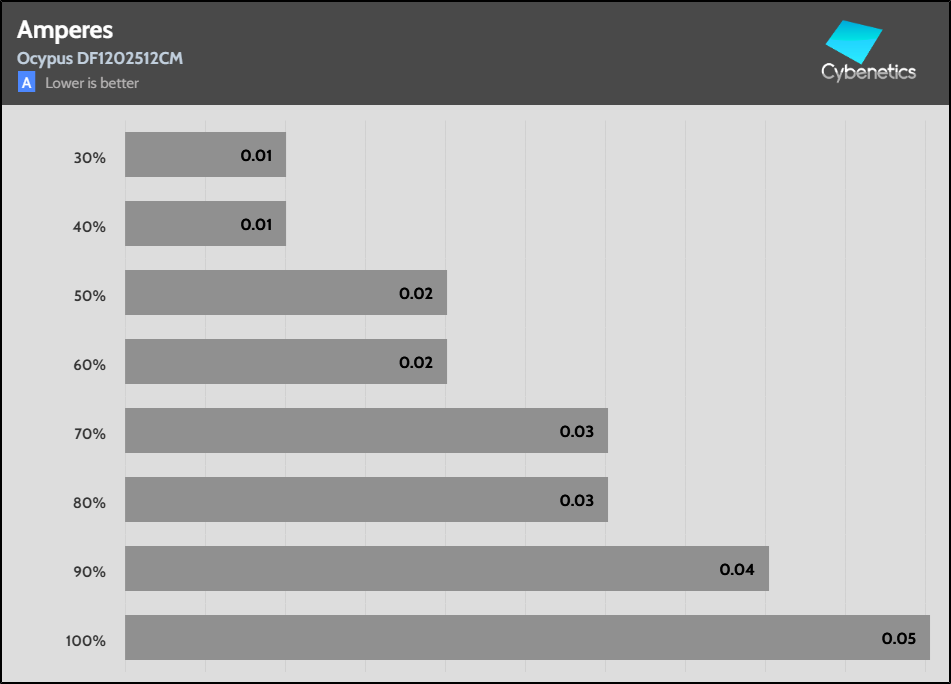

Fan Percentage Amps

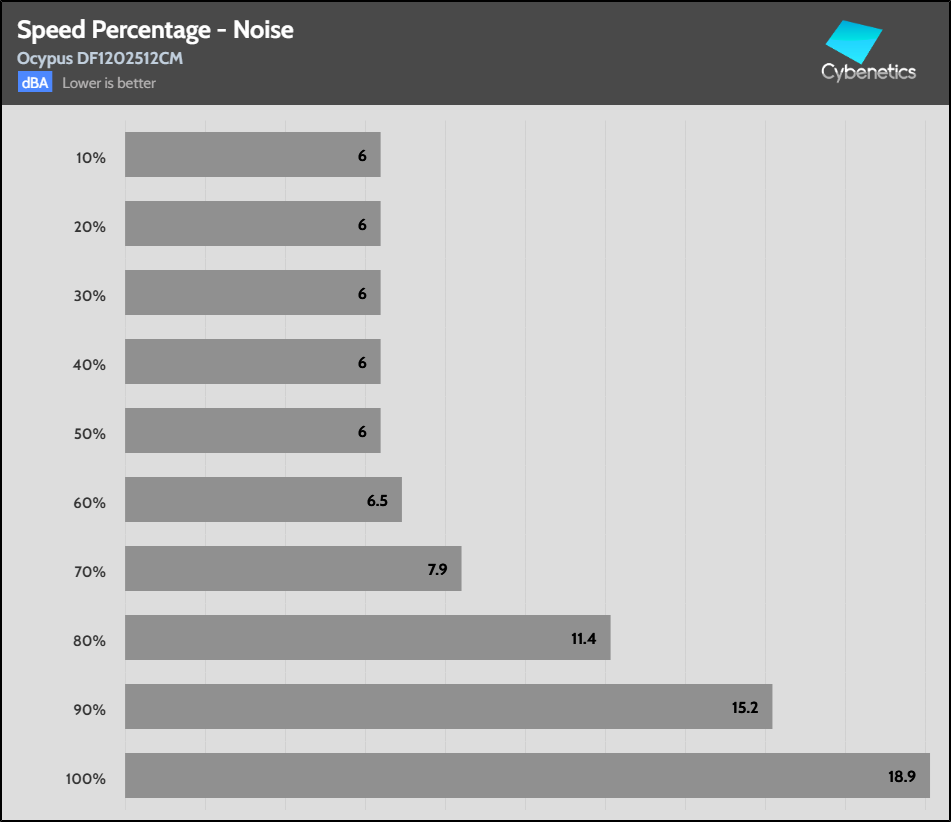

Fan Percentage Noise

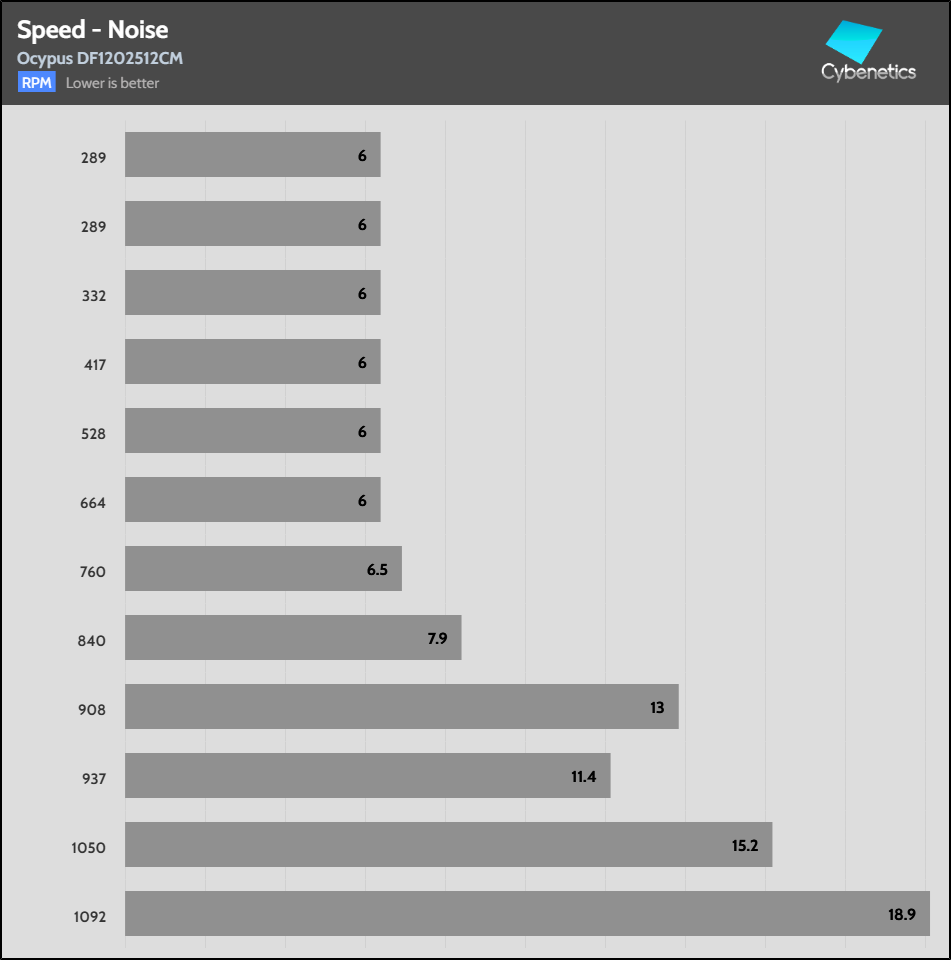

Fan Noise Speed

Ocypus DF1202512CM (0.15A)

Front
Rear
