General Information
Fan Testing Instrument Technical Specifications
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
Test Equipment
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
Brand
Super Flower
Model
Neon ARGB
Max Speed (RPM)
1949
Max Airflow (CFM)
57.07
Max Static Pressure (mmAq)
1.57
Max Fan Noise Level (dBA)
31.60
Fan Bearing Type
Hydro Dynamic
Fan Connector
PWM
Fan Max Current (A)
0.20
Fan Weight (gr)
155
Dimensions (W x H x D)
120x120x27
Fan daisy-chain connector
✗
Cable length (mm)
620
Pressure and Airflow

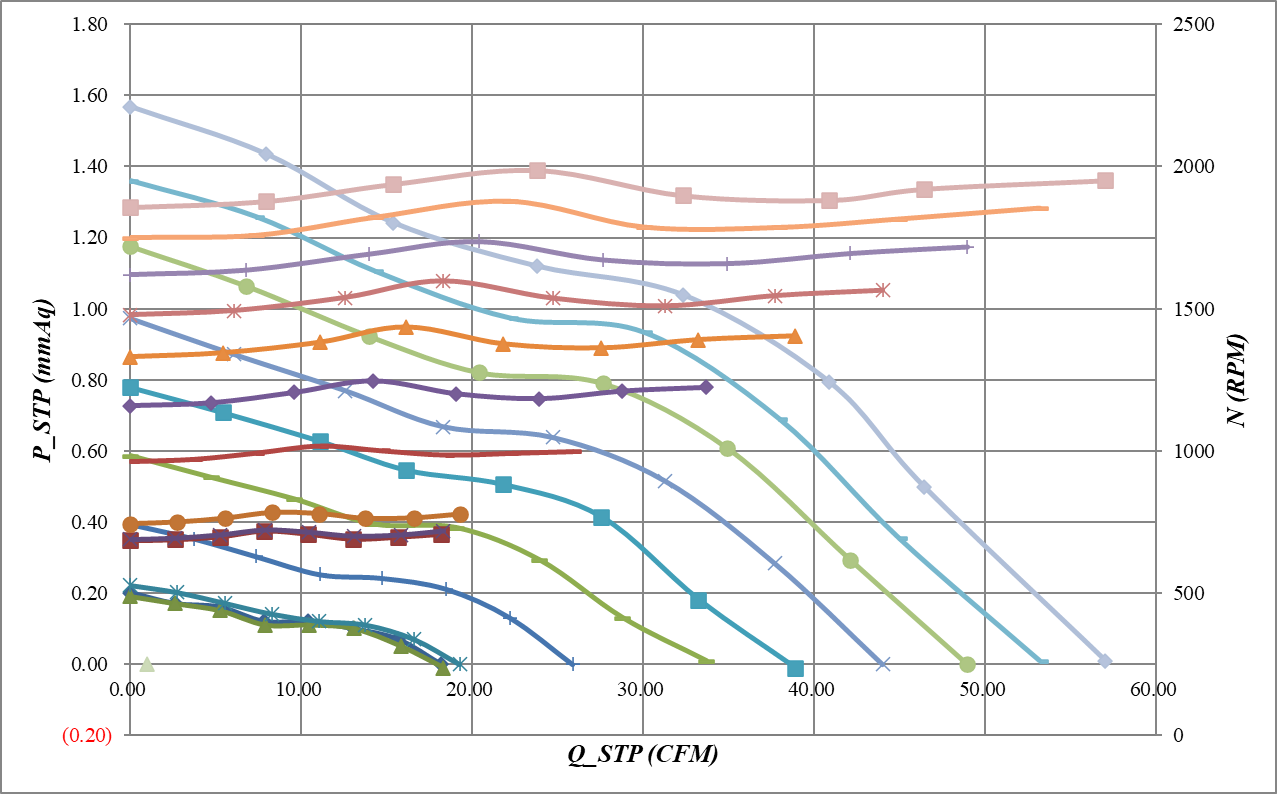

PQ Chart All Speed

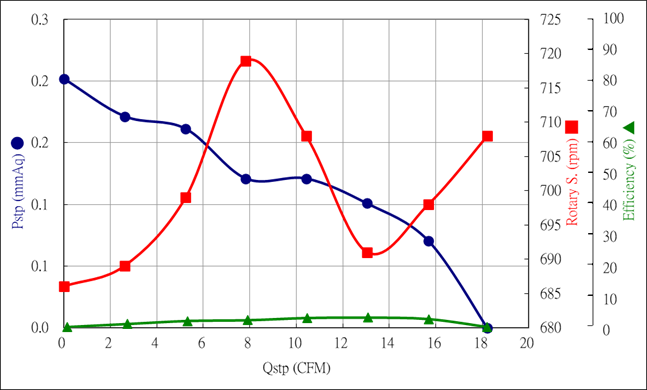

PQ Chart 10% Speed
PQ Chart 30% Speed

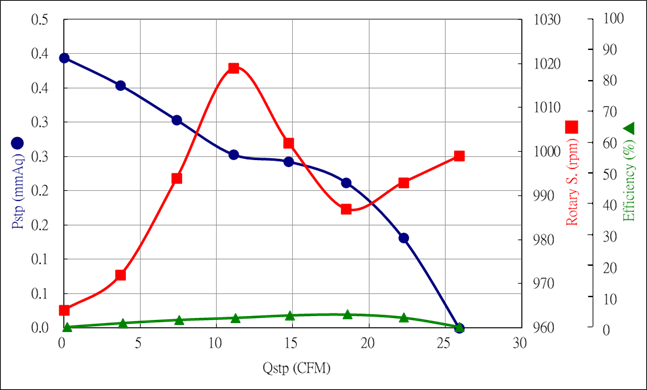

PQ Chart 40% Speed

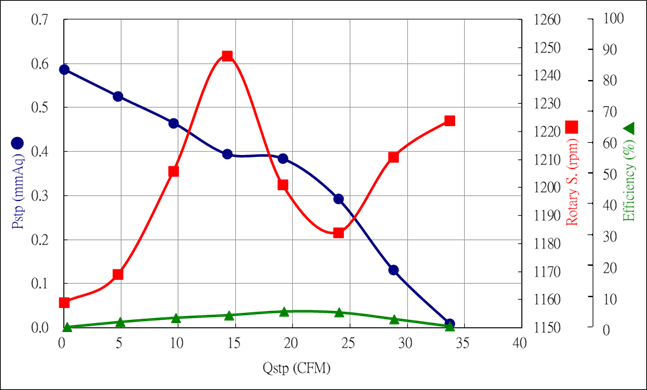

PQ Chart 50% Speed

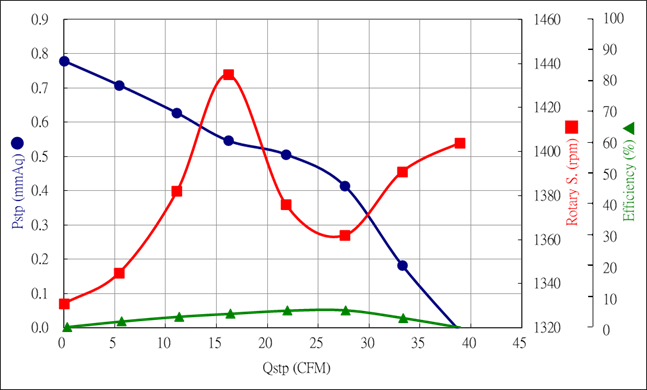

PQ Chart 60% Speed

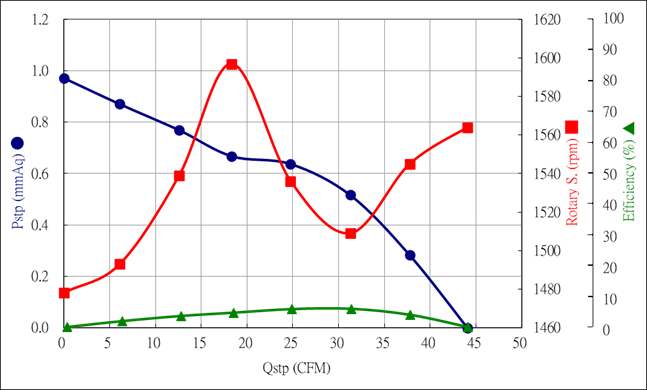

PQ Chart 70% Speed

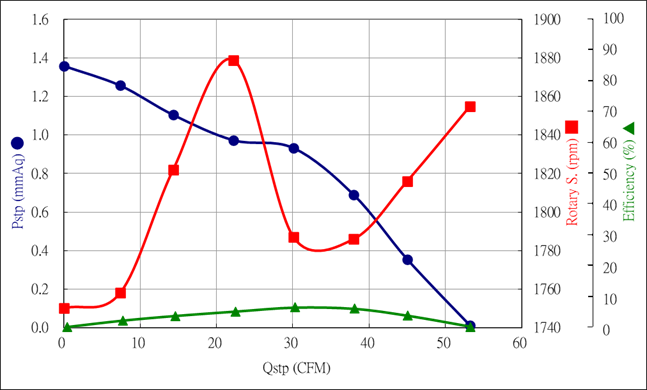

PQ Chart 90% Speed

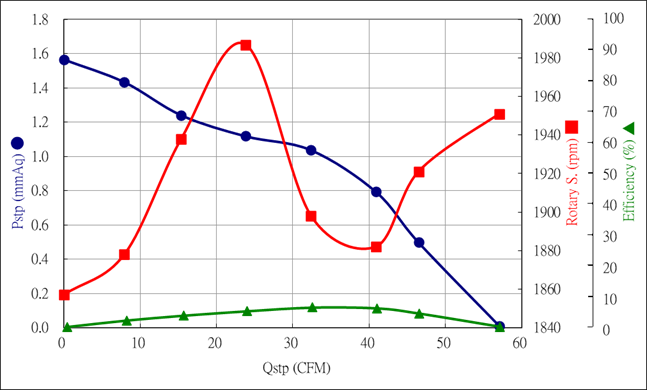

PQ Chart 100% Speed
General Performance

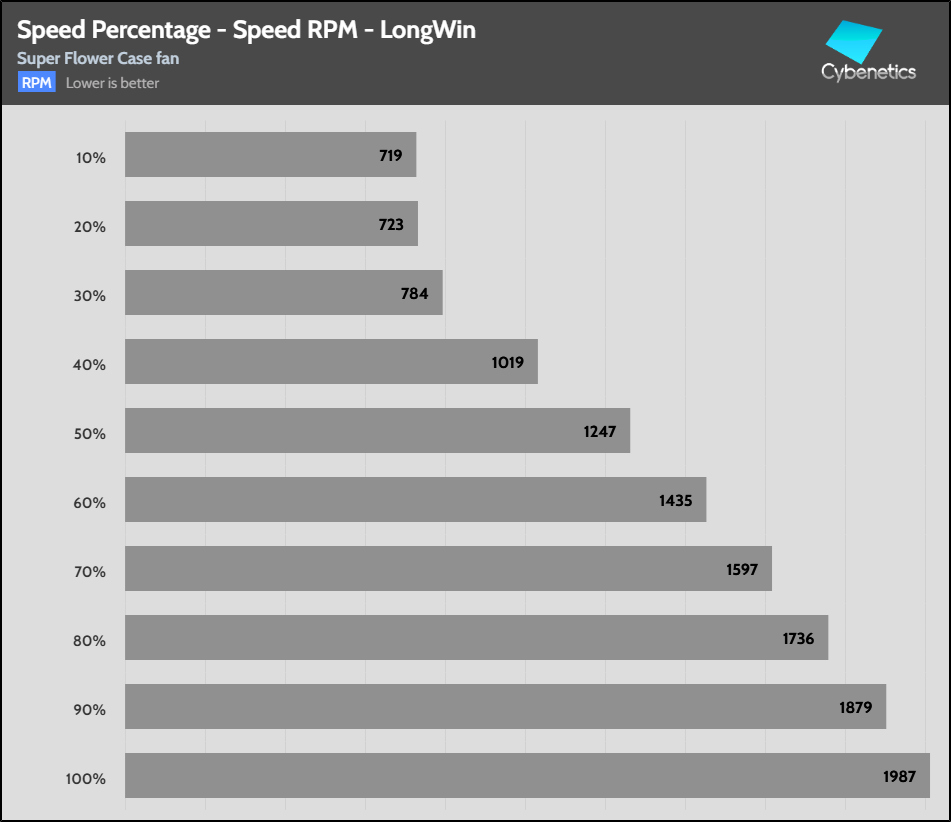

Fan Percentage RPM LongWin

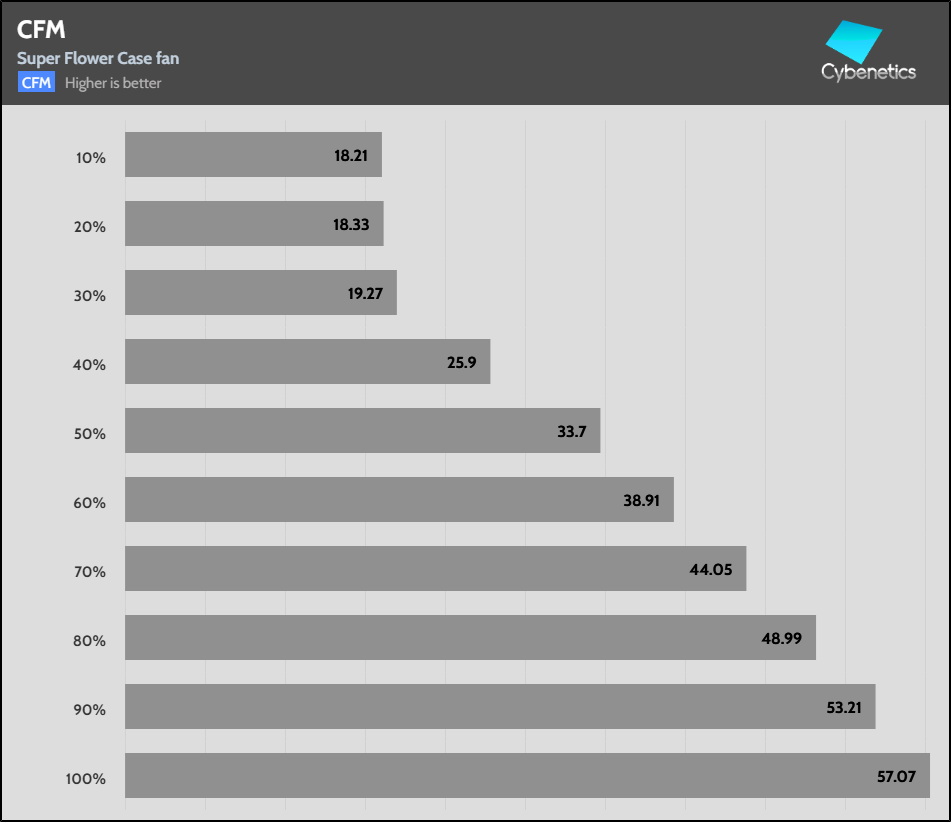

Fan Percentage CFM

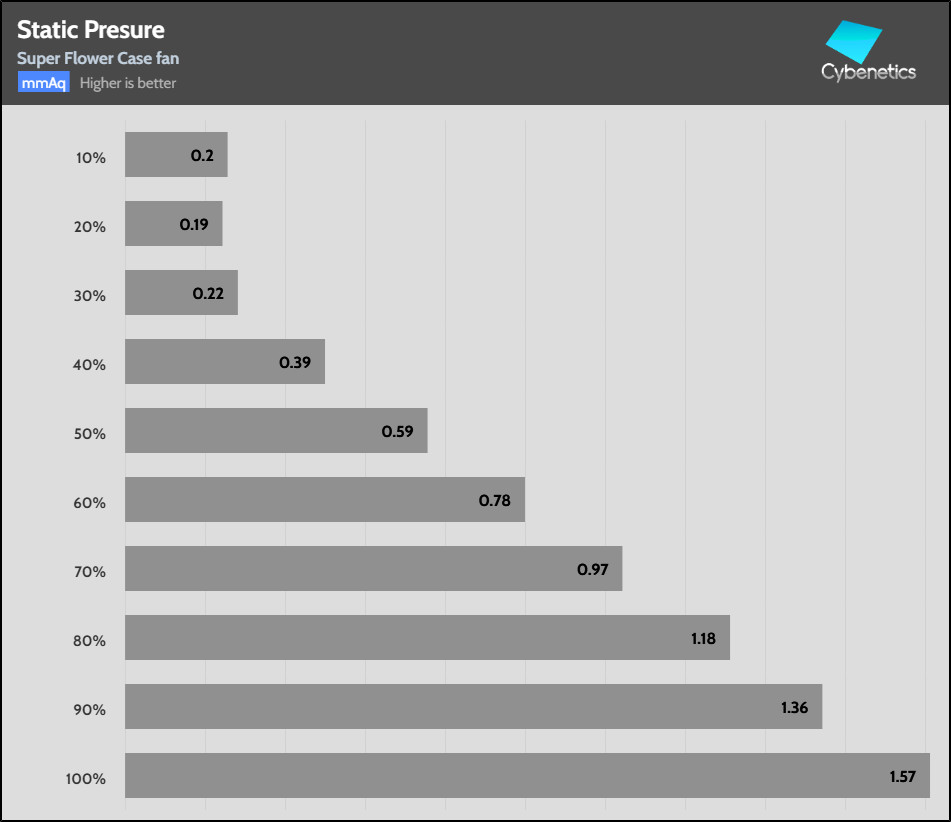

Fan Percentage Pressure

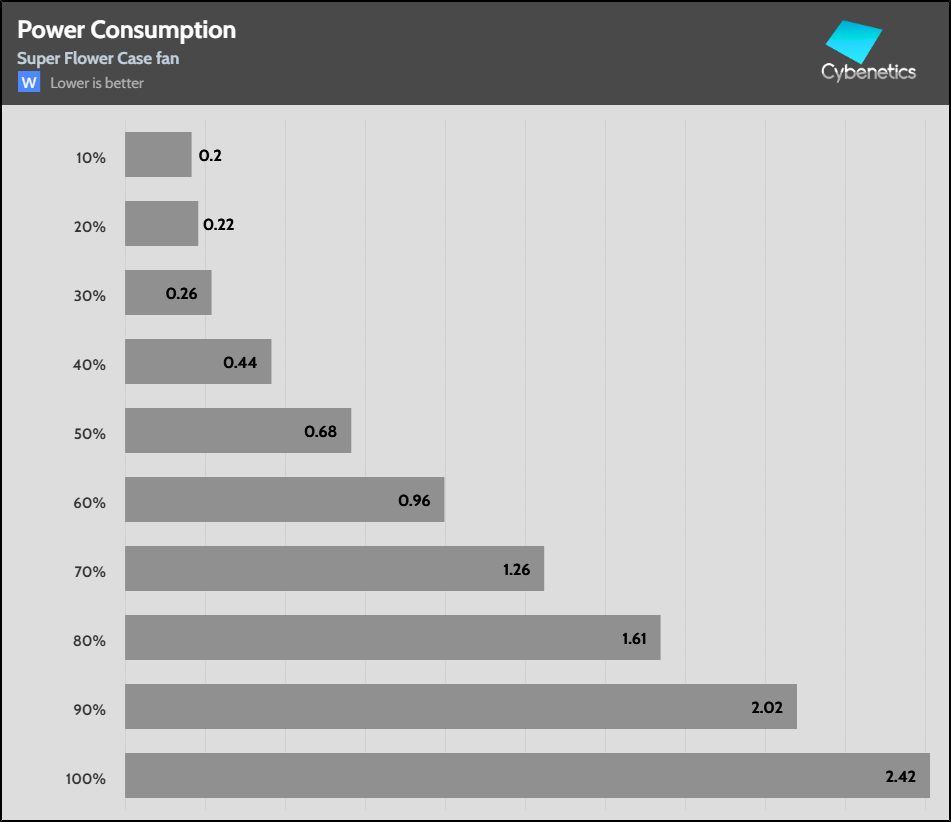

Fan Percentage Power

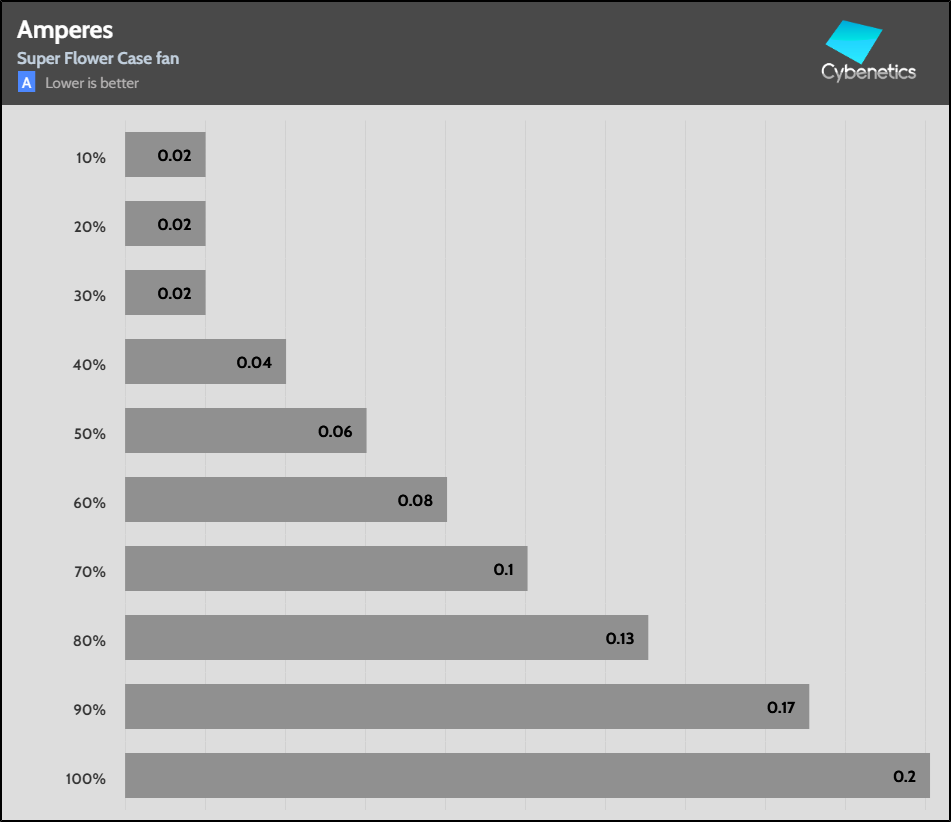

Fan Percentage Amps
Fan Percentage Noise

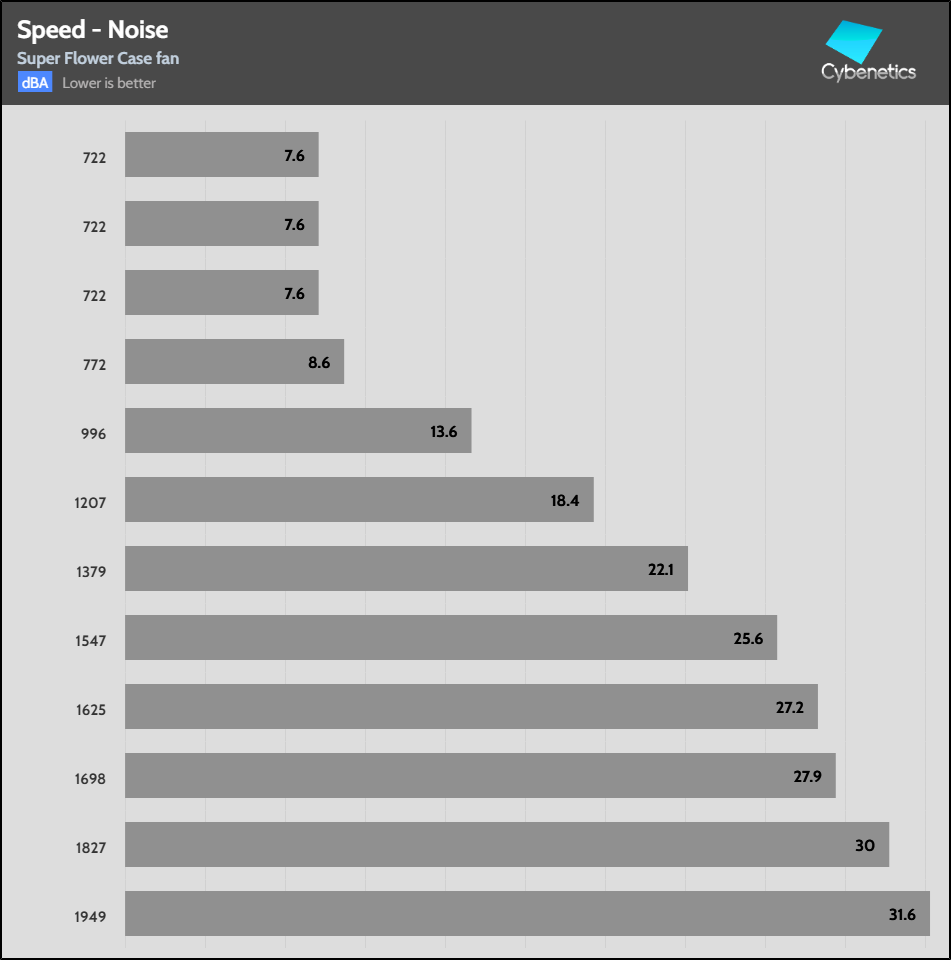

Fan Speed Noise

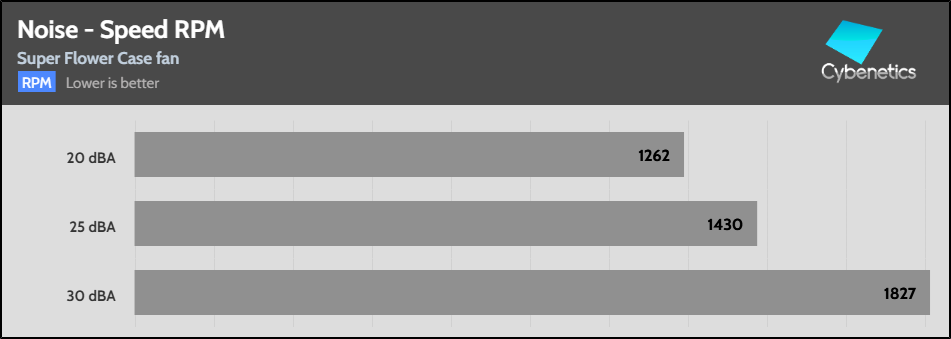

Fan Noise Speed

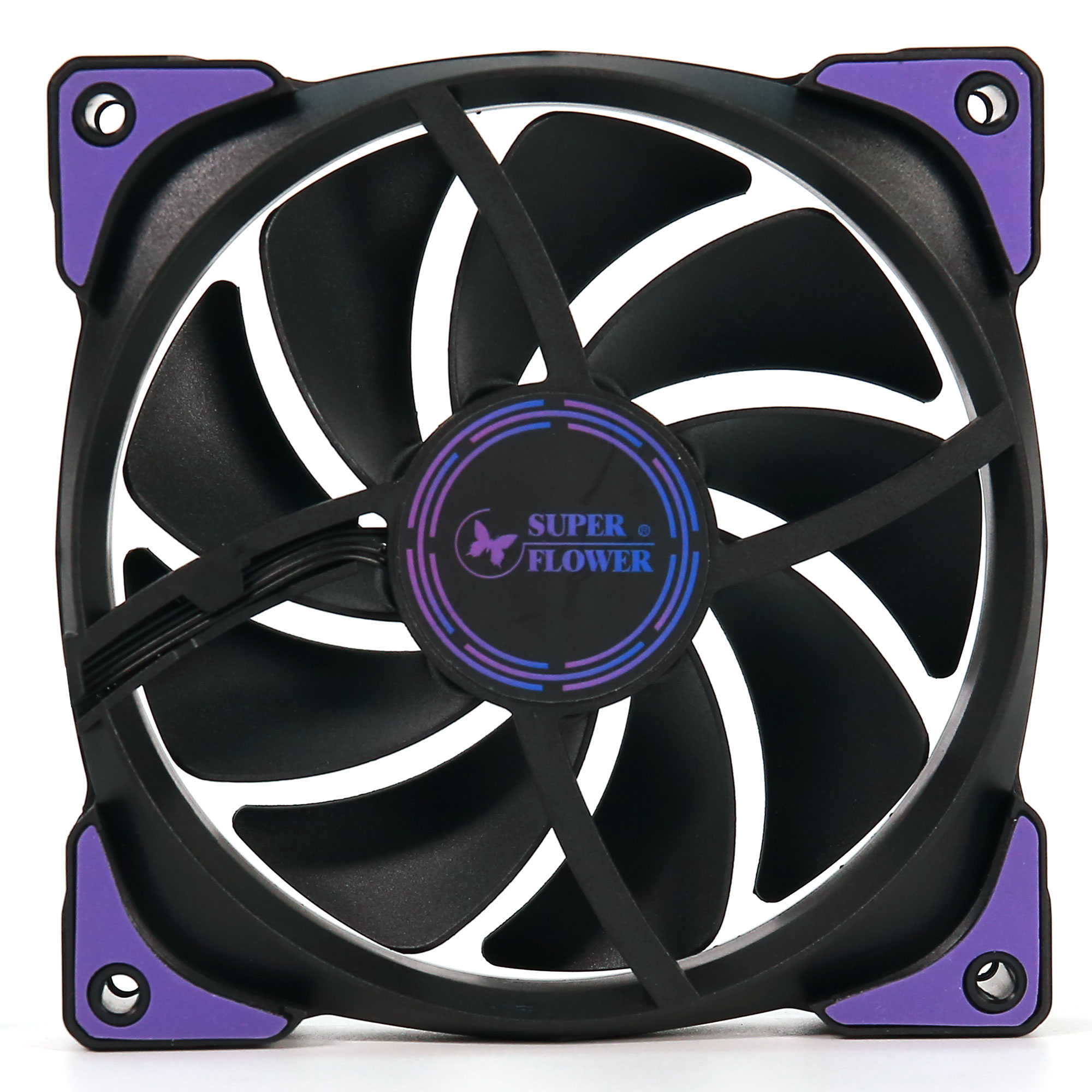

Super Flower Neon ARGB

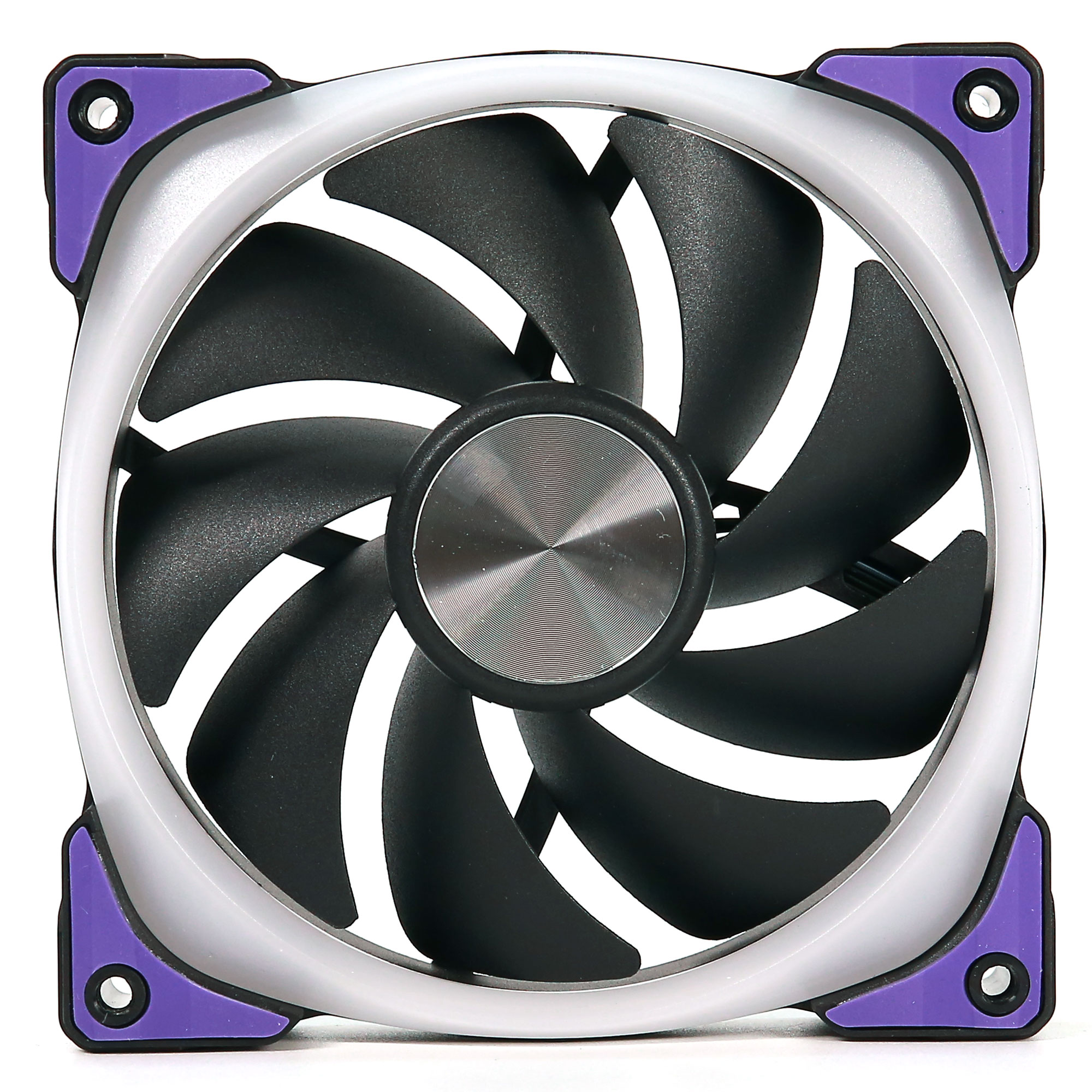

Front
Rear
