CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Noctua NF-S12B redux-700
Serial Number4716123315308
Lab IDNC12000179
Certification IDFN25179
  • Test Result Report ID: 25FN179A
  • Certificate Issue Date: May 2, 2025
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

BrandNoctua
型號NF-S12B redux-700
Max Speed (RPM)654
Max Airflow (CFM)30.10
Max Static Pressure (mmAq)0.35
Max Fan Noise Level (dBA)8.20
Fan Bearing TypeSSO2
Fan Connector3-Pin
Fan Max Current (A)0.066
Fan Weight (gr)119
Dimensions (W x H x D)120x120x25
Fan daisy-chain connector✗
Cable length (mm)400

Pressure and Airflow

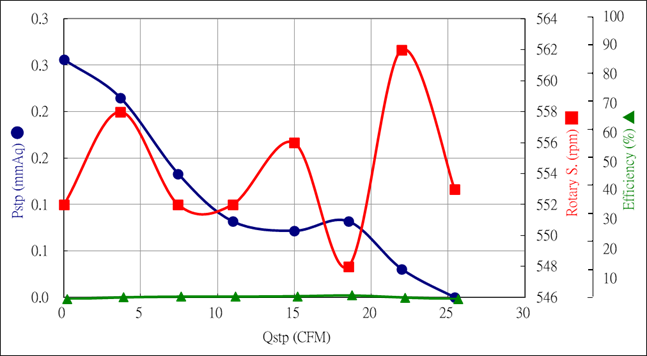

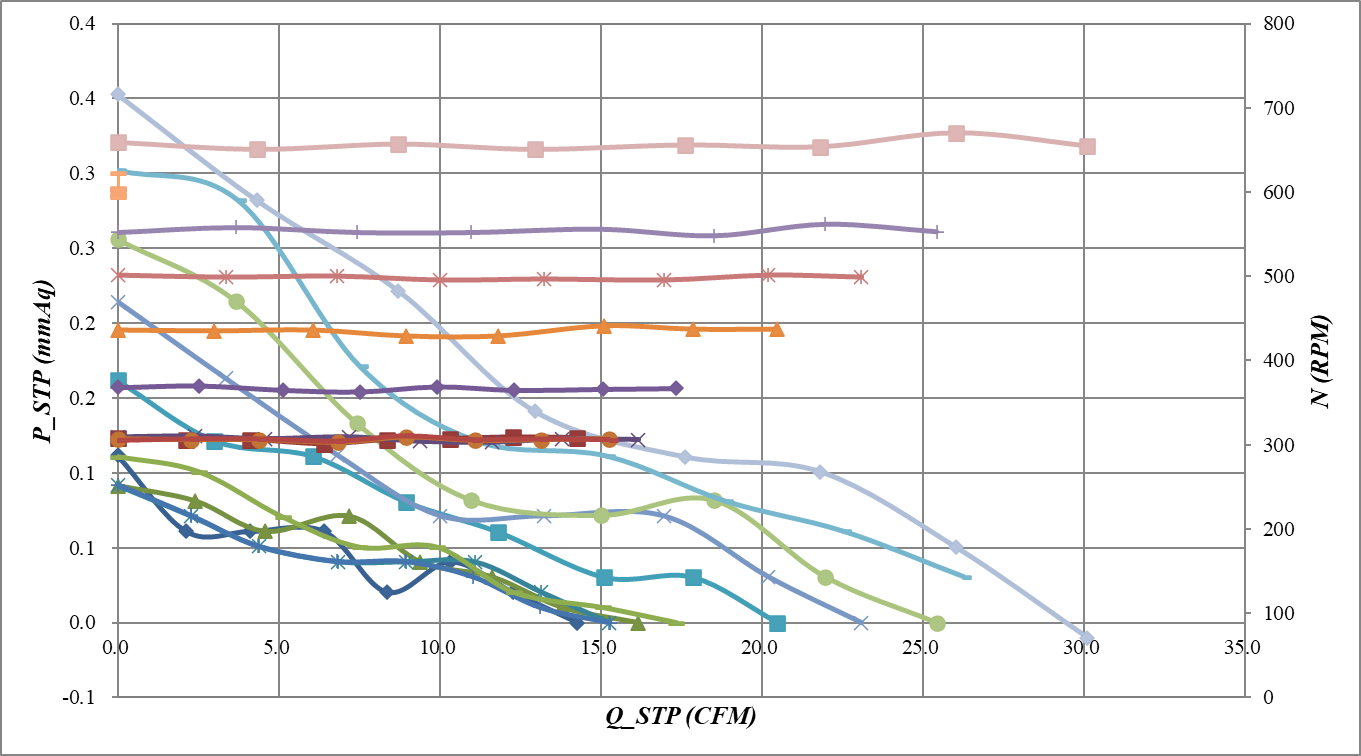

PQ Chart All Speed

PQ Chart 10% Speed

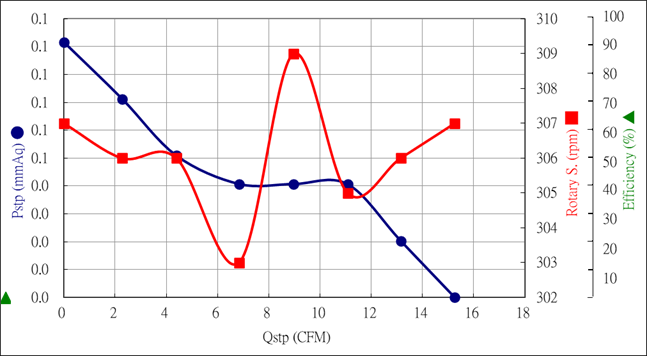

PQ Chart 30% Speed

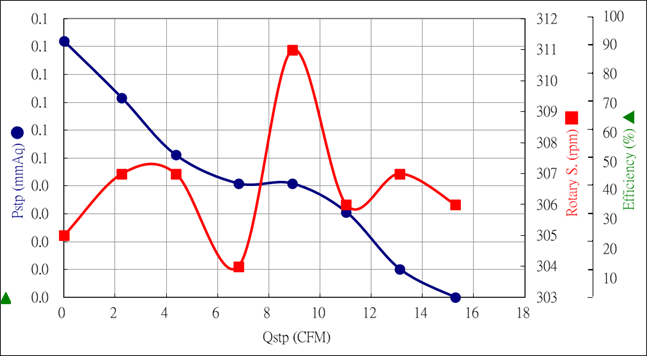

PQ Chart 40% Speed

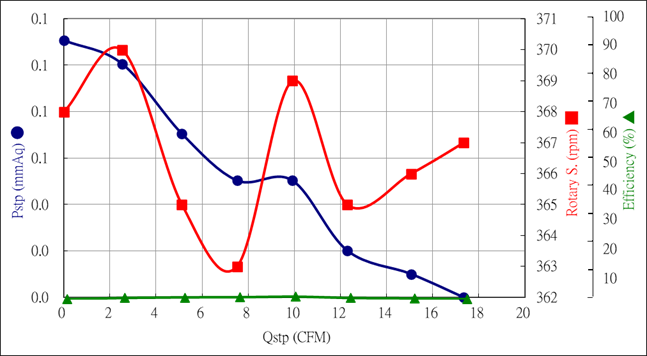

PQ Chart 50% Speed

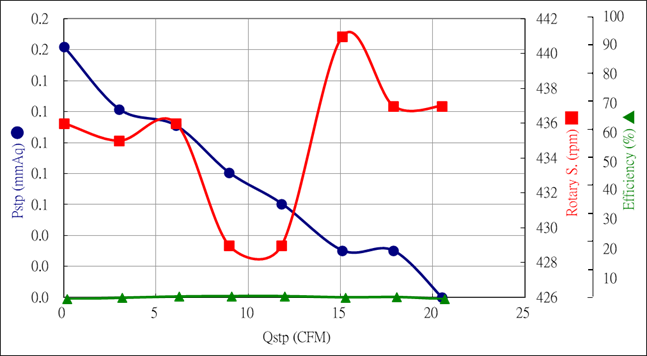

PQ Chart 60% Speed

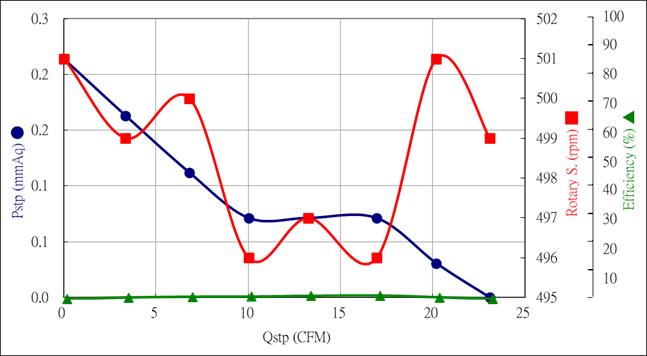

PQ Chart 70% Speed

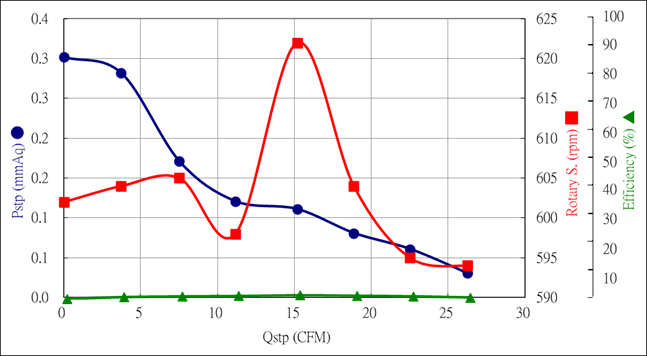

PQ Chart 90% Speed

PQ Chart 100% Speed

General Performance

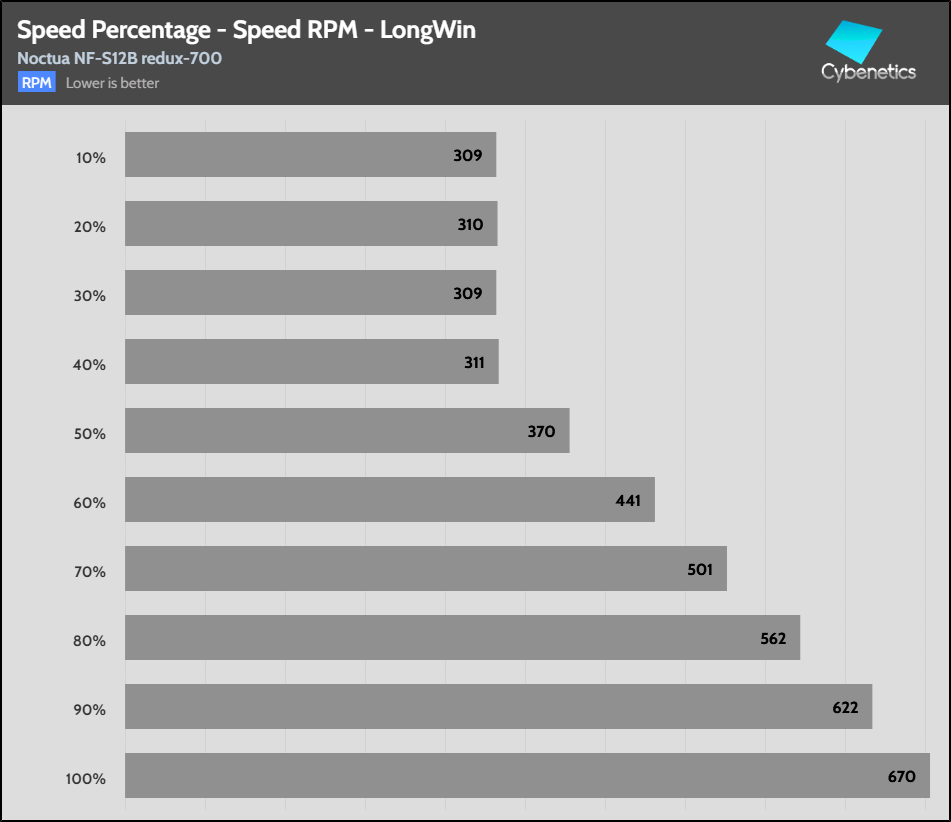

Fan Percentage RPM LongWin

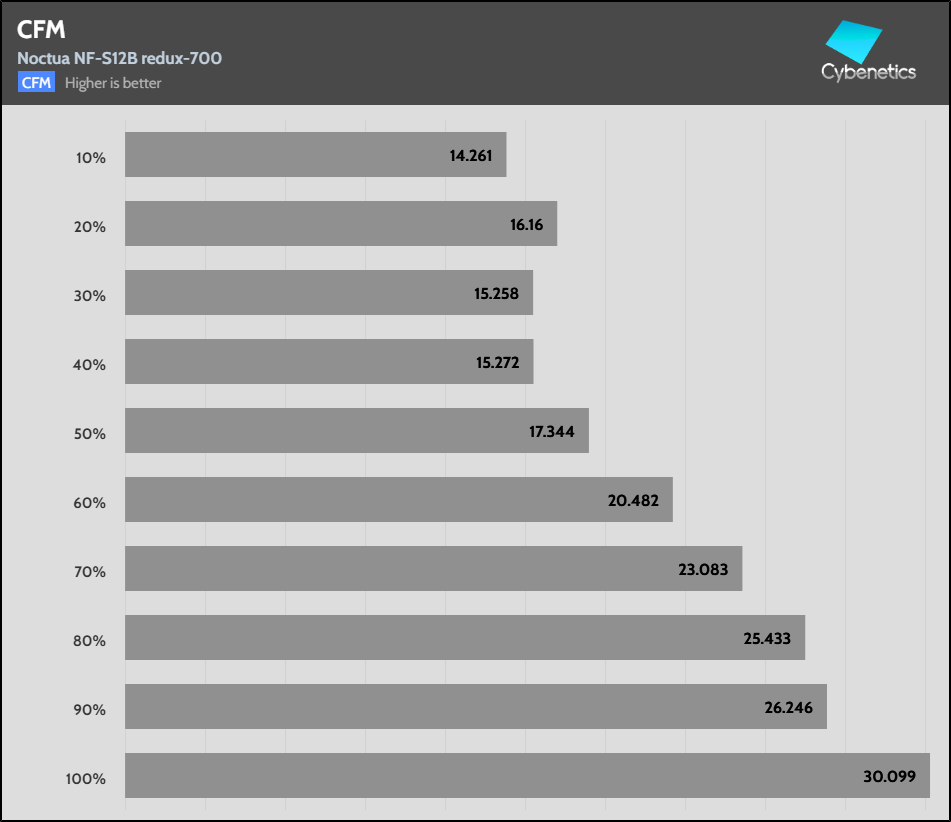

Fan Percentage CFM

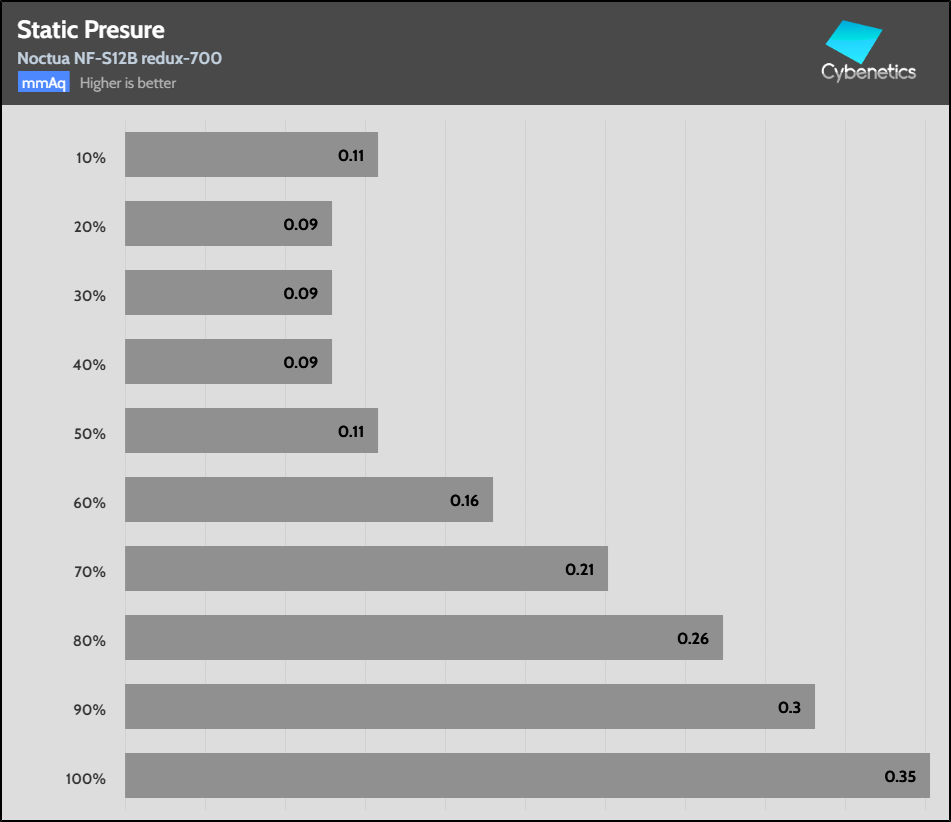

Fan Percentage Pressure

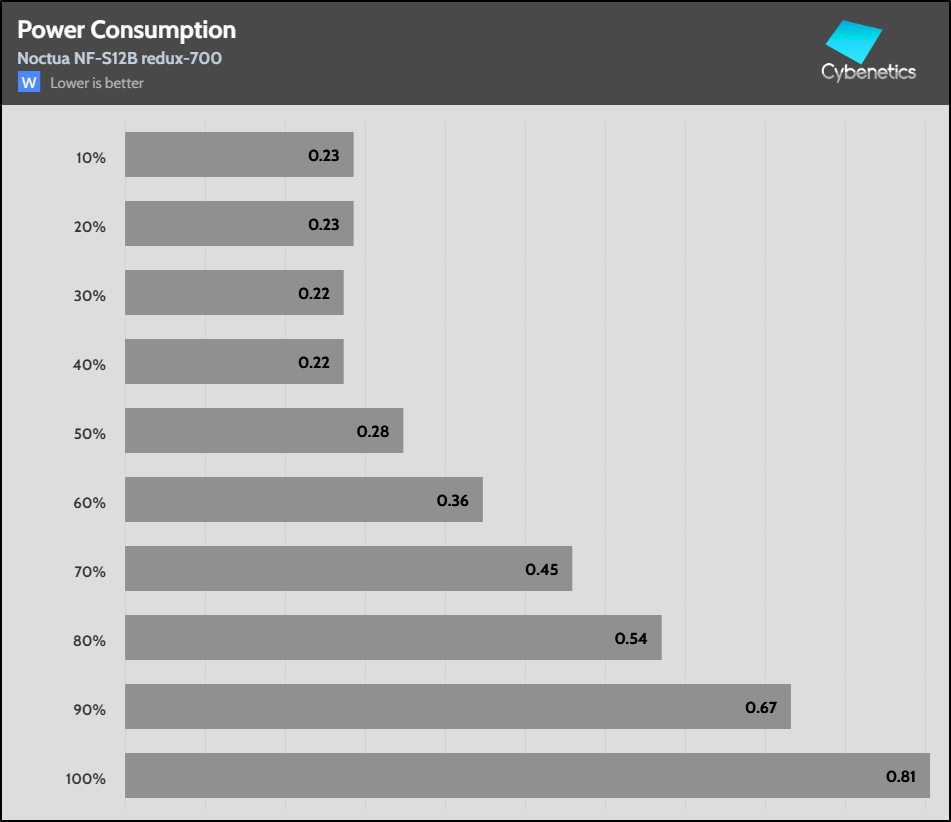

Fan Percentage Power

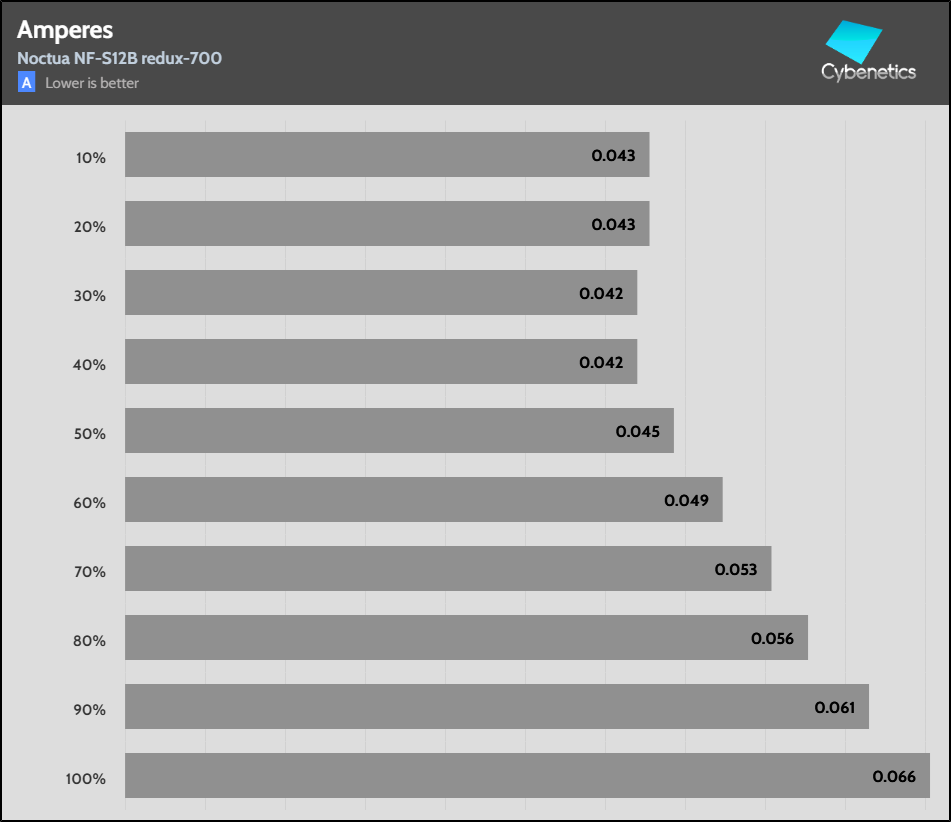

Fan Percentage Amps

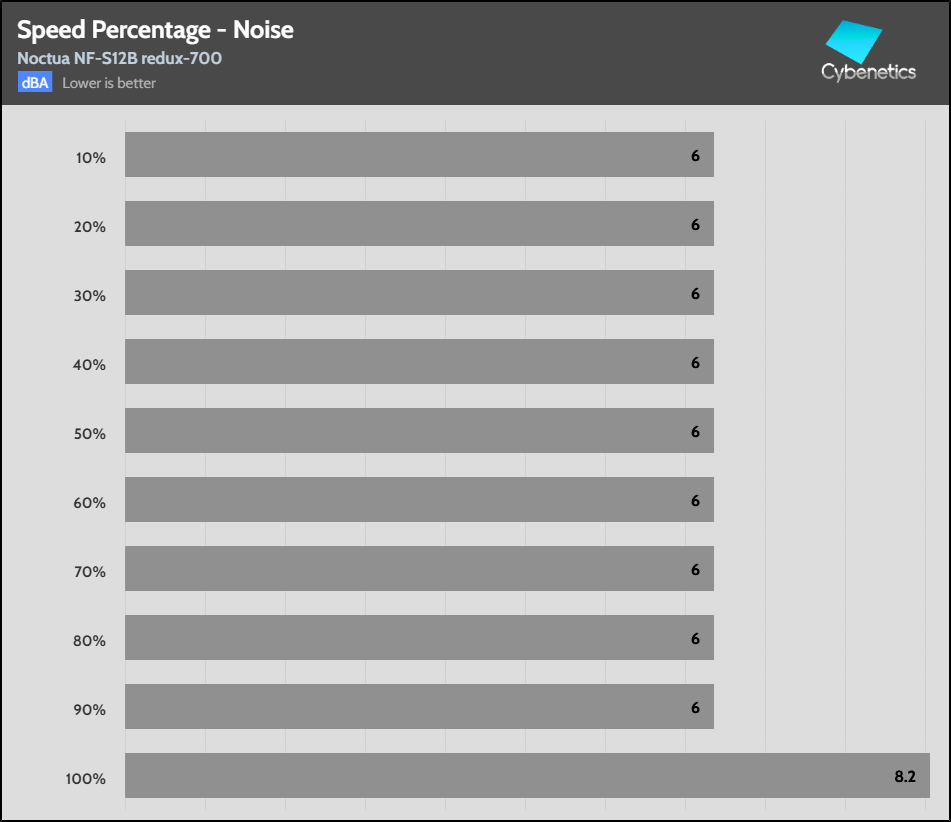

Fan Percentage Noise

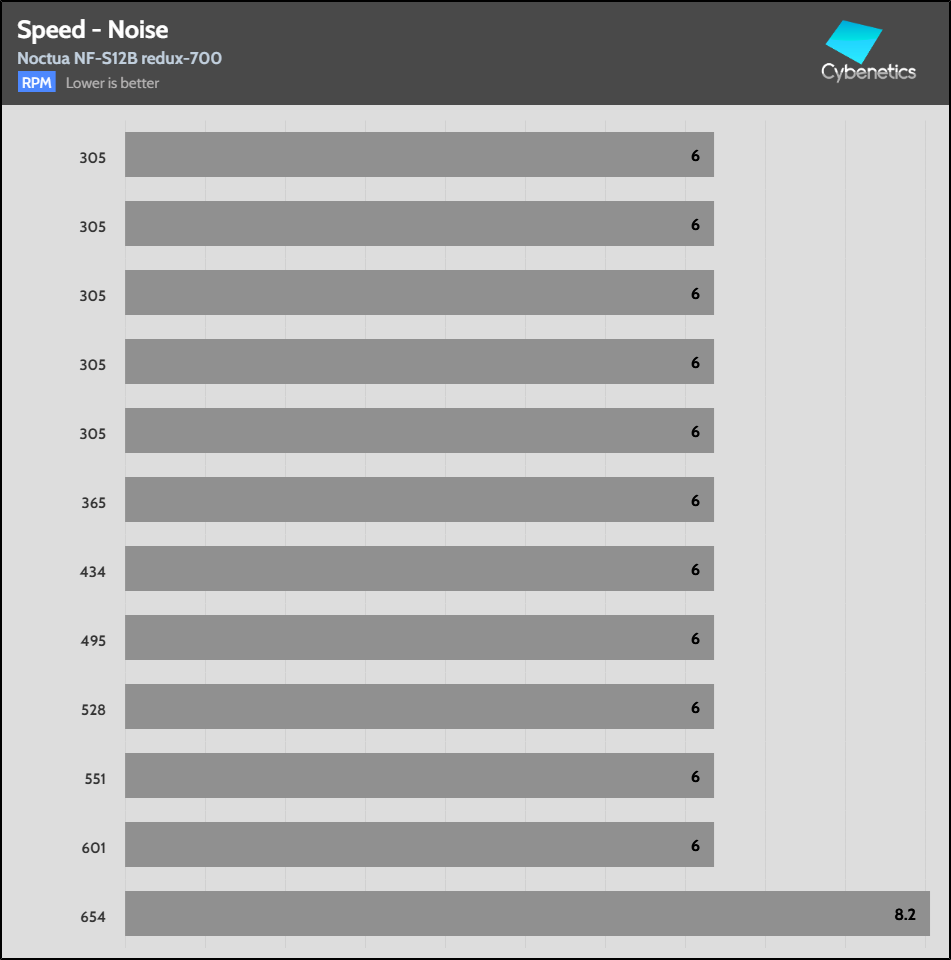

Fan Noise Speed

Noctua NF-S12B redux-700

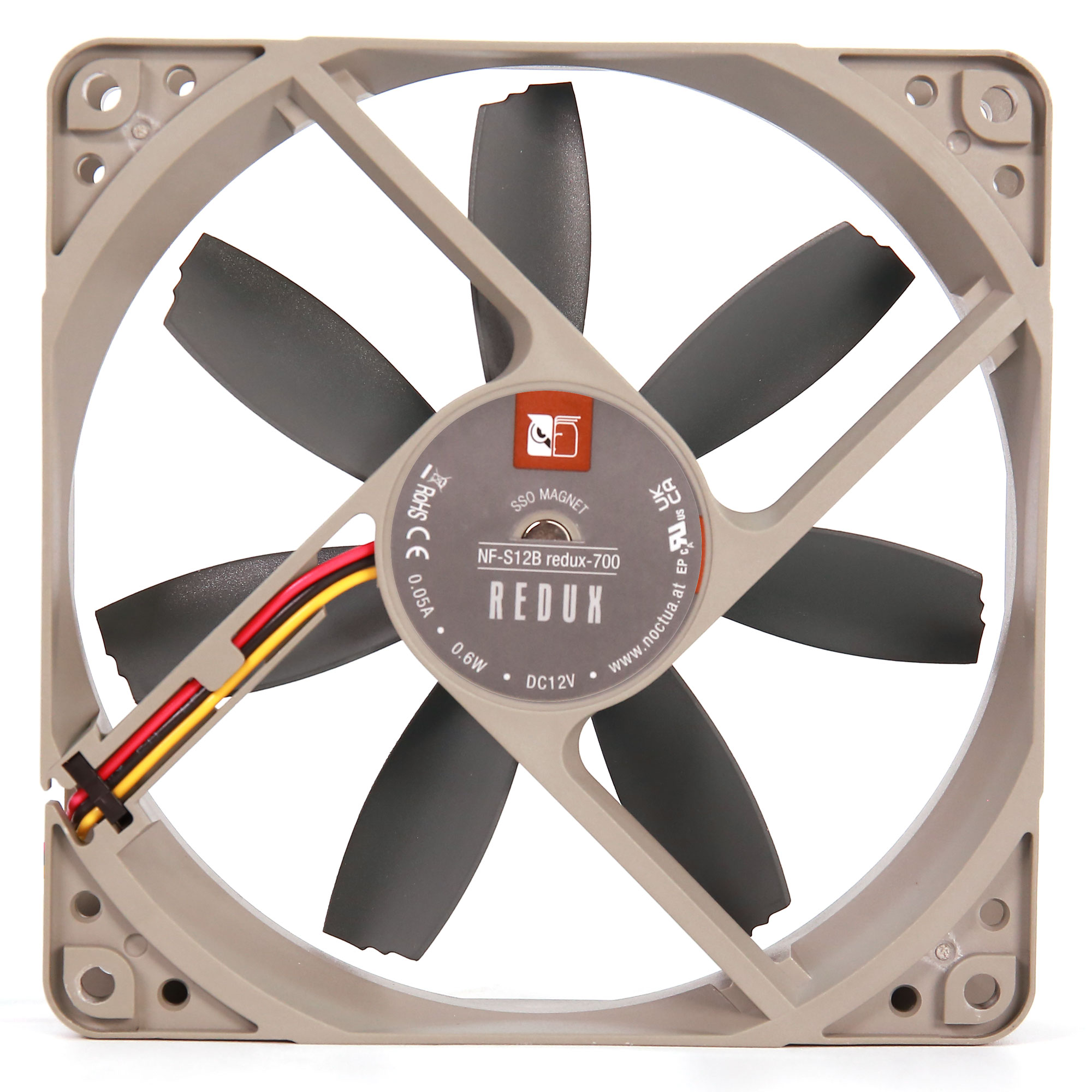

Front
Rear
