CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

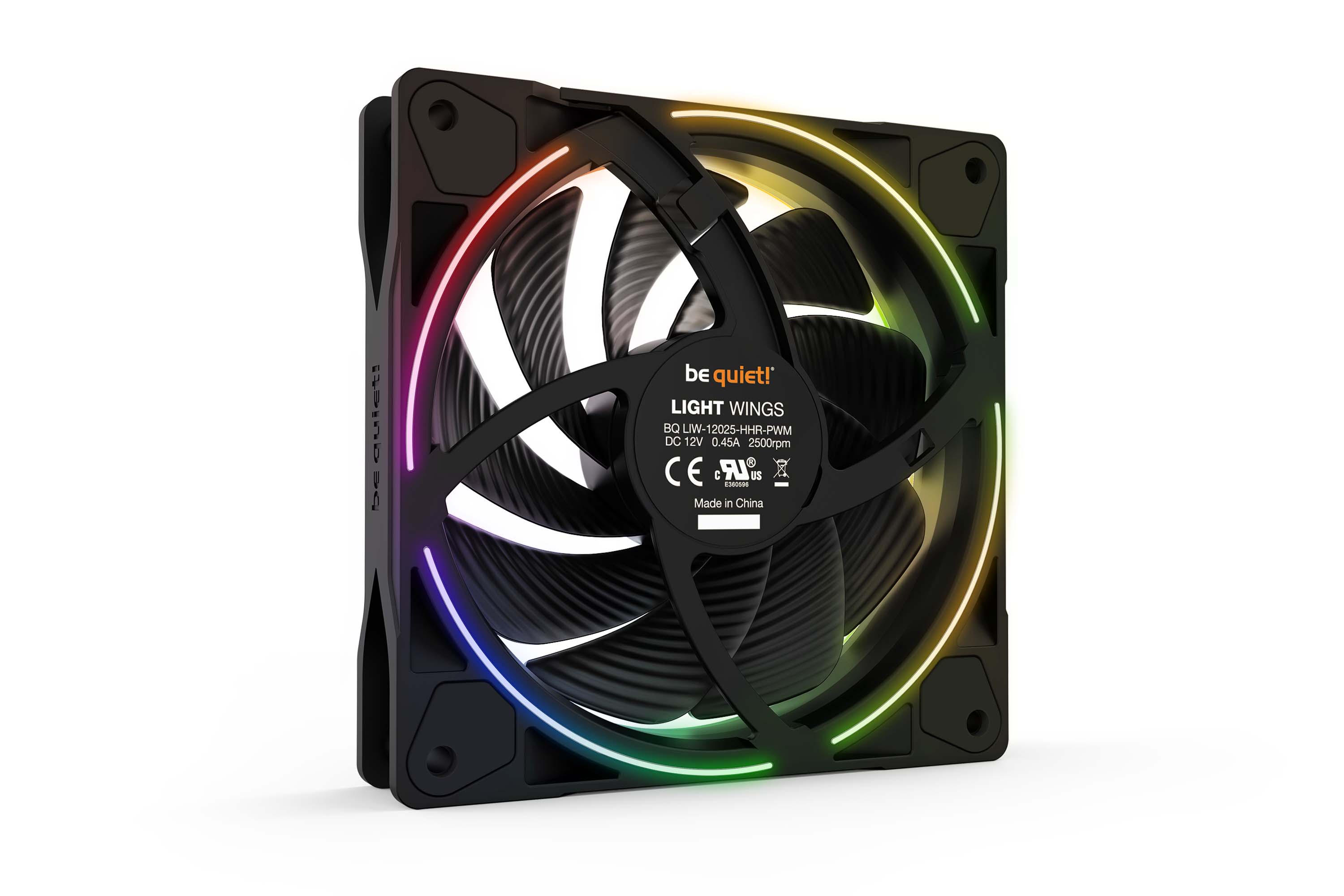

be quiet! Light Wings 120mm
Serial Number
Lab IDBQ12000008
Certification IDFN25008
  • Test Result Report ID: 25FN8A
  • Certificate Issue Date: -
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

Brandbe quiet!
型號Light Wings 120mm
Max Speed (RPM)1630
Max Airflow (CFM)41.00
Max Static Pressure (mmAq)1.41
Max Fan Noise Level (dBA)20.30
Fan Bearing TypeRifle
Fan ConnectorPWM
Fan Max Current (A)0.08
Fan Weight (gr)251
Dimensions (W x H x D)120 x 120 x 25
Fan daisy-chain connector✓
Cable length (mm)500

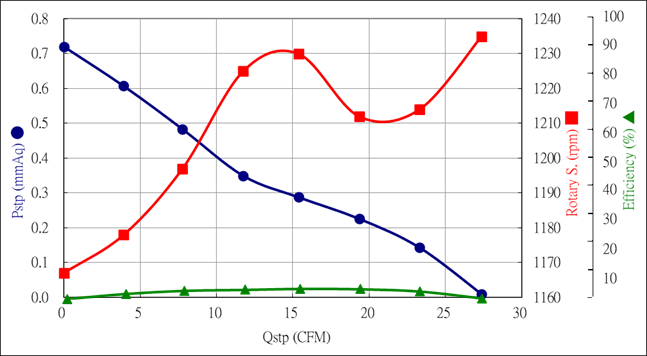

Pressure and Airflow

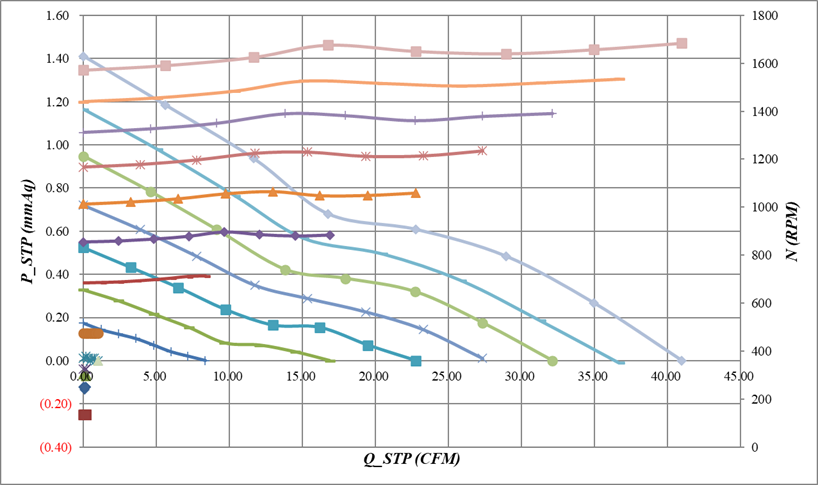

PQ Chart All Speed

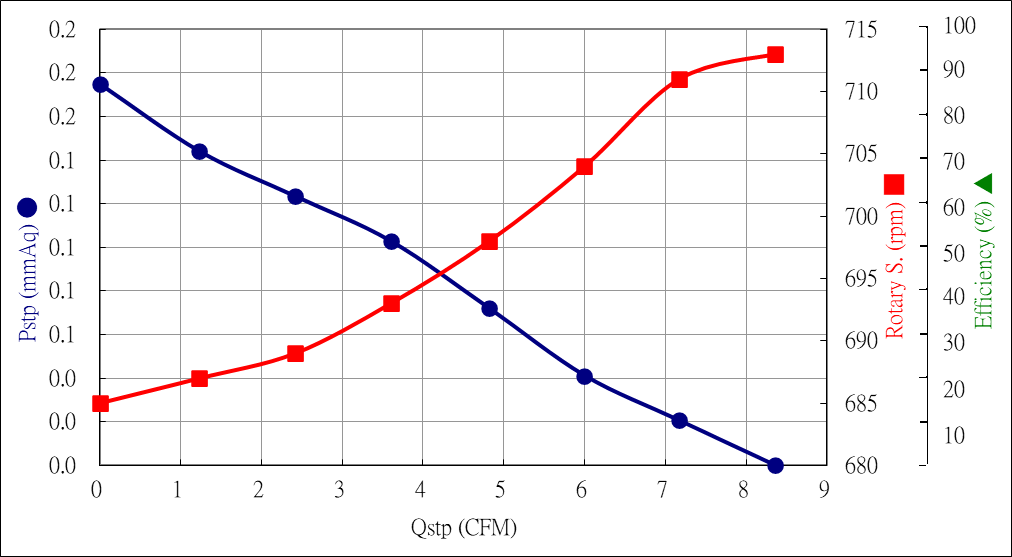

PQ Chart 10% Speed

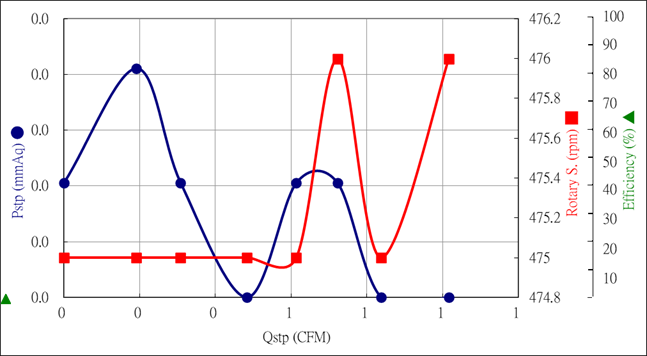

PQ Chart 30% Speed

PQ Chart 40% Speed

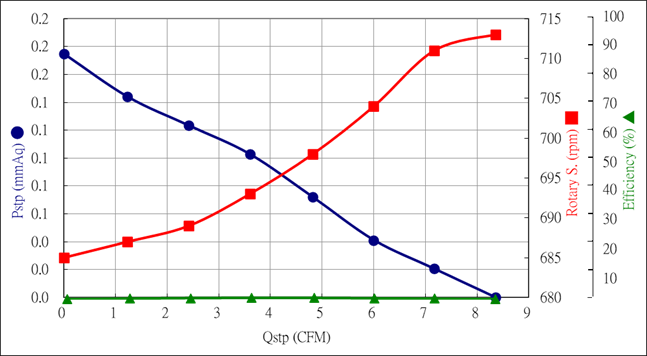

PQ Chart 50% Speed

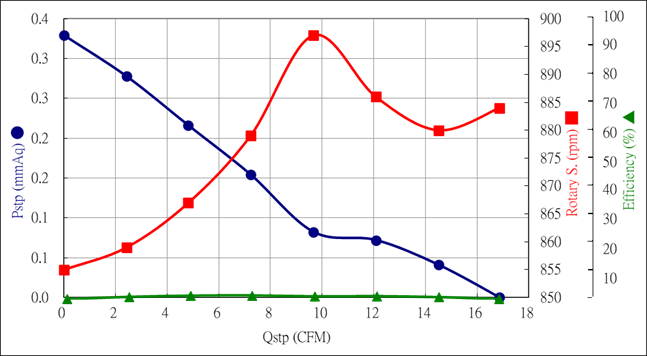

PQ Chart 60% Speed

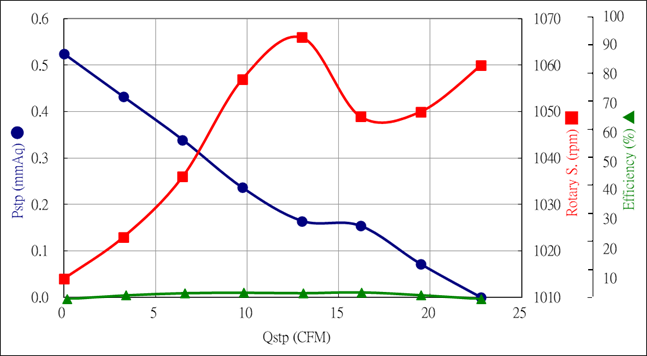

PQ Chart 70% Speed

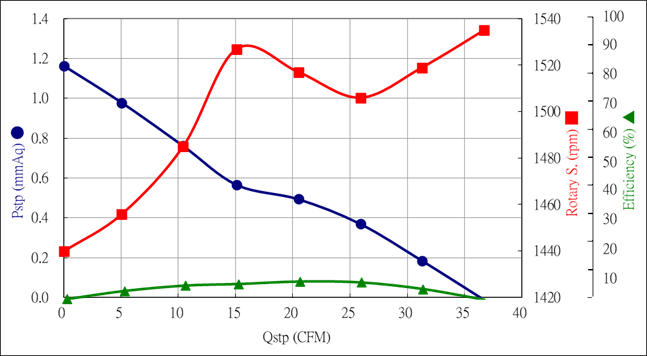

PQ Chart 90% Speed

PQ Chart 100% Speed

General Performance

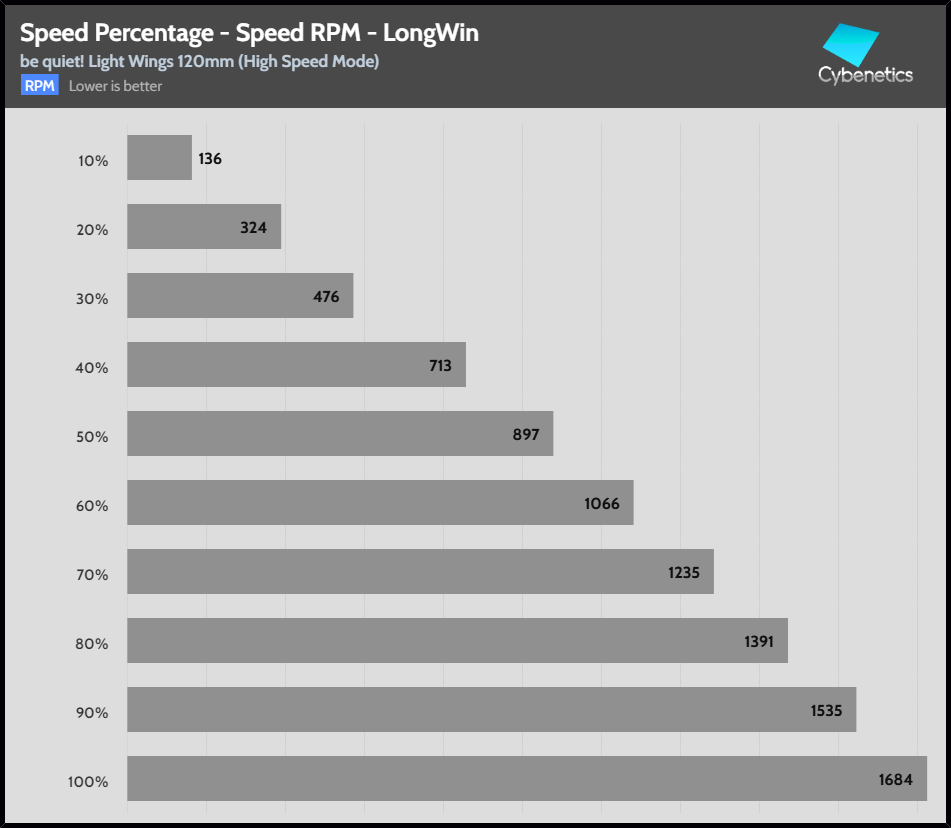

Fan Percentage RPM LongWin

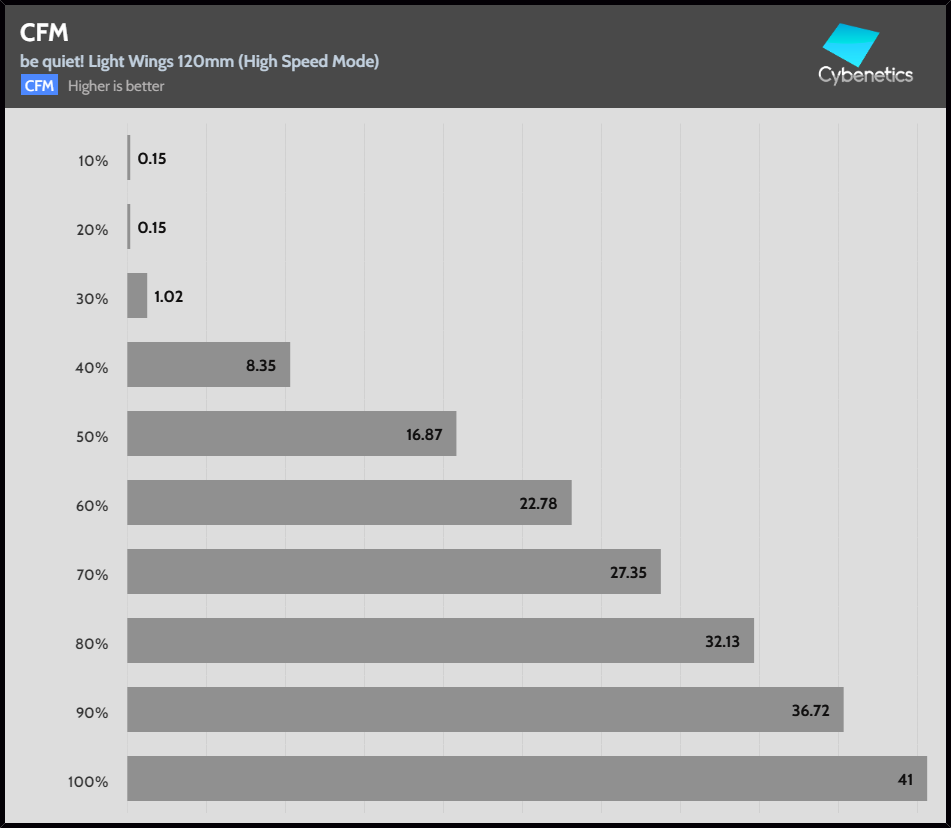

Fan Percentage CFM

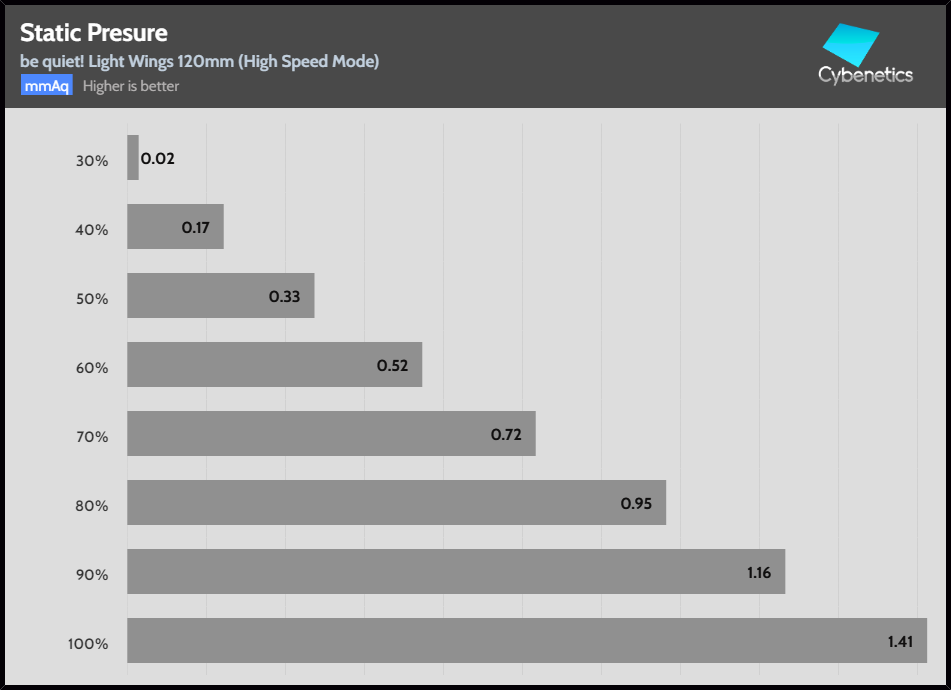

Fan Percentage Pressure

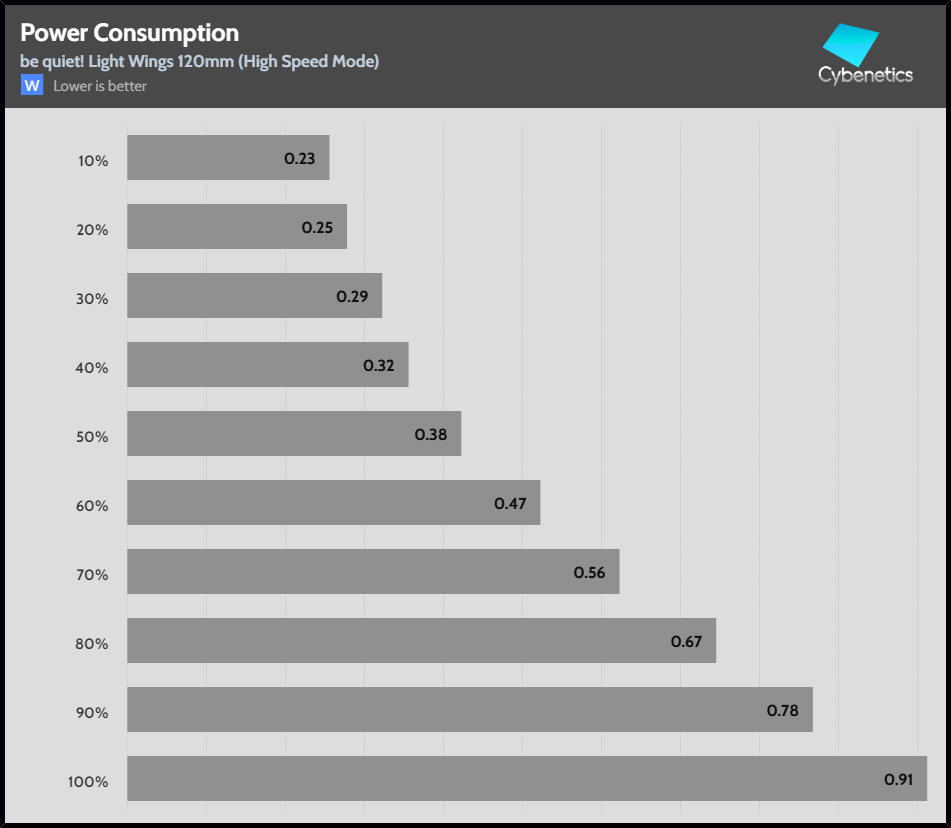

Fan Percentage Power

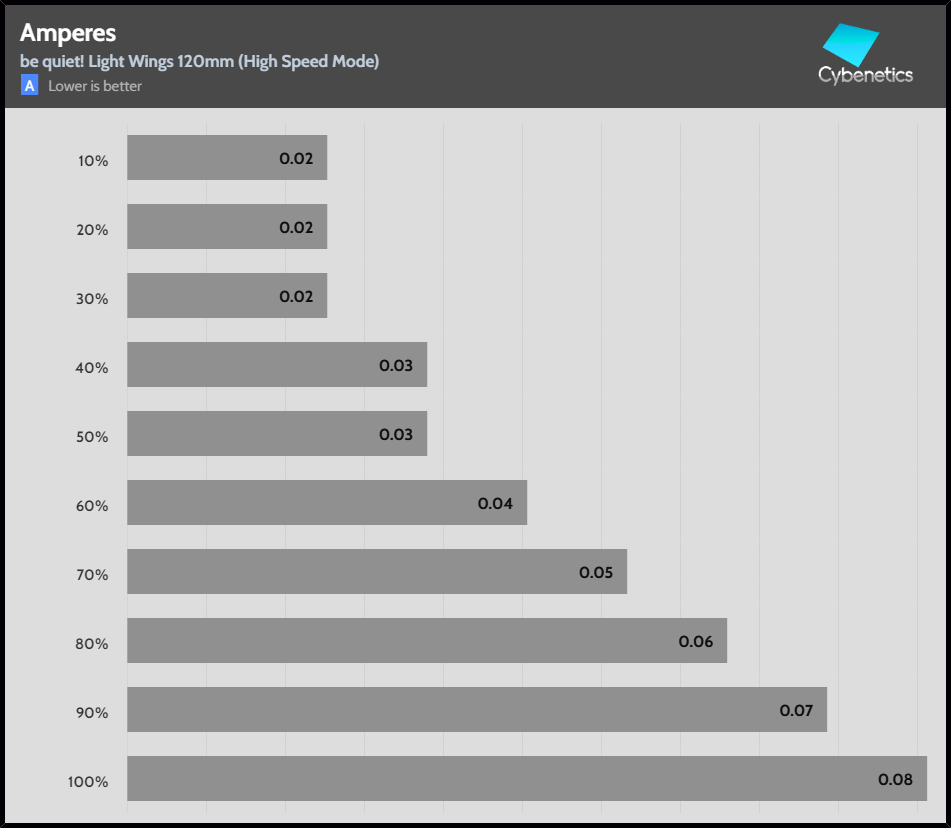

Fan Percentage Amps

Fan Percentage Noise

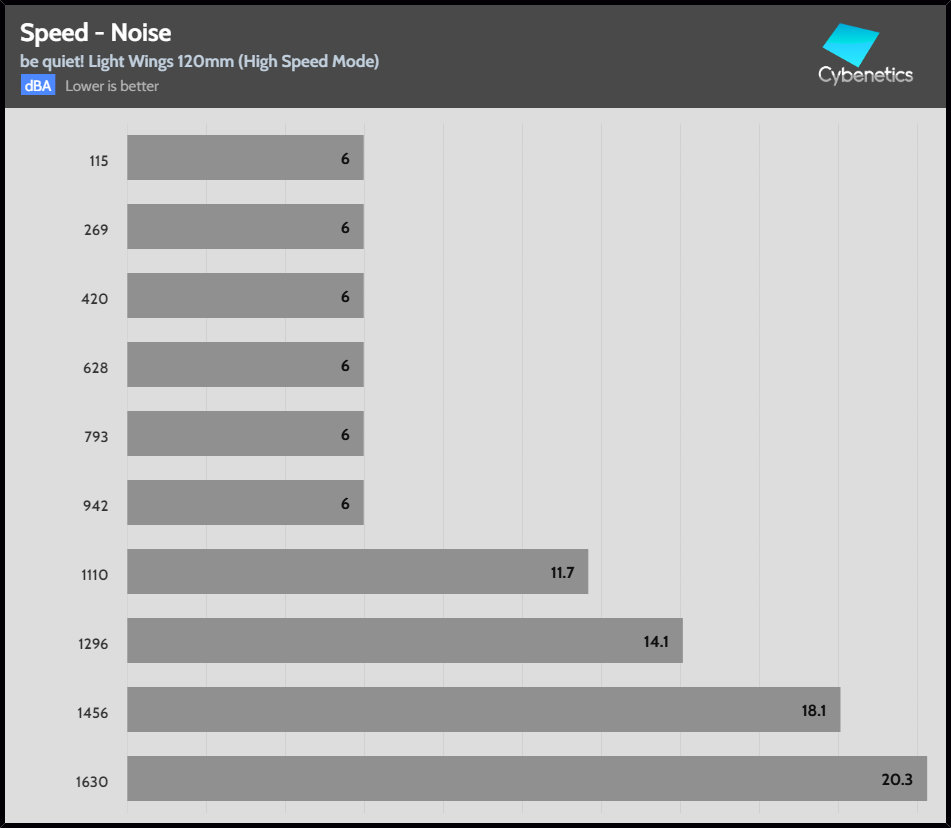

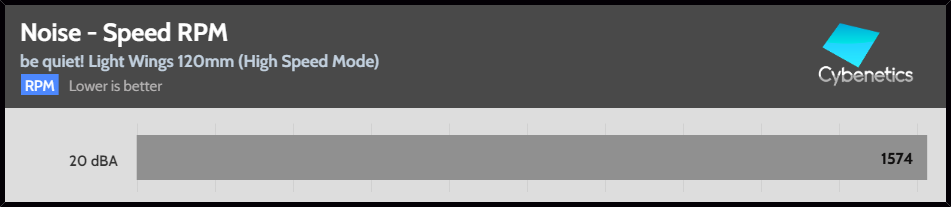

Fan Speed Noise

Fan Noise Speed

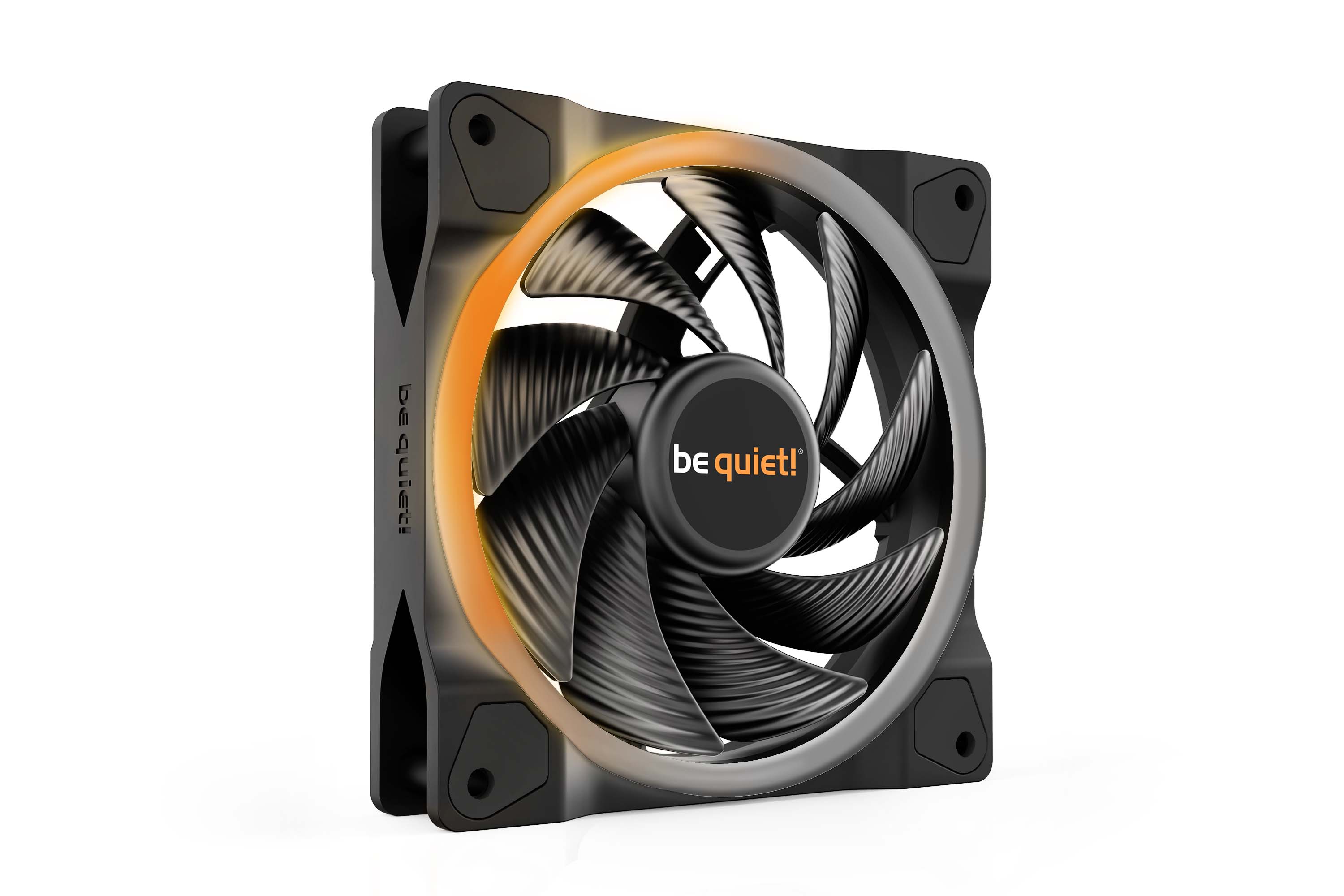

be quiet! Light Wings 120mm

Front
Rear
