Corsair AX1200i
Serial Number16399523001003440077
Lab ID103
Certification ID25103
  • Test Result Report ID:
  • Certificate Issue Date: Mar 5, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCorsair
Hersteller (OEM)Flextronics
SeriesAXi
Model Number
Serial Number16399523001003440077
DUT NotesCP-9020008

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Double Ball-Bearing Fan
(D14BH-12)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 30 30 100.4 3.5 0.8
Watts 180 1204.8 17.5 9.6
Total Max. Power (W) 1204.8

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (600mm) 1 1 16-22AWG
4+4 pin EPS12V (650mm) 2 2 18AWG
6+2 pin PCIe (600mm+150mm) / (600mm) 2 / 4 4 / 4 16-18 / 18AWG
SATA (400mm+95mm+95mm+95mm) 3 12 18AWG
SATA (550mm+95mm+95mm+95mm) 1 4 18AWG
4 pin Molex (450mm+100mm+100mm+100mm) 3 12 18AWG
FDD Adapter (+105mm) 2 2 22AWG
C-Link USB Cable (800mm) 1 1 24-28AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

WirkungsgradPLATINUM
LautstärkeklasseA
Average Efficiency (>1450 load combinations)89.489%
Average Noise Output (>1450 Load Combinations)22.64dBA
Average PF (>1450 Load Combinations)0.995
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0539W
12V Ripple (Full Load)12.04mV
5V Ripple (Full Load)5.96mV
3.3V Ripple (Full Load)13.97mV
5VSB Ripple (Full Load)9.19mV
12V Load Regulation0.17%
5V Load Regulation0.96%
3.3V Load Regulation0.97%
5VSB Load Regulation2.15%
Inrush Current28.989A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 30.06
AC Loss to PWR_OK Hold Up Time  (ms) 25.6
PWR_OK Inactive to DC Loss Delay (ms) 4.46

Stromverbrauch im Ruhezustand

Tables 115V

Graphs 115V

INFO

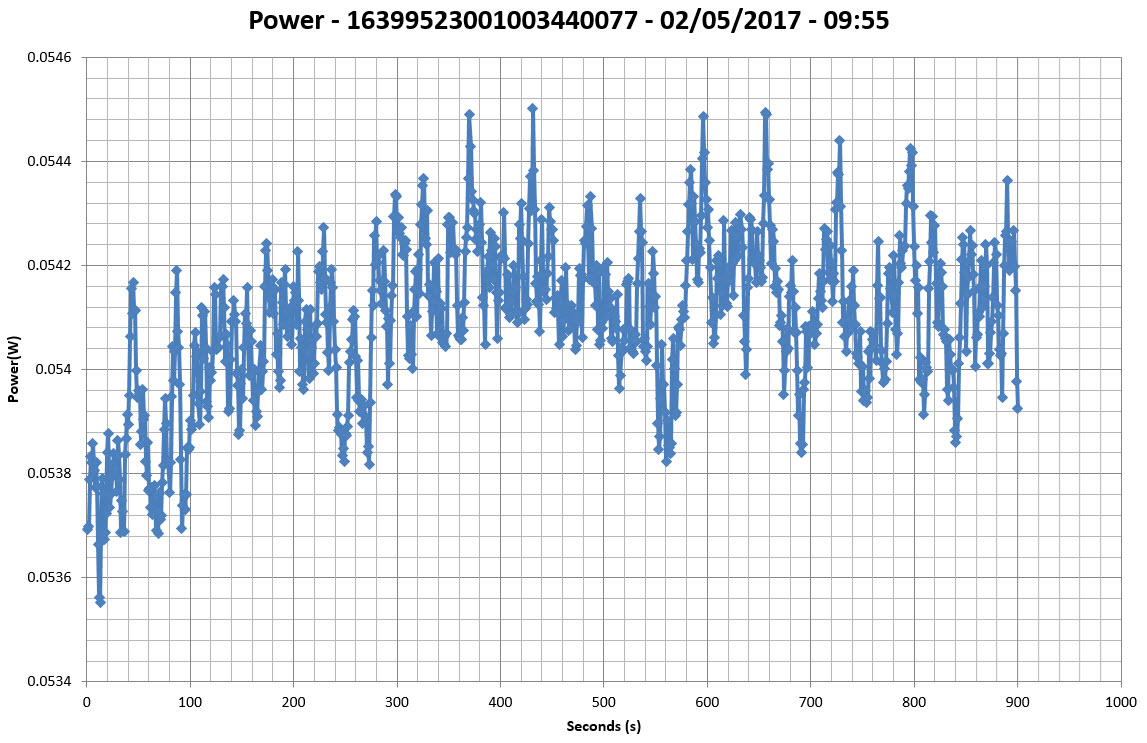

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

115V

INFO

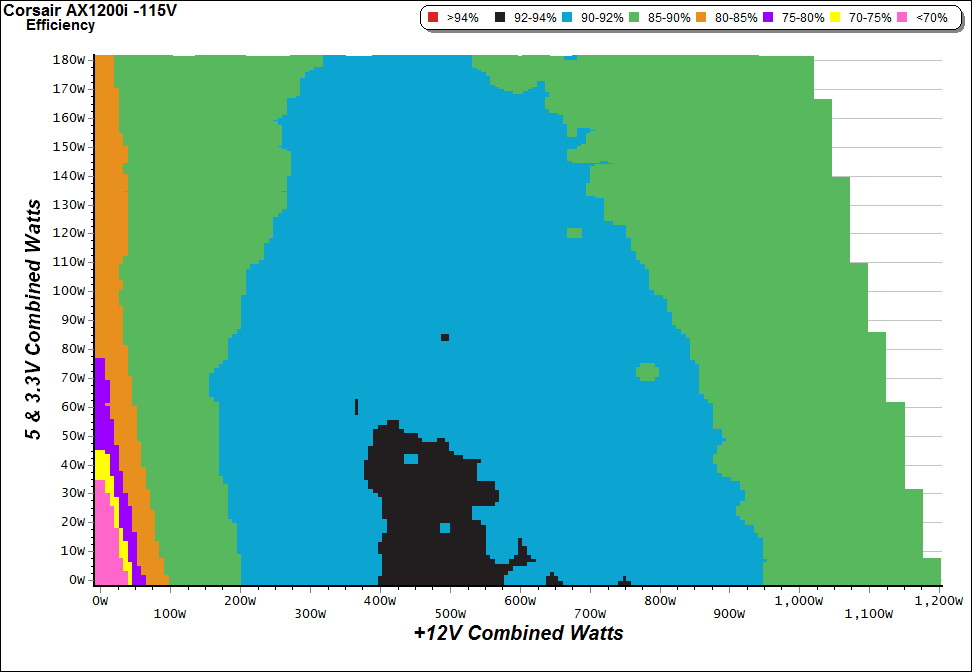

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

115V

INFO

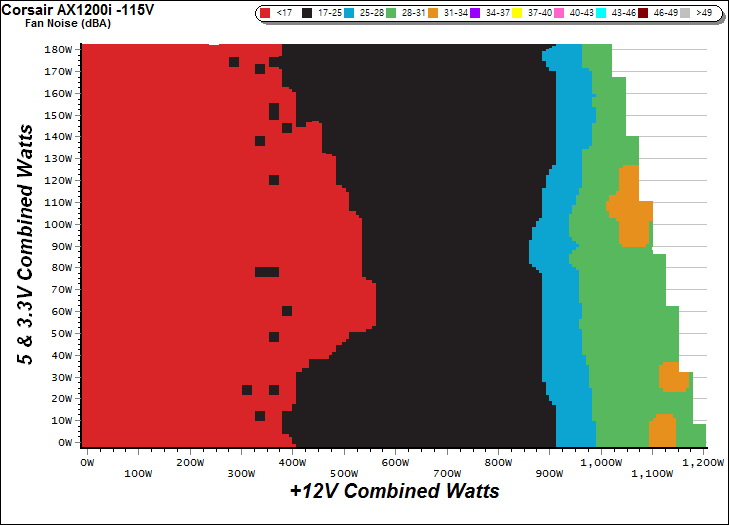

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

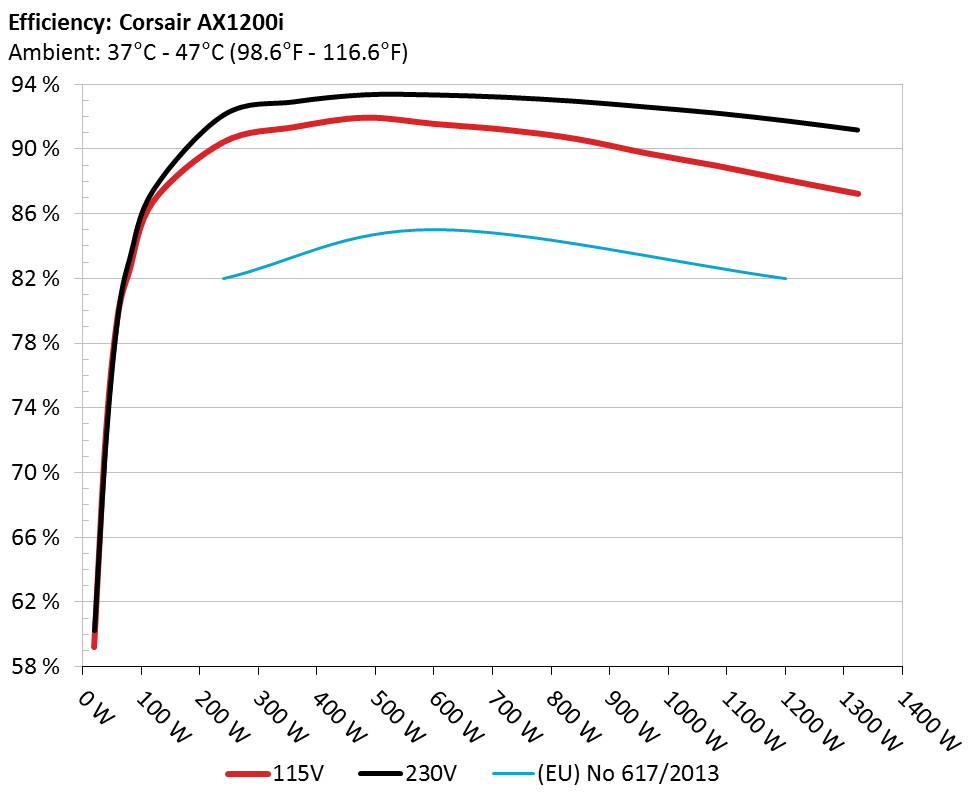

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

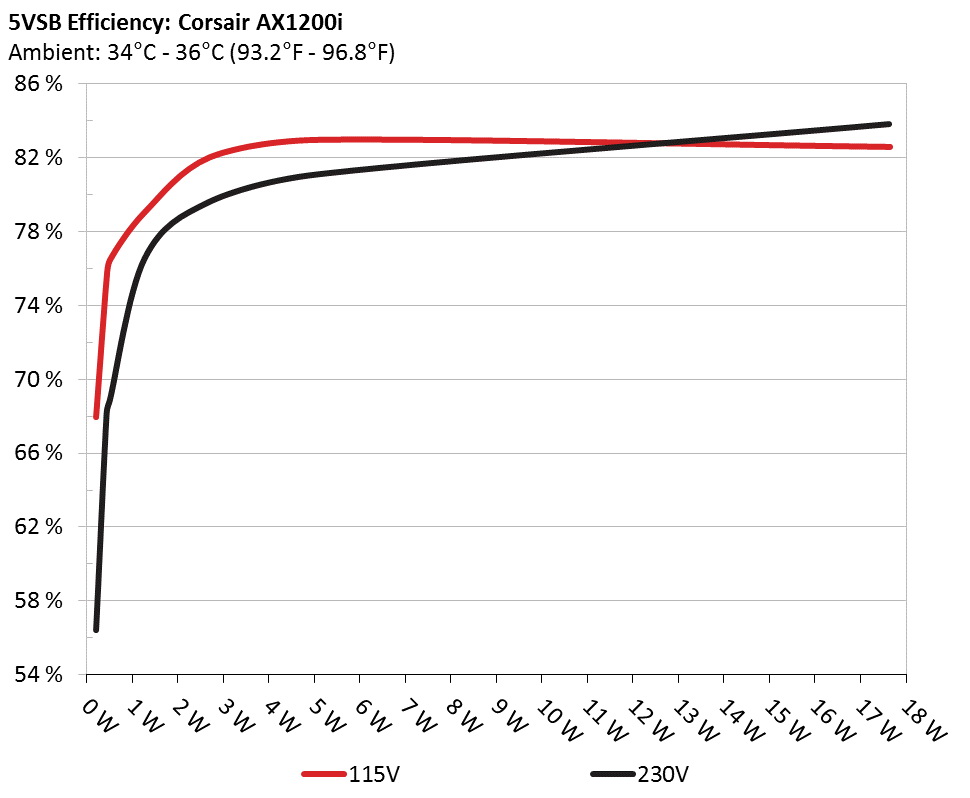

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.212 67.949% 0.030
5.083V 0.312 115.08V
2 0.087A 0.444 75.510% 0.055
5.082V 0.588 115.09V
3 0.532A 2.700 79.295% 0.264
5.077V 3.405 115.10V
4 3.501A 17.640 82.604% 0.549
5.038V 21.355 115.07V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.207A 1.996A 1.997A 0.986A 120.319 86.731% 0 0 51.37°C 0.984
12.030V 5.013V 3.303V 5.058V 138.727 39.53°C 115.12V
2 17.431A 2.990A 3.003A 1.187A 240.646 90.405% 0 0 52.95°C 0.993
12.036V 5.004V 3.294V 5.049V 266.188 40.09°C 115.14V
3 27.013A 3.498A 3.514A 1.386A 361.277 91.325% 0 0 54.65°C 0.997
12.038V 5.009V 3.298V 5.039V 395.595 40.82°C 115.14V
4 36.583A 3.995A 3.998A 1.591A 481.666 91.909% 584 18.2 48.99°C 0.998
12.040V 5.009V 3.300V 5.029V 524.066 46.45°C 115.13V
5 45.805A 5.001A 5.006A 1.791A 602.100 91.519% 600 18.3 43.13°C 0.999
12.043V 4.997V 3.294V 5.020V 657.896 47.88°C 115.13V
6 55.028A 6.016A 6.022A 1.995A 722.541 91.159% 744 20.6 43.61°C 0.999
12.044V 4.986V 3.287V 5.010V 792.619 47.54°C 115.13V
7 64.234A 7.031A 7.040A 2.197A 842.888 90.598% 860 22.3 44.22°C 0.999
12.047V 4.975V 3.280V 5.002V 930.362 47.73°C 115.16V
8 73.453A 8.031A 8.027A 2.401A 963.360 89.711% 1080 27.2 44.62°C 0.999
12.048V 4.982V 3.289V 4.993V 1073.850 48.04°C 115.13V
9 83.088A 8.539A 8.560A 2.406A 1083.725 88.934% 1360 31.8 45.04°C 0.999
12.049V 4.978V 3.282V 4.986V 1218.567 48.58°C 115.13V
10 92.285A 9.064A 9.065A 3.521A 1204.264 88.047% 1704 37.8 45.92°C 0.999
12.050V 4.970V 3.276V 4.966V 1367.747 49.31°C 115.12V
11 102.216A 9.068A 9.080A 3.525A 1324.205 87.212% 1904 39.9 46.95°C 0.999
12.053V 4.964V 3.271V 4.959V 1518.371 50.00°C 115.14V
CL1 0.098A 22.030A 19.998A 0.003A 177.028 83.806% 0 0 48.97°C 0.988
12.004V 4.997V 3.288V 5.049V 211.236 43.36°C 115.15V
CL2 100.358A 1.003A 1.003A 1.002A 1222.744 88.157% 1760 38.1 46.57°C 0.999
12.051V 4.996V 3.290V 5.008V 1387.000 49.88°C 115.14V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.212A 0.492A 0.482A 0.195A 19.657 59.233% 0 0 0.910
12.047V 5.020V 3.311V 5.075V 33.186 115.13V
2 2.452A 0.991A 0.995A 0.390A 39.770 72.403% 0 0 0.957
12.043V 5.018V 3.308V 5.070V 54.929 115.13V
3 3.690A 1.488A 1.508A 0.590A 59.860 79.638% 0 0 0.980
12.039V 5.016V 3.307V 5.067V 75.165 115.12V
4 4.921A 1.996A 1.996A 0.789A 79.824 82.448% 0 0 0.973
12.035V 5.014V 3.305V 5.062V 96.817 115.12V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 3.2 mV 3.8 mV 9.7 mV 4.0 mV Pass
20% Load 5.4 mV 3.6 mV 9.7 mV 4.4 mV Pass
30% Load 6.2 mV 3.7 mV 9.6 mV 4.6 mV Pass
40% Load 5.2 mV 4.7 mV 9.8 mV 4.6 mV Pass
50% Load 14.0 mV 8.1 mV 9.2 mV 16.6 mV Pass
60% Load 7.6 mV 4.2 mV 10.7 mV 5.4 mV Pass
70% Load 7.4 mV 4.2 mV 11.8 mV 5.5 mV Pass
80% Load 7.9 mV 4.7 mV 12.5 mV 6.6 mV Pass
90% Load 9.1 mV 4.4 mV 12.5 mV 6.6 mV Pass
100% Load 12.0 mV 6.0 mV 14.0 mV 9.2 mV Pass
110% Load 14.6 mV 6.1 mV 13.9 mV 9.1 mV Pass
Crossload 1 6.5 mV 6.0 mV 20.3 mV 17.2 mV Pass
Crossload 2 12.3 mV 5.0 mV 8.4 mV 7.0 mV Pass

The results above are not used in the certification process

Corsair AX1200i

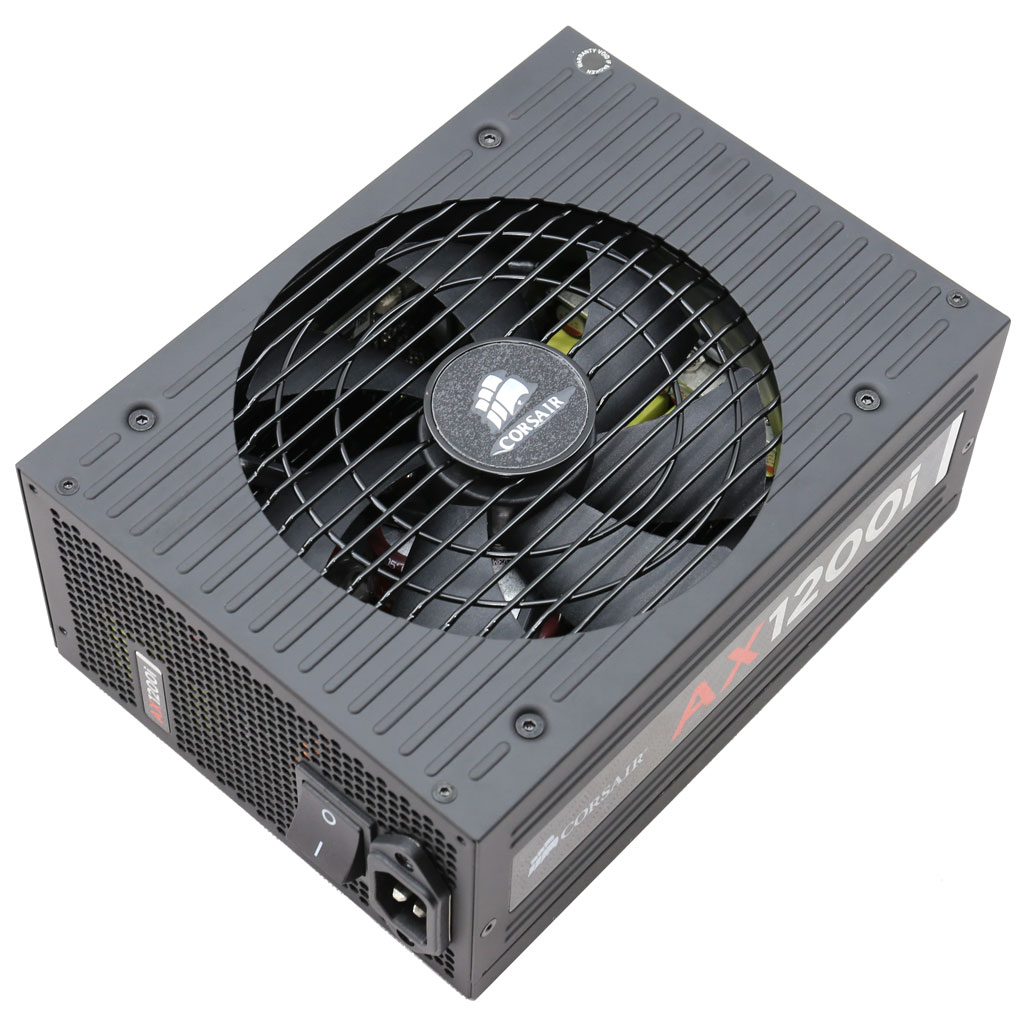

Top side

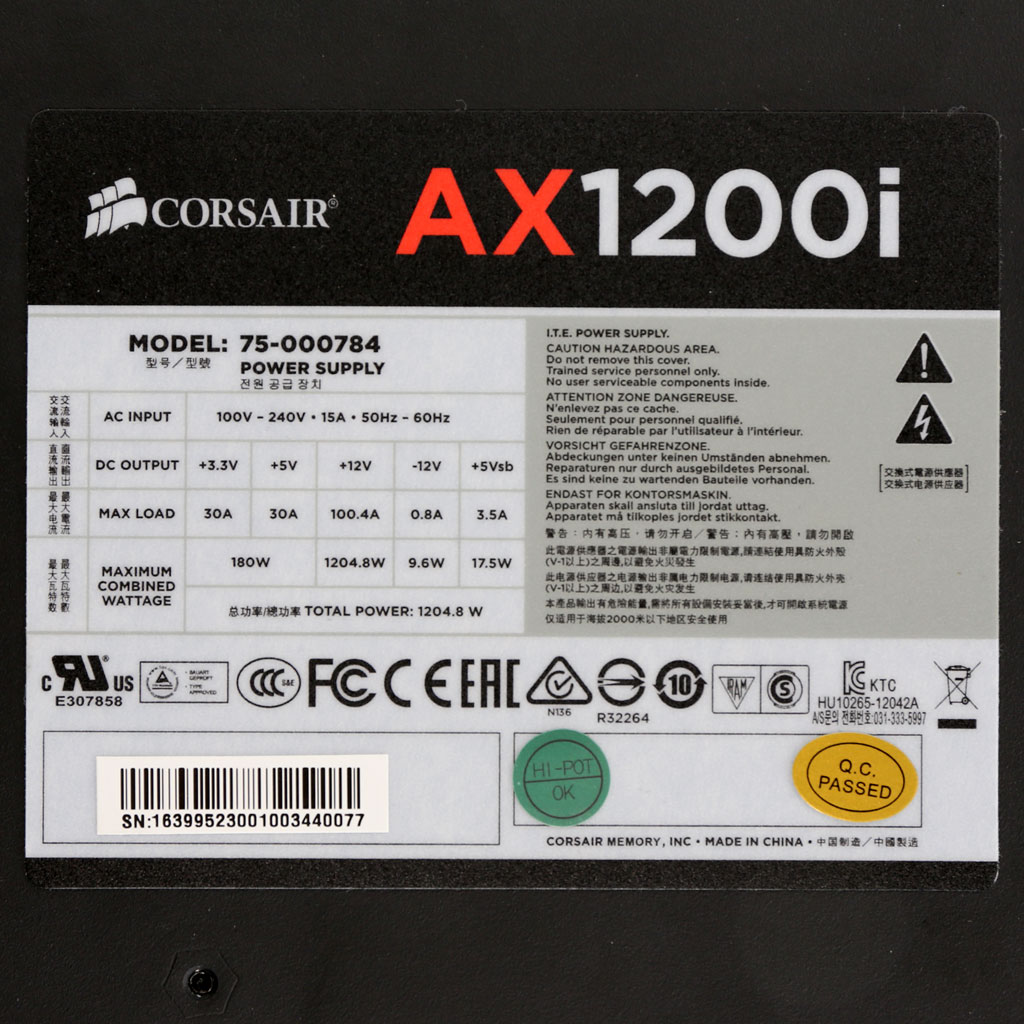

Power specifications label
