ErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance
✓
Performance Summary 115V
Wirkungsgrad
SILVER
Lautstärkeklasse
Standard++
Average Efficiency (>1450 load combinations)
86.113%
Average Noise Output (>1450 Load Combinations)
31.98dBA
Average PF (>1450 Load Combinations)
0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1278W
12V Ripple (Full Load)
14.99mV
5V Ripple (Full Load)
11.21mV
3.3V Ripple (Full Load)
15.59mV
5VSB Ripple (Full Load)
10.35mV
12V Load Regulation
0.76%
5V Load Regulation
0.97%
3.3V Load Regulation
0.84%
5VSB Load Regulation
3.88%
Inrush Current
64.915A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
17.96
AC Loss to PWR_OK Hold Up Time (ms)
14.58
PWR_OK Inactive to DC Loss Delay (ms)
3.38
Stromverbrauch im Ruhezustand
Tables 115V
Graphs 115V
INFO

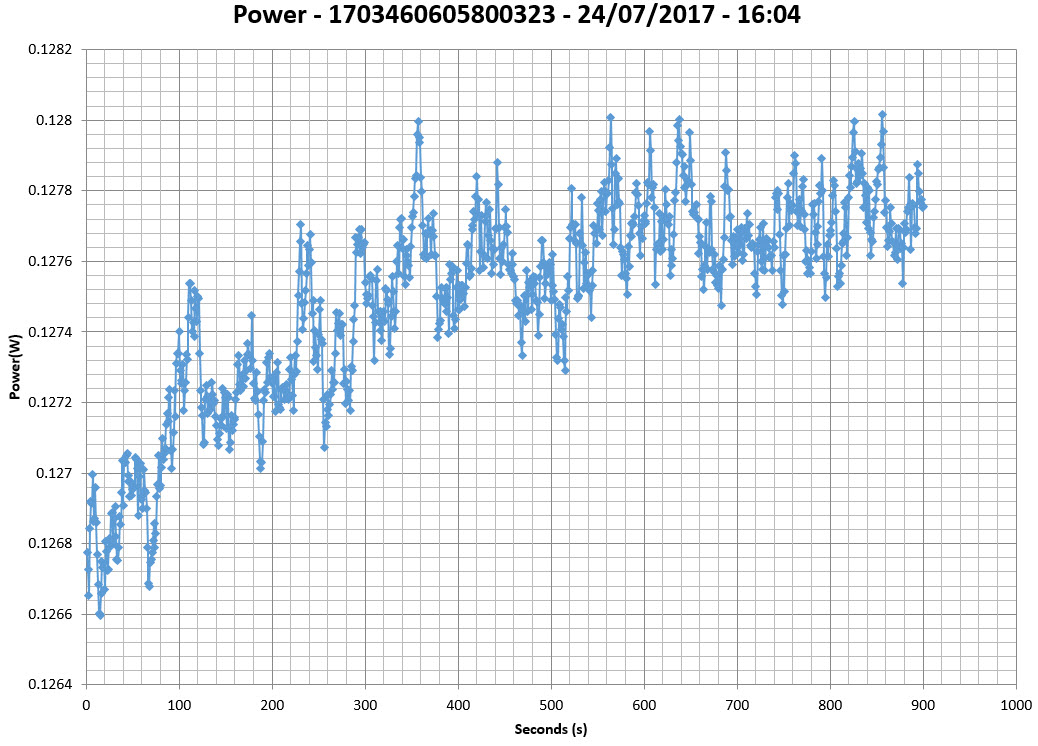

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

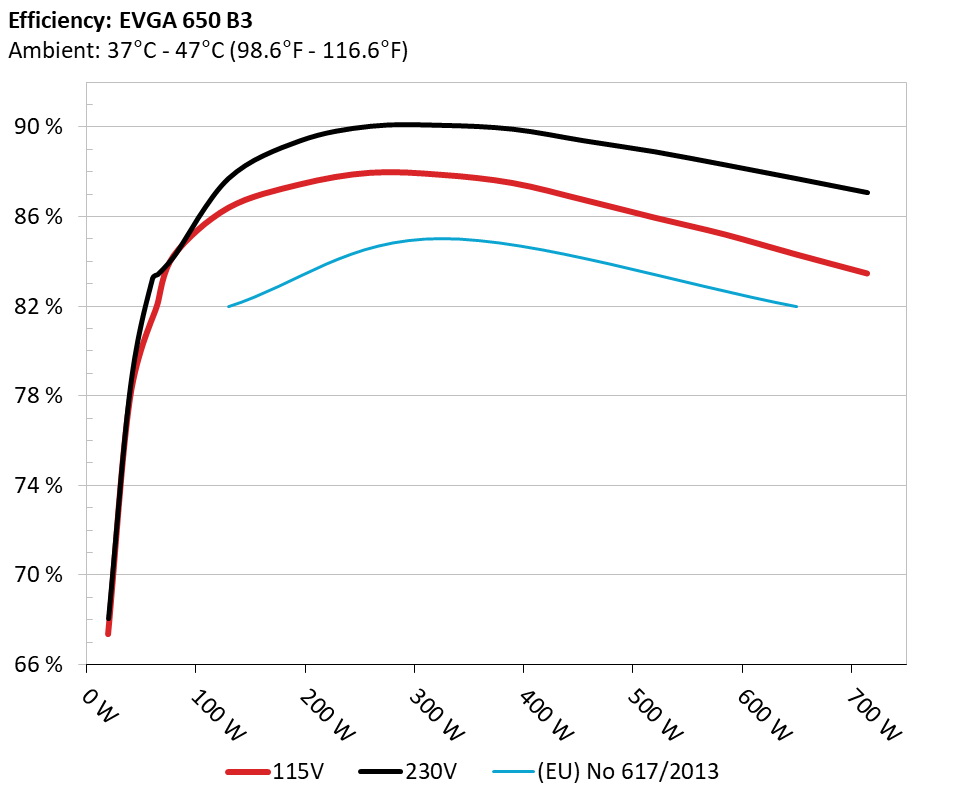

Efficiency Graph
115V
INFO

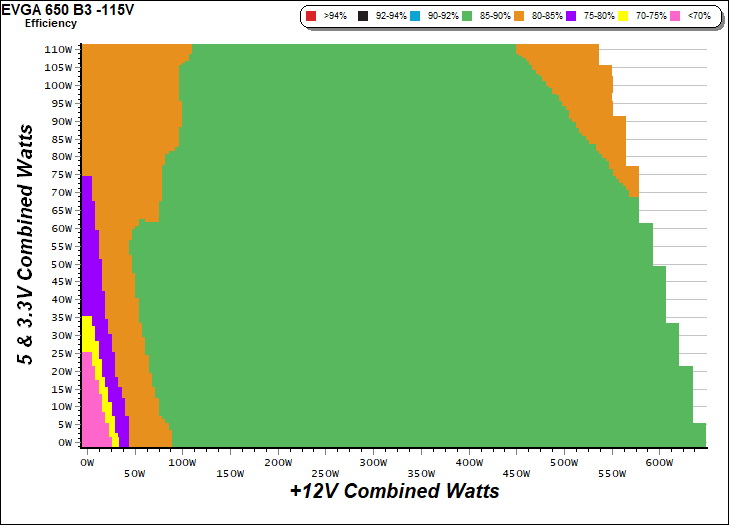

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
Noise Graph
115V
INFO

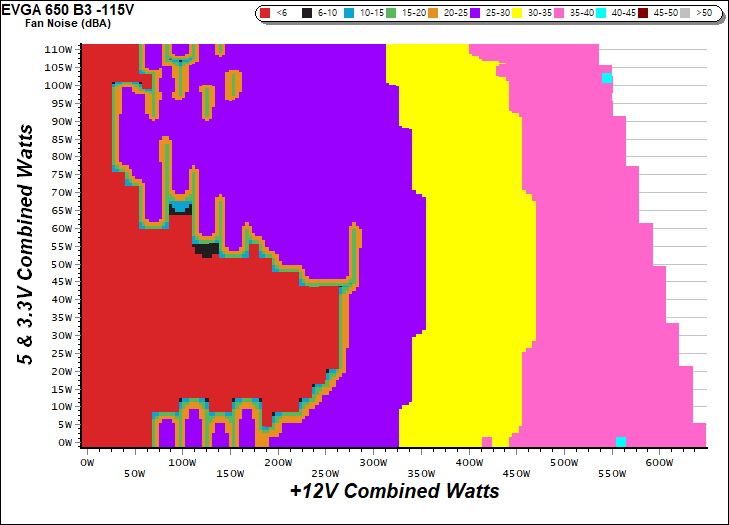

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Conducted Emissions EN55032 & CISPR 32
Indicative Performance
Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

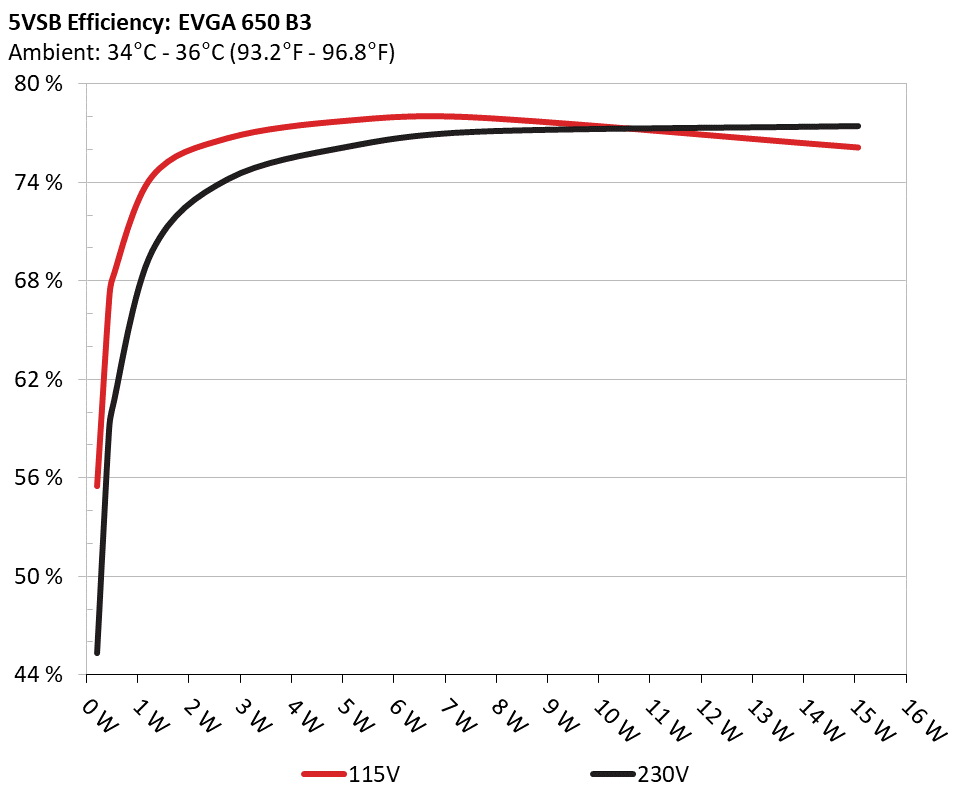

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.041A
0.212
55.497%
0.041
5.135V
0.382
115.19V
2
0.087A
0.445
66.817%
0.071
5.133V
0.666
115.19V
3
0.542A
2.770
76.689%
0.271
5.115V
3.612
115.17V
4
1.002A
5.106
77.752%
0.349
5.098V
6.567
115.17V
5
1.501A
7.624
77.939%
0.391
5.079V
9.782
115.18V
6
3.001A
15.053
76.114%
0.447
5.016V
19.777
115.18V
Protection Features
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
3.547A
1.975A
1.981A
0.980A
64.751
81.688%
893
16.6
38.51°C
0.957
12.175V
5.063V
3.323V
5.085V
79.266
42.09°C
115.21V
2
8.123A
2.961A
2.977A
1.180A
129.714
86.379%
1005
20.9
39.36°C
0.980
12.172V
5.058V
3.320V
5.068V
150.169
41.47°C
115.21V
3
13.050A
3.468A
3.494A
1.385A
194.854
87.417%
1218
27.3
39.82°C
0.989
12.164V
5.054V
3.317V
5.052V
222.901
41.98°C
115.21V
4
17.976A
3.963A
3.979A
1.585A
259.729
87.940%
1240
27.8
40.14°C
0.992
12.158V
5.049V
3.314V
5.036V
295.347
42.45°C
115.21V
5
22.574A
4.960A
4.980A
1.790A
324.716
87.850%
1315
30.4
40.69°C
0.994
12.148V
5.043V
3.312V
5.017V
369.627
43.07°C
115.21V
6
27.182A
5.956A
5.983A
2.000A
389.696
87.485%
1425
32.3
41.41°C
0.995
12.137V
5.036V
3.309V
4.998V
445.441
44.22°C
115.21V
7
31.794A
6.962A
6.984A
2.205A
454.628
86.738%
1550
35.5
42.76°C
0.996
12.126V
5.031V
3.305V
4.982V
524.142
45.63°C
115.20V
8
36.417A
7.962A
7.994A
2.415A
519.596
85.944%
1645
37.4
43.25°C
0.996
12.115V
5.026V
3.302V
4.965V
604.573
46.47°C
115.20V
9
41.481A
8.475A
8.517A
2.420A
584.680
85.186%
1817
42.0
44.86°C
0.996
12.103V
5.021V
3.298V
4.956V
686.355
48.28°C
115.20V
10
46.296A
8.980A
9.012A
3.044A
649.504
84.300%
1910
42.1
45.46°C
0.996
12.091V
5.017V
3.295V
4.925V
770.469
49.25°C
115.20V
11
51.723A
8.984A
9.019A
3.050A
714.480
83.454%
2003
43.0
46.63°C
0.996
12.079V
5.013V
3.292V
4.915V
856.140
51.19°C
115.19V
CL1
0.097A
13.021A
13.003A
0.004A
110.061
80.138%
1447
33.5
44.16°C
0.980
12.159V
5.043V
3.322V
5.098V
137.339
46.88°C
115.22V
CL2
54.018A
1.003A
1.003A
1.001A
666.716
84.894%
1910
42.1
46.44°C
0.996
12.095V
5.029V
3.291V
5.019V
785.355
49.73°C
115.20V
The results above are not used in the certification process
Light Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.195A
0.492A
0.480A
0.195A
19.656
67.380%
0
<6.0
0.838
12.191V
5.068V
3.324V
5.124V
29.172
115.22V
2
2.418A
0.981A
0.990A
0.391A
39.717
77.905%
0
<6.0
0.909
12.183V
5.066V
3.323V
5.113V
50.981
115.21V
3
3.645A
1.478A
1.500A
0.585A
59.843
82.078%
0
<6.0
0.953
12.178V
5.064V
3.323V
5.101V
72.910
115.21V
4
4.862A
1.976A
1.985A
0.785A
79.773
84.254%
0
<6.0
0.965
12.172V
5.062V
3.322V
5.091V
94.681
115.21V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
6.8 mV
4.8 mV
6.9 mV
5.0 mV
Pass
20% Load
8.7 mV
7.4 mV
6.7 mV
4.9 mV
Pass
30% Load
9.2 mV
7.0 mV
8.0 mV
4.9 mV
Pass
40% Load
10.7 mV
7.3 mV
8.8 mV
6.0 mV
Pass
50% Load
12.9 mV
7.5 mV
10.1 mV
6.6 mV
Pass
60% Load
10.4 mV
7.3 mV
11.6 mV
6.3 mV
Pass
70% Load
12.0 mV
8.3 mV
12.0 mV
7.1 mV
Pass
80% Load
12.1 mV
9.1 mV
12.3 mV
7.1 mV
Pass
90% Load
12.8 mV
10.1 mV
13.5 mV
8.4 mV
Pass
100% Load
15.0 mV
11.2 mV
15.6 mV
10.4 mV
Pass
110% Load
14.6 mV
11.5 mV
15.5 mV
10.8 mV
Pass
Crossload 1
9.4 mV
6.7 mV
8.2 mV
8.1 mV
Pass
Crossload 2
14.6 mV
10.2 mV
14.3 mV
9.0 mV
Pass
The results above are not used in the certification process

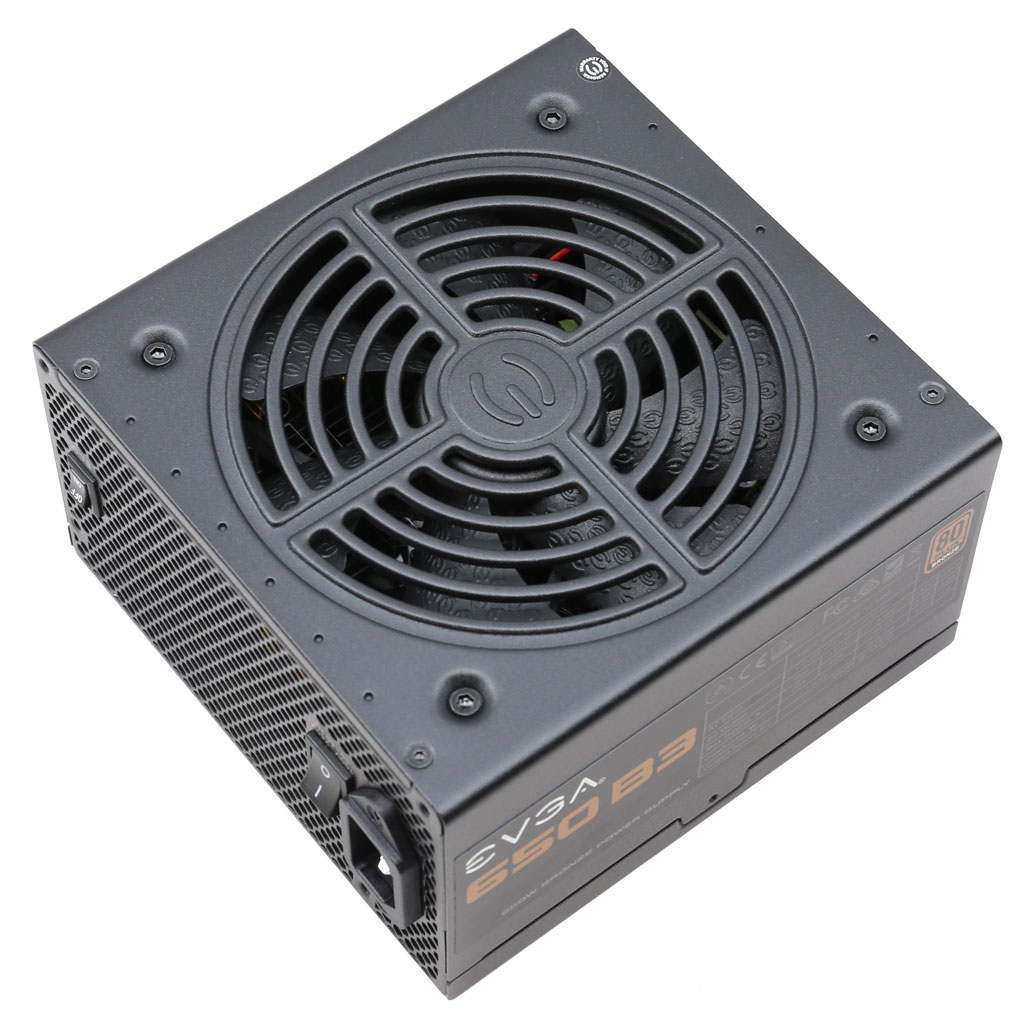

EVGA 650 B3
Top side

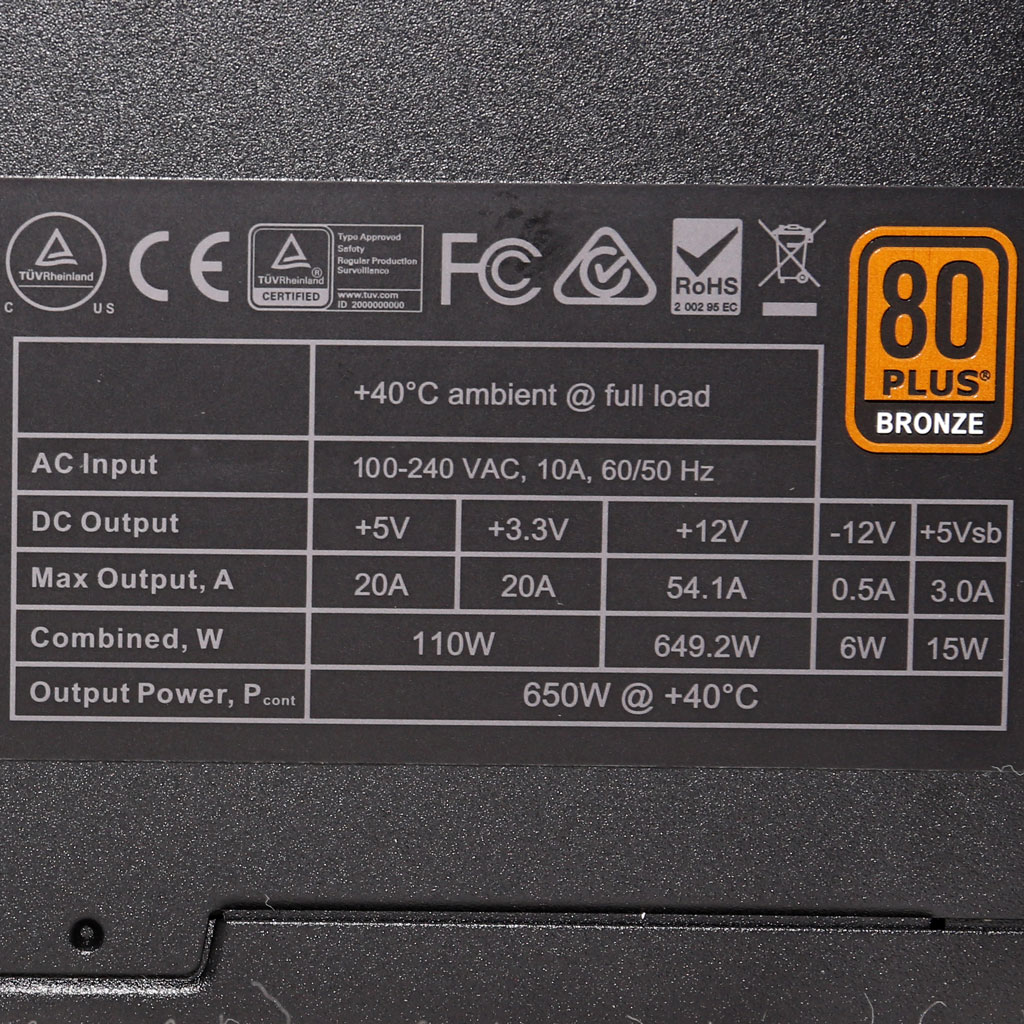

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
