Fractal Design ION+ 760P
Serial Number1918FD19340101113
Lab IDFD76001534
Certification ID251534
  • Test Result Report ID:
  • Certificate Issue Date: May 21, 2020
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

DUT Information(Non-accredited measurements)

Cables and Connectors(Non-accredited measurements)

Power Specifications

Parts Description

Test Results

Temperature & Compliance Info

Performance Summary

Hold-Up Time & PWR_OK Signal

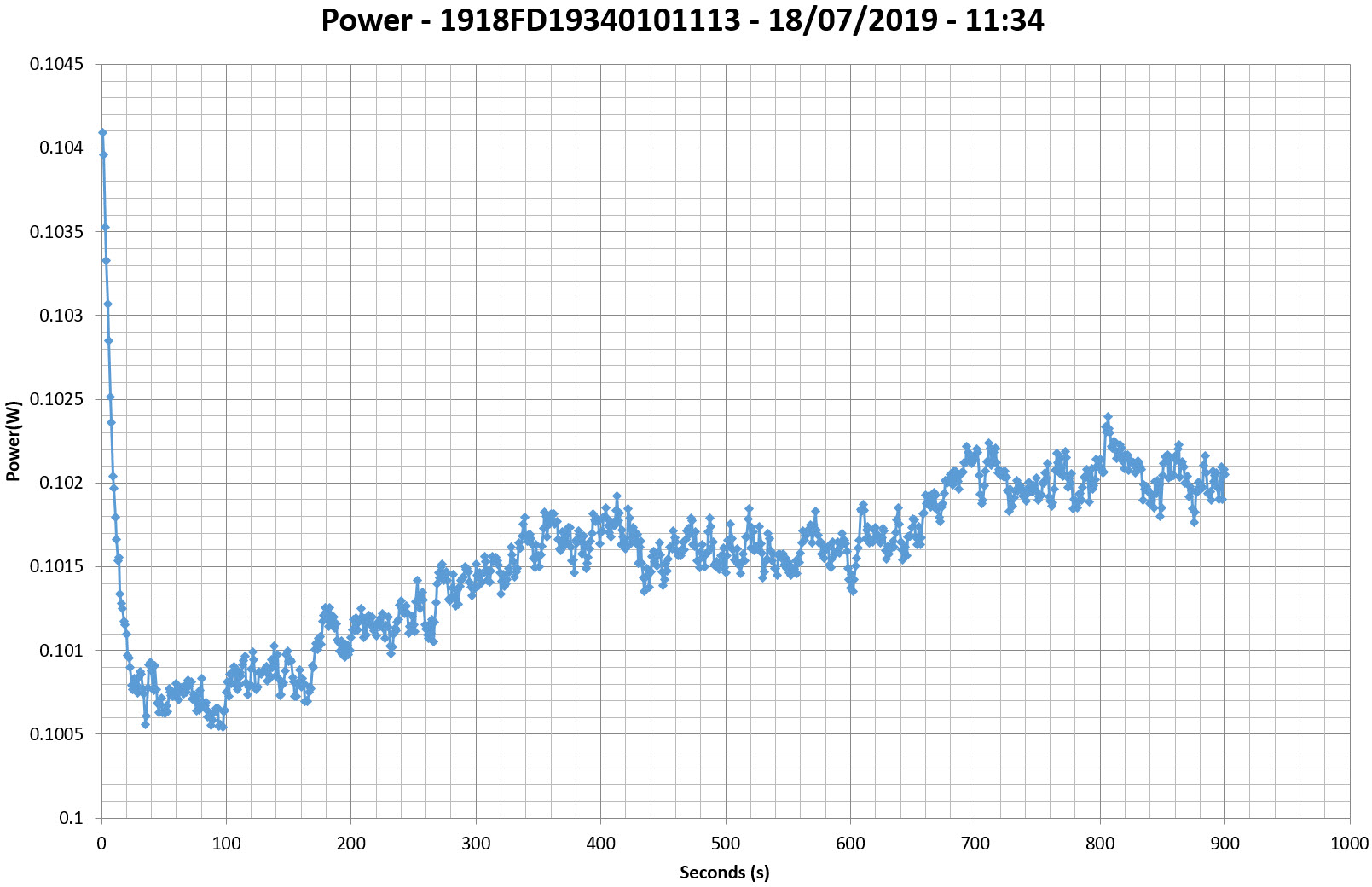

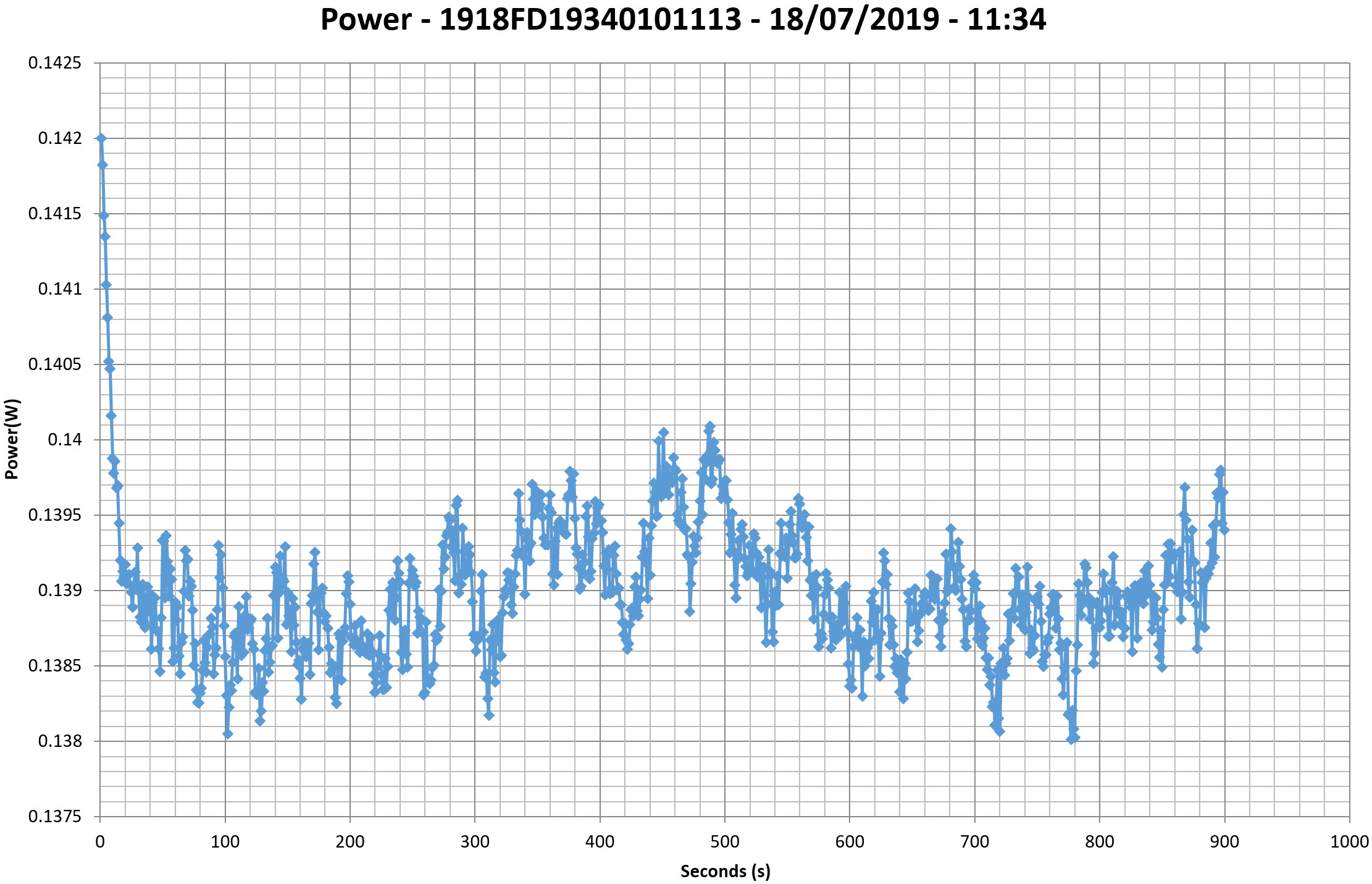

Vampire Power

Tables

Graphs

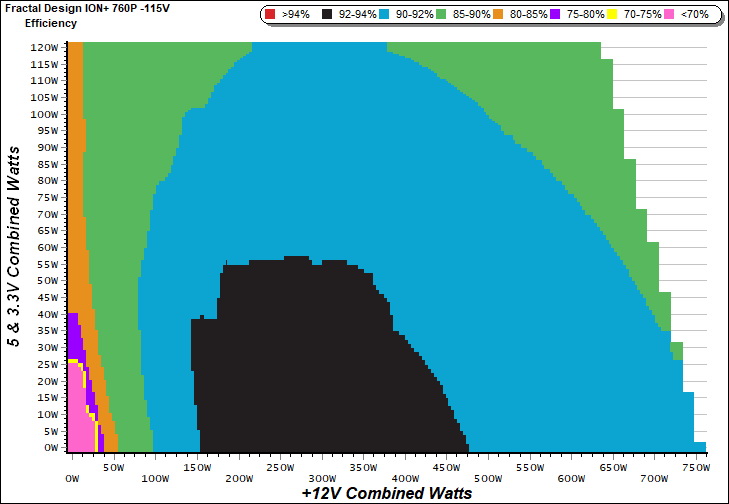

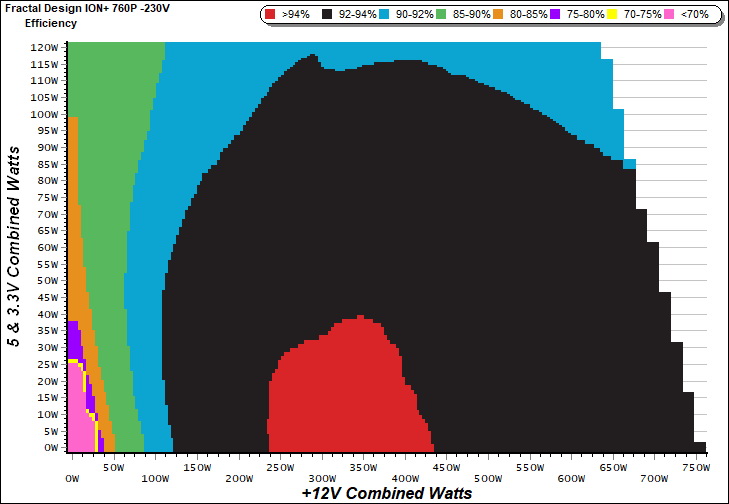

Efficiency Graph

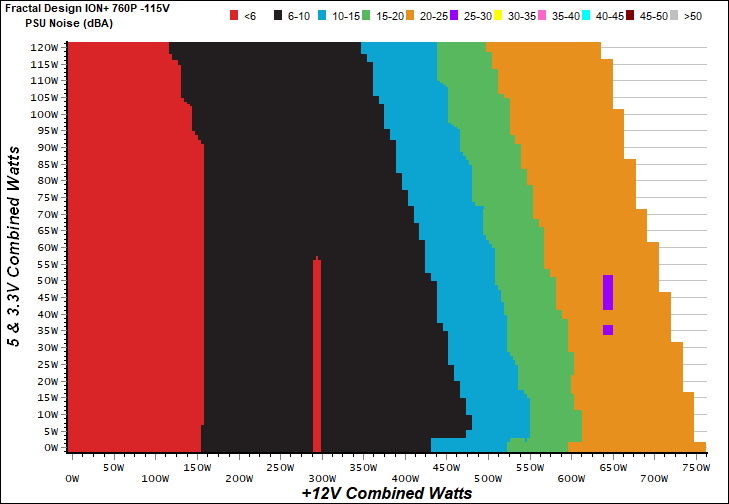

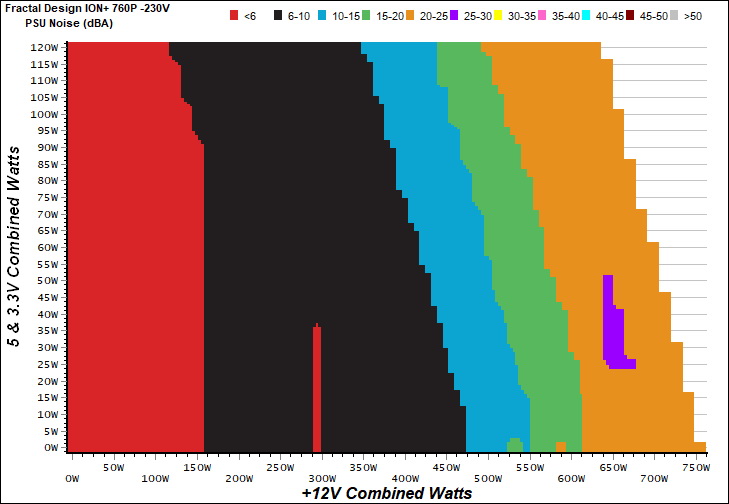

Noise Graph

Noise under high ambient temperature (indicative)

115V

LoadNormal ambient
fan · noise · intake
High ambient
fan · noise · intake
Noise change
10%0 RPM · <6.0 dB(A) · 45.8 °C0 RPM · <6.0 dB(A) · 45.8 °Cfan off in both
20%0 RPM · <6.0 dB(A) · 46.8 °C0 RPM · <6.0 dB(A) · 46.8 °Cfan off in both
50%489 RPM · 8.1 dB(A) · 42.3 °C489 RPM · 8.1 dB(A) · 42.3 °C+0.0 dB(A)
100%1046 RPM · 29.0 dB(A) · 45.1 °C1046 RPM · 29.0 dB(A) · 45.1 °C+0.0 dB(A)

230V

LoadNormal ambient
fan · noise · intake
High ambient
fan · noise · intake
Noise change
10%0 RPM · <6.0 dB(A) · 45.3 °C0 RPM · <6.0 dB(A) · 45.3 °Cfan off in both
20%0 RPM · <6.0 dB(A) · 45.8 °C0 RPM · <6.0 dB(A) · 45.8 °Cfan off in both
50%487 RPM · 8.1 dB(A) · 42.3 °C487 RPM · 8.1 dB(A) · 42.3 °C+0.0 dB(A)
100%1198 RPM · 33.1 dB(A) · 45.1 °C1198 RPM · 33.1 dB(A) · 45.1 °C+0.0 dB(A)

INFO

Fan speed, noise and the measured intake temperature at 10, 20, 50 and 100 % load, from the two load regulation tests: at normal ambient (about 30-32 °C) and at high ambient (about 40-47 °C). These are stabilized readings at fixed loads, not averages over the certification sweep, so they are indicative of how the fan behaves when it is hot. "<6.0" is the floor of our sound meter: the fan is stopped or too quiet to measure (the fan speed column says which); with the fan stopped, the intake sensor can read higher than the chamber air.

Informational. Not part of the ETA or LAMBDA rating.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

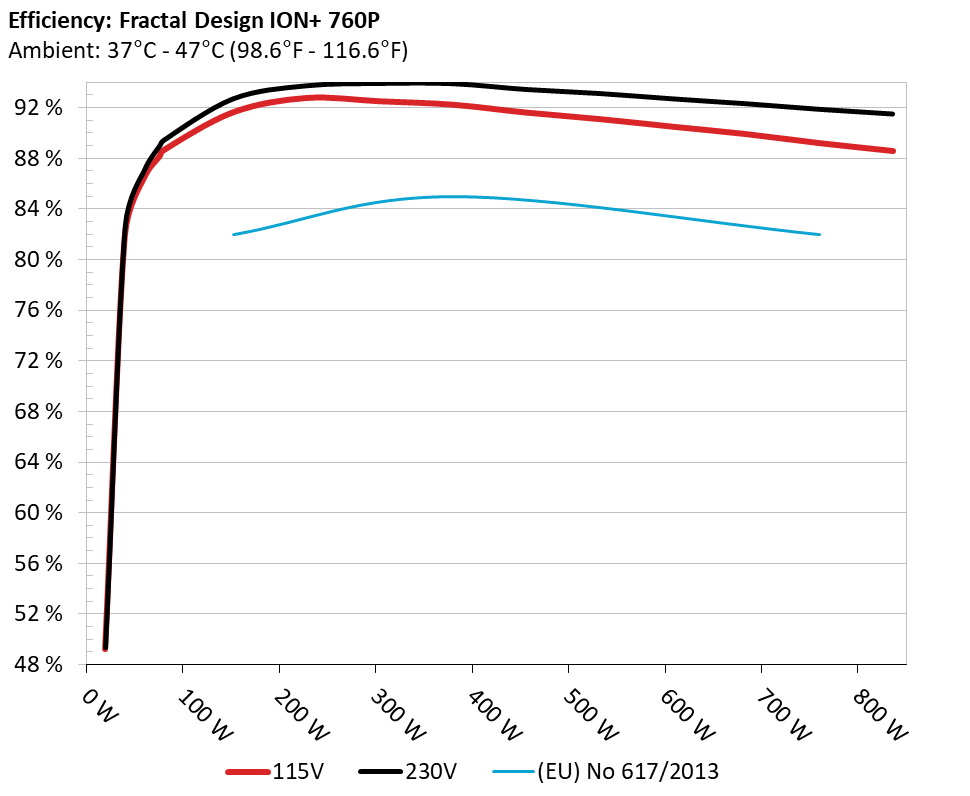

Efficiency under high ambient temperature

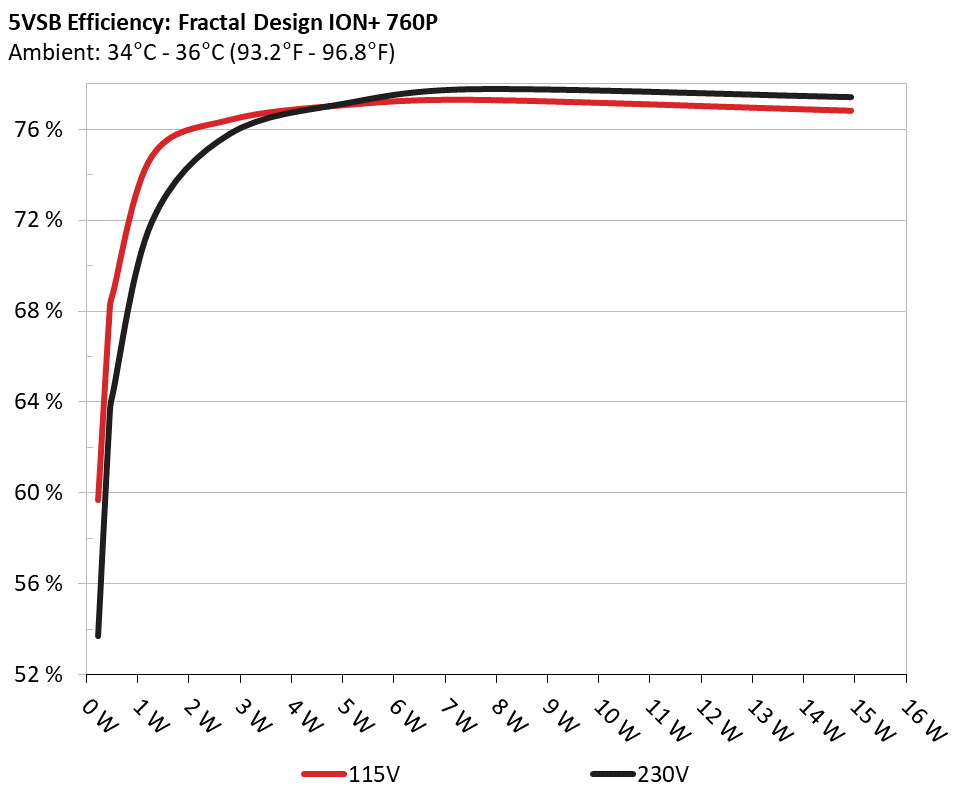

5VSB Efficiency

5VSB Efficiency (ERP LOT 3/6 & CEC)

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Light Load Tests

Ripple Measurements

Fractal Design ION+ 760P

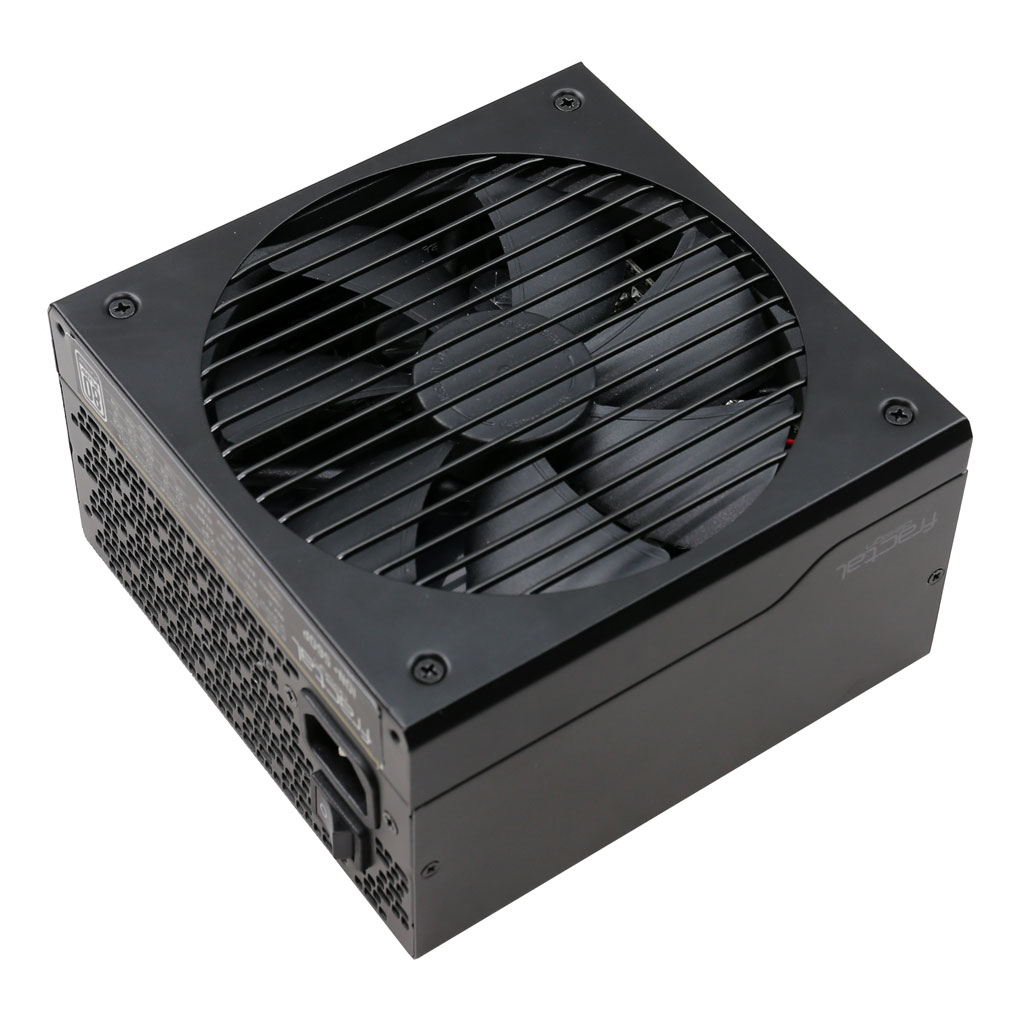

Top side
Top side
Power specifications label
Power specifications label
