Cybenetics Test - Kolink Enclave 500W (#2)

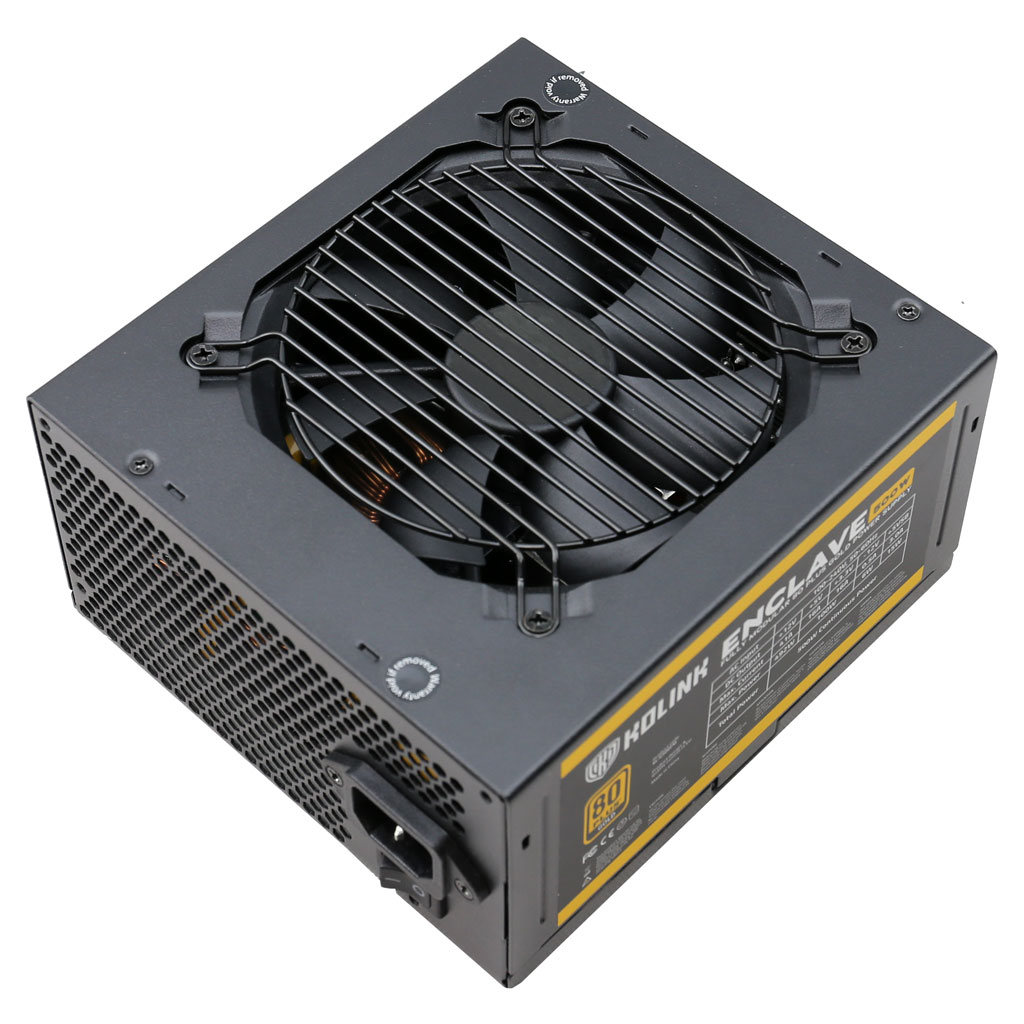

Kolink Enclave 500W (#2)

Serial NumberKOL-016-0619000002

Lab IDKL50001613

Certification ID251613

Test Result Report ID: 20PS1613A
Certificate Issue Date: Mar 4, 2020

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Kolink
Hersteller (OEM)	Kolink
Series	Enclave
Model Number	KL-G500FM
Serial Number	KOL-016-0619000002
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)
Rated Frequency (Hz)	50-60
Rated Power (W)	500
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Rifle Bearing Fan (EFS-12E12H)
Semi-Passive Operation	✗
Cable Design	Fully Modular

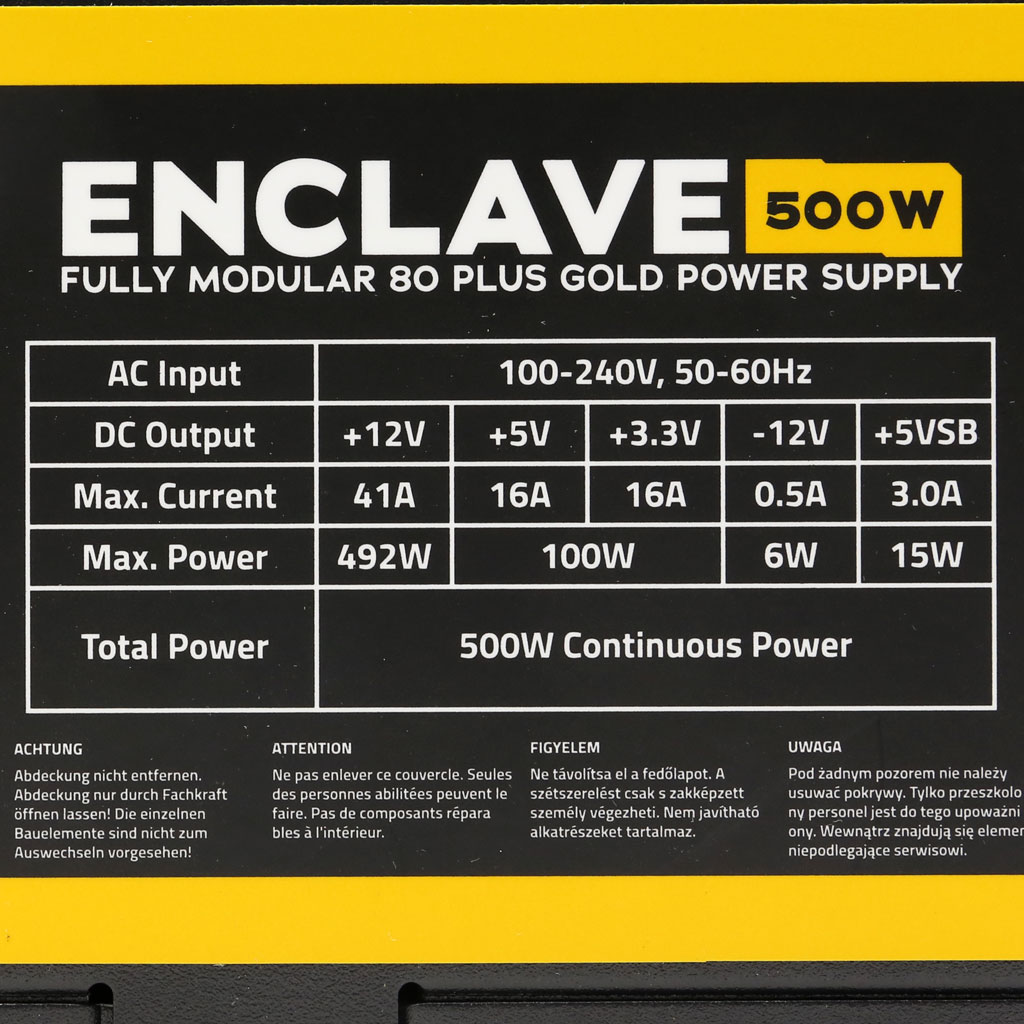

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	16	16	41	3	0.5
Max. Power	Watts	100		492	15	6
Total Max. Power (W)		500

Test Equipment

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (500mm)	1	1	18-22AWG	No
4+4 pin EPS12V (650mm)	1	1	18AWG	No
6+2 pin PCIe (600mm+100mm)	1	2	18AWG	No
SATA (450mm+120mm+120mm)	1	3	20AWG	No
SATA (450mm) / 4 pin Molex (+120mm+120mm)	2	2 / 4	18-20AWG	No

Parts Description

General Data
Manufacturer (OEM)	Kolink
PCB Type	Double Sided
Primary Side
Transient Filter	5x Y caps, 3x X caps, 2x CM chokes
Inrush Protection	NTC Thermistor & Relay
Bridge Rectifier(s)	1x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS	2x Advanced Power AP65SL380AI (650V, 6.5A @ 100°C, 0.38Ohm)
APFC Boost Diode	1x Infineon IDH06G65C6 (650V, 6A @ 145°C)
Hold-up Cap(s)	1x Teapo (420V, 330uF, 2000h @ 105°C, LG)
Main Switchers	4x Great Power GPT10N50AD (500V, 9.7A, 0.7Ohm)
APFC Controller	On Semiconductor NCP1654
Resonant Controllers	Champion CM6901T6
Topology	Primary side: Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	4x Nexperia PSMN2R6-40YS (40V, 100A @ 100°C, 5.3mOhm @ 175°C)
5V & 3.3V	DC-DC Converters:4x Excelliance MOS EMB09N03HR (30V, 35A @ 100°C, 9.5mOhm) PWM Controllers: ANPEC APW7159
Filtering Capacitors	Electrolytics: 10x Teapo (1-3,000h @ 105°C, SC), 1x CapXon (2-5,000h @ 105°C, KF) Polymers: CapXon
Supervisor IC	IN1S313I-DAG & UTC393
Fan Model	DWPH EFS-12E12H (120mm, 12V, 0.50A, Rifle Bearing Fan)
5VSB Circuit
Rectifier	1x MBR2045CT SBR (45V, 20A)
Standby PWM Controller	Infineon ICE2QR4765

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	ErP Lot 6 2010: ✓ ErP Lot 6 2013: ✓ ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓

Performance Summary

Wirkungsgrad	GOLD
Lautstärkeklasse	A-
Average Efficiency (>1450 load combinations)	88.654%
Average Noise Output (>1450 Load Combinations)	28.05dBA
Average PF (>1450 Load Combinations)	0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load	52.344%
Standby Power Consumption	0.0869W
12V Ripple (Full Load)	47.14mV
5V Ripple (Full Load)	6.98mV
3.3V Ripple (Full Load)	18.68mV
5VSB Ripple (Full Load)	9.54mV
12V Load Regulation	0.83%
5V Load Regulation	1.81%
3.3V Load Regulation	2.39%
5VSB Load Regulation	3.01%
Inrush Current	26.490A

Wirkungsgrad	GOLD
Lautstärkeklasse	A-
Average Efficiency (>1450 load combinations)	90.577%
Average Noise Output (>1450 Load Combinations)	29.70dBA
Average PF (>1450 Load Combinations)	0.930
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.1350W
12V Ripple (Full Load)	49.39mV
5V Ripple (Full Load)	7.04mV
3.3V Ripple (Full Load)	17.19mV
5VSB Ripple (Full Load)	10.10mV
12V Load Regulation	0.81%
5V Load Regulation	1.73%
3.3V Load Regulation	2.36%
5VSB Load Regulation	2.96%
Inrush Current	75.320A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
Hold-Up Time & Power Ok Signal	18.50ms
AC Loss to PWR_OK Hold Up Time	14.70ms
PWR_OK Inactive to DC Loss Delay	3.80ms
PSU Timings: T1 (20% / 100%)	52.0ms	52.0ms
PSU Timings: T3 (20% / 100%)	134.0ms	134.0ms
OPP (0.00°C / 0.00°C)	124.16%	0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	18.5
AC Loss to PWR_OK Hold Up Time (ms)	14.7
PWR_OK Inactive to DC Loss Delay (ms)	3.8

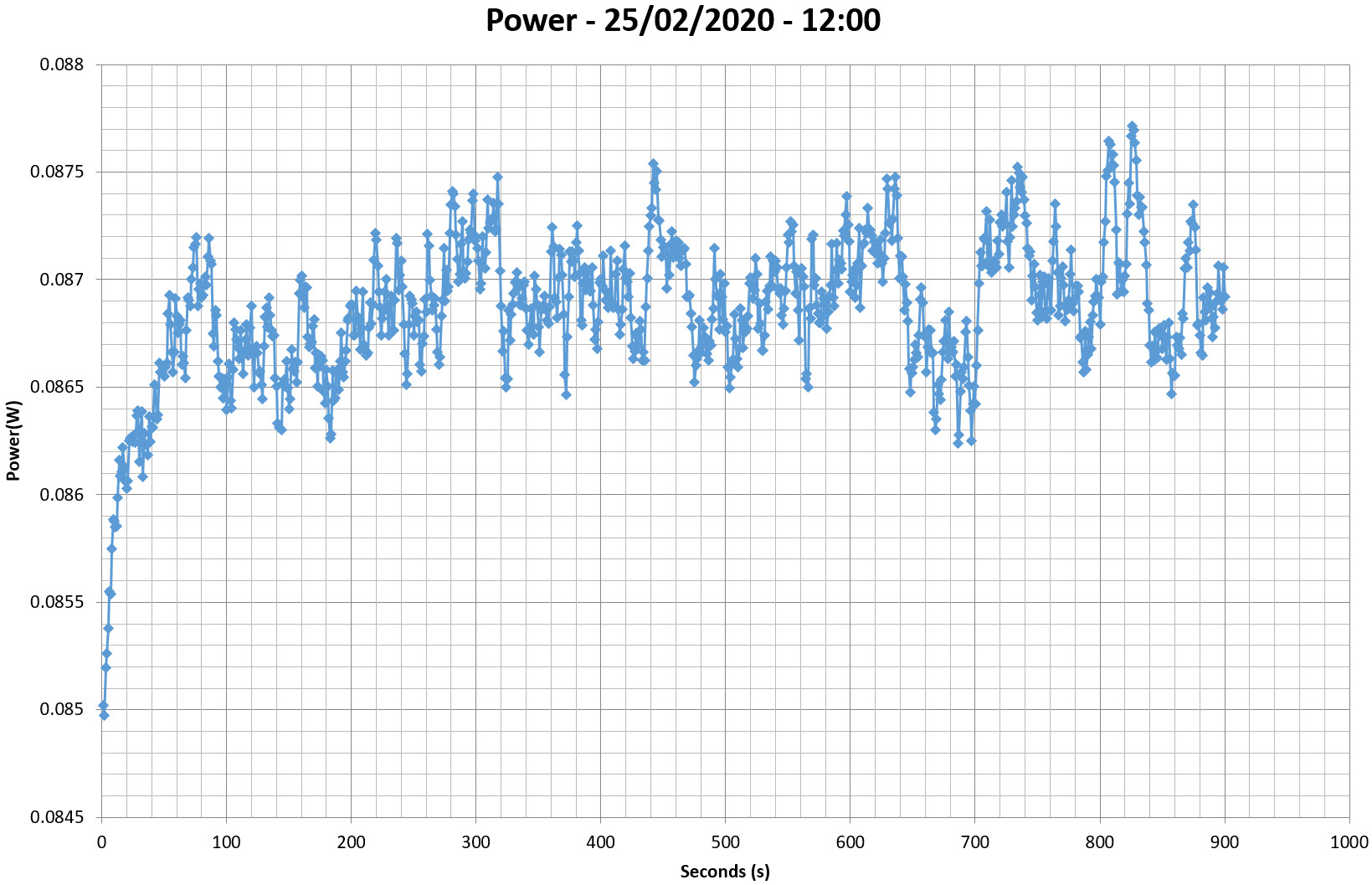

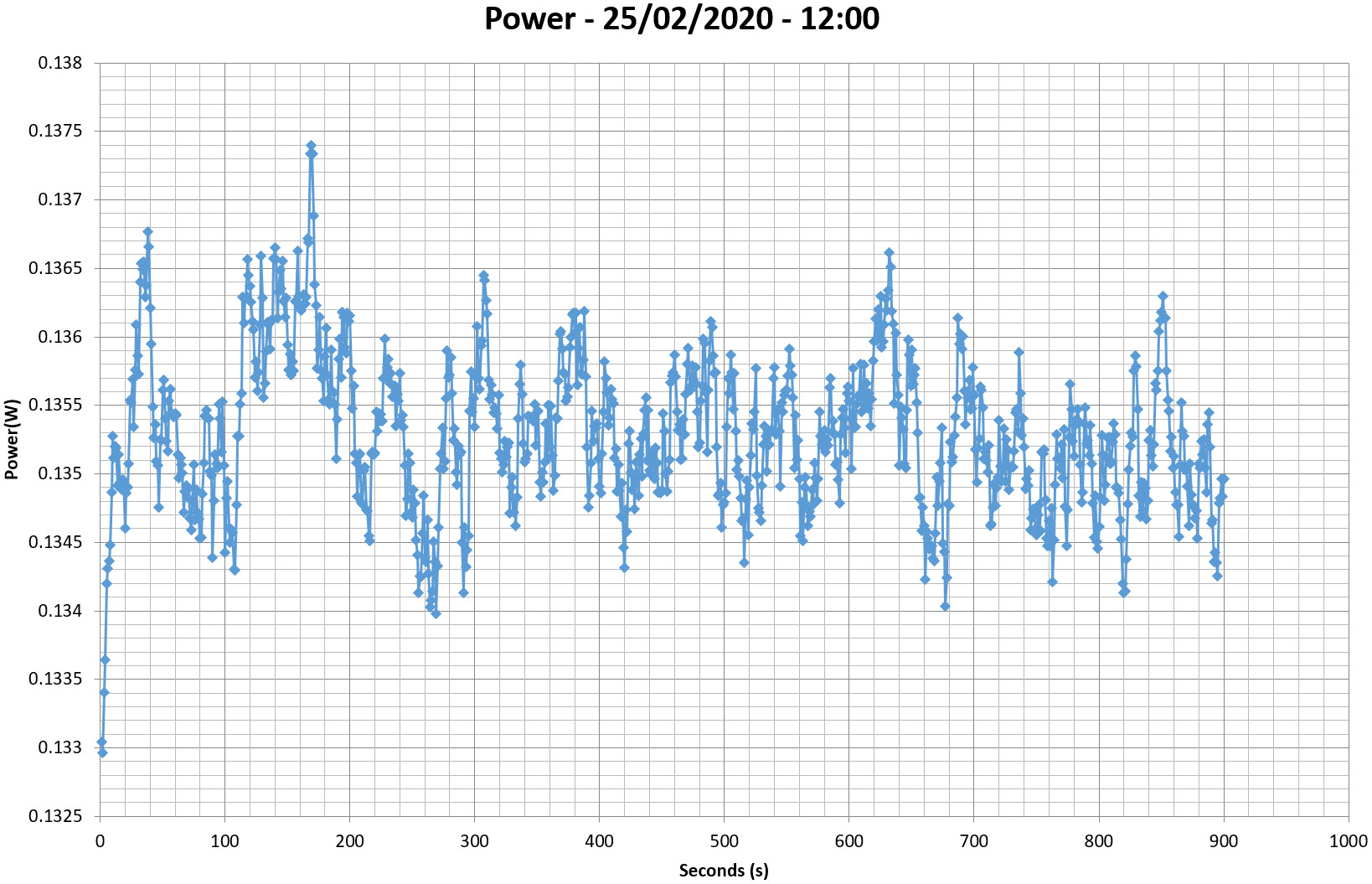

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

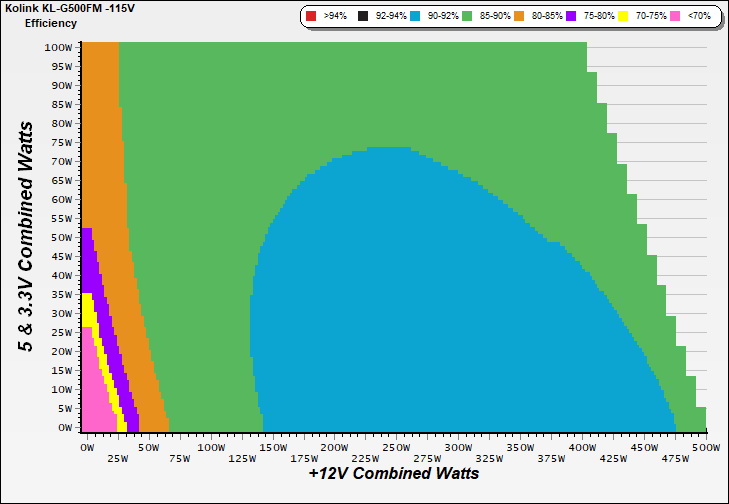

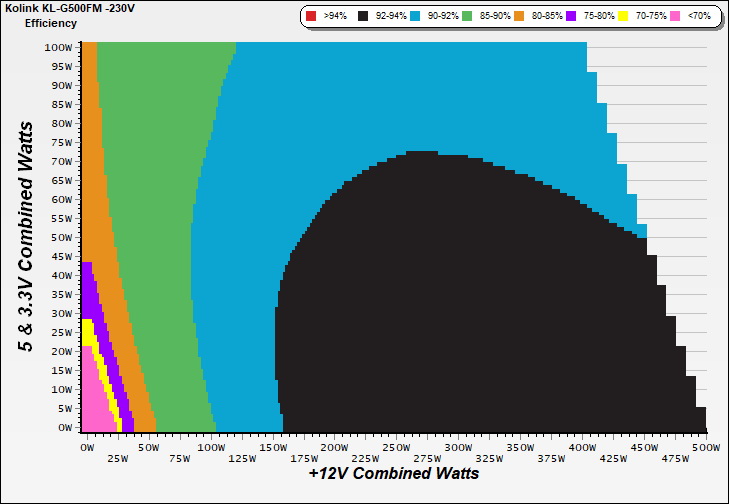

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

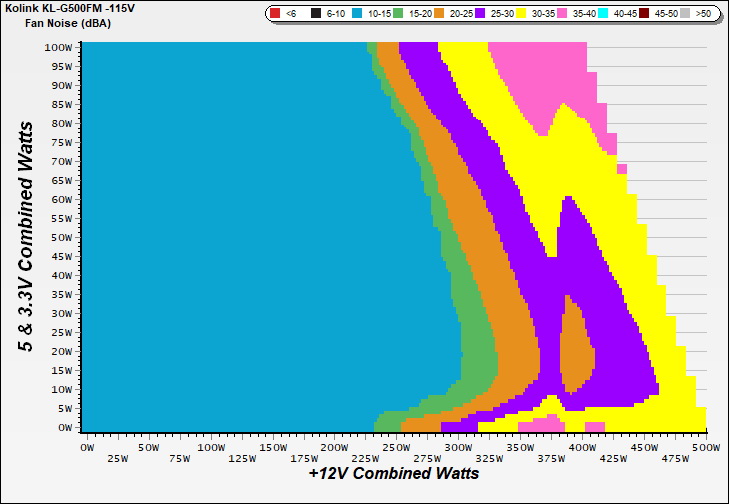

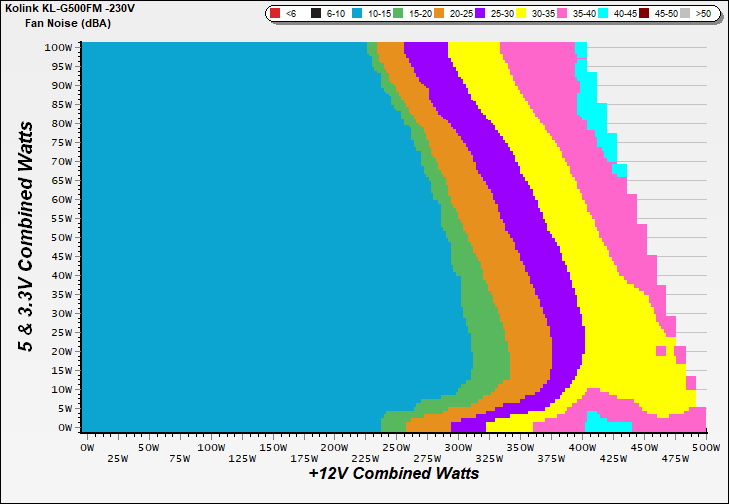

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

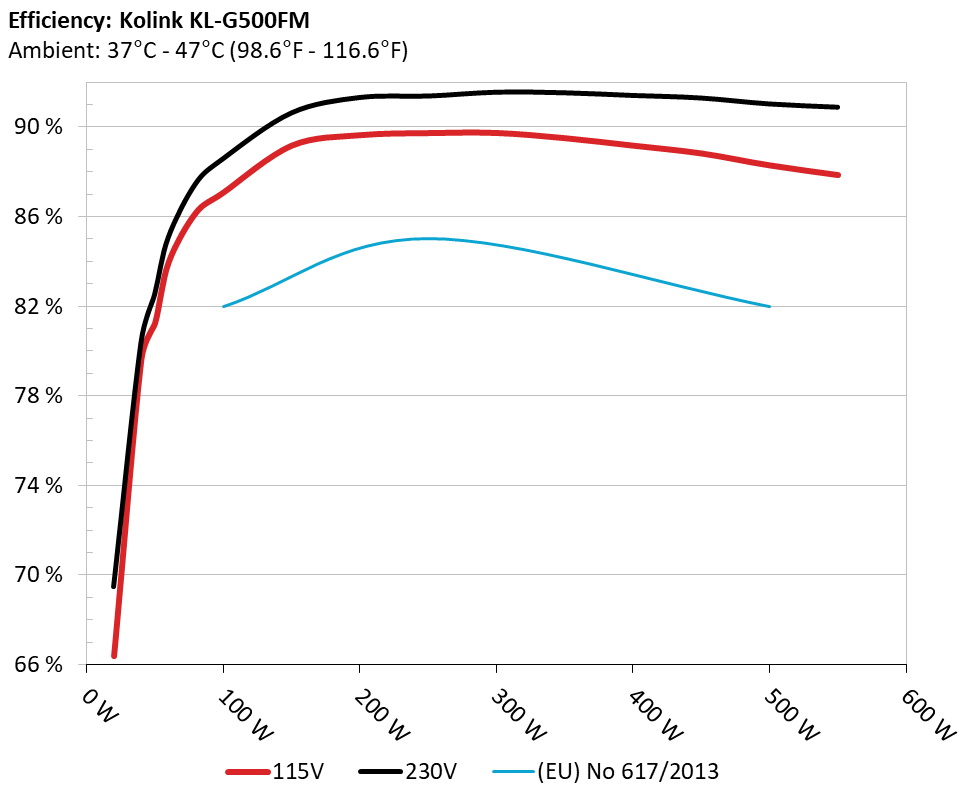

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

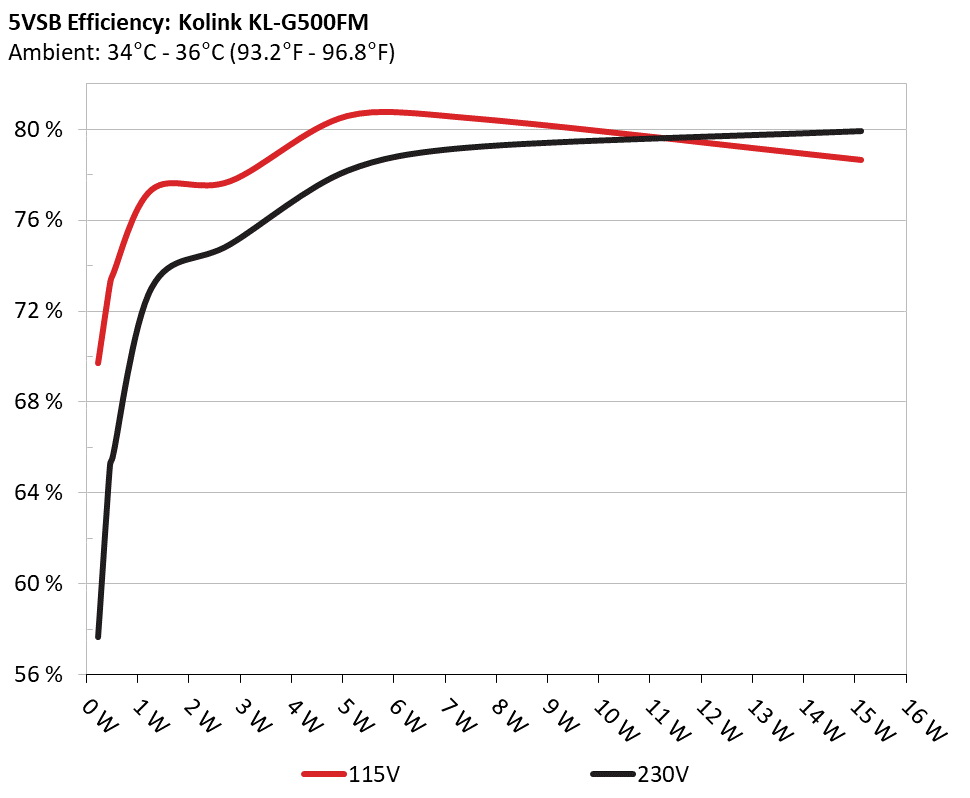

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.230	69.697%	0.043
1	5.119V	0.330	69.697%	115.14V
2	0.090A	0.461	73.175%	0.080
2	5.117V	0.630	73.175%	115.14V
3	0.550A	2.808	77.698%	0.312
3	5.105V	3.614	77.698%	115.14V
4	1.000A	5.094	80.563%	0.394
4	5.093V	6.323	80.563%	115.15V
5	1.500A	7.621	80.441%	0.441
5	5.079V	9.474	80.441%	115.15V
6	3.000A	15.117	78.632%	0.497
6	5.039V	19.225	78.632%	115.14V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.230	57.644%	0.016
1	5.118V	0.399	57.644%	230.33V
2	0.090A	0.461	65.205%	0.028
2	5.117V	0.707	65.205%	230.33V
3	0.550A	2.808	74.940%	0.134
3	5.105V	3.747	74.940%	230.36V
4	1.000A	5.094	78.177%	0.208
4	5.093V	6.516	78.177%	230.36V
5	1.500A	7.620	79.226%	0.268
5	5.079V	9.618	79.226%	230.35V
6	3.001A	15.117	79.921%	0.360
6	5.038V	18.915	79.921%	230.34V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	2.342A	1.993A	1.951A	0.984A	50.002	81.255%	773	14.8	40.10°C	0.952
1	12.124V	5.021V	3.382V	5.083V	61.537	81.255%	773	14.8	42.98°C	115.16V
2	5.706A	2.994A	2.936A	1.184A	100.027	87.087%	779	14.9	40.23°C	0.980
2	12.113V	5.011V	3.373V	5.070V	114.859	87.087%	779	14.9	43.97°C	115.16V
3	9.414A	3.498A	3.432A	1.384A	149.983	89.185%	784	15.1	41.07°C	0.987
3	12.103V	5.002V	3.365V	5.058V	168.170	89.185%	784	15.1	45.15°C	115.14V
4	13.133A	4.005A	3.933A	1.586A	200.024	89.652%	1446	33.1	41.74°C	0.985
4	12.093V	4.994V	3.357V	5.046V	223.111	89.652%	1446	33.1	46.55°C	115.13V
5	16.516A	5.018A	4.927A	1.789A	250.054	89.746%	1798	40.0	42.39°C	0.987
5	12.082V	4.984V	3.348V	5.032V	278.623	89.746%	1798	40.0	47.71°C	115.13V
6	19.898A	6.034A	5.931A	1.993A	300.007	89.751%	1808	40.0	42.43°C	0.990
6	12.071V	4.974V	3.339V	5.018V	334.266	89.751%	1808	40.0	48.53°C	115.13V
7	23.298A	7.054A	6.936A	2.199A	350.083	89.519%	1820	40.0	43.21°C	0.992
7	12.060V	4.963V	3.330V	5.004V	391.072	89.519%	1820	40.0	49.86°C	115.13V
8	26.702A	8.003A	7.950A	2.405A	399.748	89.187%	1823	40.0	43.70°C	0.993
8	12.048V	4.953V	3.321V	4.990V	448.215	89.187%	1823	40.0	50.82°C	115.12V
9	30.512A	8.598A	8.451A	2.409A	449.815	88.837%	1824	40.0	44.65°C	0.994
9	12.038V	4.944V	3.313V	4.983V	506.337	88.837%	1824	40.0	52.48°C	115.12V
10	34.099A	9.121A	8.989A	3.026A	499.832	88.303%	1832	39.9	45.35°C	0.995
10	12.027V	4.935V	3.305V	4.958V	566.040	88.303%	1832	39.9	53.39°C	115.12V
11	38.291A	9.134A	9.007A	3.030A	549.855	87.872%	1833	39.9	46.63°C	0.995
11	12.017V	4.927V	3.298V	4.952V	625.744	87.872%	1833	39.9	55.42°C	115.13V
CL1	0.117A	11.999A	12.000A	0.000A	101.443	82.277%	1811	40.0	42.30°C	0.985
CL1	12.099V	4.986V	3.350V	5.082V	123.295	82.277%	1811	40.0	47.29°C	115.16V
CL2	41.009A	1.001A	1.000A	1.000A	507.030	89.391%	1824	40.0	45.92°C	0.995
CL2	12.039V	4.959V	3.327V	5.032V	567.206	89.391%	1824	40.0	53.76°C	115.12V

The results above are not used in the certification process

est #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	2.342A	1.992A	1.952A	0.984A	49.996	82.543%	776	14.8	40.72°C	0.738
1	12.123V	5.021V	3.382V	5.083V	60.570	82.543%	776	14.8	44.32°C	230.29V
2	5.706A	2.994A	2.934A	1.184A	100.014	88.593%	782	15.0	40.85°C	0.857
2	12.112V	5.011V	3.373V	5.070V	112.892	88.593%	782	15.0	44.75°C	230.28V
3	9.414A	3.499A	3.432A	1.384A	149.970	90.634%	787	15.1	41.55°C	0.910
3	12.101V	5.002V	3.365V	5.058V	165.467	90.634%	787	15.1	45.89°C	230.30V
4	13.134A	4.005A	3.932A	1.586A	200.009	91.326%	1400	32.9	41.88°C	0.937
4	12.091V	4.994V	3.358V	5.045V	219.006	91.326%	1400	32.9	46.80°C	230.30V
5	16.517A	5.018A	4.928A	1.789A	250.042	91.391%	1806	40.0	42.19°C	0.952
5	12.080V	4.984V	3.349V	5.032V	273.595	91.391%	1806	40.0	47.63°C	230.31V
6	19.901A	6.034A	5.932A	1.993A	300.000	91.563%	1816	40.0	42.57°C	0.962
6	12.069V	4.973V	3.339V	5.018V	327.644	91.563%	1816	40.0	48.61°C	230.31V
7	23.300A	7.055A	6.938A	2.199A	350.073	91.535%	1824	40.0	43.20°C	0.968
7	12.058V	4.963V	3.330V	5.004V	382.448	91.535%	1824	40.0	49.81°C	230.32V
8	26.706A	8.001A	7.950A	2.405A	399.725	91.418%	1824	40.0	43.40°C	0.973
8	12.046V	4.953V	3.320V	4.990V	437.250	91.418%	1824	40.0	50.40°C	230.32V
9	30.516A	8.598A	8.451A	2.409A	449.801	91.304%	1834	39.9	45.30°C	0.977
9	12.036V	4.944V	3.313V	4.983V	492.641	91.304%	1834	39.9	52.82°C	230.32V
10	34.107A	9.120A	8.989A	3.026A	499.846	91.039%	1835	39.9	45.44°C	0.978
10	12.025V	4.935V	3.304V	4.958V	549.045	91.039%	1835	39.9	53.70°C	230.32V
11	38.300A	9.134A	9.007A	3.030A	549.878	90.894%	1841	39.9	46.59°C	0.980
11	12.015V	4.927V	3.297V	4.952V	604.963	90.894%	1841	39.9	55.35°C	230.33V
CL1	0.117A	12.000A	11.999A	0.000A	101.443	83.653%	1824	40.0	42.28°C	0.869
CL1	12.098V	4.986V	3.350V	5.081V	121.267	83.653%	1824	40.0	47.80°C	230.34V
CL2	41.013A	1.000A	0.999A	1.000A	507.025	92.103%	1833	39.9	45.40°C	0.978
CL2	12.038V	4.958V	3.326V	5.031V	550.495	92.103%	1833	39.9	53.64°C	230.34V

The results above are not used in the certification process

Light Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.224A	0.497A	0.487A	0.196A	19.991	66.371%	751	13.8	0.863
1	12.121V	5.032V	3.391V	5.112V	30.120	66.371%	751	13.8	115.16V
2	2.448A	0.994A	0.973A	0.392A	39.981	79.639%	758	14.1	0.939
2	12.128V	5.026V	3.386V	5.103V	50.203	79.639%	758	14.1	115.16V
3	3.675A	1.494A	1.464A	0.589A	60.010	83.979%	769	14.6	0.967
3	12.124V	5.021V	3.382V	5.094V	71.458	83.979%	769	14.6	115.16V
4	4.898A	1.994A	1.953A	0.787A	79.959	86.191%	772	14.8	0.981
4	12.119V	5.016V	3.378V	5.085V	92.770	86.191%	772	14.8	115.16V

The results above are not used in the certification process

Test #

12V

5V

3.3V

5VSB

DC/AC (Watts)

Efficiency

Fan Speed (RPM)

PSU Noise (dB[A])

PF/AC Volts

1

1.223A

0.496A

0.487A

0.196A

19.984

69.505%

744

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	20.50mV	4.00mV	12.60mV	6.40mV	Pass
20% Load	30.70mV	4.20mV	12.70mV	6.80mV	Pass
30% Load	41.30mV	4.40mV	12.40mV	6.40mV	Pass
40% Load	48.20mV	4.90mV	13.00mV	6.40mV	Pass
50% Load	50.20mV	5.20mV	15.10mV	7.10mV	Pass
60% Load	41.40mV	4.90mV	13.60mV	7.30mV	Pass
70% Load	37.50mV	5.10mV	13.70mV	7.50mV	Pass
80% Load	33.90mV	5.10mV	14.60mV	7.30mV	Pass
90% Load	33.60mV	6.00mV	17.00mV	8.10mV	Pass
100% Load	47.10mV	7.00mV	18.70mV	9.50mV	Pass
110% Load	48.80mV	7.30mV	18.90mV	9.70mV	Pass
Crossload1	39.00mV	5.90mV	17.50mV	7.40mV	Pass
Crossload2	45.30mV	6.10mV	14.30mV	8.70mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	27.10mV	4.20mV	11.50mV	6.90mV	Pass
20% Load	40.80mV	4.10mV	12.40mV	7.30mV	Pass
30% Load	50.60mV	5.00mV	12.70mV	6.90mV	Pass
40% Load	56.60mV	5.00mV	13.00mV	7.30mV	Pass
50% Load	58.60mV	4.90mV	13.10mV	7.00mV	Pass
60% Load	49.20mV	4.90mV	12.70mV	7.50mV	Pass
70% Load	42.30mV	5.40mV	13.00mV	7.70mV	Pass
80% Load	39.10mV	5.70mV	15.90mV	8.30mV	Pass
90% Load	36.80mV	6.30mV	17.90mV	8.60mV	Pass
100% Load	49.40mV	7.00mV	17.20mV	10.10mV	Pass
110% Load	50.70mV	7.30mV	18.00mV	10.20mV	Pass
Crossload1	46.70mV	6.20mV	18.30mV	7.80mV	Pass
Crossload2	47.20mV	6.40mV	14.50mV	8.90mV	Pass

The results above are not used in the certification process

Kolink Enclave 500W (#2)

Top side

Power specifications label

ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

www.cybenetics.com - info@cybenetics.com
