CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Corsair VS650
序号19439868000052723564
Lab IDCR65001683
Certification ID251683
  • Test Result Report ID: 20PS1683A
  • Certificate Issue Date: Jul 17, 2020
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

被测品资讯

品牌名称Corsair
制造商 (OEM)HEC
系列名称VS
型号RPS0102
序号19439868000052723564
被测品纪录CP-9020172

被测品规格

额定电压 (Vrms)100-240
额定电流 (Arms)10-5
额定频率 (Hz)47-63
额定功率 (W)650
类别ATX12V
Dimensions (W x H x D)
散热120mm Sleeve Bearing Fan
(D12SH-12)
半被动运转✗
线材设计Fixed cables

电源规范

组3.3V5V12V5VSB-12V
最大功率安培24205230.3
瓦130624153.6
最大总功率 (W)650

测试设备

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

线材与接头

Native Cables
描述 线材数量 总连接器数量 Gauge In Cable Caps
ATX 接头 20+4 pin (550mm) 1 1 18-20AWG 否
4+4 pin EPS 12V 接头 (610mm) 1 1 18AWG 否
6+2pin PCIe接头 (560mm+120mm) 1 2 18AWG 否
SATA接头 (460mm+120mm+120mm) 2 6 18AWG 否
SATA接头 (460mm) / 4-pin Molex (+120mm+120mm) / FDD (+150mm) 1 1 / 2 / 1 18-20AWG 否
模组化线材
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓

Performance Summary

效率等级BRONZE
噪音等级Standard++
平均效率 (>1450 load combinations)81.932%
Average Noise Output (>1450 Load Combinations)34.08dBA
PF平均值 (>1450 Load Combinations)0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load56.915%
待机功率耗损0.0462W
12V Ripple (Full Load)63.03mV
5V Ripple (Full Load)41.11mV
3.3V Ripple (Full Load)26.19mV
5VSB Ripple (Full Load)22.09mV
12V Load Regulation2.03%
5V Load Regulation1.55%
3.3V Load Regulation4.01%
5VSB Load Regulation3.88%
Inrush Current34.130A
效率等级BRONZE
噪音等级Standard++
平均效率 (>1450 load combinations)85.089%
Average Noise Output (>1450 Load Combinations)34.07dBA
PF平均值 (>1450 Load Combinations)0.968
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
待机功率耗损0.1066W
12V Ripple (Full Load)66.04mV
5V Ripple (Full Load)42.48mV
3.3V Ripple (Full Load)26.64mV
5VSB Ripple (Full Load)19.40mV
12V Load Regulation2.01%
5V Load Regulation1.71%
3.3V Load Regulation3.96%
5VSB Load Regulation3.80%
Inrush Current71.030A
保持时间 & PG信号14.10ms
AC Loss to PWR_OK Hold Up Time12.00ms
PWR_OK Inactive to DC Loss Delay2.10ms
PSU Timings: T1 (20% / 100%)52.0ms52.0ms
PSU Timings: T3 (20% / 100%)280.0ms280.0ms
OPP (0.00°C / 0.00°C)120.32%0.00%

保持时间 & PG信号

Hold-Up Time (ms)14.1
AC Loss to PWR_OK Hold Up Time (ms)12
PWR_OK Inactive to DC Loss Delay (ms)2.1

待机电源

Tables

Graphs

资讯

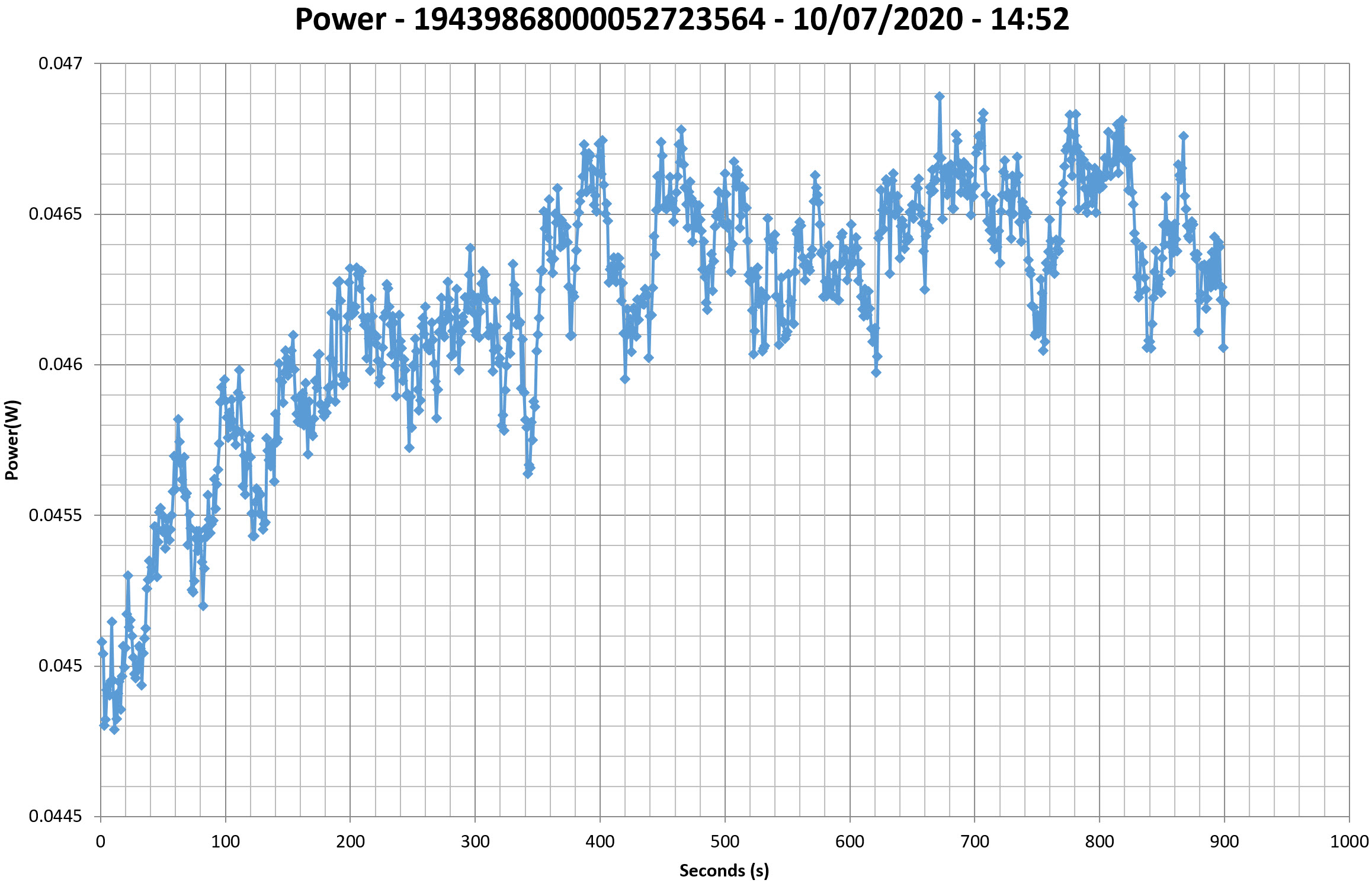

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

资讯

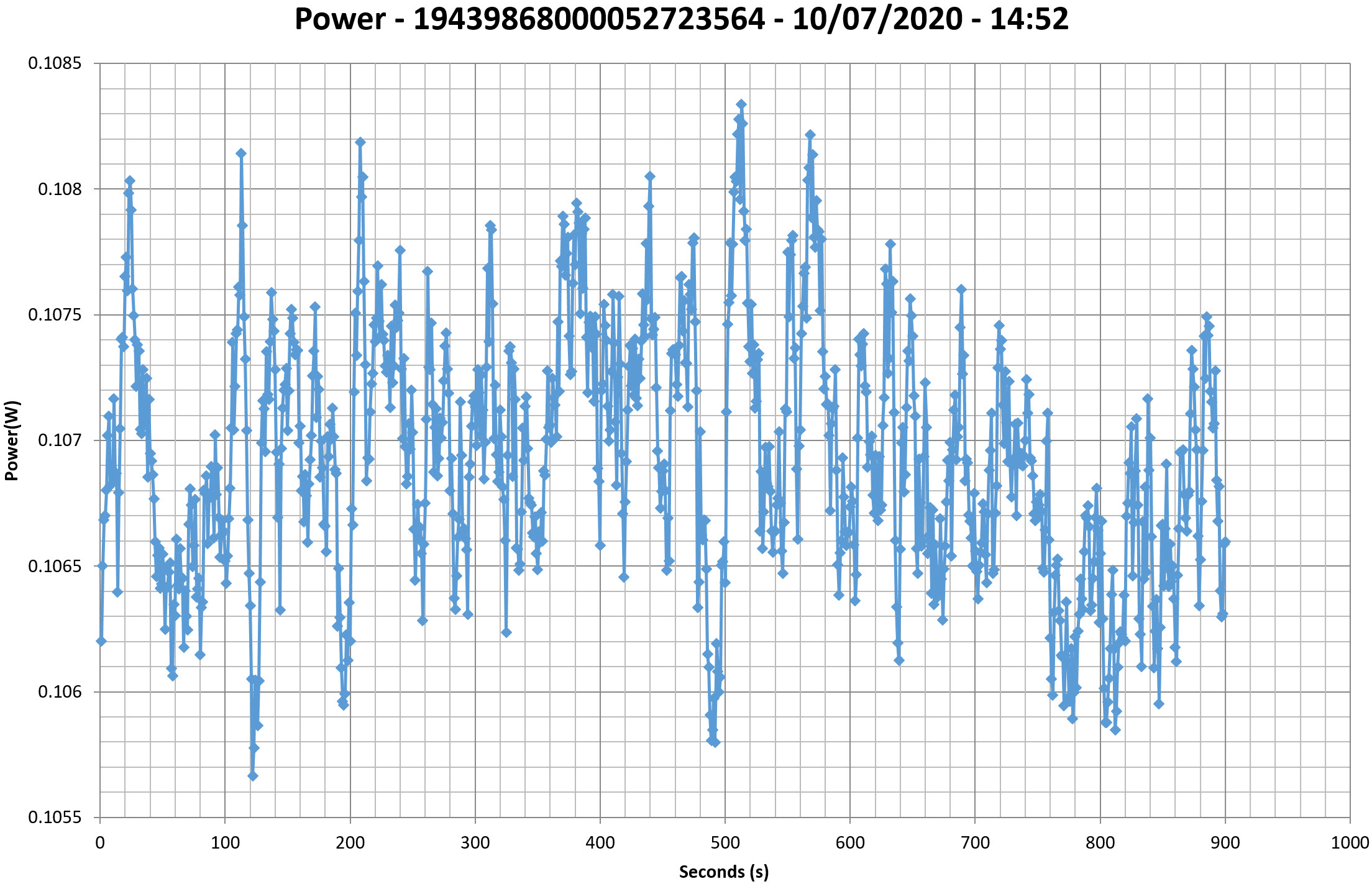

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

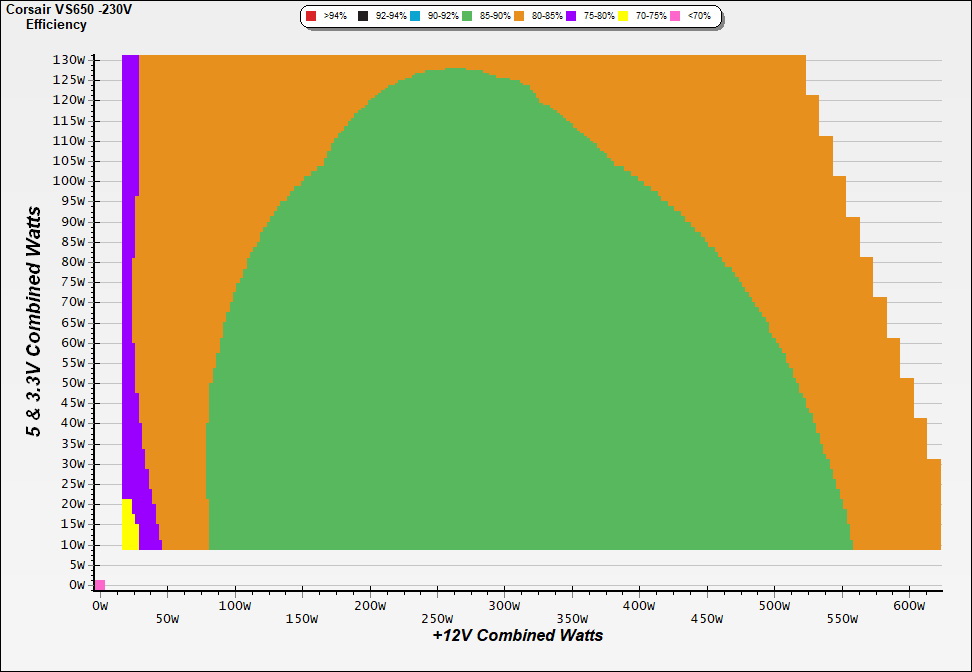

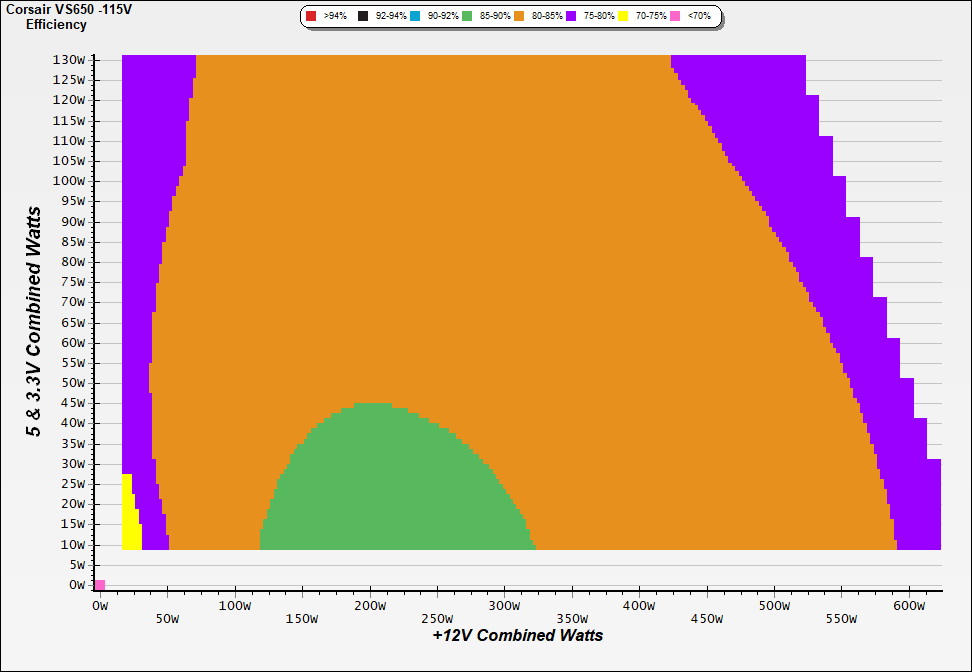

转换效率图表

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

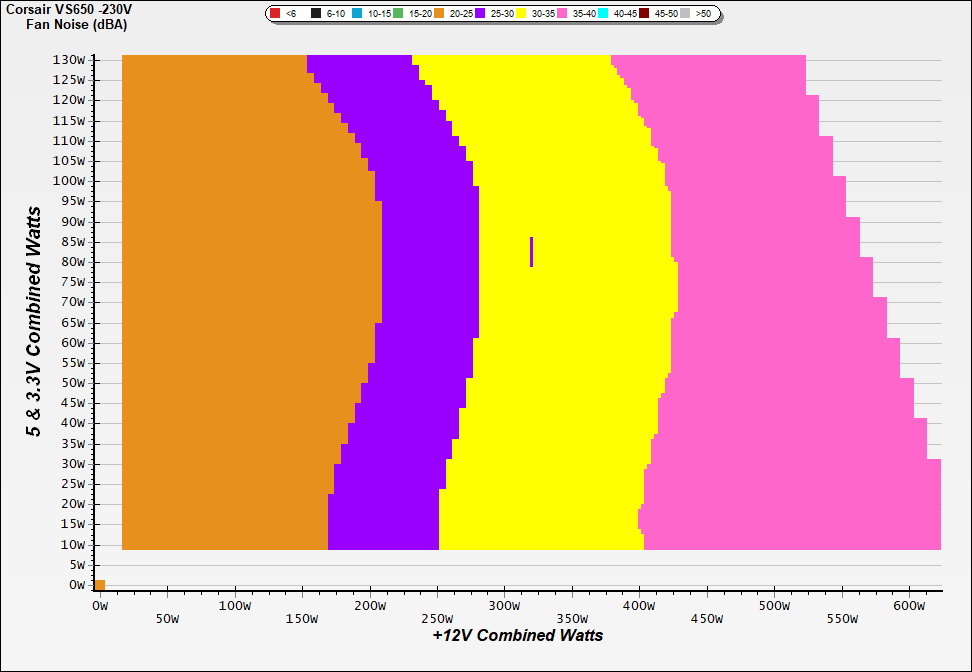

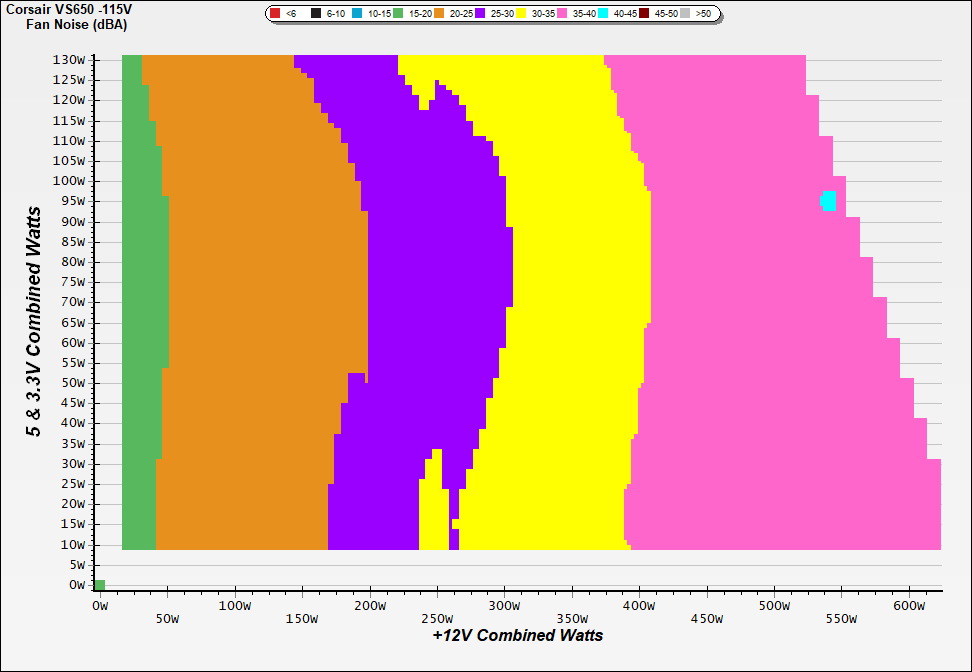

噪音值图表

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

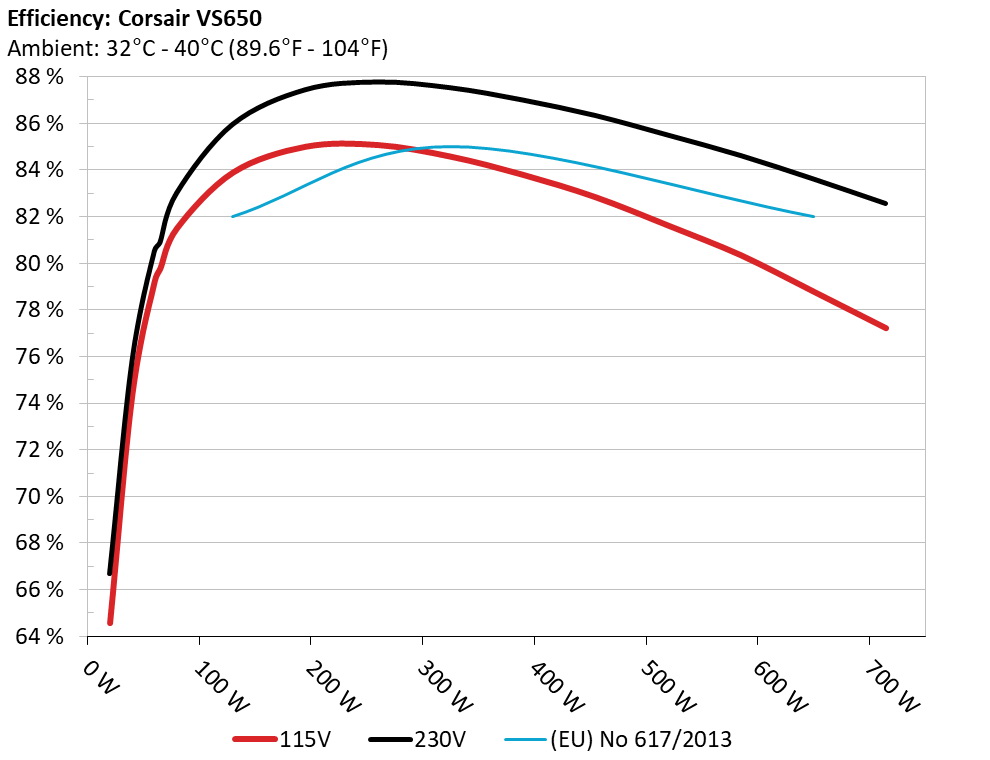

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

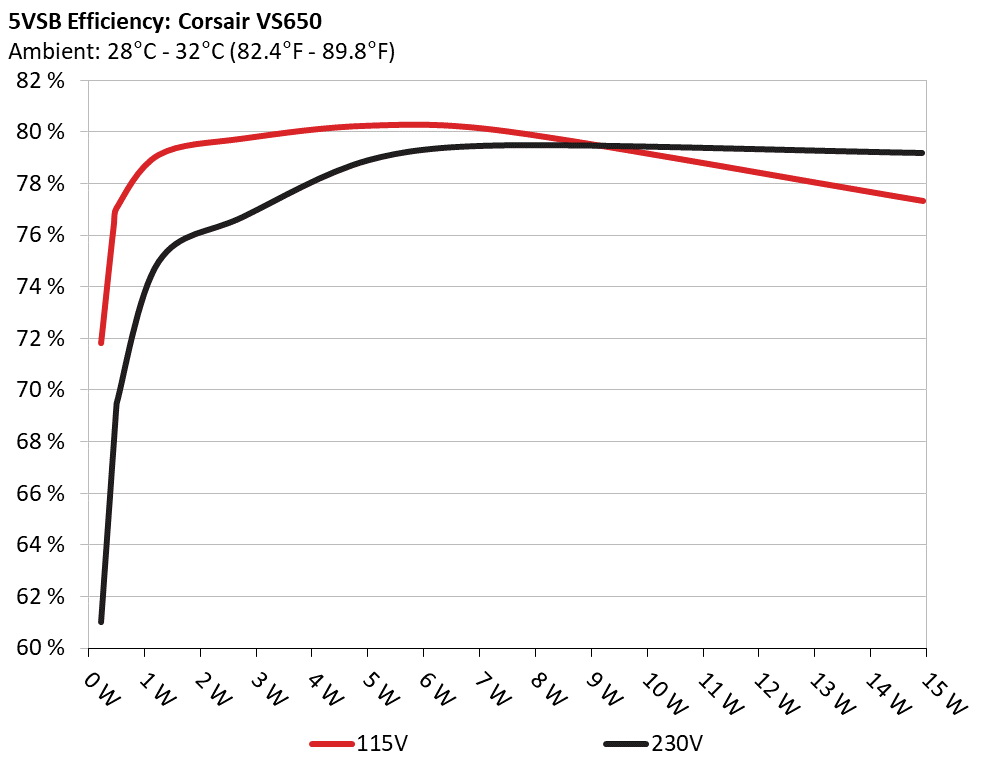

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.227 71.835% 0.037
5.037V 0.316 115.15V
2 0.090A 0.453 76.391% 0.067
5.037V 0.593 115.15V
3 0.550A 2.765 79.752% 0.278
5.027V 3.467 115.16V
4 1.000A 5.018 80.249% 0.360
5.018V 6.253 115.16V
5 1.500A 7.511 80.023% 0.406
5.008V 9.386 115.16V
6 2.999A 14.930 77.337% 0.469
4.978V 19.305 115.16V
测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.227 61.022% 0.013
5.036V 0.372 230.29V
2 0.090A 0.453 69.479% 0.023
5.036V 0.652 230.29V
3 0.550A 2.765 76.699% 0.118
5.028V 3.605 230.29V
4 1.000A 5.018 78.899% 0.187
5.018V 6.360 230.29V
5 1.500A 7.506 79.471% 0.244
5.004V 9.445 230.29V
6 2.999A 14.926 79.175% 0.338
4.977V 18.852 230.29V

Protection Features

Supplementary Tests (For Reference)

10-110%负载测试

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
1 3.536A 1.974A 1.967A 1.000A 64.955 79.782% 731 16.7 34.01°C 0.980
12.260V 5.068V 3.356V 4.998V 81.416 37.45°C 115.17V
2 8.099A 2.967A 2.964A 1.204A 130.009 83.905% 765 17.9 34.74°C 0.977
12.237V 5.056V 3.341V 4.982V 154.948 38.77°C 115.17V
3 13.017A 3.458A 3.468A 1.410A 195.003 85.015% 867 20.5 35.34°C 0.985
12.212V 5.058V 3.330V 4.965V 229.374 40.18°C 115.17V
4 17.962A 3.954A 3.978A 1.616A 259.999 85.087% 1024 24.4 35.62°C 0.990
12.181V 5.059V 3.318V 4.951V 305.567 41.24°C 115.16V
5 22.575A 4.954A 4.996A 1.825A 325.025 84.588% 1200 29.3 36.24°C 0.993
12.160V 5.047V 3.304V 4.933V 384.244 42.59°C 115.15V
6 27.150A 5.959A 6.019A 2.000A 389.133 83.815% 1352 33.3 36.66°C 0.995
12.136V 5.036V 3.290V 4.915V 464.278 43.63°C 115.15V
7 31.826A 6.970A 7.056A 2.246A 454.586 82.846% 1504 36.0 37.41°C 0.996
12.112V 5.022V 3.275V 4.897V 548.712 45.32°C 115.15V
8 36.544A 7.978A 8.098A 2.461A 519.917 81.621% 1692 39.4 37.71°C 0.996
12.082V 5.015V 3.258V 4.876V 636.993 46.44°C 115.14V
9 41.706A 8.470A 8.628A 2.469A 584.840 80.349% 1797 40.3 38.88°C 0.997
12.045V 5.017V 3.245V 4.860V 727.875 48.32°C 115.14V
10 46.622A 8.971A 9.193A 3.104A 649.667 78.794% 1926 42.7 39.28°C 0.997
12.011V 5.016V 3.230V 4.832V 824.514 50.21°C 115.13V
11 52.193A 8.955A 9.225A 3.113A 714.494 77.222% 1997 42.8 40.39°C 0.998
11.971V 5.025V 3.219V 4.818V 925.241 52.29°C 115.12V
CL1 0.096A 16.001A 15.999A 0.000A 125.968 75.173% 1445 34.3 35.95°C 0.980
12.691V 4.514V 3.289V 4.952V 167.571 42.26°C 115.17V
CL2 52.992A 1.000A 1.000A 1.000A 628.838 79.489% 1847 41.8 40.19°C 0.997
11.840V 5.233V 3.273V 4.908V 791.105 52.44°C 115.13V

The results above are not used in the certification process

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
1 3.536A 1.975A 1.967A 1.000A 64.955 80.883% 742 17.3 34.30°C 0.877
12.259V 5.068V 3.356V 4.997V 80.307 37.54°C 230.32V
2 8.099A 2.968A 2.963A 1.205A 130.013 85.964% 771 18.1 34.50°C 0.933
12.237V 5.055V 3.341V 4.981V 151.242 38.30°C 230.32V
3 13.017A 3.461A 3.469A 1.411A 195.012 87.452% 877 20.7 35.08°C 0.958
12.211V 5.058V 3.330V 4.964V 222.994 39.35°C 230.32V
4 17.963A 3.955A 3.978A 1.617A 260.014 87.785% 1051 24.8 35.78°C 0.965
12.181V 5.058V 3.318V 4.950V 296.193 40.96°C 230.32V
5 22.581A 4.955A 4.995A 1.825A 325.044 87.537% 1203 29.9 36.50°C 0.972
12.158V 5.047V 3.303V 4.931V 371.320 42.63°C 230.32V
6 27.160A 5.958A 6.021A 2.000A 389.183 87.018% 1350 32.4 36.80°C 0.978
12.134V 5.034V 3.289V 4.914V 447.245 43.52°C 230.32V
7 31.849A 6.969A 7.057A 2.248A 454.674 86.346% 1496 35.8 37.36°C 0.981
12.106V 5.024V 3.273V 4.893V 526.572 44.88°C 230.32V
8 36.559A 7.978A 8.103A 2.462A 519.986 85.500% 1652 38.1 37.61°C 0.984
12.079V 5.014V 3.257V 4.873V 608.171 45.71°C 230.32V
9 41.714A 8.475A 8.628A 2.470A 584.906 84.627% 1788 40.2 38.65°C 0.985
12.044V 5.015V 3.245V 4.859V 691.159 47.71°C 230.33V
10 46.622A 8.974A 9.195A 3.105A 649.721 83.622% 1921 42.6 39.86°C 0.987
12.012V 5.015V 3.229V 4.832V 776.970 49.86°C 230.32V
11 52.192A 8.952A 9.230A 3.114A 714.531 82.569% 2004 42.8 40.84°C 0.988
11.972V 5.026V 3.217V 4.818V 865.374 51.71°C 230.32V
CL1 0.099A 16.001A 15.998A 0.000A 126.135 76.767% 1660 38.1 36.18°C 0.940
12.688V 4.516V 3.289V 4.951V 164.308 41.99°C 230.33V
CL2 51.996A 1.000A 1.000A 1.000A 628.941 84.095% 1865 42.5 39.93°C 0.986
11.838V 5.235V 3.272V 4.906V 747.897 49.82°C 230.31V

The results above are not used in the certification process

20-80瓦负载测试

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) PF/AC 电压
1 1.210A 0.489A 0.490A 0.199A 19.984 64.556% 689 15.7 0.929
12.261V 5.105V 3.370V 5.027V 30.956 115.17V
2 2.421A 0.981A 0.980A 0.399A 39.974 74.392% 706 16.4 0.966
12.258V 5.094V 3.365V 5.019V 53.734 115.17V
3 3.635A 1.476A 1.473A 0.599A 60.006 79.247% 716 16.4 0.973
12.257V 5.083V 3.359V 5.010V 75.720 115.18V
4 4.844A 1.971A 1.967A 0.800A 79.956 81.515% 730 16.6 0.985
12.254V 5.073V 3.354V 5.001V 98.087 115.18V

The results above are not used in the certification process

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) PF/AC 电压
1 1.210A 0.490A 0.489A 0.199A 19.982 66.678% 710 16.4 0.644
12.259V 5.106V 3.370V 5.025V 29.968 230.31V
2 2.421A 0.982A 0.979A 0.399A 39.972 75.789% 711 16.4 0.793
12.257V 5.094V 3.365V 5.017V 52.741 230.32V
3 3.636A 1.474A 1.473A 0.599A 60.004 80.523% 722 16.5 0.863
12.256V 5.084V 3.359V 5.008V 74.518 230.32V
4 4.844A 1.971A 1.968A 0.800A 79.955 83.020% 735 17.0 0.900
12.253V 5.074V 3.354V 5.000V 96.308 230.32V

The results above are not used in the certification process

纹波测量

Test12V5V3.3V5VSBPass/Fail
10% Load9.50mV12.50mV12.80mV11.60mVPass
20% Load11.00mV13.10mV14.00mV13.20mVPass
30% Load12.10mV12.20mV13.90mV12.20mVPass
40% Load14.70mV11.90mV14.00mV13.30mVPass
50% Load17.00mV14.80mV14.90mV12.90mVPass
60% Load20.90mV17.50mV16.50mV13.10mVPass
70% Load25.70mV21.50mV17.70mV16.40mVPass
80% Load30.50mV23.60mV21.50mV17.40mVPass
90% Load38.90mV28.60mV23.40mV18.10mVPass
100% Load63.00mV41.10mV26.20mV22.10mVPass
110% Load75.70mV45.20mV26.90mV24.30mVPass
Crossload126.90mV50.20mV25.80mV11.90mVFail
Crossload270.30mV41.30mV22.70mV22.50mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.60mV11.90mV12.90mV10.40mVPass
20% Load13.10mV14.30mV14.00mV12.30mVPass
30% Load14.00mV12.10mV13.90mV10.30mVPass
40% Load15.80mV12.30mV14.40mV12.00mVPass
50% Load18.50mV14.40mV15.30mV12.40mVPass
60% Load22.40mV17.10mV16.60mV13.10mVPass
70% Load24.40mV20.10mV17.80mV14.70mVPass
80% Load28.90mV23.10mV21.60mV14.10mVPass
90% Load36.30mV27.50mV22.70mV15.30mVPass
100% Load66.00mV42.50mV26.60mV19.40mVPass
110% Load78.20mV46.90mV26.90mV20.30mVPass
Crossload128.00mV52.80mV25.50mV11.90mVFail
Crossload269.50mV42.60mV23.20mV20.70mVPass

The results above are not used in the certification process

Corsair VS650

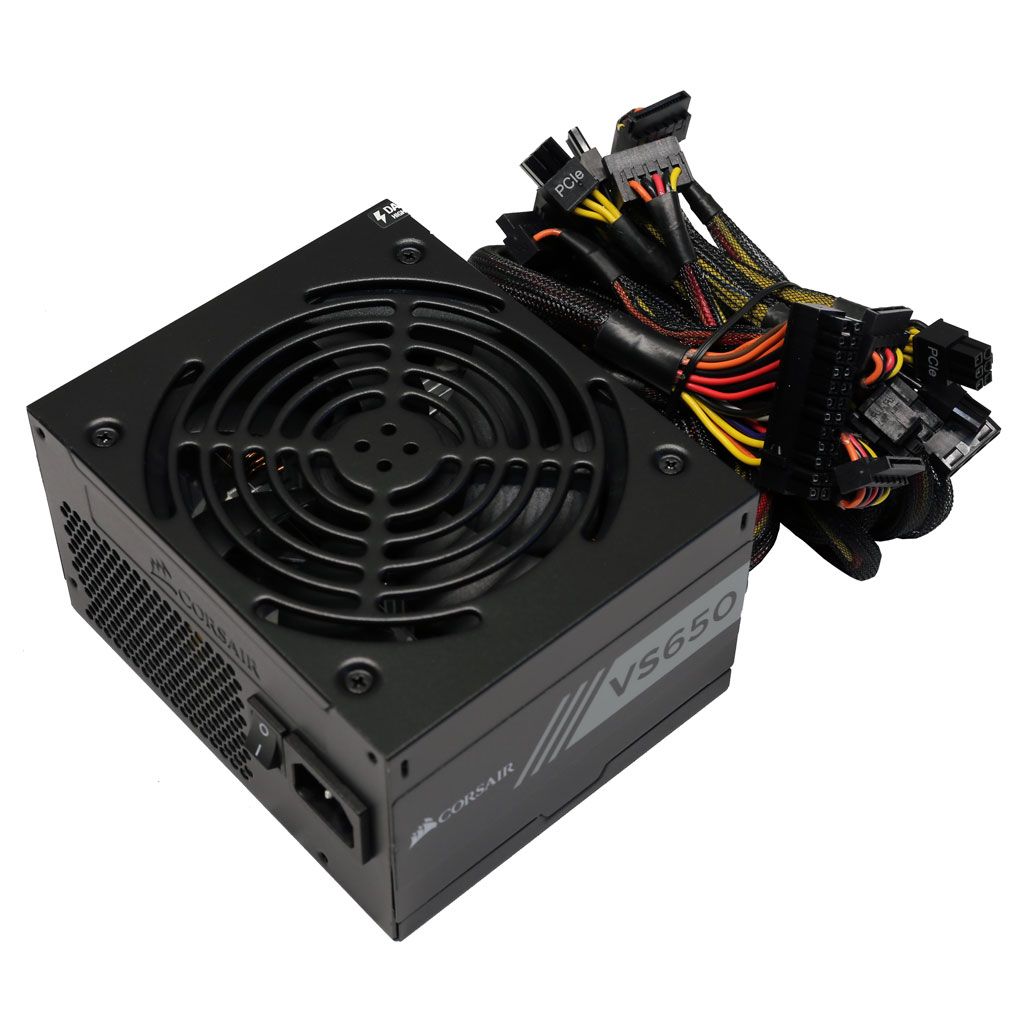

Top side

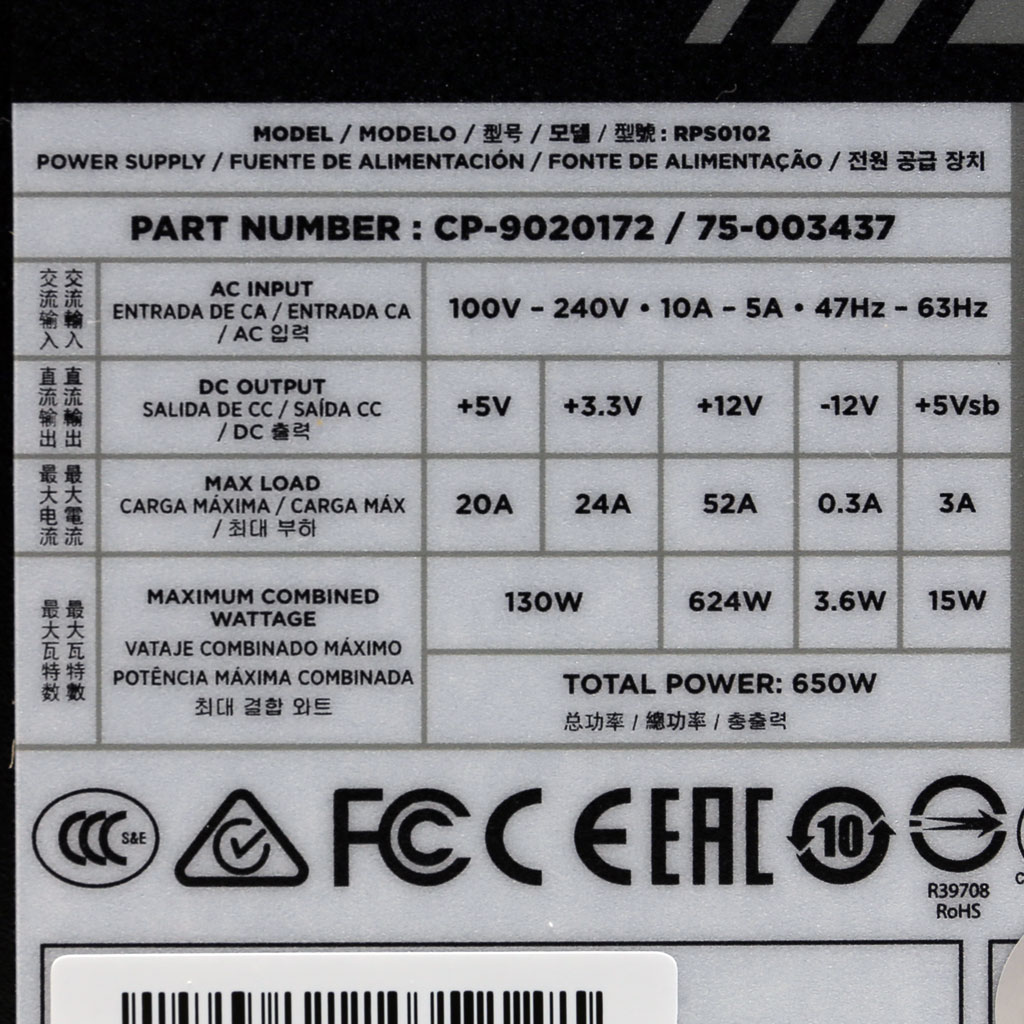

Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
